T70-USA Rx Description 01 07.10.02 erstellt A.Görnitz Index Datum Aktivität bearbeitet /Name Signum Benennung T70-USA Rx Blatt 130 Name Datum Unterschrift Nr. 011 1 001 5111 00 freigegeben: B.Heinrich digades GmbH Äußere Weberstraße 20 02763 Zittau Tel: 03583/5775-0 Fax: 5775-45 Internet: www.digades.com E-Mail: [email protected] Index 01 Seite 1 von 2 Dokument/Datei: Description T70-USA Rx.doc The receiver T70-USA Rx is part of the system “Telestart T70-USA”. This system works with radio frequencies, was designed for remote control of heating units for cars and consist of an hand-held transmitter T70-USA Tx and the receiver T70-USA Rx. Components: The receiver consists essentially of: - RF-part o RF-receiver-IC, quarz stabilized PLL, VCO= 905,8MHz, IF=10,7MHz o front end filter, low noise amplifier o coaxial jack for connection of an antenna - Microcontroller with peripherals o voltage monitoring o output for switching the heating unit, o heating, ventilation shift output o watch controlled input, o 1-wire-bus - Power supply - protection circuit - shielding - 6 pole connector - plastic housing polyamide Main parameters of receiver T70-USA Rx - receiving frequence: 916,5MHz - IIP3: better –30dBm - demodulation: 2FSK, deviation=±20KHz - data rate: 4800Baud - protection of RF-telegram: CRC (cyclic redundancy check), FEC (forward error correction) - iIdentification: yes, three transmitters can be programed simultaneously - commands: heating, ventilation, automatic on or off; operating time 10,20,30,40,50,60 min - sensitivity on coaxial jack for Z=50 Ohm: better –106dBm, - temperature range: –40°C...+85°C - operting voltage: 12V nominal., 10,5...16V (min/max cont.) DC - average current consumption: <1mA - under voltage switch off: <7,5V DC operating voltage Functional description: The HF receiver is switched on by the microcontroller cyclically and guarantees the average current consumption with that. In this turn-on phase the microcontroller evaluates one to the RF input power proportional electrical signal and then decides on a possible date reception. If this voltage exceeds a reference value, then the telegram expected in the RF-channel is read and evaluated. Blatt: 130 Dok.Nr.: 011 1 001 5111 00 Index: 01 Seite 2 von 2 The received telegram leads to a switching command then if: - the RF transmission was fault-free and - the given identification in the RF telegram of the transmitter corresponds with one of three identifications stored in the receiver. Besides the identification the operating mode and operating time will be submitted. If these criteria are fulfilled, then the receiver will initiate the corresponding switching procedure at his periphery (e.g. heating, 30 min). After completion of the operating time the microcontroller turns the periphery off automatically (e.g. ventilation on inactive).

F C C - ID : Q N F T 7 0 - U S A- R X T e s t R e p o r t # E M C C - 9 3 1 5 1 4 . 1 Y B P a g e 2 o f 1 1 I s s u e D a t e : 2 0 0 2 - 1 0 - 2 9 TEST OF DIGADES GMBH MODEL T70-USA RX TO 47 CFR PART 15B - UNINTENTIONAL RADIATORS t 7 0 u s a _ r x . s d w CONTENTS Page 1 GENERAL INFORMATION .............................................................................................................................................................. 3 1.1 Purpose............................................................................................................................................................................. 3 1.2 Limits and Reservations.................................................................................................................................................. 3 1.3 Test Location.................................................................................................................................................................... 3 1.4 Manufacturer .................................................................................................................................................................... 3 1.5 Dates ................................................................................................................................................................................. 3 2 Product Description........................................................................................................................................................................ 4 2.1 Equipment Under Test (EUT) .......................................................................................................................................... 4 2.2 EUT Peripherals ............................................................................................................................................................... 4 2.3 Mode of Operation During Testing ................................................................................................................................. 4 2.4 Modifications Required for Compliance ........................................................................................................................ 4 3 Test Results Summary ................................................................................................................................................................... 5 4 Conducted Emissions Tests .......................................................................................................................................................... 6 4.1 Regulation......................................................................................................................................................................... 6 4.2 Test Equipment ................................................................................................................................................................ 6 4.3 Test Procedures............................................................................................................................................................... 6 4.4 Test Results...................................................................................................................................................................... 6 5 Radiated Emissions ........................................................................................................................................................................ 7 5.1 Regulation......................................................................................................................................................................... 7 5.2 Test Equipment ................................................................................................................................................................ 8 5.3 Test Procedures............................................................................................................................................................... 9 5.4 Field Strength Calculation............................................................................................................................................... 9 5.5 Test Results.................................................................................................................................................................... 10 6 Miscellaneous Comments and Notes.......................................................................................................................................... 11 7 List of ANNEXES ........................................................................................................................................................................... 11 F C C - ID : Q N F T 7 0 - U S A- R X T e s t R e p o r t # E M C C - 9 3 1 5 1 4 . 1 Y B P a g e 3 o f 1 1 I s s u e D a t e : 2 0 0 2 - 1 0 - 2 9 TEST OF DIGADES GMBH MODEL T70-USA RX TO 47 CFR PART 15B - UNINTENTIONAL RADIATORS t 7 0 u s a _ r x . s d w 1 GENERAL INFORMATION 1.1 Purpose The purpose of this report is to show compliance to the FCC regulations for unintentional radiators operating under section 15.101 ff. of the Code of Federal Regulations title 47. 1.2 Limits and Reservations The test results in this report apply only to the particular Equipment Under Test (EUT) as declared in this report. This test report shall not be reproduced except in full without the written permission of EMCC DR. RAŠEK. 1.3 Test Location Company Name: EMCC DR. RAŠEK Street: Moggast 72-74 City: 91320 Ebermannstadt Country: Germany Laboratory: Test Laboratory of EMCC DR. RAŠEK FCC Registration Number: 90566 This site has been fully described in a report submitted to the FCC, and accepted in the letter dated February 09, 2000 Registration Number 90566. Phone: +49-9194-9016 Fax: +49-9194-8125 E-Mail: [email protected] Web: www.emcc.de 1.4 Manufacturer Company Nam…

Text truncated - open the document above for the full version.

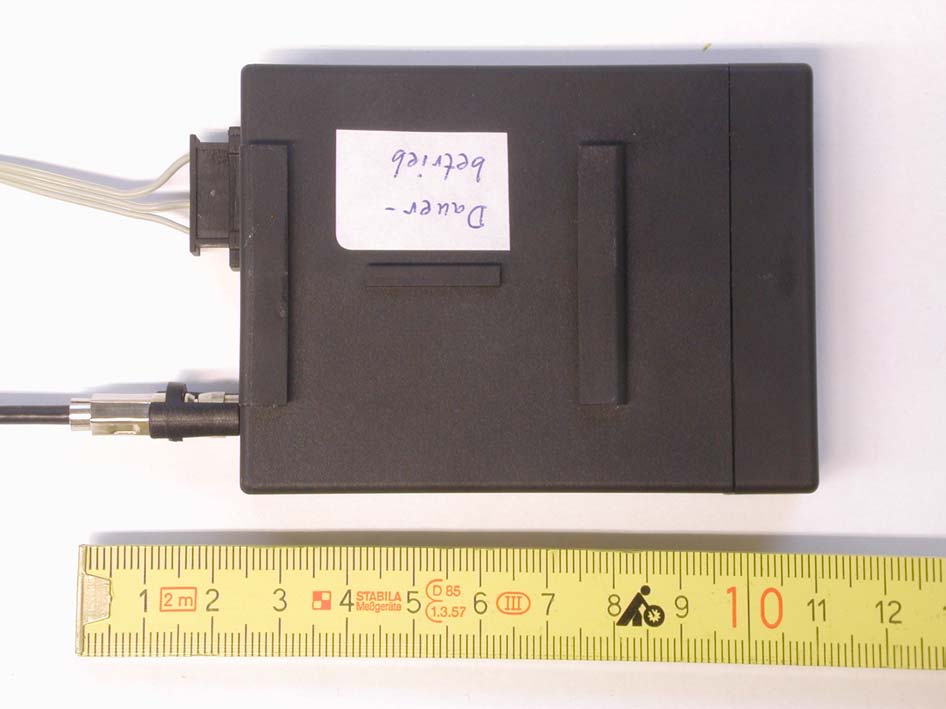

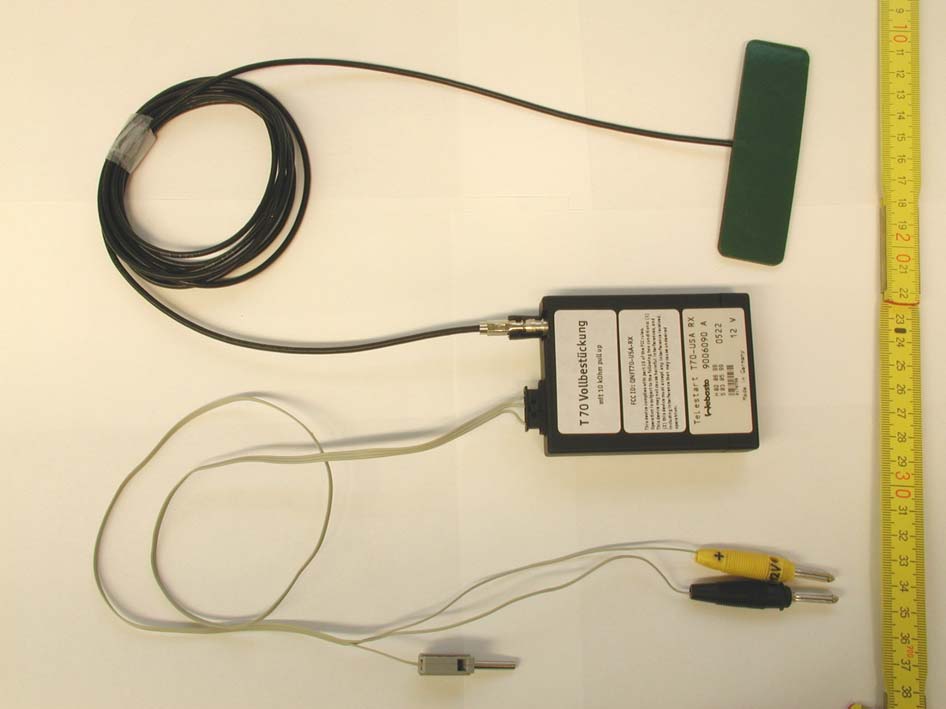

F C C - ID : Q N F T 7 0 - U S A- R X R A D I O L A B O R A T O R I E S E M C L A B O R A T O R I E S T T I - P - G 0 9 4 / 9 4 T T I - P - G 0 7 4 / 9 5 EMCC DR. RAŠEK Moggast 72-74 91320 Ebermannstadt Germany FCC Registration # 90566 t70usa_rx_an.sdw Telephone: +49-9194-9016 Telefax: +49-9194-8125 Mail: [email protected] Web: http://www.emcc.de Page 1 of 3 ANNEX 1 TO TEST REPORT # EMCC-931514.1YB, 2002-10-29 PHOTOGRAPHS OF TEST SETUPS EQUIPMENT UNDER TEST: Trade Name: T70-USA Rx Model: T70-USA Rx Serial No: 0178798 Equipment Category: Receiver Manufacturer: Digades GmbH Address: Äußere Weberstraße 20 02763 Zittau Germany Phone: +49-3583-5775-121 Fax: +49-3583-5775-222 RELEVANT STANDARD: 47 CFR Part 15B - Unintentional Radiators CONTENTS Page 1 CONDUCTED EMISSIONS TEST ....................................................................................................................... 2 1.1 Photograph: none..................................................................................................................................... 2 2 RADIATED EMISSIONS TEST............................................................................................................................ 3 2.1 Photograph: Radiated emissions test setup............................................................................................. 3 F C C - ID : Q N F T 7 0 - U S A- R X A n n e x 1 t o T e s t R e p o r t # E M C C - 9 3 1 5 1 4 . 1 Y B P a g e 2 o f 3 I s s u e D a t e : 2 0 0 2 - 1 0 - 2 9 TEST OF DIGADES GMBH MODEL T70-USA RX TO 47 CFR PART 15B - UNINTENTIONAL RADIATORS t 7 0 u s a _ r x _ a n . s d w 1 CONDUCTED EMISSIONS TEST 1.1 Photograph: none not applicable F C C - ID : Q N F T 7 0 - U S A- R X A n n e x 1 t o T e s t R e p o r t # E M C C - 9 3 1 5 1 4 . 1 Y B P a g e 3 o f 3 I s s u e D a t e : 2 0 0 2 - 1 0 - 2 9 TEST OF DIGADES GMBH MODEL T70-USA RX TO 47 CFR PART 15B - UNINTENTIONAL RADIATORS t 7 0 u s a _ r x _ a n . s d w 2 RADIATED EMISSIONS TEST 2.1 Photograph: Radiated emissions test setup
