QNFT70-USA-TXT70-USA TX
digades GmbH

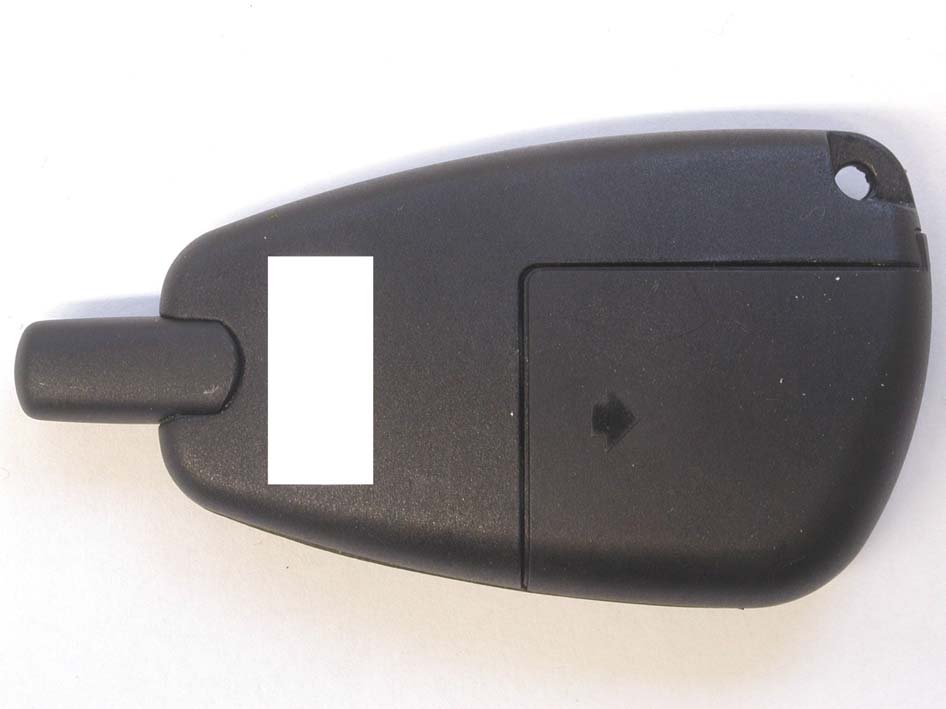

Click to zoom
Application Details
- Equipment Class
- DXX - Part 15 Low Power Communication Device Transmitter
- Date of Grant
- Nov 10, 2002
- Application Purpose
- Original Equipment
- Date of Application
- Nov 10, 2002
- Equipment Note
- T70-USA TX
- Frequency Range
- 916.50000000 - 916.50000000
- Company
- digades GmbH
- Country
- Germany
Documents & Files
Document Text
Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.
Operational Description
T70-USA Tx Description 01 01.10.02 erstellt H.Anders Index Datum Aktivität bearbeitet /Name Signum Benennung T70-USA Tx Blatt 130 Name Datum Unterschrift Nr. 011 1 001 7611 00 freigegeben: B.Heinrich digades GmbH Äußere Weberstraße 20 02763 Zittau Tel: 03583/5775-0 Fax: 5775-45 Internet: www.digades.com E-Mail: [email protected] Index 01 Seite 1 von 1 Dokument/Datei: Describtion T70-USA Tx.doc The T70-USA Tx is a part of the system “Telestart T70”. This system works by radio frequencies and is designed for remote controll parking heater systems. It consists of transmitter and receiver. Both parts work at 916,5MHz. A uniquely ID is used for identification. The T70-Tx is the transmitter in the system. It has two buttons. If the left Button is pressed an ON telegram is transmitted to the receiver. If the right button is pressed an OFF telegram is transmitted. The modulation is FSK with a deviation of ±20KHz. The data rate is 4800Bit/s (Miller Code). The transmitter automaticly goes in the OFF state after the telegram, also if the button is pressed longer. During transmitting the telegram a LED is lighted up. By pressing both buttons the index of the telegrams can be changed. One index starts the heating system of the car in winter and at hot temperature in summer the other index starts the ventilation. Two batteries works as power supply. They are 12V types and are connected parallel, decoupled with two diodes. The voltage of the battery is regulated at 4.0V. All internal parts works at this voltage. Two states of battery warnings are integrated. 1. The LED is blinking (orange color) for about 5s if the battery voltage is going below 5V at the end of the telegramm. 2. The transmitter is going to the OFF state and the LED is lighted up (orange color) for about 5s if the battery voltage is going below 5V at at the middle of the telegramm. The length of the telegram is about 200ms. To activate the transmitter one button has to be pressed more then 1 s. Technical Parameter: Centre Frequency 916.50MHz Radiated Power -5dBm Modulation FSK Deviation ±20KHz Current Consumption 45mA Power Supply 2x12V Battery Operating Temperature 0°C ... +50°C
Test Report
F C C - ID : Q N F T 7 0 - U S A- T X T e s t R e p o r t # E M C C - 9 3 1 5 1 4 . 1 Y A P a g e 2 o f 1 4 I s s u e D a t e : 2 0 0 2 - 1 0 - 2 9 TEST OF DIGADES GMBH MODEL T70-USA TX TO 47 CFR PART 15C - INTENTIONAL RADIATORS t 7 0 u s a _ t x . s d w CONTENTS Page 1 GENERAL INFORMATION .............................................................................................................................................................. 3 1.1 Purpose............................................................................................................................................................................. 3 1.2 Limits and Reservations.................................................................................................................................................. 3 1.3 Test Location.................................................................................................................................................................... 3 1.4 Manufacturer .................................................................................................................................................................... 3 1.5 Dates ................................................................................................................................................................................. 3 2 Product Description........................................................................................................................................................................ 4 2.1 Equipment Under Test (EUT) .......................................................................................................................................... 4 2.2 EUT Peripherals ............................................................................................................................................................... 4 2.3 Mode of Operation During Testing ................................................................................................................................. 4 2.4 Modifications Required for Compliance ........................................................................................................................ 4 3 Test Results Summary ................................................................................................................................................................... 5 4 Antenna Requirement ..................................................................................................................................................................... 6 4.1 Regulation......................................................................................................................................................................... 6 4.2 Result ................................................................................................................................................................................ 6 5 Conducted Emissions Test ............................................................................................................................................................ 7 5.1 Regulation......................................................................................................................................................................... 7 5.2 Test Equipment ................................................................................................................................................................ 7 5.3 Test Procedures............................................................................................................................................................... 7 5.4 Test Results...................................................................................................................................................................... 7 6 Radiated Emissions Test................................................................................................................................................................ 8 6.1 Regulation......................................................................................................................................................................... 8 6.2 Test Equipment .............................................................................................................................................................. 10 6.3 Test Procedures............................................................................................................................................................. 10 6.4 Calculation of Field Strength Limits ............................................................................................................................. 11 6.5 Calculation of Average Correction Factor ................................................................................................................... 11 6.6 Field Strength Calculation............................................................................................................................................. 12 6.7 Test Results.................................................................................................................................................................... 13 7 Miscellaneous Comments and Notes.......................................................................................................................................... 14 8 List of ANNEXES ........................................................................................................................................................................... 14 F C C - ID : Q N F T 7 0 - U S A- T X T e s t R e p o r t # E M C C - 9 3 1 5 1 4 . 1 Y A P a g e 3 o f 1 4 I s s u e D a t e : 2 0 0 2 - 1 0 - 2 9 TEST OF DIGADES GMBH MODEL T70-USA TX TO 47 CFR PART 15C - INTENTIONAL RADIATORS t 7 0 u s a _ t x . s d w 1 GENERAL INFORMATIO…
Text truncated - open the document above for the full version.
Test Report
F C C - ID : Q N F T 7 0 - U S A- T X R A D I O L A B O R A T O R I E S E M C L A B O R A T O R I E S T T I - P - G 0 9 4 / 9 4 T T I - P - G 0 7 4 / 9 5 EMCC DR. RAŠEK Moggast 72-74 91320 Ebermannstadt Germany FCC Registration # 90566 t70usa_tx_an2.sdw Telephone: +49-9194-9016 Telefax: +49-9194-8125 Mail: [email protected] Web: http://www.emcc.de Page 1 of 2 ANNEX 2 TO TEST REPORT # EMCC-931514.1YA, 2002-10-29 TRANSMITTER BANDWIDTH PLOTS EQUIPMENT UNDER TEST: Trade Name: T70-USA Tx Model: T70-USA Tx Serial No: 0195477 Equipment Category: Transmitter Manufacturer: Digades GmbH Address: Äußere Weberstraße 20 02763 Zittau Germany Phone: +49-3583-5775-121 Fax: +49-3583-5775-222 RELEVANT STANDARD: 47 CFR Part 15C - Intentional Radiators CONTENTS Page 1 PLOTS................................................................................................................................................................. 2 F C C - ID : Q N F T 7 0 - U S A- T X A n n e x 2 t o T e s t R e p o r t # E M C C - 9 3 1 5 1 4 . 1 Y A P a g e 2 o f 2 I s s u e D a t e : 2 0 0 2 - 1 0 - 2 9 TEST OF DIGADES GMBH MODEL T70-USA TX TO 47 CFR PART 15C - INTENTIONAL RADIATORS t 7 0 u s a _ t x _ a n 2 . s d w 1 PLOTS
Test Setup Photos
F C C - ID : Q N F T 7 0 - U S A- T X R A D I O L A B O R A T O R I E S E M C L A B O R A T O R I E S T T I - P - G 0 9 4 / 9 4 T T I - P - G 0 7 4 / 9 5 EMCC DR. RAŠEK Moggast 72-74 91320 Ebermannstadt Germany FCC Registration # 90566 t70usa_tx_an1.sdw Telephone: +49-9194-9016 Telefax: +49-9194-8125 Mail: [email protected] Web: http://www.emcc.de Page 1 of 3 ANNEX 1 TO TEST REPORT # EMCC-931514.1YA, 2002-10-29 PHOTOGRAPHS OF TEST SETUPS EQUIPMENT UNDER TEST: Trade Name: T70-USA Tx Model: T70-USA Tx Serial No: 0195477 Equipment Category: Transmitter Manufacturer: Digades GmbH Address: Äußere Weberstraße 20 02763 Zittau Germany Phone: +49-3583-5775-121 Fax: +49-3583-5775-222 RELEVANT STANDARD: 47 CFR Part 15C - Intentional Radiators CONTENTS Page 1 CONDUCTED EMISSIONS TEST ....................................................................................................................... 2 1.1 Photograph: none..................................................................................................................................... 2 2 RADIATED EMISSIONS TEST............................................................................................................................ 3 2.1 Photograph: EUT "T70-USA Tx" on non conductive stand ...................................................................... 3 F C C - ID : Q N F T 7 0 - U S A- T X A n n e x 1 t o T e s t R e p o r t # E M C C - 9 3 1 5 1 4 . 1 Y A P a g e 2 o f 3 I s s u e D a t e : 2 0 0 2 - 1 0 - 2 9 TEST OF DIGADES GMBH MODEL T70-USA TX TO 47 CFR PART 15C - INTENTIONAL RADIATORS t 7 0 u s a _ t x _ a n 1 . s d w 1 CONDUCTED EMISSIONS TEST 1.1 Photograph: none not applicable F C C - ID : Q N F T 7 0 - U S A- T X A n n e x 1 t o T e s t R e p o r t # E M C C - 9 3 1 5 1 4 . 1 Y A P a g e 3 o f 3 I s s u e D a t e : 2 0 0 2 - 1 0 - 2 9 TEST OF DIGADES GMBH MODEL T70-USA TX TO 47 CFR PART 15C - INTENTIONAL RADIATORS t 7 0 u s a _ t x _ a n 1 . s d w 2 RADIATED EMISSIONS TEST 2.1 Photograph: EUT "T70-USA Tx" on non conductive stand
Contact Information
Applicant
Lutz Berger(Managing Director)
Test Firm
EMCCons Dr. Rasek GmbH & Co. KGWinfried hoffmann
Technical Specifications
| # | Rule Parts | Frequency Range | Power Output |
|---|---|---|---|
| 1 | 15C | 916.5 MHz - 916.5 MHz | - |
Other Applications from digades GmbH

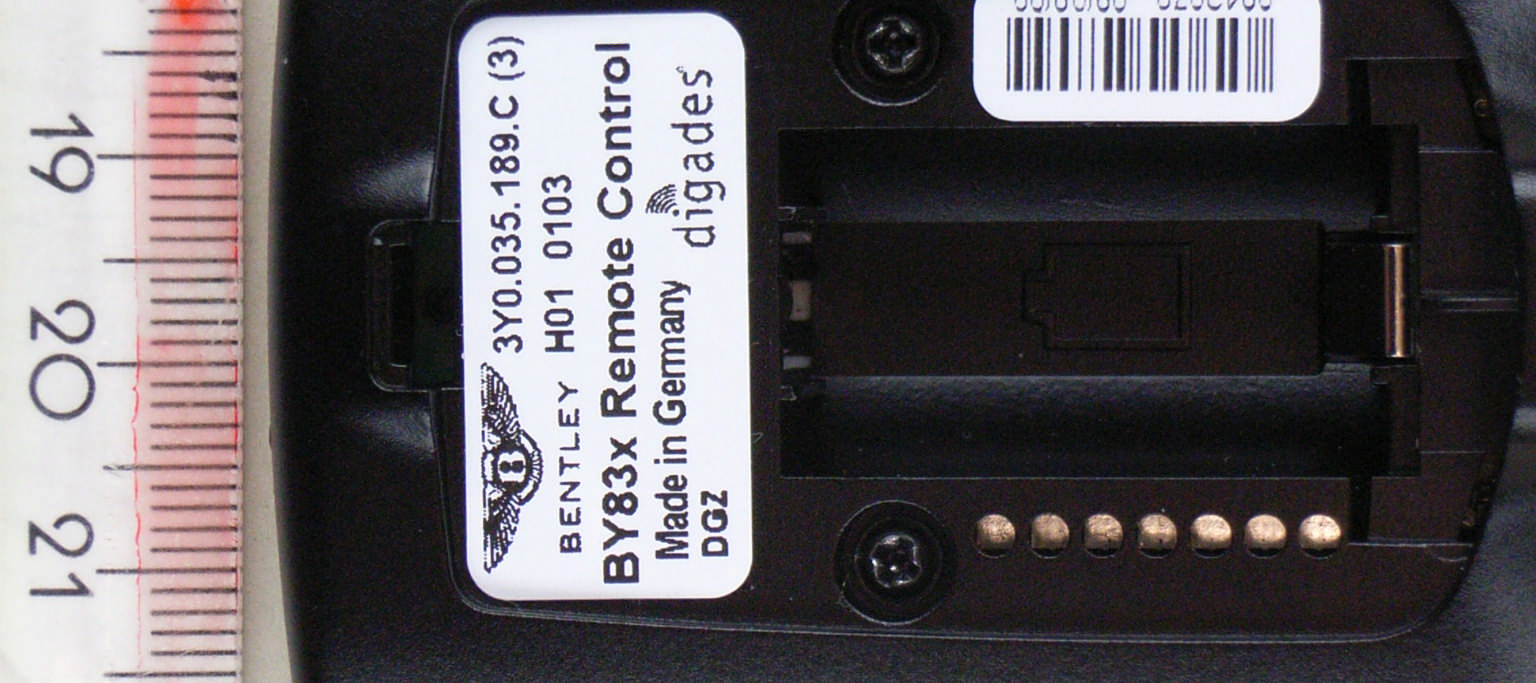

QNF10209
May 17, 2010BY83x Remote Control
Equipment Class
DSC - Part 15 Security/Remote Control Transmitter
QNF-WM731

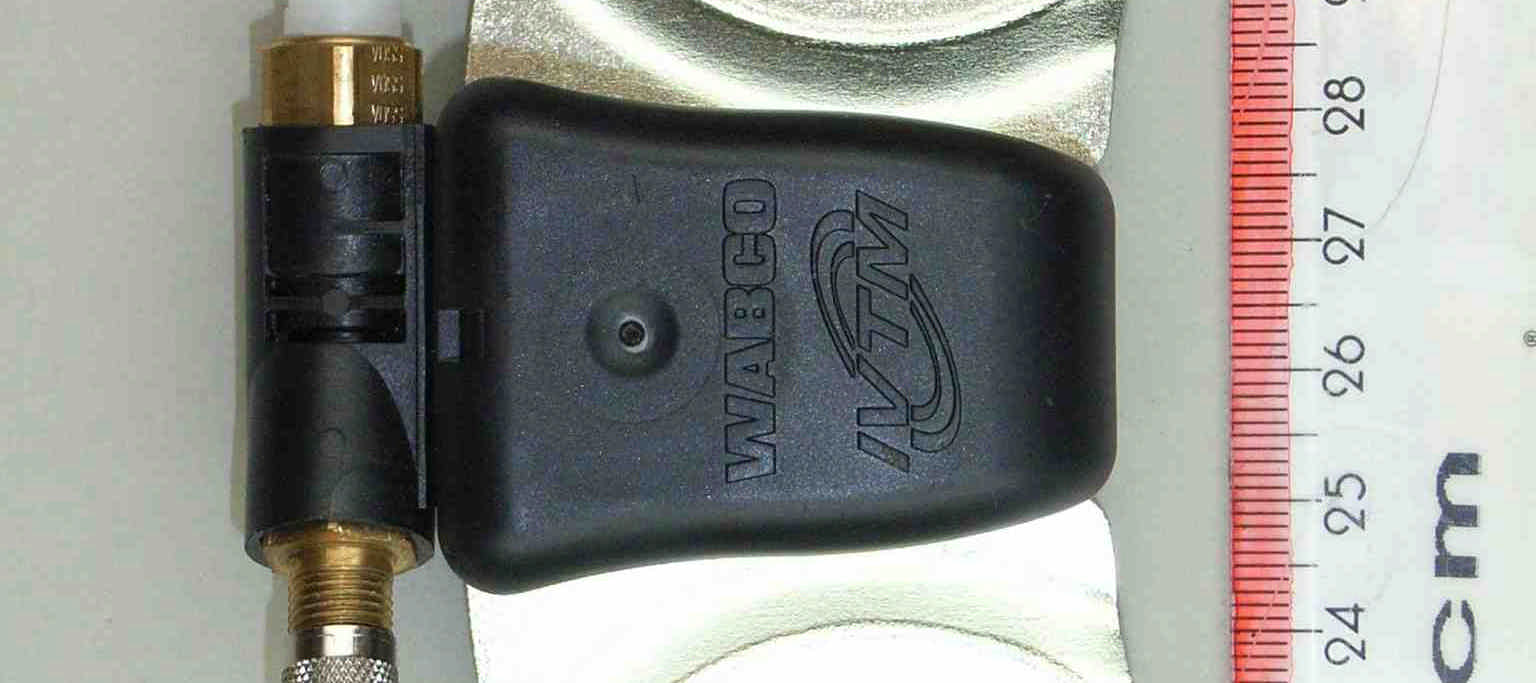

Jul 24, 2007Wheel Module (Tire Pressure)
Equipment Class
DXX - Part 15 Low Power Communication Device Transmitter

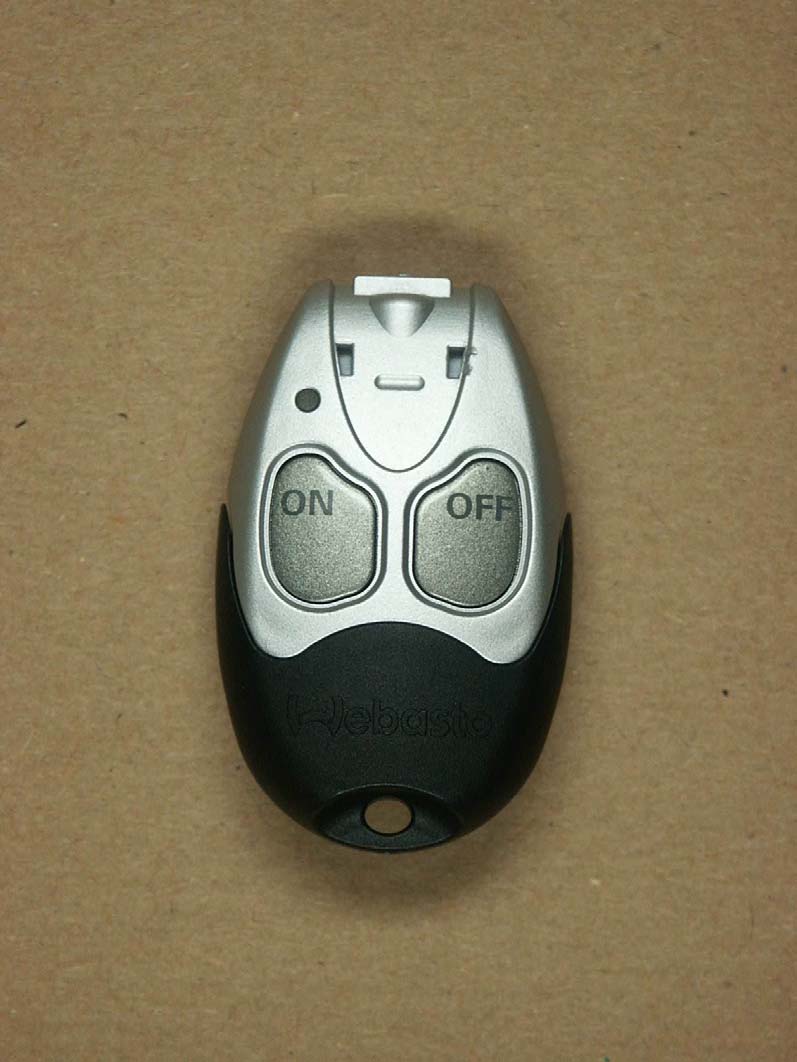

QNFT91-NA
Dec 20, 2006Telestart T91
Equipment Class
DTS - Digital Transmission System

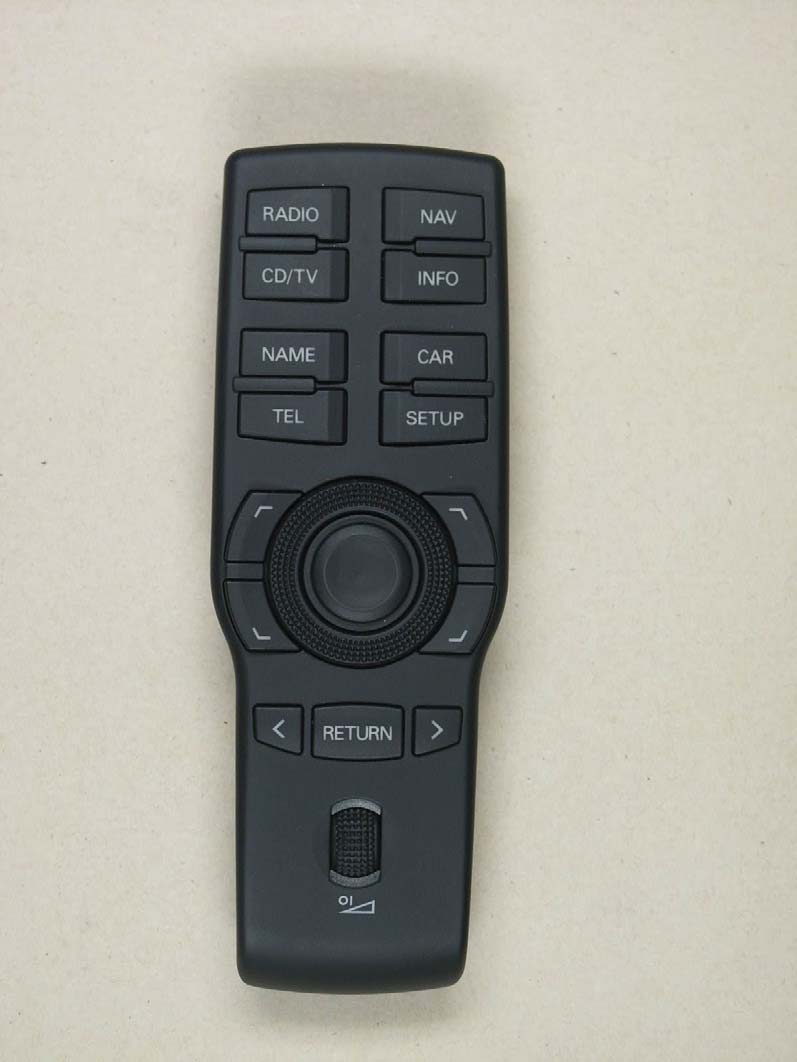

QNF1781
Dec 13, 2004MMl Remote Control
Equipment Class
DSC - Part 15 Security/Remote Control Transmitter

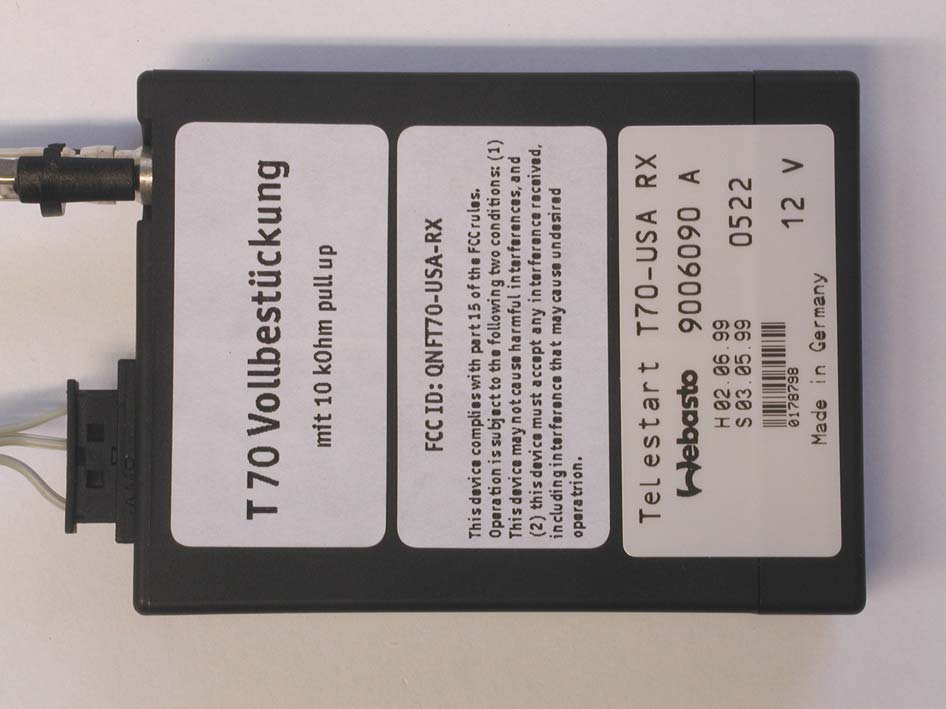

QNFT70-USA-RX
