QNT-PT209-01040032.4GHz DSSS Wireless Modem

PT-209G/219G User Manual Version 2.2 REnex Technology Limited Room 601-603, 6/F., 1 Science Park East Avenue, Hong Kong Science Park, Pak Shek Kok, N.T., Hong Kong Phone: +852 2607 4088 Fax: +852 2607 4099 www.renextechnology.com Purpletooth ® 2.4GHz Wireless Modem Direct Sequence Spread Spectrum - ii - This document is produced for users of Purpletooth® PT-209G/219G, the spread spectrum wireless modem from REnex Technology Limited. It covers the operating principles and capabilities of Purpletooth® PT-209G/219G. It is highly recommended to read this document before using Purpletooth® PT-209G/219G in order to operate it correctly and have its best performance. WARNING Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This manual contains information of proprietary interest to REnex Technology Limited. It is supplied in confidence to purchasers and other authorized users of Purpletooth® PT- 209G/219G Wireless Modem. By accepting this material, the recipient agrees that the contents will not be copied or reproduced, in whole or part, without prior written consent of REnex Technology Limited. The electronic equipment described in this manual generates, uses, and radiates radio frequency energy. Operation of this equipment in a residential area may cause radio interference, in which case the user, at his/her own expense, will be required to take whatever measures necessary to correct the interference. Information in this document is subject to change without notice. REnex Reference Number: R-001-4000-018 Printed Date: November 2004 © 2001-2004 REnex Technology Limited. All rights reserved. Purpletooth® is registered trademark of REnex Technology Limited. Microsoft and Windows are registered trademarks of Microsoft Corporation. HyperTerminal is copyrighted by Hilgraeve Inc, and developed for Microsoft. All other products mentioned in this document are trademarks or registered trademarks of their respective holders. - iii - FCC Information This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) this device may not cause harmful interference, and 2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is needed. -- Consult the dealer or an experienced radio/TV technician for help. RS-232 DB9 shielded cable with ferrite must be used with this unit to ensure compliance with the Class B FCC limits. CAUTION: The model number PT-209G and PT-219G have maximum transmitted output power of 0.07 Watt. It is recommended that the transmit antenna be kept at least 20 cm away from nearby persons to satisfy FCC RF exposure requirements. The antenna and transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. - iv - CAUTION: RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS. - v - WARRANTY REnex Technology Limited (REnex) warrants this product to the original owner purchased directly from REnex or an authorized distributor to be free of defects and workmanship for a period of one year from the date of purchase. REnex’s obligation under this warranty is limited to replacing or repairing defective parts of our product under normal use and service. REnex is not liable for any damage, which results from abnormal use, abuse, improper operation, accident or inability to use this product. - vi - Contents WARRANTY.............................................................................................................................................. v 1. General.......................................................................................................................1 1.1 Product Overview ............................................................................................................................ 1 1.2 Features ........................................................................................................................................... 1 2. Physical/Electrical Attributes ...................................................................................2 2.1 PT-209G/219G Physical Layout ....................................................................................................... 2 2.2 LED Indications ............................................................................................................................... 3 2.3 RS-232 DB-9 Connection................................................................................................................. 4 3. Setup PT-209G/219G.................................................................................................5 3.1 Setting up Connections..................................................................................................................... 5 3.2 Checking the Link...........…

Text truncated - open the document above for the full version.

- ii - This document is produced for users of Purpletooth® PT-209G/219G, the spread spectrum wireless modem from REnex Technology Limited. It covers the operating principles and capabilities of Purpletooth® PT-209G/219G. It is highly recommended to read this document before using Purpletooth® PT-209G/219G in order to operate it correctly and have its best performance. WARNING Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This manual contains information of proprietary interest to REnex Technology Limited. It is supplied in confidence to purchasers and other authorized users of Purpletooth® PT- 209G/219G Wireless Modem. By accepting this material, the recipient agrees that the contents will not be copied or reproduced, in whole or part, without prior written consent of REnex Technology Limited. The electronic equipment described in this manual generates, uses, and radiates radio frequency energy. Operation of this equipment in a residential area may cause radio interference, in which case the user, at his/her own expense, will be required to take whatever measures necessary to correct the interference. Information in this document is subject to change without notice. REnex Reference Number: R-001-4000-018 Printed Date: November 2004 © 2001-2004 REnex Technology Limited. All rights reserved. Purpletooth® is registered trademark of REnex Technology Limited. Microsoft and Windows are registered trademarks of Microsoft Corporation. HyperTerminal is copyrighted by Hilgraeve Inc, and developed for Microsoft. All other products mentioned in this document are trademarks or registered trademarks of their respective holders. - iii - FCC Information This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) this device may not cause harmful interference, and 2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is needed. -- Consult the dealer or an experienced radio/TV technician for help. RS-232 DB9 shielded cable with ferrite must be used with this unit to ensure compliance with the Class B FCC limits. CAUTION: The model number PT-209G and PT-219G have maximum transmitted output power of 0.07 Watt. It is recommended that the transmit antenna be kept at least 20 cm away from nearby persons to satisfy FCC RF exposure requirements. The antenna and transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

Company Confidential Information Subject: Hardware Design Document Reference no.:R-001-4820-038 Title: System Block Diagram of Purpletooth PT-209G Wireless Modem Version no.:V2.2 Company Confidential Information Date:November 23, 2004 - 1 - Hardware Design Document System Block Diagram of Purpletooth PT-209G Wireless Modem Document Information Subject: Hardware Design Document Title: System Block Diagram of Purpletooth PT-209G Wireless Modem Filename: \\Server01\common\Engineering\Project\PurpletoothEthernet\Document\HardwareDesignDoc ument\sysBlk_hdd_PTUE_V22_041123.doc Reference no.: R-001-4820-038 Version no.: V2.2 Status: Released Date: November 23, 2004 Author: L.M.Cheong Version history Modifications from V1.0: 1. Add the RF module block diagram. Modifications from V2.0: 1. Add filter part numbers to RF module block diagram. 2. Add filter characteristics table. Revisions: Modification from V2.1: 1. Correct typo in RF block diagram. Copyright  2001 – 2004 REnex Technology Limited. All rights reserved. No part of this document may be reproduced or utilized in any form or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from REnex Technology Limited. 1 Introduction The following system block diagram describes the system design of Purpletooth PT-209G modem with PCB version WM0144 and EC0112 for modem and charging boards respectively. 2 System Block Diagram System clock supplies: 1. MCU oscillator input: 12 MHz 2. Ethernet controller oscillator input: 25 MHz 3. Baseband DSP clock input: 2 MHz (generated from clock divider in 12-MHz driven CPLD) 4. IF LO to RF module: 748 MHz 5. IF carrier at RF module: 374 MHz 6. RF LO to RF module: 2073.6 MHz 7. RF carrier at RF module: 2447.6 MHz MCU, memory and digital parts Ethernet controller RS-232 USB RJ45 Baseband DSP RF module Address/data buses Data I/O Power supply and battery charging unit DC input Antenna WM0144 EC0112 Company Confidential Information Subject: Hardware Design Document Reference no.:R-001-4820-038 Title: System Block Diagram of Purpletooth PT-209G Wireles s Modem Version no.:V2.2 Company Confidential Information Date:November 23, 2004 - 2 - 3 RF Module Block Diagram Filter characteristics: Filter Type Frequency range/MHz Center frequency/MHz LF3216-B2R4EAA Multi-layer low pass filter 2400 – 2483 2441.5 BF3216-B2R4AAA Multi-layer band pass filter 2400 – 2500 2450 BF3216-B2R4DAA Multi-layer band pass filter 2400 – 2500 2450 855916 RF SAW filter 2377.85 – 2507.45 2448.5 B69812-N2457-A201 Ceramic 2-pole filter 2400 – 2500 2450 TB374GD 374MHz SAW filter 362 – 386 374 RF2494 TB374GD RF2163 AD8367 EL4450 Si4126 Dual PLL ~ ~ Σ ΣΣΣ +45 0 - 45 0 1/2 RF2938 LC Filter TXI TXQ PN2 4.6MHz IF LO:748MHz/ 757.2MHz RF LO:2073.6MHz HMC287 To baseband module LF3216-B2R4EAA AS169-73 855916 B69812-N2457-A201 855916 BF3216-B2R4AAA 855916 BF3216-B2R4DAA TB374GD

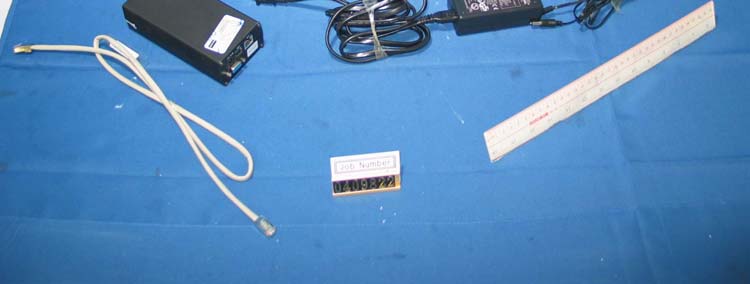

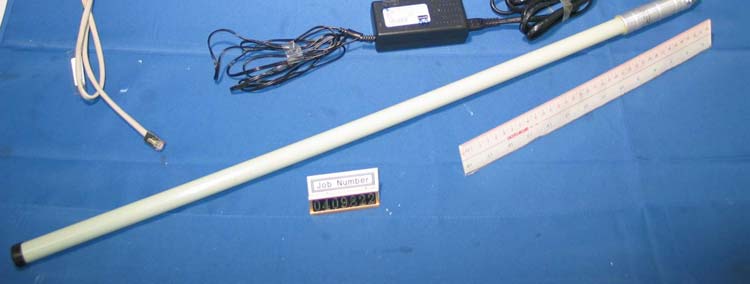

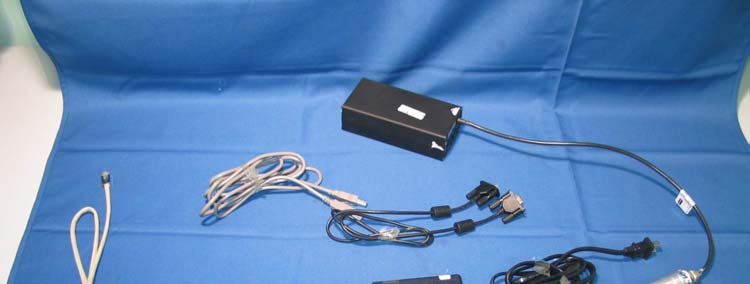

External photos FCC ID: QNT-PT209-0104003 Job Number: 04098225 Job Number: 04098225

Company Confidential Information Subject: Mechanical Design Document Reference no.:R-001-4840-025 Title: Modem Housing Label Design for PT-209G Wireless Modem Version no.:V2.2 Company Confidential Information Date:November 23, 2004 - 1 - Mechanical Design Document Modem Housing Label Design for PT-209G Wireless Modem Document Information Subject: Mechanical Design Document Title: Modem Housing Label Design for PT-209G Wireless Modem Filename: \\Server01\common\Engineering\Project\PurpletoothEthernet\Document\MechanicalDesignDo cument\PT-209GBackLabelsDesign_PTUE_V22_041123.doc Reference no.: R-001-4840-025 Version no.: V2.2 Status: Released Date: November 23, 2004 Author: L.M.Cheong Version history Modifications from V1.0: 1. Revise the serial number label design to include 3 FCC IDs for 3 different antenna options. 2. Add font face information for each label design. Modifications from V2.0: 1. Separate the serial number label into three different ones with each with one FCC ID representing an antenna option. Revisions: Modification from V2.1: 1. Remove FCC logo from serial number label according to FCC recommendation. Copyright  2001 – 2004 REnex Technology Limited. All rights reserved. No part of this document may be reproduced or utilized in any form or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from REnex Technology Limited. 1 Introduction Two labels are attached on the back of the PT-209G modem. One for the product conformity declaration texts while the other the serial number and approval IDs. Company Confidential Information Subject: Mechanical Design Document Reference no.:R-001-4840-025 Title: Modem Housing Label Design for PT-209G Wireless Modem Version no.:V2.2 Company Confidential Information Date:November 23, 2004 - 2 - 2 Modem Label Locations All dimensions are in mm with tolerance +/- 0.5mm. 3 Label Designs 3.1 Modem Unit Bottom Declaration Label Part Number: 001-4024-000 18 18 16 16 25 18 10.5 Declaration label Serial number label Antenna RS-232 port Text direction 76 147.5 76 44 Label affixed side PCB fixtures Housing Company Confidential Information Subject: Mechanical Design Document Reference no.:R-001-4840-025 Title: Modem Housing Label Design for PT-209G Wireless Modem Version no.:V2.2 Company Confidential Information Date:November 23, 2004 - 3 - Size: 40 × 76 mm Tolerance: +/- 0.1mm Material: Self-adhesive paper Color: Black and white Font face: Times New Roman 3.2 Modem Unit Bottom Serial Number Label Part Number: 001-4022-000 Size: 40 × 18 mm Tolerance: +/- 0.1mm Material: Gloss self-adhesive paper Color: Black text and white background Font face: Times New Roman Part Number: 001-4022-001 Purpletooth 2.4 GHz Wireless Modem REnex Technology Limited www.renextechnology.com [email protected] This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: i) this device may not cause harmful interference, and ii) this device must accept any interference received including interference that may cause undesired operation. This device must be operated as supplied by REnex Technology Limited. Any change or modification made to the device without expressed written approval from REnex Technology Limited may avoid the user’s right to operate the device. Caution - Do not power on the device without an antenna connected. Improper connection may damage the device permanently. Assembled in China Device Mode:
Master
Slave Model no.: PT-209G Part no.: R-001-0104-001 Serial no.: 2090 xxxx CMII ID: XXXXXXXXXX FCC ID: QNT-PT209-0104001 xxxx Model no.: PT-209G Part no.: R-001-0104-001 Serial no.: 2090 xxxx CMII ID: XXXXXXXXXX FCC ID: QNT-PT209-0104001 xxxx 2X Model no.: PT-209G Part no.: R-001-0104-002 Serial no.: 2090 xxxx CMII ID: XXXXXXXXXX FCC ID: QNT-PT209-0104002 xxxx Company Confidential Information Subject: Mechanical Design Document Reference no.:R-001-4840-025 Title: Modem Housing Label Design for PT-209G Wireless Modem Version no.:V2.2 Company Confidential Information Date:November 23, 2004 - 4 - Size: 40 × 18 mm Tolerance: +/- 0.1mm Material: Gloss self-adhesive paper Color: Black text and white background Font face: Times New Roman Part Number: 001-4022-002 Size: 40 × 18 mm Tolerance: +/- 0.1mm Material: Gloss self-adhesive paper Color: Black text and white background Font face: Times New Roman Model no.: PT-209G Part no.: R-001-0104-002 Serial no.: 2090 xxxx CMII ID: XXXXXXXXXX FCC ID: QNT-PT209-0104002 xxxx 2X Model no.: PT-209G Part no.: R-001-0104-003 Serial no.: 2090 xxxx CMII ID: XXXXXXXXXX FCC ID: QNT-PT209-0104003 xxxx Model no.: PT-209G Part no.: R-001-0104-003 Serial no.: 2090 xxxx CMII ID: XXXXXXXXXX FCC ID: QNT-PT209-0104003 xxxx 2X

Internal photos FCC ID: QNT-PT209-0104003 Internal Photo – 1 Internal Photo – 2 Internal photos FCC ID: QNT-PT209-0104003 Internal Photo - 3 Internal Photo - 4 Internal photos FCC ID: QNT-PT209-0104003 Internal Photo - 5 Internal Photo - 6 Internal photos FCC ID: QNT-PT209-0104003 Internal Photo - 7 Internal Photo - 8 Internal photos FCC ID: QNT-PT209-0104003 Internal Photo - 9

Company Confidential Information Subject: Hardware Design Document Reference no.:R-001-4820-039 Title: Technical Description of Purpletooth PT-209G Wireless Modem Version no.:V2.3 Company Confidential Information Date:November 29, 2004 - 1 - Hardware Design Document Technical Description of Purpletooth PT-209G Wireless Modem Document Information Subject: Hardware Design Document Title: Technical Description of Purpletooth PT-209G Wireless Modem Filename: \\Server01\common\Engineering\Project\PurpletoothEthernet\Document\HardwareDesignDoc ument\techDes_hdd_PTUE_V23_041129.doc Reference no.: R-001-4820-039 Version no.: V2.3 Status: Released Date: November 29, 2004 Author: L.M.Cheong Version history Modifications from V1.0: 1. Add IF filter and amplifier specifications (Section 2.3.1 and 2.3.2.) 2. Add the antenna description section (Section 3.) Modifications from V2.0: 1. Revise the HTQ-2.4-10 antenna connector type (Section 3.3.) Revisions: Modification from V2.1: 1. Re-write the transmit path operation description in RF unit section (Section 2.3.) Modification from V2.2: 1. Add a paragraph to state explicitly the TDD communication method (Section 2.) 2. State the maximum user data rate (1 Mbps) (Section 2.) 3. State the worst case duty cycle (0.132) (Section 2.) Copyright  2001 – 2004 REnex Technology Limited. All rights reserved. No part of this document may be reproduced or utilized in any form or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from REnex Technology Limited. 1 Introduction This document describes the basic operation principle of the Purpletooth PT-209G Wireless Modem. 2 Technical Description The Purpletooth PT-209G wireless modem is an advanced communication device employing the direct sequence spread spectrum (DSSS) technology. The communication between two modems uses the time division duplex (TDD) method that a modem is either in transmit mode (activation of the transmit path) or in receive mode (activation of the receive path) in any instance. The worst case duty cycle is 0.132. The maximum user channel data rate is 1 Mbps. The modem hardware system can be divided into four units, namely, the digital and interface unit; the baseband unit; the RF unit and the power supply and battery charging unit. 2.1 Digital and Interface Unit The MCU, ML671000 from OKI, is the central controller of the whole hardware system. It is driven by a 12 MHz digital oscillator. The MCU provides an RS-232 and an USB interfaces directly. On the other hand, an Ethernet interface controller, DM9000, from DaviCom, is connected to ML671000 via the address/data buses connection to provide an RJ45 interface. Company Confidential Information Subject: Hardware Design Document Reference no.:R-001-4820-039 Title: Technical Description of Purpletooth PT-209G Wireless Modem Version no.:V2.3 Company Confidential Information Date:November 29, 2004 - 2 - 2.2 Baseband Unit The baseband unit composes of the DSSS transceiver chip set, SX043 and SX061 from AMI Semiconductor, the de-spreader, EL4450 from Elantec, and the associated filtering and matching circuitry. The baseband signal is spread by SX043 and then sent to the RF unit for up-conversion and modulation at the transmit path. In the reverse direction, the received signal at 4.6 MHz is de-spread by multiplying at the PN sequence supplied from SX043 at EL4450. The de-spread signal is demodulated at SX061 and then read by the digital control unit. 2.3 RF Unit The RF unit employs a transceiver, RF2938 from RFMD, as the core. For the transmit path, the spread data stream at 16 Mcps from SX043 of the baseband unit is modulated by the RF transceiver RF2938. The modulation scheme is either BPSK or QPSK according to the data rate selected (QPSK is only used in 1 Mbps, the maximum data rate case). The data stream is modulated to 374 MHz IF. The modulated signal is filtered and then feed back to RF2938 to further up-convert to 2.4476 GHz. The 2.4476 GHz signal is first filtered and then goes back to RF2938 where one stage power amplification is provided. The amplified signal is then further amplified by the last stage power amplifier, RF2163. Finally, the signal goes through the RF switch AS169 and the antenna port to outside. At the receiver path, the signal is first amplified by two stage LNAs, HMC287 from Hittite and RF2494 from RFMD. The signal is also down-converted to the IF at 374 MHz by RF2494. It is then filtered by a SAW filter TB374GD from Tai-SAW technology and amplified by an IF amplifier, AD8367 from Analog Devices. The IF signal is further down-converted to 4.6MHz by RF2938. This 4.6MHz signal is supplied to the baseband unit for de-spreading and demodulation. The specifications of the IF filter and amplifier are provided as follows: 2.3.1 IF SAW Filter TB374GD Item Unit Min. Type. Max. Center frequency, Fc MHz - 374 - Insertion loss, IL dB - 8.5 10 Pass bandwidth, BW3 MHz 17 24 - Amplitude ripple in Fc ± 7 MHz dB - 0.6 1 Group delay ripple in Fc ± 7 MHz ns - 40 100 Triple transit suppression dB 30 37 - Attenuation: (reference level from Min IL) Fc –100 to –33 MHz dB 45 52 - Fc –33 to –22 MHz dB 40 51 - Fc –22 to –16.5 MHz dB 30 42 - Fc +16.5 to +22 MHz dB 30 41 - Fc +22 to +43 MHz dB 35 44 - Fc +43 to +100 MHz dB 40 47 - Company Confidential Information Subject: Hardware Design Document Reference no.:R-001-4820-039 Title: Technical Description of Purpletooth PT-209G Wireless Modem Version no.:V2.3 Company Confidential Information Date:November 29, 2004 - 3 - 2.3.2 IF Amplifier AD8367 Company Confidential Information Subject: Hardware Design Document Reference no.:R-001-4820-039 Title: Technical Description of Purpletooth PT-209G Wireless Modem Version no.:V2.3 Company Confidential Information Date:November 29, 2004 - 4 - 2.4 Power Supply and Battery Charging Unit This unit provides all the necessary supply voltages to the modem system from a single 7.4V supply from a DC adaptor or a r…

Text truncated - open the document above for the full version.

- iii - FCC Information This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) this device may not cause harmful interference, and 2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is needed. -- Consult the dealer or an experienced radio/TV technician for help. RS-232 DB9 shielded cable with ferrite must be used with this unit to ensure compliance with the Class B FCC limits. CAUTION: The model number PT-209G and PT-219G have maximum transmitted output power of 0.07 Watt. It is recommended that the transmit antenna be kept at least 20 cm away from nearby persons to satisfy FCC RF exposure requirements. The antenna and transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

123456 A B C D 654321 D C B A Confidential Copyright (C) 2001-2004 REnex Technology Limited. All rights reserved. No part of this document may be reproduced or utiltized in any form or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from REnex Technology Limited. EC0112 Master Sheet Organization: Title: File: Revision: Designed by: Date:Sheet REnex Technology Limited EC0112 Master Sheet.Sch EC01124-May-2004 1of5 Ethernet Controller Ethernet Controller.sch Battery Charger Battery Charger.sch Interface Interface.sch Derek Wong, Lu Kui Power Supply Power Supply.Sch 123456 A B C D 654321 D C B A Confidential Copyright (C) 2001-2004 REnex Technology Limited. All rights reserved. No part of this document may be reproduced or utiltized in any form or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from REnex Technology Limited. Ethernet Controller Organization: Title: File: Revision: Designed by: Date:Sheet REnex Technology Limited Ethernet Controller.Sch EC01124-May-2004 2of5 B G G N D 2 5 TXD0 50 N C 7 5 INT 100 DGND 76 T X D 1 5 1 BGRES 26 I O R # 1 S D 2 4 TX_CLK 49 N C 7 4 DGND 99 NC 77 T X D 2 5 2 BGVDD 27 I O W # 2 D G N D 2 3 TEST5 48 D V D D 7 3 SA9 98 LINK_O 78 T X D 3 5 3 AVDD 28 A E N 3 X 1 _ 2 5 M 2 2 RX_CLK 47 D V D D 7 2 SA8 97 WAKEUP 79 T X _ E N 5 4 RXI+ 29 I O W / A I T 4 X 2 _ 2 5 M 2 1 RX_ER 46 G P I O 3 7 1 SA7 96 PW_RST# 80 D V D D 5 5 RXI- 30 D V D D 5 D V D D 2 0 RX_DV 45 G P I O 2 7 0 SA6 95 DGND 81 M D I O 5 6 AGND 31 S D 0 6 T E S T 4 1 9 COL 44 G P I O 1 6 9 SA5 94 SD15 82 M D C 5 7 AGND 32 S D 1 7 T E S T 3 1 8 CRS 43 G P I O 0 6 8 SA4 93 SD14 83 D G N D 5 8 TXO+ 33 S D 2 8 T E S T 2 1 7 DGND 42 E E C S / L E D 6 7 CMD 92 SD13 84 C L K 2 0 M O 5 9 TXO- 34 S D 3 9 T E S T 1 1 6 RXD3 41 E E D K 6 6 IO16 91 SD12 85 S P E E D 1 0 0 # 6 0 AVDD 35 S D 4 1 0 D G N D 1 5 RXD2 40 E E D O 6 5 DVDD 90 SD11 86 D U P # 6 1 DVDD 36 S D 5 1 1 R S T 1 4 RXD1 39 E E D I 6 4 SD8 89 SD10 87 L I N K & A C T # 6 2 LINK_I 37 S D 6 1 2 S D 7 1 3 RXD0 38 D G N D 6 3 SD9 88 U2 DM9000 DVDD R3 4.7k DVDD D15 D14 D13 D12 D11 D10 D9 D8 IO16# A2 DMINT DMWL nXWAIT D0 D1 D2 D3 D4 D5 D6 D7 DMRST DVDD STB 1 GND 2 OUT 3 VDD 4 OSC1 OSC C12 0.1u DVDD R11 6.8k 1% AVDDDVDD C5 0.1u L1 BEAD120 AVDDDVDD DVDD C10 0.1u R6 49.91% R7 49.9 1% ACTIVE LINK CHASIS_GND AVDD R8 1k R9 10k R5 49.9 1% R12 49.9 1% R13 10k R14 1k TD+ 1 TD- 2 CT1 3 GND 4 GND 5 CT2 6 RD+ 7 RD- 8 A N ( Y ) 9 C A ( Y ) 1 0 A N ( G ) 1 1 C A ( G ) 1 2 CN1 JFM25011-0510T C11 0.1u C13 0.1u DVDD C14 0.1u DVDD C15 0.1u DVDD C16 0.1u DVDD C17 0.1u DVDD C18 0.1u DVDD C20 0.1u AVDD C21 0.1u AVDD R2 10k DVDD DMRD DMAEN C19 0.1u DVDD C3 0.01u C8 10u C4 0.01u C6 10u C2 0.1u C1 10u CLKEN R15 0 Derek Wong, Lu Kui C9 0.1u Remark: A 4.7pF cap. and a 120nH inductor are deleted and three 0.1uF cap. is added AVDD CHASIS_GND C51 0.1u C50 0.1u R10 0 AVDD 25M_Clk 3.3V_AVDD DMINT 123456 A B C D 654321 D C B A Confidential Copyright (C) 2001-2004 REnex Technology Limited. All rights reserved. No part of this document may be reproduced or utiltized in any form or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from REnex Technology Limited. Interface Organization: Title: File: Revision: Designed by: Date:Sheet REnex Technology Limited Interface.Sch EC01124-May-2004 3of5 1 2 3 4 5 6 7 8 9 10 J4 CON10 GND 1 D+ 2 D- 3 USB_PWR 4 GND 5 GND 6 J2 USB TYPE B LED1+ 1 LED2+ 2 LED3+ 3 LED4+ 4 LED4GND 5 LED3GND 6 LED2GND 7 LED1GND 8 LED1 LED_X4 USB_PWR USB_D+ USB_D- S/C_PB 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 J3 CON30 SOUT_HS SIN_HS T1OUT T2OUT T3OUT R1IN R2IN R3IN RST_PB LED1+ LED2+ LED3+ LED4+ TMS/DTR_HS TDO/DSR_HS TCK/RTS_HS TDI/CTS_HS R5IN R4IN Carrier Detect Transmit Data Receive Data DTR Ground Data Set Ready RTS Clear to Send Ground Data Set Ready InterruptInterrupt 12 SW2 SW-PB Derek Wong, Lu Kui BAT_IN 1234567891 0 1 1 1 2 1 3 1 4 1 5 1 6 1 7 1 8 1 9 2 0 2 1 2 2 2 3 2 4 2 5 2 6 2 7 2 8 2 9 3 0 J5 CON30 C40 0.01u R44 1K 212 D8 BAS21 Data Set Ready BAT_IN D 1 2 D 8 D 1 0 A 2 D 0 D 1 D 2 D 3 D 4 D 5 D 6 D 7 D M I N T D 9 D 1 1 D 1 3 D 1 4 D 1 5 D M R D D M A E N D M W L n X W A I T C L K E N CHASIS_GND D M R S T R50 0 R51 0 123456 A B C D 654321 D C B A Confidential Copyright (C) 2001-2004 REnex Techn…
