QNT-PT2400GS00-ASpread Spectrum Transmitter

REnex Technology Ltd ZcoRE3-2400 (ZcoRE3-2400/ZcoRE3(20)-2400) OEM Serial Wireless Transceiver Module User Manual Version 1.0 May, 2007 This manual covers the operations of the ZcoRE3-2400 family of serial OEM wireless transceiver modules. For the most part, operation of each product in the ZcoRE3-2400 family is identical; where operating differences exist, every effort has been made to clearly identify which product is being referred to. This manual is produced for users of the ZcoRE3-2400 OEM wireless transceiver module from REnex Technology Limited. It covers the operating principles and capabilities of the ZcoRE3-2400 module. It is recommended that you read this document before using the ZcoRE3-2400 module in order to operate it correctly and optimize its performance. WARRANTY REnex Technology’s ZcoRE3-2400 module is warranted against defect in materials and manufacturing for a period of two years from date of purchase. In the event of a product failure due to materials or workmanship, REnex will, at its discretion, repair or replace the product. REnex and its suppliers shall in no event be liable for any damages arising from the use of or inability to use this product. This includes business interruption, loss of business information, or other loss which may arise from the use of the product. WARNING Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. REMINDING This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. While using for ZcoRE3(20)-2400, precaution below is necessary: PRECAUTION 1. The installed antenna must not be located in a manner that allows exposure of the general population at a distance of less than 4cm. 2. Mount the antenna in a manner that prevents any personnel from entering the area within 4cm from the central position of the antenna. 3. It is recommended that the installer place radio frequency hazard warnings signs on the barrier that prevents access to the antenna. 4. Prior to installing the antenna to the antenna connector, make sure the power is adjusted to the settings specified in section of this manual. 5. During antenna installation, be sure that the power to the equipment is turned off in order to prevent any energy presence on the coaxial connector. This manual contains information of proprietary interest to REnex Technology Limited. It has been supplied in confidence to purchasers and other authorized users of the ZcoRE3-2400 module, and by accepting this material, the recipient agrees that no part of the document shall be reproduced or transmitted in any form or by any means, without prior written consent of REnex Technology Limited. Information in this document is subject to change without notice. REnex Reference Number: Print Date: Feb. 2007 © 2006-2010 REnex Technology Limited. All rights reserved. Microsoft and Windows are registered trademarks of Microsoft Corporation. HyperTerminal is copyrighted by Hilgraeve Inc, and developed for Microsoft. All other products mentioned in this document are trademarks or registered trademarks of their respective holders. ZcoRE3-2400_User_Manual_V1.0 Document Version History: Version Release Date Comment V1.0 Feb 28,2007 Initial Release V1.1 May 18 2007 Updating for Approval iii ZcoRE3-2400_User_Manual_V1.0 Table of Content 1. Introduction...............................................................................................................................1 2. Technical Parameters................................................................................................................2 3. Module Interface.......................................................................................................................3 3.1 1.27 mm Pin Header Interface.......................................................................................3 3.2 RF Interface...................................................................................................................6 3.3 RMCI interface..............................................................................................................7 3.4 Wakeup..........................................................................................................................8 4. Power Supply............................................................................................................................8 5. Module Configuration...............................................................................................................8 6. RAEMESH Module Command Interface (RMCI)..................................................................11 6.1.1 Serial port setting............................................................................................11 6.1.2 Package format................................................................................................11 6.1.3 Quick review of RMCI....................................................................................12 7. Mechanical Drawing...............................................................................................................17 7.1 Top View.....................................................................................................................17 7.2 Bottom (top perspective).............................................................................................18 8. Order Information...................................................................................................................19 iv ZcoRE3-2400_User_Manual_V1.0 Terms: Coordinator: A FFD used for gateway. Only one coordinator per network. FFD: Full Function Device. Sensor node with routing ability. FFD requires line power all tim…

Text truncated - open the document above for the full version.

System Block diagram of Purpletooth TM ZcoRE3-2400 modem Company: REnex Technology Limited Model Name: PT-2418G-S-0 Prepared by: Lu Kui Digital I/O Interface DC 3.3V input MCU ATMEGA12 8L-8MU Crystal 32.768K &8M Transceiver EM2420 SPI Ctrl I/O Crystal 16M I/O RF I/O Antenna RF 2.4G Signal DC 3.3V

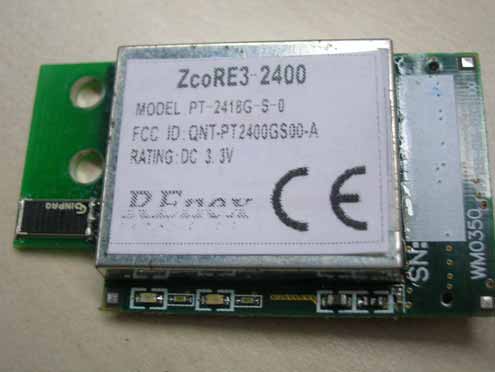

FCC ID: QNT-PT2400GS00-A Page 1 of 2 External Picture FCC ID: QNT-PT2400GS00-A Page 2 of 2

FCC ID: QNT-PT2400GS00-A Page 1 of 2 FCC ID Label FCC ID: QNT-PT2400GS00-A Page 2 of 2

FCC ID: QNT-PT2400GS00-A Page 1 of 2 Internal Picture FCC ID: QNT-PT2400GS00-A Page 2 of 2

Technical Description of Purpletooth TM ZcoRE3-2400 OEM Modem This document is to describe the technical aspects of Purpletooth TM ZcoRE3-2400 OEM modem. The key components of Purpletooth TM ZcoRE3-2400 OEM modem can be categorized into following groups: • MCU & Digital parts o MCU (ATMEGA128L-8MU) o Crystal 8M • Transceiver o Transceiver (EM2420) The detail operations of each part are described as follows: MCU & Digital part: The core part is Atmel MCU which embeds the SRAM and Flash memory. Its serial port provides the serial communication with other device. The SPI port provides the capacity to configure the RF transceiver. Transceiver: The Transceiver is responsible for the data modulation and demodulation. The transceiver is set or programmed by MCU via SPI serial port. The transceiver’s RF output provides the 2400M RF signal to chip antenna, and receive the 2400M RF signal from chip antenna. RF part: The RF parts are matching and RF TX/RX common path. The TX packets send by MCU will be modulated by transceiver, and this RF output of transceiver will be directly transmitted through the chip antenna. The RF input through the chip antenna will be demodulated by transceiver. The transceiver will send the RX packets to MCU after demodulation. The RF common path includes a RF matching circuits and chip antenna.

1 2 3 4 56 ABCD 6 5 4 3 2 1 D CBA Confidential Copyright (C) 2001-2006 REnex Technology Limite d. All rights reserved. No part of this document may be reproduced or utiltized in any fo rm or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from REnex Technology Limited. Organization:Title:Sub-title:Designed by: Checked by: Revision: Date: Sheet: of File: PCB drawing: REnex Technology Limited Small Size Wireless Ember Modem wo/PASmall Ember Modem WM0350 Master Sheet.sch 01 12-Dec-2006 1 5 Li Hao, Lu Kui Ma Yiguang WM0350 M5SMT-MARK M1SMT-MARK M3SMT-MARK M6SMT-MARK M2SMT-MARK M4SMT-MARK Logo2BoardREnexLogo Logo1BoardREnexLogo DESCRIPTION OF CHANGE DATE CHANGED BY ECO # REV. 01 Lu Kui 03/30/06 First engineering release. Master sheet GPIO1GPIO0 ATEMP_ADC1 ADC2 GPIO2GPIO3TEMP_EN_GPIO4GPIO5 LED_2LED_3 RxD0TxD0 TxD1RxD1 TDI TMSTCKTDO BUTTON_1_GPIO9nRESETPS_DIR_GPIO7BUZZER_GPIO6SCKSFD LED_4 SIBUTTON_0_GPIO8SODBG_SYNC_GPIO10 LED_5 PS_CS PS_FRAME AREF Interface & front panelInterface & front panel.sch RXD0TXD0GPIO3PS_DIR_GPIO7 FIFOP PS_FRAMEGPIO5 CS_n SCKSISO FIFO SLEEPn PS_CSDBG_SYNC_GPIO10BUZZER_GPIO6nRESETGPIO2TEMP_EN_GPIO4ADC2LED_5LED_4LED_2ATEMP_ADC1 RF_RESET_n GPIO1GPIO0TDOLED_3TCKTMSAREF CCA TDITXD1SFDRXD1BUTTON_1_GPIO9BUTTON_0_GPIO8 LNA EN1LNA EN2 LNA EN PA EN MCUMCU.sch RF_OUT Downlink & antennaDownlink & antenna.sch RF_OUT RF_RESET_n SCK CS_n SI SOFIFOFIFOPCCASFD SLEEPn TX/RXn TransceiverTransceiver.sch 1 2 3 4 56 ABCD 6 5 4 3 2 1 D CBA Confidential Copyright (C) 2001-2006 REnex Technology Limite d. All rights reserved. No part of this document may be reproduced or utiltized in any fo rm or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from REnex Technology Limited. Organization:Title:Sub-title:Designed by: Checked by: Revision: Date: Sheet: of File: PCB drawing: REnex Technology Limited Small Size Wireless Ember Modem wo/PAMCU.sch 01 12-Dec-2006 2 5 Li Hao, Lu Kui Ma Yiguang WM0350 PEN 1 PE0 (RXD0/PDI) 2 PE1(TXD0/PDO) 3 PE2(XCK0/AIN0) 4 PE3(OC3A/AIN1) 5 PE4(OC3B/INT4) 6 PE5(OC3C/INT5) 7 PE6(T3/INT6) 8 PE7(ICP3/INT7) 9 PB0(SS) 10 PB1(SCK) 11 PB2(MOSI) 12 PB3(MISO) 13 PB4(OC0) 14 PB5(OC1A) 15 PB6(OC1B) 16 PB7(OC2/OC1C) 17 PG3(TOSC2) 18 PG4(TOSC1) 19 RESET 20 Vcc 21 GND 22 XTAL2 23 XTAL1 24 PD0(SCL/INT0) 25 PD1(SDA/INT1) 26 PD2(RXD1/INT2) 27 PD3(TXD1/INT3) 28 PD4(ICP1) 29 PD5(XCK1) 30 PD6(T1) 31 PD7(T2) 32 PG0(WR) 33 PG1(RD) 34 PC0(A8) 35 PC1(A9) 36 PC2(A10) 37 PC3(A11) 38 PC4(A12) 39 PC5(A13) 40 PC6(A14) 41 PC7(A15) 42 PG2(ALE) 43 PA7(AD7) 44 PA6(AD6) 45 PA5(AD5) 46 PA4(AD4) 47 PA3(AD3) 48 PA2(AD2) 49 PA1(AD1) 50 PA0(AD0) 51 Vcc 52 GND 53 PF7(ADC7/TDI) 54 PF6(ADC6/TDO) 55 PF5(ADC5/TMS) 56 PF4(ADC4/TCK) 57 PF3(ADC3) 58 PF2(ADC2) 59 PF1(ADC1) 60 PF0(ADC0) 61 AREF 62 GND 63 AVcc 64 GND 65 U1ATMEGA128L-8MU MCU RXD0TXD0 GPIO3 PS_DIR_GPIO7 FIFOP PS_FRAME GPIO5 CS_n SCK SI SO FIFO SLEEPn PS_CS DBG_SYNC_GPIO10 BUZZER_GPIO6 nRESET GPIO2 TEMP_EN_GPIO4 ADC2 LED_5LED_4LED_2 ATEMP_ADC1 RF_RESET_n GPIO1GPIO0 TDO LED_3 TCKTMS AREF CCA TDI BATT_MON_EN DS1RED DS2GRN R3510R R4510R HEARTBEATACTIVITY BRD_PWR BRD_PWR TDITDOTMSTCK C1210n C30.1u BRD_PWR C1010n C1110n R2510K R1510K BATT_MON_EN BATT_MON C1310n BRD_PWR X1 IL3X-BX5F18-32.768kHz 1 3 4 2 X2ILCX14-JH5F18-8.000MHz C1518p C1618p TXD1 SFD RXD1 BUTTON_1_GPIO9BUTTON_0_GPIO8 1 2 3 4 56 ABCD 6 5 4 3 2 1 D CBA Confidential Copyright (C) 2001-2006 REnex Technology Limite d. All rights reserved. No part of this document may be reproduced or utiltized in any fo rm or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from REnex Technology Limited. Organization:Title:Sub-title:Designed by: Checked by: Revision: Date: Sheet: of File: PCB drawing: REnex Technology Limited Small Size Wireless Ember Modem wo/PATransceiver.sch 01 12-Dec-2006 3 5 Li Hao, Lu Kui Ma Yiguang WM0350 VCO_GUARD 1 AVDD_VCO 2 AVDD_PRE 3 AVDD_RF1 4 GND 5 RF_P 6 TXRX_SWITCH 7 RF_N 8 GND 9 AVDD_SW 10 NC 11 NC 12 NC 13 AVDD_RF2 14 AVDD_IF2 15 NC 16 AVDD_ADC 17 DVDD_ADC 18 DGND_GUARD 19 DGUARD 20 RESET_N 21 DGND 22 DSUB_PADS 23 DSUB_CORE 24 DVDD3.3 25 DVDD1.8 26 SFD 27 CCA 28 FIFOP 29 FIFON 30 CSn 31 SCK 32 SI 33 SO 34 DVDD_RAM 35 NC 36 AVDD_XOSC16 37 XOSC16_Q 38 XOSC16_Q1 39 NC 40 VREG_EN 41 VREG_OUT 42 VREG_IN 43 AVDD_IF1 44 R_BIAS 45 ATEST2 46 ATEST1 47 AVDD_CHP 48 AGND 49 U2EM2420 Transceiver C235p6 C245p6 C260p5 C250p5 L58n2 L46n8 L36n8 RF_OUT RF_OUT AV1p8 C1410n C2068p AV1p8 R2010K RF_RESET_n R8 1K SCK CS_n SI SO FIFO FIFOP CCA SFD C70.1u BRD_PWR C50.1u C60.1u AV1p8 C40.1u C1968p C180.33u C170.33u C2127p C2227p C2768p C2868p R50R R7100K R643K L21u X3 ILCX17-JH5F18-16.000 AV1p8 AV1p8 AV1p8 AV1p8 BRD_PWR SLEEPn C6110n 1 2 3 4 56 ABCD 6 5 4 3 2 1 D CBA Confidential Copyright (C) 2001-2006 REnex Technology Limite d. All rights reserved. No part of this document may be reproduced or utiltized in any fo rm or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from REnex Technology Limited. Organization:Title:Sub-title:Designed by: Checked by: Revision: Date: Sheet: of File: PCB drawing: REnex Technology Limited Small Size Wireless Ember Modem wo/PADownlink & antenna.sch 01 12-Dec-2006 4 5 Li Hao, Lu Kui Ma Yiguang WM0350 RF_OUT 12 U60603ESDA C3839p E1ANTENNA C397.5nH Front-End L130.5pF C58100p 1 2 3 4 56 ABCD 6 5 4 3 2 1 D CBA Confidential Copyright (C) 2001-2006 REnex Technology Limite d. All rights reserved. No part of this document may be reproduced or utiltized in any fo rm or by any means, electronic or mechanical, including photocopying and microfilm, without permission in writing from REnex Technology Limited. Organization:Title:Sub-title:Designed by: Checked by: Revision: Date: Sheet: of File: PCB drawing: REnex Technology Limited Small Size Wireless Ember Modem wo/PAInterface & front panel.sch 01 12-Dec-2006 5 5 Li Hao, Lu Kui Ma Yiguang WM0350 GPIO1GPIO0 ATE…

Text truncated - open the document above for the full version.

Print Date:4/6/2007Print Time:11:46 AM REnex Technology Ltd. BOM Report Page 1 of 1 Product Name: ZcoRE3-2400 Model No.: PT-2418G-S-0 Title: ZcoRE3-2400 Assembly BOM Report Report Generation Date: February 15, 2007 Version: A004Assembly Description Unit assembly,ZcoRE3-2400, CMOS seriers ports,Mesh P/N Level Renex Part Number Description Qty. Manufacturer Mfg.Part No. Footprint Designator .2 001-2075-000 SHIELD BOX for WM0320, Pretinned Steel 1 TBD .2 001-2076-000 SHIELD BOX COVER FOR WM0320,PRETINNED STEEL .2 Label, WM0320 shielding box, x mm 1 TBD ..3 090-1216-S00 PCB ASSEMBLY, Renex WM0350 pcb assembly ..3 000-0000-000 LOCATION, EMPTY,PCB ASSEMBLY 1 C58 ..3 R-001-1216-000 PCB bare board, WM0350, small size 2.4G Ember mod em wo/PA,C1D1 1 ..3 130-0136-000 IC,8-BIT AVR MCU W/128K FLASH, MLF-64 1 ATMEL ATMEGA128L-8MU 64M1-QFN/MLF U1 ..3 130-0140-000 IC, 2.4GHZ RF TRANSCEIVER 1 EMBER EM2420 EM2420-QLP48 U2 ..3 210-0000-608 RES CHIP, 0R, 0402, 1/10&1/16W, 5% 1 0R 0402W R5 ..3 210-1001-104 RES CHIP, 1K, 0402, 1/16W, 5% 1 1K 0402W R8 ..3 210-1002-604 RES CHIP,10K,0402,1/16W,1% 1 10K 0402W R20 ..3 210-1003-108 RES CHIP,100K,0402,1/16W,5% 1 100K 0402W R7 ..3 210-4303-108 RES CHIP,43K,0402,1/16W,5% 1 43K 0402W R6 ..3 210-5100-601 RES CHIP,510R,0402,1/16W,5% 2 510R 0402W R3,R4 ..3 210-5103-108 RES CHIP,510K,0402,1/16W,5% 2 510K 0402W R1,R2 ..3 250-0013-021 CHIP CAP,CER,10nF,16V,0402,X7R,10% 6 Murata GRM155R71E103KA01 0402W C10-C14,C61 ..3 250-0019-011 CHIP CAP,CER,0.1uF,10V,0402,X5R,10% 6 Murata GRM155R71C104KA88 0402W C1,C3,C4,C5,C6,C7 ..3 250-0021-051 CHIP CAP,CER,68pF,50V,0402,C0G,5% 4 Murata GRM1555C1H680JZ01 0402W C19,C20,C27,C28 ..3 250-0032-051 CHIP CAP,CER,5p6,50V,0402,C0G,+/-0.5p 1 Murata GRM1555C1H5R6DZ01 0402W C24 ..3 250-0080-051 CHIP CAP, 0.5PF 50V +/-0.25PF NPO 0402 SMT 3 0402W C25,C26,L13 ..3 250-0051-001 CHIP CAP,CER,10uF,10V,0805,X5R,10% 2 Murata GRM21BR61A106KE19 2012[0805] C17,C18 ..3 250-0180-051 CHIP CAP,CER,18pF,50V,0402,C0G,5% 2 Murata GRM1555C1H180JZ01 0402W C15,C16 ..3 250-0390-051 CHIP CAP,CER,39pF,50V,0402,C0G,5% 2 Murata GRM1555C1H390JZ01 0402W C23,C38 ..3 280-0016-000 INDUCTOR, EMI Ferrite Chip Beads,100mA,0603 1 STEWARD HZ0603A222R-00 0603W L1 ..3 280-0039-000 INDUCTOR, 8.2NH 10% 0402 1 0402W L5 ..3 280-0040-000 INDUCTOR, 6.8NH 10% 0603 1 0603W L4 ..3 280-0041-000 INDUCTOR, 6.8NH 10% 0402 1 0402W L3 ..3 280-0092-000 INDUCTOR, 3NH, 0402,190mA,+/-0.1nH 1 Murata LQP15MN3N0B02 0402W C39 ..3 280-0087-000 INDUCTOR,10UH,900mA,20%,1210,SMD,TAPE&REEL 1 1210 L2 ..3 310-0049-000 LED YELLOW DIFUSED 0603 SMT 1 0603W DS2 ..3 310-0052-000 LED,RED, DIFUSED ,0603 SMT 1 0603W DS1 ..3 390-0010-000 CRYSTAL, 8.000MHZ 4PIN SMD 1 OSCILLATOR-SMD X2 ..3 390-0011-000 QUARTZ CRYSTAL,32.768KHZ,SE3202-ND 1 SMD 1.5x3.2mm X1 ..3 390-0012-000 CRYTSAL, 16.000MHZ +/-10PPM FREQ 1 ILCX17 X3 ..3 400-0614-000 Header, Male,Double Row,1.27 mm pitch,20x2 Pos, SMD. 1 Jih Vei Electronics(KunShan) Co., Ltd. 21N21040-40M00B-01G-2/5.8 1.27MM 20x2 SMT CON J1 ..3 411-0039-000 ESD Suppressor, Single Line Polymer ESD Suppressor with SurgX technology 1 Cooper 0603ESDA 0603W U6 ..3 290-0010-000 Chip antenna, LAN Chip Type Antenna ACA7636A1SXX 1 INPAQ ACA7636A1 ACA7636A1 E1 ..3 490-0111-000 FUSE, 500mA, 0603, 434 series 1 Littelfuse 0434.500 0603W F1 Revision No Description Date A001 First version draft, November 13, 2006 Assembly Part Number R-001-0003-410 Revision History Filename: ZcoRE3-2400_bom_A004_070215.xls Company Confidential Information

Report No. JSH007010358-001 Page 1 of 22 EMC TEST REPORT No. JSH007010358-001 Applicant : REnex Technology Limited Room 601, 6/F, 1 Science Park Avenue East, Hong Kong Science Park, N.T., Hong Kong Manufacturer : REnex Technology Limited Room 601, 6/F, 1 Science Park Avenue East, Hong Kong Science Park, N.T., Hong Kong Equipment : ZcoRE3 Type/Model : PT-2418G-S-0 SUMMARY The equipment complies with the requirements according to the following standard(s): 47CFR Part 15 (2006): Radio Frequency Devices ANSIC63.4 (2003): American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz Date of issue: March 5, 2007 Tested by: Reviewed by: Wakeyou Wang (Projector Engineer) Jonny Jing (Reviewer) Report No. JSH007010358-001 Page 2 of 22 Description of Test Facility Name: Intertek Testing Services Limited Shanghai Address: Building No.86, 1198 Qinzhou Road(North), Shanghai 200233, P.R. China FCC Registration Number: 236597 Name of contact: Steve Li Tel: +86 21 64956565 ext. 214 Fax: +86 21 54262335 ext. 214 Report No. JSH007010358-001 Page 3 of 22 Content SUMMARY............................................................................................................................................. 1 DESCRIPTION OF TEST FACILITY............................................................................................................ 2 1. GENERAL INFORMATION............................................................................................................... 4 1.1 Applicant Information..........................................................................................4 1.2 Identification of the EUT .....................................................................................4 1.3 Technical specification ........................................................................................4 1.4 Mode of operation during the test / Test peripherals used...................................5 2. TEST SPECIFICATION..................................................................................................................... 6 2.1 Instrument list ......................................................................................................6 2.2 Related Grant and test Standard...........................................................................6 3. MINIMUM 6DB BANDWIDTH.......................................................................................................... 8 3.1 Limit.....................................................................................................................8 3.2 Test Configuration ...............................................................................................8 3.3 Test Procedure and test setup...............................................................................8 3.4 Test Protocol ........................................................................................................9 3.5 Measurement uncertainty.....................................................................................9 4. MAXIMUM PEAK OUTPUT POWER.............................................................................................. 10 4.1 Test limit ............................................................................................................10 4.2Test Configuration ..............................................................................................10 4.3 Test procedure and test setup .............................................................................10 4.4 Test protocol ......................................................................................................11 4.5 Measurement uncertainty...................................................................................11 5. POWER SPECTRUM DENSITY....................................................................................................... 12 5.1 Test limit ............................................................................................................12 5.2 Test Configuration .............................................................................................12 5.3 Test procedure and test setup .............................................................................12 5.4 Test Protocol ......................................................................................................13 5.5 Measurement uncertainty...................................................................................13 6. SPURIOUS EMISSION..................................................................................................................... 14 6.1 Test limit ............................................................................................................14 6.2 Test Configuration .............................................................................................14 6.3 Test procedure and test setup .............................................................................14 6.4 Test protocol ......................................................................................................15 6.5 Measurement uncertainty...................................................................................17 7. EMISSION ON THE BAND EDGE..................................................................................................... 18 7.1 Limit...................................................................................................................18 7.2 Test Configuration .............................................................................................18 7.3 Test procedure and test setup .............................................................................18 7.4 Test protocol ......................................................................................................19 7.5 Measurement uncertainty..........................…

Text truncated - open the document above for the full version.

FCC ID: QNT-PT2400GS00-A Page 1 of 17 Test Data FCC ID: QNT-PT2400GS00-A Page 2 of 17 1. Minimum 6dB Bandwidth Channel 0 FCC ID: QNT-PT2400GS00-A Page 3 of 17 Channel 8 FCC ID: QNT-PT2400GS00-A Page 4 of 17 Channel 15 FCC ID: QNT-PT2400GS00-A Page 5 of 17 2. Spurious Emission Channel 0 Horizontal 0 10 20 30 40 50 60 Level [dB /m] 30M50M70M100M200M300M500M700M1G Frequency [Hz] MES 0dB_FCC_H_pre LIMFCC2.4GHz FCC ID: QNT-PT2400GS00-A Page 6 of 17 0 10 20 30 40 50 60 70 80 Level [dB /m] 1G2G3G4G5G6G8G10G18G Frequency [Hz] MES 0dB_FCC_AV_H_pre LIMFCC2.4GHz Level [dBμV/m] 80 70 60 50 40 30 20 10 0 18G 19G 20G 25G 21G22G23G24G Frequency [Hz] MES 0dB_H_pre LIM FCC 15 F 3 QP Field Strength QP FCC ID: QNT-PT2400GS00-A Page 7 of 17 Vertical 0 10 20 30 40 50 60 70 80 Level [dB /m] 30M50M70M100M200M300M500M700M1G Frequency [Hz] MES 0dB_FCC_V_pre LIMFCC2.4GHz 0 10 20 30 40 50 60 70 80 Level [dB /m] 1G2G3G4G5G6G8G10G18G Frequency [Hz] MES 0dB_FCC_AV_V_pre LIMFCC2.4GHz FCC ID: QNT-PT2400GS00-A Page 8 of 17 Level [dBμV/m] 80 70 60 50 40 30 20 10 0 18G 19G 20G 25G 21G22G23G24G Frequency [Hz] MES 0dB_V_pre LIM FCC 15 F 3 QP Field Strength QP FCC ID: QNT-PT2400GS00-A Page 9 of 17 Channel 8 Horizontal Level [dBμV/m] 60 50 40 30 20 10 0 30M 50M 70M 700M 1G 100M200M300M500M Frequency [Hz] MES 0dB_8_FCC_H_pre LIM FCC_2.4GHz Level [dBμV/m] 80 70 60 50 40 30 20 10 0 1G 2G 18G 3G4G5G6G8G10G Frequency [Hz] MES 0dB_8_FCC_AV_H_pre LIM FCC_2.4GHz FCC ID: QNT-PT2400GS00-A Page 10 of 17 Level [dBμV/m] 80 70 60 50 40 30 20 10 0 18G 19G 20G 25G 21G22G23G24G Frequency [Hz] MES 0dB_8_H_pre LIM FCC 15 F 3 QP Field Strength QP Vertical Level [dBμV/m] 80 70 60 50 40 30 20 10 0 30M 50M 70M 700M 1G 100M200M300M500M Frequency [Hz] MES 0dB_8_FCC_V_pre LIM FCC_2.4GHz FCC ID: QNT-PT2400GS00-A Page 11 of 17 Level [dBμV/m] 80 70 60 50 40 30 20 10 0 1G 2G 18G 3G4G5G6G8G10G Frequency [Hz] MES 0dB_8_FCC_AV_V_pre LIM FCC_2.4GHz Level [dBμV/m] 80 70 60 50 40 30 20 10 0 18G 19G 20G 25G 21G22G23G24G Frequency [Hz] MES 0dB_8_V_pre LIM FCC 15 F 3 QP Field Strength QP FCC ID: QNT-PT2400GS00-A Page 12 of 17 Channel 15 Horizontal Level [dBμV/m] 60 50 40 30 20 10 0 30M 50M 70M 700M 1G 100M200M300M500M Frequency [Hz] MES 0dB_15_FCC_H_pre LIM FCC_2.4GHz Level [dBμV/m] 80 70 60 50 40 30 20 10 0 1G 2G 18G 3G4G5G6G8G10G Frequency [Hz] MES 0dB_15_FCC_AV_H_pre LIM FCC_2.4GHz FCC ID: QNT-PT2400GS00-A Page 13 of 17 Level [dBμV/m] 80 70 60 50 40 30 20 10 0 18G 19G 20G 25G 21G22G23G24G Frequency [Hz] MES 0dB_15_H_pre LIM FCC 15 F 3 QP Field Strength QP Vertical Level [dBμV/m] 80 70 60 50 40 30 20 10 0 30M 50M 70M 700M 1G 100M200M300M500M Frequency [Hz] MES 0dB_15_FCC_V_pre LIM FCC_2.4GHz FCC ID: QNT-PT2400GS00-A Page 14 of 17 Level [dBμV/m] 80 70 60 50 40 30 20 10 0 1G 2G 18G 3G4G5G6G8G10G Frequency [Hz] MES 0dB_15_FCC_AV_V_pre LIM FCC_2.4GHz Level [dBμV/m] 80 70 60 50 40 30 20 10 0 18G 19G 20G 25G 21G22G23G24G Frequency [Hz] MES 0dB_15_V_pre LIM FCC 15 F 3 QP Field Strength QP FCC ID: QNT-PT2400GS00-A Page 15 of 17 3. Emission on the band edge channel 0 (lowest working frequency) channel 15 (highest working frequency) FCC ID: QNT-PT2400GS00-A Page 16 of 17 4. Conducted Emission Power Line: L FCC ID: QNT-PT2400GS00-A Page 17 of 17 Power Line: N

FCC ID: QNT-PT2400GS00-A Page 1 of 1 Statement of compliance to Maximum Permissible Exposure (MPE) Equipment : ZcoRE3 Type/Model : PT-2418G-S-0 Applicant : REnex Technology Limited Room 601, 6/F, 1 Science Park Avenue East, Hong Kong Science Park, N.T., Hong Kong Manufacturer : Same as above Here assuming a worst-case prediction of power density (100% reflection), then S = 4PG / (4πR²) = PG / (πR²). Where S = power density in mW/cm² P = transmit power in mW G = numeric gain of transmit antenna R = distance (cm) As we can see from the test report JSH007010358-001: The maximum P = -3.5dBm = 0.45mW G = 2.5dBi = 1.78 R is chosen to be 1cm (worst case) S = PG / (πR²) = 0.45 * 1.78 / 3.14 = 0.26 mW/cm² This level is below the 1 mW/cm² MPE for General Population / Uncontrolled Exposure as stated in OET BULLETIN 65 Edition 97-01. Conclusion: this EUT fulfills 47CFR Part 15.247(i) (2006) Date of issue: May 28, 2007 Prepared by: Reviewed by: Wakeyou Wang (Project engineer) Jonny Jing (Reviewer)

FCC ID: QNT-PT2400GS00-A Page 1 of 8 Test Setup FCC ID: QNT-PT2400GS00-A Page 2 of 8 1. Minimum 6dB Bandwidth FCC ID: QNT-PT2400GS00-A Page 3 of 8 2. Maximum Peak Output Power FCC ID: QNT-PT2400GS00-A Page 4 of 8 3. Power Spectrum Density FCC ID: QNT-PT2400GS00-A Page 5 of 8 4. Spurious Emission FCC ID: QNT-PT2400GS00-A Page 6 of 8 FCC ID: QNT-PT2400GS00-A Page 7 of 8 5. Emission on the band edge FCC ID: QNT-PT2400GS00-A Page 8 of 8 6. Conducted Emission
