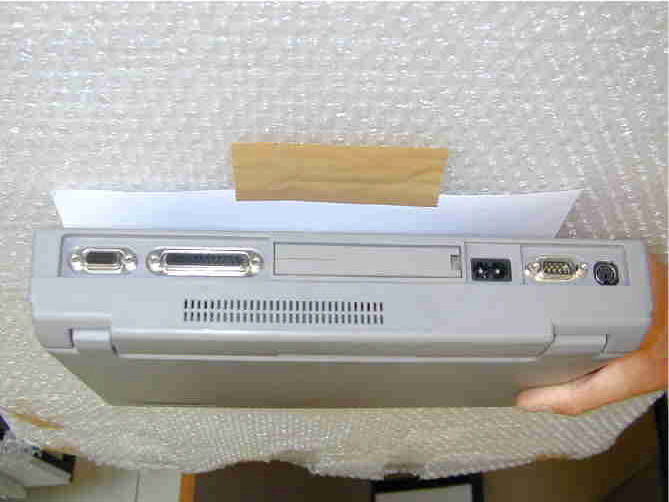

QO7NG3028X12-5KWMarine Radar

Operating Instructions RADARPILOT ATLAS 1000 CHARTRADAR ATLAS 1000 MULTIPILOT ATLAS 1000 Software Version 2.4 Radar Functions Plotting Aids Item No.: ED 3038 G 232Revision: 01 (2002-06) Order No.: 300004937 b_r1_eti.fm / 21.06.02 This document is our property for which we reserve all rights, including those relating to patents or registered designs. It must not be reproduced or used otherwise or made available to any third party without our prior permission in writing. Alterations due to technical progress are reserved. STN ATLAS Marine Electronics GmbH D - 22763 Hamburg Service Customer Support Center Phone: + 49 (0) 18 03 00 85 53 Fax:+ 49 (0) 18 03 00 85 54 E-mail: [email protected] ED 3038 G 232 / 01 (2002-06) Operating Instructions General Safety Precautions b_r1_esh.fm / 21.06.02 3 RADARPILOT / CHARTRADAR General Safety Precautions The radar can perform its safety function if, and only if, the transmission power and the receiver sensitivity are adequate. Therefore, these characteristics must be checked regularly (by means of the Performance Monitor – see Section 21). Connected position receivers must fulfil the standard IEC 61162-1 1) . ARPA target data are directly dependent upon the accuracy and proper functioning of the selected speed sensor and the gyro compass. DANGER: High frequency radiation Persons must definitely avoid being present in the radiation danger zone of the rotating antenna. In the case of work being done on the antenna unit, the antenna switch situated there must be set to 0 and the transceiver must be discon- nected from the ship’s mains. ☞There is no international agreement about the danger posed by high frequency radiation of the kind produced by the radar systems. In most countries, a radiation density exceeding 100 W/m 2 is consid- ered to be dangerous; in some countries, values over 10 W/m 2 are regarded as not being completely safe. 1) IEC 61162-1 largely corresponds to NMEA 0183 Version 2.30 of 1st March 1998. Antenna Type Transceiver A=Up B=Down Radius of the Radiation Danger Zone Radiation Density 100 W/m 2 Radiation Density 10 W/m 2 5 ft X-Band 12.5 kW, Version A1.4 m14 m 25 kW, Version B1.65 m16 m 8 ft X-Band12.5 kW, Version A0.65 m7 m 14 ft S-Band 30 kW, Version A1.3 m13 m 30 kW, Version B0.7 m7.8 m Particular attention must be paid to the notes and warnings refer- ring to possible faults in the radar display, since such faults can impair the detection of targets. RADARPILOT / CHARTRADAR ED 3038 G 232 / 01 (2002-06) Operating Instructions General Safety Precautions b_r1_esh.fm / 21.06.02 4 DANGER: Injury caused by a rotating antenna When the radar system is switched to "ON", it is possible that, instead of the expected antenna, a different one will begin to rotate. Therefore, it must be ensured beforehand that all antennas can rotate freely and that are no persons near the antennas. The units may be opened only by qualified, trained persons. DANGER: Dangerous voltage Even when the equipment is switched off, there can be a dangerous voltage present at exposed contacts in the units. Therefore, before a unit is opened, it must be ensured that the voltage supply to the unit is disconnected from the ship’s mains, and that it remains disconnected. Because of the capacitors contained in the units, there can be a dangerous voltage present in any unit even several minutes (or several hours in the case of monitors) after switching off and disconnection from the power supply. ☞If the units are to be disconnected from the ship’s mains, it must be remembered that each antenna unit, each transceiver electronics unit and each indicator normally has its own supply of power from the ship’s mains. If, for the transfer of signals (e.g. transfer of the heading signal from the compass system), synchro transmitter are used, a dangerous voltage exists in the units until the reference voltage is switched off. ED 3038 G 232 / 01 (2002-06) Operating Instructions List of Contents b_r1seiv.fm / 21.06.02 5 RADARPILOT / CHARTRADAR List of Contents ☞ Please pay attention to the supplement (if any) at the end of the document. General Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 List of Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 1Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 1.1RADARPILOT ATLAS 1000 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 1.2CHARTRADAR ATLAS 1000 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 1.3MULTIPILOT ATLAS 1000 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 1.4The Equipment Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 1.5Scope of Applicability of these Operating Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 2Basic Settings; General Remarks about Operating . . . . . . . . . . . . . . . . . . . . . . . . . 15 2.1Switching the Radar System On and Off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 2.2General Remarks about the Operating and Display Elements . . . . . . . . . . . . . . . . . . . . . . 16 2.3Brilliance and Colour Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 2.4Degaussing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23 2.5Display Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 2.6An Overview of the Screen . . . . . . . . . . . . . . . . . . . . .…

Text truncated - open the document above for the full version.

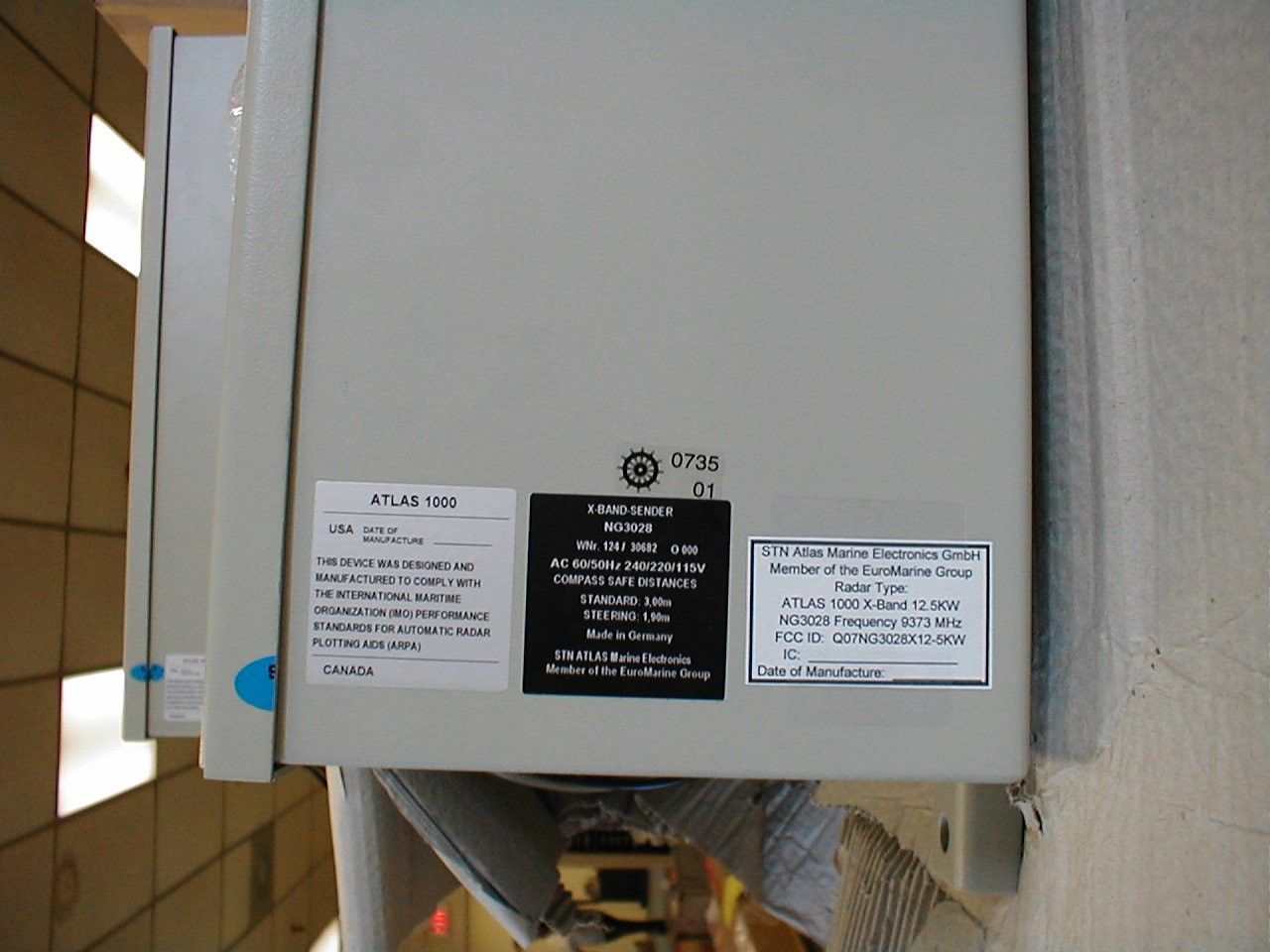

STN Atlas Marine Electronics GmbH Member of the EuroMarine Group Radar Type: ATLAS 1000 X-Band 12.5KW NG3028 Frequency 9373 MHz FCC ID: QO7NG3028X12-5KW IC: ____________________ Date of Manufacture: ____________

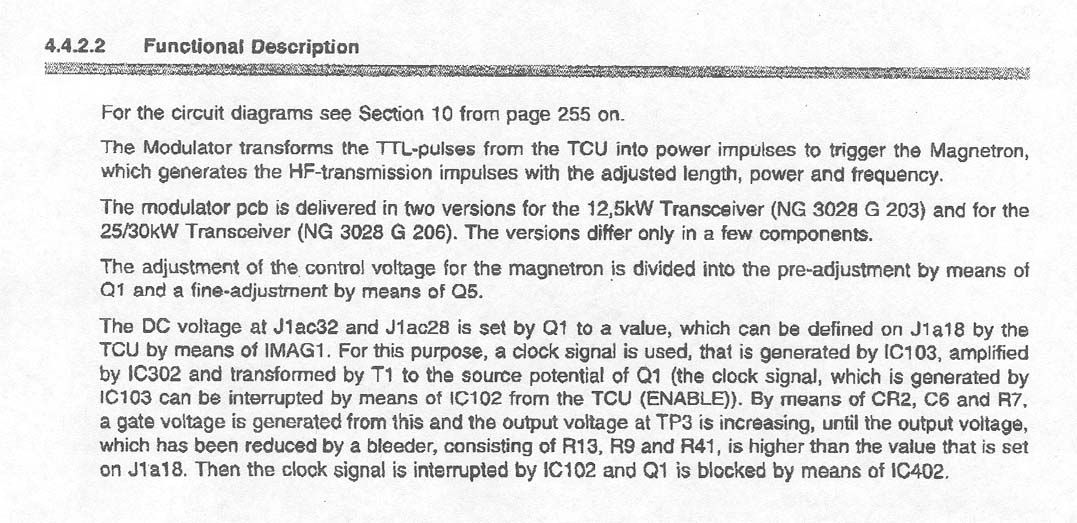

RADARPILOT ATLAS 1000 ED 3038 G 342 / 04 (2002-03) Technical Manual 4 Functional Description 4.4 Transceiver t_r1_e04.fm / 30.07.02 88 4.4Transceiver 4.4.1Modulator NG 3028 G 203 / NG 3028 G 206 WARNING For the use of the different revisions of the Modulator some prerequisites must be fulfilled. See Section 7, Revision Overview for further information. Fig. 4-20Modulator NG 3028 G 206 (Rev. 01; NG 3028 G 203, Rev. - with different components) ztr1_056.jpg R66 R58 R56 TP1 TP6 TP4TP3 TP2 TP8 1 1 1 1 1 J1a J1c 132 TP7 1 RADARPILOT ATLAS 1000 ED 3038 G 342 / 04 (2002-03) Technical Manual 4 Functional Description 4.4 Transceiver t_r1_e04.fm / 30.07.02 89 Fig. 4-21Modulator NG 3028 G 206 (
Rev. 02; NG 3028 G 203,
Rev. 01 with different components) Connectors / Jumpers / Test Pins TP1Function 1 Jumper on 1/2 = reduction of heating voltage No jumper on 1/2 = no reduction of heating voltage 1) 1) The reduction of the heating voltage is necessary for the magnetrons M1302L/M5020 (S-Band), M1475A (X-Band, 25 kW). See Section 4.4.1.1. 2 TP2Function 1 Jumper on 1 and 2 = 25/30 kW Modulator NG 3028 G 206 Jumper on 2 and 3 = 12.5 kW Modulator NG 3028 G 203 2 3 ztr1_023.jpg R66 R58 R56 TP1 TP6 TP4TP3 TP2 TP8 1 1 1 1 1 J1a J1c 132 TP7 1 1 TP5 1 TP9 RADARPILOT ATLAS 1000 ED 3038 G 342 / 04 (2002-03) Technical Manual 4 Functional Description 4.4 Transceiver t_r1_e04.fm / 30.07.02 90 TP 5 is available for NG 3028 G 203
Rev. 01 and NG 3028 G 206
Rev. 02 only: TP 9 is available on NG 3028 G 203
Rev. 01 and NG 3028 G 206
Rev. 02 only: TP3Function 1Jumper on 1/2 = default, do not remove 2 TP4Function 1Jumper on 1/2 = Power Supply MIC4451 2 TP5Function 1Jumper on 1/2 = NG 3028 G 206 No jumper on 1/2 = NG 3028 G 203 2 TP6Function 1Jumper, HEATER_P, for manufacturer’s use, do not remove 2 3Jumper, bias current, for manufacturer’s use, do not remove 4 TP7Function 1IMAGNETRON TP8Function G 203 Rev. - and G 206 Rev. 01G 203
Rev. 01 and G 206
Rev. 02 1GNDHEATER_N 2HEATER_NHEATER_P 3HEATER_P- 4Bias current +- 5Bias current -- TP9Function 1Bias current + 2Bias current - RADARPILOT ATLAS 1000 ED 3038 G 342 / 04 (2002-03) Technical Manual 4 Functional Description 4.4 Transceiver t_r1_e04.fm / 30.07.02 91 Potentiometers 4.4.1.1Adjustment of Magnetron Heating Voltage Mode:Transmitter in stand-by mode Test pins:NG 3028 G 203 Rev. - and NG 3028 G 206 Rev. 01:TP8/2 and TP8/3 NG 3028 G 203
Rev. 01 and NG 3028 G 203
Rev. 02:TP8/1 and TP8/2 Function G 203 Rev. - and G 206 Rev. 01G 203
Rev. 01 and G 206
Rev. 02 R56 Bias adjust. Switch the Transmitter into the stand-by mode. The bias current must be adjusted with R56. The voltage on TP8 4/5 must be 110 mV ± 5%. Bias adjust. Switch the Transmitter into the stand-by mode. The bias current must be adjusted with R56. The voltage on TP9 1/2 must be 110 mV ± 5%. R58Heater voltage reduction adjust (see Section 4.4.1.1 for instructions) R66Heater adjust (see Section 4.4.1.1 for instructions) TransceiverMagnetronPotentiometer Adjustments (Testpins TP8) Comment X-Band 12.5 kW EEV MG5245 R66Set DC voltage to 6.7 V ± 0.1 V The measured heating voltage values are 0.4 V higher than displayed in the Maintenance Manager. NJRC MSF1425A 25.0 kW EEV MG5459 R66Set DC voltage to 6.7 V ± 0.1 V NJRC M1475A R66, R58 (reduction) 1. Transceiver in stand-by mode. Adjustment: Set DC voltage at TP8 by means of R66 to 6.7 V ± 0.1 V 2. Transceiver ON and in 24 NM range. Adjustment: Set DC voltage at TP8 by means of R58 to 5.8 V ± 0.1 V S-Band EEV M5020 R66, R58 (reduction) 1. Transceiver in stand-by mode. Adjustment: Set DC voltage at TP8 by means of R66 to 7.3 V ± 0.1 V 2. Transceiver ON and in 24 NM range. Adjustment: Set DC voltage at TP8 by means of R58 to 6.3 V ± 0.1 V The measured heating voltage values are 1.0 V higher than displayed in the Maintenance Manager. EEV MG5223 NJRC M1302L RADARPILOT ATLAS 1000 ED 3038 G 342 / 04 (2002-03) Technical Manual 4 Functional Description 4.4 Transceiver t_r1_e04.fm / 30.07.02 92 4.4.1.2Functional Description The Modulator transforms the TTL pulses from the TCU into power pulses to trigger the Magnetron, which generates the RF transmission pulses with the adjusted length, power and frequency. The modulator pcb is delivered in two versions for the 12.5 kW Transceiver (NG 3028 G 203) and for the 25/30 kW Transceiver (NG 3028 G 206). The versions differ only in a few components. The adjustment of the control voltage for the magnetron is divided into the preadjustment by means of Q1 and a fine adjustment by means of Q5. The DC voltage at J1ac32 and J1ac28 is set by Q1 to a value which can be defined on J1a18 by the TCU by means of IMAG1. For this purpose, a clock signal is used which is generated by IC103, amplified by IC302 and transformed by T1 to the source potential of Q1 (the clock signal which is generated by IC103 can be interrupted from the TCU (ENABLE) by means of IC102). By means of CR2, C6 and R7, a gate voltage is generated from this, and the output voltage at TP3 increases, until the output voltage, which has been reduced by a bleeder consisting of R13, R9 and R41, is higher than the value that is set on J1a18. Then the clock signal is interrupted by IC102, and Q1 is blocked by means of IC402. The operating voltage P850V for the transistors Q3, Q4 and Q5 is adjusted by the TCU at J1c6 by Q5 by means of IMAG2 via IC1 and Q6. With the value of P850V which has been reduced by a bleeder consisting of R18, R19 and R21, the voltage P850V is adjusted by IC1. The magnetron is connected to the signals HEATER_MAGN and CATHODE, and to ground. For gener- ating the trigger pulse for the magnetron, a TTL pulse is given on J1a22. IC102 and IC306 control the power MOSFET’s Q2, Q3 and Q4 which generate a negative pulse at the primary of T2. The pulse is transformed by T2 with a ratio of 1:11 and triggers the magnetron. The magnetron current is first led through an integrating circuit consisting of C30 and R51, then decou- pled by IC202 and led to the TCU via J1c1…

Text truncated - open the document above for the full version.

RADARPILOT ATLAS 1000 ED 3038 G 342 / 04 (2002-03) Technical Manual 4 Functional Description 4.4 Transceiver t_r1_e04.fm / 30.07.02 88 4.4Transceiver 4.4.1Modulator NG 3028 G 203 / NG 3028 G 206 WARNING For the use of the different revisions of the Modulator some prerequisites must be fulfilled. See Section 7, Revision Overview for further information. Fig. 4-20Modulator NG 3028 G 206 (Rev. 01; NG 3028 G 203, Rev. - with different components) ztr1_056.jpg R66 R58 R56 TP1 TP6 TP4TP3 TP2 TP8 1 1 1 1 1 J1a J1c 132 TP7 1 RADARPILOT ATLAS 1000 ED 3038 G 342 / 04 (2002-03) Technical Manual 4 Functional Description 4.4 Transceiver t_r1_e04.fm / 30.07.02 89 Fig. 4-21Modulator NG 3028 G 206 (
Rev. 02; NG 3028 G 203,
Rev. 01 with different components) Connectors / Jumpers / Test Pins TP1Function 1 Jumper on 1/2 = reduction of heating voltage No jumper on 1/2 = no reduction of heating voltage 1) 1) The reduction of the heating voltage is necessary for the magnetrons M1302L/M5020 (S-Band), M1475A (X-Band, 25 kW). See Section 4.4.1.1. 2 TP2Function 1 Jumper on 1 and 2 = 25/30 kW Modulator NG 3028 G 206 Jumper on 2 and 3 = 12.5 kW Modulator NG 3028 G 203 2 3 ztr1_023.jpg R66 R58 R56 TP1 TP6 TP4TP3 TP2 TP8 1 1 1 1 1 J1a J1c 132 TP7 1 1 TP5 1 TP9 RADARPILOT ATLAS 1000 ED 3038 G 342 / 04 (2002-03) Technical Manual 4 Functional Description 4.4 Transceiver t_r1_e04.fm / 30.07.02 90 TP 5 is available for NG 3028 G 203
Rev. 01 and NG 3028 G 206
Rev. 02 only: TP 9 is available on NG 3028 G 203
Rev. 01 and NG 3028 G 206
Rev. 02 only: TP3Function 1Jumper on 1/2 = default, do not remove 2 TP4Function 1Jumper on 1/2 = Power Supply MIC4451 2 TP5Function 1Jumper on 1/2 = NG 3028 G 206 No jumper on 1/2 = NG 3028 G 203 2 TP6Function 1Jumper, HEATER_P, for manufacturer’s use, do not remove 2 3Jumper, bias current, for manufacturer’s use, do not remove 4 TP7Function 1IMAGNETRON TP8Function G 203 Rev. - and G 206 Rev. 01G 203
Rev. 01 and G 206
Rev. 02 1GNDHEATER_N 2HEATER_NHEATER_P 3HEATER_P- 4Bias current +- 5Bias current -- TP9Function 1Bias current + 2Bias current - RADARPILOT ATLAS 1000 ED 3038 G 342 / 04 (2002-03) Technical Manual 4 Functional Description 4.4 Transceiver t_r1_e04.fm / 30.07.02 91 Potentiometers 4.4.1.1Adjustment of Magnetron Heating Voltage Mode:Transmitter in stand-by mode Test pins:NG 3028 G 203 Rev. - and NG 3028 G 206 Rev. 01:TP8/2 and TP8/3 NG 3028 G 203
Rev. 01 and NG 3028 G 203
Rev. 02:TP8/1 and TP8/2 Function G 203 Rev. - and G 206 Rev. 01G 203
Rev. 01 and G 206
Rev. 02 R56 Bias adjust. Switch the Transmitter into the stand-by mode. The bias current must be adjusted with R56. The voltage on TP8 4/5 must be 110 mV ± 5%. Bias adjust. Switch the Transmitter into the stand-by mode. The bias current must be adjusted with R56. The voltage on TP9 1/2 must be 110 mV ± 5%. R58Heater voltage reduction adjust (see Section 4.4.1.1 for instructions) R66Heater adjust (see Section 4.4.1.1 for instructions) TransceiverMagnetronPotentiometer Adjustments (Testpins TP8) Comment X-Band 12.5 kW EEV MG5245 R66Set DC voltage to 6.7 V ± 0.1 V The measured heating voltage values are 0.4 V higher than displayed in the Maintenance Manager. NJRC MSF1425A 25.0 kW EEV MG5459 R66Set DC voltage to 6.7 V ± 0.1 V NJRC M1475A R66, R58 (reduction) 1. Transceiver in stand-by mode. Adjustment: Set DC voltage at TP8 by means of R66 to 6.7 V ± 0.1 V 2. Transceiver ON and in 24 NM range. Adjustment: Set DC voltage at TP8 by means of R58 to 5.8 V ± 0.1 V S-Band EEV M5020 R66, R58 (reduction) 1. Transceiver in stand-by mode. Adjustment: Set DC voltage at TP8 by means of R66 to 7.3 V ± 0.1 V 2. Transceiver ON and in 24 NM range. Adjustment: Set DC voltage at TP8 by means of R58 to 6.3 V ± 0.1 V The measured heating voltage values are 1.0 V higher than displayed in the Maintenance Manager. EEV MG5223 NJRC M1302L RADARPILOT ATLAS 1000 ED 3038 G 342 / 04 (2002-03) Technical Manual 4 Functional Description 4.4 Transceiver t_r1_e04.fm / 30.07.02 92 4.4.1.2Functional Description The Modulator transforms the TTL pulses from the TCU into power pulses to trigger the Magnetron, which generates the RF transmission pulses with the adjusted length, power and frequency. The modulator pcb is delivered in two versions for the 12.5 kW Transceiver (NG 3028 G 203) and for the 25/30 kW Transceiver (NG 3028 G 206). The versions differ only in a few components. The adjustment of the control voltage for the magnetron is divided into the preadjustment by means of Q1 and a fine adjustment by means of Q5. The DC voltage at J1ac32 and J1ac28 is set by Q1 to a value which can be defined on J1a18 by the TCU by means of IMAG1. For this purpose, a clock signal is used which is generated by IC103, amplified by IC302 and transformed by T1 to the source potential of Q1 (the clock signal which is generated by IC103 can be interrupted from the TCU (ENABLE) by means of IC102). By means of CR2, C6 and R7, a gate voltage is generated from this, and the output voltage at TP3 increases, until the output voltage, which has been reduced by a bleeder consisting of R13, R9 and R41, is higher than the value that is set on J1a18. Then the clock signal is interrupted by IC102, and Q1 is blocked by means of IC402. The operating voltage P850V for the transistors Q3, Q4 and Q5 is adjusted by the TCU at J1c6 by Q5 by means of IMAG2 via IC1 and Q6. With the value of P850V which has been reduced by a bleeder consisting of R18, R19 and R21, the voltage P850V is adjusted by IC1. The magnetron is connected to the signals HEATER_MAGN and CATHODE, and to ground. For gener- ating the trigger pulse for the magnetron, a TTL pulse is given on J1a22. IC102 and IC306 control the power MOSFET’s Q2, Q3 and Q4 which generate a negative pulse at the primary of T2. The pulse is transformed by T2 with a ratio of 1:11 and triggers the magnetron. The magnetron current is first led through an integrating circuit consisting of C30 and R51, then decou- pled by IC202 and led to the TCU via J1c1…

Text truncated - open the document above for the full version.

A. INTRODUCTION The following data are submitted in connection with this request for type certification of the Atlas 1000 X-Band 12.5 kW radar system in accordance with Part 2, Subpart J of the FCC Rules. B. GENERAL INFORMATION REQUIRED FOR TYPE CERTIFICATION (Paragraph 2.983 of the Rules) (a) Name of applicant: STN Atlas Marine Electronics GmbH (b) Identification of equipment: FCC ID: QO7NG3028X12-5KW (1) The equipment identification label is submitted as a separate exhibit. (2) Photographs of the equipment are submitted as a separate exhibit. (c) Quantity production is planned. (d) Technical description: (1) 90M2P0N emission (2) Frequency range: 9300 - 9500 MHz (3) Rated power of the transmitter is 12.5 kW (4) The Atlas 1000 x-Band 12.5KW complies with the power Limitations of Parts 80. (5) The nominal dc voltage and dc currents at magnetron: dc voltage dc current (peak) (peak) 5.1 kilovolts 4.75 amperes (6) Function of each active semi-conductor device: submitted as a separate exhibit. (7) Circuit diagram is submitted as a separate exhibit (8) A draft instruction book is submitted as a separate exhibit. (9) The transmitter tune-up procedure is submitted as a separate exhibit. (10) A description of circuits for stabilizing frequency is included in Appendix 1. A description of circuits and devices employed For suppression of spurious radiation and for limiting modulation is included in Appendix 2. (11) (Not applicable) 1 B.GENERAL INFORMATION REQUIRED FOR TYPE CERTIFICATION (Continued) (e) Data for 2.985 through 2.997 follow this section B. (f) (Not applicable) (g) (Not applicable) C. RF POWER OUTPUT (Paragraph 2.985(a) of the Rules) RF power output into a LRL X-634 dummy load was measured with a HP 752D directional coupler, HP X382A attenuator, and HP 432A power meter with HP 478A thermocouple sensor. The power meter was corrected for directional coupler attenuation and sensor calibration. Table 1 RF Power Output Range, n.m. 0.5 1.5 3.0 6.0 Meas. Avg P (dBm) 32.1 32.3 35.5 37.7 Meas. PRF. (Hz) 2000 1000 1000 1000 Nom. Pulse Length, (ns) 70 150 300 500 Duty Cycle 1 (X10 -6 ) 140 150 300 500 Peak Power2(Kw) 11.6 11.3 11.8 11.8 Avg. Power (W) 1.6 1.7 3.5 5.9 Range, n.m. 12.0 24.0 48.0 Meas. Avg P (dBm) 38.0 38.0 38.0 Meas. PRF. (Hz) 500 500 500 Nom Pulse Length, (ns) 900 900 900 Duty Cycle 1( x10 -6 ) 450 450 450 Peak Power 2(kW) 14.0* 14.0* 14.0* Avg. Power (W) 6.3 6.3 6.3 1)Duty cycle = PRF x Pulse Length 2)Peak Power = Avg. pwr/Duty cycle *Peak power measured was 0.5 dB over nominal rated power; within uncertainty of the measurement to rated 12.5 kW. 2 D. MODULATION CHARACTERISTICS (Paragraph 2.987 of the Rules) 1. Magnetron pulse input was measured with a Tektronix TDS- 360 digital storage oscilloscope and Tektronix 6015 X1000 high voltage probe; and recorded on an HP C2106A printer. Oscilloscope display for each pulse width, corresponding to range in nautical miles (nm), are included as Figures 1a through 1g for pulse widths of 70, 150, 300, 500, 900, 900, 900 nanoseconds respectively. 2. Graphs of occupied bandwidth for pulse widths of 70, 150, 300, 500, 900, 900, 900 nanoseconds are included as Figures 2a through 2g respectively. The plots were made with Tektronix 494P spectrum analyzer and HP 7550 plotter coupled via the analyzer's IEEE 488 Port. 3. Plots of PRF measurement using the TEK TDS-360 digital storage oscilloscope for radar range settings of 0.5, 1.5, 3, 6, 12, 24 and 48 nm are included as Figures 3a though 3g respectively. Analysis of the plots demonstrated that 99% of the spectral density is within a 90.2 MHz bandwidth as used in the emission designator. (See Appendix A for analysis technique). 3 MAGNETRON CONTROL PULSE Nominal Pulse Width: 0.070 microseconds (0.5 nm range) Display: 1000 V per vertical division 0.20 microseconds per horizontal division MAGNETRON CONTROL PULSE FCC ID: QO7NG3028X12-5KW FIGURE 1a 4 MAGNETRON CONTROL PULSE Nominal Pulse Width: 0.150 microseconds (1.5 nm range) Display: 1000 V per vertical division 0.2 microseconds per horizontal division MAGNETRON CONTROL PULSE FCC ID: QO7NG3028X12-5KW FIGURE 1b 5 MAGNETRON CONTROL PULSE Nominal Pulse Width: 0.300 microseconds (3 nm range) Display: 1000 V per vertical division 0.115 microseconds per horizontal division MAGNETRON CONTROL PULSE FCC ID: QO7NG3028X12-5KW FIGURE 1c 6 MAGNETRON CONTROL PULSE Nominal Pulse Width: 0.500 microseconds (6 nm range) Display: 1000 V per vertical division 0.2 microseconds per horizontal division MAGNETRON CONTROL PULSE FCC ID: QO7NG3028X12-5KW FIGURE 1d 7 MAGNETRON CONTROL PULSE Nominal Pulse Width: 0.900 microseconds (12 nm range) Display: 1000 V per vertical division 0.5 microseconds per horizontal division MAGNETRON CONTROL PULSE FCC ID: QO7NG3028X12-5KW FIGURE 1e 8 MAGNETRON CONTROL PULSE Nominal Pulse Width: 0.900 microseconds (24 nm range) Display: 1000 V per vertical division 0.5 microseconds per horizontal division MAGNETRON CONTROL PULSE FCC ID: QO7NG3028X12-5KW FIGURE 1f 9 MAGNETRON CONTROL PULSE Nominal Pulse Width: 0.900 microseconds (48 nm range) Display: 1000 V per vertical division 0.5 microseconds per horizontal division MAGNETRON CONTROL PULSE FCC ID: QO7NG3028X12-5KW FIGURE 1g 10 OCCUPIED BANDWIDTH Nominal Pulsewidth: 0.070 microseconds PRF: 2000 Hz Range: 0.5 nm OCCUPIED BANDWIDTH FCC ID: QO7NG3028X12-5KW FIGURE 2a 11 OCCUPIED BANDWIDTH Nominal Pulsewidth: 0.150 microseconds PRF: 2000 Hz Range: 1.5 nm OCCUPIED BANDWIDTH FCC ID: QO7NG3028X12-5KW FIGURE 2b 12 OCCUPIED BANDWIDTH Nominal Pulsewidth: 0.300 microseconds PRF: 1000 Hz Range: 3 nm OCCUPIED BANDWIDTH FCC ID: QO7NG3028X12-5KW FIGURE 2c 13 OCCUPIED BANDWIDTH Nominal Pulsewidth: 0.500 microseconds PRF: 1000 Hz Range 6 nm OCCUPIED BANDWIDTH FCC ID: QO7NG3028X12-5KW FIGURE 2d 14 OCCUPIED BANDWIDTH Nominal Pulsewidth: 900 microseconds PRF: 500 Hz Range: 12 nm OCCUPIED BANDWIDTH FCC ID: QO7NG3028X12-5KW FIGURE 2e 15 OCCUPIED BANDWIDTH Nominal Pulsewidth 900 microseconds PRF: 500 Hz Range 24 nm OCCUPIE…

Text truncated - open the document above for the full version.
