QO8-CT100R1Z-WAVE COMMUNICATING THERMOSTAT

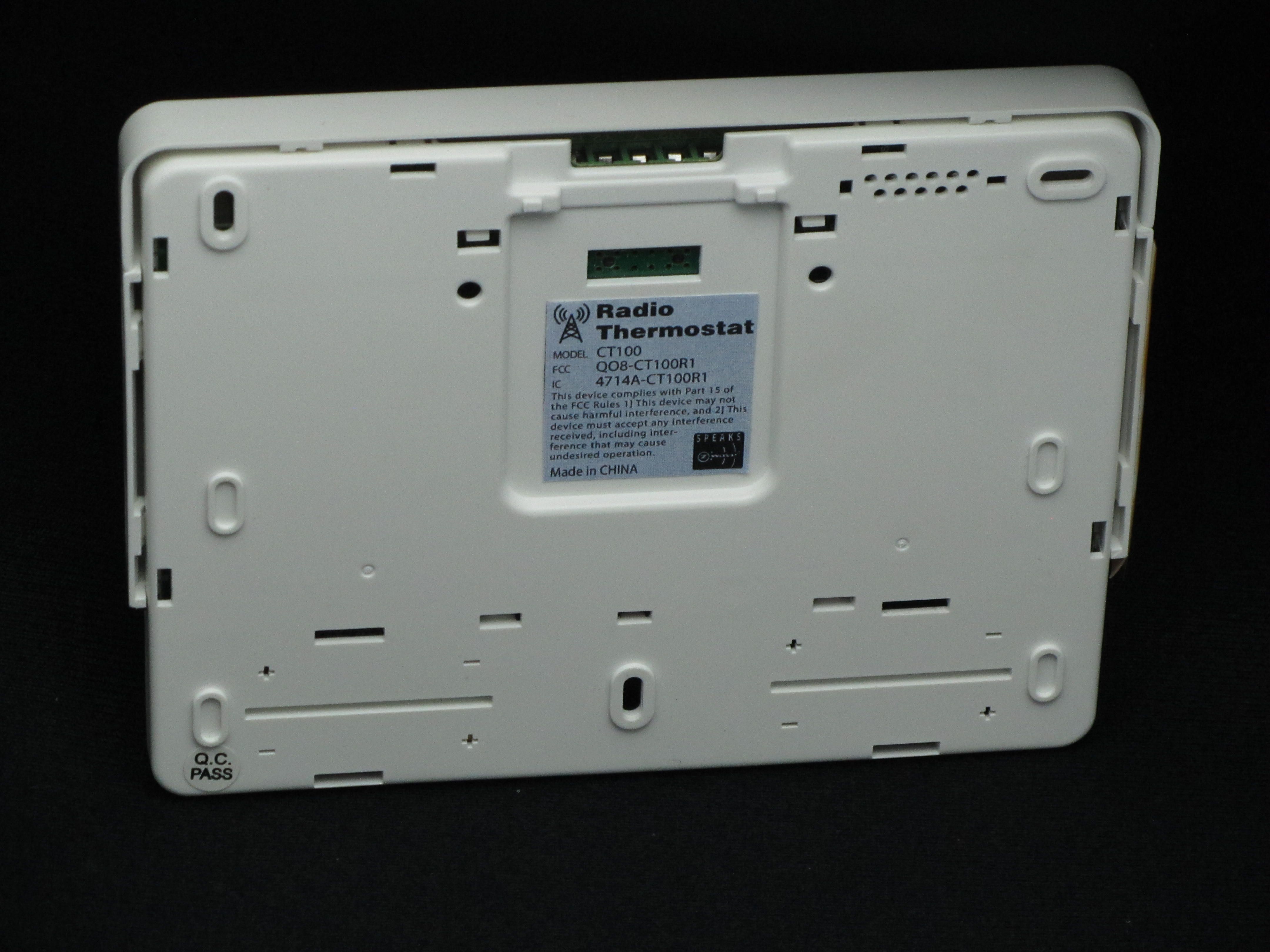

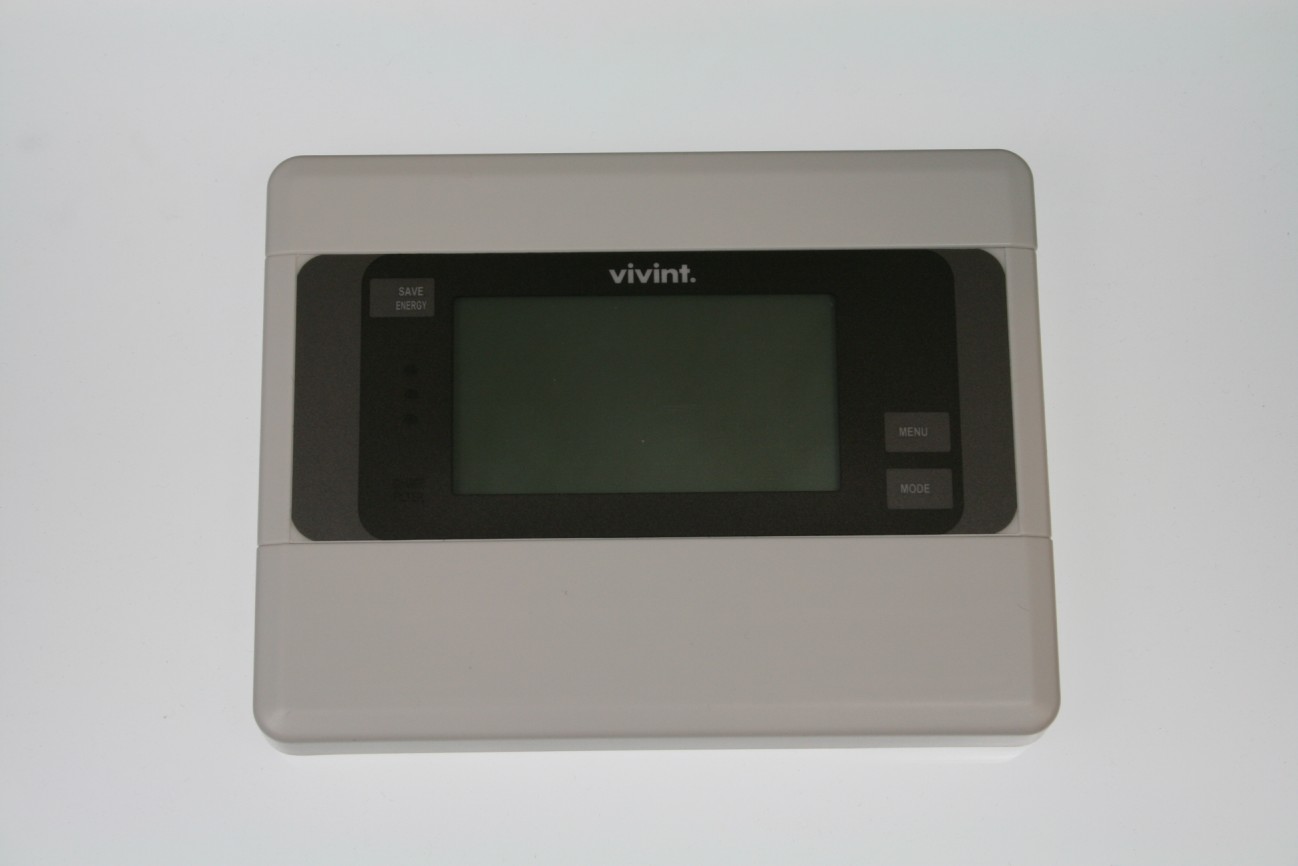

Product Name: CT101 Document Title: CT101 Operation Guide Document Type Code: IBOE Part Number: 1111-002-002 28dec11 edits mtf 22nov11 initial rel mtf 5Jan12 DG Edits add FCC/IC page Blank page remove before binding NOTE: Append this Operation IB to the Install IB to make one IB-booklet. Need a divider tab between the 2 sections. PG 1 Operation Guide CT100 The CT100 communicating Z-Wave3 thermostat operates via a high- quality, easy-to-use touch screen. To set or adjust your CT100, simply touch your finger firmly to the screen. The screen will automatically light up and you will hear a “beep.” Do not use a sharp or metallic device; it will scratch the screen. ENGLISH Statement of use: 100% Compatible with all popular residential HVAC systems; 24VAC single, two stage conventional heating systems (gas/oil/electric), heat pumps, single stage or with auxilliary heat (electric or fossil), zoned forced air and zoned hot water (2 or 3 wire), millivolt systems (with a 12-24 AC or DC source), one or two stage cooling, and hybrid systems. 1105-002-003 Save Energy button Power Grid status indicator top cover Touch screen Wire terminals Mode button MENU butto n PROG butto Reset button HVAC selections switches bottom cover PG 2 Control Screens HOME Screen Before you operate the CT100 please get familiar with these basic control screens. All the CT100 functions are accessed through these screens: HOME, MENU, PROGRAM and MANUAL. The CT100 touch screen technology allows you to select (by touching) an item and change it using the +/- arrows or the time arrows. The HOME screen is displayed when the unit is operating. Touching the HOME icon on another screen will always return you to this screen. To set a Mode: Press the mode button on the side. The CT100 will step through the modes HEAT, OFF, and COOL in order. The LCD shows what mode you are in. DAY F LINK RADIO TARGETTEMP 1 COOL AUTO PM Thermostat Mode Time of day Current Room Temperature Radio indicator Lock status Fan status Time Slot Target Temperature Day PG 2 PG 3 MENU Screen The MENU screen is the gateway to many functions or settings of the CT100. It is displayed when you press the MENU button. [See page 10 for details] Set Day Touch this area to set the day of the week. Set Time Touch this area to set the time of day. Left arrow goes back, right arrow goes forward. Calibration control Use this to calibrate your LCD display match to another thermometer. Set o C - o F Touch this to set temp display units. Lock Program Touch for 5 sec to lock or unlock. Filter Timer set Touch and hold 5 sec to change. Chirp set Touch this to turn the audible chirp on or off. Temperature Swing set Differential to set for 2nd Stage start. Return to HOME screen. HVAC SETUP Touch this in OFF mode to � configure the unit to work with your HVAC system. DIFF SWING FILTER F HVAC SETUP CALIBRATE PG 4 MANUAL Screen The Manual Screen control screen is where you can make temporary changes to your CT100’s operation. From the Full HOME screen, touch the main temperature display to use this screen. [See page 13 for details] yyg F HOLD EMER HOLIDAY HEAT Target Temperature Room Temperature Return HOME Temp Up / Temp Down arrows Touch these to raise and lower the manual override Ta rget Temp. HOLIDAY Touch this to invoke a single program that repeats day after day until you turn it off. Manual Override Indicator Shows TEMPORARY when you have modified the Ta rget Temperature EMER heat for HEAT PUMP systems. TEMPORARY HOLD Touch this area to operate the thermostat as a manual thermostat. It will keep the temperature ou set until ou chane it or cancel HOLD. PG 4 PG 5 Initial Settings Press MENU to to access the following commands (from HOME screen). Set day of the week Touch the Day of the week area to cycle through the days of the week to select the current day. Set time of day Touch the Time of Day arrows to move the time selection forward or backward until it displays the current time. Touch and hold for faster setting. Set o F- o C display Touch the o F and it will toggle to o C. Set audible chirp Touch the musical note icon to select the chirp or no chirp. Return HOME by touching the home icon. ForwardBackward emp. ouch this to invoke a PG 6 MENU Screen Functions Press MENU to bring up MENU screen. TIME of DAY Touch the left (down) or right (up) arrows next to the time display to set the current time (1 minute per touch). Touch and hold the arrow for fast time set (15 minute jumps). DAY of Week Touch DAY area to select present day. SWING (HVAC cycling rate) This feature allows you to set the desired variance in temperature between the CT100 setting and the room temperature required before the heating or cooling system will turn on—from 0.5° to 2.0° F (.25° to 1° C). For example, if SWING is set to 2.0° F and the CT100 is set to 70°F Target Temperature, the heat cycle will start when room temperature drops to 68°F. Similarly, the cooling system will start when the room temperature increases to 72°F. The HVAC then runs and will shut off at the Target Temperature. To set SWING: Touch SWING. Touch the left/right arrows to set the SWING from 0.5° to 2.0°F. The HVAC will run more frequently at .5°F and less at 2°F. Default is 1°F. Touch to return to the MENU screen. PG 6 PG 7 Chirp set - Touch this to turn the audible chirp sound on or off. F C Set - Touch this to switch the temperature display scale from o F to o C . FILTER - AIR FILTER ALERT - The CT100 can be programmed to remind you when the HVAC sytem’s air filter needs changing. Touch FILTER. The display will show the usage to date. Touch FILTER for over 3 seconds and the display will change to LIMIT. Touch arrows to set desired usage limit before filter alert comes on home screen. When this limit is reached, FILTER will be on home screen and the CHECK FILTER indicator lights. Limit may be set from 0 to 999 days/99 weeks; default is 90 days/12 weeks. Touch to reset. To reset the usage back to 0, touch usage number; touching it aga…
