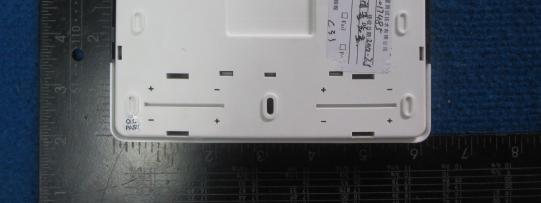

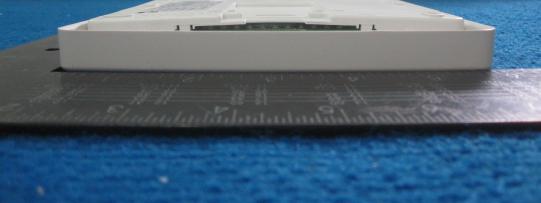

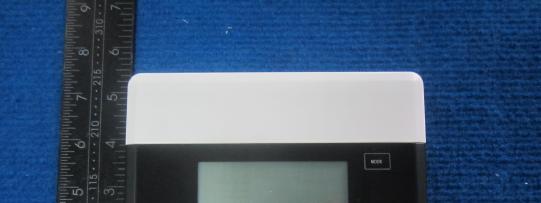

QO8-CT101R1Low Power Communication Device Transmitter:908.4MHz transmitter

PG 16 Product Name: CT101 Document Title: CT101 Install Guide Document Type Code: IBIE Part Number: 1202-003-002 18jun12 hl edits mtf 15jun12 hl edits mtf 31may12 edits hl mtf 14feb12 edits ch mtf 13feb12 initial release mtf check phone # and web address Blank page remove before binding PG 1 ENGLISH 1202-003-002 Power Grid status indicator top cover Touch screen Wire terminals Mode button button MENU Reset button HVAC selections switches bottom cover Install Guide CT101 Caution • Your thermostat is a precise instrument, handle it with care. • Turn off electricity to the HVAC system before installing or servicing thermostat or any part of the system. • Do not turn electricity back on until work is completed. • Do not short (jumper) across electric terminals at the control on the furnace or air conditioner to test the system. This may damage the thermostat. • All wiring must conform to local codes and ordinances. • This thermostat is designed for use with 4AA alkaline batteries and/or 24 volt AC C wire (or a 12-24 AC or DC source) and millivolt gas systems. Each thermostat relay load should be limited to 1.0 amp; higher amperage may cause damage to the thermostat. Caution To avoid electrical shock and to prevent damage to the furnace, air conditioner, and thermostat, disconnect the power supply before beginning work. This can be done at the circuit breaker. PG 2 TOOLS You will need a small Phillips screwdriver and a drill with 3/16-in. (4.8mm) bit for wall mounts. LOCATION Replacement installations - mount the CT101 in place of the old thermostat. A new location will require moving your wiring. For new installations and relocating the CT101 - follow the guidelines listed below: • Locate the thermostat on an inside wall, about 5 ft. (1.5m) above the floor, and in a room that is used often. • Do not install it where there are unusual heating conditions, such as: in direct sunlight; near a lamp, radio, television, radiator register, fireplace; near hot water pipes in a wall; or near a stove on the other side of a wall. • Do not locate in unusual cooling conditions, such as: on a wall separating an unheated room; or in a draft from a stairwell, door, or window. • Do not locate in a damp area. This can lead to corrosion that will shorten thermostat life. • Do not locate where air circulation is poor, such as: in a corner, an alcove; behind an open door. • Do not install the CT101 until all construction and painting has been completed. • This thermostat does not require leveling. Good 5ft. (1.5m) PG 2 PG 3 REMOVE OLD UNIT Switch OFF electricity to the HEATING and COOLING systems. Then follow these steps: • Remove cover from old thermostat. Most are snap-on types and simply pull off. Some have locking screws on the side or front. These must be loosened. DO NOT remove wires. Note the letters printed near the terminals. Attach labels (enclosed) to each wire for identification. Caution Read instructions carefully before removing any wiring from existing thermostat. Wires must be labeled before they are removed. THERE IS NO STANDARD COLOR CODE. When remov- ing wires from their terminals, ignore the color of the wires and LABEL THEM by the lettered terminal where they were screwed. • Label the wires one at a time. You must label all the wires before you proceed. • With all wires labeled, remove them from the old unit. • Make sure the wires do not fall back inside the wall. You can wind them around a pencil to keep them from falling. • Loosen all screws on the old thermostat and remove it from the wall. C G W PG 4 What wires do you have? Make sure your wires are labeled. This may require you to find the ‘other end’ connection for each wire on your heating or air conditioning equipment and read the label there. Refer to the Wire Reference page at end of install section for better understanding of wire labels from different HVAC system makers. IMPORTANT: The CT101 runs on 4 AA alkaline batteries and/or the C wire if available. If you do not have a C wire you can run a new wire from the HVAC or use a standard 12-24V [AC or DC] wall transformer. A constant power source is required when using a radio module. IMPORTANT: If you have both RH and RC you need to remove the jumper wire between these 2 terminals. Prepare Wires Please follow these guidelines for safe and secure wire connections: • You will need at least 2.6” of wire for each of your connections to the CT101. • If you do not have enough wire, splice additional wire to allow enough slack. • Terminals accept wires from 16-22awg. • Fan out wires below the hole as shown. • Remove insulation 1/8” from the tip of each wire. • When handling, take care not to damage the labels for each wire. G C Y RH W 2.6" from HVAC System Jumper wire Wire Terminals Y RH RC G A Y2 PG 4 PG 5 Find the step-by-step diagram for your system • Select the referenece page with your wiring diagram and set-up information below. • The C-wire is optional but prefered for all installations [shown dotted in diagrams]. • Hot Water systems accessoroes are on Page 16 • If your combination of wires is not above you can use the wiring table at the end if the install section to determine your connections, contact customer support for help. G C W Y RH RC G 5 Wire Heat/Cool From HVAC RC C Y RH W C W Y R G 4 Wire Heat/Cool F r o m HVAC G C Y R W C W R G 3 Wire Heat From HVA C C R G W Fro m HVA C C W C W R R 2 Wire Heat WIRES WIRE S WIRE S WIRES G R C Wn Yn R G Multi-stage Cool Multi-Stage Heat From HVA C Y n C Wn C B or O AUX n Yn R G Multi-stage Heat Pump w/ Multi-stage Aux Heat From HVAC R C O or Wn B G Yn G C B or O Y R G 4 Wire Heat Pump w/o Aux Heat From HV AC R C O or Y B WIRE S WIRES WIRE S Go To Page 15 Go To Page 16 Go To Page 15 Go To Page 13 Go To Page 14Go To Page 14 Go To Page 13 PG 6 • “Fan out” wires as illustrated with CT101 below the wall opening. As in the example: fan out the wires so that the C wire is above the C terminal, the W above the W. This allows the CT101 to fit snug…
