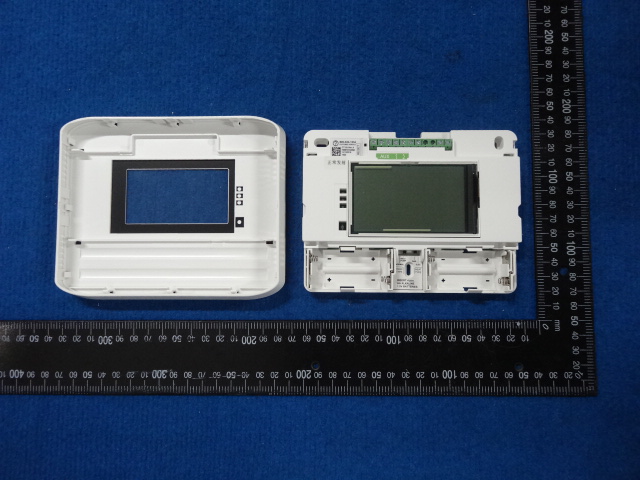

QO8-CT102R1Thermostat

RTCOA logo sheet 7aug07 CT102 USER GUIDE COMMUNICATING TOUCH SCREEN THERMOSTAT F LINK RADIO TARGET TEMP 1 AUTO HEAT DAY PM Su Mo Tu We Th Fr Sa CT102INSTALLATION GUIDE 2 Table Of Contents Getting Started # Interior View Installation Location # Wiring # Prepare Wires # Connecting Wires # Mounting # Setup # Select HVAC & Heat Types # Power Supply # HVAC Setup # Test Installation # Wiring Diagrams # Detailed Wire Diagram # Step By Step Wiring Diagrams Wire Reference Table # 3 Radio Thermostat Getting Started Getting Started Installation Guide CT102 4 Tools Needed Small Phillips screwdriver Drill with 3/16- in.(4.8mm) bit • To avoid electrical shock and to prevent damage to the furnace, air conditioner, and thermostat, disconnect the power supply before installing or servicing the thermostat or any part of the system. This can be done at the circuit breaker. • Do not reconnect electricity until work is complete. • Do not short (jumper) across electric terminals at the control on the furnace or air conditioner to test the system. This can damage the thermostat. • Your thermostat is a precise instrument. Handle it with care. • All wiring must conform to local codes and ordinances. • This thermostat is designed for use with 4AA alkaline batteries and/or 24- volt AC C wire (or a 12- 24 AC or DC source) and millivolt gas systems. Each thermostat relay load should be limited to 1.0 amp; higher amperage can cause damage to the thermostat. ! CAUTION Getting Started Installation Guide CT102 5 C B O W W2 Y Y2 RH RC G A A UX 1 2 WIRE TERMINALS TOUCH SCREEN STATUS INDICATOR BATTERIES BATTERIES HVAC SELECTION SWITCHES RESET COVER Interior View Getting Started Installation Guide CT102 6 Installation Location To avoid having to move your wiring to a new location, mount the CT102 in place of the old thermostat. • Install the thermostat on an inside wall of an often-used room, about 5 ft. (1.5m) above the floor. • Do not install where there are unusual heating conditions, such as: in direct sunlight; near a lamp, radio, television, radiator register, fireplace; near hot water pipes in the wall; or near a stove on the other side of a wall. • Do not locate in unusual cooling conditions, such as: on a wall separating an unheated room; or in a draft from a stairwell, door, or window. • Do not locate in a damp area. This can lead to corrosion that will shorten the thermostat’s life. • Do not locate where air circulation is poor, such as: a corner, an alcove, or behind an open door. • Do not install the CT102 until all construction and painting is complete. • This thermostat does not require leveling. Getting Started Installation Guide CT102 7 1. Switch off electricity to the heating and cooling systems. This can be done at the circuit breaker. 2. Remove the cover from the existing thermostat. Check for locking screws on the side or front that must be loosened first. 3. Attach provided labels to each wire for identification. Refer to the lettered terminal where the wires attach; do not use the color of the wires. 4. Disconnect wires from the existing thermostat, and wind them around a pencil to keep them from falling back inside the wall. 5. Loosen all mounting screws on the old thermostat and remove it from the wall. C G W G W C G W 4 • Read instructions carefully before removing any wiring from an existing thermostat. • Label all wires before disconnecting them form the existing thermostat. ! CAUTION Wiring Installation Guide CT102 8 Prepare Wires Make sure your wires are labeled. If necessary, find the “other end” connection for each wire on your heating or air conditioning equipment and note the label there. 1. Fan out wires so that they are aligned with their terminals. 2. Position wires behind the CT102 and over the terminal area. 3. Do not bunch wires behind the CT102. Feed any slack back into the wall opening. Y Y2 RH RC G A JUMPER WIRE C W Y RH G 2.6” FROM HVAC SYSTEM Follow these guidelines for safe and secure wire connections: • Use at least 2.6 in. of wire for each of your connections to the CT102. • If you do not have enough wire, splice additional wire to allow enough slack. • Terminals accept wires from 16-22 awg. • Remove 1/8 in. insulation from the tip of each wire. • Take care not to damage the labels for each wire. ! CAUTION Do not allow wires to touch each other or other parts on the thermostat. If you have both RH and RC connections you must remove the jumper wire between these two terminals. Wiring Installation Guide CT102 9 Connecting Your Wires Reference the Wire Diagram on page # to identify your wiring diagram and set-up information. If necessary, contact customer support for help. 1. Connect a labeled wire only to a matching lettered terminal. 2. Insert the wire in the terminal well and tighten the screw securely. The CT102 can be externally powered with a power source rated from 12V to 24V, AC or DC, at 300ma or greater. If used, connect to the C and RH terminals (no polarity). The 24VAC “C” wire is the other side of the 24VAC heating transformer and can be found where the other thermostat wires connect at the wall or at the furnace. Do not use the common or ground side of the line voltage. The CT102 runs on 4 AA alkaline batteries, the C wire (if available), or both batteries and the C-wire. If you do not have a C wire, you can run a new wire from the HVAC or use a standard 12-24V [AC or DC] wall transformer. The C-wire is optional but preferred for all installations. From HVAC System W W2 C B O Y Y2 RH RC G A C Y W G RH Wiring Installation Guide CT102 10 Mount the CT102 to the Wall 1. Hold the CT102 against the wall, with the wires coming over the top; above terminal block. 2. Position CT102 for best appearance, cover the hole in the wall. 3. Mark first and drill a 3/16-in.(4.8mm) hole at each screw location. 4. If you are mounting the CT102 to sheet rock or if you are using the old mounting holes, use the plastic anchors provided. 5. Attach the CT102 to the wall with the screws provi…
