QO8-WIFI-M-0210WIFI THERMOSTAT ADAPTER

1 Marvell Confidential Provisioning your Thermostat that is, make it connect to your home Wi-Fi Network 2 Marvell Confidential Step 1: Connect to the Thermostat Using Wi-Fi 3 Marvell Confidential 1.Power up the thermostat. The Yellow LED will be blinking. 2.Find the thermostat’s Wi- Fi network. It will begin with tstat. 3.Select to connect to the thermost’s network. 4 Marvell Confidential You will get a 192.168.10.x address. This means that you are connected. 5 Marvell Confidential Step 2: Network Provisioning Set up the Thermostat to Connect to your Home Network 6 Marvell Confidential 1.Launch your browser 2.Type 192.168.10.1 in the URL Bar 3.Press Scan Wireless Networks 7 Marvell Confidential 1.Find your Home Network and Select it. 8 Marvell Confidential 1.Enter your Password 2.Select Unmask Password to see what you are typing 3.Press Next 9 Marvell Confidential 1.Enter PIN. PIN is displayed on the thermostat. 2.Press Set Network. This makes sure that some one else in the vicinity cannot provision your thermostat and/or compromise your network password. 10 Marvell Confidential After a small delay you will see this screen. Check your thermostat. After a little bit it will blink Green. And, you will see Link under the radio tower icon. That means the thermostat is now connected to your home network. If you see RED LED blinking, then there was an error (typically, wrong password or PIN) and you will have to go through provisioning again. 11 Marvell Confidential Step 3: Connect back to your Home Network and, Enjoy your Thermostat  12 Marvell Confidential 1.Connect back to your home network 2.Launch your iphone application to talk to the thermostat. 13 Marvell Confidential 1.You can use your browser to talk to see if everything is working fine. 2.Enter the thermostat’s IP Address. You can find the last number on the top-left corner of the thermostat. 14 Marvell Confidential Thank You!!! Caution: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Caution: To comply with FCC RF Exposure requirements, users of this device must ensure that the module be installed and/or configured to operate with a separation distance of 20cm or more from all persons.

GOLDEN POWER MANUFACTURING LIMITED 1004 Kwan Chart Tower 6 Tonnochy Road Wanchai Hong Kong Tel +852 27827995 September 16, 2010 To whom it may concern Authority to Act as Agent I hereby authorize Mark Borins, Vice President of MMB Research Inc.,(”the authorized agent”) to act as the agent for Golden Power Manufacturing Limited (“the Company”) in matters of equipment certification, for the period from September 16, 2010, until September 16, 2013. I certify that submitted documents properly describe the device or system for which equipment certification is sought. For instances where the authorized agent signs the application for certification on behalf of the Company, I acknowledge that all responsibility for complying with the terms and conditions for certification still reside with Golden Power Manufacturing Limited. Yours faithfully WINCAN CHAN

October 12, 2010 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: QO8-WIFI-M-0210 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Schematics QO8-WIFI-M-0210 Schem.pdf Parts List QO8-WIFI-M-0210 PartsLst.pdf Block diagrams QO8-WIFI-M-0210 BlkDia.pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, ___________________________ Mark Borins

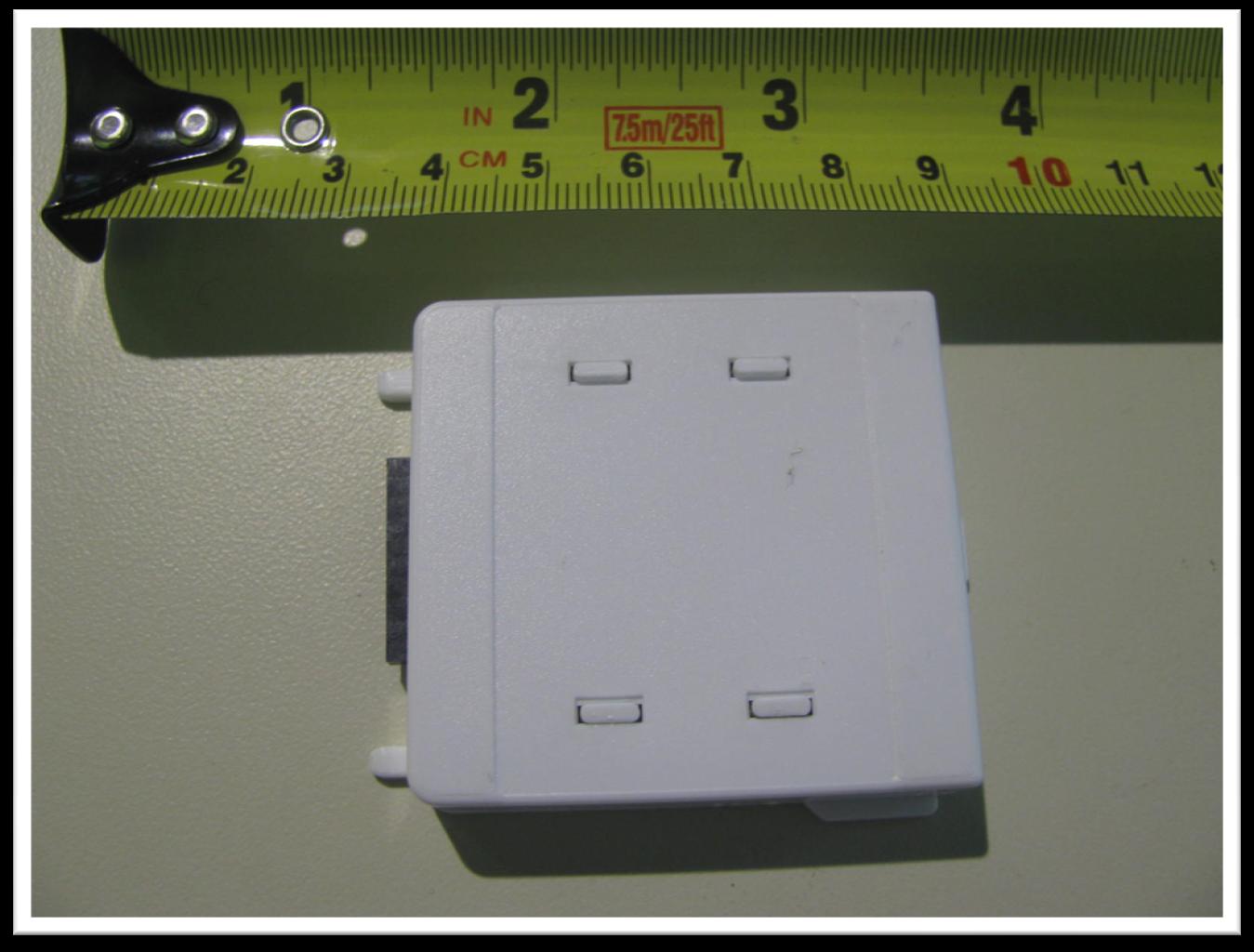

Figure 1 – EUT with cartridge enclosure (Front) Figure 2 – EUT with cartridge enclosure (Rear) Figure 3 – EUT with cartridge enclosure (Connector)

Product Name: RTM-1 WiFi Document Title: WiFi RTM-1 sticker Document Type Code: ART Part Number: 812-006-008 17oct10 added one - to IC number mtf 15oct10 rmv “-” in IC and lower case in FCC ID mtf 27aug10 modified ser num to fit Foxlink printer 4mm space req mtf 24jun10 resize for old plastic mtf 26feb10 mtf changed “Q08” to “QO8” 25feb10 mtf edit 22feb10 larger size to fit MK3 plastic, SER num starts at 010303500 22feb10 added ID numbers 17feb10 inital rel WiFi USNAP MODEL: RTMV-01 FCC ID: QO8-WIFI-M-0210 IC: 4714A-WIFIM0210 Made in China This device complies with Part 15 of the FCC Rules 1] This device may not cause harmful interf- erence, and 2] This device must accept any interfer- ence received, including interference that may cause undesired operation. 24mm 0.945" 24mm 0.945" R1.5mm SER: 0102025372 serial number to be printed in production NOTES: 1. MATERIAL 1 MIL white POLYESTER WITH PRESSURE SENSITIVE ADHE- SIVE ONE SIDE, Flex-Vu OM 100 WHITE V-29 100 POLY H-29 OR EQUIVA- LENT, ADHESIVE TO BE 3M 350 SERIES OR EQUIVALENT. LABEL TO BE WHITE BACKGROUND WITH BLACK TEXT. 2. PRINTED SIDE SHOWN, ADHESIVE ON OPPOSITE SIDE.

Figure 1 – Label location Label location

Figure 1 – EUT Front Figure 2 – EUT rear

MMB Research Inc. Operational Description The RTMV-01 Wifi module (QO8-WIFI-M-0210) is a WiFi radio transceiver with integrated microcontroller operating in the 2.4GHz ISM band. The radio operates according to the IEEE 802.11 standard and employs DSSS and CCK and ODFM modulation. The EUT employs an internal ground plane and 50 ohm 3D metal antenna. The RTMV-01 is provided in plastics and is inserted into appliances like Thermostats. Power and serial communication is provided via an integrated edge connector. The module is typically used in automation applications where it will transmit small packets of command and control information. For example turning a light switch on or off, adjusting a thermostat, reading energy consumption data, etc.

LAB REGISTRATION #6844A-1 FCC REGISTRATION #612361 Page 1 of 19 Report issue date: 10/18/2010 GEMC File #:19680-v2 © Global EMC Inc. This test report shall not be reproduced except in full, without written approval of Global EMC Inc. This report is based on GEMC Template “FCC 15 247 Rev2.” Global EMC Inc. Labs MPE Evaluation As per Industry Canada Safety Code 6 & FCC Part 15 Subpart C: 2007 15.247i FCC Part 1, Section 1.1310 Table 1 (B) On the Radio Thermostat WiFi USNAP RTMV-01 Ashwani Malhotra Global EMC Inc. 180 Brodie Dr, Unit 2 Richmond Hill, ON L4B 3K8 Canada Ph: (905) 883-3919 Testing produced for See Appendix A for full customer & EUT details. Client Golden Power Manufacturing Ltd. Product Radio Thermostat WiFi USNAP RTMV-01 Standard(s) RSS 210 Issue 7:2007 / FCC Part 15 Subpart C 15:2006 Page 2 of 19 Report issue date: 10/18/2010 GEMC File #:19680-v2 © Global EMC Inc. This test report shall not be reproduced except in full, without written approval of Global EMC Inc. Table of Contents Table of Contents ................................................................................................................... 2 Report Scope .......................................................................................................................... 3 Summary ................................................................................................................................ 4 Test Results Summary ....................................................................................................... 5 Justifications, Descriptions, or Deviations......................................................................... 6 Applicable Standards, Specifications and Methods ........................................................... 7 Sample calculation(s) ......................................................................................................... 8 Document Revision Status ................................................................................................. 8 Definitions and Acronyms ..................................................................................................... 9 Testing Facility .................................................................................................................... 10 Calibrations and Accreditations ....................................................................................... 10 Testing Environmental Conditions and Dates ................................................................. 11 Detailed Test Results Section .............................................................................................. 12 Maximum Permissible Exposure ..................................................................................... 13 Appendix A – EUT Summary .............................................................................................. 15 Appendix B – EUT and Test Setup Photographs................................................................. 16 Client Golden Power Manufacturing Ltd. Product Radio Thermostat WiFi USNAP RTMV-01 Standard(s) RSS 210 Issue 7:2007 / FCC Part 15 Subpart C 15:2006 Page 3 of 19 Report issue date: 10/18/2010 GEMC File #:19680-v2 © Global EMC Inc. This test report shall not be reproduced except in full, without written approval of Global EMC Inc. Report Scope This report addresses the EMC verification testing and test results of the Radio Thermostat WiFi USNAP RTMV-01 module, herein referred to as EUT (Equipment Under Test) performed at Global EMC Labs. The EUT was tested for compliance against the following standards: IC Safety Code 6 & FCC Part 1, Section 1.1310 Table 1 (B) Test procedures, results, justifications, and engineering considerations, if any, follow later in this report. The results contained in this report relate only to the item(s) tested. This report does not imply product endorsement by A2LA or any other accreditation agency, any government, or Global EMC Inc. Opinions/interpretations expressed in this report, if any, are outside the scope of Global EMC Inc accreditation. Any opinions expressed do not necessarily reflect the opinions of Global EMC Inc, unless otherwise stated. Client Golden Power Manufacturing Ltd. Product Radio Thermostat WiFi USNAP RTMV-01 Standard(s) RSS 210 Issue 7:2007 / FCC Part 15 Subpart C 15:2006 Page 4 of 19 Report issue date: 10/18/2010 GEMC File #:19680-v2 © Global EMC Inc. This test report shall not be reproduced except in full, without written approval of Global EMC Inc. Summary The results contained in this report relate only to the item(s) tested. EUT FCC Certification #, FCC ID: QO8-WIFI-M-0210 EUT Industry Canada Certification #, IC: 4714A-WIFIM0210 EUT Passed all tests performed. Yes (see test results summary) Tests conducted by Ashwani Malhotra Client Golden Power Manufacturing Ltd. Product Radio Thermostat WiFi USNAP RTMV-01 Standard(s) RSS 210 Issue 7:2007 / FCC Part 15 Subpart C 15:2006 Page 5 of 19 Report issue date: 10/18/2010 GEMC File #:19680-v2 © Global EMC Inc. This test report shall not be reproduced except in full, without written approval of Global EMC Inc. Test Results Summary Standard/Method Description Class/Limit Result FCC 15.247(i) IC Safety code 6 Maximum Permissible Exposure > 20 cm separation. Pass See justification and calculations Overall Result PASS All tests were performed by Ashwani Malhotra If the product as tested or otherwise complies with the specification, the EUT is deemed to comply with the requirement and is deemed a „PASS‟ grade. If not „FAIL‟ grade will be issued. Note that „PASS‟ / „FAIL‟ grade is independent of any measurement uncertainties. A „PASS‟ / „FAIL‟ grade within measurement uncertainty is marked with a „*‟. Client Golden Power Manufacturing Ltd. Product Radio Thermostat WiFi USNAP RTMV-01 Standard(s) RSS 210 Issue 7:2007 / FCC Part 15 Subpart C 15:2006 Page 6 of 19 Report issue date: 10/18/2010 GEMC File #:19680-v2 © Global EMC Inc. This test repo…

Text truncated - open the document above for the full version.

LAB REGISTRATION #6844A-1 FCC REGISTRATION #612361 Page 1 of 96 Report issue date: 10/18/2010 GEMC File #:19680-v2 © Global EMC Inc. This test report shall not be reproduced except in full, without written approval of Global EMC Inc. This report is based on GEMC Template “FCC 15 247 Rev2.” Global EMC Inc. Labs EMC & RF Test Report As per RSS 210 Issue 7:2007 & FCC Part 15 Subpart C:2006 Unlicensed Intentional Radiators On the Radio Thermostat WiFi USNAP RTMV-01 Ashwani Malhotra Global EMC Inc. 180 Brodie Dr, Unit 2 Richmond Hill, ON L4B 3K8 Canada Ph: (905) 883-3919 Testing produced for See Appendix A for full customer & EUT details. Client Golden Power Manufacturing Ltd. Product Radio Thermostat WiFi USNAP RTMV-01 Standard(s) RSS 210 Issue 7:2007 / FCC Part 15 Subpart C 15:2006 Page 2 of 96 Report issue date: 10/18/2010 GEMC File #:19680-v2 © Global EMC Inc. This test report shall not be reproduced except in full, without written approval of Global EMC Inc. Table of Contents Table of Contents ................................................................................................................... 2 Report Scope .......................................................................................................................... 3 Summary ................................................................................................................................ 4 Test Results Summary ....................................................................................................... 5 Justifications, Descriptions, or Deviations......................................................................... 6 Applicable Standards, Specifications and Methods ........................................................... 7 Sample calculation(s) ......................................................................................................... 8 Document Revision Status ................................................................................................. 8 Definitions and Acronyms ..................................................................................................... 9 Testing Facility .................................................................................................................... 10 Calibrations and Accreditations ....................................................................................... 10 Testing Environmental Conditions and Dates ................................................................. 11 Detailed Test Results Section .............................................................................................. 12 Spurious Radiated Emissions ........................................................................................... 13 6dB Bandwidth of Digitally Modulated Systems ............................................................ 51 Maximum Peak Envelope Conducted Power .................................................................. 65 Antenna Spurious Conducted Emissions ( - 20 dbc Requirement).................................. 68 Power Spectral Density .................................................................................................... 82 Maximum Permissible Exposure ..................................................................................... 90 Appendix A – EUT Summary .............................................................................................. 92 Appendix B – EUT and Test Setup Photographs................................................................. 93 Client Golden Power Manufacturing Ltd. Product Radio Thermostat WiFi USNAP RTMV-01 Standard(s) RSS 210 Issue 7:2007 / FCC Part 15 Subpart C 15:2006 Page 3 of 96 Report issue date: 10/18/2010 GEMC File #:19680-v2 © Global EMC Inc. This test report shall not be reproduced except in full, without written approval of Global EMC Inc. Report Scope This report addresses the EMC verification testing and test results of the Radio Thermostat WiFi USNAP RTMV-01 module, herein referred to as EUT (Equipment Under Test) performed at Global EMC Labs. The EUT was tested for compliance against the following standards: RSS 210 Issue 7:2007 / FCC Part 15 Subpart C 15:2006 Test procedures, results, justifications, and engineering considerations, if any, follow later in this report. The results contained in this report relate only to the item(s) tested. This report does not imply product endorsement by A2LA or any other accreditation agency, any government, or Global EMC Inc. Opinions/interpretations expressed in this report, if any, are outside the scope of Global EMC Inc accreditation. Any opinions expressed do not necessarily reflect the opinions of Global EMC Inc, unless otherwise stated. Client Golden Power Manufacturing Ltd. Product Radio Thermostat WiFi USNAP RTMV-01 Standard(s) RSS 210 Issue 7:2007 / FCC Part 15 Subpart C 15:2006 Page 4 of 96 Report issue date: 10/18/2010 GEMC File #:19680-v2 © Global EMC Inc. This test report shall not be reproduced except in full, without written approval of Global EMC Inc. Summary The results contained in this report relate only to the item(s) tested. EUT FCC Certification #, FCC ID: QO8-WIFI-M-0210 EUT Industry Canada Certification #, IC: 4714A-WIFIM0210 EUT Passed all tests performed. Yes (see test results summary) Tests conducted by Ashwani Malhotra Client Golden Power Manufacturing Ltd. Product Radio Thermostat WiFi USNAP RTMV-01 Standard(s) RSS 210 Issue 7:2007 / FCC Part 15 Subpart C 15:2006 Page 5 of 96 Report issue date: 10/18/2010 GEMC File #:19680-v2 © Global EMC Inc. This test report shall not be reproduced except in full, without written approval of Global EMC Inc. Test Results Summary Standard/Method Description Class/Limit Result FCC 15.203 Antenna Requirement Unique / PCB mounted Pass See Justification FCC 15.205 RSS 210 (Table 1) Restricted Bands for intentional operation QuasiPeak Average Pass FCC 15.207 Power line conducted emissions QuasiPeak Average N…

Text truncated - open the document above for the full version.

Figure 1 – Radiated emissions testing Figure 2 – Conducted RF power measurements Figure 3 – 6db B/W, -20 dbc measurements
