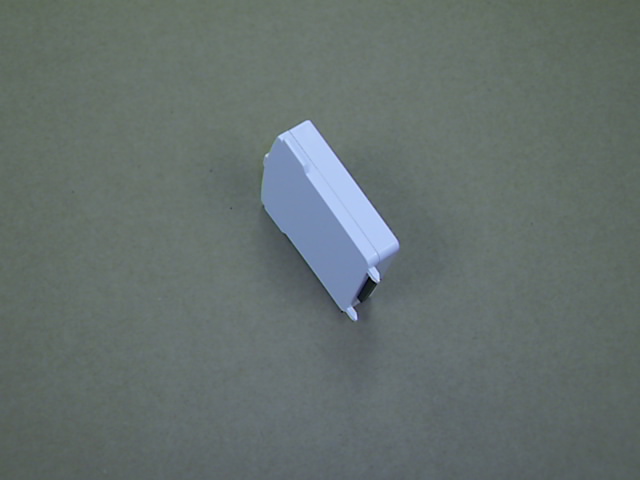

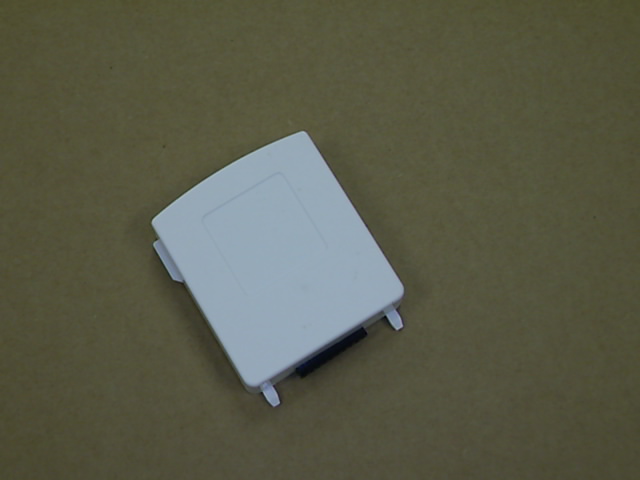

QO8-ZWAVE0210Z-WAVE COMMUNICATIONS MODULE

1 Z-Wave User's Manual CTxx series Network Inclusion/removal: 1. Set your primary controller to INCLUDE mode, to add the thermostat as a node on your network (see your specific controller’s User Manual for detailed instructions.) 2. Press and release the MENU button on the thermostat. 3, Press the Mate Button - This will bring you to the network joining screen 4. If you only have 1 U-SNAP module inserted in the thermostat you will see a r1 or r2 to indicate that the radio is in slot 1 or slot 2. If you have multiple radios you can select which radio you want to join the network by selecting either r1 or r2 from the top left hand corner of the screen. When you have selected a radio, the large r1 or r2 will appear in the center of the screen. 5. When the radio is selected and the large r1 or r2 is on the center of the screen, press the mate button, this will initiate the mating process. When a device has joined a network the word "LINK" will appear under the radio tower. Similarly, when you are trying to leave a network, the word "LINK" will disappear when the node has successfully left the network. Your controller will indicate the thermostat was successfully added to its network (see your specific controller’s User Manual for details.) For other controller specific tasks such as adding the thermostat to Scenes or Groups, or deleting the thermostat as a node, use the mate button to activate the Z- Wave® signal. Operation See your specific controller’s User Manual for detailed instructions on operating your thermostat. If your controller supports full thermostat device class functions then the following remote features are available: a) Up and Down Temperature Control. b) Change between HEAT and COOL modes. c) Read the current temperature. Battery Power When your thermostat is running on battery power, the Z-Wave radio will turn off to help conserve battery life. The Z-Wave radio will wake up periodically to listen for any commands, and then go back to sleep. When you press a button the thermostat, the radio will wake up to tell the controller of the changes you made. Simple Mode/Normal Mode The CT30 offers to modes of operation, Normal Mode and Simple mode. Normal mode is intended for use as a standalone programmable thermostat. In Normal mode the user can program the thermostat to change temperatures at various points throughout the day. Simple mode is intended for use with a larger control system - like an alarm system or home automation system. Simple mode is meant to run a single temperature constantly. This temperature can be set locally on the thermostat, or remotely using a Z-Wave U-SNAP module. To enter simple mode: Press and hold the PROG button for 10 seconds. To leave simple mode, press and hold the PROG button for 10 seconds. 2 FCC Regulatory Information NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Warning: Changes or modifications to this device not expressly approved by Golden Power Manufacturing could void the user’s authority to operate the equipment. OEM Users Although this device has been found to be compliant with FCC and Industry Canada for intentional and non-intentional radio emissions, the OEM, end user or installer must insure compatibility with appropriate regulatory standards when used in the final product. This manual must be supplied with any final product incorporating this device. If this device is packaged with another product by the OEM, then the OEM must insure that the FCC ID and IC numbers are clearly shown through the packaging or labeled on the final product packaging.

Golden Power Manufacturing Limited Room 1004 Kwan Chart Tower 6 Tonnochy Road Wanchai, HONG KONG Tel: 852-2782-7995 Fax: 852-2782-7005 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: QO8-ZWAVE0210 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Schematic Detailed Block Diagram Operational Description (Theory of Operation) Parts List ZWave U-SNAP Module.pdf Block, ZWave U-SNAP.pdf Operational Description, ZWave U-SNAP.doc BOM, ZWave U-SNAP.pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, David Ayer RF Design Engineer On behalf of Wincan Chan, Executive Assistant, Golden Power Manufacturing Limited

TEST REPORT PER FCC PT 15.249 & IC RSS-210 FOR UNLICENSED INTENTIONAL RADIATOR Applicant Golden Power Manufacturing Limited Address Room 1-3, 10/F, Kwan Chart Tower, 6 Technology Road, Wanchai, Hong Kong FCC ID FCC ID: QO8-ZWAVE0210 IC Cert.No. IC: 4714A-ZWAVE0210 Model Number RTZW-01 Product Description ZWave U-SNAP Date Sample Received 2/25/2010 Date Tested 3/4/2010 Tested By Nam Nguyen Approved By Mario de Aranzeta Report Number 425AUT10TestReport.pdf Test Results PASS FAIL THE ATTACHED REPORT SHALL NOT BE REPRODUCED EXCEPT IN FULL WITHOUT THE WRITTEN APPROVAL OF TIMCO ENGINEERING, INC. Testing certificate # 0955-01 849 NW State Road 45 Newberry, FL 32669 USA Ph: 888.472.2424 or 352.472.5500 Fax: 352.472.2030 Email: [email protected] Website: www.timcoengr.com APPLICANT: Golden Power Manufacturing Limited FCC ID: QO8-ZWAVE0210, IC: 4714A-ZWAVE0210 REPORT: G\Golden_QO8\425AUT10\425AUT10TestReport.doc Page 2 of 12 TABLE OF CONTENT ATTESTATIONS ................................................................................................................................ 3 TESTING ENVIRONMENT AND TEST SETUP .................................................................................... 4 TEST SUPPORTING EQUIPMENT ...................................................................................................... 4 EMC EQUIPMENT LIST ..................................................................................................................... 5 TEST PROCEDURES ......................................................................................................................... 6 RADIATION INTERFERENCE ............................................................................................................ 7 OCCUPIED BANDWIDTH .................................................................................................................. 8 BAND EDGE COMPLIANCE .............................................................................................................. 9 DUTY CYCLE .................................................................................................................................. 10 POWER LINE CONDUCTED INTERFERENCE ................................................................................. 11 RECEIVER PORTION TEST DATA (FOR IC ONLY) ........................................................................... 12 APPLICANT: Golden Power Manufacturing Limited FCC ID: QO8-ZWAVE0210, IC: 4714A-ZWAVE0210 REPORT: G\Golden_QO8\425AUT10\425AUT10TestReport.doc Page 3 of 12 ATTESTATIONS This equipment has been tested in accordance with the standards identified in this test report. To the best of my knowledge and belief, these tests were performed using the measurement procedures described in this report. All instrumentation and accessories used to test products for compliance to the indicated standards are calibrated regularly in accordance with ISO 17025 requirements. Certificate # 0955-01 I attest that the necessary measurements were made, under my supervision, at: Timco Engineering Inc. 849 NW State Road 45 Newberry, Fl 32669 Authorized Signatory Name: Mario de Aranzeta C.E.T. Compliance Engineer/ Lab. Supervisor Date: March 8, 2010 APPLICANT: Golden Power Manufacturing Limited FCC ID: QO8-ZWAVE0210, IC: 4714A-ZWAVE0210 REPORT: G\Golden_QO8\425AUT10\425AUT10TestReport.doc Page 4 of 12 DUT SPECIFICATION Disclaimer The test results relate only to the items tested. Applicable Standard Part 15.249, IC RSS-210 DUT Description RADIO THERMOSTAT FCC ID FCC ID: QO8-ZWAVE0210 IC Cert No. IC: 4714A-ZWAVE0210 Model Number RTZW-01 Operating Frequency TX: 908.42 MHz RX: Same Modulations FSK DUT Power Source 110–120Vac/50– 60Hz DC Power Battery Operated Exclusively Test Item Prototype Pre-Production Production Type of Equipment Fixed Mobile Portable Antenna Connector FCC Rules require that the antenna connector be unique. TESTING ENVIRONMENT AND TEST SETUP Test Facility Timco Engineering Inc. located at 849 NW State Road 45 Newberry, FL 32669 USA. Test Conditions Temperature: 26ºC Relative humidity: 50% Test Exercise The DUT was placed in continuous transmit mode of operation. Modifications TEST SUPPORTING EQUIPMENT Supporting Device Manufacturer Model / FCC ID Serial Number N/A APPLICANT: Golden Power Manufacturing Limited FCC ID: QO8-ZWAVE0210, IC: 4714A-ZWAVE0210 REPORT: G\Golden_QO8\425AUT10\425AUT10TestReport.doc Page 5 of 12 EMC EQUIPMENT LIST Device Manufacturer Model Serial Number Cal/Char Date Due Date 3/10-Meter OATS TEI N/A N/A Listed 3/20/07 3/19/10 3-Meter OATS TEI N/A N/A Listed 1/11/09 1/10/12 3-Meter Semi- Anechoic Chamber Panashield N/A N/A Listed 5/11/07 5/10/10 Analyzer Silver Tower Quasi-Peak Adapter HP 85650A 3303A01844 CAL 10/30/08 10/30/10 Analyzer Silver Tower RF Preselector HP 85685A 2620A00294 CAL 3/6/09 3/6/11 Analyzer Silver Tower Spectrum Analyzer HP 8566B Opt 462 3552A22064 3638A08608 CAL 10/30/08 10/30/10 Analyzer Tan Tower Preamplifier HP 8449B-H02 3008A00372 CAL 12/8/09 12/8/11 Analyzer Tan Tower Quasi- Peak Adapter HP 85650A 3303A01690 CAL 12/8/09 12/8/11 Analyzer Tan Tower RF Preselector HP 85685A 3221A01400 CAL 12/7/09 12/7/11 Analyzer Tan Tower Spectrum Analyzer HP 8566B Opt 462 3138A07786 3144A20661 CAL 12/7/09 12/7/11 Antenna: Biconnical Eaton 94455-1 1057 CAL 12/12/09 12/12/11 Antenna: Biconnical Eaton 94455-1 1096 CAL 10/11/08 10/11/10 Antenna: Log- Periodic Electro- Metrics LPA-25 1122 CAL 12/1/08 12/1/10 APPLICANT: Golden Power Manufacturing Limited FCC ID: QO8-ZWAVE0210, IC: 4714A-ZWAVE0210 REPORT: G\Golden_QO8\425AUT10\425AUT10TestReport.doc Page 6 of 12 TEST PROCEDURES Radiation Interference: ANSI C63.4-2003 using a spectrum analyzer, a preselector, a quasi- peak adapter, and an appropriate antenna. The analyzer was calibrated in dB above a microvolt at the output of the antenna. The resolution bandwidth was 100 kHz with an appropriate sweep speed and the video bandwidth was 300 kHz up to 1 GHz and 1 MHz wit…
