QOAFT-89RWireless PIR detector

External powered DC12V Static current consumption:18mA Alarm current consumption:30mA When powered,the green LED light for 3 seconds and flicker 2 seconds and off the red LED flicker about isseconds,after 3 minutes,the detector comes into work states. Alarm mode:Red LED light about 3S Relay output:NC Wireless transmitting distance:150m Transmitting frequency:433MH The max recharge caurrent:120mA Detection range:12m(25) 3.Installation 2Specification 3.1 Guide Do not face to cold or heat source Do not fact to sun lightKeep away from high- voltage wire 1.Introduction Installation base should be stable Do not face to metal wall FT-89R is the best indoor/outdoor motion detector with passive infrared and microwave.It's water proof and all weather resistant with two layer stable housings.FT-89R combines a variety of detection techniques which enable it to work in the most difficult environment where needs high security while maintaining immunity to false alarm.The infrared sensor adopts nice lens produce three-dimensinal thermal imaging of the protected area . Combinging the four-element microwave scanning contributes to an amazing detection capacity.Using this technique allows high sensitivity but lowest false alarm.FT-89R is equipped with unique protection mechanisms against any attempt to damage or to disable its operation. 3.2 Disassemble guide 2.Pull out the bottom of the cover 3.Remove the PCB 1.Loose screw Internal battery-powered Low battery ararm:2t will send Low battery report when the detectoy low battery and send battery resume report when the battery resume Relay outpnt:N/O(when external power disconnect,the Rely output will convert to N/O from N/C afert powered by battery about 2 minutes,external power resume by contrary.) Static current consumption:18mA Alarm current consumption:80uA 4.Remove the middle case Enstarlation Suggest installation height:2-3 meters from ground 45corner fixing Surface fixing A.Mark the drilling points and make holes. B.Draw the cable from back channel C.Fix the base cover on the wall with two screws. D.Put the PCB back on the cover with clips and fasten screws. Suggest corner installation 3.3. Stand-by battery replacing and using When battery is lower power, it will send related signal to control panel,so user should replace battery with same spec.(as right fig.) On BUS working mode,if this model of detector more than 4pcs in the system,you need put battery inside to assure the system will not overload. 1 2 3 Open battery box Install new battery Put on the cover and fix with svrews Wireless PIR Detector z 3.8Perform motion test to the detection area: install the cover and close thefasten part (refer to the right diagram) 1. Start the test at least 2 minutes after power supply 2. Crossing to any direction of the detection area, your walking with 0.75m/s will cause the LED indicator to light for 2-3 seconds (refer to the right diagram) 3 .Perform motion test from contrary directions in order to confirm the boundary of two sides. Make confirmed that detection center pointing to the center of protected area. 4. Away from the detector 3 to 6 m, raise slowly your arm and reach into the detection zone, mark the lower limit of PIR detection. Do the same step to confirm the upper limit. 5.the center of detection zone should not uphill incline. To obtain a good detection range , please adjust the vertical detection range, en-sure the detector is in a correct position. 6. After MW sensitivity or detection angle are adjusted, walking test must be performed according to the above steps. 3.4 Fanction explanation: Solar board connector Green LED Pretrigger LED Anti-strong light switch Battery connector Trigger pluse choose jumper switch Trigger pluse choose jumper switch 1 Tamper switch Wiring terminal Red LED alarm LED 3.5Function of jumper switch: Trigger pluse count,choose jumper switch 1, accroding to infrnred sensor 1 3.6Wiring terminal +- AlarmTamp 12V PowerAlarm Tamper Alarm:When the external power supply for 2-10 minutes, Alarm ouput is N/C Alarm:When the external power disconnect about 2-10 minutes,Alarm output convert to N/O on wireless mode One Pluse Two Pluse Three Pluse Trigger pluse connt,choose jumper switch 2, accroding to infrnred sensor 2 One PluseTwo Pluse Three Pluse 3.7 Coding Whenthe alarm panel enter coding mode,please press the tamper switch of FT-89R for 3 seconds,immediately then loose,when you can hear a hing sonnd from panel ,which means coding successfally. FCC WARNING Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help .

Shenzhen Meian Technology Co.,Ltd . Address: No.32, Lanshui Rd, Longdong, Longgang District, Shenzhen, China Tel: 0755-84844181 Fax: 0755-84844464 2014-06-04 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Confidentiality Request regarding application for certification of FCC ID: QOAFT-89R We hereby request confidential treatment of information accompanying this application as outlined below: - Schematics Diagram - Block Diagram - Operation description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s name / title : Liuwei Cai / QA Head Contact information / address : No.32, Lanshui Rd, Longdong, Longgang District, Shenzhen, China Tel: 0755-84844181 Fax: 0755-84844464

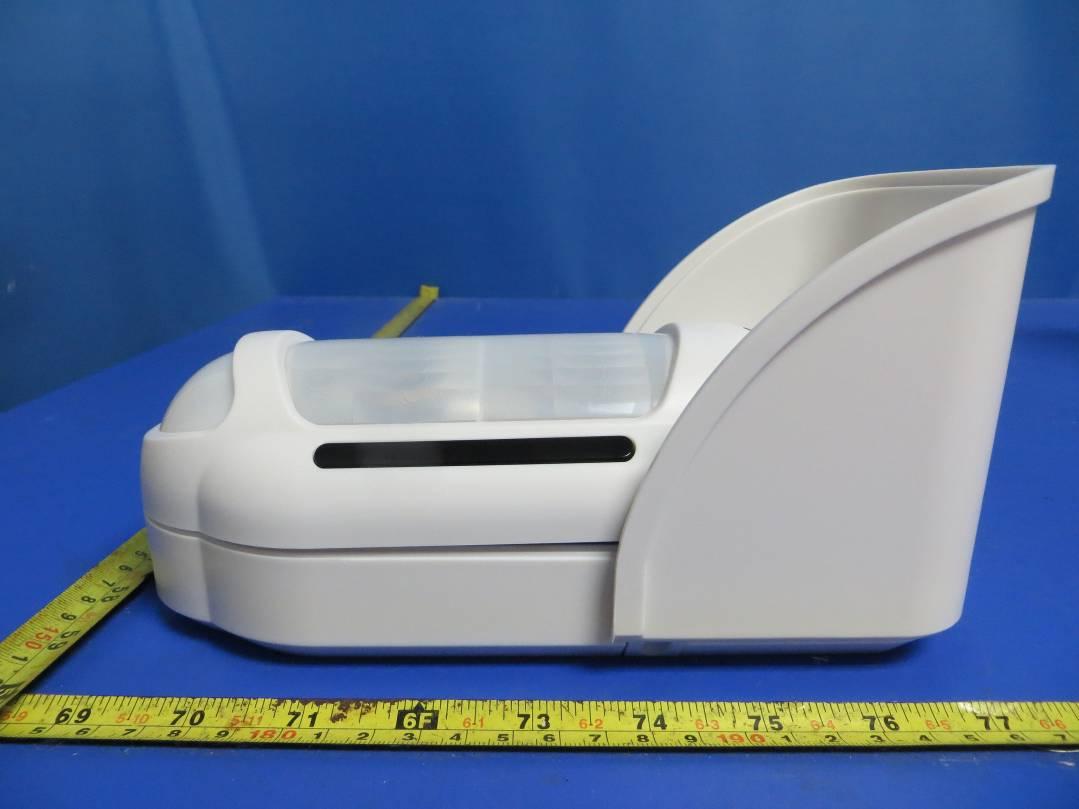

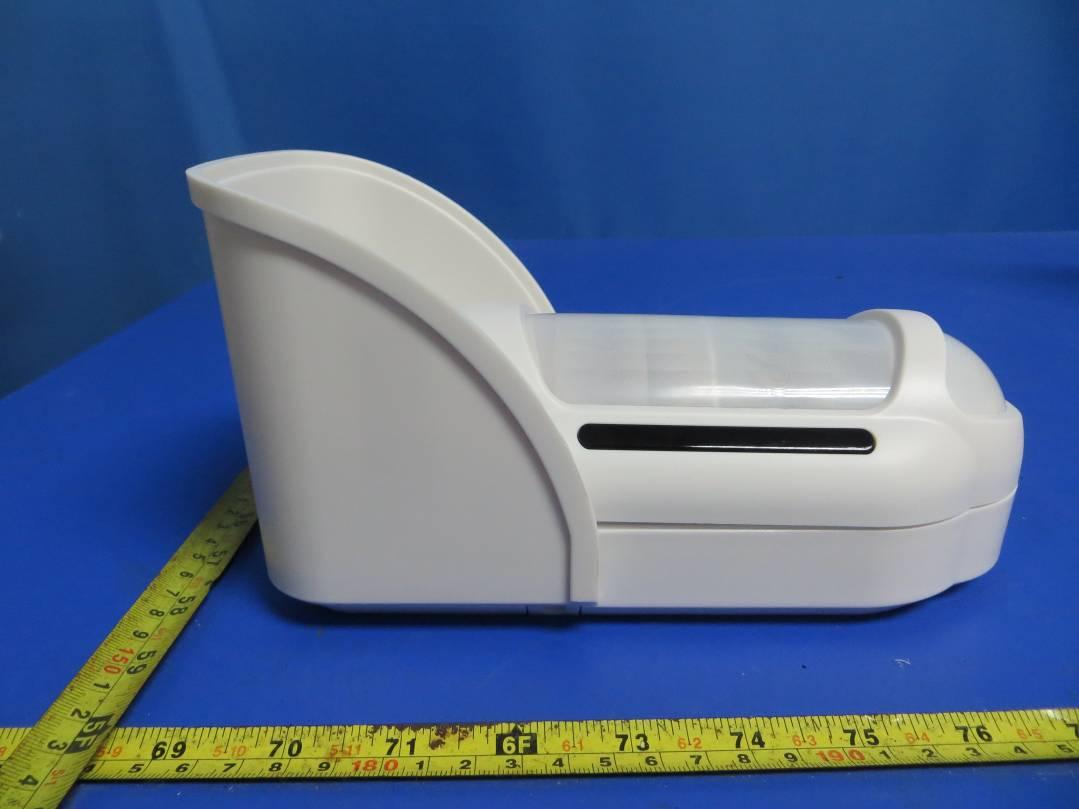

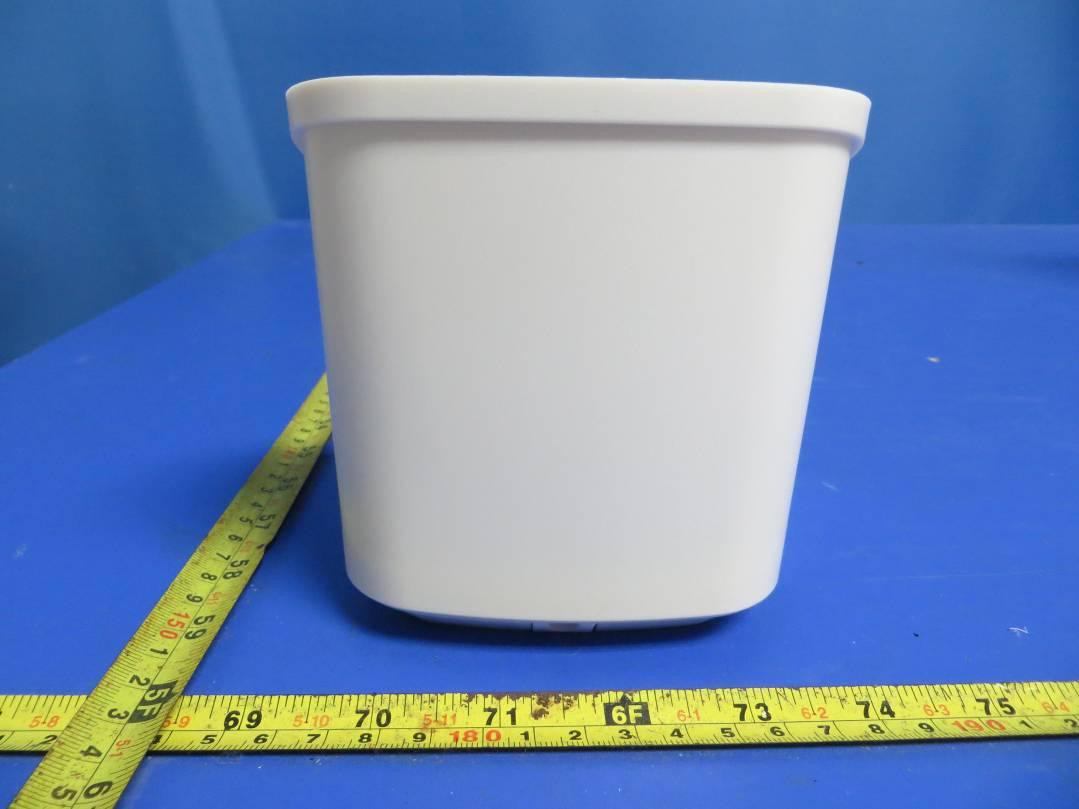

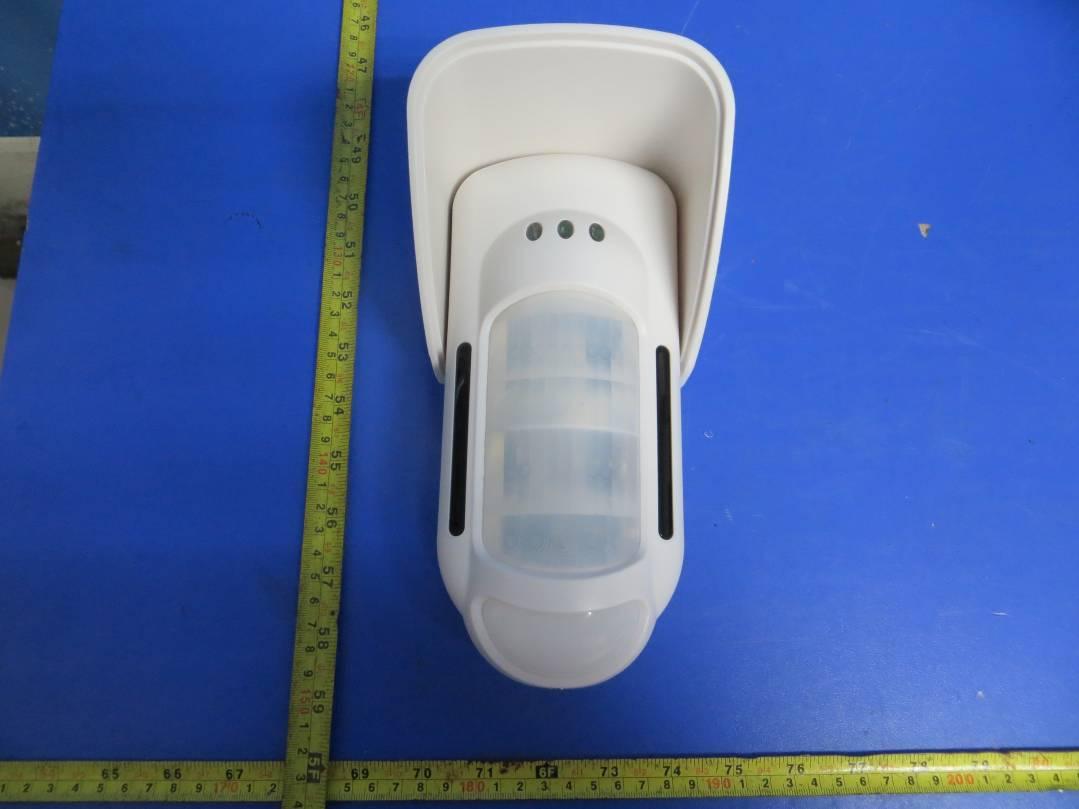

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: QOAFT-89R Report No.:LCS1405090389E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 3 1. EXTERIOR PHOTOGRAPHS OF EUT Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: QOAFT-89R Report No.:LCS1405090389E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 3 Fig.3 Fig.4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: QOAFT-89R Report No.:LCS1405090389E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 3 of 3 Fig.5 Fig.6

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: QOAFT-89R Report No.:LCS1405090389E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 3 1. INTERIOR PHOTOGRAPHS OF EUT Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: QOAFT-89R Report No.:LCS1405090389E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 3 Fig.3 Fig.4 Antenna SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: QOAFT-89R Report No.:LCS1405090389E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 3 of 3 Fig.5 Fig.6

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: QOAFT-89R Report No.: LCS1405090389E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 25 FCC TEST REPORT For Shenzhen Meian Technology Co.,Ltd . Wireless PIR detector Model No.: FT-89R Additional model No.: LA-P89R , FT-89RS, LA-P89RS Prepared for : Shenzhen Meian Technology Co.,Ltd . Address : No.32, Lanshui Rd, Longdong, Longgang District, Shenzhen, China Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 1/F., Xingyuan Industrial Park, Tongda Road, Bao’an Avenue, Bao’an District, Shenzhen, Guangdong, China Date of receipt of test sample : May 10, 2014 Number of tested samples : 1 Serial number : Prototype Date of Test : May 10, 2014– June 04, 2014 Date of Report : June 04, 2014 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: QOAFT-89R Report No.: LCS1405090389E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 25 FCC TEST REPORT FCC CFR 47 PART 15 C(15.231): 2013 Report Reference No. .............. : LCS1405090389E Date of Issue ................................ : June 04, 2014 Testing Laboratory Name ......... : Shenzhen LCS Compliance Testing Laboratory Ltd. Address ........................................ : 1/F., Xingyuan Industrial Park, Tongda Road, Bao’an Avenue, Bao’an District, Shenzhen, Guangdong, China Testing Location/ Procedure ........ : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name ....................... : Shenzhen Meian Technology Co.,Ltd . Address ........................................ : No.32, Lanshui Rd, Longdong, Longgang District, Shenzhen, China Test Specification Standard ....................................... : FCC CFR 47 PART 15 Subpart C : 2013, ANSI C63.4-2003 Test Report Form No. ................ : LCSEMC-1.0 TRF Originator ............................ : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF .................................. : Dated 2011-03 Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test Item Description. ............... : Wireless PIR detector Trade Mark .................................. : Model/ Type reference ................. : FT-89R Ratings ......................................... : DC 12V by Battery Result ......................................... : Positive Compiled by: Supervised by: Approved by: Jacky Li/ File administrators Danny Huang/ Technique principal Gavin Liang/ Manager SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: QOAFT-89R Report No.: LCS1405090389E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 3 of 25 FCC--TEST REPORT Type / Model........................... : FT-89R EUT......................................... : Wireless PIR detector Applicant............................... : Shenzhen Meian Technology Co.,Ltd . Address.................................. : No.32, Lanshui Rd, Longdong, Longgang District, Shenzhen, China Telephone............................... : / Fax.......................................... : / Manufacturer........................ : Shenzhen Meian Technology Co.,Ltd . Address................................... : No.32, Lanshui Rd, Longdong, Longgang District, Shenzhen, China Telephone............................... : / Fax.......................................... : / Factory................................... : Shenzhen Meian Technology Co.,Ltd . Address................................... : No.32, Lanshui Rd, Longdong, Longgang District, Shenzhen, China Telephone............................... : / Fax.......................................... : / Test Result Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCS1405090389E June 04, 2014 Date of issue SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: QOAFT-89R Report No.: LCS1405090389E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 4 of 25 TABLE OF CONTENTS 1. GENERAL INFORMATION .................................................................................................................................. 5 1.1. DESCRIPTION OF DEVICE (EUT) ........................................................................................................................... 5 1.2. OBJECTIVE ............................................................................................................................................................ 5 1.3. ENVIRONMENTAL CONDITIONS............................................................................................................................. 5 1.4. HOST SYSTEM CONFIGURATION LIST AND DETAILS ............................................................................................. 6 1.5. EXTERNAL I/O PORT ............................................................................................................................................. 6 1.6. EUT OPERATION .................................................................................................................................................. 6 1.7. ANTENNA SYSTEM .......................…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: QOAFT-89R Report No.:LCS1405090389E _______________________________________________________________________________________________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 1 1. TEST SETUP PHOTOGRAPHS 1.1. Photo of Radiated Emissions Measurement (X Position) Fig.1 Fig.2
