QOAMC-235RWIRELESS PIR DETECTOR

MC-235R WIRELESS PIR DETECTOR MC-235R is PIR intrusion detector with Pet immunity. It adopts digital microprocessor control technology. By using refined cylindrical FRESNEL lens in PIR section, it has high energy receiving efficiency and high sensitivity and false alarm immunity. With advanced patented software technology, It well settles the false alarm and malfunction caused by other interference factors. It has ultra-high detecting sensitivity and excellent anti-False alarm performance. It is widely used in various indoor applications by choosing proper pulse quantity. Special battery-saver feature and working life is up to more than 2 years. Model： MC-235R Detection distance：9m（25°C） Emitting distance：120-150m（in open area） Operating voltage：6V(4*1.5 V) Infrared section(as shown in the figure) Optical lens data Infrared area：11+5 （typical） Max.coverage：9 m*9m (23*46feet)/90° Emitting frequency：433MHz Alarm indication：LED flashes for seconds. Mounting： Wall or corner mountable，2.0-2.4m above ground Operating environment： Operating temp：-10°C-50°C（14°F-122°F） Storage Temp.：-20°C-60°C（-4°F-140°F） Anti-white light（indoor）：>9000LUX Dimensions:（L*W*H）94*62*53mm 3.Installation 2．Specification 3.1Notes Wall mounting wide -angle lense view Side view 2.5m 1.5m 0.6m 6m 4m 2m 7.5 23 30 16 , 5 2 , , , 8 , 0 , , , X X X X 9m Do not face the cold and heat source directly Do not face the sunlight directly Keep wiring away from high-voltage cable Do not install on unstable object Do not face the metal wall directly 1.Introduction P/N 20110506-2 Lense PIR Tamper switch 0 1.5m 1.5m 3m 3m 4.5m 4.5m 10m 8m 6m 4m 2m 0 0 Jumper switch X DIP switch Current consumption： Static≤30μA，Alarm≤20mA（433MHz） 3.2 pet-immunity guidebook The installation height of 2.2m to 2,4m is available pet-immunity height 2.2-2.4m2.2-2.4m ≤15Kg the pet is smaller than 15kgthe top of the detecting area is the non-pet-immunity area NO OK 2.2--2.4m 2.2-2.4m ≤20Kg 15 。 the pet is smaller than 20kg prevent direct the places where the pets can clamb up X 3.3 Illustrated installation Wall mount ②.Non bracket mounting：2.0-2.4m above the ground，Wall, 0 bracket or 45 corner mountable B. Mark screw hole and drill C. Insert two expandable dowel and attach the base to the wall with two screws. D. Replace the battery and cover ①.Dismantle procedure: A. Remove the screw by srewdriver Bracket mount 0 45 mount Corner 8. Customer Service ① Set as Test Mode to proceed walk-test,pulse count set as 1,2 or 3 ③ Do walk-test in opposite direction to confirm the boundary of both sides, Make sure the detection centre pointing to the centre of protected area.。 ④ Make sure the detection centre at the proper place. Should properly adjust the detection area if you can not get an ideal detection area. ② Walk across the far edge of coverage area at the speed of 1 step/second(about0.75m/s) The LED will flash for seconds then alarm（as shown in the right figure） 7. Walk test in coverage area: ⑤ After adjust the detection angle , should redo the walk test as above. ⑥ Please change TEST mode to NORMAL mode after the Walk-test . 4.DIP switch functions: MC-235R can set three modes as follows: Test Mode：Emitting alarm signal once detector is triggered. No time-lag between two emissions. Default mode for installing test. Power-saver mode：Detect every 3 minutes. Send detection signal of detector and battery status Coding Mode：Press tamper switch for more than 3 seconds and send an identification code to receiver. MC-235R can choose 3 kinds of pulse as follows: 1-pulse： Alarm 1-pulse. 2-pulse: Alarm 2-pulse。 3-pulse： Alarm 3-pulse (Factory defaul) 。 Higher pulse counting and lower catch performance and can avoid false alarm 3 2 1 4 DIP ON Modes of DIP switch 3&4: MODE ON OFF TEST OFF ON POWER-SAVER OFF OFF CODING 3 4 1 2 MODE 1-Pulse 2-Pulse 3-Pulse ON ON OFF OFF OFF OFF Our products are very reliable，but for some special reasons, the working performance will be limited in certain range. We here list some cases as follows： ①. The voltage of control panel is not stable； ②. Low-voltage of the detector. For any help please contact with our company and your could visit our website for more information. Warning: We are not responsible for the problem caused by improper operation by users! 5. Coding method between detector and control pane and tamper switch setting： ① Coding set： Install the battery，LED flashes，when the detector gets stable after seconds， press tamper switch for more than 3 seconds and detector will send a wireless signal. If the control panel receives the signal and get the response sound then code successfully. Please refer to control panel manual for details. ① Push here to coding set 6.Detection distance adjustment and battery change Pull out the base cover and change battery. Please pay attention to the positive and negative. Polarity ② Jumper ② If short circuit of the jumper as shown then tamper alarm function invalid FCC WARNING Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Co…

Text truncated - open the document above for the full version.

Shenzhen Meian Technology Co.,Ltd . Address: No.32, Lanshui Rd, Longdong, Longgang District, Shenzhen, China Tel: 0755-84844181 Fax: 0755-84844464 2014-06-04 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Confidentiality Request regarding application for certification of FCC ID: QOAMC-235R We hereby request confidential treatment of information accompanying this application as outlined below: - Schematics Diagram - Block Diagram - Operation description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s name / title : Liuwei Cai / QA Head Contact information / address : No.32, Lanshui Rd, Longdong, Longgang District, Shenzhen, China Tel: 0755-84844181 Fax: 0755-84844464

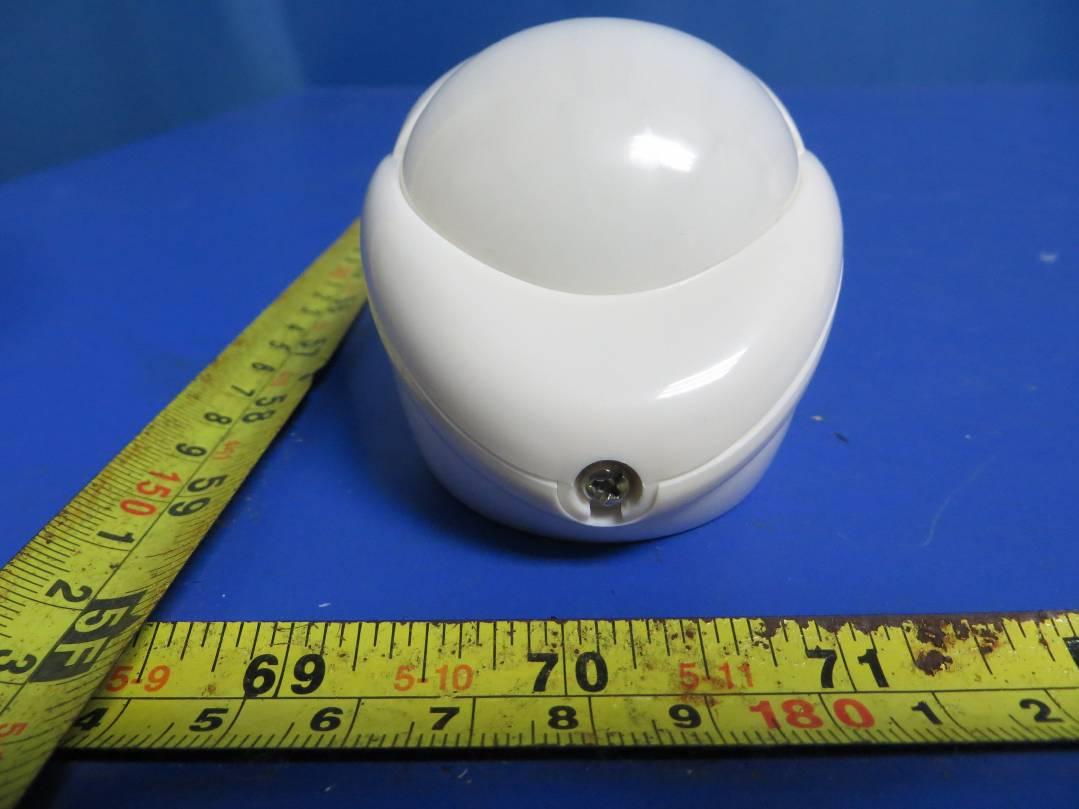

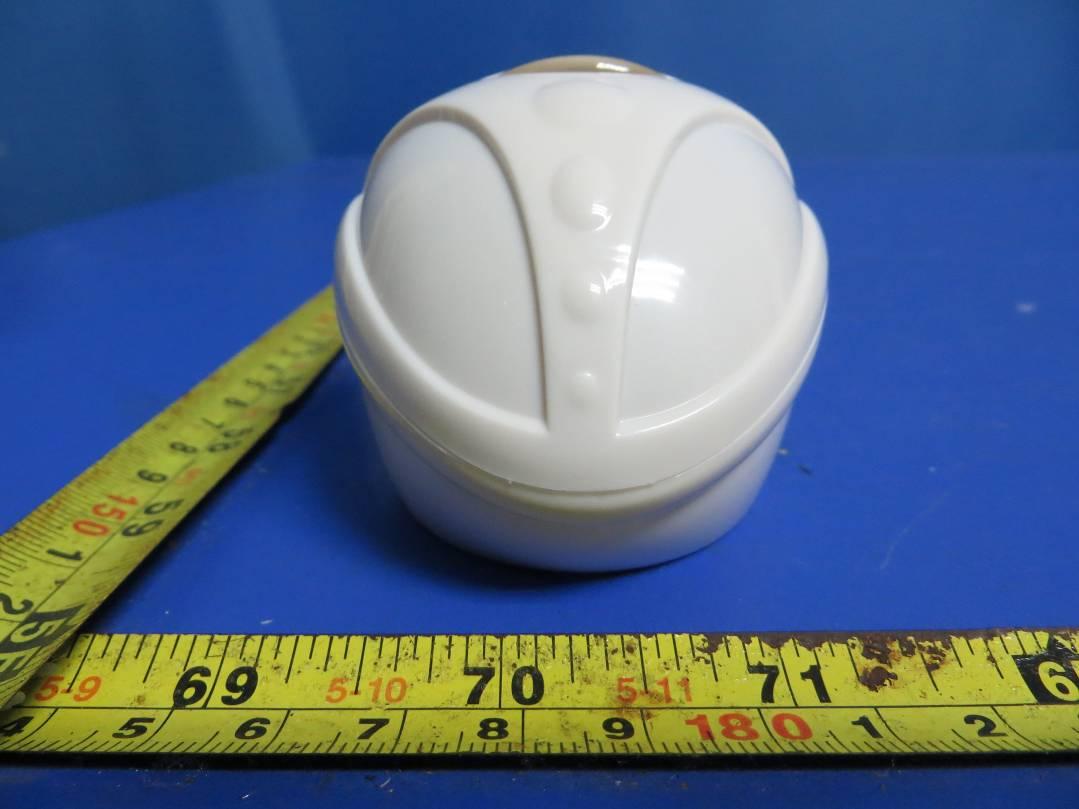

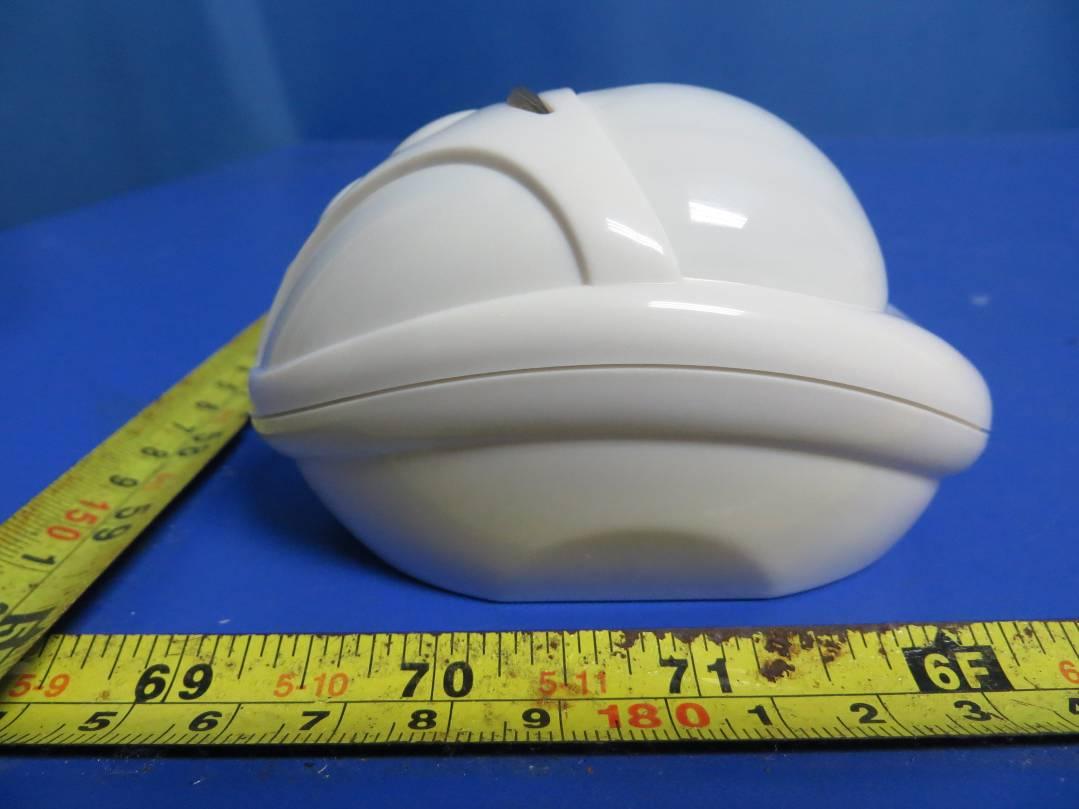

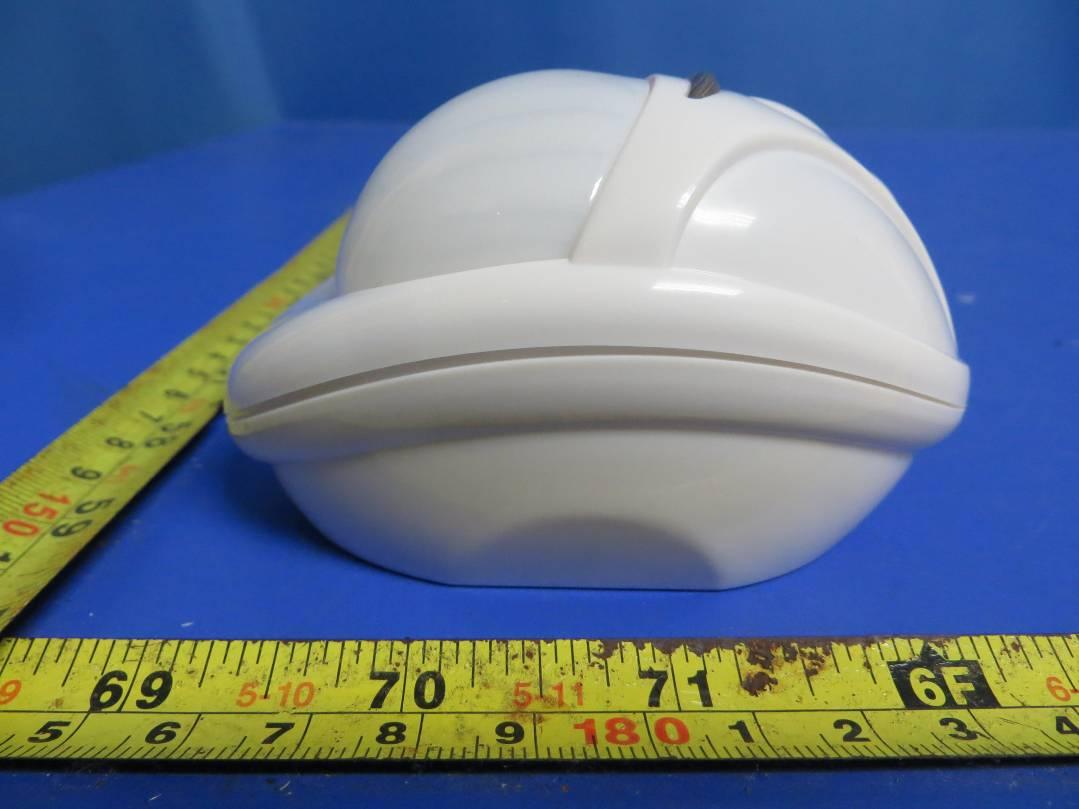

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: QOAMC-235R Report No.:LCS1405090390E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 3 1. EXTERIOR PHOTOGRAPHS OF EUT Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: QOAMC-235R Report No.:LCS1405090390E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 3 Fig.3 Fig.4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: QOAMC-235R Report No.:LCS1405090390E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 3 of 3 Fig.5 Fig.6

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID:QOAMC-235R Report No.:LCS1405090390E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 1 LABEL AND LOCATION Size:L:5.0cm*W:3.0cm Label And Location

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: QOAMC-235R Report No.:LCS1405090390E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 3 1. INTERIOR PHOTOGRAPHS OF EUT Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: QOAMC-235R Report No.:LCS1405090390E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 3 Fig.3 Fig.4 Antenna SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: QOAMC-235R Report No.:LCS1405090390E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 3 of 3 Fig.5

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: QOAMC-235R Report No.: LCS1405090390E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 25 FCC TEST REPORT For Shenzhen Meian Technology Co.,Ltd . WIRELESS PIR DETECTOR Model No.: MC-235R Additional model No.: LA-P235 Prepared for : Shenzhen Meian Technology Co.,Ltd . Address : No.32, Lanshui Rd, Longdong, Longgang District, Shenzhen, China Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 1/F., Xingyuan Industrial Park, Tongda Road, Bao’an Avenue, Bao’an District, Shenzhen, Guangdong, China Date of receipt of test sample : May 10, 2014 Number of tested samples : 1 Serial number : Prototype Date of Test : May 10, 2014– June 04, 2014 Date of Report : June 04, 2014 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: QOAMC-235R Report No.: LCS1405090390E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 25 FCC TEST REPORT FCC CFR 47 PART 15 C(15.231): 2013 Report Reference No. .............. : LCS1405090390E Date of Issue ................................ : June 04, 2014 Testing Laboratory Name ......... : Shenzhen LCS Compliance Testing Laboratory Ltd. Address ........................................ : 1/F., Xingyuan Industrial Park, Tongda Road, Bao’an Avenue, Bao’an District, Shenzhen, Guangdong, China Testing Location/ Procedure ........ : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name ....................... : Shenzhen Meian Technology Co.,Ltd . Address ........................................ : No.32, Lanshui Rd, Longdong, Longgang District, Shenzhen, China Test Specification Standard ....................................... : FCC CFR 47 PART 15 Subpart C : 2013, ANSI C63.4-2003 Test Report Form No. ................ : LCSEMC-1.0 TRF Originator ............................ : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF .................................. : Dated 2011-03 Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test Item Description. ............... : WIRELESS PIR DETECTOR Trade Mark .................................. : Model/ Type reference ................. : MC-235R Ratings ......................................... : DC 6.0V by Battery Result ......................................... : Positive Compiled by: Supervised by: Approved by: Jacky Li/ File administrators Danny Huang/ Technique principal Gavin Liang/ Manager SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: QOAMC-235R Report No.: LCS1405090390E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 3 of 25 FCC--TEST REPORT Type / Model........................... : MC-235R EUT......................................... : WIRELESS PIR DETECTOR Applicant............................... : Shenzhen Meian Technology Co.,Ltd . Address.................................. : No.32, Lanshui Rd, Longdong, Longgang District, Shenzhen, China Telephone............................... : / Fax.......................................... : / Manufacturer........................ : Shenzhen Meian Technology Co.,Ltd . Address................................... : No.32, Lanshui Rd, Longdong, Longgang District, Shenzhen, China Telephone............................... : / Fax.......................................... : / Factory................................... : Shenzhen Meian Technology Co.,Ltd . Address................................... : No.32, Lanshui Rd, Longdong, Longgang District, Shenzhen, China Telephone............................... : / Fax.......................................... : / Test Result Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCS1405090390E June 04, 2014 Date of issue SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: QOAMC-235R Report No.: LCS1405090390E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 4 of 25 TABLE OF CONTENTS 1. GENERAL INFORMATION .................................................................................................................................. 5 1.1. DESCRIPTION OF DEVICE (EUT) ........................................................................................................................... 5 1.2. OBJECTIVE ............................................................................................................................................................ 5 1.3. ENVIRONMENTAL CONDITIONS............................................................................................................................. 5 1.4. HOST SYSTEM CONFIGURATION LIST AND DETAILS ............................................................................................. 6 1.5. EXTERNAL I/O PORT ............................................................................................................................................. 6 1.6. EUT OPERATION .................................................................................................................................................. 6 1.7. ANTENNA SYSTEM ...................................…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: QOAMC-235R Report No.:LCS1405090390E _______________________________________________________________________________________________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 1 1. TEST SETUP PHOTOGRAPHS 1.1. Photo of Radiated Emissions Measurement (X Position) Fig.1 Fig.2
