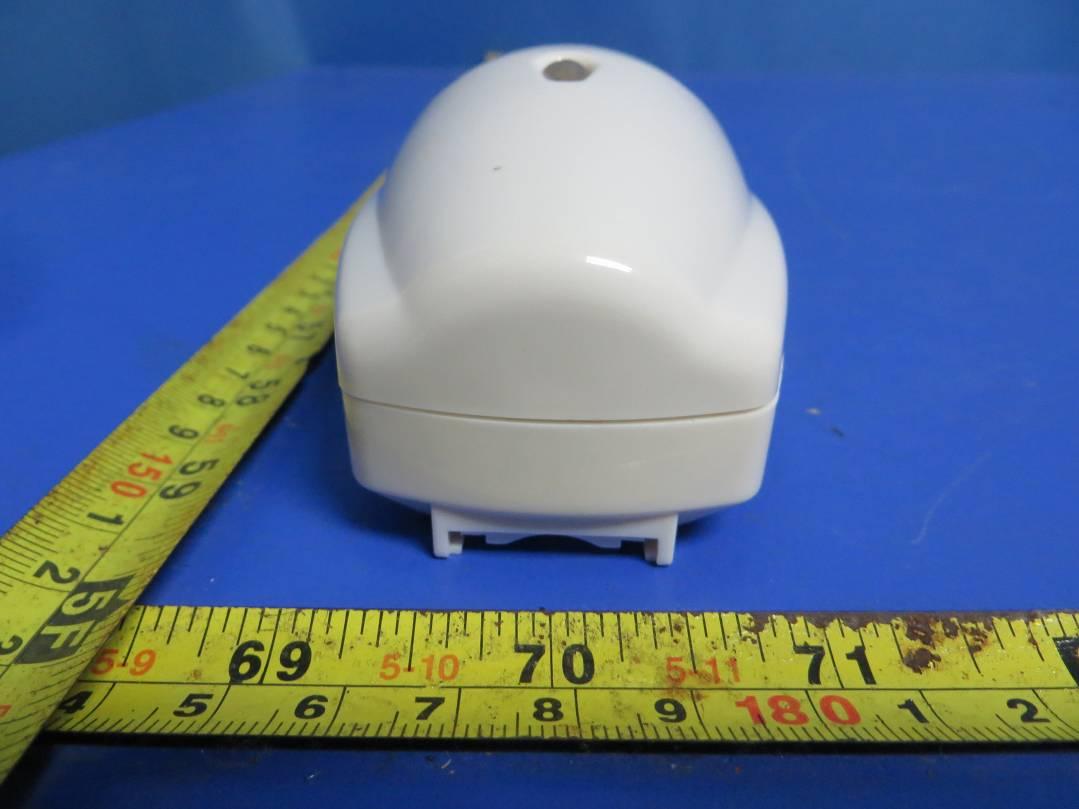

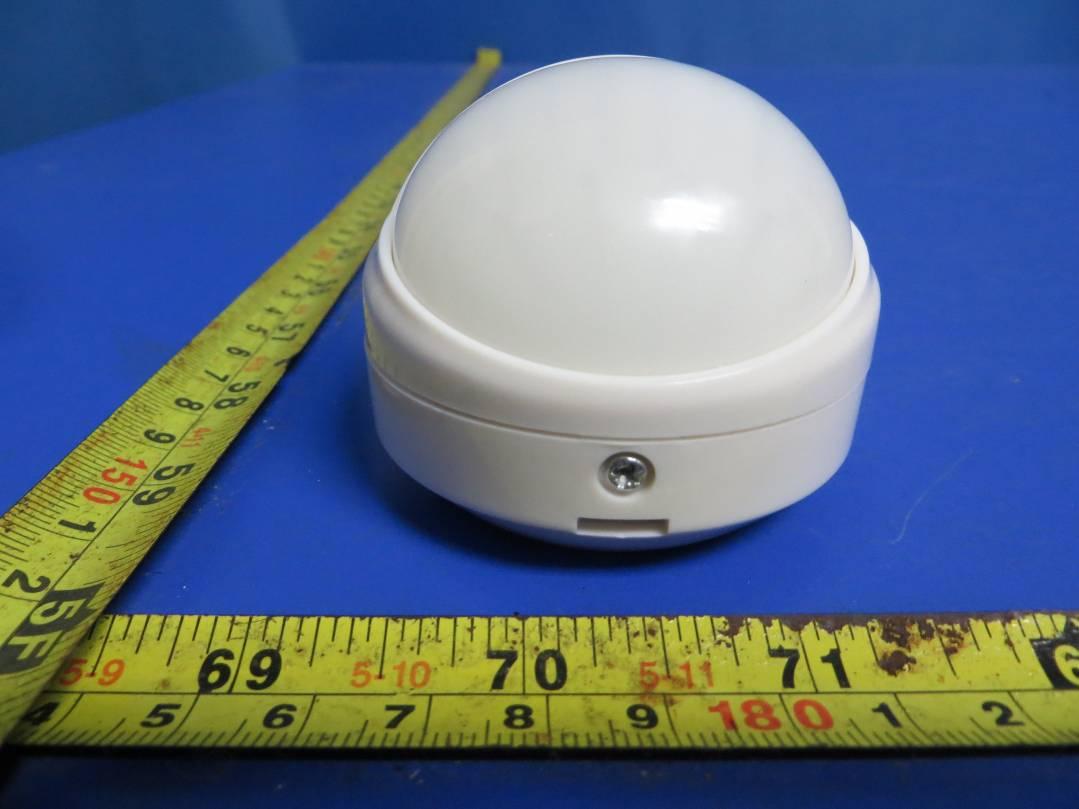

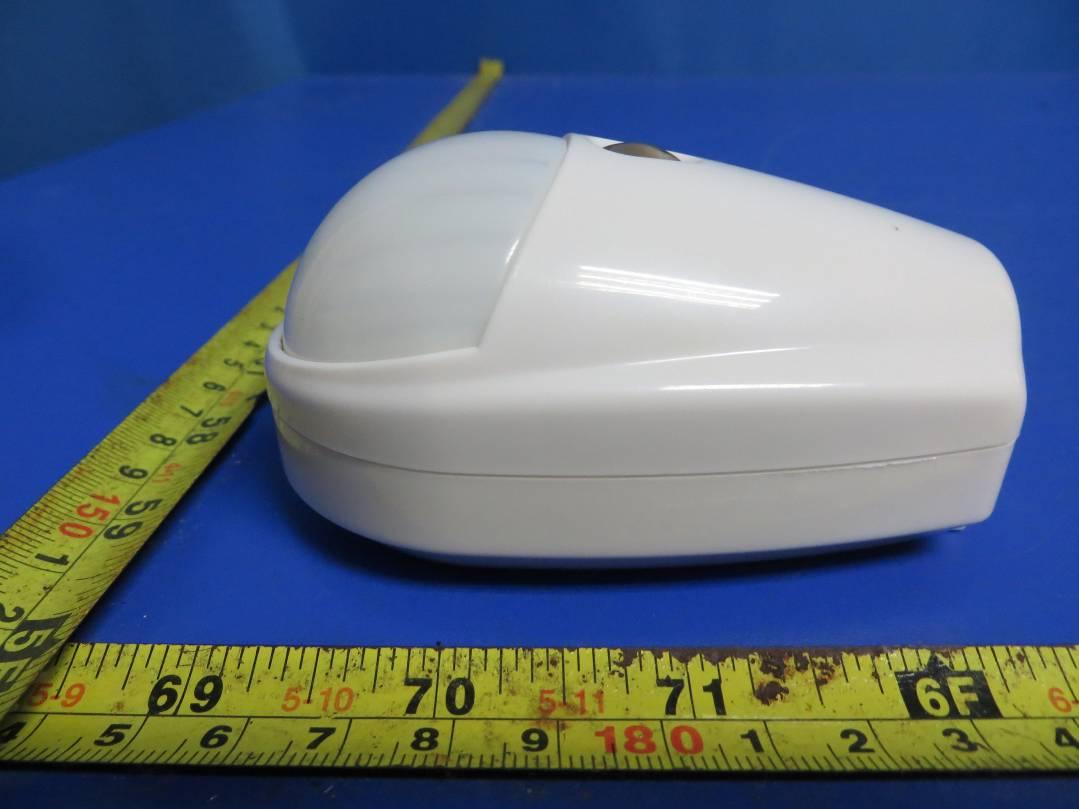

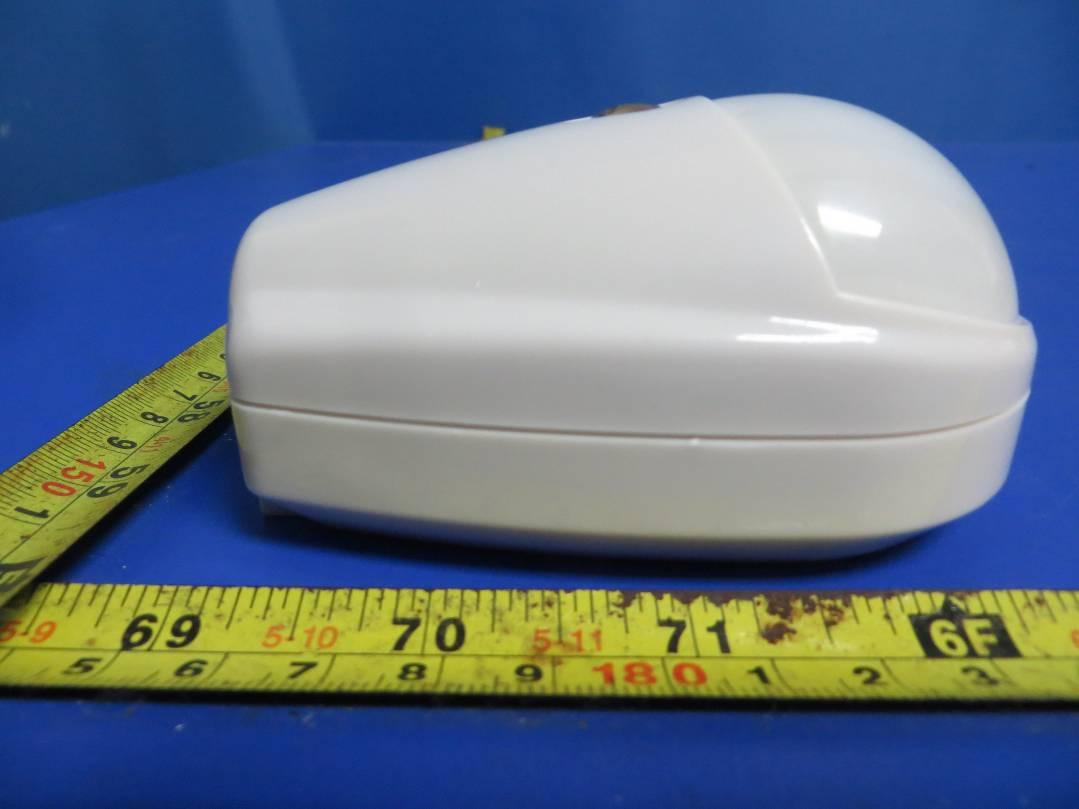

QOAMC-335RWireless PIR Detector

拨码开关功能说明 拨码开关 Current consumption： Static≤30μA，Alarm≤20mA（433MHz） 4.2 pet-immunity guidebook The installation height of 2.2m to 2,4m is available pet-immunity height 2.2-2.4m2.2-2.4m ≤15Kg the pet is smaller than 15kgthe top of the detecting area is the non-pet-immunity area NO OK 2.2--2.4m 2.2-2.4m ≤20Kg 15 。 the pet is smaller than 20kg prevent direct the places where the pets can clamb up X P/N 20110301-2 MC-335R Wireless PIR Detector 4.3 Introduce DIP function: MC-355R can choose 3 kinds of pulse as follows: 1-pulse： Alarm 1-pulse. 2-pulse: Alarm 2-pulse。 3-pulse： Alarm 3-pulse(Factory default)。 Higher pulse counting and lower catch performance and can avoid false alarm 1 2 Modes 1-pulse 2-pulse 3-pulse ON ON OFF OFF OFF OFF 6. Customer service Our products are very reliable，but for some special reasons, the working performance will be limited in certain range. We here list some cases as follows： ①. The voltage of control panel is not stable； ②. Low-voltage of the detector. For any help please contact with our company and your could visit our website for more information. Warning: We are not responsible for the problem caused by improper operation by users! ① Set as Test Mode to precess walk-test,pulse count set as 1,2 or3。 ④ Make sure the detection centre at the proper place. Should properly adjust the detection area if you can not get an ideal detection area. ② Walk across the far edge of coverage area at the speed of 1 step/second(about0.75m/s) The LED will flash for seconds then alarm（as shown in the right figure） 5. Walk test in coverage area: ⑤ After adjust the detection angle , should redo the walk test as above. ⑥ Please change TEST mode to NORMAL mode after the Walk-test . ③ Do walk-test in opposite direction to confirm the boundary of both sides, Make sure the detection centre pointing to the centre of protected area. MC-355R can set three modes as follows: Test Mode：Emitting alarm signance detector is triggered. No time-lag between two emissions. Power-saver mode： Send detection signal of detector and battery status Coding Mode：Press tamper switch for more than 3 seconds and send an identification code to receiver. Dip switch 3 and 4 set modes Modes ON OFF Test OFF ON Power-saver OFF OFF Coding 34 Press the tamper switch for study the ID code Insert one new battery 4.4. Coding method between detector and control panel: ① Coding set： Install the battery LED flashes，when the detector gets stable after seconds， pres s tamper s w itch for more than 3 seconds and detector will send a wireless signal. If the control panel receives the signal and give the response sound then code successfully. Please refer to control panel manual for details. ② If short-circuit pin “A” with a jumper then the tamper alarm function invalid. 4.5. Detection distance adjustment and battery changes ① Shorten detection distance by pushing down the PCB and vice versa User can adjust it to meet different need. As s how n on the right picture, the detection distance is the farthest. ②When the signal between detector and control panel becomes weak. That means a low battery condition. Users should change new battery w ith s ame type. P ull out the base cover and change battery.Please pay attention to the positive and negative. P/N 20110301-2 FCC WARNING Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. nce detector is tri gg ered l o o
