QOAPB-433RWireless Remote Control

P/N PB-433R Wireless Remote Control PB-433R is mini wireless remote control with 4 keys; it is one of important accession of our company,With special out look, it can be decoration and convenient for taking along. Easy to operate,has high sensibility in 100 meters.With the function to arm,disarm.emergency help. 1.INTRODUCTION Model:PB-433R Effective area:100m in open air Frequency:433MHZ Code:28bit ID.8bits function code,36 bits date code Voltage:6V.With two CR2032 Lithium batteries. working life is about one year Information emission:LED light on Temperature:-10°C~50°C Size:62*32.5*13mm Weight:25g A. 4 independent function keys B. For fast arm/disarm, easy and convenient,emergency call,safe and covert. C. Exquisite design, with pictures for key functions easy explain D. Scientific address code with millions of combination, which enable all the remoter controller to be exclusive one, without permitting, it is impossible to copy our wireless products. E. Low consumption for transmitting, indication for signal out put visible F. Compatible with all our 433MHz\868MHz wireless products. 2.SPECIFICATION3.MAIN FUNCTION 4.USING LED Away Emergency help Home Disarm 1.For away arm,press the key AWAY for 2 seconds 2.For at home arm, press the key HOME for 2 seconds 3.For disarm,press the key DISARM for 2 seconds 4.The emergency help is safe and cobert. press the key HELP for 3 to 4 seconds to realize this function EMERGENCY HELP 20110228-2 5.TEST AND MAITENANCE 5.1 Coding 1.Set the control panel to the enroll wireless device status. 2.Let the remode on coding mode,and press any key of the remote at the moment the panel on remote coding mode. 5.2 Test When finished in the factory,PB-433R has build-in batteries.Before testing,we will need to code wireless producte with PB-433R,for the coding details,please view the CODE SETTING of the manual of wireless products.The testing process as following; 1.Keep the distance of PB-433R from the wireless products above 3 meters;pressthe key with lock picture on the remoter controller for 2 seconds,the lamp for checking receiver's state should light twice. 2.confirm the wireless products have the same response, such as hear the hint voice SYSTEM ALARM. 3.Operate in the corner of covered zone of wireless products,such as the place blocke by will and large object, to see if the system has the sanme hint voice 5.3.Change batteries Change new battery when the signal become fade in the process of transmitting. Please follow the below steps to change the batteries. 1.Use small screw driver to open the small screw on the back of the remoter controller. Keep the screw carefully 2.Fetch the back cover and pull out the old batteries. 3.Input the new batteries,pay attention to the anode and cathode. 4.Fix the back cover with the screw. 5.Test the installed batteries;press any key,the LED lamp on the remoter controller lighting, the control panel will response correspondingly. 6.SYSTEM LIMITED O u r w i r e l e s s p r o d u c t s a r e r e l i a b l e , w h i l e i n c e r t a i n s i t u a t i o n , o u r s y s t e m w i l l b e l i m i t e d , t h e s i t u a t i o n c a n b e s o m e o n e a s b e l o w ; 1 . Wh e n t h e c o n t r o l p a n e l i s n o t s t a b l e , o r t h e r e m o t e r c o n t r o l l e r i s n o t i n t h e c o v e r e d r a n g e , i t m a y l e a d t o s i g n a l s e n d i n g n o t s u c c e s s . 2 . U n d e r v o l t a g e o f t h e r e m o t e c o n t r o l l e r, e t c . F o r a n y r e q u i r e m e n t f o r h e l p , p l e a s e c o n t a c t w i t h o u r c o m p a n y Note:without getting permission from corresponding person to change the products at will,may lose the right of using this product Screw CR2032 batteries (Battery pole up:positive down:negative) P/N 20110228-2 FCC WARNING Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Shenzhen Meian Technology Co.,Ltd . Address: No.32, Lanshui Rd, Longdong, Longgang District, Shenzhen, China Tel: 0755-84844181 Fax: 0755-84844464 2014-06-04 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Confidentiality Request regarding application for certification of FCC ID: QOAPB-433R We hereby request confidential treatment of information accompanying this application as outlined below: - Schematics Diagram - Block Diagram - Operation description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s name / title : Liuwei Cai / QA Head Contact information / address : No.32, Lanshui Rd, Longdong, Longgang District, Shenzhen, China Tel: 0755-84844181 Fax: 0755-84844464

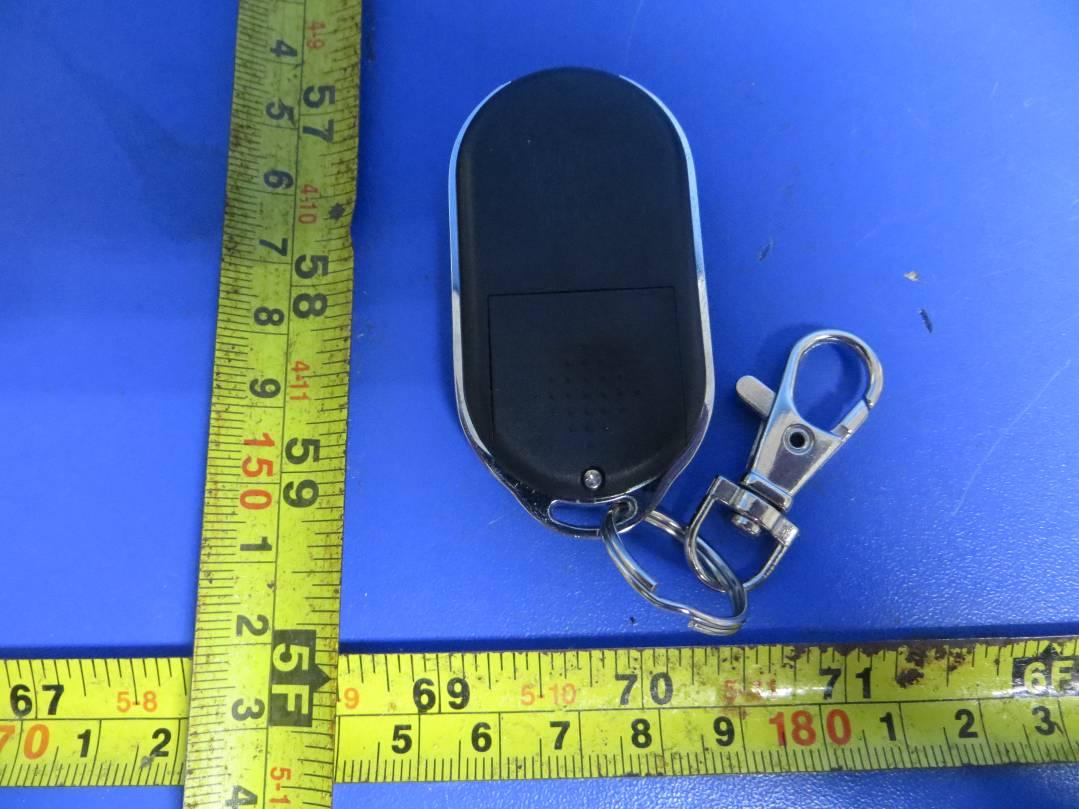

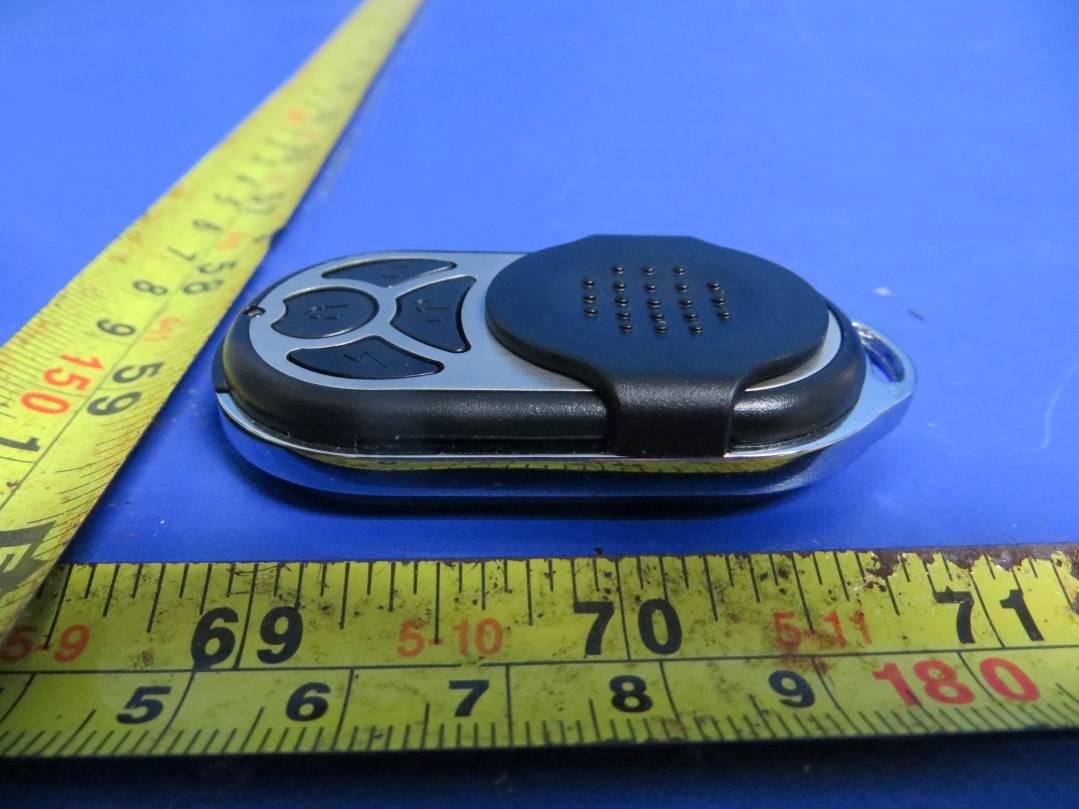

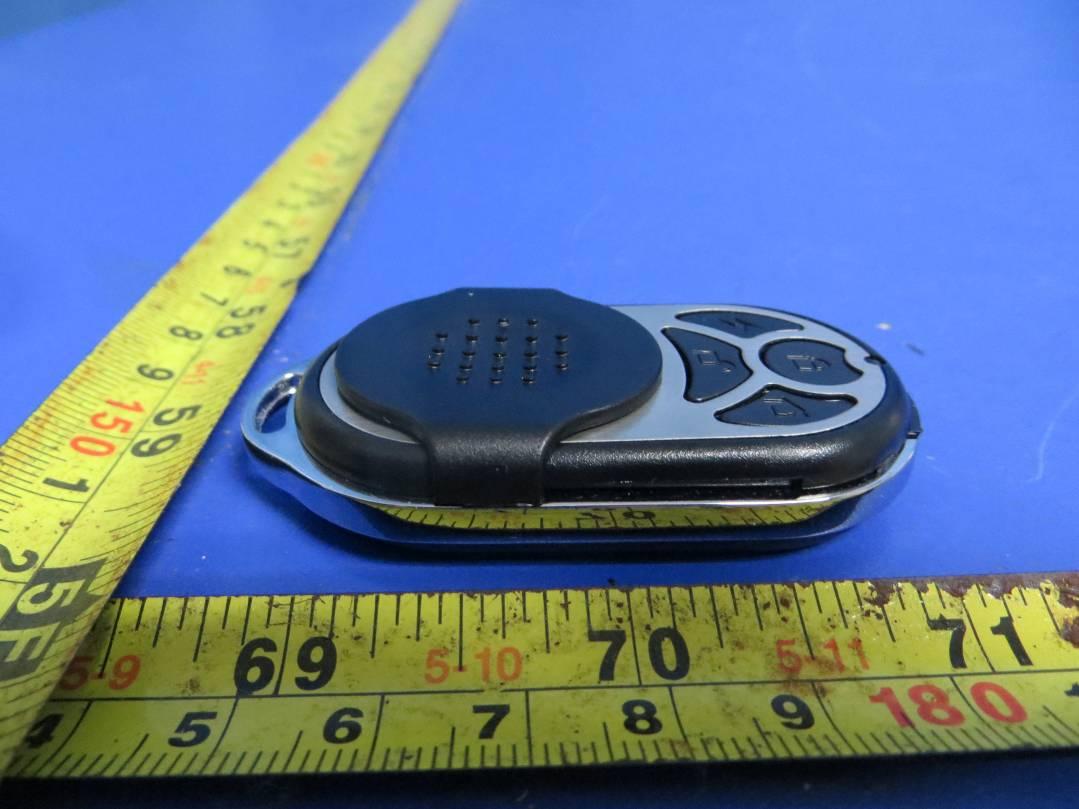

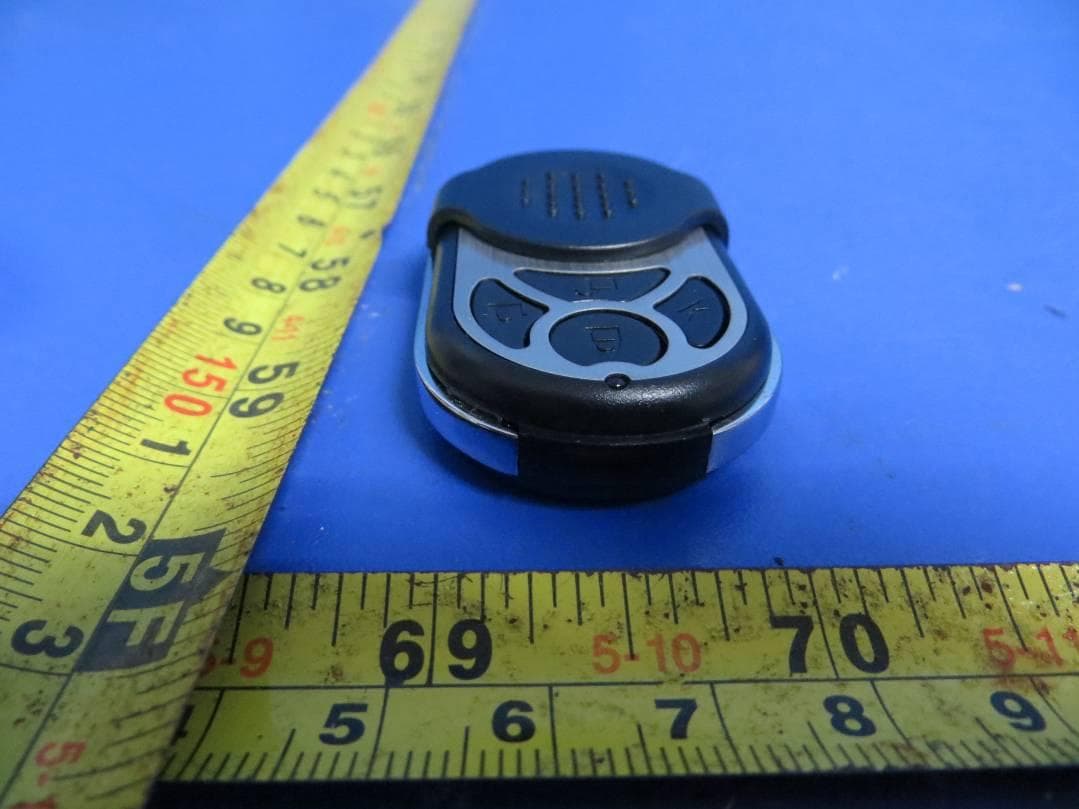

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: QOAPB-433R Report No.:LCS1405090394E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 3 1. EXTERIOR PHOTOGRAPHS OF EUT Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: QOAPB-433R Report No.:LCS1405090394E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 3 Fig.3 Fig.4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: QOAPB-433R Report No.:LCS1405090394E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 3 of 3 Fig.5 Fig.6

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID:QOAPB-433R Report No.:LCS1405090394E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 1 LABEL AND LOCATION Size:L:3cm*W:1.0cm Label And Location

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: QOAPB-433R Report No.:LCS1405090394E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 2 1. INTERIOR PHOTOGRAPHS OF EUT Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: QOAPB-433R Report No.:LCS1405090394E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 2 Fig.3 Fig.4 Antenna

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: QOAPB-433R Report No.: LCS1405090394E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 25 FCC TEST REPORT For Shenzhen Meian Technology Co.,Ltd . Wireless Remote Control Model No.: PB-433R Additional model No.: LA-C433 Prepared for : Shenzhen Meian Technology Co.,Ltd . Address : No.32, Lanshui Rd, Longdong, Longgang District, Shenzhen, China Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 1/F., Xingyuan Industrial Park, Tongda Road, Bao’an Avenue, Bao’an District, Shenzhen, Guangdong, China Date of receipt of test sample : May 10, 2014 Number of tested samples : 1 Serial number : Prototype Date of Test : May 10, 2014– June 04, 2014 Date of Report : June 04, 2014 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: QOAPB-433R Report No.: LCS1405090394E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 25 FCC TEST REPORT FCC CFR 47 PART 15 C(15.231): 2013 Report Reference No. .............. : LCS1405090394E Date of Issue ................................ : June 04, 2014 Testing Laboratory Name ......... : Shenzhen LCS Compliance Testing Laboratory Ltd. Address ........................................ : 1/F., Xingyuan Industrial Park, Tongda Road, Bao’an Avenue, Bao’an District, Shenzhen, Guangdong, China Testing Location/ Procedure ........ : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name ....................... : Shenzhen Meian Technology Co.,Ltd . Address ........................................ : No.32, Lanshui Rd, Longdong, Longgang District, Shenzhen, China Test Specification Standard ....................................... : FCC CFR 47 PART 15 Subpart C : 2013, ANSI C63.4-2003 Test Report Form No. ................ : LCSEMC-1.0 TRF Originator ............................ : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF .................................. : Dated 2011-03 Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test Item Description. ............... : Wireless Remote Control Trade Mark .................................. : Model/ Type reference ................. : PB-433R Ratings ......................................... : DC 6.0V by Battery Result ......................................... : Positive Compiled by: Supervised by: Approved by: Jacky Li/ File administrators Danny Huang/ Technique principal Gavin Liang/ Manager SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: QOAPB-433R Report No.: LCS1405090394E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 3 of 25 FCC--TEST REPORT Type / Model........................... : PB-433R EUT......................................... : Wireless Remote Control Applicant............................... : Shenzhen Meian Technology Co.,Ltd . Address.................................. : No.32, Lanshui Rd, Longdong, Longgang District, Shenzhen, China Telephone............................... : / Fax.......................................... : / Manufacturer........................ : Shenzhen Meian Technology Co.,Ltd . Address................................... : No.32, Lanshui Rd, Longdong, Longgang District, Shenzhen, China Telephone............................... : / Fax.......................................... : / Factory................................... : Shenzhen Meian Technology Co.,Ltd . Address................................... : No.32, Lanshui Rd, Longdong, Longgang District, Shenzhen, China Telephone............................... : / Fax.......................................... : / Test Result Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCS1405090394E June 04, 2014 Date of issue SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: QOAPB-433R Report No.: LCS1405090394E This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 4 of 25 TABLE OF CONTENTS 1. GENERAL INFORMATION .................................................................................................................................. 5 1.1. DESCRIPTION OF DEVICE (EUT) ........................................................................................................................... 5 1.2. OBJECTIVE ............................................................................................................................................................ 5 1.3. ENVIRONMENTAL CONDITIONS............................................................................................................................. 5 1.4. HOST SYSTEM CONFIGURATION LIST AND DETAILS ............................................................................................. 6 1.5. EXTERNAL I/O PORT ............................................................................................................................................. 6 1.6. EUT OPERATION .................................................................................................................................................. 6 1.7. ANTENNA SYSTEM .............................…
