QP7-802MI3B802.11b Wireless LAN Mini-PCI Adapter

802MI3B User’s Manual 1. Wireless LAN Basics Wireless LAN (Local Area Networks) systems offer a great number of advantages over a traditional, wired system. Wireless LANs (WLANs) are more flexible, easier to setup and manage and often more cost effective than their wired equivalence. Using radio frequency (RF) technology. WLANs transmit and receive data over the air, minimizing the need for wired connections. Thus, WLANs combine data connectivity with user mobility, and, through simplified configuration, enable movable LANs. With wireless LANs, users can access shared information without looking for a place to plug in and network managers can set up or augment networks without installing or moving wires. Wireless LANs offer the following productivity, convenience and cost advantages over traditional wired networks.• z Mobility – Wireless LAN systems can provide LAN users with access to real-time information anywhere in their organization. This mobility supports productivity and service opportunities not possible with wired networks. z Installation Speed and Simplicity – Installing a wireless LAN system can be fast and easy and can eliminate the need to pull cable through walls and ceilings. z Installation Flexibility – wireless technology allows the network to go where wires cannot go. z Reduced Cost-of-Ownership – While the initial investment required for wireless LAN hardware might be higher than the cost of wired LAN hardware, overall installation expenses and lifecycle costs will be significantly lower. Long- term cost benefits are greatest in dynamic environments requiring frequent moves, adds, and changes. z Scalability – Wireless LAN systems can be configured in a variety of topologies to meet the needs of specific applications and installations. Configurations are easily changed and range from peer-to-peer networks suitable for a small number of users to full infrastructure networks of thousands of users that allows roaming over a broad area. 2. Installation and Overview Here are some steps you will perform in establishing your wireless network connection: z Install Access Point at first. AP is needed in case of Infrastructure network mode. z Install software using the Installation Disktette. z Install network protocol(s) required to communicate on your network. Most likely you will need the TCOP/IP protocol Here are some steps you will perform in installing your driver for AC97 Soft Modem. z Install driver using the Installation Diskette 3. Installation Procedure of 802.11b WLAN MiniPCI Card 1. Insert the card into MiniPCI Slot. 2. Power on your computer and allow Windows to load fully. 3. The Windows will detect your Mini-PCI card and show the following screen. Please click “Next” 4. Select “Search for the best driver for your device. (Recommended). And click “Next” 5. Insert the given Installation Diskette and select “Specify a location” to find out your driver location. Click Next to run setup. 6. Click “Finished”. The installation process are completely. 7. Click “Yes” to restart your computer. 8. Check for the 802.11b WLAN MiniPCI Card by right clicking on My Computer using the mouse. Select the Device manager and then Network Adapters. If you find the sign on the adapter, it shows the installation is not successful. If not, it means your setup is successfully. 9. Right click on the Network Neighborhood using the mouse. 10. Select Properties from the pop up menu. The network box appears and you see the three main tables: Configuration, Identification and Access control. 11. Click on the Configuration tab and then click on the Add button. Select Network component Type Box appears. Click on the Protocol the click the “Add” Button 12. Select Network Protocols box appears. From the list of manufactures, Click on Microsoft. From the list of network protocols list, select NetBEUI, then click ”OK” 13. The NetBEUI protocol is now installed. After clicking on “OK” return back to Network Component Type box. 14. Repeat the Step 10 and 11 to add IPX/SPX protocol. 15. Repeat the step 10 and 11 to add TCP/IP protocol. 16. Click on TCP/IP option fro setting the IP address for your computer. You can select either Static or DHCP setting. If you use the static IP setup then enter the IP value, Subnet masking, DNS, Domain/Workgroup name, and Gateway address values. After setting these parameter appropriately, click OK to return to Network component type. 17. Now you can select the File and Printer Sharing options as well as the Access to your computer other users connected to the network by setting the computer sharing Option. Click on “OK” 18. Screen message do want to restart your computer will pop up. Select “Yes”. It will shut down your computer and will restart. Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's au…

Text truncated - open the document above for the full version.

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 December 19, 2002 RE: FCC ID: QP7-802MI3B Attention: Ellis Wu I have a few comments on this Application. 1. Please note that the 731 states the application is for a miniPCI adapter. This would mean either a modular approval or a Limited Modular approval. Since it was not tested standalone, the device cannot be granted as a module and must be granted strictly as a Limited Modular Approval for use in the specific host in which it was tested (i.e. the Asus L3000 Laptop). You must also provide information as to which of the modular requirements the device meets. xxx 2. Please note, as mentioned above, you did not test this device in stand alone configuration. This means that as it stands, you can only install this device in the laptop that it was tested in and only by the OEM of the laptop. Your installation manual indicates use in an access point. This is not possible for the above reasons. Please provide a manual that correctly supports the product as tested (i.e. the manual that shows this device in the specific host in which it is installed and tested - the Asus L3000 laptop). xxx 3. Please note, the antenna(s) for this device appear to be located in the bottom portion of the laptop significantly closer than 20cm to the body. This means that your 20cm statement in the manual is not correct. Please remove it and replace it with a correct rf exposure statement. xxx 4. FYI If you wish to be able to sell this device so it can be installed in any other device than the laptop in which it was tested (i.e. the access point in the manual you provided), you must retest the device as standalone and provide evidence of the devices into which it is to be installed. xx Dennis Ward mailto:[email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

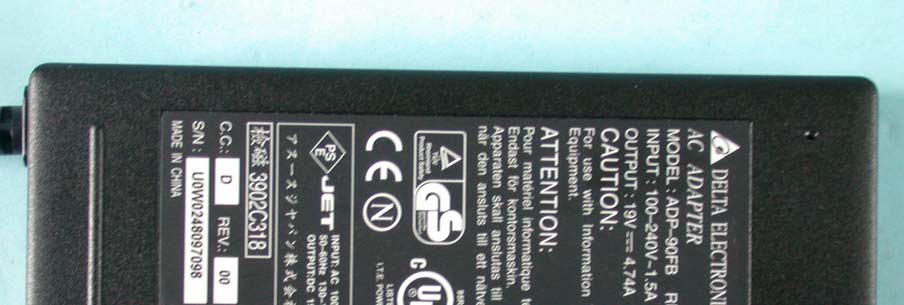

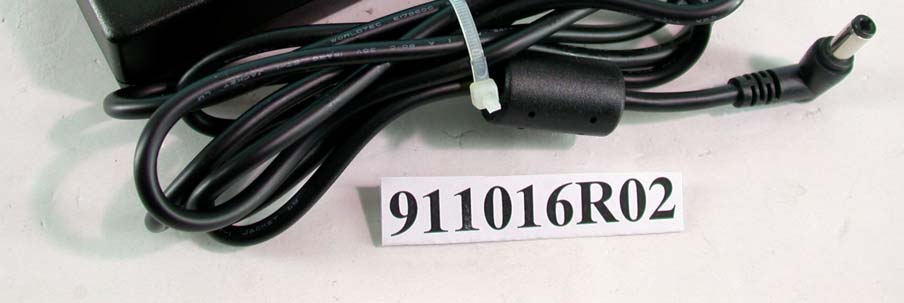

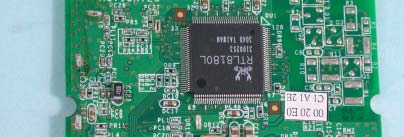

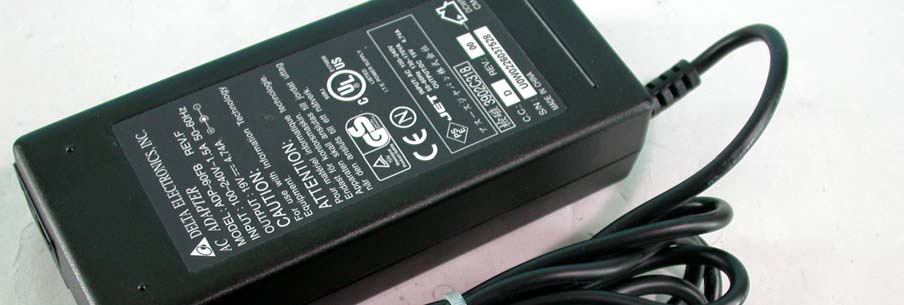

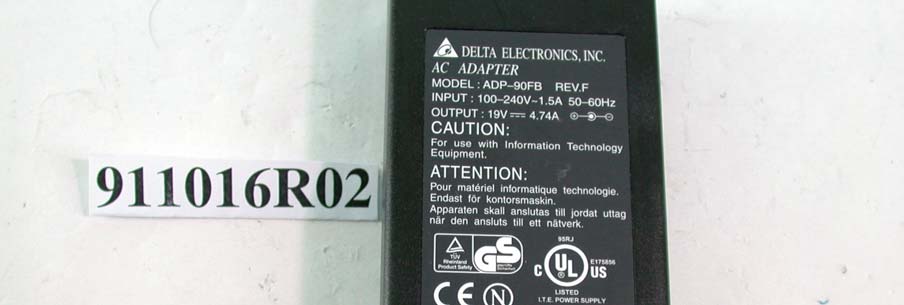

Page 1 ANNEX PHOTOGRAPHS OF EUT Page 2 Page 3 Page 10 Page 11

Page 4 Page 5 Page 6 Page 7 Page 8 Page 9

FCC ID: QP7-802MI3B ADT No.911016R02 Operational Description The transmitter of the EUT (802.11b Wireless LAN Mini-PCI Adapter) is powered by notebook. The antenna is Printed antenna with UFL connector. Except the output power, the operation of this device is fully controlled by the software installed in this PC. The other instruction, please have a look at the users manual. DSSS Information This device is Direct Sequence Spread Spectrum, the data is mixed by pseudorandom code which is an orthogonal code. The mixed data is digital modulated by BPSK and QPSK technique depends on the data rates. The CCK coding is applied for increasing the data rate, and also the processing gain will be increased. The bit rates are 1,2,5.5,11Mbps, the symbol rates are 1,1,1.375,1.375Mbps, the chip rates are always 11Mbps. So, the Chip/symbol is 11,11,8 and 8 respectively. Although is higher bit rate, the processing gain is lower than 10, but the CCK coding used in higher bit rate will provide 2.2dB coding gain.

FCC ID: QP7-802MI3B ADT No.: 911016R02 FCC TEST REPORT REPORT NO.: RF911016R02 MODEL NO.: 802MI3B ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: Actiontec Electronics (Taiwan) Inc. ADDRESS: 3F, No. 170, Ming Chuan E. Rd., Sec. 3, Taipei, Taiwan, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: 47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. 0528 ILAC MRA Lab Code: 200102-0 FCC ID: QP7-802MI3B ADT No.: 911016R02 RF Exposure Measurement 1. Introduction 2.4 GHz frequency band is regarded specially as a dangerous band for its heating harmfulness to the human body. That’s why microwave oven is operating in this frequency band. The manufacturer whose product is working in this frequency band is obligatory to prove the harmfulness of his product. In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC), and the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b). FCC ID: QP7-802MI3B ADT No.: 911016R02 LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 30-30061.40.1631.06 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 30-30027.50.0730.230 300-1500......F/150030 1500-100,000......1.030 F = Frequency in MHz 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1 mW/cm 2 . If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4. EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. FCC ID: QP7-802MI3B ADT No.: 911016R02 5. Test Results 5.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber is 3dBi or 2 (numeric). 5.2 Output Power Into Antenna & RF Exposure Distance : CHANNEL CHANNEL FREQUENCY (MHz) OUTPUT POWER TO ANTENNA (mW) MINIMUM ALLOWABLE DISTANCE ( r ) FROM SKIN (Centi-Meter) 124127.661.10 624377.211.07 1124626.731.03 The minimum allowable distance is very close to the enclosure of the antenna and is very far away from the human being under normal use condition.

FCC ID: QP7-802MI3B Report No.: RF911016R021Issued: December 16, 2002 FCC TEST REPORT REPORT NO.: RF911016R02 MODEL NO.: 802MI3B RECEIVED: Oct. 16, 2002 TESTED: Dec. 2 ~ Dec. 4, 2002 APPLICANT: Actiontec Electronics (Taiwan) Inc. ADDRESS: 3F, No. 170, Ming Chuan E. Rd., Sec. 3, Taipei, Taiwan, R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: 47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. This test report consists of 48 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, NVLAP or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA Lab Code: 200102-0 FCC ID: QP7-802MI3B Report No.: RF911016R022Issued: December 16, 2002 Table of Contents 1CERTIFICATION ........................................................................................ 4 2SUMMARY OF TEST RESULTS................................................................ 5 3GENERAL INFORMATION ........................................................................ 6 3.1GENERAL DESCRIPTION OF EUT........................................................... 6 3.2DESCRIPTION OF TEST MODES............................................................. 7 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS ............................ 7 3.4DESCRIPTION OF SUPPORT UNITS ....................................................... 8 4TEST TYPES AND RESULTS.................................................................... 9 4.1CONDUCTED EMISSION MEASUREMENT ............................................. 9 4.1.1LIMITS OF CONDUCTED EMISSION MEASUREMENT........................... 9 4.1.2TEST INSTRUMENTS ............................................................................... 9 4.1.3TEST PROCEDURES.............................................................................. 10 4.1.4DEVIATION FROM TEST STANDARD .................................................... 10 4.1.5TEST SETUP ........................................................................................... 11 4.1.6EUT OPERATING CONDITIONS............................................................. 11 4.1.7TEST RESULTS....................................................................................... 12 4.2RADIATED EMISSION MEASUREMENT ................................................ 18 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT.............................. 18 4.2.2TEST INSTRUMENTS ............................................................................. 19 4.2.3TEST PROCEDURES.............................................................................. 20 4.2.4DEVIATION FROM TEST STANDARD .................................................... 20 4.2.5TEST SETUP ........................................................................................... 21 4.2.6EUT OPERATING CONDITIONS............................................................. 21 4.2.7TEST RESULTS....................................................................................... 22 4.36dB BANDWIDTH MEASUREMENT ....................................................... 26 4.3.1.LIMITS OF 6dB BANDWIDTH MEASUREMENT ..................................... 26 4.3.2.TEST INSTRUMENTS ............................................................................. 26 4.3.3.TEST PROCEDURE ................................................................................ 27 4.3.4.DEVIATION FROM TEST STANDARD .................................................... 27 4.3.5.TEST SETUP ........................................................................................... 27 4.3.6.EUT OPERATING CONDITIONS............................................................. 27 4.3.7.TEST RESULTS....................................................................................... 28 4.4.MAXIMUM PEAK OUTPUT POWER ....................................................... 32 4.4.1.LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT ........ 32 4.4.2.TEST INSTRUMENTS ............................................................................. 32 FCC ID: QP7-802MI3B Report No.: RF911016R023Issued: December 16, 2002 4.4.3.TEST PROCEDURES.............................................................................. 33 4.4.4.DEVIATION FROM TEST STANDARD .................................................... 33 4.4.5.TEST SETUP ........................................................................................... 33 4.4.6.EUT OPERATING CONDITIONS............................................................. 33 4.4.7.TEST RESULTS....................................................................................... 34 4.5.POWER SPECTRAL DENSITY MEASUREMENT................................... 35 4.5.1.LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT ................ 35 4.5.2.TEST INSTRUMENTS ............................................................................. 35 4.5.3.TEST PROCEDURE ................................................................................ 36 4.5.4.DEVIATION FROM TEST STANDARD .................................................... 36 4.5.5.TEST SETUP ........................................................................................... 36 4.5.6.EUT OPERATING CONDITIONS............................................................. 36 4.5.7.TEST RESULTS....................................................................................... 37 4.6.BAND EDGES MEASUREMENT ............................................................. 41 4.6.1.LIMITS OF BAND EDGES MEASUREMENT.......................................... 41 4.6.2.TEST INSTRUMENTS ............................................................................. 41 4.6.3.TEST PROCEDURE ................................................................................ 41 4.6.4.EUT OPERATING CONDI…

Text truncated - open the document above for the full version.

FCC ID: QP7-802MI3B Report No.: RF911016R0246Issued: December 16, 2002 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST FCC ID: QP7-802MI3B Report No.: RF911016R0247Issued: December 16, 2002 RADIATED EMISSION TEST
