QP7802UIG1802.11g WLAN USB Adapter

互動科技電子股份有限公司 地址：台北市民權東路三段170號 6樓 電話：02-8770-6198 傳真：02-8770-6353 Broadband Technology Made Easy 802.11g WLAN USB Adapter 802UIG-1 User Manual Version: 2.0 (March. 2004) 802.11g WLAN USB Adapter I Copyright Copyright  2004 by this company. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written permission of this company This company makes no representations or warranties, either expressed or implied, with respect to the contents hereof and specifically disclaims any warranties, merchantability or fitness for any particular purpose. Any software described in this manual is sold or licensed "as is". Should the programs prove defective following their purchase, the buyer (and not this company, its distributor, or its dealer) assumes the entire cost of all necessary servicing, repair, and any incidental or consequential damages resulting from any defect in the software. Further, this company reserves the right to revise this publication and to make changes from time to time in the contents hereof without obligation to notify any person of such revision or changes. All brand and product names mentioned in this manual are trademarks and/or registered trademarks of their respective holders. 802.11g WLAN USB Adapter II Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: 1. Reorient or relocate the receiving antenna. 2. Increase the separation between the equipment and receiver. 3. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. 4. Consult the dealer or an experienced radio technician for help. FCC Caution This equipment complies with FCC radiation exposure limits. However, in order to avoid the possibility of exceeding the FCC exposure limits, this device and its antenna should not be co-located or operating in conjunction with any other antenna or transmitter.” This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the authority to operate equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the authority to operate equipment. This equipment must be installed and operated in accordance with provided instructions and a minimum 20 cm spacing must be provided between computer mounted antenna and person’s body (excluding extremities of hands, wrist and feet) during wireless modes of operation. R&TTE Compliance Statement This equipment complies with all the requirements of DIRECTIVE 1999/5/CE OF THE EUROPEAN PARLIAMENT AND THE COUNCIL of March 9, 1999 on radio equipment and telecommunication terminal Equipment and the mutual recognition of their conformity (R&TTE) The R&TTE Directive repeals and replaces in the directive 98/13/EEC (Telecommunications Terminal Equipment and Satellite Earth Station Equipment) As of April 8, 2000. 802.11g WLAN USB Adapter III Safety This equipment is designed with the utmost care for the safety of those who install and use it. However, special attention must be paid to the dangers of electric shock and static electricity when working with electrical equipment. All guidelines of this and of the computer manufacture must therefore be allowed at all times to ensure the safe use of the equipment. EU Countries Intended for Use The ETSI version of this device is intended for home and office use in Austria Belgium, Denmark, Finland, France, (with Frequency channel restrictions) Germany, Greece, Ireland, Italy, Luxembourg, the Netherlands, Portugal, Spain, Sweden, and the United Kingdom. The ETSI version of this device is also authorized for use in EFTA member states: Iceland, Liechtenstein, Norway, and Switzerland. EU Countries Not intended for use None. Potential restrictive use France: Only channels 10,11,12, and 13 802.11g WLAN USB Adapter IV Manual Contents Chapter 1 Introduction ......................................................... 1 Chapter 2 Installation Procedure ......................................................... 2 Chapter 3 Using the Configuration & Monitor Utility ................................ 5 3.1 Using Utility ...................................... 5 3.1.1 Network ...........................................................................................5 3.1.2 Status setting ...........................................................................................7 3.1.3 WEP Setting ........................................…

Text truncated - open the document above for the full version.

1 2 3 4 56 ABCD 6 5 4 3 2 1 DCBA Ti t l e Num ber R e vis i on Size B Date: 21- Oct- 2004 Sheet of File: C :\PR O G R A M FIL E S \D E S IG N E X PL OR E R 99 SE \E XAM PL E S \M yDes ign. ddb Dr awn By: ISL 3887 USB 2 . 0 Interface EEPROMA T 24C 64 R e gulator ISL 6414IR O scillator 48M H Z Cr y s t a l 802.11g WLAN USB Adapter 32.768K H Z O scillator 40M H Z ISL 3686B T ransceiver VCO ISL 3084 MAC/ BB ISL 3980 PA LPF L F 2012 S w itch A S 218_321 Bal u n FB 2520 802UIG-1 BLOCK DIAGRAM R e gulator T PS6200X

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 November 10, 2004 RE: FCC ID: QP7802UIG1_ATCB001887 Attention: Joann Chen I have a few comments on this Application. Please note that further comments may arise in response to answers provided to the questions below. 1. Please note that the FCC will not allow an application to be certified or uploaded to the FCC server without an FRN. If the applicant does not have an FRN they must register for one. This can be done on the following web address - https://svartifoss2.fcc.gov/cores/CoresHome.html . Please note that the name and address of the applicant must match that on the 731. Please provide this information when you have obtained it from the applicant. 2. FYI – no action needed. Please note that intentional radiators should be tested stand alone for 15.247. The ANSI setup shown in the test setup photos are for digital device compliance to 15B. Dennis Ward mailto:[email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

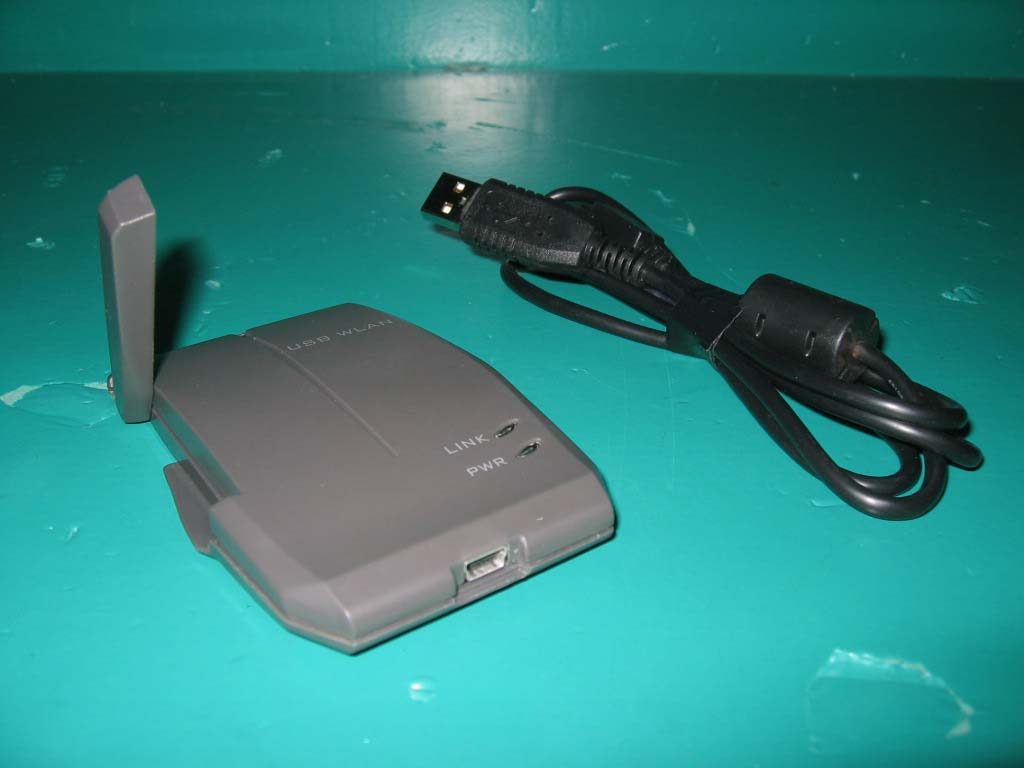

GESTEK Lab Report #: 0410003 ID N0 3, Pau-Tou-Tsuo Valley, Chia-Pau Tsuen, Lin Kou Hsiang, Taipei County, Taiwan, R.O.C. Tel:886-2-2603-5321 Fax:886-2-2603-5325 Accredited Lab. Of BSMI, DNV, NEMKO, NVLAP. Page 67 of 73 Rev. 1 Listed Lab. of AUSTEL, Commerce, FCC, VCCI. NVLAP Lab Code:200085-0 10. PHOTOGRAPHS FOR PRODUCT 1. Front View Of 802.11g WLAN USB Adapter (EUT) 2. Back View Of 802.11g WLAN USB Adapter (EUT)

GESTEK Lab Report #: 0410003 ID N0 3, Pau-Tou-Tsuo Valley, Chia-Pau Tsuen, Lin Kou Hsiang, Taipei County, Taiwan, R.O.C. Tel:886-2-2603-5321 Fax:886-2-2603-5325 Accredited Lab. Of BSMI, DNV, NEMKO, NVLAP. Page 68 of 73 Rev. 1 Listed Lab. of AUSTEL, Commerce, FCC, VCCI. NVLAP Lab Code:200085-0 3. LABEL HERE

GESTEK Lab Report #: 0410003 ID N0 3, Pau-Tou-Tsuo Valley, Chia-Pau Tsuen, Lin Kou Hsiang, Taipei County, Taiwan, R.O.C. Tel:886-2-2603-5321 Fax:886-2-2603-5325 Accredited Lab. Of BSMI, DNV, NEMKO, NVLAP. Page 69 of 73 Rev. 1 Listed Lab. of AUSTEL, Commerce, FCC, VCCI. NVLAP Lab Code:200085-0 4. Inner View Of 802.11g WLAN USB Adapter (EUT) GESTEK Lab Report #: 0410003 ID N0 3, Pau-Tou-Tsuo Valley, Chia-Pau Tsuen, Lin Kou Hsiang, Taipei County, Taiwan, R.O.C. Tel:886-2-2603-5321 Fax:886-2-2603-5325 Accredited Lab. Of BSMI, DNV, NEMKO, NVLAP. Page 70 of 73 Rev. 1 Listed Lab. of AUSTEL, Commerce, FCC, VCCI. NVLAP Lab Code:200085-0 5. Main Board 6. Main Board

GESTEK Lab Report #: 0410003 ID N0 3, Pau-Tou-Tsuo Valley, Chia-Pau Tsuen, Lin Kou Hsiang, Taipei County, Taiwan, R.O.C. Tel:886-2-2603-5321 Fax:886-2-2603-5325 Accredited Lab. Of BSMI, DNV, NEMKO, NVLAP. Page 5 of 73 Rev. 1 Listed Lab. of AUSTEL, Commerce, FCC, VCCI. NVLAP Lab Code:200085-0 2.2 OPERATIONAL DESCRIPTION The Transmitter of EUT is a 802.11g WLAN USB Adapter and powered by host equipment. This device have one antenna is Soldered on PCB. The other instruction, please look at user manual. This is Digital transmission System(DTS) and have four type of modulation DBPSK, DQPSK, OFDM, CCK. The data rate are 1,2,5.5,11,6,9,12,18,24,36,48.54 Mbps. The equipment enables high-speed access without wires to network assets. This adapter uses the IEEE 802.11b & 802.11g protocol to enable wireless communications between the host computer and other computers, in the same way that the computer would use an Ethernet adapter. 2.3 TEST MODES & EUT COMPONENTS DESCRIPTION EUT: 802.11g WLAN USB Adapter, M/N: 802UIG-1 The EUT tested with Notebook PC. Mode 1 Mode 2 Test Mode 802.11b 802.11g USB Cable 1.0m, Shielded, with core x 1

GESTEK Lab Report #: 0410003 N0 3, Pau-Tou-Tsuo Valley, Chia-Pau Tsuen, Lin Kou Hsiang, Taipei County, Taiwan, R.O.C. Tel:886-2-2603-5321 Fax:886-2-2603-5325 Accredited Lab. Of BSMI, DNV, NEMKO, NVLAP. Page 1 of 4 Rev. 1 Listed Lab. of AUSTEL, Commerce, FCC, VCCI. NVLAP Lab Code:200085-0 RF Exposure Evaluation declaration Actiontec Electronics (Taiwan), Inc. EUT: 802.11g WLAN USB Adapter Model Number: 802UIG-1 FCC ID: QP7802UIG1 Prepared for: Actiontec Electronics (Taiwan), Inc. 6F, No. 170, Ming Chuan E. Rd., Sec. 3, Taipei, 105, Taiwan Report By : Global EMC Standard Tech. Corp. No.3 Pau-Tou-Tsuo Valley, Chia-Pau Tsuen, Lin Kou Hsiang, Taipei County, Taiwan, R.O.C. Tel : (02) 2603-5321 Fax : (02) 2603-5325 1.Test results given in this report only relate to the specimen(s) tested, measured. 2.This report is the property of GesTek, and shall not be reproduced, other than in full, without the written consent of GesTek. 3.The report must not be used by the client to claim product certification, approval, or endorsement by any agency of the federal government. 4.All data in this report are traceable to national standard or international standard. GESTEK Lab Report #: 0410003 N0 3, Pau-Tou-Tsuo Valley, Chia-Pau Tsuen, Lin Kou Hsiang, Taipei County, Taiwan, R.O.C. Tel:886-2-2603-5321 Fax:886-2-2603-5325 Accredited Lab. Of BSMI, DNV, NEMKO, NVLAP. Page 2 of 4 Rev. 1 Listed Lab. of AUSTEL, Commerce, FCC, VCCI. NVLAP Lab Code:200085-0 1. RF Exposure Evaluation 1.1. Limits According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits for Occupational/ Control Exposures 300-1500 -- -- F/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/ Uncontrolled Exposures 300-1500 -- -- F/1500 6 1500-100,000 -- -- 1 30 F= Frequency in MHz Friis Formula Friis transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. 1.2. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. GESTEK Lab Report #: 0410003 N0 3, Pau-Tou-Tsuo Valley, Chia-Pau Tsuen, Lin Kou Hsiang, Taipei County, Taiwan, R.O.C. Tel:886-2-2603-5321 Fax:886-2-2603-5325 Accredited Lab. Of BSMI, DNV, NEMKO, NVLAP. Page 3 of 4 Rev. 1 Listed Lab. of AUSTEL, Commerce, FCC, VCCI. NVLAP Lab Code:200085-0 1.3. Test Result of RF Exposure Evaluation Date of Test November 03, 2004 Temperature 25 deg/C EUT 802.11g WLAN USB Adapter Humidity 54 %RH Working Cond. 802.11b Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber is 1dBi or 1.26 in linear scale. Output Power Into Antenna & RF Exposure Evaluation Distance: Channel No. Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 1 2412.00 61.9441 0.0155 6 2437.00 57.6766 0.0144 11 2462.00 53.7032 0.0135 The power density Pd (4th column) at a distance of 20 cm calculated from the Friis transmission formula is far below the limit of 1 mW/cm 2 . GESTEK Lab Report #: 0410003 N0 3, Pau-Tou-Tsuo Valley, Chia-Pau Tsuen, Lin Kou Hsiang, Taipei County, Taiwan, R.O.C. Tel:886-2-2603-5321 Fax:886-2-2603-5325 Accredited Lab. Of BSMI, DNV, NEMKO, NVLAP. Page 4 of 4 Rev. 1 Listed Lab. of AUSTEL, Commerce, FCC, VCCI. NVLAP Lab Code:200085-0 Date of Test November 03, 2004 Temperature 25 deg/C EUT 802.11g WLAN USB Adapter Humidity 54 %RH Working Cond. 802.11g Antenna Gain Antenna Gain: The maximum Gain measured in fully anechoic chamber is 1dBi or 1.26 in linear scale. Output Power Into Antenna & RF Exposure Evaluation Distance: Channel No. Frequency (MHz) Output Power to Antenna (mW) Power Density at R = 20 cm (mW/cm 2 ) 1 2412.00 45.4988 0.0114 6 2437.00 43.4510 0.0109 11 2462.00 47.9733 0.0120 The power density Pd (4th column) at a distance of 20 cm calculated from the Friis transmission formula is far below the limit of 1 mW/cm 2 .

1 2 3 4 5 6 ABCD 6 5 4 3 2 1 D CBA DWG TITLE DWG NO. CHECKEDAPPROVED DATEDATE REV Joan 27/Oct/2004 Size Sheet of File Name: C B C:\TEMP\CAM350\41713-80801EL01-B.ddb - Documents\802UIG-1-1.Sch USED ON DRAWN 12 802UIG-1.Sch 802.11g WLAN USB Adapter DATE DATE ISSUED DATE CHECKED DATE APPROVED PEF00009B RESET C5 IOVDDD A5 TXVALID D5 LINESTATE1 B10 LINESTATE0 B11 CLK D13 SERCLK A2 SERINT C4 SERDOUT D4 SERDIN A3 SERCS- C3 TEST0 C14 TEST1 A15 TEST2 C13 TEST3 C12 TEST4 B12 TEST5 D11 TEST6 A16 TEST7 D10 TEST8 D9 TEST9 C11 TEST10 C10 TEST11 D8 COMPIOFF R6 COMPIQ N10 COMPRX R12 COMPTX N13 TETCLK80IN B15 TETCLK44IN B14 CLKOUT C16 UARTSIN B4 UARTSOUT C2 COMPPABIAS K13 FAA_HRD E4 FAAMODE F4 GP2-2/FAA_LED H1 GP2-9/LED1 D3 GP2-14/LED0 R2 GP1-2/USB_VBUS E3 XO G16 XI G15 REXT H15 ANALOG_TEST F13 DM J16 DP K16 OSCENABLE D14 CLKIN40 E16 LFXTALIN N4 LFXTALOUT N3 NC G13 NC H13 NC J14 NC L16 NC R5 NC R15 NC T16 GP2-0/SERCLK K4 GP2-1/SERDAT J3 GP1-9/PLL_LD M4 GP1-14/ANTSEL K1 GP1-11/ANTSEL L1 GP1-13/RADIO_PE H2 GP1-4/SYNTH_LE P2 LNA H/L E15 GP1-10/T/R_SW P3 GP1-12/T/R_SW L4 GP1-0/PE1 M3 GP1-8/PE2 K2 FSADPABIAS N16 2GPABIAS M16 5GPABIAS K14 GP1-7/PA_PE2G M2 GP1-3/PA_PE5G E2 GP1-1/HB_LB T1 IOFFSET+ T5 IOFFSET T6 QOFFSET+ T3 QOFFSET- T4 RX_IFAGC+ T12 RX_IFAGC- P12 FSADTX P13 FSADRX T13 RXI+ T7 RXI- R7 RXQ+ R8 RXQ- T8 TXI+ R9 TXI- T9 TXQ+ R10 TXQ- T10 PA_DET T11 TX_IQ_DET R11 TX_IFAGC T14 GP1-5/SYNTHCLK L2 GP1-6/SYNTHDATA N2 RX_IF_DET N11 FSADOFF N7 FSADIQ P10 GP2-3 J4 GP2-4 F2 GP2-5 H4 GP2-6 G2 GP2-7 F3 GP2-8 G3 GP2-10 L3 GP2-11 C1 GP2-12 D2 GP2-13 B1 TSET D6 TDO B7 TDI A6 TMS B6 TCK D7 LOOP80 N15 LOOP48 L13 LOOP44 P15 TMSEL0 C8 TMSEL1 B8 TMSEL2 A9 TMSEL3 C7 VREF P7 IREF P8 IOVDDD A8 IOVDDD A11 IOVDDD A14 IOVDDD B2 IOVDDD C15 IOVDDD D1 IOVDDD E14 IOVDDD F1 IOVDDD J1 IOVDDD M1 IOVDDD R1 COREVDDD A1 COREVDDD A4 COREVDDD A7 COREVDDD A10 COREVDDD A13 COREVDDD B9 COREVDDD B16 COREVDDD D12 COREVDDD D16 COREVDDD E1 COREVDDD G1 COREVDDD J2 COREVDDD N1 COREVDDD R3 VDDDPHY F16 VDDAPLL M14 VDDAPLL M15 VDDAPLL N14 VDDA33C G14 VDDA33T H16 VDDA33T K15 VDDA1 P4 VDDA2 P6 VDDA3 N8 VDDA4 P9 VDDA5 N12 VDDA6 L14 VDDD0 P5 VDDD1 R14 GNDD A12 GNDD B3 GNDD B5 GNDD B13 GNDD C6 GNDD C9 GNDD D15 GNDD E13 GNDD G4 GNDD H3 GNDD K3 GNDD N5 GNDD P1 GNDA1 N6 GNDA3 N9 GNDA4 P11 GNDA5 R13 GNDA6 L15 GNDAPLL M13 GNDAPLL P16 GNDAPLL R16 VSUB1 R4 VSUB2 P14 GNDD0 T2 GNDD1 T15 VSSA33C F14 VSSA33T H14 VSSA33T J13 VSSA33T J15 VSSDPHY F15 U10ISL3887 RESET 1 CT 2 SHDN 3 SHDN3 4 OUT3 5 CC3 6 GND3 7 GND 8 CC2 9 OUT2 10 CC1 11 OUT1 12 VIN 13 FAULT 15 RESET 16 VIN 14 GND 17 U3ISL6414IR VIN 1 FC 2 GND 3 PG 4 FB 5 ILIM 6 SYNC 7 EN 8 L 9 PGND 10 U26TPS6200X C340.1u C360.1u C390.1u C440.1u C460.1u C480.1u C520.1u C210.1u C250.1u C270.1u C310.1u C330.1u VCCS VCCS R137 10K C6110N C134NP C3710uR1 0 C430.1u R6310 VCCB VCCC C5410u C3233N 1 23 Q12PD601AS R73221K R13975KR138150K 1 23 Q2IRLML6302 +3.3V R90150K,NP C470.1u C490.1u C510.1u C590.1u C1020.1u C1280.1u C1310.1u C1330.1u C1350.1u C1370.1u C1380.1u C1390.1u C1400.1u C1420.1u R75 0 C450.1u R760 C20.1u +3.3V C410u C2933N C28 10u C2633N C310u VCCA R780 R790 R60 R1712.1K C1470.1u 1.2V REF 1.2V REF R18 10K,NP R20 10K,NP R22 10K,NP R29 10K,NP VCCS C10362P R392.2K C153820P C98150P R32931 C1112.2N C2468P R382.2K C151820P VCC 1 VCC 2 NC 3 NC 4 TRST 5 GND 6 TDO 7 GND 8 TDI 9 GND 10 TMS 11 GND 12 TCK 13 GND 14 J3JTAG_HDR14,NP TP18TPTP19TPTP20TP VCCS R19 9.76K R28 19.6K R30 19.6K R15 15.4K TP55TPTP16TP R92 0,NP C580.1u,NP FSADOFF FSADOFF BB_OVLD BB_OVLD SYNTHDATA SYNTHDATASYNTHCLK SYNTHCLK R871.13K TXAGC TXAGC TX_IQ_DET TX_IQ_DET PA_DET PA_DETTXQ-TXQ+ TXQ-TXQ+ TP41TPTP40TP TXI- TP39TP TXI-TXI+ TXI+ TP38TP RXQ- TP37TP RXQ- RXQ+ TP42TP RXQ+ RXI- TP36TP RXI- RXI+ TP35TP RXI+ BB_AGC- TP48TP BB_AGC- BB_AGC+ TP47TP BB_AGC+ QOFFSET- TP46TP QOFFSET- QOFFSET+ TP45TP QOFFSET+ IOFFSET- TP44TP IOFFSET- IOFFSET+ TP43TP IOFFSET+ 2GPABIAS 2GPABIAS PE2PE1 PE1PE2 R80 0 R81 0,NP R82 0 R83 0,NP R86 0,NP R85 0,NP TP53TPTP56TP LNA_HL LNA_HL SYNTH_LE SYNTH_LE TP57TP LOCK_DETC LOCK_DETC TP29TP ANT_SW*ANT_SW ANT_SWANT_SW* E0 1 E1 2 E2 3 VSS 4 SDA 5 SCL 6 WC 7 VCC 8 U8M24C64,NP R91 0 R141K C1520.1u VCCS C80.1u C10.1uR68 0 C1480.1u C15010u VCCA C560.1u C850.1u C970.1u C1430.1u C1440.1u C1460.1u VCCA C160.1u C830.1u R210 +3.3V C190.1u R69 0 +3.3V C140.1u C820.1u C870.1u VCCA 2 2 1 1 3 CASE U4CMR200T R57100K C116180P R23 10M C11510P ENB 1 GND 2 OUT 3 VDD 4 U13F4308 R11270R71.5K C1827P L2560nH 40MHz_CW 40MHz_CW C131N R40 R50 L14BLM18AG102SN1-T C151N VCCB R7410K,NP NC 2 A 1 C 3 D3BAS21 ENB 1 GND 2 OUT 3 VDD 4 U12F4106 R64270 C12210P,NP XO C1261N R710 R720 L3BLM18AG102SN1-T C1241N VCCB R6010K,NP 123456789 P1USB DM DP R16 3.01K R13 0 XO TP22TPTP21TP R58 470 D2GREEN C1493P R12470 D1Yellow C223P 1234 J1UART,NP +3.3V TP12TPTP13TPTP14TPTP11TPTP10TPTP9TPTP15TPTP7TPTP6TPTP5TPTP4TPTP3TPTP2TPTP17TPTP50TP R5662K C1200.1u R5339K L4 BLM21PG331SN1B +5V R6510K R6710K R6610K L1710uH C18010u C1210.1u +3.3V C1780.1u C17910u +5V LNA_HLPE2IOFFSET+IOFFSET-FSADOFFBB_AGC+BB_AGC-BB_OVLDRXI+RXI-RXQ+RXQ-TX_IQ_DETPE1TXAGCSYNTH_LE 1.2V REF TXI+ TXI- TXQ+ TXQ- LOCK_DETC PE1 40MHz_CW SYNTHCLK SYNTHDATA 2GPABIAS PA_DET ANT_SW* ANT_SW QOFFSET- QOFFSET+ 802UIG-1-2802UIG-1-2.Sch +3.3V R10 NP E0 1 E1 2 E2 3 VSS 4 SDA 5 SCL 6 WC 7 VCC 8 U6AT24C64 SW 1 VIN 2 SYNC_IN 3 SYNC_OUT 4 EN 5 FB 6 BLAS 7 GND 8 GND 9 GND 10 U15MIC2204,NP R94NP,10K C222 NP,0.01u R95NP,9.1K R97NP,3.9K U15 MIC2204 With L17=4.7uH , C180=4.7uF 10V R98 NP R99 NP R100 NP 1 2 3 4 5 6 78 ABCD 8 7 6 5 4 3 2 1 D CBA DWG TITLE DWG NO. CHECKEDAPPROVED DATEDATE REV Joan 27/Oct/2004 Size Sheet of File Name: A3 B C:\TEMP\CAM350\41713-80801EL01-B.ddb - Documents\802UIG-1-2.Sch USED ON DRAWN 22 802UIG-1.Sch 802.11g WLAN USB Adapter DATE DATE ISSUED DATE CHECKED DATE APPROVED PEF00009B BB_OVLD 1 BB_AGC- 2 BB_AGC+ 3 BB_RREF 4 IOFFSET- 5 IOFFSET+ 6 BB_GND 7 QOFFSET- 8 QOFFSET+ 9 PE2 10 MX_GND 11 MX_VCC 12 MX_GND 13 LNA_H/L 14 LNA_VCC 15 LNA_GND 16 SHIELD 17 LNA_IN+ 18 LNA_IN- 19 SHIELD 20 PE1 21 TX_GND 22 TX_OUT 23 TX_GND 24 TX_VCC 25 TX_AG…

Text truncated - open the document above for the full version.

Certificate Gestek GESTEK Gestek Gestek GESTEK Gestek estek GESTEK Gestek GES T stek GESTEK Gestek GESTE tek GESTEK Gestek GESTEK ek GESTEK Gestek GESTEK k GESTEK Gestek GESTEK GESTEK Gestek GESTEK 1082 ILAC MRA November 2004 GesTek EMC Lab N0. 3, Pau-Tou-Tsuo Valley, Chia-Pau Tsuen, Lin Kou Hsiang, Taipei County, Taiwan, R.O.C. TEL:886-2-2603-5321 FAX:886-2-2603-5325 Actiontec Electronics (Taiwan), Inc. Product Type : 802.11g WLAN USB Adapter Model Number : 802UIG-1 Test Report Number : GTK-0410003 Date of Test : November 01, 2004- November 03, 2004 This Product was tested to the following standards at the laboratory of Global EMC Standard Tech. Corp., and found Compliance. Standards: FCC Part 15 Subpart C Paragraph 15.247 ANSI C63.4: 2001 Sharon Chang, President Date: November 05, 2004 http : //www.gestek.com.tw Accredited Laboratory GESTEK Lab Report #: 0410003 ID N0 3, Pau-Tou-Tsuo Valley, Chia-Pau Tsuen, Lin Kou Hsiang, Taipei County, Taiwan, R.O.C. Tel:886-2-2603-5321 Fax:886-2-2603-5325 Accredited Lab. Of BSMI, DNV, NEMKO, NVLAP. Page 1 of 73 Rev. 1 Listed Lab. of AUSTEL, Commerce, FCC, VCCI. NVLAP Lab Code:200085-0 Test Report Application for Declaration of Conformity On Behalf Of Actiontec Electronics (Taiwan), Inc. EUT: 802.11g WLAN USB Adapter Model Number: 802UIG-1 FCC ID: QP7802UIG1 Prepared for: Actiontec Electronics (Taiwan), Inc. 6F, No. 170, Ming Chuan E. Rd., Sec. 3, Taipei, 105, Taiwan Report By :Global EMC Standard Tech. Corp. No.3 Pau-Tou-Tsuo Valley, Chia-Pau Tsuen, Lin Kou Hsiang, Taipei County, Taiwan, R.O.C. Tel : 886-2-2603-5321 Fax : 886-2-2603-5325 1.Test results given in this report only relate to the specimen(s) tested, measured. 2.This report is the property of GesTek, and shall not be reproduced, other than in full, without the written consent of GesTek. 3.The report must not be used by the client to claim product certification, approval, or endorsement by any agency of the federal government. 4.All data in this report are traceable to national standard or international standard. GESTEK Lab Report #: 0410003 ID N0 3, Pau-Tou-Tsuo Valley, Chia-Pau Tsuen, Lin Kou Hsiang, Taipei County, Taiwan, R.O.C. Tel:886-2-2603-5321 Fax:886-2-2603-5325 Accredited Lab. Of BSMI, DNV, NEMKO, NVLAP. Page 2 of 73 Rev. 1 Listed Lab. of AUSTEL, Commerce, FCC, VCCI. NVLAP Lab Code:200085-0 TABLE OF CONTENTS DESCRIPTION PAGE 1. CERTIFICATION ...................................................................................................................3 2. GENERAL INFORMATION ...................................................................................................4 2.1 PRODUCTION DESCRIPTION ............................................................................................................4 2.2 OPERATIONAL DESCRIPTION...........................................................................................................5 2.3 TEST MODES & EUT COMPONENTS DESCRIPTION.......................................................................5 2.4 CONFIGURATION OF THE TESTED SYSTEM ..................................................................................6 2.5 TEST FACILITY....................................................................................................................................8 2.6 TEST SETUP .......................................................................................................................................9 2.7 EUT OPERATING CONDITIONS.........................................................................................................9 3. CONDUCTION EMISSION DATA .......................................................................................10 3.1 TEST EQUIPMENTS..........................................................................................................................10 3.2 BLOCK DIAGRAM OF TEST SETUP.................................................................................................10 3.3 CONDUCTED EMISSION LIMIT ........................................................................................................11 3.4 OPERATING CONDITION OF EUT ...................................................................................................11 3.5 EUT CONFIGURATION ON MEASUREMENT..................................................................................11 3.6 CONDUCTED EMISSION DATA........................................................................................................11 3.7 CONDUCTED EMISSIONS MEASUREMENT RESULTS.................................................................12 4. RADIATION EMISSION DATA ...........................................................................................14 4.1 TEST EQUIPMENT ............................................................................................................................14 4.2 OPEN TEST SITE SETUP DIAGRAM................................................................................................14 4.3 RADIATED EMISSION LIMIT.............................................................................................................15 4.4 EUT CONFIGURATION .....................................................................................................................15 4.5 OPERATING CONDITION OF EUT ...................................................................................................15 4.6 RADIATED EMISSION DATA ............................................................................................................15 4.7 RADIATED EMISSIONS MEASUREMENT RESULTS......................................................................16 5. PEAK POWER OUTPUT.....................................................................................................34 5.1 TEST EQUIPMENT ............................................................................................................................34 5.2 BLOCK DIAGRAM OF TEST SETUP.......................…

Text truncated - open the document above for the full version.

GESTEK Lab Report #: 0410003 ID N0 3, Pau-Tou-Tsuo Valley, Chia-Pau Tsuen, Lin Kou Hsiang, Taipei County, Taiwan, R.O.C. Tel:886-2-2603-5321 Fax:886-2-2603-5325 Accredited Lab. Of BSMI, DNV, NEMKO, NVLAP. Page 64 of 73 Rev. 1 Listed Lab. of AUSTEL, Commerce, FCC, VCCI. NVLAP Lab Code:200085-0 9. PHOTOGRAPHS FOR TEST 9.1 TEST PHOTOGRAPHS FOR CONDUCTION GESTEK Lab Report #: 0410003 ID N0 3, Pau-Tou-Tsuo Valley, Chia-Pau Tsuen, Lin Kou Hsiang, Taipei County, Taiwan, R.O.C. Tel:886-2-2603-5321 Fax:886-2-2603-5325 Accredited Lab. Of BSMI, DNV, NEMKO, NVLAP. Page 65 of 73 Rev. 1 Listed Lab. of AUSTEL, Commerce, FCC, VCCI. NVLAP Lab Code:200085-0 9.2 TEST PHOTOGRAPHS FOR RADIATION 30-1000MHz GESTEK Lab Report #: 0410003 ID N0 3, Pau-Tou-Tsuo Valley, Chia-Pau Tsuen, Lin Kou Hsiang, Taipei County, Taiwan, R.O.C. Tel:886-2-2603-5321 Fax:886-2-2603-5325 Accredited Lab. Of BSMI, DNV, NEMKO, NVLAP. Page 66 of 73 Rev. 1 Listed Lab. of AUSTEL, Commerce, FCC, VCCI. NVLAP Lab Code:200085-0 Above 1GHz
