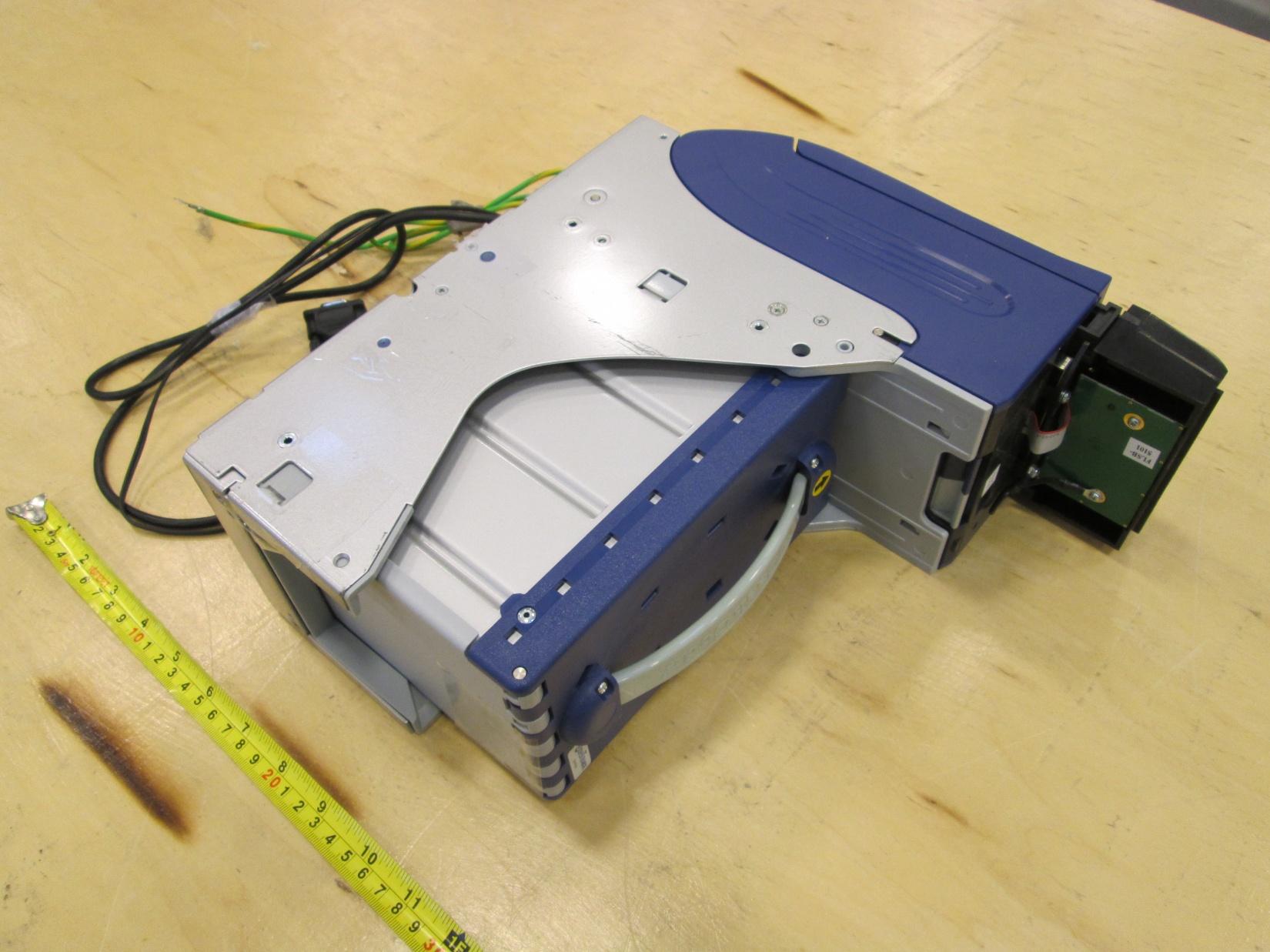

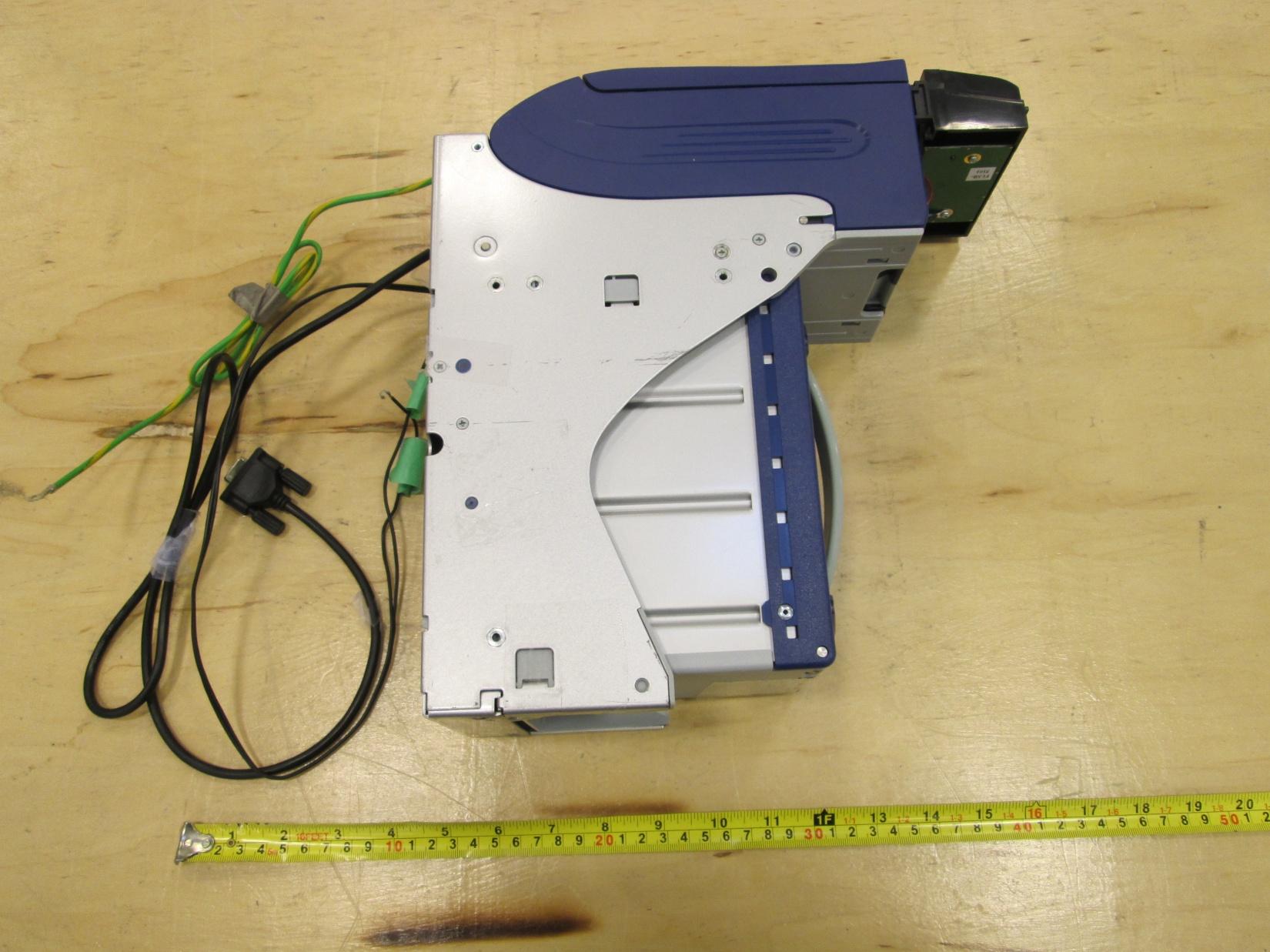

QP8ONETRACKRFID system

 2015 Crane Payment Innovations Part No# UG-FLST0310_F 06/15 Functional Grounding Chassis Grounding 5. General Specifications: 5.1. Electrical Specifications: Operating Voltage Continuous Current Maximum Current 12 V DC/ 24 V DC 1.0 A 3 A Use only current limiting CSA or UL recognized CLASS 2 Power Supply. 5.2. Operating Temperature: 0° ~ 50 ° C (32° ~ 122 °F) 5.3. Total Weight: Less than 3.5 Kg (7.72 lb) 5.4. Features: Multi Width 62~85 mm Validator Head Short Slide Housing Multi I/O Dual Operating Voltage Contactless Reader for Cassette FLS Cassette with RFID Tag 5.5. Enclosed: Onetrack Enabled Housing Assembly Validating Head (Part # FLSV-0003) Mounting Kit ((Part# OPT-MKFLS-HS) FLS Cassette with RFID Tag (Part# FLSCT0002) User's Guide 5.6. Applicable Patents: 6229317, 6163034, 7104383, 6057683 CPI | Crane Payment Innovations 2720 Steeles Ave. West, Units 2-3 Concord, ON, Canada, L4K 4S3 Phone: +1 905 303-8874 Toll Free: +1 800 584-2633 Fax: +1 905 303-8875 Website: www.cranepi.com http://support.cashcode.com FrontLoad Bill Validato r (Onetrack™ Enabled) FLST0310 User’s Guide Note: 1) During shipment, switch# 2.3 set to On (Onecheck mode), unless specified by customer. 2) If Harness not supplied, 4 ca bles from housing requires to be installed on 24 Pin. 3) Default Machine No and Location No to be set to “000000”.  2015 Crane Payment Innovations 1. Interface Connector Pin out: View from the back of the validator Mating connector CashCode P/N: o 24 Pin socket: 0100455 o Terminal M1189-2 (JAE P/N DR-SC24-1-7000) TERMINAL SIGNAL FUNCTION 1 GROUND GROUND BUS 2 RxD-EXT RECEIVE DATA (RS232) 3 TxD-EXT TRANSMIT DATA (RS232) 4 VCC POWER 5 GND GROUND 6 RXD-EXT1 RECEIVE DATA 7 GND-EXT/EXT1 INTERFACE GROUND (RS232) 8 TXD-EXT1 TRANSMIT DATA 9 RS485-A RS485 BUS 10 RS485-B RS485 BUS 11 INP-RXD INPUT SIGNAL 12 INP-TTL1 INPUT SIGNAL 13 POWER- POWER 0V 14 INP-TTL2 INPUT SIGNAL 15 OC-TXD OUTPUT SIGNAL (OPEN-COLLECTOR ) 16 OC-OUT1 OUTPUT SIGNAL (OPEN-COLLECTOR ) 17 C-LED-BDP / OC-OUT2 LED CATHODE/ OUTPUT SIGNAL (OPEN-COLLECTOR ) 18 A-LED-BDP LED ANODE 19 POWER+ POWER 12V/24V 20 TXD-BDP TRANSMIT DATA (OPTO) 21 RXD-BDP RECEIVE DATA (OPTO) 22 RST-BDP MASTER RESET (OPTO) 23 GND-BDP INTERFACE GND (OPTO) 24 +12V BDP INTERFACE POWER (OPTO) We recommend to ground line 1 on the main frame. Also, Interface ground line must be separate from Power (0 V) ground 2. Typical DIP Switches Setting, Currency and Protocol Information: Please refer to Software Description. 3. Diagnostics: This diagnostics chart is for reference only. Please refer to Software Description for details. NO OF STATUS LIGHT FLASHES ERROR DESCRIPTION HARDWARE 1 RED ON BLACK C ASSETTE IS REMOVED FROM BILL VALIDATOR 2 RED ON BLACK A N ERROR OCCURRED DURING CPU EXCHANGE WITH MAGNETIC BOARD 3 RED ON BLACK C ASSETTE IS FULL 4 RED ON BLACK M ECHANICAL JAM IN THE CASSETTE OR STACKER MOTOR FAILURE 5 RED ON BLACK F AILURE OF DIELECTRIC SENSORS 6 RED ON BLACK F AILURE OF OPTICAL SENSORS 7 RED ON BLACK F AILURE OF INDUCTIVE SENSORS 8 RED ON BLACK F AILURE OF TRANSPORTING MOTOR 9 RED ON BLACK S PEED OF TRANSPORTING MOTOR IS TOO FAST 10 RED ON BLACK F AILURE IN ALIGNMENT MECHANISM 11 RED ON BLACK B ILL PATHWAY IS NOT EMPTY 12 RED ON BLACK B ILL JAMMED IN ENTRY SLOT OF THE CASSETTE . N O CREDIT GIVEN 13 RED ON BLACK O VERLOAD OF TRANSPORT MOTOR 14 RED ON BLACK S YSTEM ERROR SOFTWARE 1 GREEN ON RED U NABLE TO WRITE PROGRAM MEMORY 2 GREEN ON RED F IRMWARE INTEGRITY ERROR 3 GREEN ON RED W RONG MEMORY CARD 4 GREEN ON RED S ECURITY ERROR Onetrack F LICKER X 1 C ASH BOX IS H OT OR M ACHINE # IS MISMATCH F LICKER X 2 O NETRACK C ASH B OX / A NTENNA BOARD M ODULE E RROR 4. FCC and IC Information: FCC ID # QP8ONETRACK. IC # 1297A-ONETRACK. Changes or modifications not approved by the manufacturer could void the user’s authority to operate the equipment. This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference. (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d' Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage. (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference. (2) this device must accept any interference received, including interference that may cause undesired operation. 7 1 6 12 13 18 19 24

Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: QPSONETRACK Pursuant to Sections 0.457 and 0.459 of the Commission's Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Typ File Name Schematics Parts List Block diagrams Operation Description CONF_ QP8OneTracl%Schematic.pdf CONF_ QPSOneTrack PartsList.pdf CONF_ QPSOneTrack_BlockDia.pdf CONF_ QPSOneTrack_OperationDescription.pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, J Robel"Carney Product Safety and Compliance Manager

TM Cashbox Part Numbers Part Number Bill Capacity Handle Style Housing FLSH-XXXX FLSC-0002*600 FlexibleFLSH-0003FLSC-0202*900 FLSC-0102*1,000 FLSC-0001*600 Foldable FLSH-0003 FLSC-0101*1,000 FLSC-25002,500FLSH-0004

1 2 3 Part #1. RFID board, side 1 Part #1. RFID board, side 2 Part #2. Side 1 Part #2. Side 2 Part #2. Internal view, with board removed 6 5 4 3 Part #4. Side 1 Part #4. Side 2 Part #5. Side 1 Part #5. Side 2 Part #6. Side 1 Part #6. Side 2 Part #3. Side 1 Part #3. Side 2

LAB REGISTRATION #6844A-3 FCC REGISTRATION #377448 Testing Laboratory Certificate #2555.01 Page 1 of 38 Report issue date: 5/8/2015 GEMC File #: GEMC-FCC-22696R1 © Global EMC Inc. This test report shall not be reproduced except in full, without written approval of Global EMC Inc. This report is based on GEMC Template “FCC 15 247 Rev2.” Global EMC Inc. Labs EMC & RF Test Report As per RSS 210 Issue 8:2010 & FCC Part 15 Subpart C:2015 Unlicensed Intentional Radiators on the CashCode One oneTrack Raymond Lee Au, B.Eng Project Engineer Global EMC Inc. 11 Gordon Collins Dr. Gormley, ON Canada, L0H 1G0 Ph: (905) 883-8189 Testing produced for See Appendix A for full customer & EUT details. Client Crane Payment Innovations Product CashCode One Standard(s) RSS 210 Issue 8:2010 / FCC Part 15 Subpart C 15:2015 Page 2 of 38 Report issue date: 5/8/2015 GEMC File #: GEMC-FCC-22696R1 © Global EMC Inc. This test report shall not be reproduced except in full, without written approval of Global EMC Inc. Table of Contents Table of Contents ................................................................................................................... 2 Report Scope .......................................................................................................................... 3 Summary ................................................................................................................................ 4 Test Results Summary ....................................................................................................... 5 Justifications, Descriptions, Deviations & Notes .............................................................. 6 Applicable Standards, Specifications and Methods ........................................................... 7 Sample calculation(s) ......................................................................................................... 8 Document Revision Status ................................................................................................. 8 Definitions and Acronyms ..................................................................................................... 9 Testing Facility .................................................................................................................... 10 Calibrations and Accreditations ....................................................................................... 10 Testing Environmental Conditions and Dates ................................................................. 11 Detailed Test Results Section .............................................................................................. 12 Radiated Emissions - Spurious ........................................................................................ 13 Radiated Emissions – Fundamental ................................................................................. 22 20 dB Bandwidth ............................................................................................................. 26 Power Line Conducted Emissions ................................................................................... 28 Appendix A – EUT Summary .............................................................................................. 34 Appendix B – EUT and Test Setup Photographs................................................................. 36 Client Crane Payment Innovations Product CashCode One Standard(s) RSS 210 Issue 8:2010 / FCC Part 15 Subpart C 15:2015 Page 3 of 38 Report issue date: 5/8/2015 GEMC File #: GEMC-FCC-22696R1 © Global EMC Inc. This test report shall not be reproduced except in full, without written approval of Global EMC Inc. Report Scope This report addresses the EMC testing and test results of the Crane Payment Innovations, CashCode One oneTrack bill validator. This unit is herein referred to as EUT (Equipment Under Test). Testing is performed at Global EMC Labs. The EUT was tested for compliance against the following standards: RSS 210 Issue 8:2010 FCC Part 15 Subpart C:2015 Test procedures, results, justifications, and engineering considerations, if any, follow later in this report. The results contained in this report relate only to the item(s) tested. This report does not imply product endorsement by A2LA or any other accreditation agency, any government, or Global EMC Inc. Opinions/interpretations expressed in this report, if any, are outside the scope of Global EMC Inc accreditation. Any opinions expressed do not necessarily reflect the opinions of Global EMC Inc, unless otherwise stated. Client Crane Payment Innovations Product CashCode One Standard(s) RSS 210 Issue 8:2010 / FCC Part 15 Subpart C 15:2015 Page 4 of 38 Report issue date: 5/8/2015 GEMC File #: GEMC-FCC-22696R1 © Global EMC Inc. This test report shall not be reproduced except in full, without written approval of Global EMC Inc. Summary The results contained in this report relate only to the item(s) tested. EUT FCC Certification #, FCC ID: QP8ONETRACK EUT Industry Canada Certification #, IC: 1297A-ONETRACK EUT Passed all tests performed. Yes (see test results summary) Tests conducted by Raymond Lee Au Client Crane Payment Innovations Product CashCode One Standard(s) RSS 210 Issue 8:2010 / FCC Part 15 Subpart C 15:2015 Page 5 of 38 Report issue date: 5/8/2015 GEMC File #: GEMC-FCC-22696R1 © Global EMC Inc. This test report shall not be reproduced except in full, without written approval of Global EMC Inc. Test Results Summary Standard/Method Description Class/Limit Result FCC 15.203 Antenna Requirement Unique Pass See Justification FCC 15.205 RSS-GEN (Table 6) Restricted Bands for intentional operation QuasiPeak Average Pass FCC 15.209 RSS-GEN (Tables 4,5) Spurious Radiated emissions QuasiPeak Average Pass FCC 15.207 RSS-GEN (Table 3) Power Line Conducted Emissions QuasiPeak Average Pass Overall Result PASS Client Crane Payment Innovations Product CashCode One Standard(s) RSS 210 Issue 8:2010 / FCC Part 15 Subpar…
