QPR-XT-2605Airplay

User Manual  Welcome Thank you for choosing XtremeMac’s AirPlay Boost. AirPlay Boost is an FM transmitter designed to work seamlessly with your iPod. The external antenna helps “boost” the transmission signal. With the on-screen display and three simple buttons, you can play music from your iPod clearly and wirelessly on any FM stereo. GETTING STARTED Step 1 – Tune your FM stereo Find a station that has only static – no talk or music. If you can’t find a station with only static, tune to one that has the most amount of static and the least amount of talk or music. Step 2 – Connect AirPlay Boost to your iPod Simply plug it into the dock connector on the bottom of your iPod. Step 3 – Tune AirPlay Boost Once you connect AirPlay Boost to your iPod, it will automatically go into tune mode. Use the buttons on the bottom of AirPlay Boost to tune to the same frequency as the one on your “Music is a higher revelation than philosophy.” ludwig van beethoven  FM stereo. The left button “<” tunes down the frequency and the right button “>” tunes up the frequency. The frequency will be displayed on the iPod screen. Once the frequency on the iPod matches the one on your FM radio, press play on your iPod and AirPlay Boost you will begin transmitting your music to your FM radio. Step 4 – Programming Preset Stations Tune AirPlay Boost to station you want to save. Hold the button until the screen shows the preset numbers. Use the arrows to choose the preset number you would like to program and press to select. A small number on the right hand side of the frequency will indicate the preset station. SELECTING A PRESET: Step 1 – Press the logo and the menu screen will appear. The first item in the menu is “PRESETS” Step 2 – Highlight the “PRESETS” menu item and press the to select. The three presets will appear on the screen. Step 3 – Use the arrow keys to choose the preset frequency and press the to select.  SELECTING STEREO/MONO MODE AirPlay Boost allows you to select between stereo and mono mode so that you can select the strongest, clearest signal. Mono mode may work better in crowded radio markets. Step 1 – Press the and the menu screen will appear. The second item in the menu is “AUDIO”. Step 2 – Use the arrow keys to move through the menu options. Highlight the “AUDIO” menu item and press the to select. Step 3 – Use the arrow keys to toggle between “STEREO” and “MONO” modes. Push the to select. To show that you are in mono mode, a small “m” will appear on the right side of the frequency. SELECTING LED STATUS The blue LED on the antenna tells you that AirPlay Boost is transmitting. You can select “ON”, “DIM” or “OFF” for the LED. Step 1 – Press the and the menu screen will appear. The third item in the menu is “LED” Step 2 – Use the arrow keys to move through the menu options. Highlight the “LED” menu item and press the to select. Step 3 – Use the arrow keys to highlight your preference “ON”, “DIM” or “OFF” and push the to select.  Warranty What Does The Warranty Cover?: XtremeMac warrants that its products shall be free from defects in materials or workmanship, with the exceptions stated below. What Is The Period Of Coverage?: This warranty runs for one year from the date of purchase. What Does The Warranty Not Cover?: This warranty does not cover any defect, malfunction or failure that occurs as a result of: misuse or failure to follow the product directions; abuse; or use with improper, unintended or faulty equipment. Also, consequential and incidental damages are not recoverable under this warranty. Further, opening up the unit or removing any pieces from the product will immediately render your warranty null and void. What Will XtremeMac Do To Correct The Problem?: XtremeMac will, at its option, repair or replace any product that proves to be defective in material or workmanship. If your product is no longer being manufactured, or is out of stock, at its option, XtremeMac may replace your product with a similar or better XtremeMac product. How To Get Warranty Service?: To get a covered product repaired or replaced, you must contact XtremeMac during the warranty period by either calling () - 00 if you are in the U.S., or by e-mail (support@ xtrememac.com). If you email XtremeMac, you must include your name, address, email address, telephone number, date of purchase and a complete description of the problem you are experiencing. If the problem appears to be related to a defect in material or workmanship, XtremeMac will provide you a return authorization and instructions for return shipment. Return shipments shall be at the customer’s expense, and the return must be accompanied by the original proof of purchase. You should insure the shipment as appropriate because you are responsible for the product until it arrives at XtremeMac. The above limited warranties and remedies do not extend to the iPod used with the product. 1011 This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to part 1 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. The equipment generates, uses and can radiate radio frequency energy and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. The user is cautioned that changes and modifications made to the equipment without the approval of the manufacturer could void the user’s authority to operate this equipment. This device complies with part 1 of the FCC Rules. Operating is subject to the following two conditions: (1) This device may not cause harmful interference, and () this device must accept any interference received, including interference that may cause undesired operation. FCC ID: STQIPN01 FCC ID: STQIPV01 8888

Jow Tong Technology Co., Ltd. 46, Lane 337, Chung Cheng Rd., Yung Kang City, Tainan County 710, Taiwan, R.O.C. Date: Dec. 26, 2006 Compliance Certification Services Certification Division 561F Monterey Road Morgan Hill, CA 95037 To whom it may concern: We, the undersigned, hereby authorize the Taiwan office of Compliance Engineering Services, Inc., d.b.a. Compliance Certification Services and hereafter referred to as CCS TW, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by CCS TW on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing CCS TW as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation,including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Signature: REMARK: 1. This authorization letter will be sent along with your application when filing with the Certification Division. 2. Please follow the format and type it on company letterhead and send original to us.

Jow Tong Technology Co., Ltd. 46, Lane 337, Chung Cheng Rd., Yung Kang City, Tainan County 710, Taiwan, R.O.C. Confidentiality Request FCC ID : QPR-XT-2605 Product : Airplay Model : XT-2605 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely yours,

Compliance Certification Services,Inc / Tainan lab No. 8, Jiu Cheng Ling, Jiaokeng Village, Sinhua Township, Tainan Hsien 712, Taiwan R.O.C. FCC Laboratory , 200 7435 Oakland Mills Road Columbia, MD 21046 Attention: Application Examiner / Reviewing Engineer Re: Confirmation Letter for FM Transmitter Applicant: Jow Tong Technology Co., Ltd. FCC ID: QPR-XT-2605 To whom it may concern, We, Compliance Certification Services,Inc / Tainan lab, would like to answer following questions for requesting by the TCB, Compliance Certification Services Inc on behalf of our customer, Jow Tong Technology Co., Ltd. 1. How does this device operate? <Answer> It shall be operated in home . 2. Provide information on the device and its antenna <Answer> AirPlay Boost is a FM transmitter designed to work seamlessly with your iPod. The external dipole antenna helps “boost” the transmission signal. With the on-screen display and three simple buttons, you can play music from your iPod clearly and wirelessly on any FM stereo. 3. How is it installed? Step 1 – Tune your FM stereo Step 2 – Connect AirPlay Boost to your iPod Step 3 – Tune AirPlay Boost Step 4 – Programming Preset Stations 4. What test procedure was used? <Answer> ANSI C 63.4. 5. If tested in a car, how was it configured/tested? <Answer> It was not tested in a car, but it was tested in a open area test site and chamber, because the device is supplied power from iPod. 6. Was the tuning range properly verified? Compliance Certification Services,Inc / Tainan lab No. 8, Jiu Cheng Ling, Jiaokeng Village, Sinhua Township, Tainan Hsien 712, Taiwan R.O.C. <Answer> Yes, the lowest channel is 88.1MHz, and the highest channel is 107.9MHz. The tuning controls were manually adjusted to verify maximum tuning range. Please refer to the statement on page 4 of the test report. 7. Was the bandwidth properly tested with maximum audio input? <Answer> For the bandwidth test, the iPod is connected with the EUT. iPod is in normal operation, is playing MP3, the volume control of iPod was set to maximum. If you have questions or need further information, please contact the undersigned. Sincerely, Grace Wu / Specialist Compliance Certification Services,Inc

Helen Zhao From: Generic Office of Engineering Technology [[email protected]] Sent: Wednesday, January 24, 2007 10:52 AM To: Helen Zhao Subject: Response to Inquiry to FCC (Tracking Number 192635) 1/24/2007 Inquiry: Permit but Ask List #1. FM band modulators / transmitters operating under 15.239 of the FCC rules New Application Grantee: Jow Tong Technology Co., Ltd. FCC ID: QPR-XT-2605 EUT Description: FM Transmitter Equipment Class: DXX Rule Part: 15.239 Attached please find the answer to FCC questions and test report for review. Please advise if it is OK to file 731. Thank you, Helen Zhao Compliance Certification Services. Response: Please go ahead and file. Ensure that all exhibits comply with FCC rules and policies. Submit a copy of this inquiry into the filing. Do not reply to this message. Please select the Reply to an Inquiry Response link from the OET Inquiry System to add any additional information pertaining to this inquiry.

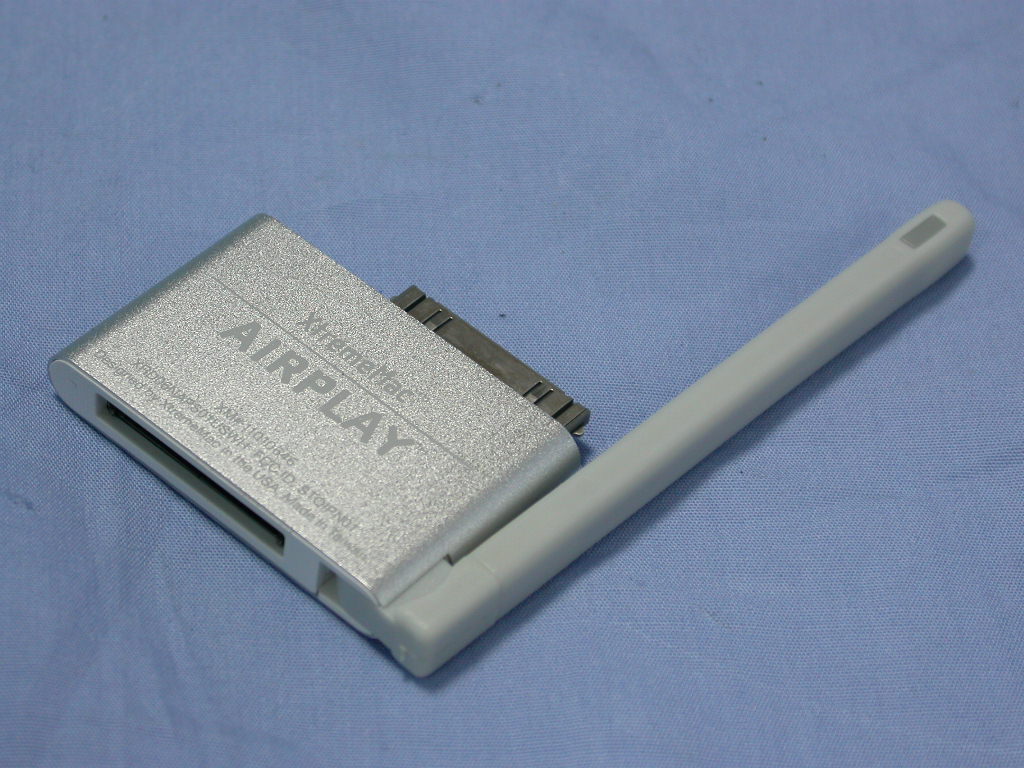

Compliance Certification Services Inc. Report No.：61130401-RP1 External Photo ( Model : XT-2605)

Company : Jow Tong Technology Co., Ltd. Model : XT-2605 Product : Airplay Airplay Model No: XT-2605 FCC IDQPR-XT-2605 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: [1] this device may not cause harmful interference and [2] this device must accept any interference received, including interference that may cause undesired operation. S/N Made in Taiwan Label Here

Compliance Certification Services Inc. Report No.：61130401-RP1 Internal Photo Compliance Certification Services Inc. Report No.：61130401-RP1 Compliance Certification Services Inc. Report No.：61130401-RP1

Compliance Certification Services Inc. Report No.: 61130401-RP1 FCC ID: QPR-XT-2605 Date of Issue: December 22, 2006 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 Total Page: 24 FCC CFR 47 PART 15 SUBPART C TEST REPORT For Airplay Model: XT-2605 Issued to Jow Tong Technology Co., Ltd. 46, Lane 337, Chung Cheng Rd., Yung Kang City, Tainan County 710, Taiwan, R.O.C. Issued by Compliance Certification Services Inc. Ta i n a n L a b . No. 8, Jiu Cheng Ling, Jiaokeng Village, Sinhua Township, Tainan Hsien 712, Taiwan R.O.C. TEL: 886-6-580-2201 FAX: 886-6-580-2202 Compliance Certification Services Inc. Report No.: 61130401-RP1 FCC ID: QPR-XT-2605 Date of Issue: December 22, 2006 Page 2 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION .................................................................................. 3 2. EUT DESCRIPTION ........................................................................................................ 4 3. TEST METHODOLOGY................................................................................................. 5 3.1 EUT CONFIGURATION .................................................................................................................. 5 3.2 EUT EXERCISE ................................................................................................................................ 5 3.3 GENERAL TEST PROCEDURES................................................................................................... 5 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS ................................................... 6 3.5 DESCRIPTION OF TEST MODES ................................................................................................. 6 4 INSTRUMENT CALIBRATION .................................................................................... 6 5 FACILITIES AND ACCREDITATIONS ...................................................................... 7 5.1 FACILITIES ....................................................................................................................................... 7 5.2 EQUIPMENT ..................................................................................................................................... 7 5.3 LABORATORY ACCREDITATIONS AND LISTINGS............................................................... 7 5.4 TABLE PF ACCREDITATIONS AND LISTINGS ........................................................................ 8 6 SETUP OF EQUIPMENT UNDER TEST ..................................................................... 9 6.1 SETUP CONFIGURATION OF EUT .............................................................................................. 9 6.2 SUPPORT EQUIPMENT .................................................................................................................. 9 7 FCC PART 15.239 REQUIREMENTS ......................................................................... 10 7.1 20 DB BANDWIDTH ....................................................................................................................... 10 7.2 BAND EDGES MEASUREMENT ................................................................................................. 13 7.3 RADIATED EMISSIONS................................................................................................................ 17 APPENDIX 1 PHOTOGRAPHS OF TEST SETUP ......................................................... 23 Compliance Certification Services Inc. Report No.: 61130401-RP1 FCC ID: QPR-XT-2605 Date of Issue: December 22, 2006 Page 3 1. TEST RESULT CERTIFICATION Applicant ：Jow Tong Technology Co., Ltd. Address ：46, Lane 337, Chung Cheng Rd., Yung Kang City, Tainan County 710, Taiwan, R.O.C. Manufacture ：Jow Tong Technology Co., Ltd. Address ：46, Lane 337, Chung Cheng Rd., Yung Kang City, Tainan County 710, Taiwan, R.O.C. Equipment Under Test ：Airplay Model Number ：XT-2605 Date of Test ：December 12, 2006 APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C No non-compliance noted The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 and the energy emitted by the sample EUT tested as described in this report is in compliance with conducted and radiated emission limits of FCC Rules Part 15.239. The test results of this report relate only to the tested sample identified in this report. Approved by: Reviewed by: Dec. 22, 2006 Dec. 22, 2006 Alex Chiu Jeter Wu Manager Section Manager Compliance Certification Services Inc. Compliance Certification Services Inc. Compliance Certification Services Inc. Report No.: 61130401-RP1 FCC ID: QPR-XT-2605 Date of Issue: December 22, 2006 Page 4 2. EUT DESCRIPTION Product Airplay Model Number XT-2605 Model Difference N/A Power Supply Powered from iPod 3.3Vdc Operate Frequency 88.1MHz – 107.9MHz Transmit Power N/A Modulation Technique FM Number of Channels 100 Channel Remark: 1. The product is a Transmitter. This submittal(s) (test report) is intended for FCC ID: QPR-XT-2605 filing to comply with Section 15.239 of the FCC Part 15 Subpart C Rules. 2. For more details, refer to the user’s manual of the EUT. 3. The tuning controls were manually adjusted to verify maximum tuning range Compliance Certification Services Inc. Report No.: 61130401-RP1 FCC ID: QPR-XT-2605 Date of Issue: December 22, 2006 Page 5 3. TEST METHODOLOGY The tests documented in this report were performed in accordance with ANSI C63.4 and FCC CFR 47 Part 15 Subpart C. 3.1 EUT CONFIGURATION The EUT configuration for testing is installed on RF field strength measurement to meet the C…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No.: 61130401-RP1 FCC ID: QPR-XT-2605 Date of Issue: December 22, 2006 Page 23 APPENDIX 1 PHOTOGRAPHS OF TEST SETUP Radiated Emission Setup Photos Compliance Certification Services Inc. Report No.: 61130401-RP1 FCC ID: QPR-XT-2605 Date of Issue: December 22, 2006 Page 24 End of report
