SmartBypass™ The SmartBypass™ builds upon the proven success of the bypass systems used in the PowerLine Guardian® and Power Guardian™ 390 products. The SmartBypass provides rapid protection during fault conditions for SmartValve™ Models that do not have integrated bypass capability. Under normal operation, it enables operators to manually bypass a SmartValve, or it can switch it in series with the transmission line. When in series with the line, a SmartValve can inject its controllable reactance for power flow control. The SmartBypass can operate at line currents of thousands of amps during normal bypass operation and withstand different fault current levels depending on the model. The SmartBypass models are differentiated by continuous current rating and maximum fault current rating. For example, the SmartBypass 4000-63 is rated for continuous line currents up to 4000 A RMS and fault currents of up to 63 kA RMS for 1 second. The SmartBypass provides telemetry for itself and associated SmartValves when operating in monitoring mode or injection mode (1) . The SmartBypass operates in conjunction with a separate enclosure of filter components called the Bypass Filter. Deployment of the SmartBypass requires the Bypass Filter, hence the specifications for it are also included below. The Bypass Filter contains filter components that bypass transmission line traveling waves so they do not enter the main SmartBypass enclosure. Thus the Bypass Filter provides immunity to typical transmission line transients such as line switching and lightning surges that generate voltage and current traveling waves that propagate from one end of the line to the other. The same Bypass Filter is used for all SmartBypass Model variants as shown in the specification table below. The Bypass Filter connects to the top two NEMA pads on the SmartBypass. The physical details of the connection methods will depend on the deployment type. SmartBypass 2000-XX Dimensions User Manual SmartBypass 4000-XX Dimensions Bypass Filter Dimensions Technical Specifications (2) Electrical Maximum Continuous Current See Model Table BelowMaximum Fault Current See Model Table Below Maximum Emergency Current See Model Table Below Peak Fault Current See Model Table Below Maximum Operating Voltage (Corona-Free) ≤550 kV RMS line-to-line Maximum Blocking Voltage at Terminals 4000 V peak Minimum Current for Monitoring Mode (3) 60 A RMS Power Powered by line current Minimum Current for Injection Mode (4, 5) Physical Environmental Mass for SmartBypass Operating Ambient Temperature Range -40°F to 122°F (-40°C to 50°C) Mass for Bypass Filter Dimensions Storage Temperature Range -40°F to 122°F (-40°C to 50°C) Conductor Size Capacity Condensing Operating Humidity Range 5% to 100% Mounting (6) Maximum Sustained Rain 4.0 in/hr (102 mm/hr) Communications Standards Communication Architecture (7) Software and Firmware (7) IEC 61508 SIL-2 Compliant Communication Security Features (7) Electrical Connections ANSI C119.4 Sensor Accuracy Intrusion Protection IEC 60529, IP 54 AC Line Current (7) 200 A RMS See Model Table Below 717 lbs (325 kg) See Figures Above Agnostic Deployed in a pod of multiple SmartValves or suspended from structure via insulator EMS integration via PowerLine Gateway™ located at substation Multilevel ISM band wireless protocol optimized for fast telemetry. Protocol uses SHA- 256 to ensure cryptographic integrity of all messages while supporting full observability by utility firewalls ± 3% SmartBypass Models (8) Model Mass Continuous Current Rating (A RMS) (9) Maximum 2-Hour Emergency Current (A RMS) Fault Current Rating (kA RMS for 1 s) (10) Peak Fault Current (kA) (11) lbs kg 60 Hz 50 Hz SmartBypass 2000-63 2615 1186 2000 2200 63.0 164.0 158.0 SmartBypass 2000-50 2520 1143 2000 2200 50.4 131.0 126.0 SmartBypass 2000-38 2424 1100 2000 2200 38.0 98.8 95.0 SmartBypass 2000-25 2329 1056 2000 2200 25.2 65.0 63.0 SmartBypass 2000-12 2329 1056 2000 2200 12.6 32.0 31.5 SmartBypass 4000-63 2875 1304 4000 4320 63.0 164.0 158.0 SmartBypass 4000-50 2780 1261 4000 4320 50.4 131.0 126.0 SmartBypass 4000-38 2685 1218 4000 4320 38.0 98.8 95.0 SmartBypass 4000-25 2590 1175 4000 4320 25.2 65.0 63.0 SmartBypass 4000-12 2590 1175 4000 4320 12.6 32.0 31.5 Notes: 1.All wired connections between the SmartBypass, Bypass Filter and SmartValve are at line potential. 2.Unless noted otherwise, all specs apply to both SmartBypass and the Bypass Filter 3.In Monitoring Mode, the SmartBypass bypasses the SmartValve across its terminals so no reactance is injected. 4.In Injection Mode, the SmartBypass allows the SmartValve to inject its reactance across its terminals in series with the line. 5.Devices delivered in Q4 of 2020 or later will be able to enter injection mode at 100 A RMS. 6.SmartValves, SmartBypasses and Bypass Filters are deployed with a variety of methods. They can be deployed in multiple unit pods, which are then mounted on top of insulators in banks or deployed as part of the Mobile SmartValve Unit. They also can be mounted as one pair per phase on dedicated transmission towers. 7.Applies to SmartBypass only. 8.The Bypass Filter meets all specs for SmartBypass Model 4000-63 other than the mass. 9.The SmartBypass 2000-XX Models can operate continuously at 2200 A RMS at 5°C. 10.Fault current ratings for other durations can be provided upon request. 11.Per IEC 62271-1 and IEEE C37.32, a DC time constant of 45 ms covers the majority of cases and corresponds to a rated peak withstand current equal to 2.5 times the rated short-time withstand current for a rated frequency of 50 Hz and for a rated frequency of 60 Hz it is equal to 2.6 times the rated short-time withstand current. About Smart Wires Based in the San Francisco Bay Area, with offices in Ireland and Australia, Smart Wires is the leader in grid optimization solutions that leverage its patented modular power flow control technology. Driven by a world-class leadership team with extensive experience deliv…

Text truncated - open the document above for the full version.

12/20/19 Attention: Application Examiner RE: Request for Confidentiality Applicant: Smart Wires, Inc. FCC ID: QPS01008 To Whom It May Concern: SMARTE)WIRES REIMAGINE THE GRID Request is hereby submitted by Smart Wires, Inc. to withhold permanently from public review certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR 0.457(d) and 0.459 of the FCC Rules. In particular, the following sections of the application are to be kept permanently confidential: • Schematics • Detailed Block Diagrams • Detailed Operational/Functional Description Rationale for request for confidentiality: Smart Wires, Inc. has invested considerable time and materials in research and development to produce the referenced product. Disclosure of the permanently confidential portions of this application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose successful implementation of unpublished, leading edge technology developed by us. If you have questions or need further information, please contact the undersigned. ��ll)A Compliance and Testing Smart Wires, Inc. Smart Wires Inc. • 3292 Whipple Road • Union City, CA 94587 • T: (415) 800-5555 • www.smartwires.com

12/20/19 Federal Communications Commission 445 12 t h Street SW Washington, DC 20554 S ubject: Limited Agency Agreement Smart Wires, Inc. FCC ID: QPS01008 SMARTE)WIRES REIMAGINE THE GRID To Whom It May Concern: W e, Smart Wires, Inc., hereby authorized lntertek Testing Services to act as our Agent for preparing application for FCC ID number QPS01008 under all applicable parts of the FCC rules and regulations. The effective date of this limited agency agreement is 12 /20/2019. The Limited Agency Agreement expires on 12/20/2020, unless sooner terminated or extended by written notice to lntertek Testing Services and the Federal Communications Commission. This is to advise that we are in full compliance with the Anti-Drug Abuse Act. The applicant is not subject to a denial o f federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 U.S.C. 862, and no party to the application is subject to a denial of federal benefits pursuant to that section. If you have any questions or comments, please do not hesitate to contact me. Sincerely, Compliance and Testing Smart Wires, Inc. Smart Wires Inc. • 3292 Whipple Road • Union City, CA 94587 • T: (415) 800-5555 • www.smartwires.com

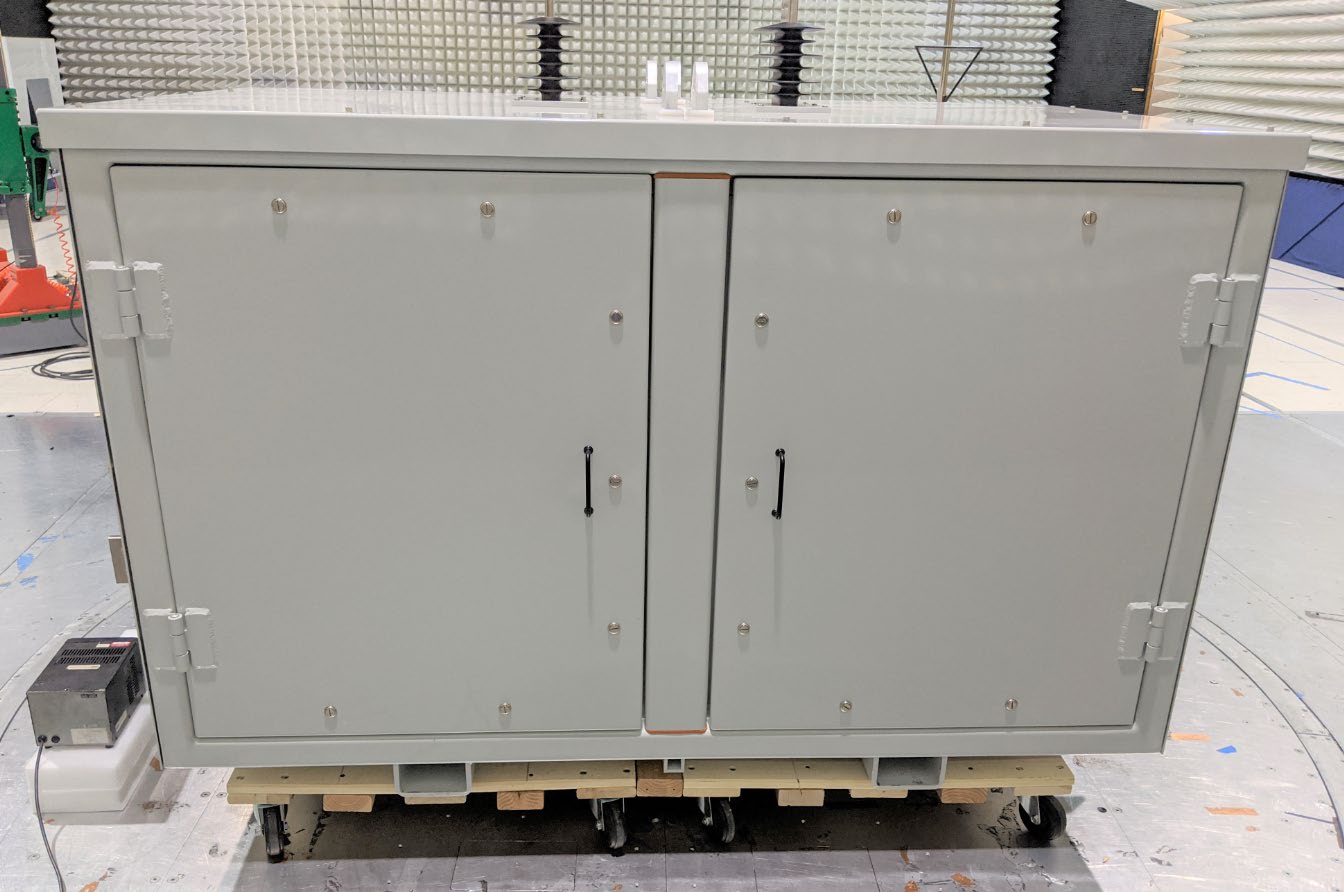

Smart-Bypass 2000-XX External Photos Front Views Smart-Bypass 2000-XX Antennas Top Views
