QS3WBARP1Wireless Access Point

TwinMOS Booming 802.11b Wireless AP User’s Manual TwinMOS ® Booming B Series Wireless AP TwinMOS Page 1 Contents PACKAGE CONTENTS.............................................................................................................................2 INTRODUCTION.......................................................................................................................................3 DESCRIPTION OF HARDWARE..............................................................................................................4 BASIC INSTALLATION PROCEDURE....................................................................................................6 CONNECTING THE AP ...........................................................................................................................9 WEB MANAGEMENT SETTINGS.........................................................................................................13 TROUBLESHOOTING.............................................................................................................................21 GLOSSARY...............................................................................................................................................24 TECHNICAL SPECIFICATIONS.............................................................................................................27 FCC CAUTION .......................................................................................................................................28 Booming B Series Wireless AP TwinMOS Page 2 PACKAGE CONTENTS Unpack your Booming AP kit and verify that all items are present. l Booming Wireless AP l User’s Manual (on CD) l Quick Installation Guide l AC Power Adapter (5V/ 2A) l Ethernet Cable If any of the items described appear to be damaged or missing, please contact your reseller. Booming B Series Wireless AP TwinMOS Page 3 INTRODUCTION Thank you for purchasing the Wireless AP. The Wireless AP is an ideal broadband sharing solution for SOHO and home networks, featuring a wireless LAN function that reduces the necessity of connecting stations via a wired LAN. The Wireless AP manages all IP address assignments by DHCP, relieving users of the necessity of manually configuring clients for inter-client communication and access to the Internet. The intuitive Web browser interface enables users to configure all aspects of the AP, including making LAN settings, making access restrictions, setting administrative and user passwords. This Booming Wireless AP supports following features l Compatible with IEEE 802.11b Direct Sequence high data rate specifications. l Supports high-speed wireless connections up to 11 Mbps. l Supports WDS function. l Easy setup through a Web browser on any operating system that supports TCP/IP. l DHCP for dynamic IP configuration, and DNS for domain name mapping. l 64/128-bit Wired Equivalent Privacy (WEP) data encryption. l Supports WPA(Wi-Fi Protected Access) security. l Web-based firmware upgrade. Booming B Series Wireless AP TwinMOS Page 4 Description of Hardware Front Panel The front panel provides LED’s for device status. Refer to the following table for the meaning of each feature. LED State Color Meaning On Green The device is receiving power. Power Off The device is not receiving power. WLAN Link On Red Indicates that the device is connected to WLAN. WLAN Act Blinking Green Indicates WLAN traffic. On Green Link is established. LAN Link Off No link activity. On Flashing Red Packet transmits or receives activity. LAN Act Off No link activity. Booming B Series Wireless AP TwinMOS Page 5 Rear Panel Item Description LAN port The four RJ-45 Ethernet ports allow you to connect client PC or LAN hubs to the Wireless AP. Power port Connect the included power adapter to this inlet. Warning: The included power adapter is DC 5V/2A. Using the wrong type of power adapter may cause damage. Antenna Two antennas provide wireless LAN functionality and ensure optimal signal strength. Reset button (Side) Use this button to reset the power and restore the default factory settings by pressing this button for five seconds. Booming B Series Wireless AP TwinMOS Page 6 Basic Installation Procedure Connecting the AP to the LAN You can connect the WLAN 11b Router to your PC, a hub, or a switch. Run the Ethernet cable from one of the LAN ports on the rear of the WLAN 11b Router to your computer’s network adapter or to another network device. You can also connect the WLAN 11b Router to your PC or to a client adapter via radio signals. Position one antenna on the back of the WLAN 11b Router into the desired positions. Power On Connect the power adapter to the WLAN 11b Router. To LAN adapter on PC or Hub To Power adapter Booming B Series Wireless AP TwinMOS Page 7 SOHO/Home Networking Wireless Internal xDSL/Cable modem Booming B Series Wireless AP TwinMOS Page 8 Office Networking Wireless Hub Booming B Series Wireless AP TwinMOS Page 9 CONNECTING THE AP Follow the procedure below to connect the AP. LAN connecting l Plug an Ethernet cable into a free LAN port at the rear of the AP. Plug the other end of the cable into the RJ-45 port on your computer. l Turn on power supply for AP . l Setting TCP/IP to work with the AP. ÿ Windows XP 1. Click Start, Settings, then click Control Panel. The Control Panel opens: 2. Right-click the Network icon and select ′′OPEN′′ to open the Network Connections dialog: Booming B Series Wireless AP TwinMOS Page 10 3.Right- clicks the appropriate LAN connection and click ′′Properties ′′ to open the properties dialog for the connection: 4. Check the box next to Internet Protocol (TCP/IP) and click Properties: Booming B Series Wireless AP TwinMOS Page 11 5.Assign an IP address: follow these steps: a. In the TCP/IP Properties dialog box, click the radio button next to Use the following IP address: b. Enter an IP address in the IP field. In the example shown, IP addresses is 192.168.1.X (Where X means 2-253) c. Type a S…

Text truncated - open the document above for the full version.

TwinMOS Technologies Inc. 303 No.3,Tzu Chiang Rd., HuKou Xiang, Hsin Chu,Taiwan,R.O.C. TEL:886-3-5971755 FAX: 886-3-5978422 FEDERAL COMMUNICATIONS COMMISSION DECLARATION OF CONFORMITY (DoC) FOR THE FOLLOWING EQUIPMENT: PRODUCT NAME: Wireless Access Point MODEL NO.: 73-TMWBA-002 TRADE NAME: TwinMOS IS HEREWITH CONFIRMED AND FOUND TO COMPLY WITH THE REQUIREMENTS OF CFR 47 PART 15 REGULATION. THE RESULTS OF ELECTROMAGNETIC EMISSION EVALUATION ARE SHOWN IN THE REPORT NO.: D921127H02 THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE AND, (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. THE FOLLOWING LOCAL MANUFACTURER/IMPORTER IS RESPONSIBLE FOR THIS DECLARATION Manufacturer USA Local Representative Company name: TwinMOS Technologies Inc. To Be Determined. Address: 303 No.3,Tzu Chiang Rd., HuKou Xiang,Hsin Chu,Taiwan,R.O.C. Contact Person: Coolo Lee Title: Researcher Tel/Fax: 886-3-5971755 ext 5524 / 886-3-5978422

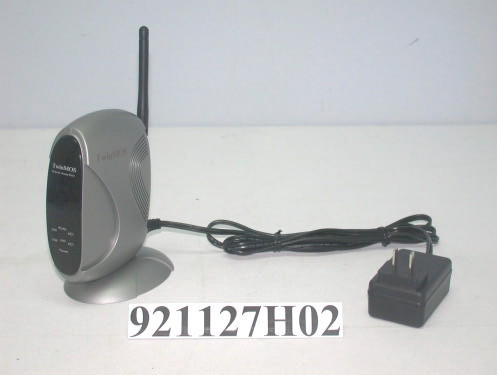

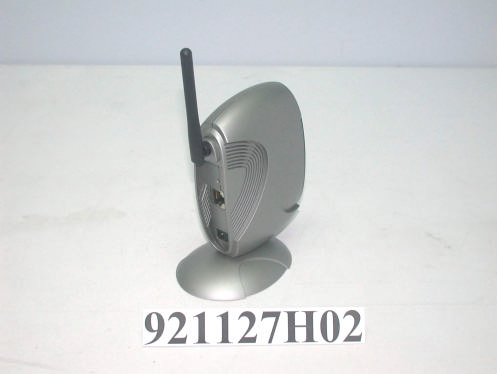

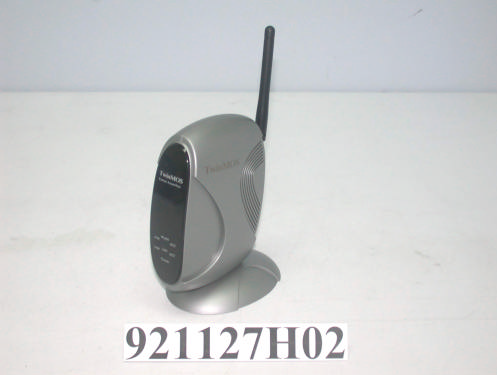

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2

(Fig. 1) FCC ID: QS3WBARP1 FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. Label

Page 3 Page 4 Page 5 Page 6 Page 7 Page 8 Page 9 Page 10 Page 11

FCC ID: QS3WBARP1 ADT No. 921127H02 Technical Description The transmitter of the EUT is powered by AC adapter . The antenna is Dipole antenna without connector. For more detailed instruction, please take a look at the user’s manual. DSSS Information This device is Direct Sequence Spread Spectrum, the data is mixed by pseudorandom code which is an orthogonal code. The mixed data is digital modulated by BPSK and QPSK technique depends on the data rates. The CCK coding is applied for increasing the data rate, and also the processing gain will be increased. The bit rates are 1,2,5.5,11Mbps, the symbol rates are 1,1,1.375,1.375Mbps, the chip rates are always 11Mbps. So, the Chip/symbol is 11,11,8 and 8 respectively. Although is higher bit rate, the processing gain is lower than 10, but the CCK coding used in higher bit rate will provide 2.2dB coding gain.

FCC ID: QS3WBARP1 ADT No. 921127H02 Operational Description This device is a Wireless Access Point which operates in 2.4 GHz band with DSSS technique. The transmitter of the EUT is powered by AC adapter. The antenna is Dipole antenna without connector. Under normal use condition, the user has to keep at least 20 cm separation distance between radiator and the body of the user. For more detailed instruction, please refer to the user’s manual. DSSS Information Direct Sequence Spread Spectrum, the data is mixed by pseudorandom code which is an orthogonal code. The mixed data is digital modulated by BPSK and QPSK technique depends on the data rates. The CCK coding is applied for increasing the data rate, and also the processing gain will be increased. The bit rates are 1,2,5.5,11Mbps, the symbol rates are 1,1,1.375,1.375Mbps, the chip rates are always 11Mbps. So, the Chip/symbol is 11,11,8 and 8 respectively. Although is higher bit rate, the processing gain is lower than 10, but the CCK coding used in higher bit rate will provide 2.2dB coding gain.

FCC ID: QS3WBARP1 ADT No.: 921127H02 1 FCC TEST REPORT REPORT NO.: RF921127H02 MODEL NO.: 73-TMWBA-002 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT: TwinMOS Technologies Inc. ADDRESS: 303 No.3,Tzu Chiang Rd., HuKou Xiang,Hsin Chu,Taiwan,R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. Lab Code: 200376-0 FCC ID: QS3WBARP1 ADT No.: 921127H02 2 RF Exposure Measurement 1. Introduction In this document, we try to prove the safety of radiation harmfulness to the human body for our product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. The Gain of the antenna used in this product is measured in a Fully Anechoic Chamber (FAC) calibrated for antenna measurement in ADT, and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis transmission formula is a far field assumption, the calculated result of that is an over-prediction for near field power density. We will take that as the worst case to specify the safety range. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A)Limits For Occupational / Control Exposures 300-1500......F/3006 1500-100,000......56 (B)Limits For General Population / Uncontrolled Exposure 300-1500......F/15006 1500-100,000......1.030 F = Frequency in MHz FCC ID: QS3WBARP1 ADT No.: 921127H02 3 3. Friis Formula Friis transmission formula : Pd = (Pout*G) / (4*pi*r 2 ) where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd is the limit of MPE, 1 mW/cm 2 . If we know the maximum Gain of the antenna and the total power input to the antenna, through the calculation, we will know the MPE value at distance 20cm. Ref. : David K. Cheng, Field and Wave Electromagnetics, Second Edition, Page 640, Eq. (11-133). 4. EUT Operating condition The software provided by Manufacturer enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 5. Classification This device is not fixed inside the host equipment, it is connected with host through wire. So it is easy to be re-located in the place where at least 20 cm far away from the body of the user. Warning statement to the user for keeping at least 20cm or more separation distance with the antenna should be included in users manual. So, this device is classified as Mobile Device. FCC ID: QS3WBARP1 ADT No.: 921127H02 4 6. Test Results 6.1 Antenna Gain The maximum Gain measured in Fully Anechoic Chamber are 2dBi or 1.585(numeric) 6.2 Output Power Into Antenna & RF Exposure Distance : Channel Channel Frequency (MHz) Output Power to Antenna (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) 1241259.7040.018821.0 6243758.8840.018571.0 11246261.6600.019441.0

Report No. 921127H02 1 The Measurement of Conducted Spurious Emissions CONDUCTED SPURIOUS EMISSIONS MEASUREMENT 1. LIMITS OF CONDUCTED SPURIOUS EMISSIONS EASUREMENT Below 20dB of the highest emission level of operating band (in 100KHz Resolution Bandwidth, see Section 15.247(c)). Emissions which fall in the restricted bands, as defined in Section 15.205(a), must also comply with the limits specified in Section 15.209(a) (see Section 15.205(c)). 2. TEST INSTRUMENTS Description & ManufacturerModel No.Serial No.Calibrated Until R&S SPECTRUM ANALYZERFSP1093.4495.30Dec. 19, 2003 HIGH PASS FILTER WHK3.1/18G- 10SS SN4Jun. 12, 2004 NOTE: 1.The calibration interval of the above test instruments is 12 months and the calibrations are traceable to NML/ROC and NIST/USA. 3. TEST PROCEDURE 2.5GHz~13GHz: The transmitter output was connected to the spectrum analyzer via a low lose cable and a high pass filter. Set both RBW and VBW of spectrum analyzer to 100 kHz with suitable frequency span including 100 kHz bandwidth from band edge. The band edges was measured and recorded. 13GHz~25GHz: The transmitter output was connected to the spectrum analyzer via a low lose cable. Set both RBW and VBW of spectrum analyzer to 100 kHz with suitable frequency span including 100 kHz bandwidth from band edge. The band edges was measured and recorded. Report No. 921127H02 2 4. TEST SETUP 2.5GHz~13GHz: 13GHz~25GHz: 5. EUT OPERATING CONDITIONS The software provided by client to enable the EUT under transmission condition continuously at lowest, middle and highest channel frequencies individually. EUT SPECTRUM ANALYZER EUT SPECTRUM ANALYZER HIGH PASS FILTER Report No. 921127H02 3 TEST RESULTS The spectrum plots are attached on the following 2 pages. It shows compliance with the requirement in part 15.247(C),.15.205 and 15.209. Report No. 921127H02 4 Ch1 Report No. 921127H02 5 Ch11

FCC ID: QS3WBARP1 Report No.: RF921127H021Issued: Dec. 05, 2003 FCC TEST REPORT REPORT NO.: RF921127H02 MODEL NO.: 73-TMWBA-002 RECEIVED: Nov. 25, 2003 TESTED: Dec. 02 to 03, 2003 APPLICANT: TwinMOS Technologies Inc. ADDRESS: 303 No.3,Tzu Chiang Rd., HuKou Xiang,Hsin Chu,Taiwan,R.O.C. ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. This test report consists of 45 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, NVLAP or any government agencies. The test results in the report only apply to the tested sample. 0536 ILAC MRA Lab Code: 200376-0 FCC ID: QS3WBARP1 Report No.: RF921127H022Issued: Dec. 05, 2003 Table of Contents 1CERTIFICATION......................................................................................................4 2SUMMARY OF TEST RESULTS...........................................................................5 3GENERAL INFORMATION....................................................................................6 3.1GENERAL DESCRIPTION OF EUT.....................................................................6 3.2DESCRIPTION OF TEST MODES.......................................................................7 3.3GENERAL DESCRIPTION OF APPLIED STANDARDS..................................7 3.4DESCRIPTION OF SUPPORT UNITS.................................................................8 4TEST TYPES AND RESULTS...............................................................................9 4.1CONDUCTED EMISSION MEASUREMENT......................................................9 4.1.1TEST INSTRUMENTS...............................................................................................9 4.1.2TEST PROCEDURES.............................................................................................10 4.1.3DEVIATION FROM TEST STANDARD...................................................................10 4.1.4TEST SETUP............................................................................................................11 4.1.5EUT OPERATING CONDITIONS............................................................................12 4.1.6TEST RESULTS.......................................................................................................13 4.2RADIATED EMISSION MEASUREMENT.........................................................15 4.2.1LIMITS OF RADIATED EMISSION MEASUREMENT............................................15 4.2.2TEST INSTRUMENTS.............................................................................................16 4.2.3TEST PROCEDURES.............................................................................................17 4.2.4DEVIATION FROM TEST STANDARD...................................................................17 4.2.5TEST SETUP...........................................................................................................18 4.2.6EUT OPERATING CONDITIONS............................................................................18 4.2.7TEST RESULTS.......................................................................................................19 4.36dB BANDWIDTH MEASUREMENT.................................................................23 4.3.1LIMITS OF 6dB BANDWIDTH MEASUREMENT....................................................23 4.3.2TEST INSTRUMENTS.............................................................................................23 4.3.3TEST PROCEDURE................................................................................................24 4.3.4DEVIATION FROM TEST STANDARD...................................................................24 4.3.5TEST SETUP...........................................................................................................24 4.3.6EUT OPERATING CONDITIONS............................................................................24 4.3.7TEST RESULTS.......................................................................................................25 4.4MAXIMUM PEAK OUTPUT POWER.................................................................29 4.4.1LIMITS OF MAXIMUM PEAK OUTPUT POWER MEASUREMENT......................29 4.4.2INSTRUMENTS........................................................................................................29 4.4.3TEST PROCEDURES.............................................................................................30 4.4.4TEST SETUP...........................................................................................................30 4.4.5EUT OPERATING CONDITIONS............................................................................30 FCC ID: QS3WBARP1 Report No.: RF921127H023Issued: Dec. 05, 2003 4.4.6TEST RESULTS.......................................................................................................31 4.4.7LIMITS OF POWER SPECTRAL DENSITY MEASUREMENT...............................32 4.4.8TEST INSTRUMENTS.............................................................................................32 4.4.9TEST PROCEDURE................................................................................................33 4.4.10DEVIATION FROM TEST STANDARD...................................................................33 4.4.11TEST SETUP...........................................................................................................33 4.4.12EUT OPERATING CONDITION...............................................................................33 4.4.13TEST RESULTS.......................................................................................................34 4.5BAND EDGES MEASUREMENT................................................................…

Text truncated - open the document above for the full version.

FCC ID: QS3WBARP1 Report No.: RF921127H0243Issued: Dec. 05, 2003 5 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST FCC ID: QS3WBARP1 Report No.: RF921127H0244Issued: Dec. 05, 2003 RADIATED EMISSION TEST
