QS3WBBRP1MINI PCI WIRELESS LAN CARD

TwinMOS Booming 802.11b Wireless LAN Card User’s Manual TwinMOS ® Booming TwinMOS Page 1 Contents PACKAGE CONTENTS..............................................................2 INTRODUCTION..........................................................................3 WIRELESS NETWORK OVERVIEW............................................4 BOOMING WIRELESS NETWORK SCENARIOS...........6 INSTALLATION FOR LINUX .................................................................................9 INSTALLATION FOR WINDOWS..................................................11 CONFIGURATION UTILITY.........................................................19 TROUBLESHOOTING.........................................................27 TECHNICAL SPECIFICATIONS............................................28 FCC CAUTION ........................................................................................39 Booming TwinMOS Page 2 PACKAGE CONTENTS Unpack your Booming WLAN Card kit and verify that all items are present. z Booming Wireless LAN card z User’s Manual (on CD) z Driver (on CD) If any of the items described appear to be damaged or missing, please contact your reseller. Booming TwinMOS Page 3 INTRODUCTION The Booming WLAN Card is a wireless network client that complies with the IEEE 802.11b standard on wireless LANs. The IEEE 802.11b standards compliance means this adapter gives you the flexibility to connect it to any 802.11b network. The IEEE 802.11b Ethernet standard allows you to connect computers and devices at speeds up to 11Mbps, dependent upon the distance between wireless adapters, the configuration of your working environment, or the capabilities or limitations of your computer systems. This Booming WLAN Card supports following WLAN features z Automatic transmit data rate select mechanism in the transmit range of 1, 2, 5.5 and 11 Mbps. z Center frequency channel selection (2.4 GHz) z Roaming over multiple channels. z Supports power save mode z Support TKIP and AES advanced WLAN security z 128-bit Wired Equivalent Privacy (WEP) data encryption. This Booming WLAN card comes with software drivers for the most popular Microsoft Windows operating systems and can be integrated into a larger network, running Windows XP, Windows 2000, Windows ME, or Windows 98 in either Ad-Hoc mode or infrastructure mode. This manual provides a quick introduction to wireless technology and its application as it relates to networking. Take a moment to read through this manual and familiarize you with wireless technology. You should also give yourself some time to become familiar with your new wireless network. Booming TwinMOS Page 4 WIRELESS NETWORK OVERVIEW A wireless local area network (LAN) is a flexible data communications system implemented as an extension to, or as an alternative for, a wired LAN. Using radio frequency (RF) technology, wireless LANs transmit and receive data over the air, minimizing the need for wired connections. Thus, wireless LANs combine data connectivity with user mobility. A local area network that transmit and receive over the air typically in an unlicensed frequency such as the 2.4GHz band. A wireless LAN does not require lining up devices for line of sight transmission like IrDA. Wireless access points (base stations) are connected to an Ethernet hub or server and transmit a radio frequency over an area of several hundred to a thousand feet which can penetrate walls and other nonmetal barriers. Roaming users can be handed off from one access point to another like a cellular phone system. Laptops use wireless modems that plug into an existing Ethernet port or that are self contained on PC cards, while stand-alone desktops and servers use plug-in cards (ISA, PCI, etc.). Wireless LANs offer the following productivity, convenience, and cost advantages over traditional wired networks Mobility - WLAN provide LAN users to access data in any location within the operating range of the WLAN. Ad-hoc management decisions based on real-time information can significantly improve worker efficiency. Installation Speed and Simplicity - Installing a wireless LAN system can be fast and easy and can eliminate the need to pull cable through walls and ceilings. Installation Flexibility - Wireless technology allows the network to go where wire cannot go. Reduced Cost-of-Ownership - While the initial investment required for wireless LAN hardware can be higher than the cost of wired LAN hardware, overall installation expenses and life-cycle costs can be significantly lower. Long-term cost benefits are greatest in dynamic environments requiring frequent moves and changes. Scalability - Wireless LAN systems can be configured in a variety of topologies to meet the needs of specific applications and installations. Configurations are easily changed and range from peer-to-peer networks suitable for a small number of users to full infrastructure networks of thousands of users that enable roaming over a broad area. Installation Considerations Designed to go up to 300 feet (100 meters) indoors and up to 900 feet (273 meters) outdoors, Booming WLAN card lets you access your network from virtually anywhere you want. Keep in mind, however, that the number and thickness of walls, ceilings or other objects that the wireless signals must pass thru may limit range. Typical ranges vary depending on the types of materials and background RF noise in your home or business. The key to maximizing range is to follow these basic principles: Booming TwinMOS Page 5 Keep the number of walls and ceilings between the access point and your receiving device to a minimum - Each wall or ceiling can reduce your TwinMOS Booming Wireless product’s range from 3-90 feet (1-30 meters.) For some businesses or for a large residential home deployment, it may be more beneficial to have more than one access point with overlapping coverage. 1. Be aware of the direct line between Access Points, Residential Gateways, and Computers - A wall that is 1.5 feet th…

Text truncated - open the document above for the full version.

FCC ID: QS3WBBRP1 Number1 FRONT SIDE OF EUT FCC ID: QS3WBBRP1 Number2 REAR SIDE OF EUT

FCC ID: QS3WBBRP1

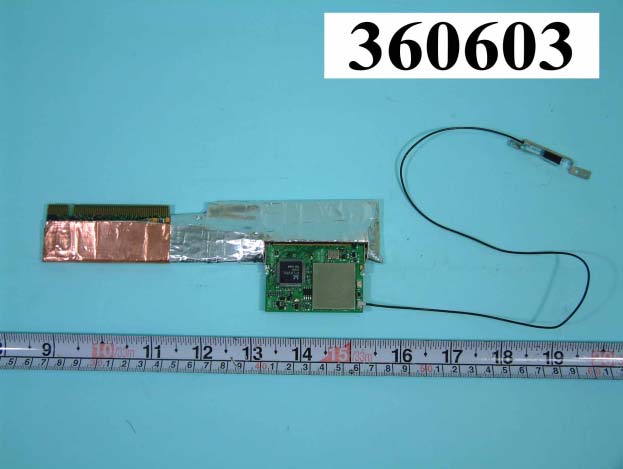

FCC ID: QS3WBBRP1 Number 1 Mechanical construction FCC ID: QS3WBBRP1 Number 2 Mechanical construction FCC ID: QS3WBBRP1 Number 3 Front side of main board FCC ID: QS3WBBRP1 Number 4 Rear side of main board FCC ID: QS3WBBRP1 Number 5 Mechanical construction of module board FCC ID: QS3WBBRP1 Number 6 Front side of module board FCC ID: QS3WBBRP1 Number 7 Rear side of module board

FCC TEST REPORT Report No. : F360603 SPORTON International Inc. TEL : 886-2-2696-2468 FAX : 886-2-2696-2255 FCC TEST REPORT for 47 CFR, Part 15, Subpart C Equipment : Mini PCI Wireless LAN Card Model No. : 73-TMWBB-001 FCC ID : QS3WBBRP1 Filing Type : Certification Applicant : TwinMOS Technologies Inc. 303 No. 3, Tzu Chiang Rd., Hu Kou Xiang, Hsin Chu, Taiwan, R.O.C. ‚ The test result refers exclusively to the test presented test model / sample. ‚ Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. ‚ Certificate or Test Report must not be used by the applicant to claim the product in this test report endorsement by NVLAP or any agency of U.S. government. SPORTON International Inc. 6F, No.106, Sec. 1, Hsin Tai Wu Rd., Hsi Chih, Taipei Hsien, Taiwan, R.O.C. FCC TEST REPORT Report No. : F360603 SPORTON International Inc. FCC ID : QS3WBBRP1 TEL : 886-2-2696-2468 Page No. : i FAX : 886-2-2696-2255 Issued Date : Jun. 25, 2003 Table of Contents History of this test report..................................................................................................................ii CERTIFICATE OF COMPLIANCE........................................................................................................................1 1. General Description of Equipment under Test.............................................................................................2 1.1. Applicant..........................................................................................................................................................................................2 1.2. Manufacturer ...................................................................................................................................................................................2 1.3. Basic Description of Equipment under Test ....................................................................................................................................2 1.4. Feature of Equipment under Test ...................................................................................................................................................3 2. Test Configuration of Equipment under Test ...............................................................................................4 2.1. Test Manner ....................................................................................................................................................................................4 2.2. Description of Test System .............................................................................................................................................................4 2.3. Connection Diagram of Test System ..............................................................................................................................................6 3. Operation of Equipment under Test ..............................................................................................................7 4. General Information of Test............................................................................................................................8 4.1. Test Voltage ....................................................................................................................................................................................8 4.2. Standard for Methods of Measurement...........................................................................................................................................8 4.3. Test in Compliance with ..................................................................................................................................................................8 4.4. Frequency Range Investigated .......................................................................................................................................................8 4.5. Test Distance ..................................................................................................................................................................................8 5. Report of Measurements and Examinations ................................................................................................9 5.1. List of Measurements and Examinations ........................................................................................................................................9 5.2. 6dB Bandwidth ..............................................................................................................................................................................10 5.3. Peak Output Power .......................................................................................................................................................................14 5.4. Power Spectral Density .................................................................................................................................................................15 5.5. Test of Conducted Emission .........................................................................................................................................................19 5.6. Test of Radiated Emission ............................................................................................................................................................26 5.7. Band Edges Measurement............................................................................................................................................................56 5.8. Antenna Requirements .................................................................................................................................................................59 5.9. RF Exposure .....................................................................................................................................…

Text truncated - open the document above for the full version.

FCC TEST REPORT Report No. : F360603 SPORTON International Inc. FCC ID : QS3WBBRP1 TEL : 886-2-2696-2468 Page No. : 1 of 3 FAX : 886-2-2696-2255 Issued Date : Jun. 25, 2003 1.1. Photographs of Conducted Emission Test Configuration „ The photographs show the configuration that generates the maximum emission. FRONT VIEW REAR VIEW FCC TEST REPORT Report No. : F360603 SPORTON International Inc. FCC ID : QS3WBBRP1 TEL : 886-2-2696-2468 Page No. : 2 of 3 FAX : 886-2-2696-2255 Issued Date : Jun. 25, 2003 SIDE VIEW FCC TEST REPORT Report No. : F360603 SPORTON International Inc. FCC ID : QS3WBBRP1 TEL : 886-2-2696-2468 Page No. : 3 of 3 FAX : 886-2-2696-2255 Issued Date : Jun. 25, 2003 1.2. Photographs of Radiated Emission Test Configuration „ The photographs show the configuration that generates the maximum emission. FRONT VIEW REAR VIEW
