TwinMOS OCTOPUS Card Bus 802.11b Card Bus Wireless LAN Adapter User’s Manual TwinMOS ® Octopus CardBus TwinMOS Page 1 Contents PACKAGE CONTENTS..............................................................2 INTRODUCTION..........................................................................3 WIRELESS NETWORK OVERVIEW............................................4 OCTOPUS CARD BUS WIRELESS NETWORK SCENARIOS...........6 INSTALLATION FOR WINDOWS..................................................9 CONFIGURATION UTILITY.........................................................17 TROUBLESHOOTING.........................................................24 TECHNICAL SPECIFICATIONS............................................25 PHYSICAL SIZE ......................................................................................26 FCC CAUTION ........................................................................................27 Octopus CardBus TwinMOS Page 2 PACKAGE CONTENTS Unpack your Octopus Card Bus kit and verify that all items are present. z Octopus Card Bus Wireless LAN Adapter z User’s Manual (on CD) z Driver (on CD) If any of the items described appear to be damaged or missing, please contact your reseller. Octopus CardBus TwinMOS Page 3 INTRODUCTION The Octopus Card Bus adapter is a wireless network client that complies with the IEEE 802.11b standard on wireless LANs. The IEEE 802.11b standards compliance means this adapter gives you the flexibility to connect it to any 802.11b network. The IEEE 802.11b Ethernet standard allows you to connect computers and devices at speeds up to 11Mbps, dependent upon the distance between wireless adapters, the configuration of your working environment, or the capabilities or limitations of your computer systems. This Octopus Card Bus Adapter supports following WLAN features z Automatic transmit data rate select mechanism in the transmit range of 1, 2, 5.5 and 11 Mbps. z Center frequency channel selection (2.4 GHz) z Roaming over multiple channels. z Supports 32-bit Card Bus interface z Supports power save mode z Support TKIP and AES advanced WLAN security z 128-bit Wired Equivalent Privacy (WEP) data encryption. z Plug and Play installation This Octopus Card Bus comes with software drivers for the most popular Microsoft Windows operating systems and can be integrated into a larger network, running Windows XP, Windows 2000, Windows ME, or Windows 98 in either Ad-Hoc mode or infrastructure mode. This manual provides a quick introduction to wireless technology and its application as it relates to networking. Take a moment to read through this manual and familiarize you with wireless technology. You should also give yourself some time to become familiar with your new wireless network. Octopus CardBus TwinMOS Page 4 WIRELESS NETWORK OVERVIEW A wireless local area network (LAN) is a flexible data communications system implemented as an extension to, or as an alternative for, a wired LAN. Using radio frequency (RF) technology, wireless LANs transmit and receive data over the air, minimizing the need for wired connections. Thus, wireless LANs combine data connectivity with user mobility. A local area network that transmit and receive over the air typically in an unlicensed frequency such as the 2.4GHz band. A wireless LAN does not require lining up devices for line of sight transmission like IrDA. Wireless access points (base stations) are connected to an Ethernet hub or server and transmit a radio frequency over an area of several hundred to a thousand feet which can penetrate walls and other nonmetal barriers. Roaming users can be handed off from one access point to another like a cellular phone system. Laptops use wireless modems that plug into an existing Ethernet port or that are self contained on PC cards, while stand-alone desktops and servers use plug-in cards (ISA, PCI, etc.). Wireless LANs offer the following productivity, convenience, and cost advantages over traditional wired networks Mobility - WLAN provide LAN users to access data in any location within the operating range of the WLAN. Ad-hoc management decisions based on real-time information can significantly improve worker efficiency. Installation Speed and Simplicity - Installing a wireless LAN system can be fast and easy and can eliminate the need to pull cable through walls and ceilings. Installation Flexibility - Wireless technology allows the network to go where wire cannot go. Reduced Cost-of-Ownership - While the initial investment required for wireless LAN hardware can be higher than the cost of wired LAN hardware, overall installation expenses and life-cycle costs can be significantly lower. Long-term cost benefits are greatest in dynamic environments requiring frequent moves and changes. Scalability - Wireless LAN systems can be configured in a variety of topologies to meet the needs of specific applications and installations. Configurations are easily changed and range from peer-to-peer networks suitable for a small number of users to full infrastructure networks of thousands of users that enable roaming over a broad area. Installation Considerations Designed to go up to 300 feet (100 meters) indoors and up to 900 feet (273 meters) outdoors, Octopus Card Bus lets you access your network from virtually anywhere you want. Keep in mind, however, that the number and thickness of walls, ceilings or other objects that the wireless signals must pass thru may limit range. Typical ranges vary depending on the types of materials and background RF noise in your Octopus CardBus TwinMOS Page 5 home or business. The key to maximizing range is to follow these basic principles: Octopus CardBus TwinMOS Page 6 Keep the number of walls and ceilings between the access point and your receiving device to a minimum - Each wall or ceiling can reduce your TwinMOS Octopus Wireless product’s range from 3-90 feet (1-30 meters.) For some businesses or for a large residential home deployment, it may be more benef…
Text truncated - open the document above for the full version.
Company : TwinMOS Technologies Inc. Model: 73-TMWBD-001 Product : Cardbus Wireless LAN CardPage: 1 of 3 Company : TwinMOS Technologies Inc. Model: 73-TMWBD-001 Product : Cardbus Wireless LAN CardPage: 2 of 3

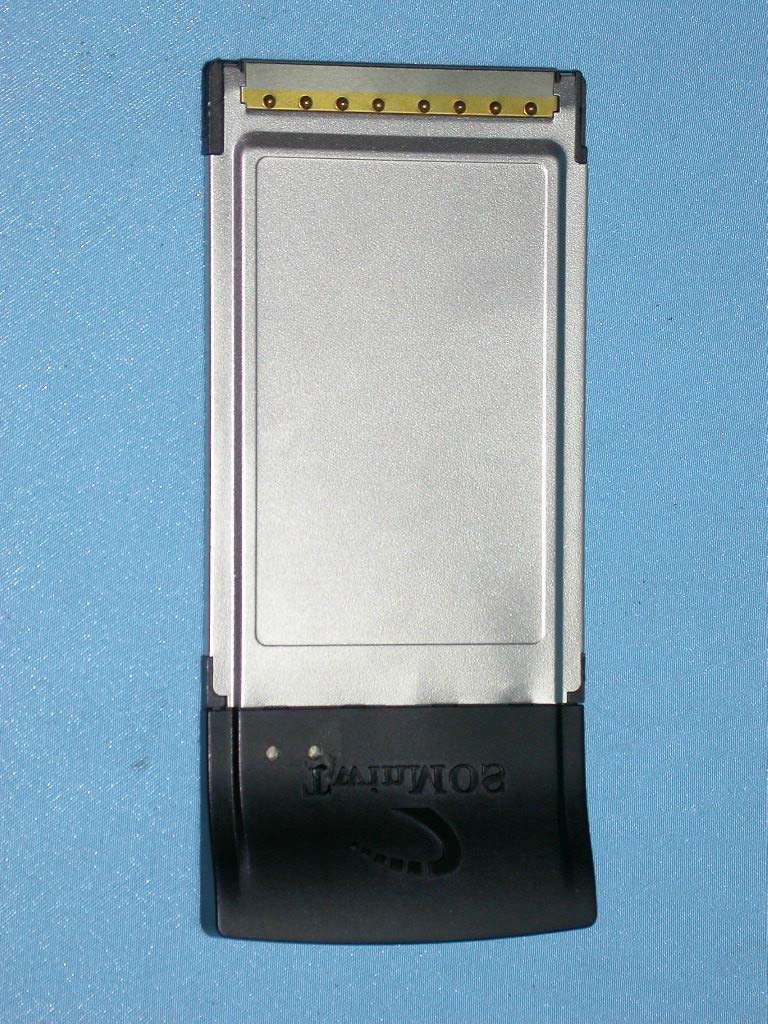

Company : TwinMOS Technologies Inc.Model : 73-TMWBD-001 Product : Cardbus Wireless LAN Card Cardbus Wireless LAN Card Model No: 73-TMWBD-001 FCC IDQS3WBDRP1 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: [1] this device may not cause harmful interference and [2] this device must accept any interference received, including interference that may cause undesired operation. S/N Made in Taiwan
Company : TwinMOS Technologies Inc. Model: 73-TMWBD-001 Product : Cardbus Wireless LAN CardPage: 1 of 3 Company : TwinMOS Technologies Inc. Model: 73-TMWBD-001 Product : Cardbus Wireless LAN CardPage: 2 of 3 Company : TwinMOS Technologies Inc. Model: 73-TMWBD-001 Product : Cardbus Wireless LAN CardPage: 3 of 3
Description of Operation EUT is a Cardbus Wireless LAN Card with 11 channels. This device provided four kind of transmitting speed 1,2,5.5 and 11Mbps. The device of RF carrier is DQPSK,DB PSK and CCK. The device adapts direct sequence spread spectrum modulation. The Connector antenna was scolded on PCB provided diversity function to improve the receiving function. This Cardbus Wireless LAN Card is an IEEE 802.11b Wireless LAN adapter. It allows your computer to connect to a wireless network and to share resources, such as files or printers without being bound to the network wires. Operation in 2.4GHz Direct Sequence Spread Spectrum (DSSS) radio transmission, the Cardbus Wireless LAN Card transfers data at speeds up to 64/128-bit Wired Equivalent Protection(WEP) algorithm is used. In addition, its standard compliance ensures that it can communicate with any 802.11b network.
