QS3WBSZP1USB WLAN Adapter

TwinMOS Netkey 802.11b Series Wireless LAN Adapter User’s Manual TwinMOS ® Netkey Series WLAN Card WWW.TwinMOS.COM Page 1 Contents PACKAGE CONTENTS..............................................................2 INTRODUCTION..........................................................................3 WIRELESS NETWORK OVERVIEW............................................4 NETKEY WIRELESS NETWORK SCENARIOS...........6 INSTALLATION FOR WINDOWS..................................................9 CONFIGURATION UTILITY.........................................................16 TROUBLESHOOTING.........................................................22 TECHNICAL SPECIFICATIONS............................................23 FCC CAUTION ........................................................................................24 Netkey Series WLAN Card WWW.TwinMOS.COM Page 2 PACKAGE CONTENTS Unpack your Netkey WLAN adapter kit and verify that all items are present. z Netkey Wireless LAN Adapter z User’s Manual (on CD) z Driver (on CD) If any of the items described appear to be damaged or missing, please contact your reseller. Netkey Series WLAN Card WWW.TwinMOS.COM Page 3 INTRODUCTION The Netkey WLAN adapter is a wireless network client that complies with the IEEE 802.11b standard on wireless LANs. The IEEE 802.11b standards compliance means this adapter gives you the flexibility to connect it to any 802.11b network. The IEEE 802.11b Ethernet standard allows you to connect computers and devices at speeds up to 11Mbps, dependent upon the distance between wireless adapters, the configuration of your working environment, or the capabilities or limitations of your computer systems. This Netkey WLAN Adapter supports following WLAN features z Automatic transmit data rate select mechanism in the transmit range of 1, 2, 5.5 and 11 Mbps. z Center frequency channel selection (2.4 GHz) z Roaming over multiple channels. z Supports USB interface z Supports power save mode z 128-bit Wired Equivalent Privacy (WEP) data encryption. z Plug and Play installation This Netkey comes with software drivers for the most popular Microsoft Windows operating systems and can be integrated into a larger network, running Windows XP, Windows 2000, Windows ME, or Windows 98 in either Ad-Hoc mode or infrastructure mode. This manual provides a quick introduction to wireless technology and its application as it relates to networking. Take a moment to read through this manual and familiarize you with wireless technology. You should also give yourself some time to become familiar with your new wireless network. Netkey Series WLAN Card WWW.TwinMOS.COM Page 4 WIRELESS NETWORK OVERVIEW A wireless local area network (LAN) is a flexible data communications system implemented as an extension to, or as an alternative for, a wired LAN. Using radio frequency (RF) technology, wireless LANs transmit and receive data over the air, minimizing the need for wired connections. Thus, wireless LANs combine data connectivity with user mobility. A local area network that transmit and receive over the air typically in an unlicensed frequency such as the 2.4GHz band. A wireless LAN does not require lining up devices for line of sight transmission like IrDA. Wireless access points (base stations) are connected to an Ethernet hub or server and transmit a radio frequency over an area of several hundred to a thousand feet which can penetrate walls and other nonmetal barriers. Roaming users can be handed off from one access point to another like a cellular phone system. Laptops use wireless modems that plug into an existing Ethernet port or that are self contained on PC cards, while stand-alone desktops and servers use plug-in cards (ISA, PCI, etc.). Wireless LANs offer the following productivity, convenience, and cost advantages over traditional wired networks Mobility - WLAN provide LAN users to access data in any location within the operating range of the WLAN. Ad-hoc management decisions based on real-time information can significantly improve worker efficiency. Installation Speed and Simplicity - Installing a wireless LAN system can be fast and easy and can eliminate the need to pull cable through walls and ceilings. Installation Flexibility - Wireless technology allows the network to go where wire cannot go. Reduced Cost-of-Ownership - While the initial investment required for wireless LAN hardware can be higher than the cost of wired LAN hardware, overall installation expenses and life-cycle costs can be significantly lower. Long-term cost benefits are greatest in dynamic environments requiring frequent moves and changes. Scalability - Wireless LAN systems can be configured in a variety of topologies to meet the needs of specific applications and installations. Configurations are easily changed and range from peer-to-peer networks suitable for a small number of users to full infrastructure networks of thousands of users that enable roaming over a broad area. Installation Considerations Designed to go up to 300 feet (100 meters) indoors and up to 900 feet (273 meters) outdoors, Netkey WLAN adapter lets you access your network from virtually anywhere you want. Keep in mind, however, that the number and thickness of walls, ceilings or other objects that the wireless signals must pass thru may limit range. Typical ranges vary depending on the types of materials and background RF noise in your home or business. The key to maximizing range is to follow these basic principles: Netkey Series WLAN Card WWW.TwinMOS.COM Page 5 Keep the number of walls and ceilings between the access point and your receiving device to a minimum - Each wall or ceiling can reduce your TwinMOS Netkey Wireless product’s range from 3-90 feet (1-30 meters.) For some businesses or for a large residential home deployment, it may be more beneficial to have more than one access point with overlapping coverage. 1. Be aware of the direct line between Access Points, Residential Gateways, and Computers -…

Text truncated - open the document above for the full version.

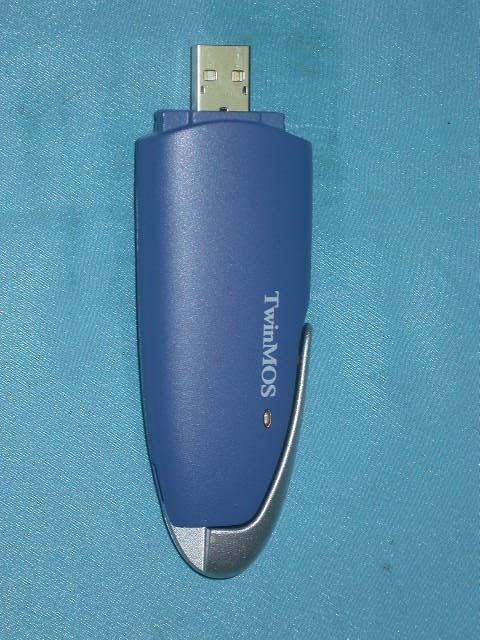

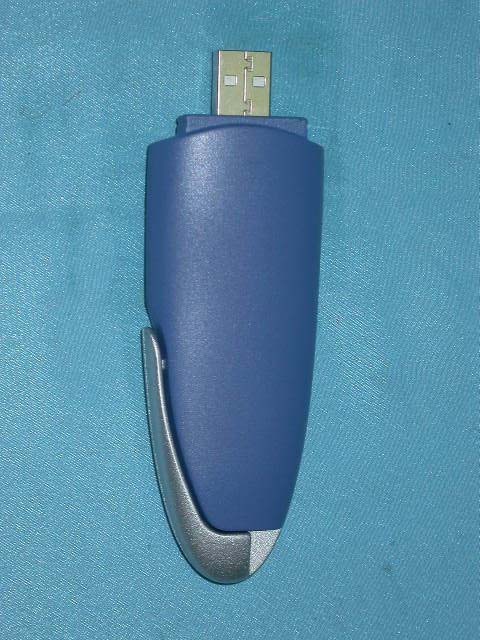

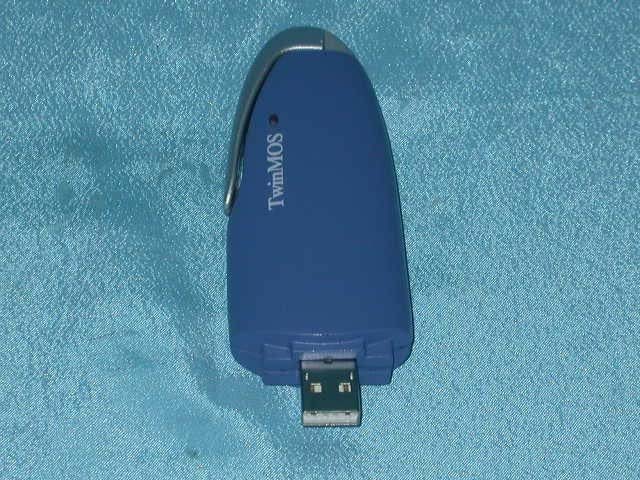

Company : TwinMOS Technologies Inc. Model: 73-TMWBS-001 Product : USB WLAN Adapter Page: 1 of 4 Company : TwinMOS Technologies Inc. Model: 73-TMWBS-001 Product : USB WLAN Adapter Page: 2 of 4 Company : TwinMOS Technologies Inc. Model: 73-TMWBS-001 Product : USB WLAN Adapter Page: 3 of 4 Company : TwinMOS Technologies Inc. Model: 73-TMWBS-001 Product : USB WLAN Adapter Page: 4 of 4

Company : TwinMOS Technologies Inc. Model: 73-TMWBS-001 Product : USB WLAN Adapter Page: 1 of 1 USB WLAN Adapter Model No: 73-TMWBS-001 FCC IDQS3WBSZP1 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: [1] this device may not cause harmful interference and [2] this device must accept any interference received, including interference that may cause undesired operation. S/N Made in Taiwan

Company : TwinMOS Technologies Inc. Model: 73-TMWBS-001 Product : USB WLAN Adapter Page: 1 of 6 Company : TwinMOS Technologies Inc. Model: 73-TMWBS-001 Product : USB WLAN Adapter Page: 2 of 6 Company : TwinMOS Technologies Inc. Model: 73-TMWBS-001 Product : USB WLAN Adapter Page: 3 of 6 Company : TwinMOS Technologies Inc. Model: 73-TMWBS-001 Product : USB WLAN Adapter Page: 4 of 6 Company : TwinMOS Technologies Inc. Model: 73-TMWBS-001 Product : USB WLAN Adapter Page: 5 of 6 Company : TwinMOS Technologies Inc. Model: 73-TMWBS-001 Product : USB WLAN Adapter Page: 6 of 6

Description of Operation EUT is a USB WLAN Adapter with 11 channels. This device provided four kind of transmitting speed 1,2,5.5 and 11Mbps. The device of RF carrier is DQPSK,DB PSK and CCK. The device adapts direct sequence spread spectrum modulation. The Connector antenna was scolded on PCB provided diversity function to improve the receiving function. This USB WLAN Adapter is an IEEE 802.11b Wireless LAN adapter. It allows your computer to connect to a wireless network and to share resources, such as files or printers without being bound to the network wires. Operation in 2.4GHz Direct Sequence Spread Spectrum (DSSS) radio transmission, the USB WLAN Adapter transfers data at speeds up to 64/128-bit Wired Equivalent Protection(WEP) algorithm is used. In addition, its standard compliance ensures that it can communicate with any 802.11b network.

Ecom Sertech Corp. Rm. 258, Bldg. 17, NO.195, Sec. 4 Chung Hsing Rd.,Chu -Tung Chen, Hsinchu, Taiwan 310, R.O.C TEL:886 - 3 - 5918012 FAX : 886 - 3 - 5825720 FCC ID QS3WBSZP1 Report No.ER03-04-094FRF Page 1 of 2 RF EXPOSURE EVALUATION According to FCC 1.1310 : The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (A) Limits for Occupational / Control Exposures 300-1,500 -- -- F/300 6 1,500-100,000 -- -- 5 6 (B) Limits for General Population / Uncontrol Exposures 300-1,500 -- -- F/1500 6 1,500-100,000 -- -- 1 30 FRIIS FORMULA Friis transmission formula : Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm2. If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. EUT OPERATING CONDITION A software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. Ecom Sertech Corp. Rm. 258, Bldg. 17, NO.195, Sec. 4 Chung Hsing Rd.,Chu -Tung Chen, Hsinchu, Taiwan 310, R.O.C TEL:886 - 3 - 5918012 FAX : 886 - 3 - 5825720 FCC ID QS3WBSZP1 Report No.ER03-04-094FRF Page 2 of 2 TEST RESULT OF RF EXPOSURE EVALUATION Test Item RF Exposure Evaluation Data Test Mode Normal Operation ANTENNA GAIN Antenna GainThe maximum Gain measured in fully anechoic chamber is 1dBi linear scale. OUTPUT POWER INTO ANTENNA & RF EXPOSURE EVALUATION DISTANCE Channel Channel Frequency (MHz) Output Power to Antenna (dBm) Power density in mW/cm2 at Friis formula when r=20cm(mW/cm2) LIMITS CH1 2412.00 15.74 0.009391 1 CH6 2437.00 15.37 0.008624 1 CH11 2462.00 15.06 0.008030 1 The power density Pd (4 th column) at a distance of 20cm calculated from the Friis transmission formula is far belowthe limit of 1 mW/cm 2 . So, RF exposure limit warning or SAR test are not required.

Ecom Sertech Corp. Rm. 258, Bldg. 17, NO.195, Sec. 4 Chung Hsing Rd.,Chu -Tung Chen, Hsinchu, Taiwan 310, R.O.C TEL:886 - 3 - 5918012 FAX : 886 - 3 - 5825720 FCC ID ：QS3WBSZP1 Report No.：ER03-04-094FRF Page 1 of 40 TEST REPORT Product Name ： USB WLAN Adapter Model Number ： 73-TMWBS-001 Applicant ： TwinMOS Technologies Inc. Address ： 303 No.3,Tzu Chiang Rd.,Hu Kou Xiang,Hsin Chu,Taiwan,R.O.C. Date Received ： APR. 30, 2003 Date Tested ： APR. 30~JUN. 20, 2003 Notes ： 1. This report will be invalid if duplicated or photocopied in part. 2. This report refers only to the specimen(s) submitted to testing, and be invalid as seperately used. 3. This report is invalid without examination stamp and signature of this institute. 4. The tested specimen(s) will be preserved for thirty days from the data issued. 5. The report must not be used to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government. Ecom Sertech Corp. Rm. 258, Bldg. 17, NO.195, Sec. 4 Chung Hsing Rd.,Chu -Tung Chen, Hsinchu, Taiwan 310, R.O.C TEL:886 - 3 - 5918012 FAX : 886 - 3 - 5825720 FCC ID ：QS3WBSZP1 Report No.：ER03-04-094FRF Page 2 of 40 Test Report Cerification Product Name : USB WLAN Adapter Model Number : 73-TMWBS-001 Applicant : TwinMOS Technologies Inc. Measurement Standard : 47 CFR Part 15, Subpart B and Subpart C (Section 15.247), ANSI C63.4-2001 Ecom Sertech Corp. Rm. 258, Bldg. 17, NO.195, Sec. 4 Chung Hsing Rd.,Chu -Tung Chen, Hsinchu, Taiwan 310, R.O.C TEL:886 - 3 - 5918012 FAX : 886 - 3 - 5825720 FCC ID ：QS3WBSZP1 Report No.：ER03-04-094FRF Page 3 of 40 TABLE OF CONTENTS TITLE PAGE NO. 1. GENERAL INFORMATION .................................................................................................................... 5 1.1GENERAL STATEMENT.................................................................................................................. 5 1.2 GENERAL DESCRIPTION OF EUT & POWER............................................................................. 5 1.3 DESCRIPTION OF PERIPHERALS.................................................................................................6 1.4 EUT & PERIPHERALS SETUP DIAGRAM.................................................................................... 7 1.5 EUT OPERATING CONDITION ..................................................................................................... 7 1.6 DESCRIPTION OF TEST SITE ........................................................................................................ 8 1.7 SUMMARY OF TEST RESULTS ....................................................................................................8 2. CONDUCTED POWERLINE TEST ........................................................................................................ 9 2.1 TEST EQUIPMENTS ........................................................................................................................ 9 2.2 TEST SETUP ..................................................................................................................................... 9 2.3 CONDUCTED POWER LINE EMISSION LIMIT .......................................................................... 10 2.4 TEST PROCEDURE.......................................................................................................................... 10 2.5 UNCERTAINTY OF CONDUCTED EMISSION .............................................................................. 10 2.6 CONDUCTED RF VOLTAGE MEASUREMENT ............................................................................ 11 2.7 PHOTOS OF CONDUCTION TEST ..................................................................................................12 3. RADIATED EMISSION TEST................................................................................................................. 13 3.1 TEST EQUIPMENTS .......................................................................................................................... 13 3.2 TEST SETUP ....................................................................................................................................... 13 3.3 RADIATION LIMIT............................................................................................................................ 14 3.4 TEST PROCEDURES ......................................................................................................................... 15 3.5 UNCERTAINTY OF RADIATED EMISSION .................................................................................. 15 3.6 RADIATED RF NOISE MEASUREMENT ....................................................................................... 16-23 3.7 PHOTOS OF OPEN SITE ................................................................................................................... 24-26 4. 6dB BANDWIDTH MEASUREMENT .................................................................................................... 27 4.1 TEST EQUIPMENTS .......................................................................................................................... 27 4.2 TEST SETUP ....................................................................................................................................... 27 4.3 LIMITS OF 6dB BANDWIDTH MEASUREMENT .......................................................................... 27 4.4 TEST PROCEDURE............................................................................................................................ 27 4.5 UNCERTAINTY OF CONDUCTED EMISSION .............................................................................. 27 4.6 TEST RESULTS .................................................................................................................................. 28 4.7 PHOTO OF 6DB BANDWIDTH MEASURERMENT ...................................................................... 29 5. MAXIMUM PEAK OUTPUT POWER..................…

Text truncated - open the document above for the full version.

Ecom Sertech Corp. Rm. 258, Bldg. 17, NO.195, Sec. 4 Chung Hsing Rd.,Chu -Tung Chen, Hsinchu, Taiwan 310, R.O.C TEL:886 - 3 - 5918012 FAX : 886 - 3 - 5825720 FCC ID QS3WBSZP1 Report No.ER03-04-094FRF Page 1 of 3 2.7 PHOTOS OF CONDUCTION TEST Ecom Sertech Corp. Rm. 258, Bldg. 17, NO.195, Sec. 4 Chung Hsing Rd.,Chu -Tung Chen, Hsinchu, Taiwan 310, R.O.C TEL:886 - 3 - 5918012 FAX : 886 - 3 - 5825720 FCC ID QS3WBSZP1 Report No.ER03-04-094FRF Page 2 of 3 3.7 PHOTOS OF OPEN SITE Ecom Sertech Corp. Rm. 258, Bldg. 17, NO.195, Sec. 4 Chung Hsing Rd.,Chu -Tung Chen, Hsinchu, Taiwan 310, R.O.C TEL:886 - 3 - 5918012 FAX : 886 - 3 - 5825720 FCC ID QS3WBSZP1 Report No.ER03-04-094FRF Page 3 of 3 3.7 PHOTOS OF OPEN SITE
