  1. Home/
  2. TwinMOS Technologies Inc./
  3. QS3WGDPR1

QS3WGDPR1802.11g PCMCIA WLAN Card

TwinMOS Technologies Inc.
802.11g PCMCIA WLAN Card - FCC ID QS3WGDPR1 - TwinMOS Technologies Inc.
Click to zoom

Application Details

Equipment Class
DTS - Digital Transmission System
Date of Grant
Apr 11, 2004
Application Purpose
Original Equipment
Date of Application
Apr 11, 2004
Equipment Note
802.11g PCMCIA WLAN Card
Frequency Range
2412.00000000 - 2462.00000000
Company
TwinMOS Technologies Inc.
Country
Taiwan

Documents & Files

Select a file to view

Users Manual

↗
↗

Cover Letter(s)

↗
↗

External Photos

↗
↗

ID Label/Location Info

↗
↗
↗
↗

Internal Photos

↗

Operational Description

↗
↗

RF Exposure Info

↗
↗

Test Report

↗
↗

Test Setup Photos

↗
↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

TwinMOS 802.11g Series G101/G231 Wireless LAN Adapter User’s Manual TwinMOS ® G101/G231 Series WLAN Card WWW.TwinMOS.COM Page 1 Contents PACKAGE CONTENTS...................................................................................2 INTRODUCTION...............................................................................................3 WIRELESS NETWORK OVERVIEW................................................................4 G101/G231 WIRELESS NETWORK SCENARIOS........................................6 INSTALLATION FOR WINDOWS (XP/2000/98SE)...............................................9 CONFIGURATION UTILITY.....................................................................39 TROUBLESHOOTING...................................................................................55 TECHNICAL SPECIFICATIONS.....................................................................56 FCC CAUTION......................................................................................57 G101/G231 Series WLAN Card WWW.TwinMOS.COM Page 2 PACKAGE CONTENTS Unpack your G101/G231 WLAN adapter kit and verify that all items are present. z G101/G231 Wireless LAN Adapter z User’s Manual (on CD) z Driver (on CD) If any of the items described appear to be damaged or missing, please contact your reseller. G101/G231 Series WLAN Card WWW.TwinMOS.COM Page 3 INTRODUCTION The G101/G231 WLAN adapter is a wireless network client that complies with the IEEE 802.11b/g standard on wireless LANs. The IEEE 802.11b/g standards compliance means this adapter gives you the flexibility to connect it to any 802.11b/g network. The IEEE 802.11b/g Ethernet standard allows you to connect computers and devices at speeds up to 11Mbps, dependent upon the distance between wireless adapters, the configuration of your working environment, or the capabilities or limitations of your computer systems. This G101/G231 WLAN Adapter supports following WLAN features: z Automatic transmit data rate select mechanism in the transmit range of 1, 2, 5.5, 6, 9, 12, 18, 24, 36, 48 and 54 Mbps. z Center frequency channel selection (2.4 GHz) z Roaming over multiple channels. z Supports Cardbus interface for G231 z Supports MiniPCI interface for G101 z Supports power save mode z Supports WPA z Supports 64/128/152-bit Wired Equivalent Privacy (WEP), TKIP, AES data encryption. z Plug and Play installation only for G231 This G101/G231 comes with software drivers for the most popular Microsoft Windows operating systems and can be integrated into a larger network, running Windows XP, Windows 2000, Windows ME, or Windows 98 in either Ad-Hoc mode or infrastructure mode. This manual provides a quick introduction to wireless technology and its application as it relates to networking. Take a moment to read through this manual and familiarize you with wireless technology. You should also give yourself some time to become familiar with your new wireless network. G101/G231 Series WLAN Card WWW.TwinMOS.COM Page 4 WIRELESS NETWORK OVERVIEW A wireless local area network (LAN) is a flexible data communications system implemented as an extension to, or as an alternative for, a wired LAN. Using radio frequency (RF) technology, wireless LANs transmit and receive data over the air, minimizing the need for wired connections. Thus, wireless LANs combine data connectivity with user mobility. A local area network that transmit and receive over the air typically in an unlicensed frequency such as the 2.4GHz band. A wireless LAN does not require lining up devices for line of sight transmission like IrDA. Wireless access points (base stations) are connected to an Ethernet hub or server and transmit a radio frequency over an area of several hundred to a thousand feet which can penetrate walls and other nonmetal barriers. Roaming users can be handed off from one access point to another like a cellular phone system. Laptops use wireless modems that plug into an existing Ethernet port or that are self contained on PC cards, while stand-alone desktops and servers use plug-in cards (ISA, PCI, etc.). Wireless LANs offer the following productivity, convenience, and cost advantages over traditional wired networks: Mobility - WLAN provide LAN users to access data in any location within the operating range of the WLAN. Ad-hoc management decisions based on real-time information can significantly improve worker efficiency. Installation Speed and Simplicity - Installing a wireless LAN system can be fast and easy and can eliminate the need to pull cable through walls and ceilings. Installation Flexibility - Wireless technology allows the network to go where wire cannot go. Reduced Cost-of-Ownership - While the initial investment required for wireless LAN hardware can be higher than the cost of wired LAN hardware, overall installation expenses and life-cycle costs can be significantly lower. Long-term cost benefits are greatest in dynamic environments requiring frequent moves and changes. Scalability - Wireless LAN systems can be configured in a variety of topologies to meet the needs of specific applications and installations. Configurations are easily changed and range from peer-to-peer networks suitable for a small number of users to full infrastructure networks of thousands of users that enable roaming over a broad area. Installation Considerations Designed to go up to 300 feet (100 meters) indoors and up to 900 feet (273 meters) outdoors, G101/G231 WLAN adapter lets you access your network from virtually anywhere you want. Keep in mind, however, that the number and thickness of walls, ceilings or other objects that the wireless signals must pass thru may limit range. Typical ranges vary depending on the types of materials and background RF noise in your home or business. The key to maximizing range is to follow these basic principles: G101/G231 Series WLAN Card WWW.TwinMOS.COM Page 5 Keep the number of walls and ceilings between the access point and your receiving device to a minimum - Each …

Text truncated - open the document above for the full version.

Users Manual

TwinMOS 802.11g Series G101/G231 Wireless LAN Adapter User’s Manual TwinMOS ® G101/G231 Series WLAN Card WWW.TwinMOS.COM Page 1 Contents PACKAGE CONTENTS...................................................................................2 INTRODUCTION...............................................................................................3 WIRELESS NETWORK OVERVIEW................................................................4 G101/G231 WIRELESS NETWORK SCENARIOS........................................6 INSTALLATION FOR WINDOWS (XP/2000/98SE)...............................................9 CONFIGURATION UTILITY.....................................................................39 TROUBLESHOOTING...................................................................................55 TECHNICAL SPECIFICATIONS.....................................................................56 FCC CAUTION......................................................................................57 G101/G231 Series WLAN Card WWW.TwinMOS.COM Page 2 PACKAGE CONTENTS Unpack your G101/G231 WLAN adapter kit and verify that all items are present. z G101/G231 Wireless LAN Adapter z User’s Manual (on CD) z Driver (on CD) If any of the items described appear to be damaged or missing, please contact your reseller. G101/G231 Series WLAN Card WWW.TwinMOS.COM Page 3 INTRODUCTION The G101/G231 WLAN adapter is a wireless network client that complies with the IEEE 802.11b/g standard on wireless LANs. The IEEE 802.11b/g standards compliance means this adapter gives you the flexibility to connect it to any 802.11b/g network. The IEEE 802.11b/g Ethernet standard allows you to connect computers and devices at speeds up to 11Mbps, dependent upon the distance between wireless adapters, the configuration of your working environment, or the capabilities or limitations of your computer systems. This G101/G231 WLAN Adapter supports following WLAN features: z Automatic transmit data rate select mechanism in the transmit range of 1, 2, 5.5, 6, 9, 12, 18, 24, 36, 48 and 54 Mbps. z Center frequency channel selection (2.4 GHz) z Roaming over multiple channels. z Supports Cardbus interface for G231 z Supports MiniPCI interface for G101 z Supports power save mode z Supports WPA z Supports 64/128/152-bit Wired Equivalent Privacy (WEP), TKIP, AES data encryption. z Plug and Play installation only for G231 This G101/G231 comes with software drivers for the most popular Microsoft Windows operating systems and can be integrated into a larger network, running Windows XP, Windows 2000, Windows ME, or Windows 98 in either Ad-Hoc mode or infrastructure mode. This manual provides a quick introduction to wireless technology and its application as it relates to networking. Take a moment to read through this manual and familiarize you with wireless technology. You should also give yourself some time to become familiar with your new wireless network. G101/G231 Series WLAN Card WWW.TwinMOS.COM Page 4 WIRELESS NETWORK OVERVIEW A wireless local area network (LAN) is a flexible data communications system implemented as an extension to, or as an alternative for, a wired LAN. Using radio frequency (RF) technology, wireless LANs transmit and receive data over the air, minimizing the need for wired connections. Thus, wireless LANs combine data connectivity with user mobility. A local area network that transmit and receive over the air typically in an unlicensed frequency such as the 2.4GHz band. A wireless LAN does not require lining up devices for line of sight transmission like IrDA. Wireless access points (base stations) are connected to an Ethernet hub or server and transmit a radio frequency over an area of several hundred to a thousand feet which can penetrate walls and other nonmetal barriers. Roaming users can be handed off from one access point to another like a cellular phone system. Laptops use wireless modems that plug into an existing Ethernet port or that are self contained on PC cards, while stand-alone desktops and servers use plug-in cards (ISA, PCI, etc.). Wireless LANs offer the following productivity, convenience, and cost advantages over traditional wired networks: Mobility - WLAN provide LAN users to access data in any location within the operating range of the WLAN. Ad-hoc management decisions based on real-time information can significantly improve worker efficiency. Installation Speed and Simplicity - Installing a wireless LAN system can be fast and easy and can eliminate the need to pull cable through walls and ceilings. Installation Flexibility - Wireless technology allows the network to go where wire cannot go. Reduced Cost-of-Ownership - While the initial investment required for wireless LAN hardware can be higher than the cost of wired LAN hardware, overall installation expenses and life-cycle costs can be significantly lower. Long-term cost benefits are greatest in dynamic environments requiring frequent moves and changes. Scalability - Wireless LAN systems can be configured in a variety of topologies to meet the needs of specific applications and installations. Configurations are easily changed and range from peer-to-peer networks suitable for a small number of users to full infrastructure networks of thousands of users that enable roaming over a broad area. Installation Considerations Designed to go up to 300 feet (100 meters) indoors and up to 900 feet (273 meters) outdoors, G101/G231 WLAN adapter lets you access your network from virtually anywhere you want. Keep in mind, however, that the number and thickness of walls, ceilings or other objects that the wireless signals must pass thru may limit range. Typical ranges vary depending on the types of materials and background RF noise in your home or business. The key to maximizing range is to follow these basic principles: G101/G231 Series WLAN Card WWW.TwinMOS.COM Page 5 Keep the number of walls and ceilings between the access point and your receiving device to a minimum - Each …

Text truncated - open the document above for the full version.

Cover Letter(s)

TwinMOS Technologies Inc. Mar. 23, 2004 Federal Communications Commission Authorization and Evaluation Division FCC ID:QS3WGDPR1 Confidentiality Request Pursuant to Sections 0..457 and 0.459 of the Commission’s Rules, the Applicant Hereby requests confidential treatment of information accomparrting this Application As outlined below: 1. Block Diagram 2. Circuit Diagram The above materials contain trade secrets and proprietary information not customarily Released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, Coolo Lee / Engineer Applicant: TwinMOS Technologies Inc. ADDRESS: 303 No. 3, Tzu Chiang Rd., Hu Kou Xiang, Hsin Chu, Taiwan, R.O.C. TEL: 03-597-1755 FAX: 03-597-8422

Cover Letter(s)

TwinMOS Technologies Inc. Mar. 23, 2004 Federal Communications Commission Authorization and Evaluation Division FCC ID:QS3WGDPR1 Confidentiality Request Pursuant to Sections 0..457 and 0.459 of the Commission’s Rules, the Applicant Hereby requests confidential treatment of information accomparrting this Application As outlined below: 1. Block Diagram 2. Circuit Diagram The above materials contain trade secrets and proprietary information not customarily Released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, Coolo Lee / Engineer Applicant: TwinMOS Technologies Inc. ADDRESS: 303 No. 3, Tzu Chiang Rd., Hu Kou Xiang, Hsin Chu, Taiwan, R.O.C. TEL: 03-597-1755 FAX: 03-597-8422

External Photos

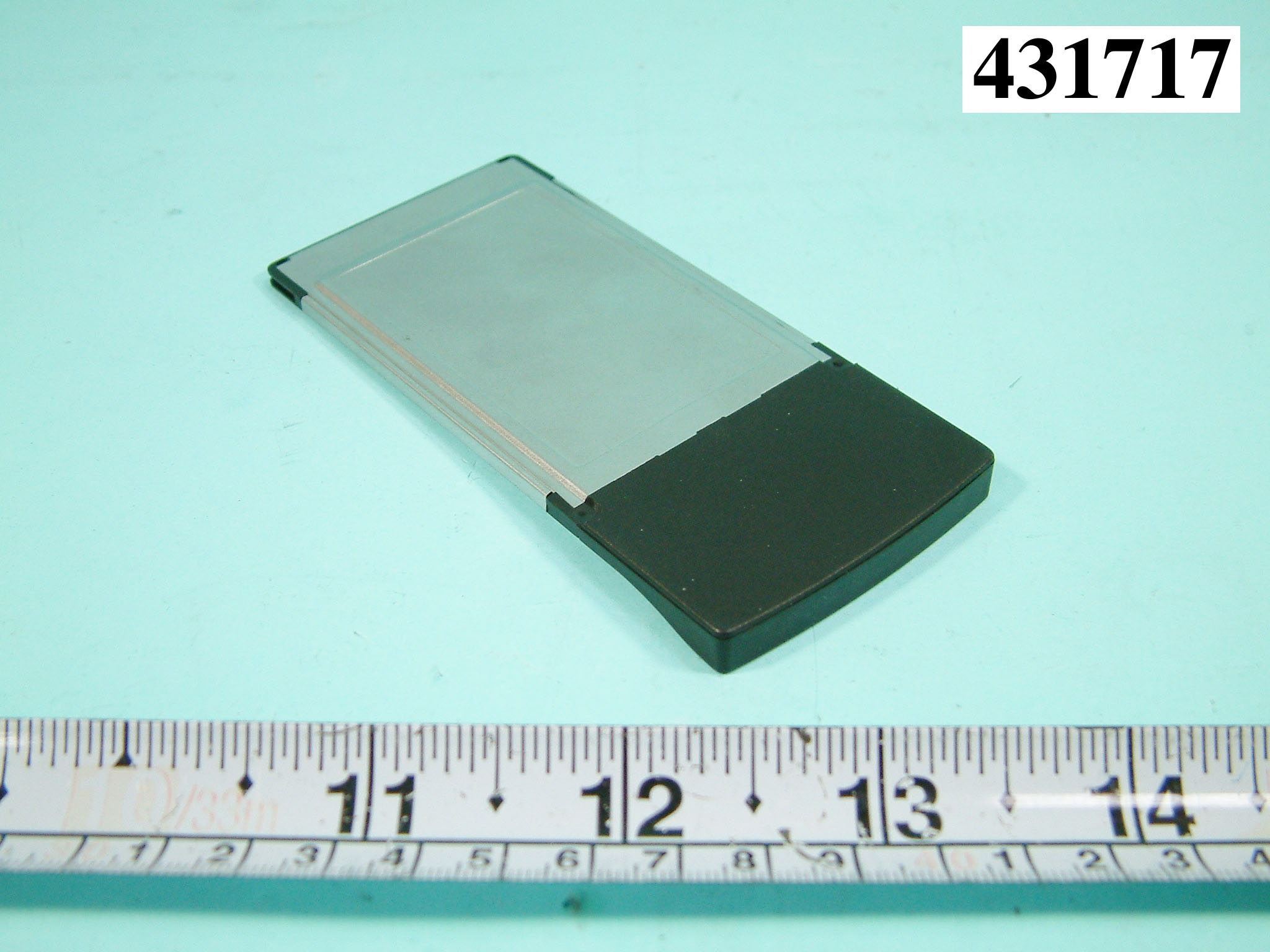

APPENDIX A. Photographs of EUT

External Photos

APPENDIX A. Photographs of EUT

ID Label/Location Info

FCC ID: QS3WGDPR1 Label Location

ID Label/Location Info

Size: 65 (L) x 40 (W) Card Bus Wireless LAN Card Model:G231 54Mbps / 2.4GHz FCC ID:QS3WGDPR1 Rating:3.3V Made in Taiwan This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

ID Label/Location Info

FCC ID: QS3WGDPR1 Label Location

ID Label/Location Info

Size: 65 (L) x 40 (W) Card Bus Wireless LAN Card Model:G231 54Mbps / 2.4GHz FCC ID:QS3WGDPR1 Rating:3.3V Made in Taiwan This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Internal Photos

REPORT NO. : F431717 SPORTON International Inc. PAGE NUMBER : A1 OF A1 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 31, 2004 FAX : 886-2-2696-2255 REPORT NO. : F431717 SPORTON International Inc. PAGE NUMBER : A2 OF A2 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 31, 2004 FAX : 886-2-2696-2255 REPORT NO. : F431717 SPORTON International Inc. PAGE NUMBER : A3 OF A3 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 31, 2004 FAX : 886-2-2696-2255 REPORT NO. : F431717 SPORTON International Inc. PAGE NUMBER : A4 OF A4 TEL : 886-2-2696-2468 ISSUED DATE : Mar. 31, 2004 FAX : 886-2-2696-2255

Operational Description

FCC ID:QS3WGDPR1 Description of Operation EUT is a Cardbus Wireless LAN Card with 13 channels. This device provided a convergence procedure for the 2, 5.5, and 11 Mbps mandatory 802.11b modes the optional PBCC-22 and PBCC-33 optional modes, and the optional CCK-OFDM modes at 6, 9, 12, 18, 24, 36, 48, and 54Mbit/s specification in which PSDUs are converted to and from PPDUs. The device adapts Direct Sequence Spread Spectrum (DSSS) and Orthogonal Frequency Division Multiplexing (OFDM) modulation. The antenna is Dipole Antenna, and there is no antenna connector . This Cardbus Wireless LAN Card is an IEEE 802.11g Wireless LAN adapter. It allows your computer to connect to a wireless network and to share resources, such as files or printers without being bound to the network wires. Operation in 2.4GHz Direct Sequence Spread Spectrum (DSSS) and Orthogonal Frequency Division Multiplexing (OFDM) radio transmission, the Cardbus Wireless LAN Card transfers data at speeds up to 64/128-bit Wired Equivalent Protection(WEP) algorithm is used. In addition, its standard compliance ensures that it can communicate with any 802.11g network.

Operational Description

FCC ID:QS3WGDPR1 Description of Operation EUT is a Cardbus Wireless LAN Card with 13 channels. This device provided a convergence procedure for the 2, 5.5, and 11 Mbps mandatory 802.11b modes the optional PBCC-22 and PBCC-33 optional modes, and the optional CCK-OFDM modes at 6, 9, 12, 18, 24, 36, 48, and 54Mbit/s specification in which PSDUs are converted to and from PPDUs. The device adapts Direct Sequence Spread Spectrum (DSSS) and Orthogonal Frequency Division Multiplexing (OFDM) modulation. The antenna is Dipole Antenna, and there is no antenna connector . This Cardbus Wireless LAN Card is an IEEE 802.11g Wireless LAN adapter. It allows your computer to connect to a wireless network and to share resources, such as files or printers without being bound to the network wires. Operation in 2.4GHz Direct Sequence Spread Spectrum (DSSS) and Orthogonal Frequency Division Multiplexing (OFDM) radio transmission, the Cardbus Wireless LAN Card transfers data at speeds up to 64/128-bit Wired Equivalent Protection(WEP) algorithm is used. In addition, its standard compliance ensures that it can communicate with any 802.11g network.

RF Exposure Info

©2003 SPORTON International Inc..SAR Testing Lab Tel:886-22696-2468 Fax:886-2-2696-2255 FCC SAR Test Report Test Report No ﹕ F431717 Specific Absorption Rate (SAR) Test Report for TwinMOS Technologies Inc. on the Card Bus Wireless LAN Card FCC ID : QS3WGDPR1 Report No. : F431717 Brand Name : TwinMOS Date of Testing : Mar. 31, 2004 Date of Report : Apr. 6, 2004 Date of Review : Apr. 6, 2004 ‚ The test results refer exclusively to the presented test model / sample only. ‚ Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. SPORTON International Inc. 6F, No.106, Sec. 1, Hsin Tai Wu Rd., Hsi Chih, Taipei Hsien, Taiwan, R.O.C. ©2003 SPORTON International Inc..SAR Testing Lab Tel:886-22696-2468 Fax:886-2-2696-2255 FCC SAR Test Report Test Report No ﹕ F431717 Table of Contents 1. Statement of Compliance ...................................................................................................................................................... 1 2. Administration Data ............................................................................................................................................................. 2 2.1. Testing Laboratory......................................................................................................................................................... 2 2.2. Detail of Applicant......................................................................................................................................................... 2 2.3. Detail of Manfacturer .................................................................................................................................................... 2 2.4. Application Detail.......................................................................................................................................................... 2 3. Scope....................................................................................................................................................................................... 3 3.1. Description of Device Under Test (DUT) ...................................................................................................................... 3 3.2. Applied Standards:......................................................................................................................................................... 5 3.3. Device Category and SAR Limits................................................................................................................................... 5 3.4. Test Conditons................................................................................................................................................................ 6 3.4.1. Ambient Condition: ................................................................................................................. 6 3.4.2. Test Configuration: .................................................................................................................. 6 4. Specific Absorption Rate (SAR) ........................................................................................................................................... 7 4.1. Introduction ................................................................................................................................................................... 7 4.2. SAR Definition ............................................................................................................................................................... 7 5. SAR Measurement Setup...................................................................................................................................................... 8 5.1. DASY4 E-Field Probe System ........................................................................................................................................ 9 5.1.1. ET3DV6 E-Field Probe Specification ................................................................................... 10 5.1.2. ET3DV6 E-Field Probe Calibration....................................................................................... 10 5.2. DATA Acquisition Electronics (DAE) ...........................................................................................................................11 5.3. Robot............................................................................................................................................................................ 12 5.4. Measurement Server .................................................................................................................................................... 12 5.5. SAM Twin Phantom ..................................................................................................................................................... 12 5.6. Data Storage and Evaluation....................................................................................................................................... 14 5.6.1. Data Storage ........................................................................................................................... 14 5.6.2. Data Evaluation...................................................................................................................... 14 5.7. Test Equipment List...................................................................................................................................................... 17 6. Tissue Simulating Liquids .................................................................................................................................................. 18 7. Uncertainty Assessment...................................................................................................................................................... 20 8. SAR Measurement Evaluation ........................…

Text truncated - open the document above for the full version.

RF Exposure Info

©2003 SPORTON International Inc..SAR Testing Lab Tel:886-22696-2468 Fax:886-2-2696-2255 FCC SAR Test Report Test Report No ﹕ F431717 Specific Absorption Rate (SAR) Test Report for TwinMOS Technologies Inc. on the Card Bus Wireless LAN Card FCC ID : QS3WGDPR1 Report No. : F431717 Brand Name : TwinMOS Date of Testing : Mar. 31, 2004 Date of Report : Apr. 6, 2004 Date of Review : Apr. 6, 2004 ‚ The test results refer exclusively to the presented test model / sample only. ‚ Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. SPORTON International Inc. 6F, No.106, Sec. 1, Hsin Tai Wu Rd., Hsi Chih, Taipei Hsien, Taiwan, R.O.C. ©2003 SPORTON International Inc..SAR Testing Lab Tel:886-22696-2468 Fax:886-2-2696-2255 FCC SAR Test Report Test Report No ﹕ F431717 Table of Contents 1. Statement of Compliance ...................................................................................................................................................... 1 2. Administration Data ............................................................................................................................................................. 2 2.1. Testing Laboratory......................................................................................................................................................... 2 2.2. Detail of Applicant......................................................................................................................................................... 2 2.3. Detail of Manfacturer .................................................................................................................................................... 2 2.4. Application Detail.......................................................................................................................................................... 2 3. Scope....................................................................................................................................................................................... 3 3.1. Description of Device Under Test (DUT) ...................................................................................................................... 3 3.2. Applied Standards:......................................................................................................................................................... 5 3.3. Device Category and SAR Limits................................................................................................................................... 5 3.4. Test Conditons................................................................................................................................................................ 6 3.4.1. Ambient Condition: ................................................................................................................. 6 3.4.2. Test Configuration: .................................................................................................................. 6 4. Specific Absorption Rate (SAR) ........................................................................................................................................... 7 4.1. Introduction ................................................................................................................................................................... 7 4.2. SAR Definition ............................................................................................................................................................... 7 5. SAR Measurement Setup...................................................................................................................................................... 8 5.1. DASY4 E-Field Probe System ........................................................................................................................................ 9 5.1.1. ET3DV6 E-Field Probe Specification ................................................................................... 10 5.1.2. ET3DV6 E-Field Probe Calibration....................................................................................... 10 5.2. DATA Acquisition Electronics (DAE) ...........................................................................................................................11 5.3. Robot............................................................................................................................................................................ 12 5.4. Measurement Server .................................................................................................................................................... 12 5.5. SAM Twin Phantom ..................................................................................................................................................... 12 5.6. Data Storage and Evaluation....................................................................................................................................... 14 5.6.1. Data Storage ........................................................................................................................... 14 5.6.2. Data Evaluation...................................................................................................................... 14 5.7. Test Equipment List...................................................................................................................................................... 17 6. Tissue Simulating Liquids .................................................................................................................................................. 18 7. Uncertainty Assessment...................................................................................................................................................... 20 8. SAR Measurement Evaluation ........................…

Text truncated - open the document above for the full version.

Test Report

FCC ID: QS3WGDPR1 Issued on Mar. 31, 2004 Report No.: F431717 SPORTON International Inc. TEL : 886-2-2696-2468 FAX : 886-2-2696-2255 FCC TEST REPORT CATEGORY : Portable End Product PRODUCT NAME : Card Bus Wireless LAN Card FCC ID. : QS3WGDPR1 FILING TYPE : Certification BRAND NAME : TwinMOS…

Text truncated - open the document above for the full version.

Contact Information

Applicant

Sam Hsu(Manager)
[email protected]+886-3-597-1755Fax: +886-3-597-8422

Technical Contact

Sporton International Inc.Alan Lane
[email protected]+886 3 327 3456

No. 52 Hwa Ya First Road, Hwa YaTechnology Park · Taoyuan · Taiwan

Test Firm

SPORTON International IncKathy Lin
[email protected]886-2-2696-2468Fax: 886-2-2696-2255

Technical Specifications

#Rule PartsFrequency RangePower Output
115C2.41 GHz - 2.46 GHz52.00 mW
Confidentiality
Long Term
Grant Notes
Power Output is Conducted. SAR compliance is limited to notebook computers with side mounted PCMCIA ports or similar configurations as illustrated in this filing. This device must not be co-located or operating in conjunction with any other antenna or transmitter. Compliance of this device in all final host configurations is the responsibility of the Grantee. End-users must be provided with specific information required to satisfy RF exposure compliance for all final host devices. The highest reported SAR value is: Body 0.38W/kg
