QSWAHRCS2ANT + HEART RATE TRANSMITTER (ZT22A)

Zentan Technology Co., Ltd.
ANT + HEART RATE TRANSMITTER (ZT22A) - FCC ID QSWAHRCS2 - Zentan Technology Co., Ltd.
Click to zoom

Application Details

Equipment Class
DXX - Part 15 Low Power Communication Device Transmitter
Date of Grant
Mar 27, 2011
Application Purpose
Original Equipment
Date of Application
Mar 27, 2011
Equipment Note
ANT + HEART RATE TRANSMITTER (ZT22A)
Frequency Range
2457.00000000 - 2457.00000000
Company
Zentan Technology Co., Ltd.
Country
Taiwan

Documents & Files

Select a file to view

Users Manual

↗

Block Diagram

↗

Cover Letter(s)

↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

Operational Description

↗
↗

Schematics

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

FCC ID: QSWAHRCS2 FCC Compliance and Advisory Statement This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions:(1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, according to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try correct the interference by one or more of the following measures: 1.Reorient the receiving antenna. 2.Increase the separation between the equipment and receiver. 3.Connect the equipment into and outlet on a circuit different from that to which the receiver is connected. 4.Consult the dealer or an experienced radio/TV technician for help. Any special accessories needed for compliance must be specified in the instruction manual. Warning: A shielded-type power cord is required in order to meet FCC emission limits and also to prevent interference to the nearby radio and television reception. It is essential that only the supplied power cord be used. Use only shielded cables to connect I/O devices to this equipment. CAUSION: Any changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment.

External Photos

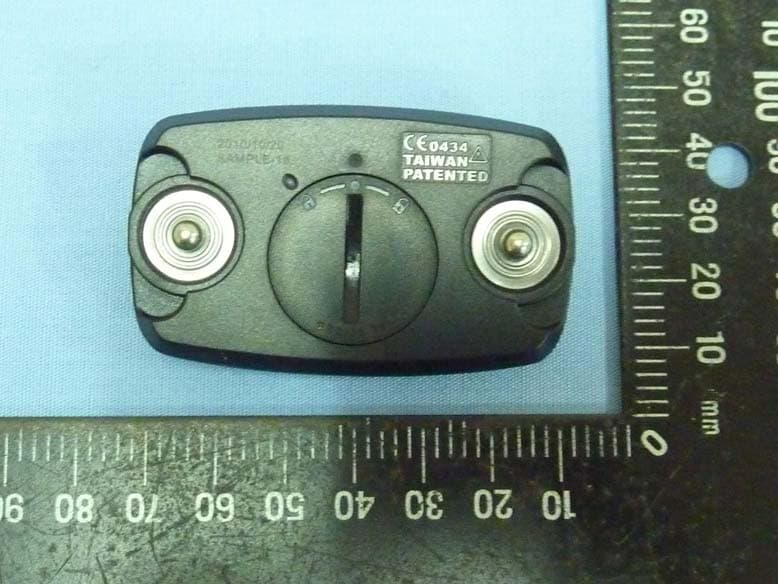

Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. Reference No.: A10122406 Photo Page: 1 of 3 PHOTOS OF EUT

ID Label/Location Info

Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. Sample of FCC ID Label The device is so small that the 2 parts warning statement does not have to go on the device. It will be really hard to read. We remove the 2 parts statement from the device since we already have it in the manual. FCC ID :QSWAHRCS2

Internal Photos

Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. Reference No.: A10122406 Photo Page: 2 of 3 PHOTOS OF EUT Spectrum Research & Testing Lab., Inc. No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. Reference No.: A10122406 Photo Page: 3 of 3 PHOTOS OF EUT - PCB

Operational Description

FCC ID: QSWAHRCS2 Operational Description of the equipment PRODUCT ANT + Heart Rate Transmitter MODEL NO. ZT22A POWER SUPPLY DC power source from battery : 3Vdc/65uA CABLE NA FREQUENCY BAND 2.400GHz ~ 2.483.5GHz CARRIER FREQUENCY 2.457GHz CHANNEL SPACING NA NUMBER OF CHANNEL 1 RATED RF OUTPUT POWER 82.8dBuV/m MODULATION TYPE GFSK BIT RATE OF TRANSMISSION250Kbit/sec MODE OF OPERATION Simplix ANTENNA TYPE Chip Antenna ANTENNA GAIN 2 dBi OPERATING TEMPERATURE RANGE -10 ~ 60°C

Operational Description

TECHNOLOGICAL SPEC. 1. Product Name: ANT+ Heart Rate Transmitter Model: ZT22A Brand: 2. Power Source: DC 3 V, 65 uA 3. Frequency Band: 2400MHz ~ 2480MHz Carrier Frequency: 2457 MHz 4. Number of Channel: 1 5. Channel Spacing: 1MHz 6. RF Output Power (ERP or EIRP) : 82.8 dBuV/m 7. I.F.: MHz; L.O.: MHz 8. Modulation Type: GFSK 9. Duty Cycle: 0.08 % 10. Mode of operation (duplex, simplex, half duplex) : Simplx 11. Bit Rate of Transmission: 250 Kbit/sec 12. Antenna Type: Chip antenna 13. Antenna gain: 2 dBi 14. Operating Temperature Range: -10 ~ +60 °C 15. Channel bandwidth : 1 MHZ
