Instructions for your BODY BIKE Indoor Cycle BODY BIKE ® INDOOR CYCLE BODY BIKE Connect L U B R I C A T I O N F R E E TABLE OF CONTENTSEquipment required 2 Introduction 3 Certification 4 Warranty 5 Specifications 5 General information 6 AssemblyUnpacking 7 Bottom frame 7 Handlebar 8 Console 8 Bottle holder 9 Saddle 9 Pedals 9 MaintenanceCleaning 10 Sideways play in posts 10 Cleaning the posts 11 Adjustment handles 12 Replace console batteries 12 Replace control box batteries 13Removal of side covers 13 Replace brake block 14 Calibration 15 Poly-V belt 16 Using the consoleOn, off and reset 17 Push buttons 17 Default settings 17 Tips and information 18 Heart rate 19 Age or MHR and weight 20 Watt test 20 Navigation, scan andthe five screens 22 Troubleshooting 24 Connect to otherANT+ devices 26 BODY BIKE heart ratetransmitter 26 Index 27 For instructions in other languages go to:www.body-bike.com EQUIPMENT REQUIREDUnpacking: Drill and drill bit Bottom frame : 13mm wrench Console : 3 and 4mm Allen Key Saddle: 14mm wrench Pedals : 15mm pedal wrench, grease Cleaning : Tissue paper or cloth, spray bottle with water, soap (washing-up liquid), Vaseline oilSideways play in posts: A coin, 3mm Allen Key, 32mm wrenchPost cleaning : Cloth, Vaseline oil Adjustment handle: 5mm Allen Key, screwdriver, steel brush, grease, brushReplace console batteries : 3mm Allen KeyReplace control box batteries : A coinSide covers: A coin, 3, 4, 8mm Allen Keys, 13mm wrenchBrake block : A coin, 8mm wrench, 3mm Allen KeyCalibration: A coin, 8mm wrench Poly-V belt: A coin, 10mm Allen Key, 19mm wrench, measuring device BODY BIKE ® INDOOR CYCLE INTRODUCTIONThis manual provides information on the assembly and maintenance of the BODY BIKE indoor cycle. It also holds information about the use of the BODY BIKE Performance Console. The manual is intended for the owners and service people responsible for cleaning and maintenance. Before assembling the cycle, please read the manual and prepare the correct tools, see equipment required page 2. When assembling the cycle, we recommend that you follow the manual step by step. Maintaining the cycle is very important. In the manual you will find clear instructions on how to maintain the cycle. Over time it will be necessary to replace worn-out parts. You will find a detailed description and exploded drawings of BODY BIKE’s spare parts on our website www.body-bike.com. When ordering spare parts from the local BODY BIKE distributor, please refer to the item number (P/N no.) in order to make sure you will receive the correct spare part.We recommend that you order original parts, accessories and materials necessary for the maintenance of the cycle at your local BODY BIKE distributor. For further information on accessories, please check our website www.body-bike.com. We wish you the best of luck with your BODY BIKE indoor cycle 3 5 WARRANTYWarranty for the Danish manufac-tured BODY BIKE Indoor Cycle:A two-year warranty against manufacturing defects, excluding normal wear and tear, is given for the console, load cell, brake unit, flywheel and pulley. A three year warranty is given on the crank and the pedal arms, and a five year warranty is given against frame breakage.Consumable items (such as the poly V-belt, brake pad, handlebar rubber, saddle and pedals, batteries etc.) which are subject to continuous wear and tear, are not covered by this warranty. There is currently no warranty applying to the pedals.The warranty only applies to cycles equipped with original BODY BIKE spare parts. All warranties are cancelled if the cycle has been modified or in any way not used as intended. The warranty does not cover any accessories used together with the BODY BIKE Performance Console. Data transfer between the cycle and non-BODY BIKE products is not guaranteed by any warranty.All warranties are cancelled if the console or control box has been disassembled. Maximum user weight150kg (Please note that the max. pedal load may be lower)Console featuresABS plastic with POM battery hatchLCD Display of the FSTN typeAcrylic glass lensANT+ wireless data transferCompatible with most heart rate trans-mitters, but BODY BIKE recommends use of ANT+ heart rate transmittersWater resistant (IPX2)Console battery: 3 AAA (DC 4,5V 30mA), battery life: 450 hours*Control box battery: 3 AA (DC 4,5V 30mA), battery life: 400 hours* *depending on usage.CE 1177 CertifiedFCC Certified.FCC ID: QSWAPWDBBMaterialsCast ironStainless steelPlastic (ABS) coversHigh quality bearingsFrame: Robot-welded, powder coated and hardened. SPECIFICATIONSManufacturer:BODY BIKE International A/SPier 6 NordDK-9900 FrederikshavnDenmarkTlf: +45 9843 9696 www.body-bike.comProduct description:Indoor watt cycle with consoleLength, Width, Height:Assembled: 105x60x100cmPacked (5 cycles): 120x80x114cm Patent held for:Crank systemWeight:Assembled: 65kgPacked weight(5 cycles): 350kg GENERAL INFORMATIONBefore beginning any exercise, please consult your physicianWipe off the cycle after EVERY useALWAYS loosen all handles and release tension after useThe rubber feet should always be adjusted to ensure that the cycle is levelEvery other year the rubber feet should be replaced as the rubber hardens and becomes unable to absorb the impactTighten the pedals every 14 days or every month to avoid them getting loose or breaking offPedals should be changed once a yearInspect the Kevlar brake pad after the first monthand hereafter every three months to make sure it is not worn throughDO NOT perform stretch exercises on the cycle, pedals or up against the cycle, except against the stretch area at the rear end of the cycle DO NOT switch the front or seat post from one cycle to anotherDO NOT lift the cycle by the saddleDO NOT switch console from one bike to another unless recodingImmediately change battery in console when the icon below is shown on the screenImmediately change battery in control box when the icon below is shown on the screenDO NOT pedal fast in attempt to set…
Text truncated - open the document above for the full version.

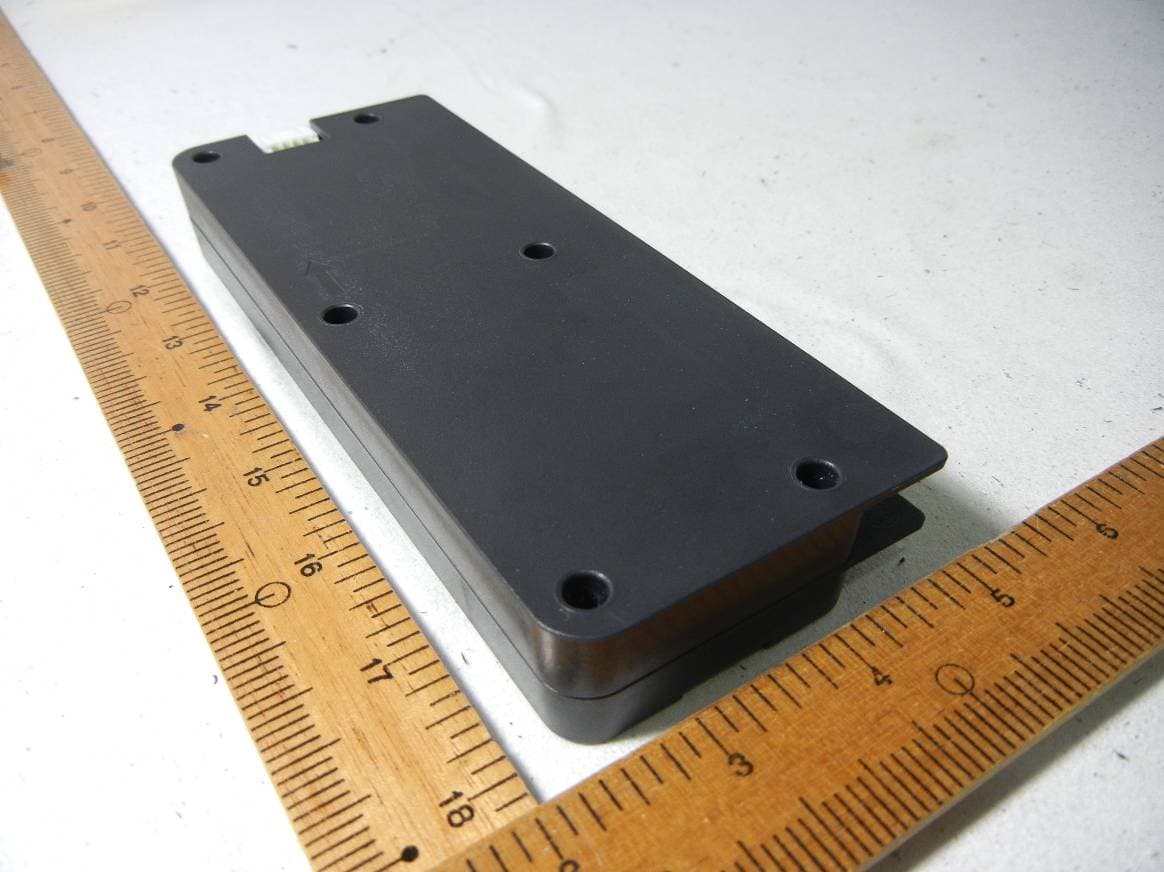

CERPASS TECHNOLOGY CORP. Report No.: TEFI1205045 Cerpass Technology Corp. Issued Date : May 18, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : A1 of A2 FCC ID : QSWAPWDBB Appendix A. Photographs of EUT CERPASS TECHNOLOGY CORP. Report No.: TEFI1205045 Cerpass Technology Corp. Issued Date : May 18, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : A2 of A2 FCC ID : QSWAPWDBB
Label & Location
CERPASS TECHNOLOGY CORP. Report No.: TEFI1205045 Cerpass Technology Corp. Issued Date : May 18, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : A1 of A2 FCC ID : QSWAPWDBB Appendix A. Photographs of EUT CERPASS TECHNOLOGY CORP. Report No.: TEFI1205045 Cerpass Technology Corp. Issued Date : May 18, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : A2 of A2 FCC ID : QSWAPWDBB
CERPASS TECHNOLOGY CORP. Report No.: TEFI1205045 Cerpass Technology Corp. Issued Date : May 18, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 1 of 25 FCC ID : QSWAPWDBB FCC TEST REPORT according to FCC Part 15, Subpart C (15.249) / ANSI C63.4: 2009 The test result refers exclusively to the test presented test model / sample., Without written approval of Cerpass Technology Corp. the test report shall not be reproduced except in full. Applicant : Zentan Technology Co., Ltd. Address : NO.92, Hsing-Sheng Road,Chia-Li District 72254 Tainan City, Taiwan R.O.C. Equipment : Performance console and control box Model No. : 98180003-98180005 FCC ID : QSWAPWDBB Trade Name : BODY BIKE CERPASS TECHNOLOGY CORP. Report No.: TEFI1205045 Cerpass Technology Corp. Issued Date : May 18, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 2 of 25 FCC ID : QSWAPWDBB Contents 1. Report of Measurements and Examinations ......................................................................................... 5 1.1. List of Measurements and Examinations ................................................................................... 5 2. Test Configuration of Equipment under Test ......................................................................................... 6 2.1. Feature of Equipment under Test ............................................................................................... 6 2.2. Test Mode and Test Software ..................................................................................................... 6 2.3. Description of Test System ......................................................................................................... 6 3. General Information of Test ................................................................................................................... 7 4. Test of Conducted Emission ................................................................................................................. 8 4.1. Test Limit .................................................................................................................................... 8 4.2. Test Procedures ......................................................................................................................... 8 4.3. Typical Test Setup ...................................................................................................................... 9 4.4. Test Result and Data .................................................................................................................. 9 5. Test of Radiated Emission .................................................................................................................. 10 5.1. Test Limit .................................................................................................................................. 10 5.2. Test Procedures ....................................................................................................................... 10 5.3. Typical Test Setup Layout of Radiated Emission ..................................................................... 11 5.4. Measurement equipment ......................................................................................................... 11 5.5. Test Result and Data ................................................................................................................ 12 5.6. Test Photographs ..................................................................................................................... 24 Appendix A. Photographs of EUT.......................................................................................A1 ~ A4 CERPASS TECHNOLOGY CORP. Report No.: TEFI1205045 Cerpass Technology Corp. Issued Date : May 18, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 3 of 25 FCC ID : QSWAPWDBB History of this test report ORIGINAL. Additional attachment as following record: Attachment No. Issue Date Description TEFI1205045 May 18, 2012 Original. CERPASS TECHNOLOGY CORP. Report No.: TEFI1205045 Cerpass Technology Corp. Issued Date : May 18, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 4 of 25 FCC ID : QSWAPWDBB CERTIFICATE OF COMPLIANCE according to FCC Part 15, Subpart C (15.249) / ANSI C63.4: 2009 Applicant : Zentan Technology Co., Ltd. Address : NO.92, Hsing-Sheng Road,Chia-Li District 72254 Tainan City, Taiwan R.O.C. Equipment : Performance console and control box Model No. : 98180003-98180005 FCC ID : QSWAPWDBB I HEREBY CERTIFY THAT : The measurements shown in this test report were made in accordance with the procedures given in ANSI C63.4. The equipment was passed the test performed according to FCC Part 15, Subpart C (15.249) / ANSI C63.4: 2009. The test was carried out on May 15, 2012 at Cerpass Technology Corp. Signature Hill Chen EMC/RF B.U. Assistant Manager CERPASS TECHNOLOGY CORP. Report No.: TEFI1205045 Cerpass Technology Corp. Issued Date : May 18, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 5 of 25 FCC ID : QSWAPWDBB 1. Report of Measurements and Examinations 1.1. List of Measurements and Examinations FCC Rule Test Type Result Remark 15.207 Conducted Emission Pass 4.5Vdc from batteries 15.209 15.249 Radiated Emission Pass Minimum Passing margin is -6.57dB at 37.70 MHz Note: the information of measurement uncertainty is available upon the customer’s request. CERPASS TECHNOLOGY CORP. Report No.: TEFI1205045 Cerpass Technology Corp. Issued Date : May 18, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 6 of 25 FCC ID : QSWAPWDBB 2. Test Configuration of Equipment under Test 2.1. Feature of Equipment under Test - Console in ABS plastic with POM battery hatch. - LCD Display of the FSTN type with acrylic glass lens. - ANT+ wireless data transfer. - Compatible with most heart rate transmitters, but BODY BIKE recommends use of ANT+. - Console battery: 3 AAA (DC 4.5V 30mA), battery life: 450 hours depending on usage. - Speed transmitter battery: 1…
Text truncated - open the document above for the full version.
CERPASS TECHNOLOGY CORP. Report No.: TEFI1205045 Cerpass Technology Corp. Issued Date : May 18, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 24 of 25 FCC ID : QSWAPWDBB 5.6. Test Photographs (30MHz~1GHz) Front View Rear View CERPASS TECHNOLOGY CORP. Report No.: TEFI1205045 Cerpass Technology Corp. Issued Date : May 18, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 25 of 25 FCC ID : QSWAPWDBB (Above 1GHz) Front View Rear View
