QSWBHRCS1TP3 SMART HEART RATE TRANSMITTER (ZT26B)

Zentan Technology Co., Ltd.
TP3 SMART HEART RATE TRANSMITTER (ZT26B) - FCC ID QSWBHRCS1 - Zentan Technology Co., Ltd.
Click to zoom

Application Details

Equipment Class
DXX - Part 15 Low Power Communication Device Transmitter
Date of Grant
Feb 07, 2013
Application Purpose
Original Equipment
Date of Application
Feb 07, 2013
Equipment Note
TP3 SMART HEART RATE TRANSMITTER (ZT26B)
Frequency Range
2402.00000000 - 2480.00000000
Company
Zentan Technology Co., Ltd.
Country
Taiwan

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗
↗
↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

Operational Description

↗
↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

▪ Attach one end of the adjustable elastic strap to the transmitter ▪ Moisten the rubber electrodes of the belt with either water or saliva as shown ▪ Position the transmitter on the chest just below the breastbone, with the Cardiosport logo the right way up. ▪ Pass the elastic strap around your chest and attach to the other end of the transmitter. ▪ Adjust the strap to give a close but comfortable fit. 1 2 CAUTION RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN IN CORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS FCC Compliance and Advisory Statement This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions:(1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, according to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try correct the interference by one or more of the following measures: 1. Reorient the receiving antenna. 2. Increase the separation between the equipment and receiver. 3. Connect the equipment into and outlet on a circuit different from that to which the receiver is connected. 4. Consult the dealer or an experienced radio/TV technician for help. Any special accessories needed for compliance must be specified in the instruction manual. Warning: A shielded-type power cord is required in order to meet FCC emission limits and also to prevent interference to the nearby radio and television reception. It is essential that only the supplied power cord be used. Use only shielded cables to connect I/O devices to this equipment. CAUSION: Any changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment. IC statement: This Class B digital apparatus complies with Canadian ICES-003.Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. FCC ID: QSWBHRCS1

External Photos

Spectrum Research & Testing Lab., Inc. No.167,Ln. 780, Shan-Tong Rd.,Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan County 320, Taiwan (R.O.C.) PHOTOS OF EUT - External

ID Label/Location Info

Spectrum Research & Testing Lab., Inc. No.167,Ln. 780, Shan-Tong Rd.,Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan County 320, Taiwan (R.O.C.) FCC ID:QSWBHRCS1

Internal Photos

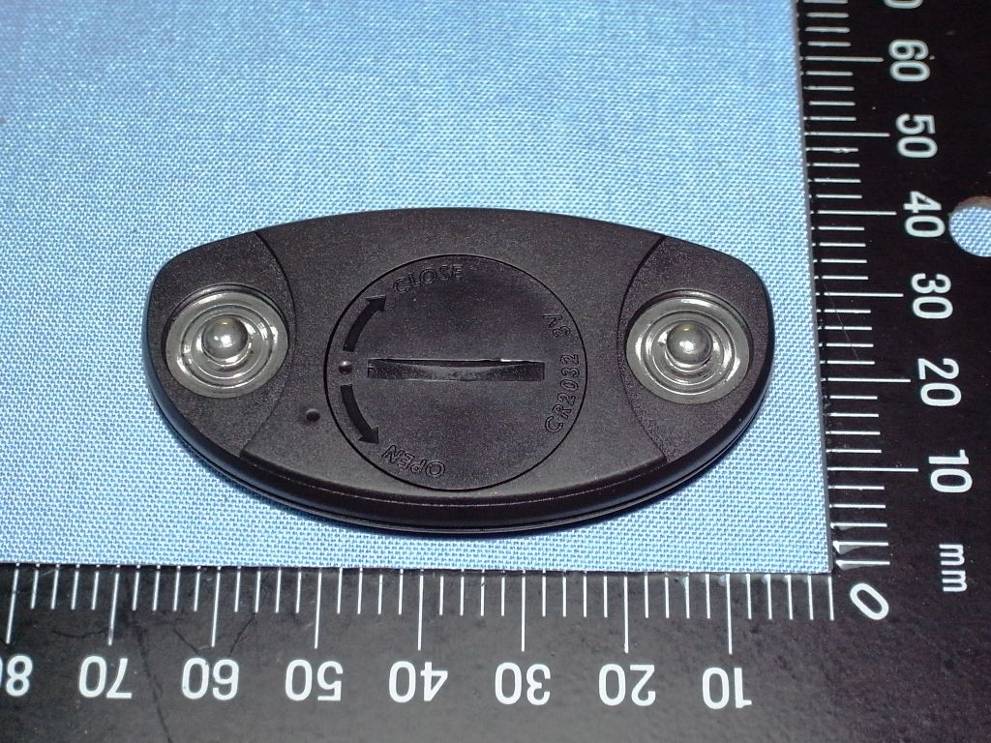

Spectrum Research & Testing Lab., Inc. No.167,Ln. 780, Shan-Tong Rd.,Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan County 320, Taiwan (R.O.C.) PHOTOS OF EUT - Internal TOP Spectrum Research & Testing Lab., Inc. No.167,Ln. 780, Shan-Tong Rd.,Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan County 320, Taiwan (R.O.C.) PCB Spectrum Research & Testing Lab., Inc. No.167,Ln. 780, Shan-Tong Rd.,Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan County 320, Taiwan (R.O.C.) CASE Spectrum Research & Testing Lab., Inc. No.167,Ln. 780, Shan-Tong Rd.,Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan County 320, Taiwan (R.O.C.) Battery

Operational Description

TP3 smart Heart Rate Transmitter (ZT26B) RF IC was used TEXAS INSTRUMENTS IC: CC2541 ICC2541: 2.4 GHz Bluetooth low energy Compliant and Proprietary RF System-on-Chip Bluetooth low energy Robustness: Adaptive Frequency Hopping, 24 bit CRC Splits the 2.4 GHz ISM band into 40 channels 1. 3 Advertising Channels 2. 37 Data Channels 3. fn = 2402 + 2n MHz Separate Advertising & Data Channels Data Channels Used to transfer reliable data robustly 1. adaptive frequency hopping over 37 channels 2. fast acknowledgement scheme 3. if data doesn’t get through, resent on next frequency Advertising Channels 1. 2402, 2426, 2480 MHz. Avoids interference with Wi-Fi traffic 2. Used by peripherals to advertise presence 3. when first powered on 4. when they have data to send - central devices connect and get data 5. just to broadcast data to anybody scanning

Operational Description

TECHNOLOGICAL SPEC. 1. Product Name: TP3 smart Heart Rate Transmitter Model: ZT26B 2. Power Source: ■ DC 3.0 V, mA; □ AC V, A 3. Frequency Band: 2.4 GHz (Bluetooth V4.0 Low Energy, no BR/EDR ) Carrier Frequency: 2.402 GHz ~ 2.480 GHz 4. Number of Channel: 40 5. Channel Spacing: 2 MHz 6. RF Output Power (ERP or EIRP) : -15.62 dBm 0.000027 W 7. I.F.: MHz; L.O.: MHz 8. Modulation Type: GFSK 9. Duty Cycle: % 10. Mode of operation (duplex, simplex, half duplex) : Duplex 11. Bit Rate of Transmission: 12. Antenna Type: Chip Antenna 13. Antenna gain: 2 dBi 14. Operating Temperature Range: -10 ~ 50 °C 15. Channel bandwidth : 2 MHz

Test Report

Spectrum Research & Testing Lab., Inc. No.167,Ln. 780, Shan-Tong Rd.,Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan County 320, Taiwan (R.O.C.) TEST REPORT Reference No.: A13011002 Report No.:FCCA13011002 FCC ID : QSWBHRCS1 Page: 1 of 69 Date: Feb. 01, 2013 FMNG-059.11 REPORT Product Name: TP3 smart Heart Rate Transmitter Model No.: ZT26B Applicant: Zentan Technology Co., Ltd. No. 92, Hsing-Sheng Rd., Chia-Li Cheng, Tainan Hsien, 722 Taiwan Date of Receipt: Jan. 10, 2013 Finished date of Test: Feb. 01, 2013 Applicable Standards: 47 CFR Part 15, Subpart C 47 CFR Part 15, Subpart B ANSI C63.4: 2003 Public Notice DA 00-705 (March 2000) We, Spectrum Research & Testing Laboratory Inc., hereby certify that one sample of the above was tested in our laboratory with positive results according to the above-mentioned standards. The records in the report are an accurate account of the results. Details of the results are given in the subsequent pages of this report. Tested By : , Date: Approved By : (Richard Lin) , Date: ( Johnson Ho, Director ) Spectrum Research & Testing Lab., Inc. No.167,Ln. 780, Shan-Tong Rd.,Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan County 320, Taiwan (R.O.C.) TEST REPORT Reference No.: A13011002 Report No.:FCCA13011002 FCC ID : QSWBHRCS1 Page: 2 of 69 Date: Feb. 01, 2013 FMNG-059.11 REPORT Revisions History Report No. Issue Date Revisions FCCA13011002 Jan. 22, 2013 Initial issue FCCA13011002 Feb. 01, 2013 Retest & change test result (6dB P32 Section 4.2.6), (20dB P50 Section 4.6.5) P6 Section 2.1 GENERAL DESCRIPTION OF EUT : Add NOTE description Spectrum Research & Testing Lab., Inc. No.167,Ln. 780, Shan-Tong Rd.,Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan County 320, Taiwan (R.O.C.) TEST REPORT Reference No.: A13011002 Report No.:FCCA13011002 FCC ID : QSWBHRCS1 Page: 3 of 69 Date: Feb. 01, 2013 FMNG-059.11 REPORT Table of Contents 1. DOCUMENT POLICY AND TEST STATEMENT .................................................. 5 1.1 DOCUMENT POLICY......................................................................................... 5 1.2 TEST STATEMENT ............................................................................................ 5 1.3 EUT MODIFICATION ......................................................................................... 5 2. DESCRIPTION OF EUT AND TEST MODE......................................................... 6 2.1 GENERAL DESCRIPTION OF EUT ................................................................... 6 2.2 DESCRIPTION OF EUT INTERNAL DEVICE .................................................... 6 2.3 EUT OPERATING CONDITION ......................................................................... 6 2.4 DESCRIPTION OF TEST MODE ....................................................................... 7 2.5 DESCRIPTION OF SUPPORT UNIT ................................................................. 7 2.6 CHANNEL AND FREQUENCY TABLE............................................................... 8 3. DESCRIPTION OF APPLIED STANDARDS ........................................................ 9 3.1 SUMMARY OF TEST RESULTS ........................................................................ 9 4. TECHNICAL CHARACTERISTICS TEST.......................................................... 10 4.1 RADIATED EMISSION TEST ........................................................................... 10 4.1.1 LIMIT ............................................................................................................. 10 4.1.2 TEST EQUIPMENT ........................................................................................11 4.1.3 TEST SET-UP ............................................................................................... 12 4.1.4 TEST PROCEDURE ..................................................................................... 14 4.1.5 TEST RESULT .............................................................................................. 15 4.2 6DB BANDWIDTH............................................................................................ 31 4.2.1 LIMIT ............................................................................................................. 31 4.2.2 TEST EQUIPMENT ....................................................................................... 31 4.2.3 TEST SET-UP ............................................................................................... 31 4.2.4 TEST PROCEDURE ..................................................................................... 31 4.2.5 EUT OPERATING CONDITION .................................................................... 31 4.2.6 TEST RESULT .............................................................................................. 32 4.3 PEAK POWER TEST ....................................................................................... 34 4.3.1 LIMIT ............................................................................................................. 34 4.3.2 TEST EQUIPMENT ....................................................................................... 34 4.3.3 TEST SET-UP ............................................................................................... 35 4.3.4 TEST PROCEDURE ..................................................................................... 35 4.3.5 EUT OPERATING CONDITION .................................................................... 35 4.3.6 TEST RESULT .............................................................................................. 36 4.4 BAND EDGE TEST .......................................................................................... 38 4.4.1 LIMIT ............................................................................................................. 38 4.4.2 TEST EQUIPMENT ....................................................................................... 39 4.4.3 TEST SETUP ...................................................................…

Text truncated - open the document above for the full version.

Test Setup Photos

Spectrum Research & Testing Lab., Inc. No.167,Ln. 780, Shan-Tong Rd.,Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan County 320, Taiwan (R.O.C.) PHOTOS OF TESTING - Radiated test (below 30M, TX & Standby) Spectrum Research & Testing Lab., Inc. No.167,Ln. 780, Shan-Tong Rd.,Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan County 320, Taiwan (R.O.C.) - Radiated test (below 30M, Link) Spectrum Research & Testing Lab., Inc. No.167,Ln. 780, Shan-Tong Rd.,Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan County 320, Taiwan (R.O.C.) - Radiated test (below 1G, TX & Standby) Spectrum Research & Testing Lab., Inc. No.167,Ln. 780, Shan-Tong Rd.,Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan County 320, Taiwan (R.O.C.) - Radiated test (below 1G, Link) Spectrum Research & Testing Lab., Inc. No.167,Ln. 780, Shan-Tong Rd.,Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan County 320, Taiwan (R.O.C.) - Radiated test (above 1G, TX & Standby) Spectrum Research & Testing Lab., Inc. No.167,Ln. 780, Shan-Tong Rd.,Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan County 320, Taiwan (R.O.C.) - Radiated test (above 1G, Link)

Contact Information

Applicant

Winner Chen(General Manager)
[email protected]886-6-7232226Fax: 886-6-7231289

Test Firm

Spectrum Research & Testing Laboratory, IncJohnson Ho
[email protected]886-3-4987684Fax: 886-3-4986528

Technical Specifications

#Rule PartsFrequency RangePower Output
115C2.40 GHz - 2.48 GHz30.00 µW
Confidentiality
Long Term
Grant Notes
Power listed is conducted. This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter. End-users must be provided with specific operating instructions for satisfying RF exposure compliance.
