QSWBSPDCSSPEED (ZAS1B)/CADENCE (ZAS1B-C)

FCC Compliance and Advisory Statement This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions:(1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, according to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try correct the interference by one or more of the following measures: 1.Reorient the receiving antenna. 2.Increase the separation between the equipment and receiver. 3.Connect the equipment into and outlet on a circuit different from that to which the receiver is connected. 4.Consult the dealer or an experienced radio/TV technician for help. Any special accessories needed for compliance must be specified in the instruction manual. Warning: A shielded-type power cord is required in order to meet FCC emission limits and also to prevent interference to the nearby radio and television reception. It is essential that only the supplied power cord be used. Use only shielded cables to connect I/O devices to this equipment. CAUSION: Any changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment. Required notices to the User of Canada (RSS) Radio apparatus shall comply with the requirements to include required notices or statements to the user of equipment with each unit of equipment model offered for sale. The required notices are specified in the RSS documents (including RSS-Gen) applicable to the equipment model. These notices are required to be shown in a conspicuous location in the user manual for the equipment, or to be displayed on the equipment model. If more than one notice is required, the equipment model(s) to which each notice pertains should be identified. Suppliers of radio apparatus shall provide notices and user information in both English and French. IC statement CAN ICES-3 (B)/NMB-3(B)

Confidentiality request letter To Whom it may concern, This application ,FCC ID : QSWBSPDCS, will include a request for long term and short term confidentiality for any portion(s) of the data contained in this application pursuant to FCC DA 04-1705 (date 06/15/2004). SRT was authorized to have this letter and Zentan Technology Co., Ltd. will keep in long term and short term confidentiality for any portion(s) of the data contained in this application. short term confidentiality: ∑ PHOTOS OF EUT - External.pdf ∑ PHOTOS OF EUT - Internal.pdf ∑ PHOTOS OF TESTING.pdf ∑ USER MANUAL.pdf Long term exhibits can be: ∑ BLOCK DIAGRAM.pdf ∑ SCHEMATIC DIAGRAM.pdf If you have any questions , please feel free to contact Spectrum Research and Testing Laboratory, Inc. (886)34987684 or e-mail:[email protected] . Thank You! Sincerely, ________________ Johnson Ho SRT LAB./President Date : 09/30/2013 PS: Attached is the Zentan Technology Co., Ltd. POA 律 頻 科 技 股 份 有 限 公 司 SPECTRUM RESEARCH & TESTING LAB., INC. 總公司：中壢市山東里山下八鄰101-10號 TEL: (03)498-7684 FAX: (03)498-6528 No. 101-10, Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan, Taiwan, R.O.C. New:桃園縣中壢市山東里8鄰山東路780巷167號 No.167, Ln. 780, Shan-Tong Rd.,Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan County 320, Taiwan

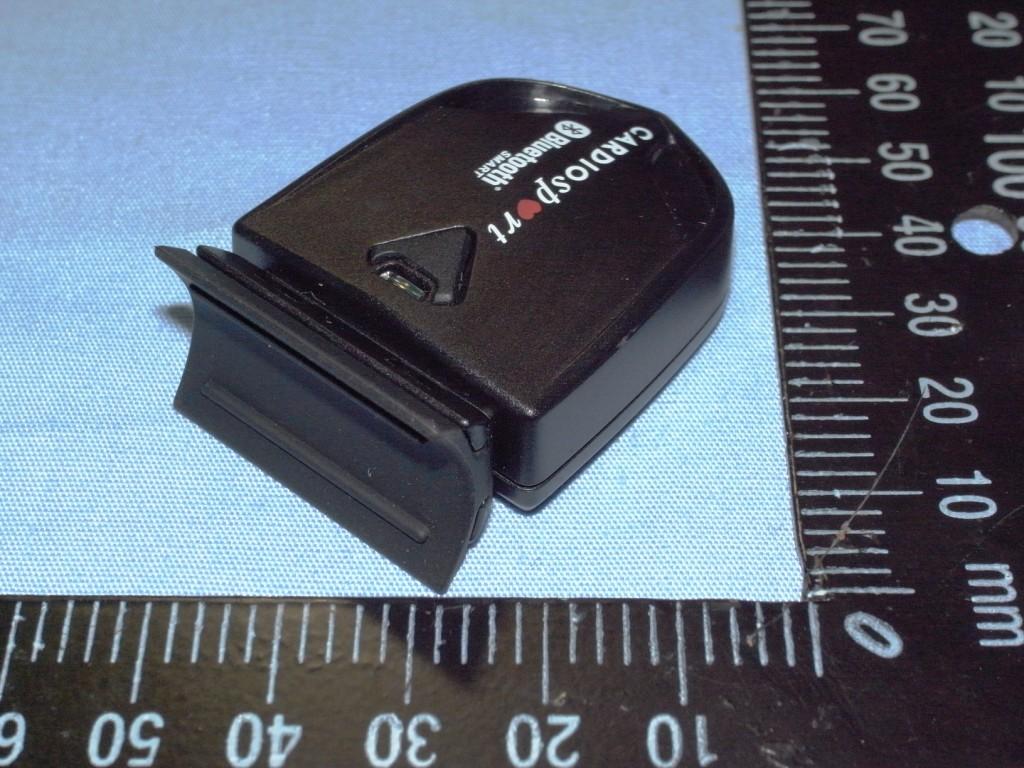

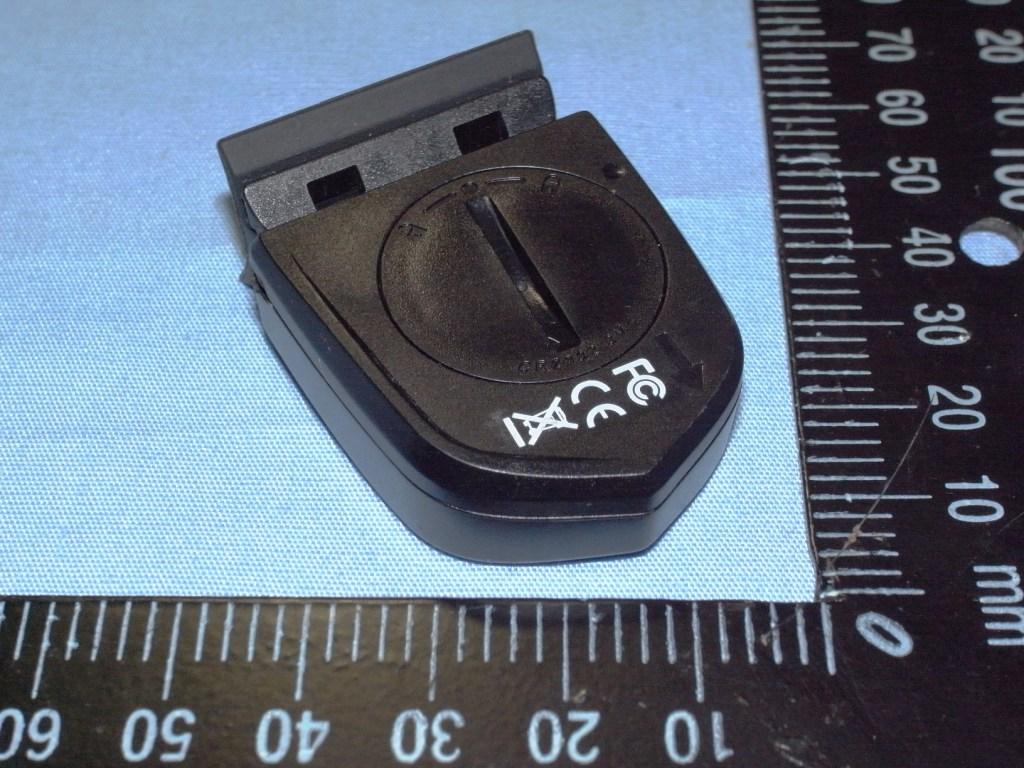

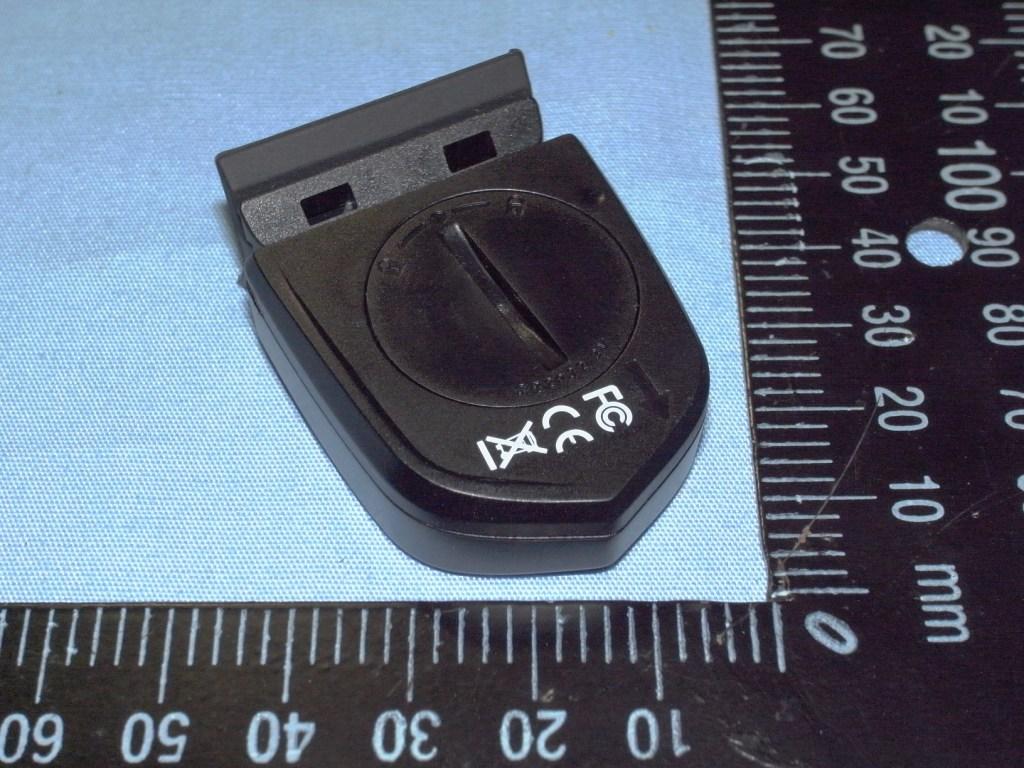

Spectrum Research & Testing Lab., Inc. No.167,Ln. 780, Shan-Tong Rd.,Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan County 320, Taiwan (R.O.C.) PHOTOS OF EUT - External Product：SPEED Model：ZAS1B Spectrum Research & Testing Lab., Inc. No.167,Ln. 780, Shan-Tong Rd.,Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan County 320, Taiwan (R.O.C.) Product：CADENCE Model：ZAS1B-C

Spectrum Research & Testing Lab., Inc. No.167,Ln. 780, Shan-Tong Rd.,Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan County 320, Taiwan (R.O.C.) FCC ID：QSWBSPDCS FCC ID：QSWBSPDCS FCC ID：QSWBSPDCS

TECHNOLOGICAL SPEC. 1. Product Name： SPEED Model： ZAS1B 2. Power Source： ■ DC 3.0 V, mA; □ AC V, A 3. Frequency Band： 2.4 GHz (Bluetooth V4.0 Low Energy, no BR/EDR ) Carrier Frequency： 2.402 GHz ~ 2.480 GHz 4. Number of Channel： 40 5. Channel Spacing： 2 MHz 6. RF Output Power (ERP or EIRP) ： -3.04 dBm (0.497 mW) 7. I.F.： MHz; L.O.： MHz 8. Modulation Type： GFSK 9. Duty Cycle： % 10. Mode of operation (duplex, simplex, half duplex) ： Duplex 11. Bit Rate of Transmission： 12. Antenna Type： Chip Antenna 13. Antenna gain： 2 dBi 14. Operating Temperature Range： -10 ~ 50 °C 15. Channel bandwidth ： 2 MHz 1. Product Name： CADENCE Model： ZAS1B-C 2. Power Source： ■ DC 3.0 V, mA; □ AC V, A 3. Frequency Band： 2.4 GHz (Bluetooth V4.0 Low Energy, no BR/EDR ) Carrier Frequency： 2.402 GHz ~ 2.480 GHz 4. Number of Channel： 40 5. Channel Spacing： 2 MHz 6. RF Output Power (ERP or EIRP) ： -1.96 dBm (0.637 mW) 7. I.F.： MHz; L.O.： MHz 8. Modulation Type： GFSK 9. Duty Cycle： % 10. Mode of operation (duplex, simplex, half duplex) ： Duplex 11. Bit Rate of Transmission： 12. Antenna Type： Chip Antenna 13. Antenna gain： 2 dBi 14. Operating Temperature Range： -10 ~ 50 °C 15. Channel bandwidth ： 2 MHz

Spectrum Research & Testing Lab., Inc. No.167,Ln. 780, Shan-Tong Rd.,Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan County 320, Taiwan (R.O.C.) TEST REPORT Reference No.: A13062204 Report No.:FCCA13062204 FCC ID : QSWBSPDCS Page: 1 of 81 Date: Sep 30, 2013 FMNG-059.11 REPORT Product Name: SPEED / CADENCE Model No.: ZAS1B / ZAS1B-C Applicant: Zentan Technology Co., Ltd. NO.92, Hsing-Sheng Road, Chia-Li District, Tainan City,72254 Taiwan Date of Receipt: Jun. 22, 2013 Finished date of Test: Sep. 24, 2013 Applicable Standards: 47 CFR Part 15, Subpart C 47 CFR Part 15, Subpart B ANSI C63.4: 2003 FCC publication KDB558074 Measurement of Digital Transmission Systems Operating under Section 15.247 March 23, 2005 We, Spectrum Research & Testing Laboratory Inc., hereby certify that one sample of the above was tested in our laboratory with positive results according to the above-mentioned standards. The records in the report are an accurate account of the results. Details of the results are given in the subsequent pages of this report. Tested By : , Date: Approved By : (Richard Lin) , Date: ( Johnson Ho, Director ) Spectrum Research & Testing Lab., Inc. No.167,Ln. 780, Shan-Tong Rd.,Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan County 320, Taiwan (R.O.C.) TEST REPORT Reference No.: A13062204 Report No.:FCCA13062204 FCC ID : QSWBSPDCS Page: 2 of 81 Date: Sep. 30, 2013 Revisions History Report No. Issue Date Revisions FCCA13062204 Sep. 30, 2013 Initial issue Spectrum Research & Testing Lab., Inc. No.167,Ln. 780, Shan-Tong Rd.,Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan County 320, Taiwan (R.O.C.) TEST REPORT Reference No.: A13062204 Report No.:FCCA13062204 FCC ID : QSWBSPDCS Page: 3 of 81 Date: Sep. 30, 2013 Table of Contents 1. DOCUMENT POLICY AND TEST STATEMENT...................................................5 1.1 DOCUMENT POLICY.....................................................................................5 1.2 TEST STATEMENT.........................................................................................5 1.3 EUT MODIFICATION......................................................................................5 2. DESCRIPTION OF EUT AND TEST MODE.........................................................6 2.1 GENERAL DESCRIPTION OF EUT................................................................6 2.2 DESCRIPTION OF EUT INTERNAL DEVICE.................................................7 2.3 EUT OPERATING CONDITION......................................................................7 2.4 DESCRIPTION OF TEST MODE....................................................................8 2.5 DESCRIPTION OF SUPPORT UNIT..............................................................8 2.6 CHANNEL AND FREQUENCY TABLE...........................................................9 2.7 DESCRIPTION OF MODEL DIFFERENCE....................................................9 3. DESCRIPTION OF APPLIED STANDARDS.......................................................10 3.1 SUMMARY OF TEST RESULTS...................................................................10 4. TECHNICAL CHARACTERISTICS TEST...........................................................11 4.1 RADIATED EMISSION TEST........................................................................11 4.1.1 LIMIT......................................................................................................11 4.1.2 TEST EQUIPMENT................................................................................12 4.1.3 TEST SET-UP.........................................................................................13 4.1.4 TEST PROCEDURE...............................................................................15 4.1.5 TEST RESULT........................................................................................16 4.2 6DB BANDWIDTH.........................................................................................48 4.2.1 LIMIT......................................................................................................48 4.2.2 TEST EQUIPMENT................................................................................48 4.2.3 TEST SET-UP.........................................................................................48 4.2.4 TEST PROCEDURE...............................................................................48 4.2.5 EUT OPERATING CONDITION.............................................................48 4.2.6 TEST RESULT........................................................................................49 4.3 PEAK POWER TEST....................................................................................53 4.3.1 LIMIT......................................................................................................53 4.3.2 TEST EQUIPMENT................................................................................53 4.3.3 TEST SET-UP.........................................................................................54 4.3.4 TEST PROCEDURE...............................................................................54 4.3.5 EUT OPERATING CONDITION..............................................................54 4.3.6 TEST RESULT........................................................................................55 4.4 BAND EDGE TEST.......................................................................................59 4.4.1 LIMIT......................................................................................................59 4.4.2 TEST EQUIPMENT................................................................................60 4.4.3 TEST SETUP..........................................................................................61 4.4.4 TEST PROCEDURE...............................................................................62 4.4.5 EUT OPERATING CONDITION..............................................................62 4.4.6 TEST RESULT..........................................…

Text truncated - open the document above for the full version.

Spectrum Research & Testing Lab., Inc. No.167,Ln. 780, Shan-Tong Rd.,Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan County 320, Taiwan (R.O.C.) PHOTOS OF TESTING - Radiated test (below 30M, TX & Standby) Spectrum Research & Testing Lab., Inc. No.167,Ln. 780, Shan-Tong Rd.,Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan County 320, Taiwan (R.O.C.) - Radiated test (below 1G, TX & Standby) Spectrum Research & Testing Lab., Inc. No.167,Ln. 780, Shan-Tong Rd.,Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan County 320, Taiwan (R.O.C.) - Radiated test (above 1G, TX & Standby) Spectrum Research & Testing Lab., Inc. No.167,Ln. 780, Shan-Tong Rd.,Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan County 320, Taiwan (R.O.C.) - Radiated test (below 30M, Link) Spectrum Research & Testing Lab., Inc. No.167,Ln. 780, Shan-Tong Rd.,Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan County 320, Taiwan (R.O.C.) - Radiated test (below 1G, Link) Spectrum Research & Testing Lab., Inc. No.167,Ln. 780, Shan-Tong Rd.,Ling 8, Shan-Tong Li, Chung-Li City, Taoyuan County 320, Taiwan (R.O.C.) - Radiated test (above 1G, Link)
