QSWAHRCS5TP3 ANT + Heart Rate Transmitter

▪ Attach one end of the adjustable elastic strap to the transmitter ▪ Moisten the rubber electrodes of the belt with either water or saliva as shown ▪ Position the transmitter on the chest just below the breastbone, with the Cardiosport logo the right way up. ▪ Pass the elastic strap around your chest and attach to the other end of the transmitter. ▪ Adjust the strap to give a close but comfortable fit. 1 2 CAUTION RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN IN CORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receive r is connected. • Consult the dealer or an experienced radio/TV technician for help. FCC Caution: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. .

Date: Oct. 25, 2011 BABT TCB Forsyth House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD Confidentiality Request FCC ID: QSWAHRCS5 Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission’s Rules, Zentan Technology Co., Ltd. Hereby requests permanent confidential treatment of information accompanying this application as outlined below: z Schematics z Block Diagrams z Theory of Operation The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying materials will not be made before the date of the Grant for this Application. Sincerely, _____________________ Winner Chen/ General Manager Zentan Technology Co., Ltd Add: No. 92, Hsing-Sheng Road, Chia-Li District 72254, Tainan City, Taiwan, R.O.C. Tel: +886-6-723-2226 Fax: +886-6-721-1289

Declaration of Authorization We Name: Zentan Technology Co., Ltd. Address: No. 92, Hsing-Sheng Road, Chia-Li District 72254, City: Tainan City Country: Taiwan, R.O.C. Declare that: Name Representative of agent: Sophia Lin Agent Company name: Cerpass Technology Corporation Address: 2F-11, No.3, YuanQu Street, City: Taipei City Country Taiwan, R.O.C. is authorized to apply for Certification of the following product(s): Product description: TP3 ANT+ Heart Rate Transmitter Type designation: ZT26A Trademark: CARDIOSPORT on our behalf. Date: 2011/10/25 City: Tainan Name: Winner Chen Function: General Manager Signature:

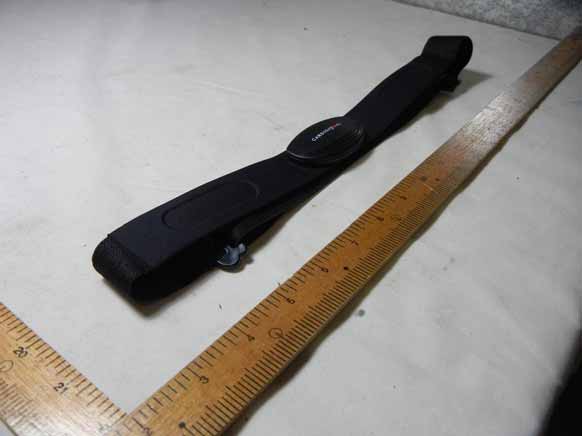

CERPASS TECHNOLOGY CORP. Report No.: TEFI1108008 Cerpass Technology Corp. Issued Date : Oct. 19, 2011 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : A1 of A3 FCC ID : QSWAHRCS5 Appendix A. Photographs of EUT

Label & Location Note: FCC ID is printed on the rear side of the EUT.

CERPASS TECHNOLOGY CORP. Report No.: TEFI1108008 Cerpass Technology Corp. Issued Date : Oct. 19, 2011 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : A2 of A3 FCC ID : QSWAHRCS5 CERPASS TECHNOLOGY CORP. Report No.: TEFI1108008 Cerpass Technology Corp. Issued Date : Oct. 19, 2011 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : A3 of A3 FCC ID : QSWAHRCS5

CERPASS TECHNOLOGY CORP. Report No.: TEFI1108008 Cerpass Technology Corp. Issued Date : Oct. 19, 2011 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 1 of 24 FCC ID : QSWAHRCS5 FCC TEST REPORT According to FCC Part 15, Subpart C (15.249) / ANSI C63.4: 2009 ‚ The test result refers exclusively to the test presented test model / sample., ‚ Without written approval of Cerpass Technology Corp. the test report shall not be reproduced except in full. Applicant : Zentan Technology Co., Ltd. Address : No. 92, Hsing-Sheng Road, Chia-Li District 72254, Tainan City, Taiwan R.O.C. Equipment : TP3 ANT+ Heart Rate Transmitter Model No. : ZT26A FCC ID : QSWAHRCS5 Trade Name : CARDIOSPORT CERPASS TECHNOLOGY CORP. Report No.: TEFI1108008 Cerpass Technology Corp. Issued Date : Oct. 19, 2011 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 2 of 24 FCC ID : QSWAHRCS5 Contents 1. Report of Measurements and Examinations ......................................................................................... 4 1.1. List of Measurements and Examinations ................................................................................... 4 2. Test Configuration of Equipment under Test ......................................................................................... 5 2.1. Feature of Equipment under Test ............................................................................................... 5 2.2. Test Mode and Test Software ..................................................................................................... 5 2.3. Description of Test System ......................................................................................................... 5 2.4. History of this test report ............................................................................................................ 6 3. General Information of Test ................................................................................................................... 7 4. Test of Conducted Emission ................................................................................................................. 8 4.1. Test Limit .................................................................................................................................... 8 4.2. Test Result and Data .................................................................................................................. 8 5. Test of Radiated Emission .................................................................................................................... 9 5.1. Test Limit .................................................................................................................................... 9 5.2. Test Procedures ......................................................................................................................... 9 5.3. Typical Test Setup Layout of Radiated Emission ..................................................................... 10 5.4. Measurement Equipment ......................................................................................................... 10 5.5. Test Result and Data ................................................................................................................ 11 5.6. Test Photographs (30MHz ~ 1000MHz) ................................................................................... 23 5.7. Test Photographs (1000MHz ~ 25000MHz) ............................................................................. 24 Appendix A. Photographs of EUT.......................................................................................A1 ~ A3 CERPASS TECHNOLOGY CORP. Report No.: TEFI1108008 Cerpass Technology Corp. Issued Date : Oct. 19, 2011 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 3 of 24 FCC ID : QSWAHRCS5 CERTIFICATE OF COMPLIANCE According to FCC Part 15, Subpart C (15.249) / ANSI C63.4: 2009 Applicant : Zentan Technology Co., Ltd. Address : No. 92, Hsing-Sheng Road, Chia-Li District 72254, Tainan City, Taiwan R.O.C. Equipment : TP3 ANT+ Heart Rate Transmitter Model No. : ZT26A FCC ID : QSWAHRCS5 I HEREBY CERTIFY THAT : The measurements shown in this test report were made in accordance with the procedures given in ANSI C63.4. The equipment was passed the test performed according to FCC Part 15, Subpart C (15.249) / ANSI C63.4: 2009. The test was carried out on Oct. 12, 2011 at Cerpass Technology Corp. Signature Clark Lin EMC/RF B.U. Manager CERPASS TECHNOLOGY CORP. Report No.: TEFI1108008 Cerpass Technology Corp. Issued Date : Oct. 19, 2011 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 4 of 24 FCC ID : QSWAHRCS5 1. Report of Measurements and Examinations 1.1. List of Measurements and Examinations FCC Rule Test Type Result Remark 15.207 Conducted Emission --- 3Vdc from batteries 15.209 15.249 Radiated Emission Pass Minimum Passing margin is -7.79dB at 44.85 MHz Note: the information of measurement uncertainty is available upon the customer’s request. CERPASS TECHNOLOGY CORP. Report No.: TEFI1108008 Cerpass Technology Corp. Issued Date : Oct. 19, 2011 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 5 of 24 FCC ID : QSWAHRCS5 2. Test Configuration of Equipment under Test 2.1. Feature of Equipment under Test y Heart rate range: 30~240 bpm y Storage Temperature: -40~85°C y Operating Temperature: -10~60°C y Average Active Current: typical 65uA y Peak Active Current: 12mA (for RF) y Stand-by Current: less than 2uA y Battery: CR2032 lithium cell (200mAh) y Battery life: 3 years at 1 hour use per day y RF Operating Frequency: 2457MHz y Maximum Output Power: 0~4dBm y RF Duty Cycle: 0.0008 (ANT + Sport Protocol) 2.2. Test Mode and Test Software a. During testing, the interface cables and equipment positions were varied according to ANSI C63.4. b. The complete test system included Heartbeat Simulator and EUT for RF test. c. The EUT was executed to keep transmitting and receiving data via Wireless. d. The following test mode were performed for…

Text truncated - open the document above for the full version.

CERPASS TECHNOLOGY CORP. Report No.: TEFI1108008 Cerpass Technology Corp. Issued Date : Oct. 19, 2011 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 23 of 24 FCC ID : QSWAHRCS5 5.6. Test Photographs (30MHz ~ 1000MHz) Front View Rear View CERPASS TECHNOLOGY CORP. Report No.: TEFI1108008 Cerpass Technology Corp. Issued Date : Oct. 19, 2011 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 24 of 24 FCC ID : QSWAHRCS5 5.7. Test Photographs (1000MHz ~ 25000MHz) Front View Rear View
