QSWASPDLMCadence Meter II ANT

WIRELESS CADENCE METER FOR THE LEMOND ® REVMASTER INSTRUCTION MANUAL MI RPM INST CADENCE DISTANCE KCAL TIME INST 85 10:30 2.0 96 121 © 2011 LeMond Fitness All rights reserved © 2011 LeMond Fitness. LeMond, RevMaster, and Pilot are registered trade- marks of LeMond Fitness in the United States and other countries. IMPORTANT SAFETY INSTRUCTIONS ! WARNING BEFORE BEGINNING THIS OR ANY EXERCISE PROGRAM, CONSULT YOUR PHYSICIAN. Certain exercises, programs, or types of equipment may not be appropriate for all individuals, especially if you are above 40 years of age, and/or have pre-existing health, and/or orthopedic medical conditions. Your phy- sician can help you determine what activities or programs are most suitable for you. Page 4 This is to certify that the Pilot II© wireless cadence meter is warranted by LeMond Fitness Inc. to be free of all defects in materials and workman- ship. This warranty does not apply to any defect caused by negligence, misuse, accident, alteration, improper maintenance, or an “act of God.” The Pilot II cadence meter can only be used on the Rev- Master indoor cycling bike. Any attempts to use this meter on any other equipment voids the warranty. The Pilot II carries a one year warranty on the meter and transmitter. Batteries are not warranted. Contact our Customer Service Department to report any problems. When calling, please be prepared to provide the customer service representative with the following information: Your name, the serial number of the inoperable unit, and the date(s) of purchase for the meter. If warranty replacement parts are shipped to you, you may be required to return the inoperable part. LeMond Fitness Inc. neither makes, assumes nor authorizes any rep- resentative or other person to make or assume for us, any other war- ranty whatsoever, whether expressed or implied, in connection with the sale, service, or shipment of our products. We reserve the right to make changes and improvements in our products without incurring any obligation to similarly alter products previously purchased. In order to maintain your product warranty and to ensure the safe and efficient op- eration of your cadence meter, only authorized replacement parts can be used. This warranty is void if parts other than those provided by LeMond Fitness are used. SPECIFICATIONS Cadence Meter Heart Rate Range: 30 to 240 bpm (beats per minute) Heart Rate Accuracy: ± 4 bpm Battery: 3 AAA batteries Battery Life: 6 months to 1 year, depending on usage Transmitter Emitted Signal: ANT+ Enabled Battery: 2 AA batteries Battery Life: 6 months to 1 year, depending on usage WARRANTY Page 6 Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 Installation on the RevMaster Batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8 Console .................................10 Transmitter ..............................10 Display Window ................................12 Quick Start Program . . . . . . . . . . . . . . . . . . . . . . . . . . . .14 Custom HR Training and Calorie Calculation .......15 Key Function ...................................17 Cadence Training ...............................20 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22 Appendix FCC Compliance .........................24 Pairing the Console to the Transmitter ......25 Console Codes ...........................28 NOTE: Press any key to turn on the Pilot II console.• Never disassemble the console or transmitter as it • can not be reassembled. The console is water resistant, not water proof. Do • not deliberately place it in water. To clean the console, wipe it off with a clean rag • sprayed with diluted household cleaner. CONTENTS Page 7 The Pilot II assembly consists of a console, a magnet, and a transmitter. A sensor in the transmitter counts the number of times a magnet mounted in the right crank passes the sen- sor. The transmitter will then send a coded ANT+ signal to the console containing the measured values. The console has inboard receivers that pick up RPM signals from the transmitter and heart rate signals from a telemetry chest strap. The heart rate is then shown in the display win- dow. The console will track cadence (RPMs), speed (MPH/ KPH), time, distance, and caloric expenditure. NOTE: Excessive use of the back light [ • ]will drain the console batteries prematurely. Expected life of the console batteries is 6 months to • 1 year. If the console battery power is low, then “• BaT T LOw” will be shown in the display window for 2 seconds after the display is turned on to inform you to change the console batteries. Expected life of the transmitter batteries is 6 • months to 1 year. DESCRIPTION Page 8 The console uses three(3) AAA batteries and the transmit- ter uses two(2) AA batteries as a source of power. Install the supplied batteries in the console and in the transmitter prior to using. To install the meter (console and the transmitter), you will need the following tools: Phillips Screwdriver• 2.5-mm Hex Key (supplied)• 3-mm Hex Key (supplied)• 4-mm Hex Key (supplied)• INSTALLATION OF PILOT NOTE: The Pilot II can only be installed on a LeMond RevMaster Pro bike. Page 9 INSTALLATION OF PILOT Transmitter Battery Installation: Remove the battery cover screw and cover from the 1. transmitter with a 2.5-mm hex key. Install two (2) AA batteries in the battery compartment.2. Retain the battery cover and its screw until you have 3. installed the transmitter on the bike. You will reinstall the battery cover at that time. Batteries, AA x 2 Page 10 INSTALLATION OF PILOT Console Battery Installation: Loosen the battery cover screw and remove the battery 1. cover from the console. Insert 3 AAA batteries into the battery compartment 2. and reinstall the battery cover. Battery Cover & Screw Mounting Screws Handlebar Console Clamp Batteries, AAA x3 Console Installation: Ensure that the console turns on.1. Open the console clamp and align t…

Text truncated - open the document above for the full version.

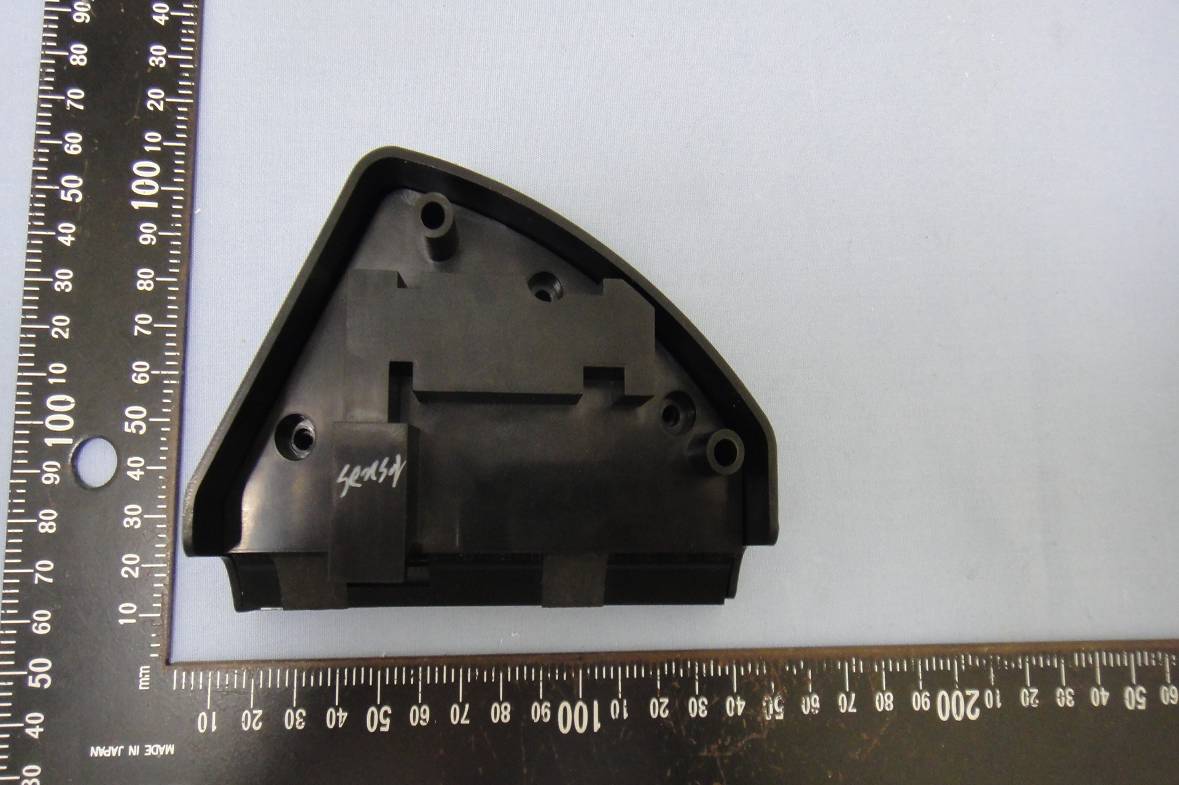

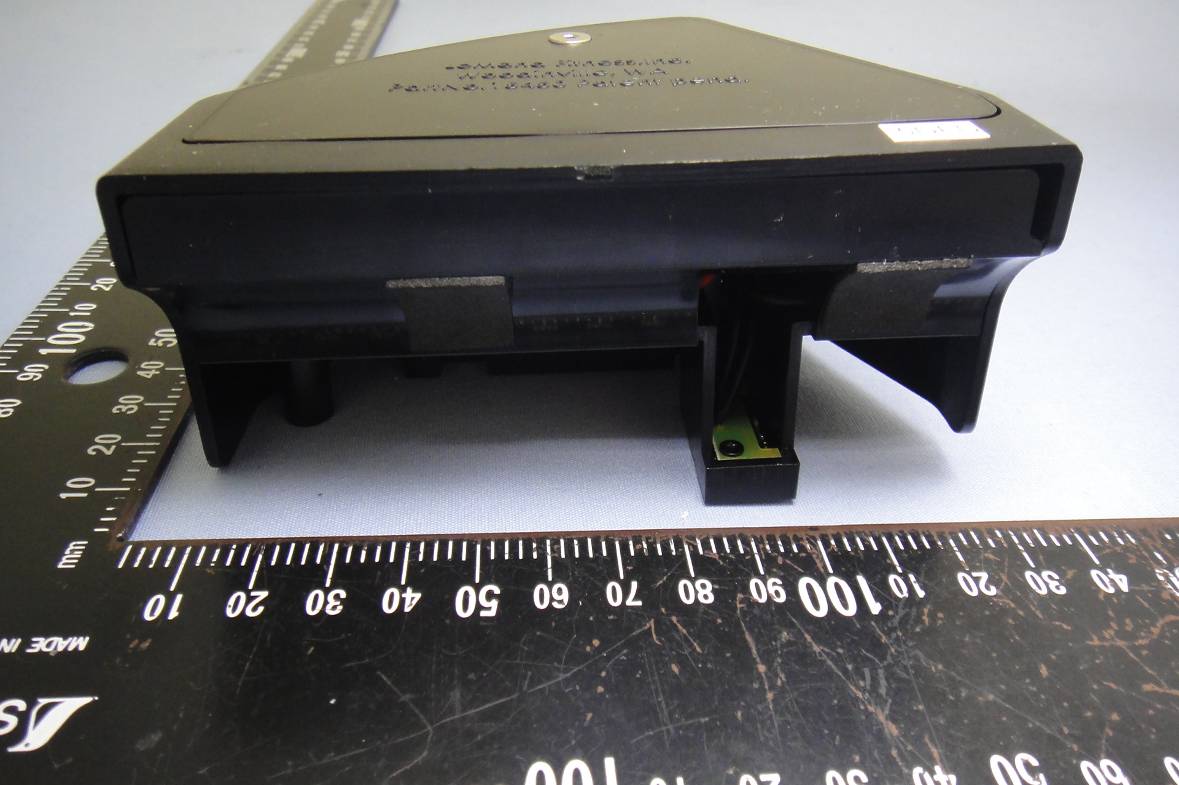

Compliance Certification Services Inc. Report No.: T111221G02 Date of Issue: January 19, 2012 A1 - 1 / 9 APPENDIX 1 - PHOTOGRAPHS OF EUT EXTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: T111221G02 Date of Issue: January 19, 2012 A1 - 2 / 9 Compliance Certification Services Inc. Report No.: T111221G02 Date of Issue: January 19, 2012 A1 - 3

Compliance Certification Services Inc. Report No.: T111221G02 Date of Issue: January 19, 2012 A1 - 4 INTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: T111221G02 Date of Issue: January 19, 2012 A1 - 5 Compliance Certification Services Inc. Report No.: T111221G02 Date of Issue: January 19, 2012 A1 - 6 Compliance Certification Services Inc. Report No.: T111221G02 Date of Issue: January 19, 2012 A1 - 7 Compliance Certification Services Inc. Report No.: T111221G02 Date of Issue: January 19, 2012 A1 - 8 Compliance Certification Services Inc. Report No.: T111221G02 Date of Issue: January 19, 2012 A1 - 9

Compliance Certification Services Inc. FCC ID: QSWASPDLM Report No.: T111221G02-RP Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 / 23 Rev. 00 FCC 47 CFR PART 15 SUBPART C TEST REPORT For Cadence Meter II ANT Model Number: 15450 Trade Name: LeMond Issued to Zentan Technology Co., Ltd NO.92, Hsing-Sheng Road, Chia-Li District 72254, Tainan City, Taiwan Issued by Compliance Certification Services Inc. No.11, Wu-Gong 6th Rd., Wugu Industrial Park, New Taipei City 248, Taiwan (R.O.C.) http://www.ccsrf.com [email protected] Issued Date: January 19, 2012 Compliance Certification Services Inc. FCC ID: QSWASPDLM Report No.: T111221G02-RP Page 2 Rev. 00 Revision History Rev. Issue Date Revisions Effect Page Revised By 00 January 19, 2012 Initial Issue ALL Angel Cheng Compliance Certification Services Inc. FCC ID: QSWASPDLM Report No.: T111221G02-RP Page 3 Rev. 00 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION................................................................................................................ 4 2. EUT DESCRIPTION...................................................................................................................................... 5 3. TEST METHODOLOGY ............................................................................................................................... 6 3.1 EUT CONFIGURATION................................................................................................................. 6 3.2 EUT EXERCISE............................................................................................................................. 6 3.3 GENERAL TEST PROCEDURES...................................................................................................... 6 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS.................................................. 7 3.5 DESCRIPTION OF TEST MODES.................................................................................................... 8 4. INSTRUMENT CALIBRATION................................................................................................................... 9 4.1 MEASURING INSTRUMENT CALIBRATION............................................................................... 9 4.2 MEASUREMENT EQUIPMENT USED .................................................................................. 9 4.3 MEASUREMENT UNCERTAINTY ...................................................................................... 10 5. FACILITIES AND ACCREDITATIONS .................................................................................................... 11 5.1 FACILITIES ................................................................................................................................ 11 5.2 EQUIPMENT...............................................................................................................................11 5.3 TABLE OF ACCREDITATIONS AND LISTINGS.............................................................................. 12 6. SETUP OF EQUIPMENT UNDER TEST ...................................................................................................13 6.1 SETUP CONFIGURATION OF EUT................................................................................................ 13 6.2 SUPPORT EQUIPMENT ........................................................................................................ 13 7. FCC PART 15.249 REQUIREMENTS ........................................................................................................ 14 7.1 20 DB BANDWIDTH.............................................................................................................. 14 7.2 SPURIOUS EMISSION .......................................................................................................... 16 7.3 POWERLINE CONDUCTED EMISSIONS ........................................................................... 22 APPENDIX I PHOTOGRAPHS OF TEST SETUP ............................................................................................23 APPENDIX 1 - PHOTOGRAPHS OF EUT Compliance Certification Services Inc. FCC ID: QSWASPDLM Report No.: T111221G02-RP Page 4 Rev. 00 1. TEST RESULT CERTIFICATION Applicant: Zentan Technology Co., Ltd NO.92, Hsing-Sheng Road, Chia-Li District 72254, Tai nan City, Tai wa n Equipment Under Test: Cadence Meter II ANT Tr a d e N a m e : LeMond Model Number: 15450 Date of Test: December 30, 2011 ~ January 2, 2012 APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4: 2003 and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements emission limits of FCC Rules Part 15.207, 15.209 and 15.249. The test results of this report relate only to the tested sample identified in this report. Approved by: Reviewed by: Jason Lin Gina Lo Section Manager Section Manager Compliance Certification Services Inc. Compliance Certification Services Inc. Compliance Certification Services Inc. FCC ID: QSWASPDLM Report No.: T111221G02-RP Page 5 Rev. 00 2. EUT DESCRIPTION Product Cadence Meter II ANT Trade Name LeMond Model Number 15450 Model Discrepancy N/A Received Date December 21, 2011 Power Supply Transmitter: Power by 2 x AA Rechargeable Batteries (3V) Frequency Spacing 2457 MHz Frequency Number 1 Channel Modulation Technique GFSK Antenna Specification Chip Antenna / Gain: 2 dBi Remark: 1. The sample selected for test was production p…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. FCC ID: QSWASPDLM Report No.: T111221G02-RP Page 23 Rev. 00 APPENDIX I PHOTOGRAPHS OF TEST SETUP RADIATED EMISSION SET UP PHOTOS
