QSWASCCSANT+ Combo sensor

Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receive r is connected. • Consult the dealer or an experienced radio/TV technician for help. FCC Caution: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. .

CERPASS TECHNOLOGY CORP. Cerpass Technology Corp. Tel:886-2-2655-8100 Fax:886-2-2655-8200 Date: Apr. 18, 2012 BABT TCB Forsyth House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD To whom it may concern, The enclosed documents constitute a formal submittal and application for a Grant of Equipment Authorization pursuant to Subpart C of Part 15 of FCC rules (CFR47) regarding ANT+ Combo sensor for the CARDIOSPORT model ZASC1A, ZASC2A, and bryton model BDS100 Data within this report demonstrates that the equipment tested complied with the FCC limits for intentional radiators. Cerpass Technology Corp. (Cerpass), as duly authorized agent prepared this submittal. A copy of the letter of our appointment as agent is enclosed. If there are any questions or if further information is needed, please contact Cerpass for assistance. _________________________ Delia Feng / Specialist Cerpass Technology Corporation TEL: +886-2-2655-8100 # 5205 FAX: +886-2-2655-8200 E-mail: [email protected]

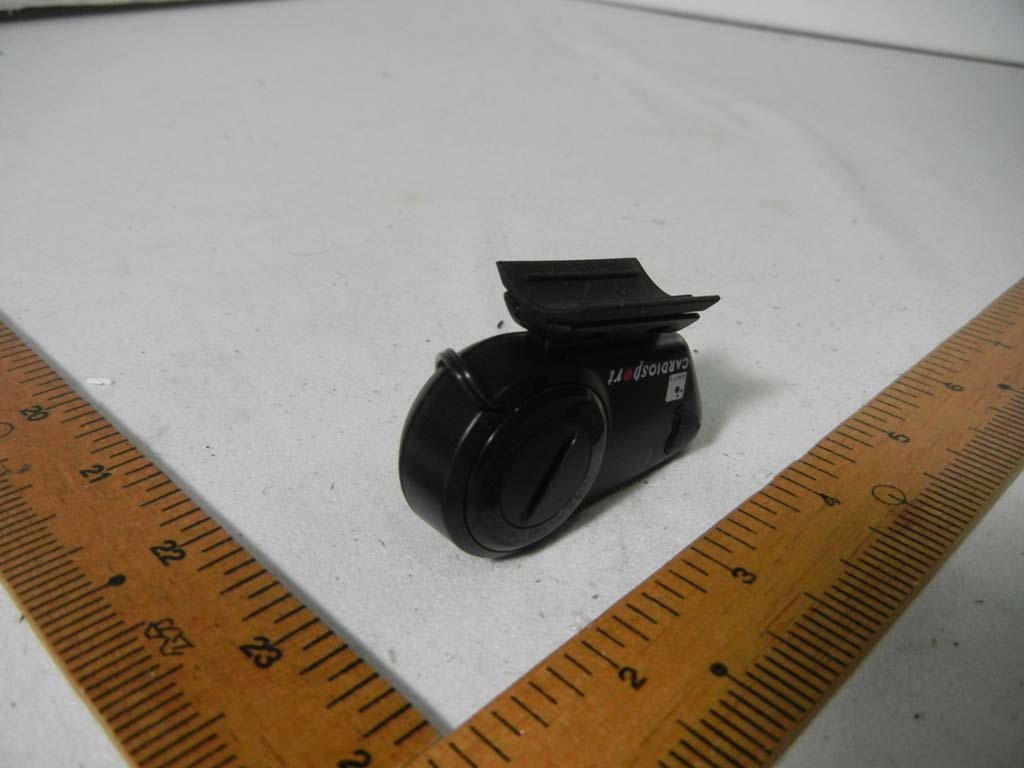

CERPASS TECHNOLOGY CORP. Report No.: TEFI1203097 Cerpass Technology Corp. Issued Date : Apr. 06, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : A1 of A3 Appendix A. Photographs of EUT

Label & Location FCC ID: QSWASCCS

CERPASS TECHNOLOGY CORP. Report No.: TEFI1203097 Cerpass Technology Corp. Issued Date : Apr. 06, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : A2 of A3 CERPASS TECHNOLOGY CORP. Report No.: TEFI1203097 Cerpass Technology Corp. Issued Date : Apr. 06, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : A3 of A3

CERPASS TECHNOLOGY CORP. Report No.: TEFI1203097 Cerpass Technology Corp. Issued Date : Apr. 063, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 1 of 25 FCC ID : QSWASCCS FCC TEST REPORT according to FCC Part 15, Subpart C (15.249) / ANSI C63.4: 2009  The test result refers exclusively to the test presented test model / sample.,  Without written approval of Cerpass Technology Corp. the test report shall not be reproduced except in full. Applicant : Zentan Technology Co., Ltd. Address : NO.92, Hsing-Sheng Road,Chia-Li District 72254 Tainan City, Taiwan R.O.C. Equipment : ANT+ Combo sensor Model No. : 1) BDS100 2) ZASC1A, ZASC2A FCC ID : QSWASCCS Trade Name : 1) bryton 2) CARDIOSPORT CERPASS TECHNOLOGY CORP. Report No.: TEFI1203097 Cerpass Technology Corp. Issued Date : Apr. 063, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 2 of 25 FCC ID : QSWASCCS Contents 1. Report of Measurements and Examinations ......................................................................................... 5 1.1. List of Measurements and Examinations ................................................................................... 5 2. Test Configuration of Equipment under Test ......................................................................................... 6 2.1. Feature of Equipment under Test ............................................................................................... 6 2.2. Test Mode and Test Software ..................................................................................................... 6 2.3. Description of Test System ......................................................................................................... 6 3. General Information of Test ................................................................................................................... 7 4. Test of Conducted Emission ................................................................................................................. 8 4.1. Test Limit .................................................................................................................................... 8 4.2. Test Procedures ......................................................................................................................... 8 4.3. Typical Test Setup ...................................................................................................................... 9 4.4. Test Result and Data .................................................................................................................. 9 5. Test of Radiated Emission .................................................................................................................. 10 5.1. Test Limit .................................................................................................................................. 10 5.2. Test Procedures ....................................................................................................................... 10 5.3. Typical Test Setup Layout of Radiated Emission ..................................................................... 11 5.4. Measurement equipment ......................................................................................................... 11 5.5. Test Result and Data ................................................................................................................ 12 5.6. Test Photographs ..................................................................................................................... 24 Appendix A. Photographs of EUT.......................................................................................A1 ~ A3 CERPASS TECHNOLOGY CORP. Report No.: TEFI1203097 Cerpass Technology Corp. Issued Date : Apr. 063, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 3 of 25 FCC ID : QSWASCCS History of this test report  ORIGINAL.  Additional attachment as following record: Attachment No. Issue Date Description TEFI1203097 Apr. 06, 2012 Original. CERPASS TECHNOLOGY CORP. Report No.: TEFI1203097 Cerpass Technology Corp. Issued Date : Apr. 063, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 4 of 25 FCC ID : QSWASCCS CERTIFICATE OF COMPLIANCE according to FCC Part 15, Subpart C (15.249) / ANSI C63.4: 2009 Applicant : Zentan Technology Co., Ltd. Address : NO.92, Hsing-Sheng Road,Chia-Li District 72254 Tainan City, Taiwan R.O.C. Equipment : ANT+ Combo sensor Model No. : 3) BDS100 4) ZASC1A, ZASC2A FCC ID : QSWASCCS I HEREBY CERTIFY THAT : The measurements shown in this test report were made in accordance with the procedures given in ANSI C63.4. The equipment was passed the test performed according to FCC Part 15, Subpart C (15.249) / ANSI C63.4: 2009. The test was carried out on Mar. 29, 2012 at Cerpass Technology Corp. Signature Hill Chen EMC/RF B.U. Assistant Manager CERPASS TECHNOLOGY CORP. Report No.: TEFI1203097 Cerpass Technology Corp. Issued Date : Apr. 063, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 5 of 25 FCC ID : QSWASCCS 1. Report of Measurements and Examinations 1.1. List of Measurements and Examinations FCC Rule Test Type Result Remark 15.207 Conducted Emission Pass 6Vdc from batteries 15.209 15.249 Radiated Emission Pass Minimum Passing margin is -7.23dB at832.00 MHz Note: the information of measurement uncertainty is available upon the customer’s request. CERPASS TECHNOLOGY CORP. Report No.: TEFI1203097 Cerpass Technology Corp. Issued Date : Apr. 063, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 6 of 25 FCC ID : QSWASCCS 2. Test Configuration of Equipment under Test 2.1. Feature of Equipment under Test  Storage Temperature: -40~85°C  Average Active Current: typical 60uA  Peak Active Current: 12mA  Stand-by Current: less than 1.5uA  LED output current: Typical is 2mA by each LED  Minimum negatve pulse width in EVENT_IN 20ns  Minimum time between pulses on EVENT_IN 20ms(Speed mode); 200ms(Cadence mode)  Battery: CR2032  RF …

Text truncated - open the document above for the full version.

CERPASS TECHNOLOGY CORP. Report No.: TEFI1203097 Cerpass Technology Corp. Issued Date : Apr. 063, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 24 of 25 FCC ID : QSWASCCS 5.6. Test Photographs (30MHz~1GHz) Front View Rear View CERPASS TECHNOLOGY CORP. Report No.: TEFI1203097 Cerpass Technology Corp. Issued Date : Apr. 063, 2012 Tel:886-2-2655-8100 Fax:886-2-2655-8200 Page No. : 25 of 25 FCC ID : QSWASCCS (Above 1GHz) Front View Rear View
