QT5-CDPR22Rimage Everest II printer

Rimage Everest III ™ printer User Guide Corporate Headquarters: Rimage Corporation 7725 Washington Avenue South Minneapolis, MN 55439 USA 800 553 8312 (toll free US) Service: +1 952 946 0004 (International) Fax: +1 952 944 6956 European Headquarters: Rimage Europe GmbH Hans-Böckler-Straße 7 63128 Dietzenbach, Germany Tel: +49-(0) 6074-8521-0 Fax: +49-(0) 6074-8521-21 CD and DVD Recording Software Disclaimer This Product, Software, or Documentation may be designed to assist you in reproducing material in which you own the copyright or have obtained permission to copy from the copyright owner. Unless you own the copyright or have permission to copy from the copyright owner, you may be violating copyright law and be subject to payment of damages and other remedies. If you are uncertain about your rights, you should contact your legal advisor. If you are neither in possession of the copyright nor have authorization from the owner of the copyright, unauthorized copying of CDs or DVDs violates national and international legislation and can result in severe penalties. Rimage Corporation reserves the right to make improvements to the equipment and software described in this document at any time without any prior notice. Rimage Corporation reserves the right to revise this publication and to make changes from time to time in the content hereof without obligation of Rimage Corporation to notify any person or organization of such revisions or changes. This document may contain links to web sites that were current at the time of publication, but may have moved or become inactive since. This document may contain links to sites on the Internet that are owned and operated by third parties. Rimage Corporation is not responsible for the content of any such third-party site. ©2006, Rimage Corporation Rimage™ is a trademark of the Rimage Corporation. Everest Printer™ is a trademark of the Rimage Corporation. Dell ® is registered trademark of Dell Computer Corporation. FireWire ® is a registered trademark of Apple Computer, Inc. Macintosh ® is a registered trademark of Apple Computer, Inc. All other trademarks and registered trademarks are the property of their respective owners. Support information US, Asia/Pacific, Mexico/Latin America Europe Rimage Corporation 7725 Washington Avenue South Minneapolis, MN 55439 USA Attn: Rimage Services Service: North America: 800-553-8312 Asia/Pacific, Mexico/ Latin America: 952-946-0004 FAX: 952-946-6956 When you contact Rimage Services, please provide: • Unit serial number and software version. • Functional and technical description of the problem. • Exact error message received. Rimage Europe GmbH Hans-Böckler-Straße 7 63128 Dietzenbach, Germany Tel: +49-(0) 6074-8521-0 FAX: +49-(0) 6074-8521-21 Rimage Europe Technical Website http://www.rimage.de/support.html Select the appropriate Support link to learn more. If you cannot find a solution on our website, email Rimage Services, Europe at [email protected]. Learn more online At www.rimage.com/support.html, you can experience Rimage’s world-class Support and Services. 1. Select your product family. 2. Select your product. 3. Learn more on your product page. From your product page you can access: • Information about the latest software and firmware updates • Product specifications • Troubleshooting tips and FAQs • The latest documents • Printing tips • Current firmware and driver downloads Contents 110875_A i Contents Introduction...................................................................................... 1 Printer Requirements.......................................................................................1 Operating System requirements............................................................................ 1 Media requirements............................................................................................... 1 Ribbon requirements............................................................................................. 1 Label design requirements.................................................................................... 2 Identify the parts of the Everest printer......................................... 3 Front view........................................................................................................3 Control panel......................................................................................................... 4 Rear view........................................................................................................5 Everest printer switches ........................................................................................ 6 Operate the Everest printer............................................................. 7 Powering on and off the Everest printer..........................................................7 Installing the Everest printer driver..................................................................7 Installing the Everest printer driver on Macintosh................................................. 8 Placing a disc on the printer tray.....................................................................9 Setting up your printing preferences on a Windows PC................................10 Navigate to printing preferences......................................................................... 10 Setting media size, media type, orientation, and ribbon type.............................. 11 Setting print quality, color matching, and image adjustments............................. 12 Setting the printable area.................................................................................... 13 Adjusting the print alignment and color density................................................... 14 Setting up your printing preferences on a Macintosh.....................................15 Navigate to printing preferences......................................................................... 15 Setting media type, ribbon type, and …

Text truncated - open the document above for the full version.

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 April 29, 2006 RE: FCC ID: QT5-CDPR22_ATCB003426 Attention: Toyokazu Imamura / Kanako Sanda I have a few comments on this Application. Please note that further comments may arise in response to answers provided to the questions below. 1. FYI – Please note that the dwell time reference to the 22 channels over 8.8 seconds instead of the 30 seconds used, shows the dwell time to be closer to 110ms than 98ms. Please use the appropriate time references in the standard when calculating dwell time for FHSS devices. 2. Please note that the report states “peak” power on page 26 of the report but it does not indicate if the power meter was in fact a peak or average power meter. Please explain. 3. Please note that 15,247(a)(1) states, “The system receivers shall have input bandwidths that match the hopping channel bandwidths of their corresponding transmitters and shall shift frequencies in synchronization with the transmitted signals”. Please provide the required information showing the receiver bandwidth meets this requirement. If this information is in the operational or other documentation, please point to the pages for reference. 4. Please note that the conducted out of band data only shows the device when evidently hopping stopped. As this type device can produce considerable spurious emissions during hopping enabled, please provide data showing compliance with hopping enabled. This is especially important for the band edges. 5. Please note that radiated emissions appears to only have been tested in hopping stopped mode. Please note that as mentioned in item 3, this type device can produce considerable spurious emissions. As the radiated emissions in hopping stopped only shows a less than 3dB margin to the limit, please provide compliance data for radiated spurious emissions with hopping enabled. Please pay close attention to the restricted bands. 6. Please provide a manual with the required 20cm separation distance information. 7. Please note that this device is a frequency hopping device and not a single channel device. Thus the ‘1’ in A1D is not correct. Please note that final three characters of the emissions designator would more appropriately be ‘AXD’. Please provide an IC app form using the appropriate emissions’ designator. 8. Please provide the full emissions designator on the IC app form (i.e. for this device 1M53AXD). 9. Please note that this also appears to have a receiver. Please provide the receiver emissions level on the OC app form. Dennis Ward mailto:[email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

15 May, 2006 RE: FCC ID: QT5-CDPR22_ATCB003426 Attention: Mr. Dennis Ward Dear Mr. Dennis Ward, Please find the following our reply to your comments; 1. We sampled rising times in 30 seconds, and calculated rising times in 1 second and multiplied by 8.8 seconds; then, calculated by multiplying by the measured rising times. We added the calculation method on Page 25 in the revised test report. 2. We performed the measurement by Peak detection. Please confirm Page 26 in the revised test report. 3. This system employs homodyne system; therefore, the receiver input bandwidth is the same as the transmitting frequency operation. We added this description on Page 4 in the revised test report. 4. We performed the additional test for your comment. Please find the additional test data in the revised test report. 5. We performed the additional test for your comment. Please find the additional test data in the revised test report. 6. Please find attached revised user manual. 7. Please find the revised IC application form. 8. Please also find the revised IC application form. 9. Please confirm the revised Appendix II. In addition, all testing was conducted under continuous transmission/reception operation mode in the test report. We found incorrect information in the test report; thus, we made appropriate corrections to the operation mode from transmission to transmission/reception. Thank you very much for your prompt attention. Best regards, Kanako Sanda (Ms.) Head Office EMC Lab. TEL +81-596-24-8116 / FAX +81-596-24-8095 E-mail: [email protected]

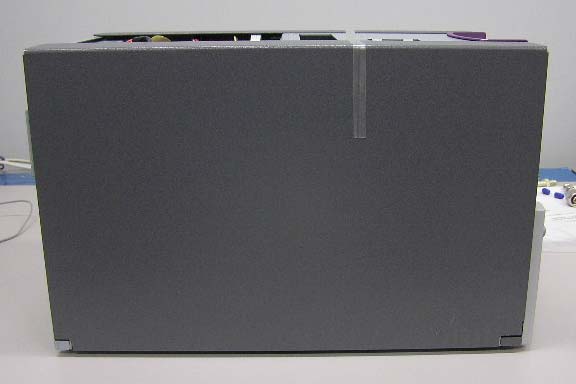

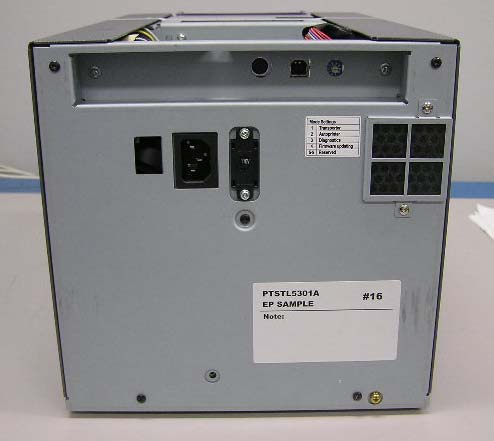

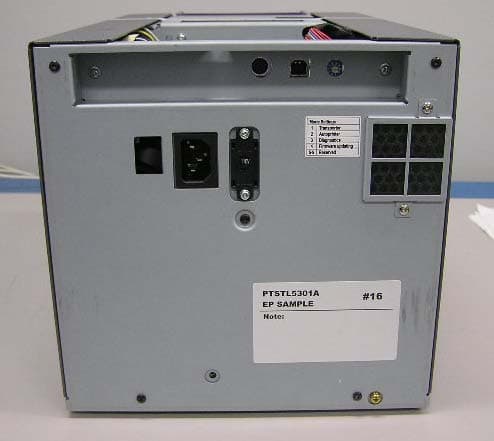

Rimage Corporation Rimage Everest Printer (CDPR22) FCC ID: QT5-CDPR22 IC: 4496A-CDPR22 External Photo Front Rear Rimage Corporation Rimage Everest Printer (CDPR22) FCC ID: QT5-CDPR22 IC: 4496A-CDPR22 Right Left

 #)161  #)161  -57)+;#/# #  ᓟ⮮ᓟ⮮  # # ౝኈᄎട㧕࡞ࡌ࡜ㆡว࡞࡯ࡐ࡯ࠟࡦࠪශ೚ౝኈᄌᦝ㧔 -5    Label spec. ˴Actual producers: SATO CORPORATION ˴Standard: UL (CategoryPGJI2 File No.MH18025) ˴CAS (Class No.7923 File No.LS101685) 2006.2.6 A.GOTO Complies with IDA Standards DAXXXXXX FCC ID : QT5-CDPR22 IC : 4496A-CDPR22 MADE IN JAPAN PATENTS PENDING TECHNICAL SUPPORT Contact your reseller for printer support or visit our web site: www.rimage.com Have your MODEL and S/N ready before calling MODEL:CDPR22 POWER:100-120/220-240 V~; 3.7-3.9/2.9-3.1 A, 60/50Hz (manual switching) 500 WATTS MAX CAUTION!NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED PERSONNEL. This device complies with Part 15 of FCC Rules and RSS-Gen of IC Rules. This class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. st2 007XXXXXXXXXN13154 Label Location

Applicant: Alps Electric Co., Ltd. T ype of Equipment : Label Printer Model No. : CDPR22 FCC ID: QT5-CDPR22 Alps Electric Co., Ltd. declares that Model : Label Printer complies with FCC radiation exposure requirement specified in the FCC Rules 2.1091. The “CDPR22“ has 42.27 mW of conducted Peak Output power and 63.97 mW of EIRP. The Following calculation is the reference data for 20cm distance for mobile use. RF Exposure Calculations: The following information provides the minimum separation distance for the highest gain antenna provided with the “CDPR22“ as calculated from FCC OET Bulletin 65 Appendix A, Table (B) Limits for General Population / Uncontrolled Exposure. This calculation is based on the highest EIRP possible from the system, considering maximum power and antenna gain, and considering a 1.0mW/cm^2 uncontrolled exposure limit. The Friis formula used was: S = (P * G) / (4 * π * r 2 ) Where P = 42.27 mW (Maximum peak output power) G = 1.51 Numerical Antenna gain; equal 1.80 dBi r =20.0 cm For: CDPR22S = 0.01273 mW/cm 2 RF Exposure for Mobile use No. : 26BE0051-HO-F1

FCC ID : QT5-CDPR22 Test report No. : 26BE0051-HO-F1 Page : 1 of 49 Issued date : March 24, 2006 UL Apex Co., Ltd. YAMAKITA EMC LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 MF060b(01.06.05) EMI TEST REPORT Test Report No. : 26BE0051-HO-F1 Applicant : Alps Electric Co., Ltd. Type of Equipment : Label Printer Model No. : CDPR22 FCC ID : QT5-CDPR22 Test Standard : FCC Part15 Subpart C, Section 15.207, Section 15.209, Section 15.247: 2006 Test Result : Complied 1. This test report shall not be reproduced except in full, without the written approval of UL Apex Co., Ltd. 2. The results in this report apply only to the sample tested. 3. This equipment is in compliance with above regulation. We hereby certify that the data contain a true representation of the EMC profile. 4. The test results in this test report are traceable to the national or international standards. Date of test: January 12, 14, 17, 18 and May 10, 11, 2006 Tested by: Ichiro Isozaki & Toyokazu Imamura Makoto Hosaka & Takahiro Suzuki Approved by: Osamu Watatani Site Manager of Yamakita EMC Lab. FCC ID : QT5-CDPR22 Test report No. : 26BE0051-HO-F1 Page : 2 of 49 Issued date : March 24, 2006 UL Apex Co., Ltd. YAMAKITA EMC LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 MF060b(01.06.05) Table of Contents Page 1 Applicant Information 3 2 Product Description 4 3 Test Specification, Procedures and Results 5 4 System Test Configuration 7 5 Conducted Emissions 9 6 Carrier Frequency Separation 10 7 20dB Bandwidth 10 8 Number of Hopping Frequency 10 9 Dwell time 10 10 Maximum Peak Output Power 10 11 Out of Band Emissions (Antenna Port Conducted) 10 12 Out of Band Emissions (Radiated) 11 Contents of Appendixes 12 APPENDIX 1: Photographs of test setup 13 APPENDIX 2: Test Data 15 APPENDIX 3: Test instruments 49 FCC ID : QT5-CDPR22 Test report No. : 26BE0051-HO-F1 Page : 3 of 49 Issued date : March 24, 2006 UL Apex Co., Ltd. YAMAKITA EMC LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 MF060b(01.06.05) 1 Applicant Information Company Name : Alps Electric Co., Ltd. Brand Name : ALPS Address : 41-25, Yanagi-machi, Noda Onahama, Iwaki-shi, Fukushima-ken 971-8615 JAPAN Telephone Number : +81 246 58 6464 Facsimile Number : +81 246 58 7994 Contact Person : Koichi Sugiyama FCC ID : QT5-CDPR22 Test report No. : 26BE0051-HO-F1 Page : 4 of 49 Issued date : March 24, 2006 UL Apex Co., Ltd. YAMAKITA EMC LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 MF060b(01.06.05) 2 Product Description Type of Equipment : Label Printer Model No. : CDPR22 Serial No. : Out of Band emission (Radiated), Hopping mode: #10 Out of Band emission (Radiated), except Hopping mode: #6 Antenna port conducted test: #4 Rating : AC100-120/220-240V, 50/60Hz Country of Manufacture : Japan Receipt Date of Sample : January 12, 2006 Condition of EUT : Engineering prototype (Not for Sale: This sample is equivalent to mass-produced items.) Frequency of operation : 2427-2469MHz Other clock frequency : Custom IC: 32MHz, CPU: 50MHz, USB: 480MHz Type of modulation : ASK (FHSS) Antenna type : Dipole antenna Antenna connector type : U.FL Antenna gain : 1.58 dBi Mode of operation : Simplex Emission designation : 1M53AXD Operation temperature range : 0 ~ 40 deg. C. The RFID installed in the Label Printer employs a homodyne system, therefore the receiver input bandwidth is same as the transmitting frequency operation. FCC Part15.31 (e) The Label Printer provides the module with stable power supply (DC 3.3 V), therefore, the equipment complies power supply regulation. FCC Part15.203 Antenna requirement It is impossible for end users to replace the antenna, because the antenna is mounted inside of the EUT. Therefore, the equipment complies with the antenna requirement of Section 15.203. FCC ID : QT5-CDPR22 Test report No. : 26BE0051-HO-F1 Page : 5 of 49 Issued date : March 24, 2006 UL Apex Co., Ltd. YAMAKITA EMC LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 MF060b(01.06.05) 3 Test Specification, Procedures and Results 3.1 Test specification Test specification : FCC Part15 Subpart C: 2006 Title : FCC 47CFR Part15 Radio Frequency Device Subpart C Intentional Radiators Section 15.207 Conducted limits Section 15.209 Radiated emission limits, general requirements Section 15.247 Operation within the bands 902-928MHz, 2400-2483.5MHz, and 5725-5850MHz 3.2 Procedures & Results Item Test Procedure Specification RemarksDeviation Worst Margin Results Conducted emission ANSI C63.4:2003 7. AC powerline conducted emission measurements Section 15.207 - 7.3dB (2.0305MHz, L1, AV, Tx&Rx 2427MHz) Complied Carrier Frequency Separation ANSI C63.4:2003 13. Measurement of intentional radiators Section15.247 (a)(1) ConductedN/A Complied 20dB Bandwidth ANSI C63.4:2003 13. Measurement of intentional radiators Section15.247 (a)(1) ConductedN/A Complied Number of Hopping Frequency ANSI C63.4:2003 13. Measurement of intentional radiators Section15.247 (a)(1)(iii) ConductedN/A Complied Dwell time ANSI C63.4:2003 13.Measurement of intentional radiators Section15.247 (a)(1)(iii) ConductedN/A Complied Maximum Peak Output Power ANSI C63.4:2003 13. Measurement of intentional radiators Section15.247 (b)(1) ConductedN/A *See data. Complied Spurious Emission ANSI C63.4:2003 13. Measurement of intentional radiators Section15.209 Section15.247(d) Conducted / Radiated N/A 2.0dB (24490.00MHz, Horizontal & Vertical, Tx Hopping) Complied The measurements also referred to FCC Public Notice DA 00-705 "Guidance on Measurement for Frequency Hopping Spread Spectrum Systems". * No addition, exclusion nor deviat…

Text truncated - open the document above for the full version.

FCC ID : QT5-CDPR22 Test report No. : 26BE0051-HO-F1 Page : 13 of 44 Issued date : March 24, 2006 UL Apex Co., Ltd. YAMAKITA EMC LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 MF060b(01.06.05) Conducted emission FCC ID : QT5-CDPR22 Test report No. : 26BE0051-HO-F1 Page : 14 of 44 Issued date : March 24, 2006 UL Apex Co., Ltd. YAMAKITA EMC LAB. 907 Kawanishi, Yamakita-machi, Ashigarakami-gun, Kanagawa-ken, 258-0124 JAPAN Telephone: +81 465 77 1011 Facsimile: +81 465 77 2112 MF060b(01.06.05) Radiated emission
