QTLBH-109Bluetooth Headset

Nokia Bluetooth Headset BH-109 Issue 1 Introduction About your headset With Nokia Bluetooth Headset BH-109, you can handle calls hands-free, even when you are using two mobile devices at the same time. For support, go to www.nokia.com/support. The surface of this product is nickel-free. Warning: This product may contain small parts. Keep them out of the reach of small children. Parts of the product are magnetic. Metallic materials may be attracted to the product. Do not place credit cards or other magnetic storage media near the product, because information stored on them may be erased. Read this user guide carefully before using the product. Also, read the user guide for the device that you connect to the product. About Bluetooth connectivity You can use Bluetooth to make a wireless connection to other compatible devices, such as mobile devices. Devices do not need to be in direct line-of-sight, but they must be within 10 metres (33 feet) of each other. The connection may be affected by obstructions such as walls or other electronic devices. 2 This device is compliant with Bluetooth Specification 2.1 + EDR supporting the following profiles: Headset Profile 1.1 and Hands-Free Profile 1.5. Check with the manufacturers of other devices to determine their compatibility with this device. Get started Keys and parts 1Power key 2Earloop 3Microphone 4Call key 5Earpiece 6Indicator light 7Volume key 8Charger connector 3 Charge the battery Before using the headset, you must charge the battery. Warning: Use only chargers approved by Nokia for use with this particular model. The use of any other types may invalidate any approval or warranty, and may be dangerous. Use of unapproved chargers may present a risk of fire, explosion, or other hazard. When you unplug a charger, hold and pull the plug, not the cord. 1Connect the charger to a wall outlet. 2Connect the charger cable to the charger connector in the headset. The red indicator light turns green when the battery is fully charged. 3Disconnect the charger from the headset, then from the wall outlet. The fully charged battery has power for up to 8 hours of talk time and up to 200 hours of standby time. When the battery charge is low, the headset beeps every 5 minutes and the red indicator light flashes. Check the battery charge With the headset connected to the mobile device, press the power key. Green light indicates sufficient charge level. If the light is yellow, you may need to recharge the battery soon. If the light is red, recharge the battery. Switch the headset on or off Press and hold the power key for 2 seconds. When switched on, the headset beeps, and a green indicator light flashes once. The headset tries to connect to a paired mobile device. If the headset is not connected to a device within 30 minutes, it switches off. When switched off, the headset beeps, and a red indicator light flashes once. Pair and connect the headset With pairing, you can control which devices are allowed to connect to your headset. Before using the headset, you must pair and connect it to a compatible device. 1Switch the headset off and the compatible device on. 4 2If you have never paired the headset with a device, or you have emptied the paired devices list, switch the headset on. If you have previously paired your headset with another device, press and hold the power key for 5 seconds. The green indicator light starts to flash quickly. 3Within 3 minutes, activate Bluetooth on the device, and set it to search for Bluetooth devices. For details, see the user guide of the device. 4Select the headset from the list of found devices. 5If required, enter the passcode 0000. You can pair your headset with 8 compatible devices, but you can only connect it to a maximum of 2 devices at the same time. With some mobile devices, you may need to make the connection separately after pairing. Connect the headset to the last used device manually Press and hold the call key for 2 seconds, if no other device is connected, or go to the Bluetooth menu of the device. Wear the headset Slide the earloop behind your ear (9), and gently push the earpiece against your ear. Carefully bend the earloop around your ear for the best fit. Push or pull the earloop to set its length. Point the headset towards your mouth (10). The headset is ready to be used on the right ear. To use the headset on the left ear, rotate the earloop so that it is to the left of the Nokia logo (11 and 12). 5 Make calls Make and receive calls Make a call When the headset is connected to your compatible mobile device, make a call normally using your mobile device. Answer or end a call Press the call key. Reject a call Press the call key twice. Switch a call between your headset and mobile device During a call, press the call key for 2 seconds. You can redial the number you last called or make a call by using your voice, if your mobile device supports these features with the headset. Redial the last called number When no call is in progress, press the call key twice. Activate voice dialling When no call is in progress, press and hold the call key for 2 seconds, and follow the user guide of your mobile device. Change the volume Use the volume key. To change the volume quickly, press and hold the volume key. Switch between calls If you get two calls at the same time, you can handle both calls hands-free. If your mobile device uses the call waiting function (network service), and supports the Bluetooth Hands-Free Profile 1.5, you can switch between two calls using the headset. Put the call on hold, and answer a waiting call Press and hold the call key for 2 seconds. Switch between the calls Press and hold the call key for 2 seconds. 6 End the call and answer the other one Press the call key. Connect the headset to two devices You can connect your headset to two devices, for example, when you want to make calls using both your personal and your work mobile device. Switch off the headset, and press and hold the power key for…

Text truncated - open the document above for the full version.

Date: Sep. 17, 10 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request FCC ID: QTLBH-109 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Si ncerely yours, ------------------------------------------------------------------- Petri Hänninen Quality Manager Nokia (China) Investment Co., Ltd. Nokia China, Beijing, Kaifaqu-Donghuan Zhonglu Building: R&D Wing, 7th Floor, BDA Building 2-No.5, Donghuan Zhong Rd. Mobile: +86 139100 62247 Fax: +86(10)87114750 E-mail: [email protected]

Date: September 17, 2010 Federal Communications Commission Authorization and Evaluation Division Subject: Short-term confidentiality request regarding application for certification of FCC ID: QTLBH-109 Pursuant to DA 04-1705 of the Commission’s public notice, we request short-term confidential treatment for the following information until Mar.11, 2011 in order to ensure sensitive business information remains confidential until the actual marketing of the device. External Photos Test setup photos User’s Manual Internal Photos Sincerely yours, ------------------------------------------------------------------- Petri Hänninen Quality Manager Nokia (China) Investment Co., Ltd. Nokia China, Beijing, Kaifaqu-Donghuan Zhonglu Building: R&D Wing, 7th Floor, BDA Building 2-No.5, Donghuan Zhong Rd. Mobile: +86 139100 62247 Fax: +86(10)87114750 E-mail: [email protected]

Power of Attorney Date: September 20, 2010 To whom it may concern: We, the undersigned Nokia (China) Investment Co., Ltd. , hereby authorize Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch (BV CPS Taoyuan Branch) of Taiwan to act on our behalf in all matters relating to all processes required for Nokia Bluetooth Headset BH-109 (FCC ID: QTLBH-109) in the FCC Part 15C approval. Any and all acts carried out by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch (BV CPS Taoyuan Branch) of Taiwan on our behalf shall have the same effects as acts of our own. If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you! Sincerely yours, ------------------------------------------------------------------- Petri Hänninen Quality Manager Nokia (China) Investment Co., Ltd. Nokia China, Beijing, Kaifaqu-Donghuan Zhonglu Building: R&D Wing, 7th Floor, BDA Building 2-No.5, Donghuan Zhong Rd. Mobile: +86 139100 62247 Fax: +86(10)87114750 E-mail: [email protected]

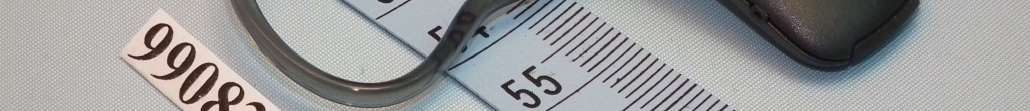

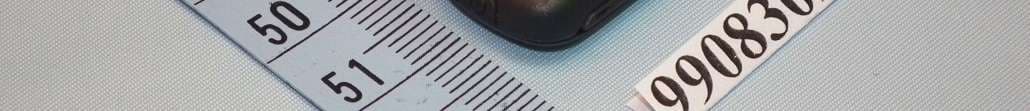

Page 1 CONSTRUCTION PHOTOS OF EUT Sample 1 Page 2 Page 3 Sample 2 Page 4 Page 5 Sample 3 Page 6 Page 7 Sample 4 Page 8 Page 9

1:1 1:1 61.83 mm 1 7 . 7 2 m m FCC ID: QTLBH-109 IC: 661AB-BH109 Model: BH-109 FCC ID: QTLBH-109 IC: 661AB-BH109 Model: BH-109 9 . 8 m m 33.00 mm 15.00 mm 8 m m

LABEL LOCATION Label

Page 10 Sample 1 Page 11 Page 12 Page 13 Page 14 Sample 2 Page 15 Page 16 Page 17 Page 18 Sample 3 Page 19 Page 20 Page 21

FCC ID: QTLBH-109 Report No.: RF990830D14 Operational Description The device is a Frequency Hopping device with 79 hopping frequencies. The antenna type is Chip Antenna and there is no antenna connector used. The EUT is a unit that contains a Bluetooth radio module. Bluetooth is a short-range wireless technology operating in the 2.4GHz band. It enables devices to have the ability to form networks and exchange information. The other instruction, please have a look at the user’s manual.

Report No: SA990830D14 1 Report Format Version 3.0.1 RF EXPOSURE REPORT REPORT NO.: SA990830D14 MODEL NO.: BH-109 FCC ID: QTLBH-109 VERSION: Proto: B4.01/ B4.02/ B4.11/ B4.12, HW: 0.31/ 0.32/ 0.33, SW: 0.3, ME: 0.31/ 0.32 ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT : Nokia(China) Investment Co., LTD. ADDRESS : B2, Nokia China Campus.Beijing Economic and Tech Development Area, No.5. Donghuan Zhonglu.P.O. Box 100176, Beijing, China ISSUED BY : Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS : No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang, Taipei Hsien, 244 Taiwan Report No: SA990830D14 2 Report Format Version 3.0.1 Conclusion No Evaluation Required if power is below this threshold: F(GHz) mW Low 2.402 High 2.480 24.58 Maximum measured transmitter power: Pout (dBm) Pout (mW) Conducted Power 0.9 1.2 EIRP Power 3.9 2.5 *Note: The antenna is Chip antenna with 3dBi gain Threshold for no SAR evaluation is 24.58mW Transmitter power is 2.5mW Conclusion: No SAR evaluation required since Transmitter Pout is below FCC threshold ---END---

Report No.: RF990830D14 1 Report Format Version 3.0.1 FCC TEST REPORT REPORT NO.: RF990830D14 MODEL NO.: BH-109 FCC ID: QTLBH-109 VERSION: Proto: B4.01/ B4.02/ B4.11/ B4.12, HW: 0.31/ 0.32/ 0.33, SW: 0.3, ME: 0.31/ 0.32 RECEIVED: Aug. 30, 2010 TESTED: Aug. 30 ~ Sep. 1, 2010 ISSUED: Sep. 14, 2010 APPLICANT: Nokia(China) Investment Co., LTD. ADDRESS: B2, Nokia China Campus.Beijing Economic and Tech Development Area, No.5. Donghuan Zhonglu.P.O. Box 100176, Beijing, China ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB LOCATION: No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang, Taipei Hsien, 244 Taiwan This test report consists of 74 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by TAF or any government agencies. The test results in the report only apply to the tested sample. Report No.: RF990830D14 2 Report Format Version 3.0.1 TABLE OF CONTENTS 1. CERTIFICATION.............................................................................................4 2. SUMMARY OF TEST RESULTS.....................................................................5 2.1 MEASUREMENT UNCERTAINTY..................................................................6 3. GENERAL INFORMATION.............................................................................7 3.1 GENERAL DESCRIPTION OF EUT................................................................7 3.2 DESCRIPTION OF TEST MODES..................................................................8 3.2.1 CONFIGURATION OF SYSTEM UNDER TEST.............................................9 3.2.2 TEST MODE APPLICABILITY AND TESTED CHANNEL DETAIL................10 3.2.3 GENERAL DESCRIPTION OF APPLIED STANDARDS...............................12 3.2.4 DESCRIPTION OF SUPPORT UNITS..........................................................12 4. TEST TYPES AND RESULTS.......................................................................13 4.1 CONDUCTED EMISSION MEASUREMENT................................................13 4.1.1 LIMITS OF CONDUCTED EMISSION MEASUREMENT..............................13 4.1.2 TEST INSTRUMENTS..................................................................................14 4.1.3 TEST PROCEDURES...................................................................................15 4.1.4 DEVIATION FROM TEST STANDARD.........................................................15 4.1.5 TEST SETUP................................................................................................15 4.1.6 EUT OPERATING CONDITIONS..................................................................16 4.1.7 TEST RESULTS............................................................................................17 4.2 RADIATED EMISSION MEASUREMENT.....................................................19 4.2.1 LIMITS OF RADIATED EMISSION MEASUREMENT...................................19 4.2.2 TEST INSTRUMENTS..................................................................................20 4.2.3 TEST PROCEDURES...................................................................................21 4.2.4 DEVIATION FROM TEST STANDARD.........................................................21 4.2.5 TEST SETUP................................................................................................22 4.2.6 EUT OPERATING CONDITIONS..................................................................23 4.2.7 TEST RESULTS............................................................................................24 4.3 NUMBER OF HOPPING FREQUENCY USED.............................................30 4.3.1 LIMIT OF HOPPING FREQUENCY USED...................................................34 4.3.2 TEST INSTRUMENTS....................................................................................34 4.3.3 TEST PROCEDURES...................................................................................34 4.3.4 DEVIATION FROM TEST STANDARD.........................................................35 4.3.5 TEST SETUP................................................................................................35 4.3.6 TEST RESULTS............................................................................................35 4.4 DWELL TIME ON EACH CHANNEL.............................................................38 4.4.1 LIMIT OF DWELL TIME USED......................................................................38 4.4.2 TEST INSTRUMENTS..................................................................................38 4.4.3 TEST PROCEDURES...................................................................................38 4.4.4 DEVIATION FROM TEST STANDARD.........................................................38 4.4.5 TEST SETUP................................................................................................39 4.4.6 TEST RESULTS............................................................................................39 4.5 CHANNEL BANDWIDTH...............................................................................47 4.5.1 LIMITS OF CHANNEL BANDWIDTH............................................................47 4.5.2 TEST INSTRUMENTS..................................................................................47 4.5.3 TEST PROCEDURE.....................................................................................47 4.5.4 DEVIATION FROM TEST STANDARD.........................................................48 Report No.: RF990830D14 3 Report Format Version 3.0.1 4.5.5 TEST SETUP................................................................................................48 4.5.6 EUT OPERATING CONDITION....................................................................48 4.5.7 TEST RESULTS..........................…

Text truncated - open the document above for the full version.

1 PHOTOGRAPHS OF THE TEST CONFIGURATION CONDUCTED EMISSION TEST 2 RADIATED EMISSION TEST (Mode A) 3 RADIATED EMISSION TEST (Mode B)
