QTLRM-1041GSM/WCDMA/LTE/CDMA Cellular Device with BT, BTLE, WLAN, NFC

Product and safety information 123123 Issue 1 EN RM-1041 For your safety We invite you to read the instructions on this guide before using the device. SWITCH OFF IN RESTRICTED AREAS Switch the device off when mobile phone use is not allowed or when it may cause interference or danger, for example, in aircraft, in hospitals or near medical equipment, fuel, chemicals, or blasting areas. Obey all instructions in restricted areas. ROAD SAFETY COMES FIRST Obey all local laws. Always keep your hands free to operate the vehicle while driving. Your first consideration while driving should be road safety. INTERFERENCE All wireless devices may be susceptible to interference, which could affect performance. QUALIFIED SERVICE Only qualified personnel may install or repair this product. BATTERIES, CHARGERS, AND OTHER ACCESSORIES Use only batteries, chargers, and other accessories approved by Microsoft Mobile for use with this device. Third-party chargers that comply with the IEC/EN 62684 standard, and that can connect to your device micro USB connector, may be compatible. Do not connect incompatible products. KEEP YOUR DEVICE DRY Your device is not water-resistant. Keep it dry. GLASS PARTS The device screen is made of glass. This glass can break if the device is dropped on a hard surface or receives a substantial impact. If the glass breaks, do not touch the glass parts of the device or attempt to remove the broken glass from the device. Stop using the device until the glass is replaced by qualified service personnel. PROTECT YOUR HEARING To prevent possible hearing damage, do not listen at high volume levels for long periods. Exercise caution when holding your device near your ear while the loudspeaker is in use. SAR This device meets RF exposure guidelines when used either in the normal use position against the ear or when positioned at least 2 5/8 inch (1.5 centimetres) away from the body. The specific maximum SAR values can be found in the Certification Information (SAR) section of this user guide. For more info, go to www.sar-tick.com. When a carry case, belt clip or other form of device holder is used for body-worn operation, it should not contain metal and should provide at least the above-stated separation distance from the body. Note that mobile devices may be transmitting even if you are not making a voice call. 3 Antenna locations Learn where the antennas are located on your phone to get the best possible performance. Avoid touching the antenna area while the antenna is in use. Contact with antennas affects the communication quality and may reduce battery life due to higher power level during operation. The antenna areas are highlighted. Troubleshooting and support When you want to learn more about your phone, or if you're unsure how your phone should work, there are several support channels for you to check. 4 To help you get the most out of your phone, there's a user guide in your phone with additional instructions. Tap Lumia Help + Tips. You can also go to www.microsoft.com/mobile/ support/, where you can find: • Full-length user guides • Troubleshooting info • Discussions • News on apps and downloads • Software update info • Further details about features and technologies, and the compatibility of devices and accessories Troubleshooting and discussions may not be available in all languages. For support videos, go to www.youtube.com/ NokiaSupportVideos. If your phone freezes Try the following: • Press and hold the power key for about 10 seconds. The phone restarts. If your phone freezes frequently, update your phone software, or reset your phone. Resetting restores the factory settings, and erases all your 5 personal content, including apps you've purchased and downloaded. On the start screen, swipe down from the top of the screen, and tap ALL SETTINGS > about > reset your phone. If your issue remains unsolved, contact your network service provider or Microsoft Mobile for repair options. Before sending your phone for repair, always back up your data, as all personal data in your phone may be deleted. Find the answers to technical questions related to your phone, and the nearest authorized repair center addresses at www.microsoft.com/mobile/ support/. For the list of Mexico Repair Centers, see the leaflet included inside this sales package. Tip: If you need to identify your phone, to view the unique IMEI number of the phone, dial *#06#. You can also find the IMEI number in the phone body. For details, see the product and safety information section in the online user guide. Feature-specific information Using services or downloading content, including free items, may cause the transfer of large amounts of data, which may result in data costs. Important: Use only compatible memory cards approved for use with this device. Incompatible cards may damage the card and the device and corrupt data stored on the card. Characters with accents, other marks, or some language options, take more space, and limit the number of characters that can be sent in a single message. The list of countries and territories included in the time zone settings does not imply sovereignty. To access the Windows Phone software license terms, select Settings > about. Please read the terms. Note that by using the software, you accept 6 the terms. If you do not accept the terms, do not use the device or software. Instead contact Microsoft Mobile or the party from which you purchased the device to determine its return policy. Find your model number and serial number (IMEI) If you need to contact your care point or your service provider, you may need info such as the model number and the serial number (IMEI). To see the info, tap Settings > about. You can also find the info on your phone label, which is located under the battery. Product and safety info Network services and costs You can only use your device on the LTE 700 (13), 1700 (4), 1900 (2); WCDMA 850, 1900, 2100; CDMA BC0, BC1; and GSM 850, 900, 1800, 1900 MHz network…

Text truncated - open the document above for the full version.

Microsoft Mobile Oy Tel +358 *(0) 7180 08000 Keilalahdentie 4 02150 ESPOO www.microsoft.com Finland October 24, 2014 Federal Communications Commission Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD. 21046 Attention: Equipment Authorization Branch REQUEST FOR CONFIDENTIALITY Pursuant to Sections 0.457 (d) (l) (ii) and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of some of the information accompanying this Application of FCC ID: QTLRM-1041 and as outlined below: - Exhibit 4: Block Diagram - Exhibit 5: Schematic Diagrams - Exhibit 10: List of Active Devices and Tune-Up Procedure - Exhibit 12: Theory of Operation / Description of Circuitry These materials contain trade secrets and proprietary information not customarily released to the public and the public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457 (d) (l) (ii) disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this Application. Microsoft Mobile Oy Ren Shuifang Product Certification Officer Microsoft Corporation is an equal opportunity employer. Page 1 of 1

Microsoft Mobile Oy Tel +358 *(0) 7180 08000 Keilalahdentie 4 02150 ESPOO www.microsoft.com Finland Microsoft Corporation is an equal opportunity employer. Page 1 of 1 June 11, 2014 Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD. 21046 Attention: Equipment Authorization Branch This letter will authorize the appointment of Ren Shuifang to act as our agent in all FCC matters for grantee code QTL. Yours Sincerely, Microsoft Mobile Oy Antero Koivisto Senior Specialist, Regulatory

Microsoft Mobile Oy Tel +358 *(0) 7180 08000 Keilalahdentie 4 02150 ESPOO www.microsoft.com Finland October 29, 2014 Federal Communications Commission Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD. 21046 Attention: Equipment Authorization Branch REQUEST FOR SHORT TERM CONFIDENTIALITY Pursuant to Section 0.459 of the Commission’s Rules and Public Notice DA 04-1705 of June 15, 2004, the Applicant hereby requests for 180 days short term confidential treatment of some of the information accompanying this application of FCC ID: QTLRM-1041 and as outlined below: - Exhibit 3: External photos - Exhibit 7: Test setup photos - Exhibit 8: User's manual - Exhibit 9: Internal photos These materials contain proprietary information not yet released to the public and the public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. Microsoft Mobile Oy Ren Shuifang Product Certification Officer Microsoft Corporation is an equal opportunity employer. Page 1 of 1

Extern Exhibi FCCID nal Picture t 03 External P : QTLRM‐1041 Picture 20 OTC 20 1 14 Copyright  2014 Microsooft. All rights reeserved. Extern Exhibi FCCID nal Picture t 03 External P : QTLRM‐1041 Picture 20 OTC 20 1 14 Copyright  2014 Microsooft. All rights reeserved. Extern Exhibi FCCID nal Picture t 03 External P : QTLRM‐1041 Picture 20 OTC 20 1 14 Copyright  2014 Microsooft. All rights reeserved. Extern Exhibi FCCID nal Picture t 03 External P : QTLRM‐1041 Picture 20 OTC 20 1 14 Copyright  2014 Microsooft. All rights reeserved. Extern Exhibi FCCID nal Picture t 03 External P : QTLRM‐1041 Picture 20 OTC 20 1 14 Copyright  2014 Microsooft. All rights reeserved. Extern Exhibi FCCID nal Picture t 03 External P : QTLRM‐1041 Picture 20 OTC 20 1 14 Copyright  2014 Microso oft. All rights reeserved.

Exhibit 01 Type FCCID: QTLRM- Microsoft Mobil Type labe e label -1041 le l of RM-10 2 0 041 014-10-20 Copyright  2014 Micro 1 (1) osoft. All righ hts reserved.

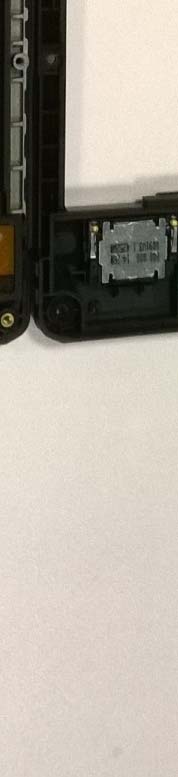

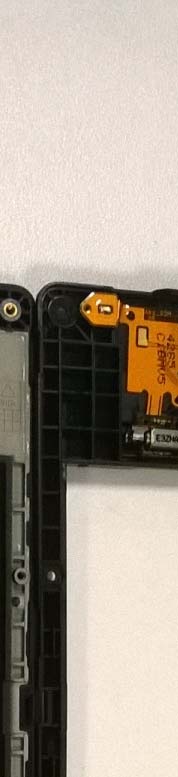

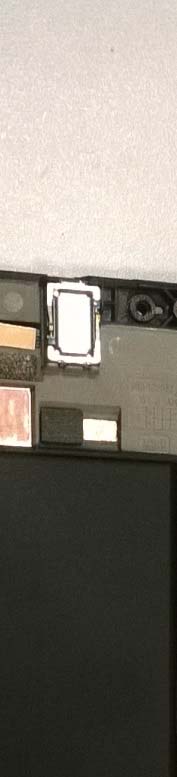

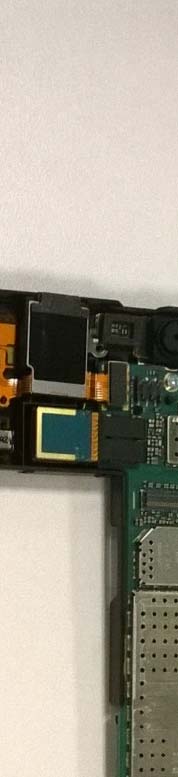

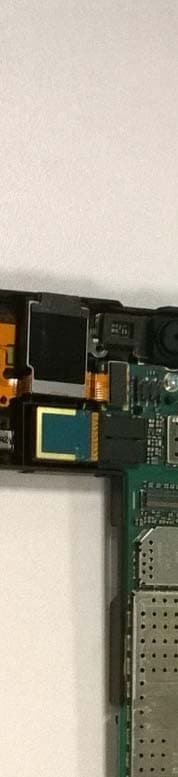

Intern Exhibi FCCID nal Picture t 09 Internal P : QTLRM‐1041 icture 20 Oct 2014 Copyright  2014 Microso oft. All rights reeserved. Intern Exhibi FCCID nal Picture t 09 Internal P : QTLRM‐1041 icture 20 Oct 20114 Copyright  2014 Microsooft. All rights reeserved.

____________________________________________________________________________ SAR Report FCC_RM-1041_01 Applicant: Microsoft Type: RM-1041 Copyright  2014 TCC Microsoft 1/66 SAR Compliance Test Report Test report no.: FCC_RM-1041_01 Date of report: 2014-11-03 Template version: 19.8 Number of pages: 66 Testing laboratory: TCC Microsoft Salo Laboratory P.O.Box 303 Joensuunkatu 7H / Kiila 1B FIN-24101 SALO, FINLAND Tel. +358 (0) 7180 08000 Fax. +358 (0) 7180 46880 Client: Microsoft Beijing Economic and Technological Development Area No.5 Donghuan Zhonglu Beijing PRC China 100176 Tel. +86 10 8711 8888 Fax. +86 10 8711 4550 Responsible test engineer: Virpi Tuominen Product contact person: Helen Hu Measurements made by: Nina Koskinen, Marko Laaksonen, Teuvo Miettinen, Sami Savela Tested device: RM-1041 FCC ID: QTLRM-1041 IC:- Supplement reports: SAR_Photo_RM-1042_02 Testing has been carried out in accordance with: 47CFR §2.1093 Radiofrequency Radiation Exposure Evaluation: Portable Devices FCC published RF exposure KDB procedures RSS-102, Issue 4 Evaluation Procedure for Mobile and Portable Radio Transmitters with Respect to Health Canada’s Safety Code 6 for Exposure of Humans to Radio Frequency Fields IEEE 1528 - 2013 IEEE Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Technique Documentation: The documentation of the testing performed on the tested devices is archived for 15 years at TCC Microsoft. Test results: The tested device complies with the requirements in respect of all parameters subject to the test. The test results and statements relate only to the items tested. The test report shall not be reproduced except in full, without written approval of the laboratory. Date and signatures: For the contents: ____________________________________________________________________________ SAR Report FCC_RM-1041_01 Applicant: Microsoft Type: RM-1041 Copyright  2014 TCC Microsoft 2/66 CONTENTS 1. SUMMARY OF SAR TEST REPORT ............................................................................................................................... 4 1.1 TEST DETAILS ......................................................................................................................................................................... 4 1.2 MAXIMUM RESULTS .............................................................................................................................................................. 4 1.2.1 Head Configuration .................................................................................................................................................... 4 1.2.2 Body Worn Configuration ......................................................................................................................................... 5 1.2.3 Wireless Router Configuration ................................................................................................................................ 5 1.2.4 Summary SAR data ..................................................................................................................................................... 6 1.2.5 Maximum Drift ............................................................................................................................................................. 6 1.2.6 Measurement Uncertainty ........................................................................................................................................ 6 2. DESCRIPTION OF THE DEVICE UNDER TEST .......................................................................................................... 7 2.1 BANDS AND MODES OF THE DUT ...................................................................................................................................... 7 2.2 DUT FEATURES AND TEST REQUIREMENTS ........................................................................................................................ 8 3. CONDUCTED POWERS .................................................................................................................................................... 11 3.1 GSM/GPRS/EGPRS ........................................................................................................................................................ 11 3.2 CDMA ................................................................................................................................................................................. 12 3.3 WCDMA ............................................................................................................................................................................ 14 3.4 LTE ....................................................................................................................................................................................... 15 3.4.1 LTE750 (Band 13) ...................................................................................................................................................... 15 3.4.2 LTE1700/2100 (Band 4) .......................................................................................................................................... 16 3.4.3 LTE1900 (Band 2) ...................................................................................................................................................... 18 3.4.4 BT .................................................................................................................................................................................... 19 3.4.5 WLAN2450 .................................................................................................................................................................. 20 4. DESCRIPTION OF THE TEST EQUIPMENT .....................................................................…

Text truncated - open the document above for the full version.

FCC Part 22 Compliance Test Report / Template Version 15.0 FCC_Cellular_RM‐1041_02 Copyright © TCC Microsoft 1 (60) TCC Microsoft Salo Laboratory P.O.Box(86) Joensuunkatu 7E FIN‐24101 SALO, FINLAND Tel. +358 (0) 7180 08000 Fax. +358 71 80 44122 FCC Part 22/24/27 Compliance Test Report Test Report no.: FCC_Cellular_RM-1041_02.docx Date of Report: 16-Oct-2014 Number of pages: 60 Customer’s Contact person: Helen Hu Testing laboratory: TCC Microsoft Salo Laboratory P.O.Box(86) Joensuunkatu 7E FIN-24101 SALO, FINLAND Tel. +358 (0) 7180 08000 Fax. +358 71 80 44122 Customer: Microsoft Beijing Economic and Technological Development Area No.5 Donghuan Zhonglu Beijing PRC China 100176 Tel. +86 10 8711 8888 Fax. +86 10 8711 4550 FCC listing no.: IC recognition no.: 533467 661V-1 Tested devices/ accessories: Phone RM-1041 / Battery BV-T5A / WLC Cover CC-3086 / AC-Charger AC-20E / Headset WH-108 / Dummy Battery SD-233R / FCC ID: QTLRM-1041 IC: - Supplement reports: - Testing has been carried out in accordance with: CFR 47, FCC rules Parts 22/24/27, TIA-603-C-2004 and IC standards, RSS-GEN (Issue 3, December 2010), RSS-132 (Issue 2, September 2005), RSS-133 (Issue 5, February 2009), RSS-139 (Issue 2, February 2009), RSS-130 (Issue 1, October 2013). Deviations, modifications or clarifications (if any) to above mentioned documents are written in each section under "Test method and limit". Documentation: The test report must always be reproduced in full; reproduction of an excerpt only is subject to written approval of the testing laboratory. The documentation of the testing performed on the tested devices is archived for 15 years at TCC Microsoft. Test Results: The EUT complies with the requirements in respect of all parameters subject to the test. The test results relate only to devices specified in this document Date and signature for the contents: Jari Keto, Specialist, EMC FCC Part 22 Compliance Test Report / Template Version 15.0 FCC_Cellular_RM‐1041_02 Copyright © TCC Microsoft 2 (60) TCC Microsoft Salo Laboratory P.O.Box(86) Joensuunkatu 7E FIN‐24101 SALO, FINLAND Tel. +358 (0) 7180 08000 Fax. +358 71 80 44122 1. Summary for FCC Part 22/24/27 Compliance Test Report Date of receipt 26-Sep-2014 Testing completed 16-Oct-2014 The customer's contact person Helen Hu Test Plan referred to T:\Projects\RM-1041\TestPlan\RS_testplan_RM-1041.xlsm Notes - Document name T:\Projects\RM-1041\EMC\FCC_Cellular_RM-1041_02.docx 1.1. EUT and Accessory Information The EUT is a mobile phone with following features: GSM/CDMA/WCDMA/WLAN/Bluetooth The EUT is tested with maximum rated TX power. Devices under tests Product Type SNHWMVSW DUT Phone RM-1041 353067060029511 0364 - 02042.00000.14372.27013 18673 Battery BV-T5A 4175354295C10801026ö0670740 - - 18674 WLC Cover CC-3086 - - - 18675 AC-Charger AC-20E 4868672461440500132ö0675628 - - 18676 Headset WH-108 2265171 - - - 18677 Phone RM-1041 353067060017250 0364 - 02042.00000.14372.27013 18639 Dummy Battery SD-233R - - - 18640 Headset WH-108 2265171 - - - 18641 1.2. Summary of Test Results GSM 850: Section in CFR 47 Section in RSS-GEN or RSS-132 Name of the test Result §2.1046(a), 22.913(a) 4.4 Conducted RF output power §22.913(a) 4.4 Radiated RF output power PASSED §2.1049(h) 4.6.1 99 % occupied bandwidth §22.917(a) 4.5 Band edge compliance PASSED §22.917(a), §2.1051 4.5 Spurious emissions at antenna terminals §22.917(a), §2.1053 4.5 Spurious radiated emissions PASSED §2.1055(a) 4.3 Frequency stability, temperature variation §2.1055(d) 4.3 Frequency stability, voltage variation GSM 1900: Section in CFR 47 Section in RSS-GEN or RSS-133 Name of the test Result §2.1046(a) 6.4 Conducted RF output power §24.232(b) 6.4 Radiated RF output power PASSED §2.1049(h) 4.6.1 99 % occupied bandwidth §24.238(a) 6.5 Band edge compliance PASSED §24.238(a), §2.1051 6.5 Spurious emissions at antenna terminals §24.238(a), §2.1053 6.5 Spurious radiated emissions PASSED §2.1055(a) 6.3 Frequency stability, temperature variation §2.1055(d) 6.3 Frequency stability, voltage variation FCC Part 22 Compliance Test Report / Template Version 15.0 FCC_Cellular_RM‐1041_02 Copyright © TCC Microsoft 3 (60) TCC Microsoft Salo Laboratory P.O.Box(86) Joensuunkatu 7E FIN‐24101 SALO, FINLAND Tel. +358 (0) 7180 08000 Fax. +358 71 80 44122 CDMA 800: Section in CFR 47 Section in RSS-GEN or RSS-132 Name of the test Result §2.1046(a), 22.913(a) 4.4 Conducted RF output power §22.913(a) 4.4 Radiated RF output power PASSED §2.1049(h) 4.6.1 99 % occupied bandwidth PASSED §22.917(a) 4.5 Band edge compliance PASSED §22.917(a), §2.1051 4.5 Spurious emissions at antenna terminals §22.917(a), §2.1053 4.5 Spurious radiated emissions PASSED §2.1055(a) 4.3 Frequency stability, temperature variation §2.1055(d) 4.3 Frequency stability, voltage variation CDMA 1900: Section in CFR 47 Section in RSS-GEN or RSS-133 Name of the test Result §2.1046(a) 6.4 Conducted RF output power §24.232(b) 6.4 Radiated RF output power PASSED §2.1049(h) 4.6.1 99 % occupied bandwidth PASSED §24.238(a) 6.5 Band edge compliance PASSED §24.238(a), §2.1051 6.5 Spurious emissions at antenna terminals §24.238(a), §2.1053 6.5 Spurious radiated emissions PASSED §2.1055(a) 6.3 Frequency stability, temperature variation §2.1055(d) 6.3 Frequency stability, voltage variation WCDMA2: Section in CFR 47 Section in RSS-GEN or RSS-133 Name of the test Result §2.1046(a) 6.4 Conducted RF output power §24.232(b) 6.4 Radiated RF output power PASSED §2.1049(h) 4.6.1 99 % occupied bandwidth PASSED §24.238(a) 6.5 Band edge compliance PASSED §24.238(a), §2.1051 6.5 Spurious emissions at antenna terminals §24.238(a), §2.1053 6.5 Spurious radiated emissions PASSED §2.1055(a) 6.3 Frequency stability, temperature variation §2.1055(d) 6.3 Frequency stability, voltage variation WCDMA5: Section in CFR 47 Section in RSS-GEN or RSS-132 Name of the test Result §2.1046(a), 22.913(a) 4.4 Conducted RF output power §22.913(a) 4.4 Radiated RF output power PASSED §2.1049(h) 4.6.1 99 % occupied b…

Text truncated - open the document above for the full version.

FCC Part 22 Compliance Test Report / Template Version 15.0 FCC_Cellular_RM‐1041_11.docx Copyright © TCC Microsoft 1 (10) TCC Microsoft Salo Laboratory P.O.Box(86) Joensuunkatu 7E FIN‐24101 SALO, FINLAND Tel. +358 (0) 7180 08000 Fax. +358 71 80 44122 FCC Part 22/24/27 Compliance Test Report Test Report no.: FCC_Cellular_RM-1041_11.docx Date of Report: 13-Nov-2014 Number of pages: 10 Customer’s Contact person: Helen Hu Testing laboratory: TCC Microsoft Salo Laboratory P.O.Box(86) Joensuunkatu 7E FIN-24101 SALO, FINLAND Tel. +358 (0) 7180 08000 Fax. +358 71 80 44122 Customer: Microsoft Beijing Economic and Technological Development Area No.5 Donghuan Zhonglu Beijing PRC China 100176 Tel. +86 10 8711 8888 Fax. +86 10 8711 4550 FCC listing no.: IC recognition no.: 533467 661V-1 Tested devices/ accessories: Phone RM-1041 / Battery BV-T5A / WLC Cover CC-3086 / AC-Charger AC-301E / Headset WH-108 / Charging Pad DT-900 FCC ID: QTLRM-1041 IC: - Supplement reports: - Testing has been carried out in accordance with: CFR 47, FCC rules Parts 22/24/27, TIA-603-C-2004 and IC standards, RSS-GEN (Issue 3, December 2010), RSS-132 (Issue 2, September 2005), RSS-133 (Issue 5, February 2009), RSS-139 (Issue 2, February 2009), RSS-130 (Issue 1, October 2013). Deviations, modifications or clarifications (if any) to above mentioned documents are written in each section under "Test method and limit". Documentation: The test report must always be reproduced in full; reproduction of an excerpt only is subject to written approval of the testing laboratory. The documentation of the testing performed on the tested devices is archived for 15 years at TCC Microsoft. Test Results: The EUT complies with the requirements in respect of all parameters subject to the test. The test results relate only to devices specified in this document Date and signature for the contents: Kalle Hannila, System Manager, EMC FCC Part 22 Compliance Test Report / Template Version 15.0 FCC_Cellular_RM‐1041_11.docx Copyright © TCC Microsoft 2 (10) TCC Microsoft Salo Laboratory P.O.Box(86) Joensuunkatu 7E FIN‐24101 SALO, FINLAND Tel. +358 (0) 7180 08000 Fax. +358 71 80 44122 1. Summary for FCC Part 22/24/27 Compliance Test Report Date of receipt 26-Sep-2014 Testing completed 08-Oct-2014 The customer's contact person Helen Hu Test Plan referred to T:\Projects\RM-1041\TestPlan\RS_testplan_RM-1041.xlsm Notes - Document name T:\Projects\RM-1041\EMC\FCC_Cellular_RM-1041_11.docx 1.1. EUT and Accessory Information The EUT is a mobile phone with following features: GSM/CDMA/WCDMA/WLAN/Bluetooth The EUT is tested with maximum rated TX power. Devices under tests Product Type SN HW MV SW DUT Phone RM-1041 353067060029511 0364 - 02042.00000.14372.27013 18673 Battery BV-T5A 4175354295C10801026ö0670740 - - 18674 WLC Cover CC-3086 - - - 18675 AC-Charger AC-301E 4090492216580201918ö0675638 - - - 18564 Headset WH-108 2265171 - - - 18677 Charging Pad DT-900 067709231530TW00028 - - - 18565 1.2. Summary of Test Results GSM 850: Section in CFR 47 Section in RSS-GEN or RSS-132 Name of the test Result §2.1046(a), 22.913(a) 4.4 Conducted RF output power §22.913(a) 4.4 Radiated RF output power §2.1049(h) 4.6.1 99 % occupied bandwidth §22.917(a) 4.5 Band edge compliance §22.917(a), §2.1051 4.5 Spurious emissions at antenna terminals §22.917(a), §2.1053 4.5 Spurious radiated emissions PASSED §2.1055(a) 4.3 Frequency stability, temperature variation §2.1055(d) 4.3 Frequency stability, voltage variation GSM 1900: Section in CFR 47 Section in RSS-GEN or RSS-133 Name of the test Result §2.1046(a) 6.4 Conducted RF output power §24.232(b) 6.4 Radiated RF output power §2.1049(h) 4.6.1 99 % occupied bandwidth §24.238(a) 6.5 Band edge compliance §24.238(a), §2.1051 6.5 Spurious emissions at antenna terminals §24.238(a), §2.1053 6.5 Spurious radiated emissions PASSED §2.1055(a) 6.3 Frequency stability, temperature variation §2.1055(d) 6.3 Frequency stability, voltage variation LTE4: Section in CFR 47 Section in RSS-GEN or RSS-139 Name of the test Result §2.1046(a) 6.4 Conducted RF output power §27.50(d)(4) 6.4 Radiated RF output power FCC Part 22 Compliance Test Report / Template Version 15.0 FCC_Cellular_RM‐1041_11.docx Copyright © TCC Microsoft 3 (10) TCC Microsoft Salo Laboratory P.O.Box(86) Joensuunkatu 7E FIN‐24101 SALO, FINLAND Tel. +358 (0) 7180 08000 Fax. +358 71 80 44122 §2.1049(h) 4.6.1 99 % occupied bandwidth §27.53(h) 6.5 Band edge compliance §27.53(h), §2.1051 6.5 Spurious emissions at antenna terminals §27.53(h), §2.1053 6.5 Spurious radiated emissions PASSED §2.1055(a) 6.3 Frequency stability, temperature variation §2.1055(d) 6.3 Frequency stability, voltage variation LTE13: Section in CFR 47 Section in RSS-GEN or RSS-130 Name of the test Result §2.1046(a) 4.4 Conducted RF output power §27.50(b)(10) 4.4 Radiated RF output power §2.1049(h) 4.6.1 99 % occupied bandwidth §27.53(c)(2)(4) 4.6 Band edge compliance §27.53(c)(2)(4),(f), §2.1051 4.6 Spurious emissions at antenna terminals §27.53(c)(2)(4),(f), §2.1053 4.6 Spurious radiated emissions PASSED §2.1055(a) 4.3 (a) Frequency stability, temperature variation §2.1055(d) 4.3 (a) Frequency stability, voltage variation PASSED The EUT complies with the essential requirements in the standard. FAILED The EUT does not comply with the essential requirements in the standard. NP The test was not performed by the TCC Microsoft Laboratory. FCC Part 22 Compliance Test Report / Template Version 15.0 FCC_Cellular_RM‐1041_11.docx Copyright © TCC Microsoft 4 (10) TCC Microsoft Salo Laboratory P.O.Box(86) Joensuunkatu 7E FIN‐24101 SALO, FINLAND Tel. +358 (0) 7180 08000 Fax. +358 71 80 44122 CONTENTS 1. Summary for FCC Part 22/24/27 Compliance Test Report ....................................... 2 1.1. EUT and Accessory Information ........................................................................................................ 2 1.2. Summary of Test Results ...........................................................................…

Text truncated - open the document above for the full version.

FCC Part 22/24 Compliance Test Report / Template Version 15.0 FCC22&24&27_RM‐1041_16.docx Copyright © TCC Microsoft 1 (13) TCC Microsoft Beijing Laboratory Beijing Economic and Technological Development Area No.5 Donghuan Zhonglu Beijing PRC China 100176 Tel. +86 10 8711 8888 Fax. +86 10 8711 4550 FCC Part 22/24/27 Compliance Test Report Test Report no.: FCC22&24&27_RM-1038_15.docx Date of Report: 30-Oct-2014 Number of pages: 13 Customer’s Contact person: Hu Helen Testing laboratory: TCC Microsoft Beijing Laboratory Beijing Economic and Technological Development Area No.5 Donghuan Zhonglu Beijing PRC China 100176 Tel. +86 10 8711 8888 Fax. +86 10 8711 4550 Customer: Microsoft Beijing Economic and Technological Development Area No.5 Donghuan Zhonglu Beijing PRC China 100176 Tel. +86 10 8711 8888 Fax. +86 10 8711 4550 FCC listing no.: IC recognition no.: 975940 661AH-1 Tested devices/ accessories: Phone RM-1041 / Battery Samsung BV-T5A / Wireless charger cover CC-3086 / AC-Charger AC-20E / Headset WH-108 /Dummy Battery SD- 233R FCC ID: QTLRM-1041 IC: Supplement reports: - Testing has been carried out in accordance with: CFR 47, FCC rules Parts 22/24, TIA-603-C-2004 and IC standards, RSS-GEN (Issue 3, December 2010), RSS-130 (Issue 1, October 2013), RSS-132 (Issue 2, September 2005), RSS-133 (Issue 5, February 2009). Deviations, modifications or clarifications (if any) to above mentioned documents are written in each section under "Test method and limit". Documentation: The test report must always be reproduced in full; reproduction of an excerpt only is subject to written approval of the testing laboratory. The documentation of the testing performed on the tested devices is archived for 15 years at TCC Microsoft. Test Results: The EUT complies with the requirements in respect of all parameters subject to the test. The test results relate only to devices specified …

Text truncated - open the document above for the full version.
