QTLRM-1078GSM/WCDMA/LTE/CDMA cellular device w/BT, BTLE, WLAN

For your safety Read these simple guidelines. Not following them may be dangerous or illegal. For further info, read the complete user guide. SWITCH OFF IN RESTRICTED AREAS Switch the device off when mobile phone use is not allowed or when it may cause interference or danger, for example, in aircraft, in hospitals or near medical equipment, fuel, chemicals, or blasting areas. Obey all instructions in restricted areas. ROAD SAFETY COMES FIRST Obey all local laws. Always keep your hands free to operate the vehicle while driving. Your first consideration while driving should be road safety. INTERFERENCE All wireless devices may be susceptible to interference, which could affect performance. QUALIFIED SERVICE Only qualified personnel may install or repair this product. BATTERIES, CHARGERS, AND OTHER ACCESSORIES Use only batteries, chargers, and other accessories approved by Microsoft Mobile for use with this device. Third-party chargers that comply with the IEC/EN 62684 standard, and that can connect to your device micro USB connector, may be compatible. Do not connect incompatible products. KEEP YOUR DEVICE DRY Your device is not water-resistant. Keep it dry. GLASS PARTS The device screen is made of glass. This glass can break if the device is dropped on a hard surface or receives a substantial impact. If the glass breaks, do not touch the glass parts of the device or attempt to remove the broken glass from the device. Stop using the device until the glass is replaced by qualified service personnel. PROTECT YOUR HEARING To prevent possible hearing damage, do not listen at high volume levels for long periods. Exercise caution when holding your device near your ear while the speakerphone is in use. SAR This device meets RF exposure guidelines when used either in the normal use position against the ear or when positioned at least 5/8 inch (1.5 centimeters) away from the body. The specific 2 maximum SAR values can be found in the Certification Information (SAR) section of this user guide. For more info, go to www.sar- tick.com. When a carry case, belt clip or other form of device holder is used for body-worn operation, it should not contain metal and should provide at least the above-stated separation distance from the body. Note that mobile devices may be transmitting even if you are not making a voice call. 3 Antenna locations Learn where the antennas are located on your phone to get the best possible performance. Avoid touching the antenna area while the antenna is in use. Contact with antennas affects the communication quality and may reduce battery life due to higher power level during operation. The antenna areas are highlighted. 4 Troubleshooting and support When you want to learn more about your phone, or if you're unsure how your phone should work, there are several support channels for you to check. • Full-length user guides • Troubleshooting info • Discussions • News on apps and downloads • Software update info • Further details about features and technologies, and the compatibility of devices and accessories Troubleshooting and discussions may not be available in all languages. For support videos, go to www.youtube.com/ NokiaSupportVideos. 5 If your phone freezes Try the following: • Press and hold the power key for about 10 seconds. The phone restarts. If your phone freezes frequently, update your phone software, or reset your phone. Resetting restores the factory settings, and erases all your personal content, including apps you've purchased and downloaded. On the start screen, swipe down from the top of the screen, and tap ALL SETTINGS > about > reset your phone. If your issue remains unsolved, contact your network service provider or Microsoft Mobile for repair options. Before sending your phone for repair, always back up your data, as all personal data in your phone may be deleted. Tip: If you need to identify your phone, to view the unique IMEI number of the phone, dial *#06#. Feature-specific information Using services or downloading content, including free items, may cause the transfer of large amounts of data, which may result in data costs. Important: Your device uses a micro-SIM card, also known as a mini-UICC SIM card. Use of incompatible SIM cards, or use of SIM card adapters, may damage the card or the device, and may corrupt data stored on the card. 6 Use only compatible memory cards approved for use with this device. Incompatible cards may damage the card and the device and corrupt data stored on the card. Do not connect to products that create an output signal, as this may damage the device. Do not connect any voltage source to the audio connector. If you connect an external device or headset, other than those approved for use with this device, to the audio connector, pay special attention to volume levels. You can send text messages that are longer than the character limit for a single message. Longer messages are sent as two or more messages. Your service provider may charge accordingly. Characters with accents, other marks, or some language options, take more space, and limit the number of characters that can be sent in a single message. Airplane mode closes connections to the mobile network and switches your device's wireless features off. Comply with the instructions and safety requirements given by, for example, an airline, and any applicable laws and regulations. Where allowed, you can connect to a Wi-Fi network to, for example, browse the internet or switch Bluetooth on in airplane mode. Contents of digital maps may sometimes be inaccurate and incomplete. Never rely solely on the content or the service for essential communications, such as in emergencies. Important: Before sharing your location, consider carefully with whom you are sharing. Check the privacy settings of the social networking service you are using, as you might share your location with a large group of people. The availability, accuracy and completeness of the location info depend on, for exa…

Text truncated - open the document above for the full version.

Microsoft Mobile Oy Tel +358 *(0) 7180 08000 Keilalahdentie 4 02150 ESPOO www.microsoft.com Finland Microsoft Corporation is an equal opportunity employer. Page 1 of 1 September 16, 2014 Federal Communications Commission Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD. 21046 Attention: Equipment Authorization Branch REQUEST FOR CONFIDENTIALITY Pursuant to Sections 0.457 (d) (l) (ii) and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of some of the information accompanying this Application of FCC ID: QTLRM-1078 and as outlined below: - Exhibit 4: Block Diagram - Exhibit 5: Schematic Diagrams - Exhibit 10: List of Active Devices and Tune-Up Procedure - Exhibit 12: Theory of Operation / Description of Circuitry These materials contain trade secrets and proprietary information not customarily released to the public and the public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457 (d) (l) (ii) disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this Application. Microsoft Mobile Oy Xu Helen Product Certification Officer

Microsoft Mobile Oy Tel +358 *(0) 7180 08000 Keilalahdentie 4 02150 ESPOO www.microsoft.com Finland Microsoft Corporation is an equal opportunity employer. Page 1 of 1 June 11, 2014 Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD. 21046 Attention: Equipment Authorization Branch This letter will authorize the appointment of Xu Helen to act as our agent in all FCC matters for grantee code QTL. Yours Sincerely, Microsoft Mobile Oy Antero Koivisto Senior Specialist, Regulatory

Microsoft Mobile Oy Tel +358 *(0) 7180 08000 Keilalahdentie 4 02150 ESPOO www.microsoft.com Finland Microsoft Corporation is an equal opportunity employer. Page 1 of 1 September 16, 2014 Federal Communications Commission Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD. 21046 Attention: Equipment Authorization Branch REQUEST FOR SHORT TERM CONFIDENTIALITY Pursuant to Section 0.459 of the Commission’s Rules and Public Notice DA 04-1705 of June 15, 2004, the Applicant hereby requests for 90 days short term confidential treatment of some of the information accompanying this application of FCC ID: QTLRM-1078 and as outlined below: - Exhibit 3: External photos - Exhibit 7: Test setup photos - Exhibit 8: User's manual - Exhibit 9: Internal photos These materials contain proprietary information not yet released to the public and the public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. Microsoft Mobile Oy Xu Helen Product Certification Officer

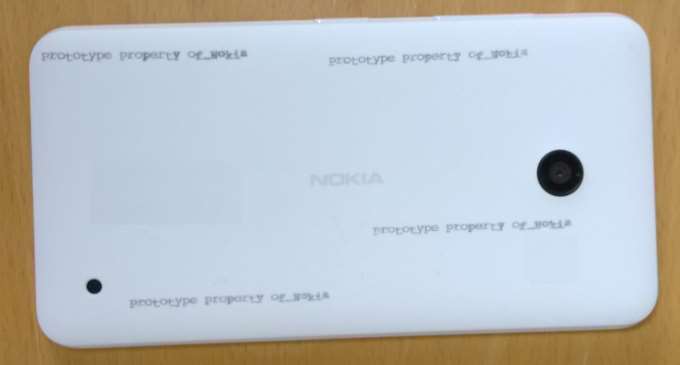

03 Sep 2014 External Photographs Exhibit 04 External Photos FCCID: QTL RM-1078 Applicant: Microsoft Mobile Oy Copyright  2014 Microsoft. All rights reserved. 03 Sep 2014 External Photographs Exhibit 04 External Photos FCCID: QTL RM-1078 Applicant: Microsoft Mobile Oy Copyright  2014 Microsoft. All rights reserved. 03 Sep 2014 External Photographs Exhibit 04 External Photos FCCID: QTL RM-1078 Applicant: Microsoft Mobile Oy Copyright  2014 Microsoft. All rights reserved.

1 (1) 2014-09-10 Exhibit 01 type label location FCCID: QTLRM-1078 Applicant: Microsoft Mobile Oy Copyright  2014 Microsoft. All rights reserved.

FCC Part 15B Compliance Test Report / Template Version 15.0 FCC15B_RM-1078_06 Copyright © TCC Microsoft 1 (13) TCC Microsoft Beijing Laboratory Beijing Economic and Technological Development Area No.5 Donghuan Zhonglu Beijing PRC China 100176 Tel. +86 10 8711 8888 Fax. +86 10 8711 4550 FCC Part 15B Compliance Test Report Test Report no.: FCC15B_RM-1078_06 Date of Report: 10-Sep-2014 Number of pages: 13 Customer’s Contact person: Hu Dongji Testing laboratory: TCC Microsoft Beijing Laboratory Beijing Economic and Technological Development Area No.5 Donghuan Zhonglu Beijing PRC China 100176 Tel. +86 10 8711 8888 Fax. +86 10 8711 4550 Customer: Microsoft Beijing Economic and Technological Development Area No.5 Donghuan Zhonglu Beijing PRC China 100176 Tel. +86 10 8711 8888 Fax. +86 10 8711 4550 FCC listing no.: IC recognition no.: 975940 661AH-1 Tested devices/ accessories: Phone RM-1078 / DATA USB Cable CA-189CD / Battery BL-5H / Headset WH-108 / Laptop IBM T43 / Printer HP C6427A / AC-Adapter 02K6749 FCC ID: QTLRM-1078 IC: Supplement reports: - Testing has been carried out in accordance with: CFR 47, FCC rules Part 15 Subpart B, ANSI C63.4 (2003), CISPR 22, RSS-GEN (Issue 3, December 2010), RSS-132 (Issue 2, September 2005), RSS-133 (Issue 5, February 2009). Deviations, modifications or clarifications (if any) to above mentioned documents are written in each section under "Test method and limit". Documentation: The test report must always be reproduced in full; reproduction of an excerpt only is subject to written approval of the testing laboratory. The documentation of the testing performed on the tested devices is archived for 15 years at TCC Microsoft. Test Results: The EUT complies with the requirements in respect of all parameters subject to the test. The test results relate only to devices specified in this document Date and signature for the contents: Fu Roger, Engineer, EMC FCC Part 15B Compliance Test Report / Template Version 15.0 FCC15B_RM-1078_06 Copyright © TCC Microsoft 2 (13) TCC Microsoft Beijing Laboratory Beijing Economic and Technological Development Area No.5 Donghuan Zhonglu Beijing PRC China 100176 Tel. +86 10 8711 8888 Fax. +86 10 8711 4550 1. Summary for FCC Part 15B Compliance Test Report Date of receipt 31-Jul-2014 Testing completed 27-Aug-2014 The customer's contact person Hu Dongji Test Plan referred to T:\Projects\RM-1078\TestPlan\RS_Testplan_RM-1078.xlsm Notes - Document name FCC15B_RM-1078_06.docx 1.1. EUT and Accessory Information The EUT is a mobile phone with following features: GSM/CDMA/WCDMA/LTE/WLAN/Bluetooth The EUT is tested with maximum rated TX power. Devices under tests Product Type SN HW MV SW DUT Phone RM-1078 355129060006721 0201 - 02035.00000.14295.07001 54576 Data USB Cable CA-189CD 07304542362K2F - - - 54584 Battery BL-5H 4175354275C20304003;0670699 - - - 54583 Headset WH-108 3022D71 - - - 54459 Laptop IBM T43 L3KXHL3 - - - 52468 Printer HP C6427A MY15B18156JJ - - - 51838 AC-Adapter 02K6749 - - - - 53509 Phone RM-1078 355129060007158 0201 - 02035.00000.14295.07001 54578 Battery BL-5H 4175354275C20304014;0670699 - - - 54577 USB DATA CABLE CA-189CD 07304542362K2F - - - 54584 Headset WH-108 3293L71 - - - 54240 1.2. Summary of Test Results GSM 1900: Section in CFR 47 Section in RSS-GEN Name of the test Result 15.107, a 7.2.4 AC powerline conducted emissions PASSED 15.109, a 6.1 Radiated emissions PASSED PASSED The EUT complies with the essential requirements in the standard. FAILED The EUT does not comply with the essential requirements in the standard. NP The test was not performed by the TCC Microsoft Laboratory. FCC Part 15B Compliance Test Report / Template Version 15.0 FCC15B_RM-1078_06 Copyright © TCC Microsoft 3 (13) TCC Microsoft Beijing Laboratory Beijing Economic and Technological Development Area No.5 Donghuan Zhonglu Beijing PRC China 100176 Tel. +86 10 8711 8888 Fax. +86 10 8711 4550 CONTENTS 1. Summary for FCC Part 15B Compliance Test Report .............................................. 2 1.1. EUT and Accessory Information ...........................................................................................................2 1.2. Summary of Test Results .....................................................................................................................2 2. AC powerline conducted emissions (FCC §15.107, a, RSS-GEN, section 7.2.4) ....................................................................... 4 2.1. Test Setup ............................................................................................................................................4 2.2. Test method and limit ...........................................................................................................................4 2.3. GSM 1900 Test results .........................................................................................................................5 3. Radiated emissions (FCC §15.109, RSS-GEN, section 6.1, RSS-132 4.6, RSS-133 6.6) ................................. 6 3.2. Test method and limit ...........................................................................................................................6 3.3. GSM 1900 test results- Data transfer ...................................................................................................8 4. Test Equipment ......................................................................................................... 11 4.1. Conducted measurements ................................................................................................................ 11 4.2. Radiated measurements ................................................................................................................... 11 FCC Part 15B Compliance Test Report / Template Version 15.0 FCC15B_RM-1078_06 Copyright © TCC Microsoft 4 (13) TCC Microsoft Beijing Laboratory Beijing Economic and Technological Development Area No.5 Donghuan Zhonglu Beijing PRC China 100176 Tel…

Text truncated - open the document above for the full version.

EMC Test Setup Photos / Template Version 1.0 EMC_Photo_RM-1078_09 Copyright © TCC Microsoft 1 (3) RM-1078 Test Setups Picture 1. FCC Part 15C Radiated emissions Picture 2. FCC Part 15B Radiated emissions EMC Test Setup Photos / Template Version 1.0 EMC_Photo_RM-1078_09 Copyright © TCC Microsoft 2 (3) Picture 3. FCC Part 15B Radiated emissions, computer peripherals Picture 4. FCC Part 15C AC powerline conducted emissions EMC Test Setup Photos / Template Version 1.0 EMC_Photo_RM-1078_09 Copyright © TCC Microsoft 3 (3) Picture 5. FCC Part 15B AC powerline conducted emissions, computer peripherals, measure from PC charger
