QTLBH-112UBluetooth Headset

Nokia Bluetooth Headset BH-112U User Guide Issue 1.2 Introduction About your headset With the Nokia Bluetooth BH-112U headset, you can handle calls hands-free, even when you are using tw o mobile devices at th e same time. The surface of this product is nickel-free. Warning: This product may contain small parts. Keep them out of the reach of small children. Parts of the product are magnetic. Metallic materials may be attracted to the product. Do not place credit cards or other magnetic storage media near the product, because information stored on them may be erased. Read this user guide carefully before using the product. Also, read the user guide for the device that you connect to the product. About Bluetooth connectivity You can use Bluetooth to make a wireless connection to other compatible devices, such as mobile devices. Devices do not need to be in direct line-of-sight, but they must be within 10 metres (33 feet) of each other. The connection may be affected by obstructions such as walls or other electronic devices. This device is compliant with Bluetooth Specification 2.1 +EDR supporting the following profiles: Headset Profile (HSP) 1.1, Handsfree Profile (HFP) 1.5. Check with the manufacturers of other devices to determine their compatibility with this device. 2 Get started Keys and parts 1Charger connector 2Indicator light 3Power key 4Microphone 5Call key 6Earpiece 7Earloop Start using your headset When you switch on your headset for the first time, a voice prompt helps you set up your headset. Voice prompts are not available in all languages. The headset comes with different sized earpads. Select the earpad that fits the best and is the most comfortable for your ear. To change the earpad, pull the current earpad from the earpiece, and push the new earpad into place. 1To switch the headset on, press and hold for 2 seconds. If the headset doesn't switch on, charge the battery. 2Gently push the earpiece into your ear. 3To pair the headset with a compatible phone, follow the voice prompt. Charge the battery Before using the headset, you must charge the battery. 3 1 2 3 7 6 5 4 Warning: Use only chargers approved by Nokia for use with this particular model. The use of any other types may invalidate any approval or warranty, and may be dangerous. Use of unapproved chargers may present a risk of fire, explosion, or other hazard. 2Connect the charger cable to the charger connector on the headset. The red indicator light turns green when the battery is fully charged. 3Disconnect the charger from the headset, then from the wall outlet. When you unplug a charger, hold and pull the plug, not the cord. The fully charged battery has power for up to 5 hours of talk time or up to 150 hours of standby time. When the battery charge is low, you hear a voice prompt, the headset beeps every 5 minutes, and the red indicator light flashes. When the battery is charging, the red indicator light is on. Check the battery charge Make sure the headset is switched on, and press . A green light indicates a sufficient charge level. If the light is yellow, you may need to recharge the battery soon. If the light is red, recharge the battery. Switch the headset on or off Switch on Press and hold for 2 seconds. The headset beeps, and a green indicator light flashes once. The headset connects to the last connected device. If you have never paired the headset with a device, or you have cleared the device pairings, pairing mode is activated. Switch off Press and hold for 2 seconds. The headset beeps, and a red indicator light flashes once. All active calls are ended. If not connected to a device within 30 minutes, the headset switches off. Pair and connect the headset to your phone Before using the headset, you must pair and connect it to a compatible phone. 4 1Connect the USB cable to the USB connector of the charger. Connect the charger to a wall outlet. 1To switch the headset off, press and hold for 2 seconds. 2Switch on the phone to pair with. 3If you have never paired the headset with a phone, or you have cleared the phone pairings, switch the headset on. If you have previously paired your headset with another phone, press and hold for 5 seconds. Pairing mode is activated, and a green indicator light starts to flash quickly. Follow the voice prompt. 4Within 3 minutes, activate Bluetooth on the phone, and set it to search for Bluetooth devices. For details, see the user guide of the phone. 5Select the headset from the list of found devices. 6If required, enter the passcode 0000. You can pair your headset with 8 compatible phones, but you can only connect it to a maximum of 2 phones at the same time. With some phones, you may need to make the connection separately after pairing. Wear the headset If you want to use the headset with the earloop, attach the earloop to the headset. To detach the earloop, gently pull it from the headset. Slide the earloop behind your ear, and gently push the earpiece against your ear. Carefully bend the earloop around your ear for the best fit. Point the headset towards your mouth. 5 Make calls Make and receive calls To make and receive calls using your headset, you need to connect it to your phone. Make a call Make a call in the normal way. Answer a call Press . End a call Press . Reject a call Press twice. Switch a call between your headset and phone Press and hold for 2 seconds. You can redial the last called number or use voice dialling, if your phone supports these features with the headset. Redial the last called number When no call is in progress, press twice. Use voice dialling When no call is in progress, press and hold for 2 seconds, and follow the instructions in the user guide of your phone. 6 Change the volume Set the desired volume level on your connected mobile device. The selected volume level is saved as the minimum volume level for the device that is currently connected to the headset. Pair and connect the headset to two phones When you use the headset for the first …

Text truncated - open the document above for the full version.

Date: August 28, 2013 Federal Communications Commission Authorization and Evaluation Division Subject: Short-term confidentiality request regarding application for certification of FCC ID: QTLBH-112U Pursuant to DA 04-1705 of the Commission’s public notice, we request short-term confidential treatment for the following information until 45 days after the Grant Date of Equipment Authorization in order to ensure sensitive business information remains confidential until the actual marketing of the device. External Photos Test setup photos User’s Manual Internal Photos Sincerely yours, ------------------------------------------------------------------- YaoShuo-Lisa Nokia (China) Investment Co., Ltd. Mobile: +8613901046783 Fax: +86(10)87114750 E‐mail: [email protected] m

Name NOKIA CORPORATION Joensuunkatu 7 FIN-24100 SALO FINLAND Tel. +358 7180 08000 Fax. +358 7180 45220 5 September, 2013 Federal Communications Commission Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD. 21046 Attention: Equipment Authorization Branch REQUEST FOR CONFIDENTIALITY Pursuant to Sections 0.457 (d) (l) (ii) and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Part 15C Application of FCC ID: QTLBH-112U as outlined below: - Exhibit 4: Block Diagram - Exhibit 5: Schematic Diagrams - Exhibit 12: Theory of Operation These materials contain trade secrets and proprietary information not customarily released to the public and the public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457 (d) (l) (ii) disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this Application. Sincerely yours, ------------------------------------------------------------------- YaoShuo-Lisa Nokia (China) Investment Co., Ltd. Mobile: +8613901046783 Fax: +86(10)87114750 E‐mail: [email protected]

Date: 2013-06-25 FCC ID: QTLBH-112U AUTHORIZATION LETTER To whom it may concern: We, the undersigned Nokia (China) Investment Co., Ltd. hereby authorize Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch (BV CPS Taoyuan) of Taiwan to act on our behalf in all matters relating to all processes required for Nokia Bluetooth Headset BH-112U(FCC ID: QTLBH-112U) in FCC Part 15C and any communication needed with the national authority. Any and all acts carried out by BV CPS Taoyuan on our behalf shall have the same effects as acts of our own. If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you! Sincerely yours, ----------------------------------- YaoShuo-Lisa 偲潤畣瑃敲瑩晩捡瑩潮佦晩捥爀 Nokia (China) Investment Co., Ltd. Mobile: +8613901046783 Fax: +86(10)87114750 E‐mail: [email protected]卨畯ⵌ楳愮奡潀湯歩愮捯洀

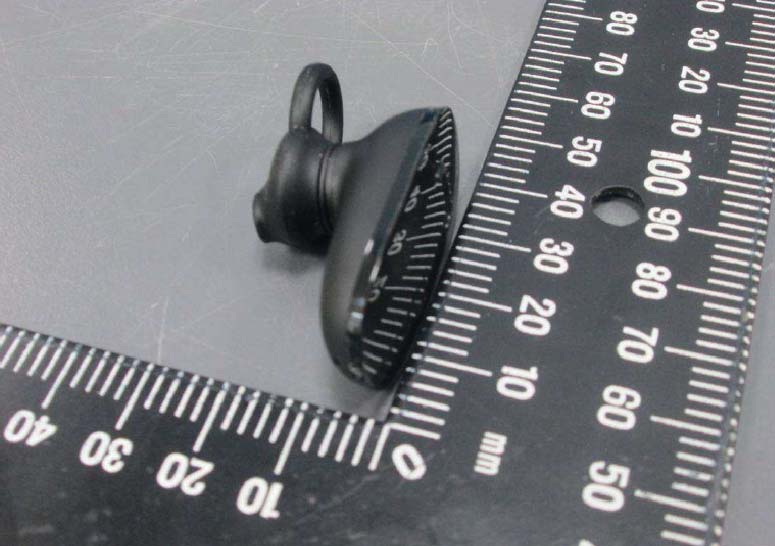

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2

    LabelLocation Requirement of PRIMAX Green Part: 1. Comply with PRIMAX QW-5Q002 Green Product Chemical “ Substances Specification .“ 2. Follow customer's specification as required.3. Follow Halogen- Free requirement : Br<900 ppm, Cl<900, Br+Cl< 1500 ppm if required LW factory code is "1", JZ factory code is “6 ” 21mm 8.8mm 11.12mm 2:1

Page 3 Page 4

Report No.: SA130621D26 1 of 6 Report Format Version 5.0.0 RF EXPOSURE REPORT REPORT NO.: SA130621D26 MODEL NO.: BH-112U FCC ID: QTLBH-112 VERSION: Proto: B5.0, HW: 1.0, SW: 0.43E/ 0.43C, MV:1.0 RECEIVED: Jun. 21, 2013 TESTED: Jun. 27 ~ Jul. 1, 2013 ISSUED: Jul. 4, 2013 APPLICANT: Nokia(China) Investment Co., LTD. ADDRESS: B2, Nokia China Campus.Beijing Economic and Tech Development Area, No.5. Donghuan Zhonglu.P.O. Box 100176, Beijing, China ISSUED BY: Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB LOCATION: No. 47, 14th Ling, Chia Pau Vil., Lin Kou Dist., New Taipei City, Taiwan ( R.O.C. ) This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification. Report No.: SA130621D26 2 of 6 Report Format Version 5.0.0 Table of Contents RELEASE CONTROL RECORD .............................................................................................. 3 1. CERTIFICATION ........................................................................................................... 4 2. EVALUATION RESULT ................................................................................................. 5 3. SAR TEST EXCLUSION THRESHOLDS ..................................................................... 6 4. CONCLUSION .............................................................................................................. 6 Report No.: SA130621D26 3 of 6 Report Format Version 5.0.0 RELEASE CONTROL RECORD ISSUE NO. REASON FOR CHANGE DATE ISSUED SA130621D26 Original release. Jul. 4, 2013 Report No.: SA130621D26 4 of 6 Report Format Version 5.0.0 1. CERTIFICATION PRODUCT: Bluetooth Headset BRAND: NOKIA MODEL NO.: BH-112U APPLICANT: Nokia(China) Investment Co., LTD. TESTED: Jun. 27 ~ Jul. 1, 2013 TEST SAMPLE: ENGINEERING SAMPLE STANDARDS: FCC Part 2 (Section 2.1093) FCC OET Bulletin 65, Supplement C (01-01) IEEE C95.1 The above equipment has been tested by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch, and found compliance with the requirement of the above standards. The test record, data evaluation & Equipment Under Test (EUT) configurations represented herein are true and accurate accounts of the measurements of the sample’s EMC characteristics under the conditions specified in this report. PREPARED BY : , DATE:Jul. 4, 2013 ( Annie Chang / Supervisor ) APPROVED BY : , DATE:Jul. 4, 2013 ( Ken Liu / Senior Manager ) Report No.: SA130621D26 5 of 6 Report Format Version 5.0.0 2. EVALUATION RESULT Following FCC KDB 447498 D01 “General SAR test exclusion guidance” The corresponding SAR Exclusion Threshold condition, listed below: 1) The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR,16 where ¾ f(GHz) is the RF channel transmit frequency in GHz . ¾ Power and distance are rounded to the nearest mW and mm before calculation. ¾ The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. 2) At 100 MHz to 6 GHz and for test separation distances > 50 mm, the SAR test exclusion threshold is determined according to the following: a) [Threshold at 50 mm in step 1) + (test separation distance - 50mm)·( f(MHz)/150)] mW, at 100MHz to 1500 MHz b) [Threshold at 50 mm in step 1) + (test separation distance - 50 mm)·10] mW at > 1500 MHz and ≤ 6 GHz 3) At frequencies below 100 MHz, the following may be considered for SAR test exclusion. a) The threshold at the corresponding test separation distance at 100 MHz in step 2) is multiplied by [1 + log(100/f(MHz))] for test separation distances > 50 mm and < 200 mm. b) The threshold determined by the equation in a) for 50 mm and 100 MHz is multiplied by ½ for test separation distances ≤ 50 mm. c) SAR measurement procedures are not established below 100 MHz. When SAR test exclusion cannot be applied, a KDB inquiry is required to determine SAR evaluation requirements for any test results to be acceptable. Report No.: SA130621D26 6 of 6 Report Format Version 5.0.0 3. SAR TEST EXCLUSION THRESHOLDS Maximum measured transmitter power: Frequency (GHz) Max. Power (mW) Min. test separation distance (mm) SAR test exclusion calculation value (NOTE 2) 1-g extremity SAR test exclusion thresholds Result 2.402 ~ 2.480 3.3 5 1.022 3 Pass NOTE: 1. The antenna type is PIFA antenna with 0.22dBi gain. 2. Calculate SAR test exclusion thresholds from condition “1” formulas. 4. CON…
