QTLBH-218Bluetooth Headset

Nokia Bluetooth Headset BH-218 Issue 1 ENGLISH DECLARATION OF CONFORMITY Hereby, NOKIA CORPORATION declares that this BH-218 product is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. A copy of the Declaration of Conformity can be found at http://www.nokia.com/phones/ declaration_of_conformity/. © 2010 Nokia. All rights reserved. Nokia, Nokia Connecting People and the Nokia Original Accessories logo are trademarks or registered trademarks of Nokia Corporation. Nokia tune is a sound mark of Nokia Corporation. Other product and company names mentioned herein may be trademarks or tradenames of their respective owners. Reproduction, transfer, distribution, or storage of part or all of the contents in this document in any form without the prior written permission of Nokia is prohibited. Nokia operates a policy of continuous development. Nokia reserves the right to make changes and improvements to any of the products described in this document without prior notice. Bluetooth is a registered trademark of Bluetooth SIG, Inc. To the maximum extent permitted by applicable law, under no circumstances shall Nokia or any of its licensors be responsible for any loss of data or income or any special, incidental, consequential or indirect damages howsoever caused. The contents of this document are provided "as is". Except as required by applicable law, no warranties of any kind, either express or implied, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose, are made in relation to the accuracy, reliability or contents of this document. Nokia reserves the right to revise this document or withdraw it at any time without prior notice. The availability of products may vary by region. For more information, contact your Nokia dealer. This device may contain commodities, technology or software subject to export laws and regulations from the US and other countries. Diversion contrary to law is prohibited. ENGLISH Introduction With the Nokia Bluetooth Headset BH-218, you can handle calls easier than ever. To answer a call, just pick up the earpiece and talk. The headset automatically switches on, connects to your device, and answers the call. Read this user guide carefully before using the headset. Also, read the user guide for the compatible device that you connect to the headset. This product may contain small parts. Keep them out of the reach of small children. The surface of this device is nickel- free. Bluetooth wireless technology Bluetooth wireless technology allows you to connect compatible devices without cables. The headset and the other device do not need to be in line of sight, but they should be within 10 metres (33 feet) of each other. Connections may be subject to interference from obstructions, such as walls, or other electronic devices. The headset is compliant with the Bluetooth Specification 2.1 + EDR supporting the Headset Profile 1.1 and Hands-Free Profile 1.5. Check with the manufacturers of other devices to determine their compatibility with this device. ENGLISH Get started The headset contains the following parts shown on the title page: storage slot with indicator light (1), microphone (2), mute switch (3), earpiece (4), clip (5), answer/end key (6), and charger connector (7). Before using the headset, you must charge the battery and pair the headset with a compatible device. Parts of the device are magnetic. Metallic materials may be attracted to the device. Do not place credit cards or other magnetic storage media near the device, because information stored on them may be erased. Charge the battery Before charging the battery, carefully read “Battery and charger information”. 1. Connect the charger to a wall outlet. 2. Connect the charger cable to the charger connector. The red indicator light is displayed during charging. Charging the battery fully may take up to 2 hours. 3. When the battery is fully charged, the green indicator light is displayed. Disconnect the charger from the headset, then from the wall outlet. When you unplug a charger, hold and pull the plug, not the cord. The fully charged battery has power for up to 8 hours of talk time. When you keep the earpiece in the storage slot, the fully charged battery has power for up to 3 months of standby time. When you do not keep the earpiece in the slot, the standby time is up to 150 hours. ENGLISH To check the battery charge when the headset is not connected to a charger, press the answer/end key when the headset is connected to a mobile device. If the indicator light is green, the charge level is sufficient. If the light is yellow, you may need to recharge the battery soon. If the light is red, recharge the battery. When the battery charge is low, the headset beeps every 5 minutes, the red indicator light flashes, and if voice prompts are activated, there is an audible notification. If voice prompts are activated, there is also an audible notification when the battery is completely discharged. Switch the headset on Remove the earpiece from the storage slot. The headset beeps, and the green indicator light flashes slowly while the headset tries to connect to the last or two last connected devices. When the headset is connected to at least one device and is ready for use, the blue indicator light flashes slowly. If the headset has not been paired with a device, it automatically enters pairing mode. Switch the headset off Place the earpiece into the storage slot. The headset beeps, and the red indicator light is briefly displayed. If the headset is not connected to a device within about 30 minutes, it switches off automatically. Pair and connect the headset Before using the headset, you must pair and connect it to a compatible device. You can pair the headset with up to eight devices, but you can connect it to a maximum of two devices at a time. ENGLISH If voice prompts are activated, the headset guides you with audible no…

Text truncated - open the document above for the full version.

Date: Sep. 10, 10 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request FCC ID: QTLBH-218 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: Schematics Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely yours, ------------------------------------------------------------------- Petri Hänninen Quality Manager Nokia (China) Investment Co., Ltd. Nokia China, Beijing, Kaifaqu-Donghuan Zhonglu Building: R&D Wing, 7th Floor, BDA Building 2-No.5, Donghuan Zhong Rd. Mobile: +86 139100 62247 Fax: +86(10)87114750 E-mail: [email protected]

Date: September 6, 2010 Federal Communications Commission Authorization and Evaluation Division Subject: Short-term confidentiality request regarding application for certification of FCC ID: QTLBH-218 Pursuant to DA 04-1705 of the Commission’s public notice, we request short-term confidential treatment for the following information until Feb. 28, 2011 in order to ensure sensitive business information remains confidential until the actual marketing of the device. External Photos Test setup photos User’s Manual Internal Photos Sincerely yours, ------------------------------------------------------------------- Petri Hänninen Quality Manager Nokia (China) Investment Co., Ltd. Nokia China, Beijing, Kaifaqu-Donghuan Zhonglu Building: R&D Wing, 7th Floor, BDA Building 2-No.5, Donghuan Zhong Rd. Mobile: +86 139100 62247 Fax: +86(10)87114750 E-mail: [email protected]

Power of Attorney Date: September 6, 2010 To whom it may concern: We, the undersigned Nokia (China) Investment Co., Ltd., hereby authorize Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch (BV CPS Taoyuan Branch) of Taiwan to act on our behalf in all matters relating to all processes required for Nokia Bluetooth Headset BH-218 (FCC ID: QTLBH-218) in the FCC Part 15C approval. Any and all acts carried out by Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch (BV CPS Taoyuan Branch) of Taiwan on our behalf shall have the same effects as acts of our own. If you have any questions regarding the authorization, please don’t hesitate to contact us. Thank you! Sincerely yours, ------------------------------------------------------------------- Petri Hänninen Quality Manager Nokia (China) Investment Co., Ltd. Nokia China, Beijing, Kaifaqu-Donghuan Zhonglu Building: R&D Wing, 7th Floor, BDA Building 2-No.5, Donghuan Zhong Rd. Mobile: +86 139100 62247 Fax: +86(10)87114750 E-mail: [email protected]

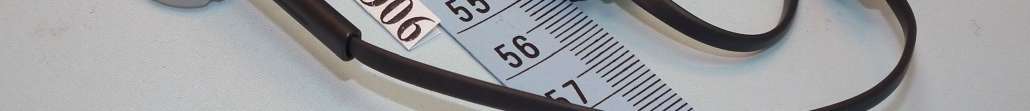

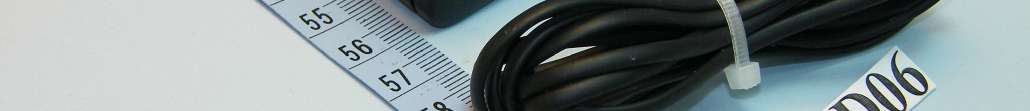

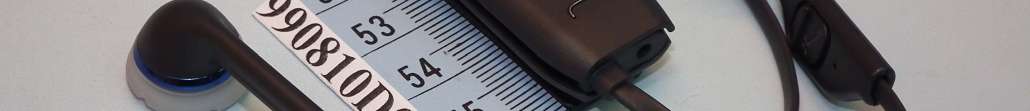

Page 1 CONSTRUCTION PHOTOS OF EUT Page 2

1:1 1:1 19.00 mm 8 m m MODEL: BH-218 FCC ID: QTLBH-218 IC: 661AB-BH218 MADE IN CHINA 1:1 MODEL: BH-218 FCC ID: QTLBH-218 IC: 661AB-BH218 MADE IN CHINA 50.90 mm 1 4 . 1 2 m m 19.17 mm 5 4 . 2 3 m m 5 . 0 0 m m 4 mm 4 mm 5.5mm 1 1 . 0 0 m m 1:1

LABEL LOCATION Label

Page 3 Page 4 Page 5 Page 6

FCC ID: QTLBH-218 Report No.: RF990810D06 Technical Description The transmitter of the EUT (Bluetooth Headset) is powered by 3.7Vdc from batteries or 5Vdc from AC adapter. The antenna is PIFA antenna without antenna connector. This device is a Frequency Hopping device with 79 hopping frequencies. The other instruction, please have a look at the users manual.

Report No: SA990810D06 1 Report Format Version 3.0.1 RF EXPOSURE REPORT REPORT NO.: SA990810D06 MODEL NO.: BH-218 FCC ID: QTLBH-218 VERSION: Proto: B4.2/ B4.3, HW: 0.33/ 0.34, MV: 0.32, SW: 0.3C/ 0.3E ACCORDING: FCC Guidelines for Human Exposure IEEE C95.1 APPLICANT : Nokia(China) Investment Co., LTD. ADDRESS : B2, Nokia China Campus.Beijing Economic and Tech Development Area, No.5. Donghuan Zhonglu.P.O. Box 100176, Beijing, China ISSUED BY : Bureau Veritas Consumer Products Services (H.K.) Ltd., Taoyuan Branch LAB ADDRESS : No. 47, 14th Ling, Chia Pau Tsuen, Lin Kou Hsiang, Taipei Hsien, 244 Taiwan Report No: SA990810D06 2 Report Format Version 3.0.1 Conclusion No Evaluation Required if power is below this threshold: F(GHz) mW Low 2.402 High 2.480 24.58 Maximum measured transmitter power: Pout (dBm) Pout (mW) Conducted Power -1.4 0.7 EIRP Power 2.6 1.8 *Note: The antenna is PIFA antenna with 4dBi gain Threshold for no SAR evaluation is 24.58mW Transmitter power is 1.8mW Conclusion: No SAR evaluation required since Transmitter Pout is below FCC threshold ---END---
