QTLRM-497GSM 850/900/1800/1900 Cellular Telephone with BT

Nokia 7020 User Guide 9216820 Issue 1 Contents Safety4 General information5 About your device5 Network services5 Shared memory6 Access codes6 Support6 Software updates over the air7 Get started7 Insert SIM card and battery7 Charge the battery8 Antenna8 Headset9 Keys and parts9 Switch the phone on and off10 Tapping10 Display11 Calls11 Make and answer a call11 Loudspeaker12 Dialling shortcuts12 Write text12 Text modes12 Traditional text input12 Predictive text input13 Navigate the menus13 Messaging13 Text and multimedia messages13 Flash messages15 Nokia Xpress audio messages 15 Nokia Mail15 Voice messages16 Message settings17 Contacts 17 Call log 18 Settings18 Profiles18 Tones18 Display19 Date and time19 Shortcuts19 Synchronisation and backup19 Connectivity19 Call and phone21 Accessories22 Configuration22 Restore factory settings22 Gallery22 Applications23 Alarm clock23 Calendar and to-do list23 Extras24 Camera and video24 FM radio25 Voice recorder26 Media player26 Maps27 Web or Internet 30 Connect to a web service30 SIM services31 Green tips31 Save energy31 Recycle31 2Contents © 2009 Nokia. All rights reserved. Learn more31 Product and safety information32 Index39 Contents3 © 2009 Nokia. All rights reserved. Safety Read these simple guidelines. Not following them may be dangerous or illegal. Read the complete user guide for further information. SWITCH ON SAFELY Do not switch the device on when wireless phone use is prohibited or when it may cause interference or danger. ROAD SAFETY COMES FIRST Obey all local laws. Always keep your hands free to operate the vehicle while driving. Your first consideration while driving should be road safety. INTERFERENCE All wireless devices may be susceptible to interference, which could affect performance. SWITCH OFF IN RESTRICTED AREAS Follow any restrictions. Switch the device off in aircraft, near medical equipment, fuel, chemicals, or blasting areas. QUALIFIED SERVICE Only qualified personnel may install or repair this product. ACCESSORIES AND BATTERIES Use only approved accessories and batteries. Do not connect incompatible products. WATER-RESISTANCE Your device is not water-resistant. Keep it dry. 4Safety © 2009 Nokia. All rights reserved. General information About your device The wireless device described in this guide is approved for use on the GSM 850, 900, 1800, 1900 MHz networks. Contact your service provider for more information about networks. Your device may have preinstalled bookmarks and links for third-party internet sites and may allow you to access third-party sites. These are not affiliated with Nokia, and Nokia does not endorse or assume liability for them. If you access such sites, take precautions for security or content. Warning: To use any features in this device, other than the alarm clock, the device must be switched on. Do not switch the device on when wireless device use may cause interference or danger. When using this device, obey all laws and respect local customs, privacy and legitimate rights of others, including copyrights. Copyright protection may prevent some images, music, and other content from being copied, modified, or transferred. Make back-up copies or keep a written record of all important information stored in your device. When connecting to any other device, read its user guide for detailed safety instructions. Do not connect incompatible products. The images in this guide may differ from your device display. Refer to the user guide for other important information about your device. Network services To use the device you must have service from a wireless service provider. Some features are not available on all networks; other features may require that you make specific arrangements with your service provider to use them. Network services involve transmission of data. Check with your service provider for details about fees in your home network and when roaming on other networks. Your service provider can explain what charges will apply. Some networks may have limitations that affect how you can use some features of this device requiring network support such as support for specific technologies like WAP 2.0 protocols (HTTP and SSL) that run on TCP/IP protocols and language-dependent characters. General information5 © 2009 Nokia. All rights reserved. Your service provider may have requested that certain features be disabled or not activated in your device. If so, these features will not appear on your device menu. Your device may also have customized items such as menu names, menu order, and icons. Shared memory The following features in this device may share memory: multimedia messaging (MMS), e-mail application, instant messaging, remote. Use of one or more of these features may reduce the memory available for the remaining features. If your device displays a message that the memory is full, delete some of the information stored in the shared memory. Access codes The security code helps to protect your phone against unauthorised use. You can create and change the code, and set the phone to request the code. Keep the code secret and in a safe place separate from your phone. If you forget the code and your phone is locked, your phone will require service and additional charges may apply. For more information, contact a Nokia Care point or your phone dealer. The PIN code supplied with the SIM card protects the card against unauthorized use. The PIN2 code supplied with some SIM cards is required to access certain services. If you enter the PIN or PIN2 code incorrectly three times in succession, you are asked for the PUK or PUK2 code. If you do not have them, contact your service provider. The module PIN is required to access the information in the security module of your SIM card. The signing PIN may be required for the digital signature. The barring password is required when using the call barring service. To set how your phone uses the access codes and security settings, select Menu > Settings > Security. Support…

Text truncated - open the document above for the full version.

Nokia (China) Investment Co., Ltd B2, Nokia China Campus Beijing Economic and Tech Development Area, No.5 Donghuan Zhonglu Beijing, 100176 China PRC Tel. +861087118888 Fax +861087114550 July 26, 2010 Federal Communications Commission Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD. 21046 Attention: Equipment Authorization Branch REQUEST FOR CONFIDENTIALITY Pursuant to Sections 0.457 (d) (l) (ii) and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of some of the information accompanying this Application of FCC ID: QTLRM-497 and as outlined below: - Exhibit 4: Block Diagram - Exhibit 5: Schematic Diagrams - Exhibit 12: Theory of Operation / Description of Circuitry These materials contain trade secrets and proprietary information not customarily released to the public and the public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457 (d) (l) (ii) disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this Application. NOKIA CORPORATION Wang Yan Product Certification Officer Beijing, PRC.

Approved v. 3.0 July 2010 1(3) FCC ID: QTLRM-497 IC: 661AD-RM497 Copyright  2009 Nokia. All rights reserved Exhibit 3 Product Pictures (External) RM - 497 Status: Doc. Number: Author: Approver: Function: Security: Filename: Document Location: Copyright © Nokia. This material, including documentation and any related computer programs, is protected by copyright controlled by Nokia. All rights are reserved. Copying, including reproducing, storing, adapting or translating, any or all of this material requires the prior written consent of Nokia. This material also contains confidential information, which may not be disclosed to others without the prior written consent of Nokia Approved v. 3.0 July 2010 2(3) FCC ID: QTLRM-497 IC: 661AD-RM497 Copyright  2009 Nokia. All rights reserved Contents 1. Contents ............................................................................................................................................. 2 2. Product pictures – External ............................................................................................................. 2 1. Product pictures – External Bottom side view Top side view Right side view Left side view Front side view Back side view Front side view, open mode Back side view, open mode Right side view, open mode Left side view, open mode Approved v. 3.0 July 2010 3(3) FCC ID: QTLRM-497 IC: 661AD-RM497 Copyright  2009 Nokia. All rights reserved

0434 Typelabel is placed like this Typelabel placement on the phone Water ingress LabelWater ingress LabelWater ingress LabelWater ingress Label item code: 9372873item code: 9372873item code: 9372873item code: 9372873 M A D E I N R O M A N I A N o k i a C o r p o r a t i o n M o d e l : 7 0 2 0 a - 2 b T y p e : R M - 4 9 7 F C C I D : Q T L R M - 4 9 7 I C : 6 6 1 A D - R M 4 9 7 X X X X X X / x x / y y y y y y / 0 C O D E : X X X X X X X 1 1 2 2 3 3 4 4 5 5 6 6 M A D E I N R O M A N I A N o k i a C o r p o r a t i o n M o d e l : 7 0 2 0 a - 2 b T y p e : R M - 4 9 7 F C C I D : Q T L R M - 4 9 7 I C : 6 6 1 A D - R M 4 9 7 X X X X X X / x x / y y y y y y / 0 C O D E : X X X X X X X 1 1 2 2 3 3 4 4 5 5 6 6 FCC ID : QTLRM-497 IC : 661AD-RM497 Label and Location Approved v1.0 July 2010 0434

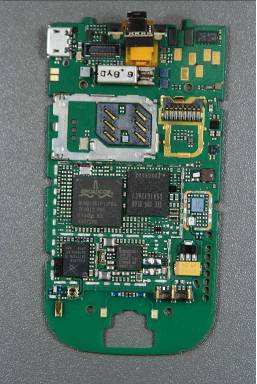

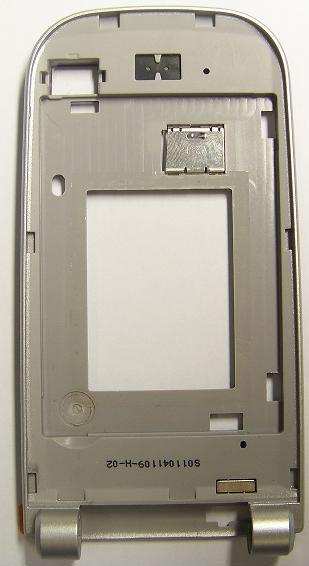

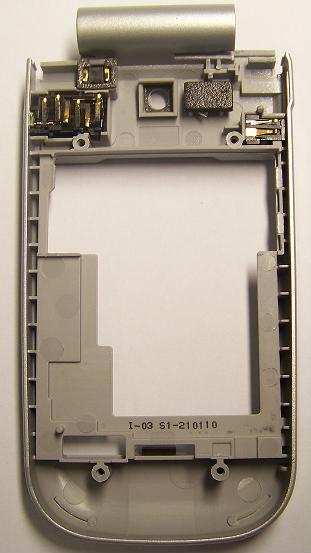

Approved v.4.0 July 2010 1(7) FCC ID: QTLRM-497 IC: 661AD-RM497 Copyright  2009 Nokia. All rights reserved Exhibit 9 Product Pictures (Internal) RM-497 Status: Doc. Number: Author: Approver: Function: Security: Filename: Document Location: Copyright © Nokia. This material, including documentation and any related computer programs, is protected by copyright controlled by Nokia. All rights are reserved. Copying, including reproducing, storing, adapting or translating, any or all of this material requires the prior written consent of Nokia. This material also contains confidential information, which may not be disclosed to others without the prior written consent of Nokia Approved v.4.0 July 2010 2(7) FCC ID: QTLRM-497 IC: 661AD-RM497 Copyright  2009 Nokia. All rights reserved Contents 1. Contents ............................................................................................................................................. 2 2. Product pictures – Internal ............................................................................................................... 3 Approved v.4.0 July 2010 3(7) FCC ID: QTLRM-497 IC: 661AD-RM497 Copyright  2009 Nokia. All rights reserved 1. Product pictures – Internal PWB top view PWB bottom view UI Flex top view UI Flex bottom view Approved v.4.0 July 2010 4(7) FCC ID: QTLRM-497 IC: 661AD-RM497 Copyright  2009 Nokia. All rights reserved Antenna top view Antenna bottom view A-cover top view A-cover bottom view Approved v.4.0 July 2010 5(7) FCC ID: QTLRM-497 IC: 661AD-RM497 Copyright  2009 Nokia. All rights reserved B-cover top view B-cover bottom view Display window top view Display window bottom view Peel connector shield Peel connector bracket Approved v.4.0 July 2010 6(7) FCC ID: QTLRM-497 IC: 661AD-RM497 Copyright  2009 Nokia. All rights reserved C-cover top view C-cover bottom view C-cover Ears Hinge motor Keymat top view Keymat bottom view Approved v.4.0 July 2010 7(7) FCC ID: QTLRM-497 IC: 661AD-RM497 Copyright  2009 Nokia. All rights reserved D-cover top view D-cover bottom view

FCC Part 15B Compliance Test Report / Template Version 12.0 FCC15B_RM-497_13.doc Copyright © TCC Nokia 1 (11) TCC Nokia Tampere Laboratory P.O. Box 68 Sinitaival 5 FIN-33720 TAMPERE, FINLAND Tel. +358 (0) 7180 46800 Fax. +358 (0) 7180 46880 FCC Part 15B Compliance Test Report Test Report no.: FCC15B_RM-497_13.doc Date of Report: 26-Jun-2009 Number of pages: 11 Customer’s Contact person: Mohammad El-Haj Testing laboratory: TCC Nokia Tampere Laboratory P.O. Box 68 Sinitaival 5 FIN-33720 TAMPERE, FINLAND Tel. +358 (0) 7180 46800 Fax. +358 (0) 7180 46880 Customer: Nokia Corporation Frederikskaj 1790 COPENHAGEN V DENMARK Tel. +45 33 292929 Fax. +45 33 292934 FCC listing no.: IC recognition no.: 94436 661AK-1 Tested devices/ accessories: Phone RM-497 / Battery BL-4S, AC charger AC-3E, Headset HS-105 FCC ID: QTLRM-497 IC: 661AD-RM497 Supplement reports: - Testing has been carried out in accordance with: CFR 47, FCC rules Part 15 Subpart B, ANSI C63.4 (2003), ICES-003, CISPR 22 and IC standards RSS-132 (Issue 2, September 2005), RSS-133 (Issue 4, February 2008), RSS-139 (Issue 1, February 2008) and RSS-210 (Issue 7, June 2007). Deviations, modifications or clarifications (if any) to above mentioned documents are written in each section under "Test method and limit". Documentation: The test report must always be reproduced in full; reproduction of an excerpt only is subject to written approval of the testing laboratory. The documentation of the testing performed on the tested devices is archived for 15 years at TCC Nokia. Test Results: The EUT complies with the requirements in respect of all parameters subject to the test. The test results relate only to devices specified in this document. Date and signature for the contents: Jia Dongsheng, System Manager FCC Part 15B Compliance Test Report / Template Version 12.0 FCC15B_RM-497_13.doc Copyright © TCC Nokia 2 (11) TCC Nokia Tampere Laboratory P.O. Box 68 Sinitaival 5 FIN-33720 TAMPERE, FINLAND Tel. +358 (0) 7180 46800 Fax. +358 (0) 7180 46880 1. Summary for FCC Part 15B Compliance Test Report Date of receipt 05-Jun-2009 Testing completed 26-Jun-2009 The customer's contact person Mohammad El-Haj Test Plan referred to T:\Projects\RM-497\TestPlan_RS\RS_testplan_RM-497.xls Notes - Document name FCC15B_RM-497_13.doc 1.1. EUT and Accessory Information The EUT is a 4-band (GSM850/900/1800/1900) mobile phone with GPRS, EGPRS and Bluetooth. GSM bands are tested in idle mode. Bluetooth is tested with maximum rated TX power. Product Type SN HW MV SW DUT Phone RM-497 004401107052116 0200 - Vp sn09w09_09w20 41919 Battery BL-4S 3932138341310101257;0670577 - - - 41916 AC charger AC-3E 44192984020442220987;0675370 - - - 41922 Headset HS-105 - - - - 41925 1.2. Summary of Test Results GSM 850: Section in CFR 47 Section in ICES-003 (RSS-132) Name of the test Result 15.107, a 5.3 AC powerline conducted emissions PASSED 15.109, a 5.5 (4.6) Radiated emissions PASSED GSM 1900: Section in CFR 47 Section in ICES-003 (RSS-133) Name of the test Result 15.107, a 5.3 AC powerline conducted emissions NP 15.109, a 5.5 (6.6) Radiated emissions PASSED Bluetooth: Section in CFR 47 Section in ICES-003 Name of the test Result 15.107, a 5.3 AC powerline conducted emissions NP 15.109, a 5.5 Radiated emissions PASSED PASSED The EUT complies with the essential requirements in the standard. FAILED The EUT does not comply with the essential requirements in the standard. NP The test was not performed by the TCC Nokia Tampere Laboratory. The test results of QTKRM-497 are re-used for certification of the QTLRM-497. The table above indicates the results, which will be re-used. FCC Part 15B Compliance Test Report / Template Version 12.0 FCC15B_RM-497_13.doc Copyright © TCC Nokia 3 (11) TCC Nokia Tampere Laboratory P.O. Box 68 Sinitaival 5 FIN-33720 TAMPERE, FINLAND Tel. +358 (0) 7180 46800 Fax. +358 (0) 7180 46880 CONTENTS 1. Summary for FCC Part 15B Compliance Test Report.............................................. 2 1.1. EUT and Accessory Information .......................................................................................... 2 1.2. Summary of Test Results .................................................................................................... 2 2. AC powerline conducted emissions (FCC §15.107, ICES-003 section 5.3) ................................................................................ 4 2.1. Test setup ........................................................................................................................... 4 2.2. Test method and limit .......................................................................................................... 4 2.3. GSM 850 Test results .......................................................................................................... 5 3. Radiated emissions (FCC §15.109, ICES-003 section 5.5, RSS-132 4.6, RSS-133 6.6, RSS-139 6.6) ............ 6 3.1. Test setup ........................................................................................................................... 6 3.2. Test method and limit .......................................................................................................... 6 3.3. GSM 850 + MP3 player on Test results ............................................................................... 7 3.4. GSM 1900 + MP3 player on Test results ............................................................................. 8 3.5. Bluetooth + MP3 player on Test results ............................................................................... 9 4. Test Equipment ......................................................................................................... 11 4.1. Conducted measurements ................................................................................................ 11 4.2. Radiated measurements ................................................................................................... 11 FCC Part 15B Compliance Test Report …

Text truncated - open the document above for the full version.

FCC Part 15B Compliance Test Report / Template Version 13.0 FCC15B_RM-497_14.doc Copyright © TCC Nokia 1 (11) TCC Nokia Copenhagen Laboratory Frederikskaj 1790 COPENHAGEN V DENMARK Tel. +45 33 292929 Fax. +45 33 292934 FCC Part 15B Compliance Test Report Test Report no.: FCC15B_RM-497_14.doc Date of Report: 14 July 2009 Number of pages: 11 Customer’s Contact person: Mohammad El-Hai Testing laboratory: TCC Nokia Copenhagen Laboratory Frederikskaj 1790 COPENHAGEN V DENMARK Tel. +45 33 292929 Fax. +45 33 292934 Customer: Nokia Corporation Frederikskaj 1790 COPENHAGEN V DENMARK Tel. +45 33 292929 Fax. +45 33 292934 FCC listing no.: IC recognition no.: 99059 661AD-1 Tested devices/ accessories: Phone; RM-497 (HW: 0200), Battery; BL-4S, AC-Charger; AC-3E, Headset; HS-40, Data Cable; CA-101 FCC ID: QTLRM-497 IC: 661AD-RM497 Supplement reports: - Testing has been carried out in accordance with: CFR 47, FCC rules Part 15 Subpart B, ANSI C63.4 (2003), ICES-003, CISPR 22 and IC standards RSS-132 (Issue 2, September 2005), RSS-133 (Issue 5, February 2009), RSS-139 (Issue 1, February 2008) and RSS-210 (Issue 7, June 2007). Deviations, modifications or clarifications (if any) to above mentioned documents are written in each section under "Test method and limit". Documentation: The test report must always be reproduced in full; reproduction of an excerpt only is subject to written approval of the testing laboratory. The documentation of the testing performed on the tested devices is archived for 15 years at TCC Nokia. Test Results: The EUT complies with the requirements in respect of all parameters subject to the test. The test results relate only to devices specified in this document. Date and signature for the contents: Jia Dongsheng, System Manager FCC Part 15B Compliance Test Report / Template Version 13.0 FCC15B_RM-497_14.doc Copyright © TCC Nokia 2 (11) TCC Nokia Copenhagen Laboratory Frederikskaj 1790 COPENHAGEN V DENMARK Tel. +45 33 292929 Fax. +45 33 292934 1. Summary for FCC Part 15B Compliance Test Report Date of receipt 02-Jun-2009 Testing completed 14 July 2009 The customer's contact person Mohammad El-Hai Test Plan referred to T:\Projects\RM-497\TestPlan_RS\RS_testplan_RM-497.xls Notes None Document name FCC15B_RM-497_14.doc 1.1. EUT and Accessory Information The EUT is a 4-band (GSM850/900/1800/1900) mobile phone with GPRS, EGPRS and Bluetooth. GSM bands are tested in idle mode. Bluetooth is tested with maximum rated TX power. Product Type SN HW MV SW DUT Phone RM-497 004401/10/595991/6 0200 - sn09w09_09w20 25086 Battery BL-4S 3932138492360245683;0670578 - - - 25076 Charger AC-3E 4419298402042221755;0675370 - - - 25068 Headset HS-40 06945318255U3112483 - - - 26803 Data Cable CA-101 0730634722101302177 - - - 25070 1.2. Summary of Test Results GSM 850: Section in CFR 47 Section in ICES-003 (RSS-132) Name of the test Result 15.107, a 5.3 AC powerline conducted emissions Passed 15.109, a 5.5 (4.6) Radiated emissions Passed Bluetooth: Section in CFR 47 Section in ICES-003 Name of the test Result 15.107, a 5.3 AC powerline conducted emissions NP 15.109, a 5.5 Radiated emissions Passed PASSED The EUT complies with the essential requirements in the standard. FAILED The EUT does not comply with the essential requirements in the standard. NP The test was not performed by the TCC Nokia Copenhagen Laboratory. The test results of QTKRM-497 are re-used for certification of the QTLRM-497. The table above indicates the results, which will be re-used. FCC Part 15B Compliance Test Report / Template Version 13.0 FCC15B_RM-497_14.doc Copyright © TCC Nokia 3 (11) TCC Nokia Copenhagen Laboratory Frederikskaj 1790 COPENHAGEN V DENMARK Tel. +45 33 292929 Fax. +45 33 292934 CONTENTS 1. Summary for FCC Part 15B Compliance Test Report.............................................. 2 1.1. EUT and Accessory Information .......................................................................................... 2 1.2. Summary of Test Results .................................................................................................... 2 2. AC powerline conducted emissions (FCC §15.107, ICES-003 section 5.3) ................................................................................ 4 2.1. Test setup ........................................................................................................................... 4 2.2. Test method and limit .......................................................................................................... 4 2.3. GSM 850 Test results .......................................................................................................... 5 3. Radiated emissions (FCC §15.109, ICES-003 section 5.5, RSS-132 4.6, RSS-133 6.6, RSS-139 6.6) ............ 6 3.1. Test setup ........................................................................................................................... 6 3.2. Test method and limit .......................................................................................................... 6 3.3. GSM 850 Test results .......................................................................................................... 7 3.4. Bluetooth Test results.......................................................................................................... 8 4. Test Equipment ......................................................................................................... 10 4.1. Conducted measurements ................................................................................................ 10 4.2. Radiated measurements ................................................................................................... 10 FCC Part 15B Compliance Test Report / Template Version 13.0 FCC15B_RM-497_14.doc Copyright © TCC Nokia 4 (11) TCC Nokia Copenhagen Laboratory Frederikskaj 1790 COPENHAGEN V DENMARK Tel. +45 33 292929 Fax. +45 33 292934 2. AC powerline conducted emissions (FCC §15.107, ICES-003 section 5.3) EUT with …

Text truncated - open the document above for the full version.

RM-497_test_setup_photographs_15B.DOC 1 (3) Version 0.1 TCC Nokia EUT test setups 15B Picture 1 Radiated Emission 15B RM-497_test_setup_photographs_15B.DOC 2 (3) Version 0.1 TCC Nokia Picture 2 AC powerline conducted emission measurement 15B RM-497_test_setup_photographs_15B.DOC 3 (3) Version 0.1 TCC Nokia Picture 3 AC powerline conducted emission measurement 15B
