QTLRM-586GSM 850/1900/900/1800 Cellular Telephone with BT

Nokia 2710 User Guide xxxxxxx Issue 1 CyanCyanMagentaMagentaYellowYellowBlackBlack Contents Safety5 Support7 Get started8 Insert SIM card and battery8 Insert a microSD card9 Remove the microSD card10 Charge the battery11 GSM antenna12 Headset13 Connect a USB data cable14 Magnets and magnetic fields15 Keys and parts15 Access codes17 Switch on and off17 Home screen18 Keypad lock19 Functions without a SIM card19 Applications running in background20 Calls20 Make and answer a call20 Loudspeaker20 Dialling shortcuts21 Write text21 Text modes21 Traditional text input22 Predictive text input23 Navigate the menus23 Messaging24 Text and multimedia messages24 Flash messages27 Nokia Xpress audio messages 27 Nokia Mail27 2Contents CyanCyanMagentaMagentaYellowYellowBlackBlack Voice messages30 Message settings30 Contacts31 Call log 33 Settings33 Profiles33 Tones34 Display34 Date and time34 Shortcuts35 Synchronisation and backup35 Connectivity36 Call and phone38 Accessories39 Configuration 40 Restore factory settings41 Operator menu41 Gallery41 Applications42 Alarm clock42 Calendar and to-do list42 Extras43 Camera and video44 FM radio46 Voice recorder47 Media player48 Maps50 About Maps50 Nokia Map Loader51 About GPS52 GPS receiver53 Navigate to your destination54 Web or Internet 55 Connect to a web service56 SIM services57 Green tips57 Save energy57 Contents3 CyanCyanMagentaMagentaYellowYellowBlackBlack Recycle58 Learn more58 General information59 Accessories60 Battery61 Battery and charger information61 Nokia battery authentication guidelines62 Taking care of your device63 Recycle64 Additional safety information64 Small children64 Operating environment64 Medical devices65 Vehicles65 Potentially explosive environments66 Emergency calls66 Certification information (SAR)67 Index69 4Contents CyanCyanMagentaMagentaYellowYellowBlackBlack Safety Read these simple guidelines. Not following them may be dangerous or illegal. Read the complete user guide for further information. SWITCH ON SAFELY Do not switch the device on when wireless phone use is prohibited or when it may cause interference or danger. ROAD SAFETY COMES FIRST Obey all local laws. Always keep your hands free to operate the vehicle while driving. Your first consideration while driving should be road safety. INTERFERENCE All wireless devices may be susceptible to interference, which could affect performance. SWITCH OFF IN RESTRICTED AREAS Follow any restrictions. Switch the device off in aircraft, near medical equipment, fuel, chemicals, or blasting areas. Safety5 CyanCyanMagentaMagentaYellowYellowBlackBlack QUALIFIED SERVICE Only qualified personnel may install or repair this product. ACCESSORIES AND BATTERIES Use only approved accessories and batteries. Do not connect incompatible products. WATER-RESISTANCE Your device is not water-resistant. Keep it dry. 6Safety CyanCyanMagentaMagentaYellowYellowBlackBlack Support When you want to learn more about how to use your product or you are unsure how your device should function, see the user guide or see the support pages at www.nokia.com/support or your local Nokia website, or with a mobile device, www.nokia.mobi/support. If this does not resolve your issue, do one of the following: •Restart the device: switch off the device, and remove the battery. After about a minute, replace the battery, and switch on the device. •Restore the original factory settings as explained in the user guide. •Update your device software regularly for optimum performance and possible new features, as explained in the user guide. If your issue remains unsolved, contact Nokia for repair options. See www.nokia.com/repair, or in Latin America, www.nokia-latinoamerica.com/centrosdeservicio. Before sending your device for repair, always back up the data in your device. Support7 CyanCyanMagentaMagentaYellowYellowBlackBlack Get started Insert SIM card and battery Safe removal. Always switch the device off and disconnect the charger before removing the battery. The SIM card and its contacts can be easily damaged by scratches or bending, so be careful when handling, inserting, or removing the card. 1Slide the back cover downwards, and remove it (1). 2Remove the battery (2). 3Insert the SIM card. Ensure the contact surface area is facing down and the bevelled corner of the SIM card is facing the bottom of the device (3, 4, 5). 4Replace the battery and the back cover (6, 7). 8Get started CyanCyanMagentaMagentaYellowYellowBlackBlack Insert a microSD card Use only compatible microSD cards approved by Nokia for use with this device. Nokia uses approved industry standards for memory cards, but some brands may not be fully compatible with this device. Incompatible cards may damage the card and the device and corrupt data stored on the card. Your phone supports microSD cards with a capacity of up to 8 GB. A compatible memory card may be supplied with the device, and may already be inserted in the device. If not, do the following: Get started9 CyanCyanMagentaMagentaYellowYellowBlackBlack 1Open the cover of the memory card slot. 2Insert the card into the memory card slot with the contact surface facing up, and press until it locks into place. 3Close the cover of the memory card slot. Remove the microSD card Important: Do not remove the memory card during an operation when the card is being accessed. Doing so may damage the memory card and the device, and corrupt data stored on the card. You can remove or replace the memory card during phone operation without switching the device off, but you need 10Get started CyanCyanMagentaMagentaYellowYellowBlackBlack to ensure that no application is currently accessing the memory card. Charge the battery Your battery has been partially charged at the factory. If the device indicates a low charge, do the following: 1Connect the charger to a wall outlet. 2Connect the charger to the device. Get started11 CyanCyanMagentaMagentaYellowYellowBlackBlack 3When the device indicates a full charge, disconnect the char…

Text truncated - open the document above for the full version.

Nokia (China) Investment Co., Ltd B2, Nokia China Campus Beijing Economic and Tech Development Area, No.5 Donghuan Zhonglu Beijing, 100176 China PRC Tel. +861087118888 Fax +861087114550 Jan 04, 2010 Federal Communications Commission Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD. 21046 Attention: Equipment Authorization Branch REQUEST FOR CONFIDENTIALITY Pursuant to Sections 0.457 (d) (l) (ii) and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of some of the information accompanying this Application of FCC ID: QTLRM-586 and as outlined below: - Exhibit 4: Block Diagram - Exhibit 5: Schematic Diagrams - Exhibit 12: Theory of Operation / Description of Circuitry These materials contain trade secrets and proprietary information not customarily released to the public and the public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457 (d) (l) (ii) disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this Application. NOKIA CORPORATION Wang Yan Product Certification Officer Beijing, PRC.

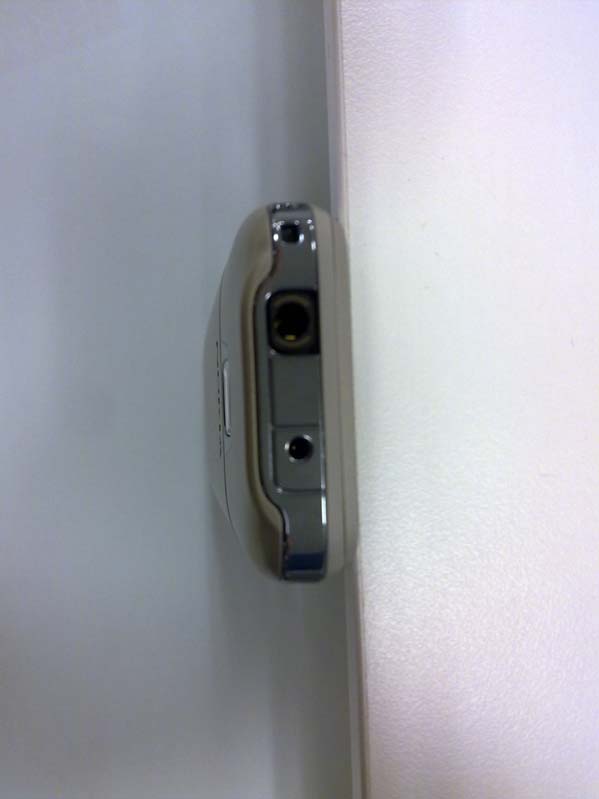

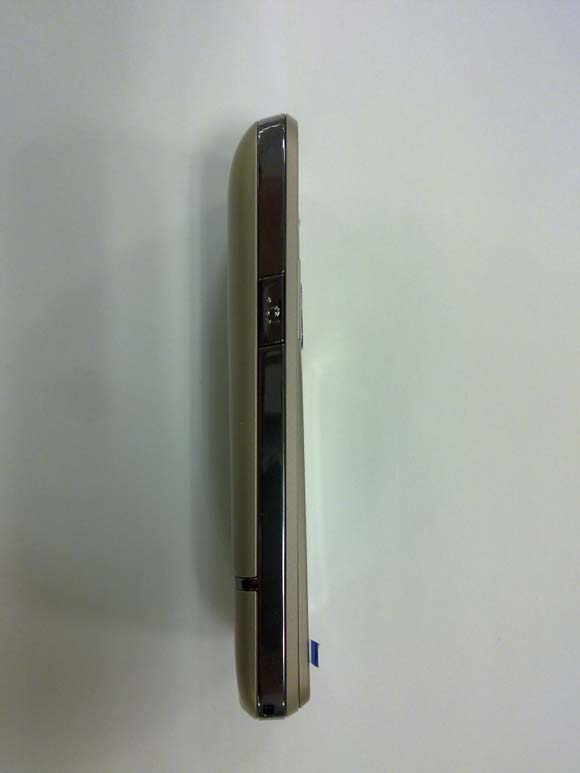

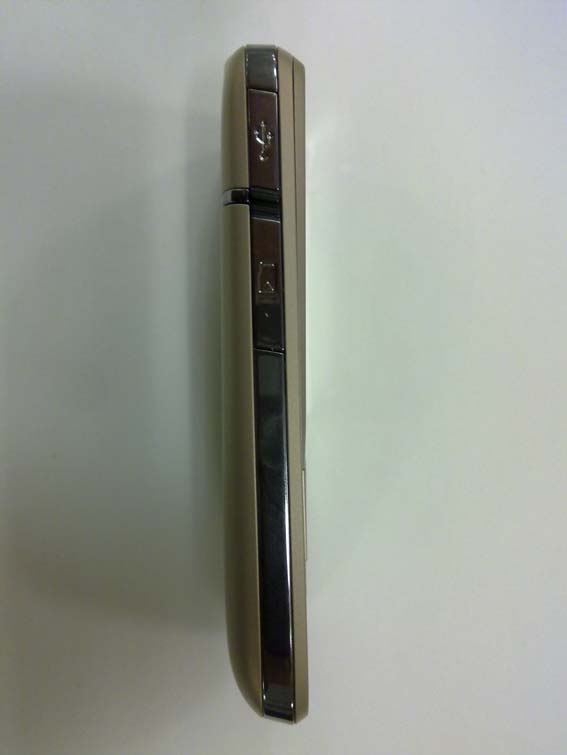

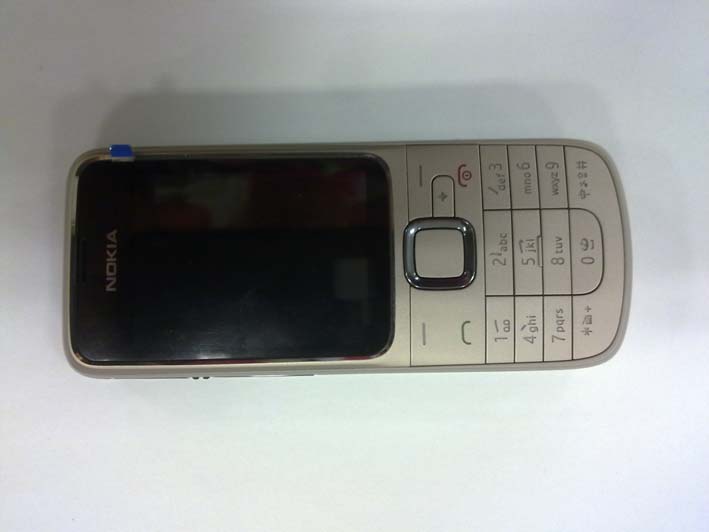

NOKIA 1 (5) RM-586 28, Nov. 2009 External picture FCC ID: QTLRM-586 Exhibit 3 Applicant: Nokia Corporation Copyright © 2009 Nokia. All rights reserved. NOKIA 2 (5) RM-586 28, Nov. 2009 External picture FCC ID: QTLRM-586 Exhibit 3 Applicant: Nokia Corporation Copyright © 2009 Nokia. All rights reserved. NOKIA 3 (5) RM-586 28, Nov. 2009 External picture FCC ID: QTLRM-586 Exhibit 3 Applicant: Nokia Corporation Copyright © 2009 Nokia. All rights reserved. NOKIA 4 (5) RM-586 28, Nov. 2009 External picture FCC ID: QTLRM-586 Exhibit 3 Applicant: Nokia Corporation Copyright © 2009 Nokia. All rights reserved. NOKIA 5 (5) RM-586 28, Nov. 2009 External picture FCC ID: QTLRM-586 Exhibit 3 Applicant: Nokia Corporation Copyright © 2009 Nokia. All rights reserved.

NOKIA 1 (2) RM-586 28, Nov 2009 Label location and Size FCC ID: QTLRM-586 Exhibit 1 Applicant: Nokia Corporation Copyright © 2009 Nokia. All rights reserved. NOKIA 2 (2) RM-586 28, Nov 2009 Label location and Size FCC ID: QTLRM-586 Exhibit 1 Applicant: Nokia Corporation Copyright © 2009 Nokia. All rights reserved.

NOKIA 1 (4) RM-586 Nov. 29, 2009 Internal picture FCC ID: QTLRM-586 Exhibit 9 Applicant: Nokia Corporation Copyright © 2009 Nokia. All rights reserved. NOKIA 2 (4) RM-586 Nov. 29, 2009 Internal picture FCC ID: QTLRM-586 Exhibit 9 Applicant: Nokia Corporation Copyright © 2009 Nokia. All rights reserved. NOKIA 3 (4) RM-586 Nov. 29, 2009 Internal picture FCC ID: QTLRM-586 Exhibit 9 Applicant: Nokia Corporation Copyright © 2009 Nokia. All rights reserved. Top View JUNO Baseband IC FEM (PA, antenna switch) Combo memory Lovissa PMU 26 MHz Crystal RX SAW filter 32 KHz Crystal NOKIA 4 (4) RM-586 Nov. 29, 2009 Internal picture FCC ID: QTLRM-586 Exhibit 9 Applicant: Nokia Corporation Copyright © 2009 Nokia. All rights reserved. Bottom View Battery connector MicroSD connector AV connector LED driver Vibrator RF Switch SIM ASIP MMC ASIP Microphone SIM Reader Accelerom eter Magnetom eter NL5500 GPS/BT/FM IC 38.4 MHz DCXO Camera Module

FCC Part 15B Compliance Test Report Test Report no.: FCC15B_RM-586_06.doc Date of Report: 24-Dec-2009 Number of pages: 7 Customer’s Contact person: Helen Hu Testing laboratory: TCC Nokia Beijing Laboratory Beijing Economic and Technological Development Area No.5 Donghuan Zhonglu Beijing PRC China 100176 Tel. +86 10 8711 8888 Fax. +86 10 8711 4550 FCC listing no.: IC recognition no.: 975940 661AH-1 Customer: Nokia Corporation Beijing Economic and Technological Development Area No.5 Donghuan Zhonglu Beijing PRC China 100176 Tel. +86 10 8711 8888 Fax. +86 10 8711 4550 Tested devices/ accessories: Phone RM-586 / Battery BL-5C / AC-charger AC-3 / Headset HS-125 FCC ID: QTLRM-586 IC: 661AB-RM586 Supplement reports: - Testing has been carried out in accordance with: CFR 47, FCC rules Part 15 Subpart B, ANSI C63.4 (2003), ICES-003, CISPR 22 and IC standards RSS-132 (Issue 2, September 2005), RSS-133 (Issue 5, February 2009), RSS-139 (Issue 2, February 2009) and RSS-210 (Issue 7, June 2007). Deviations, modifications or clarifications (if any) to above mentioned documents are written in each section under "Test method and limit". Documentation: The test report must always be reproduced in full; reproduction of an excerpt only is subject to written approval of the testing laboratory. The documentation of the testing performed on the tested devices is archived for 15 years at TCC Nokia. Test Results: The EUT complies with the requirements in respect of all parameters subject to the test. The test results relate only to devices specified in this document. Date and signature for the contents: Yin Hongpeng, System Specialist, EMC FCC Part 15B Compliance Test Report / Template Version 14.0 FCC15B_RM-586_06.doc Copyright © TCC Nokia 1 (7) TCC Nokia Beijing Laboratory Beijing Economic and Technological Development Area No.5 Donghuan Zhonglu Beijing PRC China 100176 Tel. +86 10 8711 8888 Fax. +86 10 8711 4550 FCC Part 15B Compliance Test Report / Template Version 14.0 FCC15B_RM-586_06.doc Copyright © TCC Nokia 2 (7) TCC Nokia Beijing Laboratory Beijing Economic and Technological Development Area No.5 Donghuan Zhonglu Beijing PRC China 100176 Tel. +86 10 8711 8888 Fax. +86 10 8711 4550 1. Summary for FCC Part 15B Compliance Test Report Date of receipt 27-Nov-2009 Testing completed 22-Dec-2009 The customer's contact person Helen Hu Test Plan referred to T:\Projects\RM-586\TestPlan_RS\RS_testplan_RM-586.xls Notes - Document name FCC15B_RM-586_06.doc 1.1. EUT and Accessory Information The EUT is a 4-band (GSM850/900/1800/1900) mobile phone with GPRS, EGPRS and Bluetooth. GSM bands are tested in idle mode. Bluetooth is tested with maximum rated TX power. Product Type SN HW MV SW DUT Phone RM-586 004401109390175 0213 - cl5.58SSC.1 51517 Battery BL-5C 0670397382066P42309DZ11399 - - - 51525 AC-charger AC-3 4090499161171501155;0675372 - - - 51520 Headset HS-125 06947869261C1R00224 - - - 51456 1.2. Summary of Test Results GSM 850: Section in CFR 47 Section in ICES-003 (RSS-132) Name of the test Result 15.107, a 5.3 AC powerline conducted emissions NP 15.109, a 5.5 (4.6) Radiated emissions PASSED GSM 1900: Section in CFR 47 Section in ICES-003 (RSS-133) Name of the test Result 15.107, a 5.3 AC powerline conducted emissions NP 15.109, a 5.5 (6.6) Radiated emissions PASSED PASSED The EUT complies with the essential requirements in the standard. FAILED The EUT does not comply with the essential requirements in the standard. NP The test was not performed by the TCC Nokia Beijing Laboratory. FCC Part 15B Compliance Test Report / Template Version 14.0 FCC15B_RM-586_06.doc Copyright © TCC Nokia 3 (7) TCC Nokia Beijing Laboratory Beijing Economic and Technological Development Area No.5 Donghuan Zhonglu Beijing PRC China 100176 Tel. +86 10 8711 8888 Fax. +86 10 8711 4550 CONTENTS 1. Summary for FCC Part 15B Compliance Test Report.............................................. 2 1.1. EUT and Accessory Information ............................................................................................2 1.2. Summary of Test Results .......................................................................................................2 2. Radiated emissions (FCC §15.109, ICES-003 section 5.5, RSS-132 4.6, RSS-133 6.6, RSS-139 6.6) ............. 4 2.1. Test setup ..............................................................................................................................4 2.2. Test method and limit .............................................................................................................4 2.3. GSM 850 Test results with FM radio on .................................................................................5 2.4. GSM 1900 Test results with GPS receiver on........................................................................6 3. Test Equipment........................................................................................................... 7 3.1. Conducted measurements .....................................................................................................7 3.2. Radiated measurements ........................................................................................................7 2. Radiated emissions (FCC §15.109, ICES-003 section 5.5, RSS-132 4.6, RSS-133 6.6, RSS-139 6.6) EUT with DUT number RM-586, DUT51517 Accessories with DUT numbers BL-5C, DUT51525; AC-3, DUT51520; HS-125, 51456 Operation Voltage [V] / [Hz] 115 / 60 Result PASSED Remarks FM radio receiver was on during GSM850 idle mode. GPS receiver was on during GSM1900 idle mode. Temp [C] / Humidity [%RH] / Air Pressure [kPa] 19 / 28 / 102.1 Date of measurements 22-Dec-2009 Measured by Yin Hongpeng 2.1. Test setup Tower / table controller Communication Tester Receiver EUT 2.2. Test method and limit The measurement is made according to ANSI C63.4-2003as follows: The measurement is performed in the Semi-Anechoic Chamber with conducting metal floor. The measurement distance is 3 m. The EUT is placed …

Text truncated - open the document above for the full version.

FCC Part 15B Compliance Test Report Test Report no.: FCC15B_RM-586_12.doc Date of Report: 25-Dec-2009 Number of pages: 9 Customer’s Contact person: Hu Helen Testing laboratory: TCC Nokia Beijing Laboratory Beijing Economic and Technological Development Area No.5 Donghuan Zhonglu Beijing PRC China 100176 Tel. +86 10 8711 8888 Fax. +86 10 8711 4550 FCC listing no.: IC recognition no.: 975940 661AH-1 Customer: Nokia Corporation Beijing Economic and Technological Development Area No.5 Donghuan Zhonglu Beijing PRC China 100176 Tel. +86 10 8711 8888 Fax. +86 10 8711 4550 Tested devices/ accessories: Phone RM-586 / Battery BL-5C / AC-charger AC-3 / Data cable CA-101D / laptop IBM T40 FCC ID: QTLRM-586 IC: 661AB-RM586 Supplement reports: - Testing has been carried out in accordance with: CFR 47, FCC rules Part 15 Subpart B, ANSI C63.4 (2003), ICES-003, CISPR 22 and IC standards RSS-132 (Issue 2, September 2005), RSS-133 (Issue 5, February 2009), RSS-139 (Issue 2, February 2009) and RSS-210 (Issue 7, June 2007). Deviations, modifications or clarifications (if any) to above mentioned documents are written in each section under "Test method and limit". Documentation: The test report must always be reproduced in full; reproduction of an excerpt only is subject to written approval of the testing laboratory. The documentation of the testing performed on the tested devices is archived for 15 years at TCC Nokia. Test Results: The EUT complies with the requirements in respect of all parameters subject to the test. The test results relate only to devices specified in this document. Date and signature for the contents: Jia Dongsheng, System Manager FCC Part 15B Compliance Test Report / Template Version 14.0 FCC15B_RM-586_12.doc Copyright © TCC Nokia 1 (9) TCC Nokia Beijing Laboratory Beijing Economic and Technological Development Area No.5 Donghuan Zhonglu Beijing PRC China 100176 Tel. +86 10 8711 8888 Fax. +86 10 8711 4550 FCC Part 15B Compliance Test Report / Template Version 14.0 FCC15B_RM-586_12.doc Copyright © TCC Nokia 2 (9) TCC Nokia Beijing Laboratory Beijing Economic and Technological Development Area No.5 Donghuan Zhonglu Beijing PRC China 100176 Tel. +86 10 8711 8888 Fax. +86 10 8711 4550 1. Summary for FCC Part 15B Compliance Test Report Date of receipt 27-Nov-2009 Testing completed 22-Dec-2009 The customer's contact person Helen Hu Test Plan referred to T:\Projects\RM-586\TestPlan_RS\RS_testplan_RM-586.xls Notes - Document name FCC15B_RM-586_12.doc 1.1. EUT and Accessory Information The EUT is a 4-band (GSM850/900/1800/1900) mobile phone with GPRS, EGPRS and Bluetooth. GSM bands are tested in idle mode. Bluetooth is tested with maximum rated TX power. Product Type SN HW MV SW DUT Phone RM-586 004401108669959 0213 - cl5.58SSC.1 51518 Phone RM-586 004401109390175 0213 - cl5.58SSC.1 51517 Battery BL-5C 0670397382066P42309DZ11399 - - - 51525 Battery BL-5C 0670397382066P42309DZ11277 - - - 51524 AC-charger AC-3 4090499161171501155;0675372 - - - 51520 AC-charger AC-3 4090499161171501156;0675372 - - - 51521 Data cable CA-101D 07303689194M1218049 - - - 51536 laptop IBM T40 99FMPGT - - - 51044 1.2. Summary of Test Results Bluetooth: Section in CFR 47 Section in ICES-003 Name of the test Result 15.107, a 5.3 AC powerline conducted emissions PASSED 15.109, a 5.5 Radiated emissions PASSED PASSED The EUT complies with the essential requirements in the standard. FAILED The EUT does not comply with the essential requirements in the standard. NP The test was not performed by the TCC Nokia Beijing Laboratory. FCC Part 15B Compliance Test Report / Template Version 14.0 FCC15B_RM-586_12.doc Copyright © TCC Nokia 3 (9) TCC Nokia Beijing Laboratory Beijing Economic and Technological Development Area No.5 Donghuan Zhonglu Beijing PRC China 100176 Tel. +86 10 8711 8888 Fax. +86 10 8711 4550 CONTENTS 1. Summary for FCC Part 15B Compliance Test Report.............................................. 2 1.1. EUT and Accessory Information ............................................................................................2 1.2. Summary of Test Results .......................................................................................................2 2. AC powerline conducted emissions (FCC §15.107, ICES-003 section 5.3) ................................................................................ 4 2.1. Test setup ..............................................................................................................................4 2.2. Test method and limit .............................................................................................................4 2.3. Bluetooth Test results ............................................................................................................5 3. Radiated emissions (FCC §15.109, ICES-003 section 5.5, RSS-132 4.6, RSS-133 6.6, RSS-139 6.6) ............. 6 3.1. Test setup ..............................................................................................................................6 3.2. Test method and limit .............................................................................................................6 3.3. Bluetooth Test results ............................................................................................................7 4. Test Equipment........................................................................................................... 9 4.1. Conducted measurements .....................................................................................................9 4.2. Radiated measurements ........................................................................................................9 2. AC powerline conducted emissions (FCC §15.107, ICES-003 section 5.3) EUT with DUT number RM-586, DUT51518 Accessories with DUT numbers BL-5C, DUT51524; AC-3, DUT51521; CA-101D, DUT51536; IBM T40, DUT51044 Operation Voltage [V] / [Hz] 115 / 60 Result PASSED Remarks Data transfering between PC an…

Text truncated - open the document above for the full version.

RM-586 Test Setups Picture 1. FCC Part 15C Radiated emissions Picture 2. FCC Part 15B Radiated emissions Picture 3. FCC Part 15C AC pow erline conducted emissions EMC Test Setup Photos / Template Version 1.0 EMC_Photo_RM-586_13.doc Copyright © TCC Nokia 1 (2) Picture 4. FCC Part 15B AC pow erline conducted emissions EMC Test Setup Photos / Template Version 1.0 EMC_Photo_RM-586_13.doc Copyright © TCC Nokia 2 (2)
