QTLRM-717GSM 850/900/1800/1900 Cellular Telephone with BT

Nokia X2–01 User Guide 5555555 Issue 1 CyanC y a n MagentaM a g e n t a YellowY e l l o w BlackB l a c k ContentsSafety 4 Your Nokia X2-01 in brief 5 Key features 5 Keys and parts 5 Get started 7 Insert the SIM card and battery 7 Remove the SIM card 7 Switch on or off 7 Antennas 8 Charge the battery 8 Connect a headset 8 Insert a memory card 9 Remove the memory card 9 Connect a USB data cable 10 Attach the wrist strap 10 Access codes 10 PUK codes 11 Home screen 11 Keypad lock 13 Use your device without a SIM card 14 Applications running in background 14 Calls 14 Make and answer a call 14 Loudspeaker 14 Dialling shortcuts 14 Write text 15 Navigate the menus 15 Messaging 15 Text and multimedia messages 15 Flash messages 17 Nokia Xpress audio messages 17 Nokia Messaging Service 17 Voice messages 17 Message settings 18 Contacts 18 Music 19 Music player 19 FM radio 19 Photos 20 Capture images and record video clips 20 View your images and video clips 20 Applications 20 Alarm clock 20 Gallery 21 Extras 21 Voice recorder 21 To-do list 22 2Contents CyanC y a n MagentaM a g e n t a YellowY e l l o w BlackB l a c k Calendar 22 Settings 22 Profiles 22 Themes 22 Tones 23 Display settings 23 Date and time 23 Shortcuts 23 Synchronisation and backup 24 Connectivity 24 Call 25 Device 26 Accessories 26 Configuration 26 Security 27 Browser security 27 Restore factory settings 28 Web or Internet 28 About Web 28 Connect to a web service 28 Operator menu 28 SIM services 28 Find more help 29 Support 29 About device software updates 29 Update device software using your device 29 Update device software using your PC 30 Green tips 30 Save energy 30 Recycle 31 Product and safety information 31 Index 36 Contents 3 CyanC y a n MagentaM a g e n t a YellowY e l l o w BlackB l a c k SafetyRead these simple guidelines . Not following them may be dangerous or illegal. Read the complete user guide for further information.SWITCH OFF IN RESTRICTED AREAS Switch the device off when mobile phone use is not allowed or when it may causeinterference or danger, fo r example, in aircraft, near medical equipment, fuel, chemicals, orblasting areas. ROAD SAFETY COMES FIRST Obey all local laws. Alwa ys keep your hands free to operate the vehicle while driving. Your firstconsideration while driving should be roadsafety. INTERFERENCE All wireless devices may be susceptible tointerference, which coul d affect performance. QUALIFIED SERVICE Only qualified personne l may install or repair this product. KEEP YOUR DEVICE DRY Your device is not water-resistant. Keep it dry. PROTECT YOUR HEARING Listen to a headset at a moderate level, and donot hold the device near your ear when theloudspeaker is in use. 4Safety CyanC y a n MagentaM a g e n t a YellowY e l l o w BlackB l a c k Your Nokia X2-01 in briefKey features• Enjoy the messaging featur es with the full QWERTY keyboard. • Manage your social networking profiles and musicwith dedicated keys. • Read and reply to your mail when out and about. • See an overview of your correspondence withsomeone in the conversational messaging view. Keys and parts1 Earpiece 2 Selection keys 3 Call key 4 Navi™ key (scroll key) 5 End/Power key Your Nokia X2-01 in brief 5 CyanC y a n MagentaM a g e n t a YellowY e l l o w BlackB l a c k 6 Backspace key 7 Enter key 8 Microphone 9 Space key 10 Music key 11 Function key 12 Shift key 13 Sym key 14 Messaging key 15 Ctrl key 16 Headset connector/Nokia AV connector (3.5 mm) 17 Charger connector 18 Camera lens 19 Wrist strap hole 20 Loudspeaker 21 Micro USB connector 22 Memory card slot To access some messaging or music features, press themessaging or music key. You can assign differentfunctions to the keys. 6 Your Nokia X2-01 in brief CyanC y a n MagentaM a g e n t a YellowY e l l o w BlackB l a c k Get startedInsert the SIM ca rd and battery Note: Switch the device off an d disconnect the charger and any other device before removing any covers. Avoidtouching electronic compon ents while changing any covers. Always store and use the device with any coversattached.The SIM card and its contacts can be easily damaged by scratches or bending, so be careful when handling,inserting, or removing the card. 1 Place your finger in the recess at the bottom of the device, and carefully lift an d open the back cover (1). 2 Insert the SIM card. Make sure the contact area of the card is facing down (2). 3 Line up the contacts of the battery and the battery compartment, and insert the battery (3). 4 To replace the back cover, direct the top locking catches toward their slots (4), and press down untilthe cover locks into place (5). Remove the SIM cardPress the release spring (1), and slide out the SIM card (2). Switch on or offPress and hold the power key. Get started 7 CyanC y a n MagentaM a g e n t a YellowY e l l o w BlackB l a c k AntennasAvoid touching the antenna area unnecessarily while theantenna is transmitting or receiving. Contact with antennas affects the communication quality and maycause a higher power level during operation and may reduce the battery life.Charge the batteryYour battery has been partially charged at the factory, butyou may need to recharge it before you can switch on yourdevice for the first time. If the device indicates a lowcharge, do the following: 1 Connect the charger to a wall outlet. 2 Connect the charger to the device. 3 When the device indicates a full charge, disconnect the charger from the device, then from the wall outlet. You do not need to charge th e battery for a specific length of time, and you can use the device while it is charging.If the battery is completely discharged, it may take severalminutes before the charging indicator appears on thedisplay or before any calls can be made.If the battery has not been us ed for a long time, to begin charging, you may need to connect the charger, then disconnect and reconnect it.Connect a headsetDo not connect products that create an output signal asthis may cause damage to the device. Do not conn…

Text truncated - open the document above for the full version.

Nokia (China) Investment Co., Ltd B2, Nokia China Campus Beijing Economic and Tech Development Area, No.5 Donghuan Zhonglu Beijing, 100176 China PRC Tel. +861087118888 Fax +861087114550 September 29, 2010 Federal Communications Commission Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD. 21046 Attention: Equipment Authorization Branch REQUEST FOR CONFIDENTIALITY Pursuant to Sections 0.457 (d) (l) (ii) and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of some of the information accompanying this Application of FCC ID: QTLRM-717 and as outlined below: - Exhibit 4: Block Diagram - Exhibit 5: Schematic Diagrams - Exhibit 10: List of Active Devices and Tune-Up Procedure - Exhibit 12: Theory of Operation / Description of Circuitry These materials contain trade secrets and proprietary information not customarily released to the public and the public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457 (d) (l) (ii) disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this Application. NOKIA CORPORATION Tero Lehtinen Product Certification Officer DQD/DC, Salo

Nokia (China) Investment Co., Ltd B2, Nokia China Campus Beijing Economic and Tech Development Area, No.5 Donghuan Zhonglu Beijing, 100176 China PRC Tel. +861087118888 Fax +861087114550 September 29, 2010 Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD. 21046 Attention: Equipment Authorization Branch REQUEST FOR SHORT TERM CONFIDENTIALITY Pursuant to Section 0.459 of the Commission’s Rules and Public Notice DA 04-1705 of June 15, 2004, the Applicant hereby requests for 90 days short term confidential treatment of some of the information accompanying this application of FCC ID: QTLRM-717 as outlined below: - Exhibit 3: External photos - Exhibit 7: Test setup photos - Exhibit 8: User's manual - Exhibit 9: Internal photos These materials contain proprietary information not yet released to the public and the public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. NOKIA CORPORATION Tero Lehtinen Product Certification Officer DQD/DC, Salo

CONFIDENTIAL 25.09.2010 External Photos FCC ID: QTLRM-717 Exhibit 03 IC: 661AB-RM717 Applicant: Nokia Corporation Copyright © 2010 Nokia. All rights reserved. CONFIDENTIAL 25.09.2010 External Photos FCC ID: QTLRM-717 Exhibit 03 IC: 661AB-RM717 Applicant: Nokia Corporation Copyright © 2010 Nokia. All rights reserved. CONFIDENTIAL 25.09.2010 External Photos FCC ID: QTLRM-717 Exhibit 03 IC: 661AB-RM717 Applicant: Nokia Corporation Copyright © 2010 Nokia. All rights reserved.

PRODUCT TYPE LABEL 1 (2) 20.09.2010 Confidential Exhibit 1: Label location and size FCC ID: Q TLRM-717 IC: 661AB-RM717 Applicant: Nokia Corporation Copyright © 2010 Nokia. All rights reserved. 1. TYPE LABEL: PRODUCT TYPE LABEL 2 (2) 20.09.2010 Confidential Exhibit 1: Label location and size FCC ID: Q TLRM-717 IC: 661AB-RM717 Applicant: Nokia Corporation Copyright © 2010 Nokia. All rights reserved. 2. POSITION AND SIZE OF THE LABEL

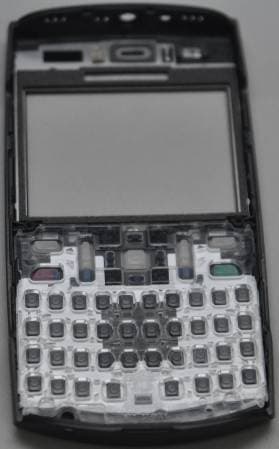

CONFIDENTIAL 25.09.2010 Internal Photos FCC ID: QTLRM-717 Exhibit 09 IC: 661AB-RM717 Applicant: Nokia Corporation Copyright © 2010 Nokia. All rights reserved. CONFIDENTIAL 25.09.2010 Internal Photos FCC ID: QTLRM-717 Exhibit 09 IC: 661AB-RM717 Applicant: Nokia Corporation Copyright © 2010 Nokia. All rights reserved. CONFIDENTIAL 25.09.2010 Internal Photos FCC ID: QTLRM-717 Exhibit 09 IC: 661AB-RM717 Applicant: Nokia Corporation Copyright © 2010 Nokia. All rights reserved. CONFIDENTIAL 25.09.2010 Internal Photos FCC ID: QTLRM-717 Exhibit 09 IC: 661AB-RM717 Applicant: Nokia Corporation Copyright © 2010 Nokia. All rights reserved. CONFIDENTIAL 25.09.2010 Internal Photos FCC ID: QTLRM-717 Exhibit 09 IC: 661AB-RM717 Applicant: Nokia Corporation Copyright © 2010 Nokia. All rights reserved.

Nokia ____________________________________________________________________________ SAR Report FCC_RM-717_01 Applicant: Nokia Corporation Type: RM-717 Copyright © 2010 TCC Nokia 1/44 SAR Compliance Test Report Test report no.: FCC_RM-717_01 Date of report: 2010-09-13 Template version: 16.0 Number of pages: 44 Testing laboratory: TCC Nokia Salo Laboratory P.O.Box 86 Joensuunkatu 7H / Kiila 1B FIN-24101 SALO, FINLAND Tel. +358 (0) 7180 08000 Fax. +358 (0) 7180 45220 Client: Nokia Corporation Beijing Economic and Technological Development Area No.5 Donghuan Zhonglu Beijing PRC China 100176 Tel. +86 10 8711 8888 Fax. +86 10 8711 4550 Responsible test engineer: Alina Tähkäpää Product contact person: Qiu Rain Measurements made by: Alina Tähkäpää, Virpi Tuominen, Heikki Haloila Tested device: RM-717 FCC ID: QTLRM-717 IC: 661AB-RM717 Supplement reports: SAR_Photo_RM-717_02 Testing has been carried out in accordance with: 47CFR §2.1093 Radiofrequency Radiation Exposure Evaluation: Portable Devices FCC OET Bulletin 65 (Edition 97-01), Supplement C (Edition 01-01) Evaluating Compliance with FCC Guidelines for Human Exposure to Radiofrequency Electromagnetic Fields RSS-102 Evaluation Procedure for Mobile and Portable Radio Transmitters with Respect to Health Canada’s Safety Code 6 for Exposure of Humans to Radio Frequency Fields IEEE 1528 - 2003 IEEE Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Technique Documentation: The documentation of the testing performed on the tested devices is archived for 15 years at TCC Nokia. Test results: The tested device complies with the requirements in respect of all parameters subject to the test. The test results and statements relate only to the items tested. The test report shall not be reproduced except in full, without written approval of the laboratory. Date and signatures: For the contents: Nokia ____________________________________________________________________________ SAR Report FCC_RM-717_01 Applicant: Nokia Corporation Type: RM-717 Copyright © 2010 TCC Nokia 2/44 CONTENTS 1. SUMMARY OF SAR TEST REPORT............................................................................................................................................. 3 1.1 TEST DETAILS.............................................................................................................................................................................3 1.2 MAXIMUM RESULTS....................................................................................................................................................................3 1.2.1 Head Configuration........................................................................................................................................................ 3 1.2.2 Body Worn Configuration............................................................................................................................................ 3 1.2.3 Maximum Drift................................................................................................................................................................ 4 1.2.4 Measurement Uncertainty........................................................................................................................................... 4 2. DESCRIPTION OF THE DEVICE UNDER TEST........................................................................................................................... 4 2.1 DESCRIPTION OF THE ANTENNA..................................................................................................................................................4 3. TEST CONDITIONS..................................................................................................................................................................... 5 3.1 TEMPERATURE AND HUMIDITY....................................................................................................................................................5 3.2 TEST SIGNAL, FREQUENCIES AND OUTPUT POWER......................................................................................................................5 3.3 TEST CASES AND TEST MINIMISATION........................................................................................................................................5 4. DESCRIPTION OF THE TEST EQUIPMENT...............................................................................................................................8 4.1 MEASUREMENT SYSTEM AND COMPONENTS................................................................................................................................8 4.1.1 Isotropic E-field Probe Type ET3DV6......................................................................................................................... 9 4.1.2 Isotropic E-field Probe Type ES3DV3......................................................................................................................... 9 4.2 PHANTOMS............................................................................................................................................................................. 10 4.3 TISSUE SIMULANTS................................................................................................................................................................. 10 4.3.1 Tissue Simulant Recipes............................................................................................................................................ 10 4.3.2 System Checking.......................................................................................................................................................... 11 4.3.3 Tissue Simulants used in the Measurements....................................................................................................... 12 5…

Text truncated - open the document above for the full version.

FCC Part 22/24/27 Compliance Test Report / Template Version 15.0 FCC22&24_RM-717_01.docx Copyright © TCC Nokia 1 (14) TCC Nokia Tampere Laboratory P.O. Box 68 Sinitaival 5 FIN-33720 TAMPERE, FINLAND Tel. +358 (0) 7180 46800 Fax. +358 (0) 7180 46880 FCC Part 22/24 Compliance Test Report Test Report no.: FCC22&24_RM-717_01.docx Date of Report: 17-Sep-2010 Number of pages: 14 Customer’s Contact person: Qiu Rain Testing laboratory: TCC Nokia Tampere Laboratory P.O. Box 68 Sinitaival 5 FIN-33720 TAMPERE, FINLAND Tel. +358 (0) 7180 46800 Fax. +358 (0) 7180 46880 Customer: Nokia Corporation Beijing Economic and Technological Development Area No.5 Donghuan Zhonglu Beijing PRC China 100176 Tel. +86 10 8711 8888 Fax. +86 10 8711 4550 FCC listing no.: IC recognition no.: 94436 661AK-1 Tested devices/ accessories: Phone RM-717 / Battery BL-5C, AC charger AC-3E, Headset HS-125, Dummy battery SD-4MOD FCC ID: QTLRM-717 IC: 661AB-RM717 Supplement reports: - Testing has been carried out in accordance with: CFR 47, FCC rules Parts 22 and 24, TIA-603-C-2004 and IC standards RSS-GEN (Issue 2, June 2007), RSS-132 (Issue 2, September 2005) and RSS-133 (Issue 5, February 2009). Deviations, modifications or clarifications (if any) to above mentioned documents are written in each section under "Test method and limit". Documentation: The test report must always be reproduced in full; reproduction of an excerpt only is subject to written approval of the testing laboratory. The documentation of the testing performed on the tested devices is archived for 15 years at TCC Nokia. Test Results: The EUT complies with the requirements in respect of all parameters subject to the test. The test results relate only to devices specified in this document. Date and signature for the contents: Jari Jantunen, System Manager, EMC FCC Part 22/24/27 Compliance Test Report / Template Version 15.0 FCC22&24_RM-717_01.docx Copyright © TCC Nokia 2 (14) TCC Nokia Tampere Laboratory P.O. Box 68 Sinitaival 5 FIN-33720 TAMPERE, FINLAND Tel. +358 (0) 7180 46800 Fax. +358 (0) 7180 46880 1. Summary for FCC Part 22/24 Compliance Test Report Date of receipt 25-Aug-2010 Testing completed 02-Sep-2010 The customer's contact person Qiu Rain Test Plan referred to T:\Projects\RM-717\TestPlan\RS_testplan_RM-717.xls Notes - Document name FCC22&24_RM-717_01.docx 1.1. EUT and Accessory Information The EUT is a 4-band (GSM850/900/1800/1900) mobile phone with GPRS, EGPRS and Bluetooth. The EUT is tested with maximum rated TX power, modulated with pseudo random bit sequence (PRBS9). Product Type SN HW MV SW DUT Phone RM-717 004402131696100 0202 - Tw92_10w31 SSC 42331 Phone RM-717 004402131695870 0202 - Tw92_10w31 SSC 42332 Battery BL-5C 0670400382066R09203HF34575 - - - 42333 Battery BL-5C 0670400382066R09203HF34571 - - - 42334 AC charger AC-3E 4419298432052200035;0675370 - - - 42335 Headset HS-125 06943249132U4102593 - - - 42336 Dummy battery SD-4MOD - - - - 42337 1.2. Summary of Test Results GSM 850: Section in CFR 47 Section in RSS-GEN or RSS-132 Name of the test Result §2.1046(a), 22.913(a) 4.4 Conducted RF output power NP §22.913(a) 4.4 Radiated RF output power NP §2.1049(h) 4.6.1 99 % occupied bandwidth PASSED §22.917(a) 4.5 Band edge compliance NP §22.917(a), §2.1051 4.5 Spurious emissions at antenna terminals NP §22.917(a), §2.1053 4.5 Spurious radiated emissions PASSED §2.1055(a) 4.3 Frequency stability, temperature variation PASSED §2.1055(d) 4.3 Frequency stability, voltage variation PASSED GSM 1900: Section in CFR 47 Section in RSS-GEN or RSS-133 Name of the test Result §2.1046(a) 6.4 Conducted RF output power NP §24.232(b) 6.4 Radiated RF output power NP §2.1049(h) 4.6.1 99 % occupied bandwidth PASSED §24.238(a) 6.5 Band edge compliance NP §24.238(a), §2.1051 6.5 Spurious emissions at antenna terminals NP §24.238(a), §2.1053 6.5 Spurious radiated emissions PASSED §2.1055(a) 6.3 Frequency stability, temperature variation PASSED §2.1055(d) 6.3 Frequency stability, voltage variation PASSED PASSED The EUT complies with the essential requirements in the standard. FAILED The EUT does not comply with the essential requirements in the standard. NP The test was not performed by the TCC Nokia Tampere Laboratory. FCC Part 22/24/27 Compliance Test Report / Template Version 15.0 FCC22&24_RM-717_01.docx Copyright © TCC Nokia 3 (14) TCC Nokia Tampere Laboratory P.O. Box 68 Sinitaival 5 FIN-33720 TAMPERE, FINLAND Tel. +358 (0) 7180 46800 Fax. +358 (0) 7180 46880 CONTENTS 1. Summary for FCC Part 22/24 Compliance Test Report ............................................ 2 1.1. EUT and Accessory Information ........................................................................................... 2 1.2. Summary of Test Results ..................................................................................................... 2 2. .......................................................................................................................................... 3 3. 99 % occupied bandwidth (FCC §2.1049(h), RSS-GEN 4.6.1) ..................................................................................... 4 3.1. Test setup ............................................................................................................................ 4 3.2. Test method and limit ........................................................................................................... 4 3.3. GSM 850 Test results ........................................................................................................... 5 3.4. GSM 1900 Test results ......................................................................................................... 6 4. .......................................................................................................................................... 6 5. Spurious radiated emissions (FCC §22.917(a), §24.238(a), §2.1053, RSS-132 4.5, RSS-133 6.5) .................................. 7 5.1. Test setup .........................…

Text truncated - open the document above for the full version.

FCC Part 22/24 Compliance Test Report / Template Version 15.0 FCC22&24_RM-717_06.docx Copyright © TCC Nokia 1 (1) TCC Nokia Salo Laboratory P.O.Box(86) Joensuunkatu 7H / Kiila 1B FIN-24101 SALO, FINLAND Tel. +358 (0) 7180 08000 Fax. +358 (0) 7180 45220 FCC Part 22/24 Compliance Test Report Test Report no.: FCC22&24_RM-717_06.docx Date of Report: 17-Sep-2010 Number of pages: 14 Customer’s Contact person: Qiu Rain Testing laboratory: TCC Nokia Salo Laboratory P.O.Box(86) Joensuunkatu 7H / Kiila 1B FIN-24101 SALO, FINLAND Tel. +358 (0) 7180 08000 Fax. +358 (0) 7180 45220 Customer: Nokia Corporation Beijing Economic and Technological Development Area No.5 Donghuan Zhonglu Beijing PRC China 100176 Tel. +86 10 8711 8888 Fax. +86 10 8711 4550 FCC listing no.: IC recognition no.: 533467 661V-1 Tested devices/ accessories: Phone RM-717 / Battery BL-5C FCC ID: QTLRM-717 IC: 661AB-RM717 Supplement reports: - Testing has been carried out in accordance with: CFR 47, FCC rules Parts 22/24 , TIA-603-C-2004 and IC standards, RSS-GEN (Issue 2, June 2007), RSS-132 (Issue 2, September 2005), RSS-133 (Issue 5, February 2009). Deviations, modifications or clarifications (if any) to above mentioned documents are written in each section under "Test method and limit". Documentation: The test report must always be reproduced in full; reproduction of an excerpt only is subject to written approval of the testing laboratory. The documentation of the testing performed on the tested devices is archived for 15 years at TCC Nokia. Test Results: The EUT complies with the requirements in respect of all parameters subject to the test. The test results relate only to devices specified in this document Date and signature for the contents: Sami Lehtonen, System Specialist, EMC FCC Part 22/24 Compliance Test Report / Template Version 15.0 FCC22&24_RM-717_06.docx Copyright © TCC Nokia 2 (2) TCC Nokia Salo Laboratory P.O.Box(86) Joensuunkatu 7H / Kiila 1B FIN-24101 SALO, FINLAND Tel. +358 (0) 7180 08000 Fax. +358 (0) 7180 45220 1. Summary for FCC Part 22/24 Compliance Test Report Date of receipt 24-Aug-2010 Testing completed 16-Sep-2010 The customer's contact person Qiu Rain Test Plan referred to T:\Projects\RM-717\TestPlan\RS_testplan_RM-717.xls Notes - Document name T:\Projects\RM-717\EMC\FCC22&24_RM-717_06.docx 1.1. EUT and Accessory Information The EUT is a 4-band (GSM850/900/1800/1900) mobile phone with GPRS, EGPRS and Bluetooth. The EUT is tested with maximum rated TX power, modulated with pseudo random bit sequence (PRBS9). Product Type SNHWMV SW DUT Phone RM-717 004402131695854 0202 tw92_10w31 SSC 14958 Battery BL-5C 0670400382066R12405GL62133 14959 1.2. Summary of Test Results GSM850: Section in CFR 47 Section in RSS-GEN or RSS-132 Name of the test Result §2.1046(a), 22.913(a) 4.4 Conducted RF output power NP §22.913(a) 4.4 Radiated RF output power PASSED §2.1049(h) 4.6.1 99 % occupied bandwidth NP §22.917(a) 4.5 Band edge compliance PASSED §22.917(a), §2.1051 4.5 Spurious emissions at antenna terminals NP §22.917(a), §2.1053 4.5 Spurious radiated emissions NP §2.1055(a) 4.3 Frequency stability, temperature variation NP §2.1055(d) 4.3 Frequency stability, voltage variation NP GSM1900: Section in CFR 47 Section in RSS-GEN or RSS-133 Name of the test Result §2.1046(a) 6.4 Conducted RF output power NP §24.232(b) 6.4 Radiated RF output power PASSED §2.1049(h) 4.6.1 99 % occupied bandwidth NP §24.238(a) 6.5 Band edge compliance PASSED §24.238(a), §2.1051 6.5 Spurious emissions at antenna terminals NP §24.238(a), §2.1053 6.5 Spurious radiated emissions NP §2.1055(a) 6.3 Frequency stability, temperature variation NP §2.1055(d) 6.3 Frequency stability, voltage variation NP FCC Part 22/24 Compliance Test Report / Template Version 15.0 FCC22&24_RM-717_06.docx Copyright © TCC Nokia 3 (3) TCC Nokia Salo Laboratory P.O.Box(86) Joensuunkatu 7H / Kiila 1B FIN-24101 SALO, FINLAND Tel. +358 (0) 7180 08000 Fax. +358 (0) 7180 45220 PASSED The EUT complies with the essential requirements in the standard. FAILED The EUT does not comply with the essential requirements in the standard. NP The test was not performed by the TCC Nokia Laboratory. CONTENTS 1. Summary for FCC Part 22/24 Compliance Test Report ............................................ 2 1.1. EUT and Accessory Information ............................................................................................. 2 1.2. Summary of Test Results ........................................................................................................ 2 2. Radiated RF output power (FCC §22.913(a), §24.232(b), RSS-132 4.4, RSS-133 6.4) ............................................... 5 2.1. Test Setup ............................................................................................................................... 5 2.2. Test method and limit .............................................................................................................. 5 2.3. GSM850 TX Test results ......................................................................................................... 7 2.4. GSM1900 TX Test results ....................................................................................................... 7 3. Band edge compliance (FCC §22.917(a), §24.238(a), RSS-132 4.5, RSS-133 6.5) ................................................ 8 3.1. Test Setup ............................................................................................................................... 8 3.2. Test method and limit .............................................................................................................. 8 3.3. GSM850 Test results .............................................................................................................. 9 3.4. GSM1900 Test results .......................................................................................................... 11 4. Test Equipment ...........................................................…

Text truncated - open the document above for the full version.

____________________________________________________________________________ HAC RF Emissions Report RF_RM-717_01 Applicant: Nokia Corporation Type: RM-717 Copyright © 2010 TCC Nokia 1/24 HAC RF Emissions Test Report Test report no.: RF_RM-717_01 Date of report: 2010-09-16 Template version: 8.0 Number of pages: 24 Testing laboratory: TCC Nokia Salo Laboratory P.O.Box 86 Joensuunkatu 7H / Kiila 1B FIN-24101 SALO, FINLAND Tel. +358 (0) 7180 08000 Fax. +358 (0) 7180 45220 Client: Nokia Corporation Beijing Economic and Technological Development Area No.5 Donghuan Zhonglu Beijing PRC China 100176 Tel. +86 10 8711 8888 Fax. +86 10 8711 4550 Responsible test engineer: Heikki Haloila Product contact person: Qiu Rain Measurements made by: Heikki Haloila Tested devices: RM-717 FCC ID: QTLRM-717 IC: 661AB-RM717 Supplement reports: T-Coil_RM-717_02, HAC_Photo_RM-717_03 Testing has been carried out in accordance with: ANSI C63.19-2007 American National Standard for Methods of Measurement of Compatibility between Wireless Communications Devices and Hearing Aids Documentation: The documentation of the testing performed on the tested devices is archived for 15 years at TCC Nokia. Test results: The tested device complies with the requirements in respect of all parameters subject to the test. The test results and statements relate only to the items tested. The test report shall not be reproduced except in full, without written approval of the laboratory. Date and signatures: For the contents: ____________________________________________________________________________ HAC RF Emissions Report RF_RM-717_01 Applicant: Nokia Corporation Type: RM-717 Copyright © 2010 TCC Nokia 2/24 CONTENTS 1. SUMMARY OF HAC RF EMISSION TEST REPORT.................................................................................................................... 3 1.1 TEST DETAILS......................................…

Text truncated - open the document above for the full version.
