QTLRM-835GSM/WCDMA cellular phone w/BT and WLAN

Nokia Lumia 610 User Guide Issue DRAFT 28 Feb 2012 Contents Safety4 Get started6 Keys and parts6 Back, start, and search keys7 Insert the SIM card 8 Charge your phone9 Antenna locations12 Switch the phone on or off12 Create your Windows Live ID13 Windows Live ID13 Nokia account14 Copy contacts from your old phone 14 Lock or unlock the keys and screen15 Headset16 Change the volume17 Access codes17 Set your phone to sync with your computer18 Basics18 About the start screen18 Touch screen actions19 Use your phone when it's locked22 Switch between open apps22 Personalise your phone23 Write text25 Search your phone and the web27 Control your phone with your voice28 Indicators on the status bar28 Use your phone offline28 Increase battery life29 Calls30 Call a contact30 Call the last dialled number30 Call your voice mailbox30 Divert calls to your voice mailbox or another phone number31 Make a conference call31 Silence an incoming call32 Use your voice to call a contact32 Contacts & social networking services 32 Contacts32 Social networks36 Internet37 Internet connections37 Internet40 Messaging & mail41 Messages41 Mail44 Camera46 About the camera46 Take a picture46 Take a close-up picture47 Take a picture in the dark47 Take a picture of a moving object48 Camera tips48 Record a video48 Save location information to your pictures and videos49 Send a picture or video49 Share your pictures and videos50 Your pictures50 About the Pictures hub50 View pictures50 Mark a picture as a favourite51 Upload pictures and videos to the web52 Change the background in the Pictures hub52 Create an album52 Copy your pictures between your phone and PC53 2Contents Entertainment53 Music and videos53 Nokia Music55 Marketplace56 Games58 Maps & navigation59 Positioning and location services59 Nokia Maps60 Drive64 Office66 Clock66 Calendar67 Microsoft Office Mobile68 Use the calculator73 Connectivity & phone management 73 Bluetooth73 Copy a picture or other content between your phone and PC74 Keep your phone software and applications up to date74 Back up, sync, and restore your phone75 Free up phone memory76 Remove an application from your phone76 Security77 Support78 Product and safety information79 Index85 Contents3 Safety Read these simple guidelines. Not following them may be dangerous or illegal. For further information, read the complete user guide. SWITCH OFF IN RESTRICTED AREAS Switch the device off when mobile phone use is not allowed or when it may cause interference or danger, for example, in aircraft, in hospitals or near medical equipment, fuel, chemicals, or blasting areas. Obey all instructions in restricted areas. ROAD SAFETY COMES FIRST Obey all local laws. Always keep your hands free to operate the vehicle while driving. Your first consideration while driving should be road safety. INTERFERENCE All wireless devices may be susceptible to interference, which could affect performance. QUALIFIED SERVICE Only qualified personnel may install or repair this product. BATTERIES, CHARGERS, AND OTHER ACCESSORIES Use only batteries, chargers, and other accessories approved by Nokia for use with this device. Third-party chargers that comply with the IEC/EN 62684 standard, and that can connect to your device micro USB connector, may be compatible.Do not connect incompatible products. KEEP YOUR DEVICE DRY Your device is not water-resistant. Keep it dry. GLASS PARTS The device screen is made of glass. This glass can break if the device is dropped on a hard surface or receives a substantial impact. If the glass breaks, do not touch the glass parts of the device or attempt to remove the broken glass from the device. Stop using the device until the glass is replaced by qualified service personnel. 4Safety PROTECT YOUR HEARING Listen to a headset at a moderate level, and do not hold the device near your ear when the loudspeaker is in use. Safety5 Get started Keys and parts 1Wrist strap hole 2Connector for headphones and loudspeakers (3.5 mm) 3Micro-USB connector. Used also to charge the battery 4Volume key 5Power/Lock key 6Camera key 7Back key 8Start key 9Search key 10Microphone 6Get started 11Camera lens 12Camera flash 13Loudspeaker Back, start, and search keys The back, start, and search keys help you to navigate your phone. Back key Return to the previous screen Press . Your phone remembers all the apps and websites you have visited since the last time your screen was locked. Switch between open apps Press and hold , swipe left or right, and select the desired app. Start key Go to the start screen Press . Control your phone with your voice Press and hold , and say a voice command. This feature may not be available in all languages. Get started7 Search key Search the web Press . Insert the SIM card This device is designed to be used with a mini-UICC SIM card, also known as a micro- SIM card only. A micro-SIM card is smaller than the standard SIM card. Do not attach any stickers to the card. 1Press the back cover with your fingers, slide the cover open, and lift the cover off. 2If the battery is inserted, lift it out. 3Make sure the contact area is facing down, and insert the card. 8Get started 4Line up the battery contacts, and insert the battery. 5Replace the back cover. 6To switch the phone on, press the power key. Remove the SIM card 1Remove the back cover and battery. 2Push the card in, until it's free. 3Pull the card out. Charge your phone About the battery Use only Nokia approved chargers designated for this phone. You can also use a compatible USB cable to charge your phone (included). You can set your phone to automatically save power when the battery charge level is low. Select > and battery saver > Always turn on Battery Saver when battery is low. When your phone goes into battery saver mode, you may not be able to change the settings of all apps. Get started9 Charge the battery Your battery has been partially charged at the factory, but you may need to recharge it before you can switch on your phone for the first…

Text truncated - open the document above for the full version.

Nokia (China) Investment Co., Ltd B2, Nokia China Campus Beijing Economic and Tech Development Area, No.5 Donghuan Zhonglu Beijing, 100176 China PRC Tel. +861087118888 Fax +861087114550 Feb 21, 2012 Federal Communications Commission Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD. 21046 Attention: Equipment Authorization Branch REQUEST FOR CONFIDENTIALITY Pursuant to Sections 0.457 (d) (l) (ii) and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of some of the information accompanying this Application of FCC ID: QTLRM-835 and as outlined below: - Exhibit 4: Block Diagram - Exhibit 5: Schematic Diagrams - Exhibit 12: Theory of Operation / Description of Circuitry These materials contain trade secrets and proprietary information not customarily released to the public and the public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457 (d) (l) (ii) disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this Application. NOKIA CORPORATION Wang Yan Product Certification Officer Beijing, PRC.

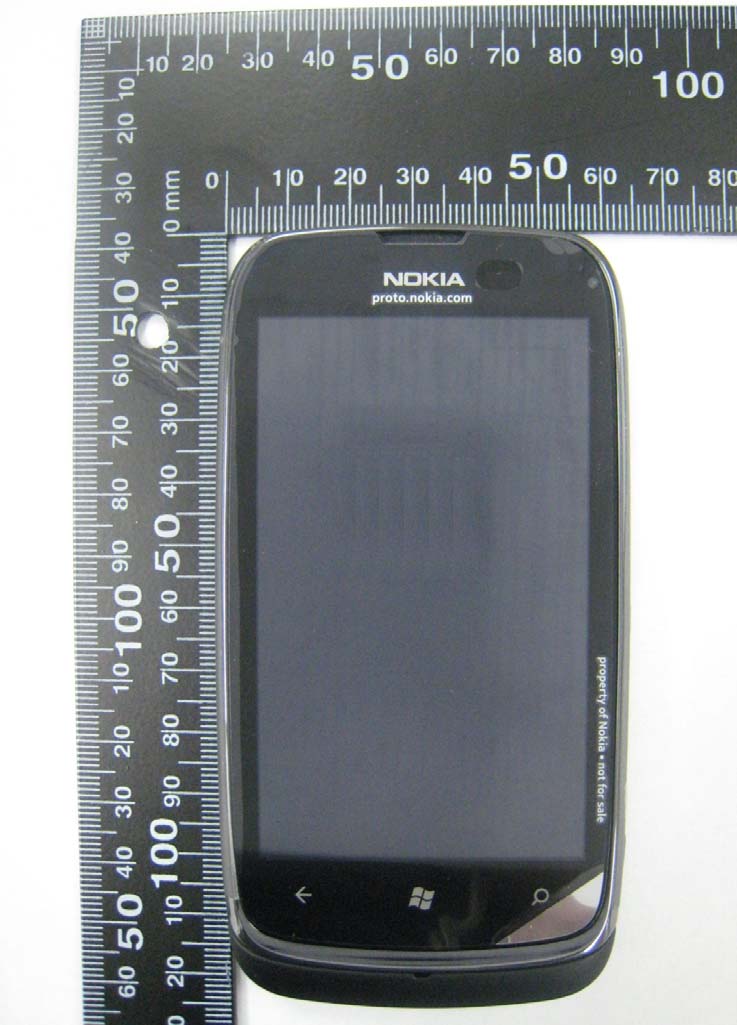

16-Jan-2012 Page 1 of 4 Exhibit 3: External Photographs FCC ID: QTLRM-835 IC: 661AB-RM835 Applicant: Nokia Corporation Copyright © 2012 Nokia Corporation EXTERNAL PHOTOS 16-Jan-2012 Page 2 of 4 Exhibit 3: External Photographs FCC ID: QTLRM-835 IC: 661AB-RM835 Applicant: Nokia Corporation Copyright © 2012 Nokia Corporation 16-Jan-2012 Page 3 of 4 Exhibit 3: External Photographs FCC ID: QTLRM-835 IC: 661AB-RM835 Applicant: Nokia Corporation Copyright © 2012 Nokia Corporation 16-Jan-2012 Page 4 of 4 Exhibit 3: External Photographs FCC ID: QTLRM-835 IC: 661AB-RM835 Applicant: Nokia Corporation Copyright © 2012 Nokia Corporation

16-Jan-2012 Page 1 of 5 Exhibit 9: Internal Photographs FCC ID: QTLRM-835 IC: 661AB-RM835 Applicant: Nokia Corporation Copyright © 2012 Nokia Corporation INTERNAL PHOTO 16-Jan-2012 Page 2 of 5 Exhibit 9: Internal Photographs FCC ID: QTLRM-835 IC: 661AB-RM835 Applicant: Nokia Corporation Copyright © 2012 Nokia Corporation 16-Jan-2012 Page 3 of 5 Exhibit 9: Internal Photographs FCC ID: QTLRM-835 IC: 661AB-RM835 Applicant: Nokia Corporation Copyright © 2012 Nokia Corporation 16-Jan-2012 Page 4 of 5 Exhibit 9: Internal Photographs FCC ID: QTLRM-835 IC: 661AB-RM835 Applicant: Nokia Corporation Copyright © 2012 Nokia Corporation 16-Jan-2012 Page 5 of 5 Exhibit 9: Internal Photographs FCC ID: QTLRM-835 IC: 661AB-RM835 Applicant: Nokia Corporation Copyright © 2012 Nokia Corporation

FCC Part 15B Compliance Test Report / Template Version 15.0 FCC15B_RM-835_05.docx Copyright © TCC Nokia 1 (15) TCC Nokia Tampere Laboratory P.O. Box 68 Sinitaival 5 FIN-33720 TAMPERE, FINLAND Tel. +358 (0) 7180 46800 Fax. +358 (0) 7180 46880 FCC Part 15B Compliance Test Report Test Report no.: FCC15B_RM-835_05.docx Date of Report: 23-Feb-2012 Number of pages: 15 Customer’s Contact person: Hu Dongji Testing laboratory: TCC Nokia Tampere Laboratory P.O. Box 68 Sinitaival 5 FIN-33720 TAMPERE, FINLAND Tel. +358 (0) 7180 46800 Fax. +358 (0) 7180 46880 Customer: Nokia, Inc. 16620 West Bernardo Drive San Diego, CA 92127 USA Tel. +1 858 831 5000 Fax. +1 858 385 1598 FCC listing no.: IC recognition no.: 94436 661AK-1 Tested devices/ accessories: Phone RM-835 / Battery BP-3L / Charger AC-50E / Data cable CA-190CD / Headset WH-208 / Laptop IBM Thinkpad T40 / AC adapter 02K6543 / Printer HP deskjet 1600CC3540A / Parallel cable for printer FCC ID: QTLRM-835 IC: 661AB-RM835 Supplement reports: - Testing has been carried out in accordance with: CFR 47, FCC rules Part 15 Subpart B, ANSI C63.4 (2003), ICES-003, CISPR 22, RSS-132 (Issue 2, September 2005), RSS-133 (Issue 5, February 2009), RSS-210 (Issue 8, December 2010). Deviations, modifications or clarifications (if any) to above mentioned documents are written in each section under "Test method and limit". Documentation: The test report must always be reproduced in full; reproduction of an excerpt only is subject to written approval of the testing laboratory. The documentation of the testing performed on the tested devices is archived for 15 years at TCC Nokia. Test Results: The EUT complies with the requirements in respect of all parameters subject to the test. The test results relate only to devices specified in this document Date and signature for the contents: Jari Jantunen, System Manager, EMC FCC Part 15B Compliance Test Report / Template Version 15.0 FCC15B_RM-835_05.docx Copyright © TCC Nokia 2 (15) TCC Nokia Tampere Laboratory P.O. Box 68 Sinitaival 5 FIN-33720 TAMPERE, FINLAND Tel. +358 (0) 7180 46800 Fax. +358 (0) 7180 46880 1. Summary for FCC Part 15B Compliance Test Report Date of receipt 30-Jan-2012 Testing completed 01-Feb-2012 The customer's contact person Hu Dongji Test Plan referred to T:\Projects\RM-835\TestPlan\RS_testplan_RM-835.xls Notes - Document name T:\Projects\RM-835\EMC\FCC15B_RM-835_05.docx 1.1. EUT and Accessory Information The EUT is a mobile phone with following features: GSM/WCDMA/WLAN/Bluetooth The EUT is tested with maximum rated TX power, modulated with pseudo random bit sequence (PRBS9). Devices under tests Product Type SN HW MV SW DUT Phone RM-835 004402136882879 2011 - 1052.0000.8741.12030_33 .GCF 42764 Battery BP-3L 4955501503210101255 - - - 42766 Charger AC-50E 4090492023260400093 HW0.5MW0.4P V04 - - 42768 Data cable CA-190CD - - - - 42770 Headset WH-208 - - - - 42772 Laptop IBM Thinkpad T40 99ARTGD - - - 41868 AC Adapter 02K6543 - - - 40202 Printer HP deskjet 1600CC35 40A USB8302546 - - - 40077 Parallel cable for printer - - - - - 40087 1.2. Summary of Test Results GSM850: Section in CFR 47 Section in ICES-003 (RSS-132) Name of the test Result 15.107, a 5.3 AC powerline conducted emissions NP 15.109, a 5.5 (4.6) Radiated emissions PASSED GSM1900: Section in CFR 47 Section in ICES-003 (RSS-133) Name of the test Result 15.107, a 5.3 AC powerline conducted emissions NP 15.109, a 5.5 (6.6) Radiated emissions PASSED Bluetooth: Section in CFR 47 Section in ICES-003 (RSS-139) Name of the test Result 15.107, a 5.3 AC powerline conducted emissions NP 15.109, a 5.5 (6.6) Radiated emissions PASSED FCC Part 15B Compliance Test Report / Template Version 15.0 FCC15B_RM-835_05.docx Copyright © TCC Nokia 3 (15) TCC Nokia Tampere Laboratory P.O. Box 68 Sinitaival 5 FIN-33720 TAMPERE, FINLAND Tel. +358 (0) 7180 46800 Fax. +358 (0) 7180 46880 WLAN: Section in CFR 47 Section in ICES-003 (RSS-139) Name of the test Result 15.107, a 5.3 AC powerline conducted emissions NP 15.109, a 5.5 (6.6) Radiated emissions PASSED PASSED The EUT complies with the essential requirements in the standard. FAILED The EUT does not comply with the essential requirements in the standard. NP The test was not performed by the TCC Nokia Laboratory. FCC Part 15B Compliance Test Report / Template Version 15.0 FCC15B_RM-835_05.docx Copyright © TCC Nokia 4 (15) TCC Nokia Tampere Laboratory P.O. Box 68 Sinitaival 5 FIN-33720 TAMPERE, FINLAND Tel. +358 (0) 7180 46800 Fax. +358 (0) 7180 46880 CONTENTS 1. Summary for FCC Part 15B Compliance Test Report .............................................. 2 1.1. EUT and Accessory Information ...........................................................................................................2 1.2. Summary of Test Results .....................................................................................................................2 2. Radiated emissions (FCC §15.109, ICES-003 section 5.5, RSS-132 4.6, RSS-133 6.6) ................................... 5 2.2. Test method and limit ...........................................................................................................................5 2.3. GSM850 Test results, FM-Radio on .....................................................................................................7 2.4. GSM1900 Test results, FM-Radio on ...................................................................................................8 2.5. WLAN RX Test results, GPS receiver active ..................................................................................... 10 3. Radiated emissions (FCC §15.109, ICES-003 section 5.5, RSS-132 4.6, RSS-133 6.6) ................................. 11 3.2. Test method and limit ........................................................................................................................ 11 3.3. Bluetooth Test results ..........................................................................................................…

Text truncated - open the document above for the full version.

FCC Part 15B Compliance Test Report / Template Version 15.0 FCC15B_RM‐835_17.docx Copyright © TCC Nokia 1 (7) TCC Nokia Salo Laboratory P.O.Box(86) Joensuunkatu 7H / Kiila 1B FIN‐24101 SALO, FINLAND Tel. +358 (0) 7180 08000 Fax. +358 (0) 7180 45220 FCC Part 15B Compliance Test Report Test Report no.: FCC15B_RM-835_17.docx Date of Report: 23-Feb-2012 Number of pages: 7 Customer’s Contact person: Hu Dongji (dohu) Testing laboratory: TCC Nokia Salo Laboratory P.O.Box(86) Joensuunkatu 7H / Kiila 1B FIN-24101 SALO, FINLAND Tel. +358 (0) 7180 08000 Fax. +358 (0) 7180 45220 Customer: Nokia Corporation Beijing Economic and Technological Development Area No.5 Donghuan Zhonglu Beijing PRC China 100176 Tel. +86 10 8711 8888 Fax. +86 10 8711 4550 FCC listing no.: IC recognition no.: 533467 661V-1 Tested devices/ accessories: Phone RM-835 / Battery BP-3L / AC Charger AC-50E / USB Cable CA- 190CD / Headset WH-208 FCC ID: QTLRM-835 IC: 661AB-RM835 Supplement reports: - Testing has been carried out in accordance with: CFR 47, FCC rules Part 15 Subpart B, ANSI C63.4 (2003), ICES-003, CISPR 22, RSS-132 (Issue 2, September 2005), RSS-133 (Issue 5, February 2009), RSS-210 (Issue 8, December 2010). Deviations, modifications or clarifications (if any) to above mentioned documents are written in each section under "Test method and limit". Documentation: The test report must always be reproduced in full; reproduction of an excerpt only is subject to written approval of the testing laboratory. The documentation of the testing performed on the tested devices is archived for 15 years at TCC Nokia. Test Results: The EUT complies with the requirements in respect of all parameters subject to the test. The test results relate only to devices specified in this document Date and signature for the contents: Tomi Lipponen, Engineer, EMC & SAR FCC Part 15B Compliance Test Report / Template Version 15.0 FCC15B_RM‐835_17.docx Copyright © TCC Nokia 2 (7) TCC Nokia Salo Laboratory P.O.Box(86) Joensuunkatu 7H / Kiila 1B FIN‐24101 SALO, FINLAND Tel. +358 (0) 7180 08000 Fax. +358 (0) 7180 45220 1. Summary for FCC Part 15B Compliance Test Report Date of receipt 27-Jan-2012 Testing completed 23-Feb-2012 The customer's contact person Hu Dongji (dohu) Test Plan referred to T:\Projects\RM-835\TestPlan\RS_testplan_RM-835.xls Notes - Document name T:\Projects\RM-835\EMC\FCC15B_RM-835_17.docx 1.1. EUT and Accessory Information The EUT is a mobile phone with following features: GSM/WCDMA/WLAN/Bluetooth The EUT is tested with maximum rated TX power, modulated with pseudo random bit sequence (PRBS9). Devices under tests Product Type SN HW MV SW DUT Phone RM-835 004402136877499ö059L3R8 2011 - 1052.0000.8741.12030_33 16181 Battery BP-3L 4955501503210101417ö0670636 - - - 16186 AC Charger AC-50E 4090492023260400101ö0675619 0.5 0.4PV04 - 16194 USB Cable CA- 190CD - - - - 16184 Headset WH-208 - - - - 16191 Laptop IBM T41 2373 99Y11G2 - - - 15031 Printer HP - - - - 10854 1.2. Summary of Test Results Bluetooth: Section in CFR 47 Section in ICES-003 (RSS-139) Name of the test Result 15.107, a 5.3 AC powerline conducted emissions PASSED 15.109, a 5.5 (6.6) Radiated emissions NP PASSED The EUT complies with the essential requirements in the standard. FAILED The EUT does not comply with the essential requirements in the standard. NP The test was not performed by the TCC Nokia Laboratory. FCC Part 15B Compliance Test Report / Template Version 15.0 FCC15B_RM‐835_17.docx Copyright © TCC Nokia 3 (7) TCC Nokia Salo Laboratory P.O.Box(86) Joensuunkatu 7H / Kiila 1B FIN‐24101 SALO, FINLAND Tel. +358 (0) 7180 08000 Fax. +358 (0) 7180 45220 CONTENTS 1. Summary for FCC Part 15B Compliance Test Report ............................................... 2 1.1. EUT and Accessory Information ........................................................................................................ 2 1.2. Summary of Test Results .................................................................................................................. 2 2. AC powerline conducted emissions (FCC §15.107, ICES-003 section 5.3) ................................................................................. 4 2.1. Test Setup ......................................................................................................................................... 4 2.2. Test method and limit ........................................................................................................................ 4 2.3. Test results ....................................................................................................................................... 5 3. Test Equipment ............................................................................................................. 6 3.1. Conducted measurements ................................................................................................................ 6 3.2. Radiated measurements ................................................................................................................... 7 FCC Part 15B Compliance Test Report / Template Version 15.0 FCC15B_RM‐835_17.docx Copyright © TCC Nokia 4 (7) TCC Nokia Salo Laboratory P.O.Box(86) Joensuunkatu 7H / Kiila 1B FIN‐24101 SALO, FINLAND Tel. +358 (0) 7180 08000 Fax. +358 (0) 7180 45220 2. AC powerline conducted emissions (FCC §15.107, ICES-003 section 5.3) EUT with DUT number RM-835, DUT 16181 Accessories with DUT numbers BP-3L, DUT 16186 ; AC-50E, DUT 16194 ; CA-190CD, DUT 16184 ; WH-208, DUT 16191; 2373, DUT 15031; HP, 10854 Operation Voltage [V] / [Hz] 115 / 60 Results PASSED Remarks Continuous data transfer was active between the computer and the phone during the test. Emissions measured from laptops charger. Temp [ o C] / Humidity [%RH] / Air Pressure [kPa] 22 / 30 / 100 Date of measurements 23-Feb-2012 Measured by Tomi Lipponen 2.1. Test Setup Receiver Pulse limiter LISN EUT 2.2. Test method and limit The measurement is made according to ANSI C63.4-2…

Text truncated - open the document above for the full version.

EMC Test Setup Photos / Template Version 1.0 RM-835 test setup.docx Copyright © TCC Nokia 1 (2) ADDRESS RM-835 Test Setups Picture 1. FCC Part 15C Radiated emissions Picture 2. FCC Part 15B Radiated emissions EMC Test Setup Photos / Template Version 1.0 RM-835 test setup.docx Copyright © TCC Nokia 2 (2) ADDRESS Picture 3. FCC Part 15C AC powerline conducted emissions Picture 4. FCC Part 15B AC powerline conducted emissions
