QTLRM-864GSM Cellular Phone with Bluetooth

Nokia Asha 205 User Guide Issue 1 EN Contents Keys and parts.................................................................................................5 Insert a SIM card and battery..........................................................................7 Insert a memory card......................................................................................8 Charge the battery..........................................................................................9 Lock the keys ................................................................................................10 Copy content from your old phone...............................................................10 Explore your phone.......................................................................................12 Shortcut keys................................................................................................13 Indicators on your phone..............................................................................13 Make or answer a call....................................................................................14 Call the last dialled number..........................................................................15 View your missed calls..................................................................................15 Change the volume........................................................................................16 Save a name and phone number...................................................................16 Make calls quickly..........................................................................................18 Check your voicemail....................................................................................19 Keys on the keyboard ...................................................................................20 Write text.......................................................................................................20 2 Copy, cut or paste text..................................................................................21 Use predictive text........................................................................................22 Send a message.............................................................................................23 Personalise your home screen......................................................................24 Add shortcuts to your home screen.............................................................25 Change your ringtone....................................................................................26 Set an alarm...................................................................................................27 Add an appointment......................................................................................28 Listen to the radio.........................................................................................29 Play a song.....................................................................................................30 Take a photo..................................................................................................31 Share your content using Nokia Slam...........................................................32 Send a photo using Bluetooth.......................................................................33 Record a video...............................................................................................34 Browse the web.............................................................................................35 Add a bookmark............................................................................................36 Set up your mail account...............................................................................37 Send a mail.....................................................................................................37 3 Set up chat in your phone.............................................................................39 Chat with your friends...................................................................................39 Restore original settings...............................................................................41 Update phone software using your phone...................................................42 Back up content to a memory card...............................................................43 Access codes..................................................................................................44 Troubleshooting............................................................................................46 General information......................................................................................47 4 Keys and parts 1 2 3 4 5 6 7 8 9 10 11 1Charger connector 2Earpiece 3Headset connector (3.5 mm) 4Screen 5End/Power key 6Scroll key 7Microphone 8Keyboard 9Left and right shortcut keys 10 Call key 11 Selection keys 5 12 13 14 12 Camera lens. Before using the camera, remove the protective tape from the lens. 13 Loudspeaker 14 Antenna area. See 1 in "Feature-specific instructions". Your phone uses S40 software. 6 Insert a SIM card and battery Switch the phone off, and remove the back cover. 1 If the battery is in the phone, lift it out. 2 Lift the SIM card holder, and place the SIM in the holder with the contact area face down. See 3. 3 Line up the battery contacts, and push the battery in. 4 Press the back cover down until it locks into place. 5 To switch on, press and hold until the phone vibrates. 6 7 Insert a memory card Switch the phone off, and remove the back cover. 1 If the battery is in the phone, lift it out. 2 Slide the memory card holder towards the bottom of the phone. 3 Lift the holder. 4 Put a compatible memory card in with the contact area face down. 5 Lower the holder. 6 8 Slide the holder to its original position. 7 Line up the battery contacts, and push the battery in. 8 Replace the back co…

Text truncated - open the document above for the full version.

Nokia (China) Investment Co., Ltd B2, Nokia China Campus Beijing Economic and Tech Development Area, No.5 Donghuan Zhonglu Beijing, 100176 China PRC Tel. +861087118888 Fax +861087114550 September 17, 2012 Federal Communications Commission Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD. 21046 Attention: Equipment Authorization Branch REQUEST FOR CONFIDENTIALITY Pursuant to Sections 0.457 (d) (l) (ii) and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of some of the information accompanying this Application of FCC ID: QTLRM-864 and as outlined below: - Exhibit 4: Block Diagram - Exhibit 5: Schematic Diagrams - Exhibit 10: List of Active Devices and Tune-Up Procedure - Exhibit 12: Theory of Operation / Description of Circuitry These materials contain trade secrets and proprietary information not customarily released to the public and the public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457 (d) (l) (ii) disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this Application. NOKIA CORPORATION Yao Shuo-Lisa Product Certification Officer Beijing, PRC.

Nokia (China) Investment Co., Ltd B2, Nokia China Campus Beijing Economic and Tech Development Area, No.5 Donghuan Zhonglu Beijing, 100176 China PRC Tel. +861087118888 Fax +861087114550 September 17, 2012 Federal Communications Commission Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD. 21046 Attention: Equipment Authorization Branch REQUEST FOR SHORT TERM CONFIDENTIALITY Pursuant to Section 0.459 of the Commission’s Rules and Public Notice DA 04-1705 of June 15, 2004, the Applicant hereby requests for 90 days short term confidential treatment of some of the information accompanying this application of FCC ID: QTLRM- 864 and as outlined below: - Exhibit 3: External photos - Exhibit 7: Test setup photos - Exhibit 8: User's manual - Exhibit 9: Internal photos These materials contain proprietary information not yet released to the public and the public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. NOKIA CORPORATION Yao Shuo-Lisa Product Certification Officer Beijing, China

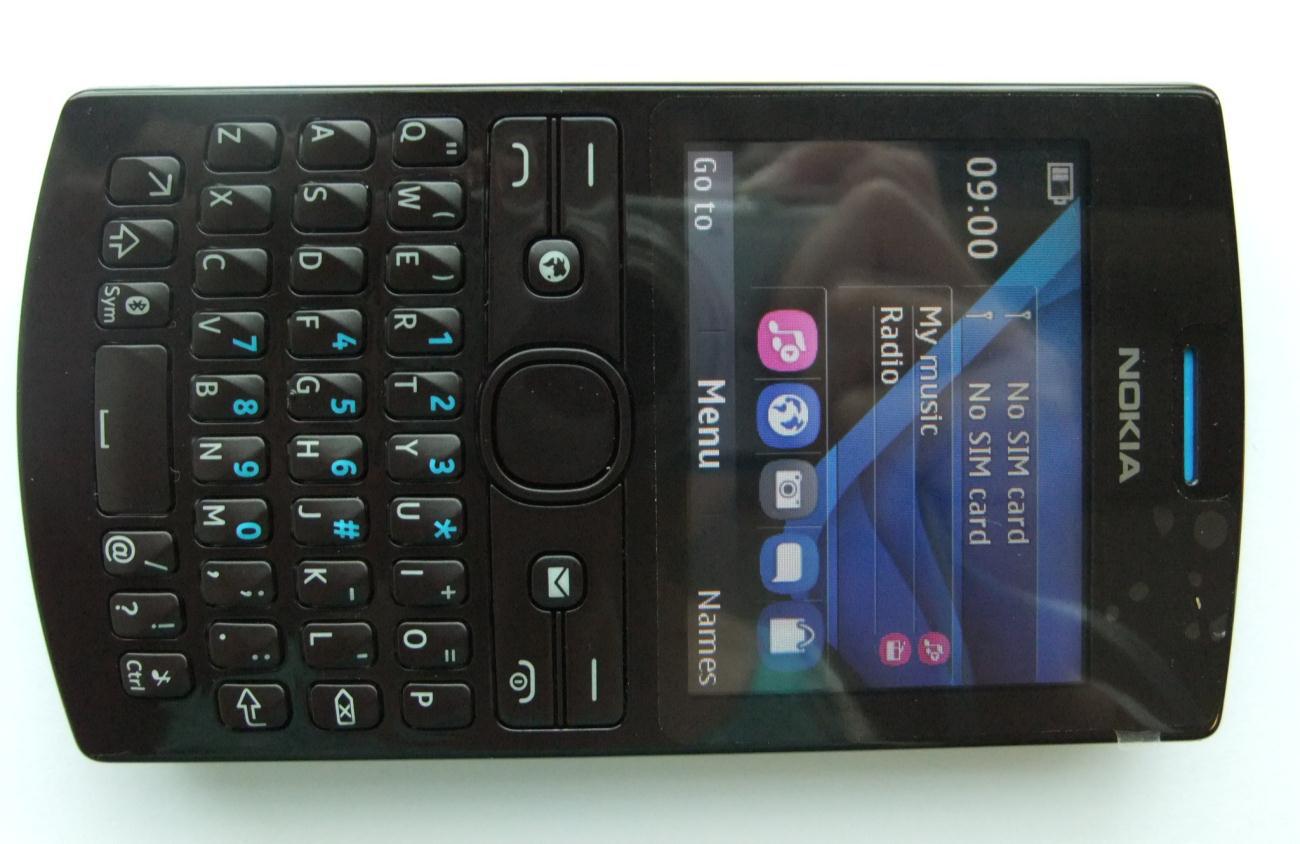

RM-864 Page 1 of 6 FCC ID: QTLRM-864 112.8 mm 61.05 mm RM-864 Page 2 of 6 FCC ID: QTLRM-864 RM-864 Page 3 of 6 FCC ID: QTLRM-864 13 mm RM-864 Page 4 of 6 FCC ID: QTLRM-864 RM-864 Page 5 of 6 FCC ID: QTLRM-864 RM-864 Page 6 of 6 FCC ID: QTLRM-864

Confidential Copyright  2011 Nokia. All Rights Reserved. Type Label Location on the phone Applicant: Nokia Corporation FCC ID: QTLRM-864

RM-864 Page 1 of 5 FCC ID: QTLRM-864 RM-864 internal picture RM-864 Page 2 of 5 FCC ID: QTLRM-864 RM-864 Page 3 of 5 FCC ID: QTLRM-864 RM-864 Page 4 of 5 FCC ID: QTLRM-864 RM-864 Page 5 of 5 FCC ID: QTLRM-864

FCC Part 15C Compliance Test Report / Template Version 15.0 FCC15CBT_RM‐864_02.docx Copyright © TCC Nokia 1 (40) TCC Nokia Beijing Laboratory Beijing Economic and Technological Development Area No.5 Donghuan Zhonglu Beijing PRC China 100176 Tel. +86 10 8711 8888 Fax. +86 10 8711 4550 FCC Part 15C Compliance Test Report Test Report no.: FCC15CBT_RM-864_02.docx Date of Report: 04-Sep-2012 Number of pages: 40 Customer’s Contact person: Wang Jason Testing laboratory: TCC Nokia Beijing Laboratory Beijing Economic and Technological Development Area No.5 Donghuan Zhonglu Beijing PRC China 100176 Tel. +86 10 8711 8888 Fax. +86 10 8711 4550 Customer: Nokia Corporation Beijing Economic and Technological Development Area No.5 Donghuan Zhonglu Beijing PRC China 100176 Tel. +86 10 8711 8888 Fax. +86 10 8711 4550 FCC listing no.: IC recognition no.: 975940 661AH-1 Tested devices/ accessories: Phone RM-864 / Battery BL-5C / AC-charger AC-11E / Headset WH-109 FCC ID: QTLRM-864 IC: 661AB-RM864 Supplement reports: - Testing has been carried out in accordance with: CFR 47, FCC rules Part 15 Subpart C, ANSI C63.4 (2003), Public Notice DA 00-705, DTS procedures KDB 558074, IC standards. Deviations, modifications or clarifications (if any) to above mentioned documents are written in each section under "Test method and limit". Documentation: The test report must always be reproduced in full; reproduction of an excerpt only is subject to written approval of the testing laboratory. The documentation of the testing performed on the tested devices is archived for 15 years at TCC Nokia. Test Results: The EUT complies with the requirements in respect of all parameters subject to the test. The test results relate only to devices specified in this document Date and signature for the contents: Gao Sherina, Engineer, EMC FCC Part 15C Compliance Test Report / Template Version 15.0 FCC15CBT_RM‐864_02.docx Copyright © TCC Nokia 2 (40) TCC Nokia Beijing Laboratory Beijing Economic and Technological Development Area No.5 Donghuan Zhonglu Beijing PRC China 100176 Tel. +86 10 8711 8888 Fax. +86 10 8711 4550 1. Summary for FCC Part 15C Compliance Test Report Date of receipt 27-Aug-2012 Testing completed 29-Aug-2012 The customer's contact person Wang Jason Test Plan referred to T:\Projects\RM-864\TestPlan\RS_testplan_RM-864.xlsm Notes - Document name FCC15CBT_RM-864_02.docx 1.1. EUT and Accessory Information The EUT is a mobile phone with following features: GSM/Bluetooth The EUT is tested with maximum rated TX power. Devices under tests Product Type SN HW MV SW DUT Phone RM-864 004402139615680 0302 - esECL_12w33 52845 Battery BL-5C 0670650437995S044110609873 - - - 52841 AC-charger AC-11E 4090491452160503514;0675479 - - - 52842 Headset WH-109 772 0.1 0.2 - 52831 Phone RM-864 004402139615987 0302 - esECL_12w33 52847 Battery BL-5C 0670650437995S044110609884 - - - 52840 AC-Charger AC-11E 4868672071240518706;0675479 - - - 52830 Headset WH-109 660 0.1 0.2 - 52843 Phone RM-864 004402139615334 0302 - esECL_12w33 52844 1.2. Summary of Test Results Bluetooth: Section in CFR 47 Section in RSS-GEN or RSS-210 Name of the test Result 15.247(b)(1) A8(0.4(2)) Conducted peak output power PASSED 15.247(d), 15.205(b) A8(0.5) Band edge compliance of RF emissions PASSED 15.247(d) A8(0.5) Spurious RF conducted emissions PASSED 15.247(d), 15.209 A8(0.5) Spurious radiated emissions PASSED 15.207 7.2.2 AC powerline conducted emissions PASSED 15.247(a)(1) A8(0.1(1)) 20dB(bandwidth) PASSED 15.247(a)(1) A8(0.1(2)) Carrier frequency separation PASSED 15.247(a)(1)(iii) A8(0.1(4)) Number of hopping frequencies PASSED 15.247(a)(1)(iii) A8(0.1(4)) Time of occupancy PASSED PASSED The EUT complies with the essential requirements in the standard. FAILED The EUT does not comply with the essential requirements in the standard. NP The test was not performed by the TCC Nokia Laboratory. FCC Part 15C Compliance Test Report / Template Version 15.0 FCC15CBT_RM‐864_02.docx Copyright © TCC Nokia 3 (40) TCC Nokia Beijing Laboratory Beijing Economic and Technological Development Area No.5 Donghuan Zhonglu Beijing PRC China 100176 Tel. +86 10 8711 8888 Fax. +86 10 8711 4550 CONTENTS 1. Summary for FCC Part 15C Compliance Test Report ............................................... 2 1.1. EUT and Accessory Information ........................................................................................................ 2 1.2. Summary of Test Results .................................................................................................................. 2 2. Conducted peak output power (15.247(b)(1), RSS-210 A8.4 (2)) ......................................................................................... 5 2.1. Test Setup ......................................................................................................................................... 5 2.2. Test method and limit ........................................................................................................................ 5 2.3. Bluetooth Test results ....................................................................................................................... 6 3. Band edge compliance of RF emissions (FCC §15.247(d), 15.205(b), RSS-210 A8.5) ....................................................................... 9 3.2. Test method and limit ........................................................................................................................ 9 3.3. Bluetooth test results ....................................................................................................................... 10 4. Spurious RF conducted emissions (FCC §15.247(d), RSS-210 A8.5) ....................................................................................... 16 4.1. Test Setup ....................................................................................................................................... 16 4.2. Test method and limit ..............................…

Text truncated - open the document above for the full version.

FCC Part 15B Compliance Test Report / Template Version 15.0 FCC15B_RM‐864_05.docx Copyright © TCC Nokia 1 (9) TCC Nokia Beijing Laboratory Beijing Economic and Technological Development Area No.5 Donghuan Zhonglu Beijing PRC China 100176 Tel. +86 10 8711 8888 Fax. +86 10 8711 4550 FCC Part 15B Compliance Test Report Test Report no.: FCC15B_RM-864_05.docx Date of Report: 04-Sep-2012 Number of pages: 9 Customer’s Contact person: Wang Jason Testing laboratory: TCC Nokia Beijing Laboratory Beijing Economic and Technological Development Area No.5 Donghuan Zhonglu Beijing PRC China 100176 Tel. +86 10 8711 8888 Fax. +86 10 8711 4550 Customer: Nokia Corporation Beijing Economic and Technological Development Area No.5 Donghuan Zhonglu Beijing PRC China 100176 Tel. +86 10 8711 8888 Fax. +86 10 8711 4550 FCC listing no.: IC recognition no.: 975940 661AH-1 Tested devices/ accessories: Phone RM-864 / Battery BL-5C / AC-charger AC-11E / Headset WH-109 FCC ID: QTLRM-864 IC: 661AB-RM864 Supplement reports: - Testing has been carried out in accordance with: CFR 47, FCC rules Part 15 Subpart B, ANSI C63.4 (2003), ICES-003, CISPR 22, RSS-132 (Issue 2, September 2005), RSS-133 (Issue 5, February 2009). Deviations, modifications or clarifications (if any) to above mentioned documents are written in each section under "Test method and limit". Documentation: The test report must always be reproduced in full; reproduction of an excerpt only is subject to written approval of the testing laboratory. The documentation of the testing performed on the tested devices is archived for 15 years at TCC Nokia. Test Results: The EUT complies with the requirements in respect of all parameters subject to the test. The test results relate only to devices specified in this document Date and signature for the contents: Gao Sherina, Engineer, EMC FCC Part 15B Compliance Test Report / Template Version 15.0 FCC15B_RM‐864_05.docx Copyright © TCC Nokia 2 (9) TCC Nokia Beijing Laboratory Beijing Economic and Technological Development Area No.5 Donghuan Zhonglu Beijing PRC China 100176 Tel. +86 10 8711 8888 Fax. +86 10 8711 4550 1. Summary for FCC Part 15B Compliance Test Report Date of receipt 27-Aug-2012 Testing completed 30-Aug-2012 The customer's contact person Wang Jason Test Plan referred to T:\Projects\RM-864\TestPlan\RS_testplan_RM-864.xlsm Notes - Document name FCC15B_RM-864_05.docx 1.1. EUT and Accessory Information The EUT is a mobile phone with following features: GSM/Bluetooth The EUT is tested with maximum rated TX power. Devices under tests Product Type SN HW MV SW DUT Phone RM-864 004402139615680 0302 - esECL_12w33 52845 Battery BL-5C 0670650437995S044110609873 - - - 52841 AC-charger AC-11E 4090491452160503514;0675479 - - - 52842 Headset WH-109 772 0.1 0.2 - 52831 1.2. Summary of Test Results GSM850: Section in CFR 47 Section in ICES-003 (RSS-132) Name of the test Result 15.107, a 5.3 AC powerline conducted emissions NP 15.109, a 5.5 (4.6) Radiated emissions PASSED GSM1900: Section in CFR 47 Section in ICES-003 (RSS-133) Name of the test Result 15.107, a 5.3 AC powerline conducted emissions NP 15.109, a 5.5 (6.6) Radiated emissions PASSED PASSED The EUT complies with the essential requirements in the standard. FAILED The EUT does not comply with the essential requirements in the standard. NP The test was not performed by the TCC Nokia Laboratory. FCC Part 15B Compliance Test Report / Template Version 15.0 FCC15B_RM‐864_05.docx Copyright © TCC Nokia 3 (9) TCC Nokia Beijing Laboratory Beijing Economic and Technological Development Area No.5 Donghuan Zhonglu Beijing PRC China 100176 Tel. +86 10 8711 8888 Fax. +86 10 8711 4550 CONTENTS 1. Summary for FCC Part 15B Compliance Test Report ............................................... 2 1.1. EUT and Accessory Information ........................................................................................................ 2 1.2. Summary of Test Results .................................................................................................................. 2 2. Radiated emissions (FCC §15.109, ICES-003 section 5.5, RSS-132 4.6, RSS-133 6.6) ................................... 4 2.2. Test method and limit ........................................................................................................................ 4 2.3. GSM850 test results .......................................................................................................................... 6 2.4. GSM1900 test results ........................................................................................................................ 7 3. Test Equipment ............................................................................................................. 9 3.1. Conducted measurements ................................................................................................................ 9 3.2. Radiated measurements ................................................................................................................... 9 FCC Part 15B Compliance Test Report / Template Version 15.0 FCC15B_RM‐864_05.docx Copyright © TCC Nokia 4 (9) TCC Nokia Beijing Laboratory Beijing Economic and Technological Development Area No.5 Donghuan Zhonglu Beijing PRC China 100176 Tel. +86 10 8711 8888 Fax. +86 10 8711 4550 2. Radiated emissions (FCC §15.109, ICES-003 section 5.5, RSS-132 4.6, RSS-133 6.6) EUT with DUT number RM-864, DUT 52845 Accessories with DUT numbers BL-5C, DUT 52841 ; AC-11E, DUT 52842 ; WH-109, DUT 52831 Operation Voltage [V] / [Hz] 115 / 60 Results PASSED Remarks FM radio was active during testing. Temp [ o C] / Humidity [%RH] / Air Pressure [kPa] 22 / 60 / 100.3 Date of measurements 30-Aug-2012 Measured by Zou Ming 2.1.1 Test setup Tower / table controller Communication Tester Receiver EUT 2.2. Test method and limit The measurement is made according to ANSI C63.4-2003as follows: The measurement is performed in the Semi-Anechoic Chamber with conducting metal …

Text truncated - open the document above for the full version.

EMC Test Setup / Template Versi EMC _Photo_RM Copyright © TCC Picture 1. F Picture 2. F p Photos on 1.0 M-864_07.docx C Nokia FCC Part 15 FCC Part 15 C Radiated B Radiated RM-86 emissions emissions 1 (2) 64 Test S Setups EMC Test Setup Photos / Template Version 1.0 EMC_Photo_RM-864_07.docx Copyright © TCC Nokia 2 (2) Picture 4. FCC Part 15C AC powerline conducted emissions
