QTLRM-971GSM cellular phone w/BT

XXX Welcome to the XXX Issue 1 EN RM-971 Psst... This guide isn't all there is... For the online user guide and troubleshooting help, go to www.nokia.com/support. For info on Nokia Service terms and Privacy policy, go to www.nokia.com/privacy. Contents Safety 3 Get started 5 Keys and parts 5 Insert SIM, battery, and memory card 6 Charge the battery 9 Lock or unlock the keys 10 Change the volume 11 Basics 12 People & messaging 16 Internet 18 Camera 18 Entertainment 20 Product and safety information 22 2 Safety We invite you to read the instructions on this guide before using the device. SWITCH OFF IN RESTRICTED AREAS Switch the device off when mobile phone use is not allowed or when it may cause interference or danger, for example, in aircraft, in hospitals or near medical equipment, fuel, chemicals, or blasting areas. Obey all instructions in restricted areas. ROAD SAFETY COMES FIRST Obey all local laws. Always keep your hands free to operate the vehicle while driving. Your first consideration while driving should be road safety. INTERFERENCE All wireless devices may be susceptible to interference, which could affect performance. QUALIFIED SERVICE Only qualified personnel may install or repair this product. BATTERIES, CHARGERS, AND OTHER ACCESSORIES Use only batteries, chargers, and other accessories approved by Nokia for use with this device. Do not connect incompatible products. KEEP YOUR DEVICE DRY Your device is not water-resistant. Keep it dry. PROTECT YOUR HEARING To prevent possible hearing damage, do not listen at high volume levels for long periods. Exercise caution when holding your device near your ear while the loudspeaker is in use. SAR This device meets RF exposure guidelines when used either in the normal use position against the ear or when positioned at least 1.5 centimetre (5/8 inch) away from the body. The specific maximum SAR values can be found in the Certification Information 3 (SAR) section of this user guide. For more info, go to www.sar- tick.com. When a carry case, belt clip or other form of device holder is used for body-worn operation, it should not contain metal and should provide at least the above-stated separation distance from the body. Note that mobile devices may be transmitting even if you are not making a voice call. 4 Get started Get to grips with the basics, and have your phone up and running in no time. Keys and parts Explore the keys and parts of your new phone. 1Charger connector 2Flashlight 3Headset connector (3.5 mm) 4Screen 5Scroll key 6End/Power key 7Microphone 8Keypad 9Call key 5 10Selection keys 11Earpiece 12Camera lens. Before using the camera, remove the protective tape from the lens. 13Antenna area Avoid touching the antenna area while the antenna is in use. Contact with antennas affects the communication quality and may reduce battery life due to higher power level during operation. Do not connect products that create an output signal, as this may damage the device. Do not connect any voltage source to the audio connector. If you connect an external device or headset, other than those approved for use with this device, to the audio connector, pay special attention to volume levels. Some of the accessories mentioned in this user guide may be sold separately. Insert SIM, battery, and memory card Learn how to insert the battery and SIM and memory cards. Important: This device is designed to be used with a standard SIM card (see figure) only. Use of incompatible SIM cards may damage the card or the device, and may corrupt data stored on the card. Please 6 consult your mobile operator for the use of a SIM card that has a mini-UICC cutout. Use only compatible memory cards approved for use with this device. Incompatible cards may damage the card and the device and corrupt data stored on the card. Note: Switch the device off and disconnect the charger and any other device before removing any covers. Avoid touching electronic components while changing any covers. Always store and use the device with any covers attached. 1. Place your thumb on the logo, and pull the top corners one at a time to separate the back cover from the phone. 7 2. Place your fingers at the top middle of the back cover, and with your thumb on the logo, remove the cover. 3. If the battery is in the phone, lift it out. 4. Slide the SIM into the holder with the contact area face down. 8 5. Line up the battery contacts, and put the battery in. 6. Insert the memory card into the memory card slot. Push the memory card in until it locks into place. Important: Do not remove the memory card when an app is using it. Doing so may damage the memory card and the device and corrupt data stored on the card. 7. Replace the back cover. Remove the memory card Pull the memory card out. Switch on your phone Press and hold the power key. Charge the battery Your battery has been partially charged at the factory, but you may need to recharge it before you can use your phone. 1. Plug the charger into a wall outlet. 9 2. Connect the charger to the phone. When done, unplug the charger from the phone, then from the wall outlet. If the battery is completely discharged, it may take several minutes before the charging indicator is displayed or before any calls can be made. Tip: You can use USB charging when a wall outlet is not available. Data can be transferred while charging the device. The efficiency of USB charging power varies significantly, and it may take a long time for charging to start and the device to start functioning. Make sure your computer is switched on. Lock or unlock the keys To avoid accidentally pressing the keys, use keypad lock. 1. Quickly press . 10 2. Select Lock. Lock Unlock the keypad Press , and select Unlock. Change the volume Trouble hearing your phone ringing in noisy environments, or calls too loud? You can change the volume to your liking. Scroll up or down to change the volume during a call or when listening to the radio. 11 Basics Learn how to get the most out of your…

Text truncated - open the document above for the full version.

Nokia (China) Investment Co., Ltd B2, Nokia China Campus Beijing Economic and Tech Development Area, No.5 Donghuan Zhonglu Beijing, 100176 China PRC Tel. +861087118888 Fax +861087114550 July 5 th , 2013 Federal Communications Commission Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD. 21046 Attention: Equipment Authorization Branch This letter will authorize the appointment of Xu Helen act as our agent in all FCC matters for grantee code QTL. This appointment is effective until otherwise notified by us. Sincerely, Nokia (China) Investment Co., Ltd Yao Shuo-Lisa Product Certification Officer Beijing, PRC.

Nokia (China) Investment Co., Ltd B2, Nokia China Campus Beijing Economic and Tech Development Area, No.5 Donghuan Zhonglu Beijing, 100176 China PRC Tel. +861087118888 Fax +861087114550 January 6, 2014 Federal Communications Commission Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD. 21046 Attention: Equipment Authorization Branch REQUEST FOR CONFIDENTIALITY Pursuant to Sections 0.457 (d) (l) (ii) and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of some of the information accompanying this Application of FCC ID: QTLRM-971 and as outlined below: - Exhibit 4: Block Diagram - Exhibit 5: Schematic Diagrams - Exhibit 12: Theory of Operation / Description of Circuitry These materials contain trade secrets and proprietary information not customarily released to the public and the public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457 (d) (l) (ii) disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this Application. NOKIA CORPORATION Xu Helen Product Certification Officer Beijing, PRC.

Nokia (China) Investment Co., Ltd B2, Nokia China Campus Beijing Economic and Tech Development Area, No.5 Donghuan Zhonglu Beijing, 100176 China PRC Tel. +861087118888 Fax +861087114550 January 6, 2013 Federal Communications Commission Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD. 21046 Attention: Equipment Authorization Branch REQUEST FOR SHORT TERM CONFIDENTIALITY Pursuant to Section 0.459 of the Commission’s Rules and Public Notice DA 04-1705 of June 15, 2004, the Applicant hereby requests for 90 days short term confidential treatment of some of the information accompanying this application of FCC ID: QTLRM-971 and as outlined below: - Exhibit 3: External photos - Exhibit 7: Test setup photos - Exhibit 8: User's manual - Exhibit 9: Internal photos These materials contain proprietary information not yet released to the public and the public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. NOKIA CORPORATION Xu Helen Product Certification Officer Beijing, PRC.

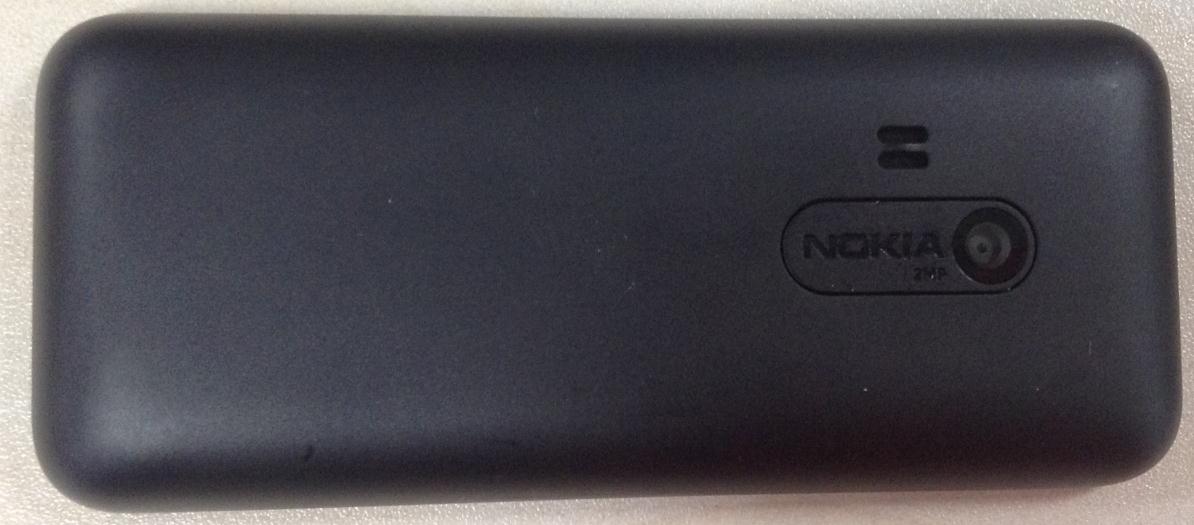

Applicant: Nokia Corporation FCC ID: QTLRM-971 Copyright © 2013 Nokia. All rights reserved. Applicant: Nokia Corporation FCC ID: QTLRM-971 Copyright © 2013 Nokia. All rights reserved.

FCC ID: QTLRM-971 Applicant: Nokia Corporation Copyright © 2013 Nokia. All rights reserved. Type label placement on the phone Tape Lable

Applicant: Nokia Corporation FCC ID: QTLRM‐971 Copyright © 2013 Nokia. All rights reserved. Applicant: Nokia Corporation FCC ID: QTLRM‐971 Copyright © 2013 Nokia. All rights reserved.

FCC Part 15B Compliance Test Report / Template Version 15.0 FCC15B_RM‐971_03 Copyright © TCC Nokia 1 (11) TCC Nokia Beijing Laboratory Beijing Economic and Technological Development Area No.5 Donghuan Zhonglu Beijing PRC China 100176 Tel. +86 10 8711 8888 Fax. +86 10 8711 4550 FCC Part 15B Compliance Test Report Test Report no.: FCC15B_RM-971_03 Date of Report: 26-Dec-2013 Number of pages: 11 Customer’s Contact person: Zhang Li (chrzhang) Testing laboratory: TCC Nokia Beijing Laboratory Beijing Economic and Technological Development Area No.5 Donghuan Zhonglu Beijing PRC China 100176 Tel. +86 10 8711 8888 Fax. +86 10 8711 4550 Customer: Nokia Corporation Beijing Economic and Technological Development Area No.5 Donghuan Zhonglu Beijing PRC China 100176 Tel. +86 10 8711 8888 Fax. +86 10 8711 4550 FCC listing no.: IC recognition no.: 975940 661AH-1 Tested devices/ accessories: Phone RM-971 / Battery BL-5C / UBS data cable CA-190CD / Laptop IBM T43 / Printer HP C6427A / Parallel cable for printer - / AC-Adapter 02K6749 / Headset WH-108 FCC ID: QTLRM-971 IC: Supplement reports: - Testing has been carried out in accordance with: CFR 47, FCC rules Part 15 Subpart B, ANSI C63.4 (2003), ICES-003, CISPR 22, RSS-132 (Issue 2, September 2005), RSS-133 (Issue 5, February 2009). Deviations, modifications or clarifications (if any) to above mentioned documents are written in each section under "Test method and limit". Documentation: The test report must always be reproduced in full; reproduction of an excerpt only is subject to written approval of the testing laboratory. The documentation of the testing performed on the tested devices is archived for 15 years at TCC Nokia. Test Results: The EUT complies with the requirements in respect of all parameters subject to the test. The test results relate only to devices specified in this document Date and signature for the contents: Mark Ma, Engineer, EMC FCC Part 15B Compliance Test Report / Template Version 15.0 FCC15B_RM‐971_03 Copyright © TCC Nokia 2 (11) TCC Nokia Beijing Laboratory Beijing Economic and Technological Development Area No.5 Donghuan Zhonglu Beijing PRC China 100176 Tel. +86 10 8711 8888 Fax. +86 10 8711 4550 1. Summary for FCC Part 15B Compliance Test Report Date of receipt 03-Dec-2013 Testing completed 19-Dec-2013 The customer's contact person Zhang Li (chrzhang) Test Plan referred to T:\Projects\RM-971\TestPlan\RS_testplan_RM-971.xlsm Notes - Document name FCC15B_RM-971_03.docx 1.1. EUT and Accessory Information The EUT is a mobile phone with following features: GSM/Bluetooth The EUT is tested with maximum rated TX power. Devices under tests Product Type SN HW MV SW DUT Phone RM-971 004402475754929 0242 - 01.12.24 54242 Battery BL-5C 4955403353110200468;0670695 - - - 54214 UBS data cable CA-190CD 07304563223X2F - - - 54235 Laptop IBM T43 L3KXHL3 - - - 52468 Printer HP C6427A MY15B18156JJ - - - 51838 Parallel cable for printer - - - - - 53508 AC-Adapter 02K6749 - - - - 53509 Headset WH-108 3293L71 - - - 54240 Phone RM-971 004402475755025 0242 - 01.12.24 54211 Battery BL-5C 4955403353110200704;0670695 - - - 54212 Headset WH-108 305213R - - - 54187 1.2. Summary of Test Results GSM850: Section in CFR 47 Section in ICES-003 (RSS-132) Name of the test Result 15.107, a 5.3 AC powerline conducted emissions NP 15.109, a 5.5 (4.6) Radiated emissions NP GSM1900: Section in CFR 47 Section in ICES-003 (RSS-133) Name of the test Result 15.107, a 5.3 AC powerline conducted emissions PASSED 15.109, a 5.5 (6.6) Radiated emissions PASSED PASSED The EUT complies with the essential requirements in the standard. FAILED The EUT does not comply with the essential requirements in the standard. NP The test was not performed by the TCC Nokia Laboratory. FCC Part 15B Compliance Test Report / Template Version 15.0 FCC15B_RM‐971_03 Copyright © TCC Nokia 3 (11) TCC Nokia Beijing Laboratory Beijing Economic and Technological Development Area No.5 Donghuan Zhonglu Beijing PRC China 100176 Tel. +86 10 8711 8888 Fax. +86 10 8711 4550 CONTENTS 1. Summary for FCC Part 15B Compliance Test Report ............................................... 2 1.1. EUT and Accessory Information ........................................................................................................ 2 1.2. Summary of Test Results .................................................................................................................. 2 2. AC powerline conducted emissions (FCC §15.107, ICES-003 section 5.3) ................................................................................. 4 2.1. Test Setup ......................................................................................................................................... 4 2.2. Test method and limit ........................................................................................................................ 4 2.3. GSM 1900 Test results ..................................................................................................................... 5 3. Radiated emissions (FCC §15.109, ICES-003 section 5.5, RSS-132 4.6, RSS-133 6.6) ................................... 6 3.2. Test method and limit ........................................................................................................................ 6 3.3. GSM1900 test results ........................................................................................................................ 8 4. Test Equipment ........................................................................................................... 10 4.1. Conducted measurements .............................................................................................................. 10 4.2. Radiated measurements ................................................................................................................. 10 FCC Part 15B Compliance Test Report / Template Version 15.0 FCC15B_RM‐971_03 Copyright © TCC Nokia 4 (11) TCC Nokia Beijing Laborato…

Text truncated - open the document above for the full version.

FCC Part 15B Compliance Test Report / Template Version 15.0 FCC15B_RM‐971_05 Copyright © TCC Nokia 1 (9) TCC Nokia Beijing Laboratory Beijing Economic and Technological Development Area No.5 Donghuan Zhonglu Beijing PRC China 100176 Tel. +86 10 8711 8888 Fax. +86 10 8711 4550 FCC Part 15B Compliance Test Report Test Report no.: FCC15B_RM-971_05 Date of Report: 26-Dec-2013 Number of pages: 9 Customer’s Contact person: Zhang Li (chrzhang) Testing laboratory: TCC Nokia Beijing Laboratory Beijing Economic and Technological Development Area No.5 Donghuan Zhonglu Beijing PRC China 100176 Tel. +86 10 8711 8888 Fax. +86 10 8711 4550 Customer: Nokia Corporation Beijing Economic and Technological Development Area No.5 Donghuan Zhonglu Beijing PRC China 100176 Tel. +86 10 8711 8888 Fax. +86 10 8711 4550 FCC listing no.: IC recognition no.: 975940 661AH-1 Tested devices/ accessories: Phone RM-971 / Battery BL-5C / AC-Charger AC-18E / Headset WH-108 FCC ID: QTLRM-971 IC: Supplement reports: - Testing has been carried out in accordance with: CFR 47, FCC rules Part 15 Subpart B, ANSI C63.4 (2003), ICES-003, CISPR 22, RSS-132 (Issue 2, September 2005), RSS-133 (Issue 5, February 2009). Deviations, modifications or clarifications (if any) to above mentioned documents are written in each section under "Test method and limit". Documentation: The test report must always be reproduced in full; reproduction of an excerpt only is subject to written approval of the testing laboratory. The documentation of the testing performed on the tested devices is archived for 15 years at TCC Nokia. Test Results: The EUT complies with the requirements in respect of all parameters subject to the test. The test results relate only to devices specified in this document Date and signature for the contents: Mark Ma, Engineer, EMC FCC Part 15B Compliance Test Report / Template Version 15.0 FCC15B_RM‐971_05 Copyright © TCC Nokia 2 (9) TCC Nokia Beijing Laboratory Beijing Economic and Technological Development Area No.5 Donghuan Zhonglu Beijing PRC China 100176 Tel. +86 10 8711 8888 Fax. +86 10 8711 4550 1. Summary for FCC Part 15B Compliance Test Report Date of receipt 03-Dec-2013 Testing completed 19-Dec-2013 The customer's contact person Zhang Li (chrzhang) Test Plan referred to T:\Projects\RM-971\TestPlan\RS_testplan_RM-971.xlsm Notes - Document name FCC15B_RM-971_05 1.1. EUT and Accessory Information The EUT is a mobile phone with following features: GSM/Bluetooth The EUT is tested with maximum rated TX power. Devices under tests Product Type SN HW MV SW DUT Phone RM-971 004402475755025 0242 - 01.12.24 54211 Battery BL-5C 4955403353110200704;0670695 - - - 54212 AC-Charger AC-18E 4090493443750400987;0675695 - - - 54217 Headset WH-108 305213R - - - 54187 1.2. Summary of Test Results GSM850: Section in CFR 47 Section in ICES-003 (RSS-132) Name of the test Result 15.107, a 5.3 AC powerline conducted emissions NP 15.109, a 5.5 (4.6) Radiated emissions PASSED GSM1900: Section in CFR 47 Section in ICES-003 (RSS-133) Name of the test Result 15.107, a 5.3 AC powerline conducted emissions NP 15.109, a 5.5 (6.6) Radiated emissions NP PASSED The EUT complies with the essential requirements in the standard. FAILED The EUT does not comply with the essential requirements in the standard. NP The test was not performed by the TCC Nokia Laboratory. FCC Part 15B Compliance Test Report / Template Version 15.0 FCC15B_RM‐971_05 Copyright © TCC Nokia 3 (9) TCC Nokia Beijing Laboratory Beijing Economic and Technological Development Area No.5 Donghuan Zhonglu Beijing PRC China 100176 Tel. +86 10 8711 8888 Fax. +86 10 8711 4550 CONTENTS 1. Summary for FCC Part 15B Compliance Test Report ............................................... 2 1.1. EUT and Accessory Information ........................................................................................................ 2 1.2. Summary of Test Results .................................................................................................................. 2 2. Radiated emissions (FCC §15.109, ICES-003 section 5.5, RSS-132 4.6, RSS-133 6.6) ................................... 4 2.2. Test method and limit ........................................................................................................................ 4 2.3. GSM850 test results, FM radio active ............................................................................................... 6 3. Test Equipment ............................................................................................................. 8 3.1. Conducted measurements ................................................................................................................ 8 3.2. Radiated measurements ................................................................................................................... 8 FCC Part 15B Compliance Test Report / Template Version 15.0 FCC15B_RM‐971_05 Copyright © TCC Nokia 4 (9) TCC Nokia Beijing Laboratory Beijing Economic and Technological Development Area No.5 Donghuan Zhonglu Beijing PRC China 100176 Tel. +86 10 8711 8888 Fax. +86 10 8711 4550 2. Radiated emissions (FCC §15.109, ICES-003 section 5.5, RSS-132 4.6, RSS-133 6.6) EUT with DUT number RM-971, DUT 54211 Accessories with DUT numbers BL-5C, DUT 54212 ; AC-18E, DUT 54217 ; WH-108, DUT 54187 Operation Voltage [V] / [Hz] 115 / 60 Results PASSED Remarks FM Radio was active during GSM850 idle mode. Temp [ o C] / Humidity [%RH] / Air Pressure [kPa] 19 / 30 /102 Date of measurements 13-Dec-2013 Measured by Zou Ming 2.1.1 Test setup Tower / table controller Communication Tester Receiver EUT 2.2. Test method and limit The measurement is made according to ANSI C63.4-2003as follows: The measurement is performed in the Semi-Anechoic Chamber with conducting metal floor. The measurement distance is 3 m. The EUT is placed on a nonconductive plate at 80 cm height. For each suspected frequency, the turntable is rotated 360 degrees and antenna is scann…

Text truncated - open the document above for the full version.

EMC Test Setup Photos / Template Version 1.0 EMC_Photo_RM-971_06 Copyright © TCC Nokia 1 (3) RM-971 Test Setups Picture 1. FCC Part 15C Radiated emissions Picture 2. FCC Part 15B Radiated emissions EMC Test Setup Photos / Template Version 1.0 EMC_Photo_RM-971_06 Copyright © TCC Nokia 2 (3) Picture 3. FCC Part 15B Radiated emissions, computer peripherals Picture 4. FCC Part 15C AC powerline conducted emissions EMC Test Setup Photos / Template Version 1.0 EMC_Photo_RM-971_06 Copyright © TCC Nokia 3 (3) Picture 5. FCC Part 15B AC powerline conducted emissions, computer peripherals, measure from PC charger
