QTRWLC10002Mini-ISA 2.4 GHz 802.11 Card

WLC-101M Wireless mini ISA Module User’s Manual - 1 - FCC Statement Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user authority to operate the equipment. WLC-101M Wireless ISA Module complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. The user’s manual or instruction manual for an intentional or unintentional radiator shall caution the user that changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is needed. Consult the dealer or an experienced radio/TV technician for help. CAUTION: To comply with FCC RF exposure compliance requirements, a separation distance of at least 20 cm must be maintained between the antenna of this device and all persons. This Transmitter must not be co-located or operating in conjunction with any other antenna - 2 - or transmitter This device is intended only for OEM integrators under the following conditions: The antenna must be installed such that 20 cm is maintained between the antenna and users. For laptop installations, the antenna must be installed to ensure that the proper spacing is maintained in the event the users places the device in their lap during use (i.e. positioning of antennas must be placed in the upper portion of the LCD panel only to ensure 20 cm will be maintained if the user places the device in their lap for use) and The transmitter module may not be co-located with any other transmitter or antenna. As long as the 2 conditions above are met, further transmitter testing will not be required. However, the OEM integrator is still responsible for testing their end-product for any additional compliance requirements required with this module installed (for example, digital device emissions, PC peripheral requirements, etc.). IMPORTANT NOTE: In the event that these conditions can not be met (for example certain laptop configurations or co-location with another transmitter), then the FCC authorization is no longer considered valid and the FCC ID can not be used on the final product. In these circumstances, the OEM integrator will be responsible for re-evaluating the end product (including the transmitter) and obtaining a separate FCC authorization. End Product Labeling This transmitter module is authorized only for use in devices where the antenna may be installed such that 20 cm may be maintained between the antenna and users (for example access points, routers, wireless ASDL modems, certain laptop configurations, and similar equipment). The final end product must be labeled in a visible area with the following: "Contains TX FCC ID: QTRWLC10002". RF Exposure Manual Information That Must be Included The users manual for end users must include the following information in a prominent location "IMPORTANT NOTE: To comply with FCC RF exposure compliance requirements, the antenna used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter." Additional Information That Must be Provided to OEM Integrators The end user should NOT be provided any instructions on how to remove or install the - 3 - device. Service Center in U.S.A Company Name : D-Link Corporation. Company Address: 53 Discovery Drive Irvine, CA 92618, USA Tel: (949) 788-0805 - 4 - 1. Introduction The WLC-101M Wireless mimi ISA module is the perfect solution for your wireless network applications based on the IEEE 802.11b standard offering a data rate of 11Mbps in a wireless LAN environment. WLC-101M is designed for Printer Server series, IP Camera series and Internet Video Server gives you wireless access the web and network resource without the wire. WLC-101M provides high-speed access to network resources and has built-in 40/64-bit and 128 bit of WEP (Wired Equivalent Privacy) data encryption. With Direct Spread Spectrum Signaling (DSSS), domain access control, WEP encryption and group security, the modules will safeguard all your wireless data transmissions from your nosy neighbors. WLC-101M allows you to take full advantage of your devices mobility with access to real-time information and online services anytime and anywhere. 2. Feature ♦ Complies with IEEE 802.11b Standard for 2.4GHz Wireless LAN. ♦ Works with All Existing Network Infrastructure. ♦ Compatible with Wi-Fi Wireless Products and Services ♦ Capable of up to 128-Bit WEP Encryption. ♦ Freedom to Roam While staying Connected ♦ 11 Mbps High-Speed Transfer Rate ♦ One I-PEX Connectors for External Antenna ♦ Support Antenna diversity for Better Sensitivity ♦ Lower Power Consumption. 3. Specification Standard IEEE 802.11b, Wi-Fi compliant Host…

Text truncated - open the document above for the full version.

FCC ID: QTRWLC10002 Date: Oct. 28, 2003 Modular Approval Request Letter Dear Sir, There’s a Wireless ISA module that would like to have your authorization as a modular approval. The specific product as below, Wireless ISA module, with its designed features and specified description, meets special requirements for full modular approval on FCC Public Notice DA 00-1407 by cross-reference list below. Company : Cellvision Systems Inc. Model Name : Wireless ISA module Model Number : WLC-101M FCC ID : QTRWLC10002 Requirement of Public Notice DA00-1407 Reference to WLC-101M 1. The modular transmitter must have its own RF shielding. The module has its own RF shielding. Please see Exterior photo.pdf 2. The modular transmitter must have buffered modulation/data inputs. The modular has buffered data inputs in chip IPN2120. Please see Block diagram.pdf 3. The modular transmitter must have its own power supply regulation. All power lines derived from the host device are regulated before energizing other circuits internal to the WLC-101M. Please see Schematic.pdf 4. The modular transmitter must comply with the antenna requirements of Section 15.203 and 15.204(c). The WLC-101M meets the FCC antenna requirements. Please see Exterior photo.pdf 5. The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing. The WLC-101M was tested in a stand-alone configuration. Please see conducted set-up photo.pdf and Spurious set-up photo.pdf 6. The modular transmitter must be labeled with its own FCC ID number, and, if the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. The label position of WLC-101M is clearly indicated. Please see the label.pdf 7. The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. The WLC-101M is compliant with all applicable FCC rules. Detail instructions are given in the Users Manual. Please see Installation guide.pdf 8. The modular transmitter must comply with any applicable RF exposure requirements. For example, FCC Rules in Sections 2.1091, 2.1093 and specific Sections of Part 15, including 15.319(i), 15.407(f), 15.253(f) and 15.255(g), require that Unlicensed PCS, UNII and millimeter wave devices perform routine environmental evaluation for RF Exposure to demonstrate compliance. In addition, spread spectrum transmitters operating under Section 15.247 are required to address RF Exposure compliance in accordance with Section 15.247(b)(4). The WLC-101M comply with applicable RF exposure requirements. Please see RF safety evaluation.pdf Yours sincerely, Elton Chen Assistant Manager Intertek Testing Service Taiwan Ltd.

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 November 7, 2003 RE: Cellvision Systems, Inc. FCC ID: QTRWLC10002 I have a few comments on the above referenced Application. 1) The table on page 17 of 49 appears to contain errors. Please check. Timothy R. Johnson Examining Engineer mailto: [email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

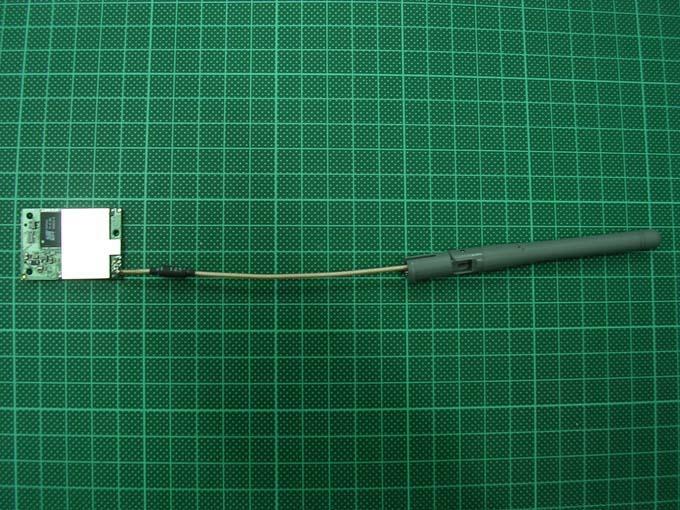

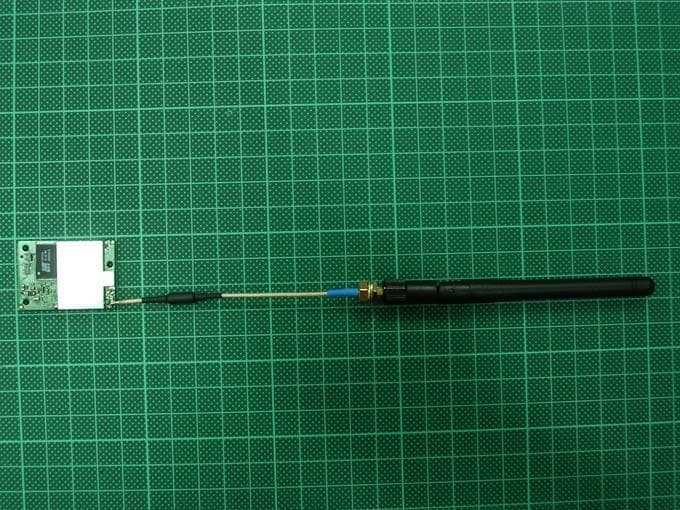

Photo 1: Exterior photo of EUT with antenna 1 WLC-101M Photo 2: Exterior photo of EUT with antenna 2 WLC-101M Photo 3: Exterior photo of EUT with antenna 3 WLC-101M

WLC-101M Label Design 【Dimension&Design】 Dimension : 25*17mm 【Location】 Shielding Case Label FCC ID: QTRWLC10002

Photo 1: Interior photo of EUT WLC-101M Photo 2: Interior photo of EUT WLC-101M Photo 3: Interior photo of EUT WLC-101M

FCC ID. : QTRWLC10002 Report No.: EME-031084 Page 1 of 6 Maximum Permissible Exposure (MPE) Evaluation Report Report No. : EME-031084 Model No. : WLC-101M Issued Date : Oct. 24, 2003 Applicant : Cellvision Systems Inc. 18F-7, No. 79 Sec. 1, Hsin Taiwu Road Hsichih, Taipei, Taiwan Test By : Intertek Testing Services Taiwan Ltd. No. 11, Lane 275, Ko-Nan 1 Street, Chia-Tung Li, Shiang-Shan District, Hsinchu City, Taiwan This test report consists of 6 pages in total. It may be duplicated completely for legal use with the allowance of the applicant. It shall not be reproduced except in full, without the written approval of ITS Laboratory. The test result in this report only applies to the tested sample. Jerry Liu Project Engineer Reviewed By Elton Chen FCC ID. : QTRWLC10002 Report No.: EME-031084 Page 2 of 6 Table of Contents Summary of Tests.........................................................................................................3 1. Introduction..............................................................................................................4 2. RF Exposure Limit...................................................................................................4 3. RF Exposure calculations..........................................................................................5 4. Test results................................................................................................................6 FCC ID. : QTRWLC10002 Report No.: EME-031084 Page 3 of 6 Summary of Tests MPE Evaluation meet FCC OET No. 65: 1997/ IEEE C95.1-1999 Wireless mini ISA module -Model: WLC-101M FCC ID: QTRWLC10002 Test Reference Results MPE Evaluation FCC Guidelines for Human Exposure IEEE C95.1 Complies FCC ID. : QTRWLC10002 Report No.: EME-031084 Page 4 of 6 1. Introduction The EUT operates in the 2.4GHz ISM band. Due to the EUT (include antenna) at its normal operation distance is at least 20 cm from the human body, the EUT was defined as a Mobile Device. The reason to do the MPE Evaluation is to avoid the RF hazard to human body. The maximum output power and gain of the antenna were used to calculate the limited Power density (S) at 20cm distance away from the product. The limit for Maximum Permissible Exposure (MPE) specified in FCC 1.1310 is followed. 2. RF Exposure Limit According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in 1.1307(b). Limits for Maximum Permissible Exposure (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (minutes) (A) Limits for Occupational / Control Exposures 30-300 61.4 0.163 1.0 6 300-1500 - - F/300 6 1500-100,000 - - 5 6 (B) Limits for General Population / Uncontrolled Exposure 30-300 27.5 0.073 0.2 30 300-1500 - - F/1500 30 1500-100,000 - - 1.0 30 F= Frequency in MHz FCC ID. : QTRWLC10002 Report No.: EME-031084 Page 5 of 6 3. RF Exposure calculations From § FCC 1.1310 table 1, the maximum permissible RF exposure for an uncontrolled environment is 1mW/(cm 2 ) Power density (S) is calculated by the following formula: S = (P * G)/4πR 2 where, S = Power density (mW/cm 2 ) P = Output power to antenna (mW) R = Distance between radiating structure and observation point (cm) G = Gain of antenna in numeric π = 3.1416 Example: Assume a mobile device operates at 2412MHz and its maximum output power is 50mW, and the maximum gain of antenna is 1 (numeric) /0dBi. then the power density (S) = (50 * 1)/4* π *20 2 = 0.00995 (mW/cm 2 ) FCC ID. : QTRWLC10002 Report No.: EME-031084 Page 6 of 6 4. Test results The EUT can be equipped with three kinds of antenna. The tests are based on the module with antenna separated. And the combinations are listed as below: Item Type of EUT Definition in this report Antenna Gain 1 Module with Dipole antenna antenna 1/ antenna 2 2.15dBi 2 Module with PIFA antenna antenna 3 -2dBi For Antenna 1/ Antenna 2: Channel Channel Frequency (MHz) Maximum antenna gain (numeric) Output power to antenna (mW) Power density (mW/cm 2 ) Limit of power density (mW/cm 2 ) 1 2412 1.64 48.195 0.01573 1.0 6 2437 1.64 48.195 0.01573 1.0 11 2462 1.64 41.976 0.01370 1.0 For Antenna 3: Channel Channel Frequency (MHz) Maximum antenna gain (numeric) Output power to antenna (mW) Power density (mW/cm 2 ) Limit of power density (mW/cm 2 ) 1 2412 0.63 48.195 0.00605 1.0 6 2437 0.63 48.195 0.00605 1.0 11 2462 0.63 41.976 0.00257 1.0 The Notice in Installation Manual has been stated as below: While installing and operating this transmitter, the radio frequency exposure limit of 1mW/(cm*cm) may be exceeded at distances close to the transmitter. therefore, the user must maintain a minimum distance of 20 cm from the device at all time.

FCC ID. : QTRWLC10002 Report No.: EME-031084 Page 1 of 49 EMC TEST REPORT Report No. : EME-031084 Model No. : WLC-101M Issued Date : Oct. 24, 2003 Applicant : Cellvision Systems Inc. 18F-7, No. 79 Sec. 1, Hsin Taiwu Road Hsichih, Taipei, Taiwan Test By : Intertek Testing Services Taiwan Ltd. No. 11, Lane 275, Ko-Nan 1 Street, Chia-Tung Li, Shiang-Shan District, Hsinchu City, Taiwan This test report consists of 49 pages in total. It may be duplicated completely for legal use with the allowance of the applicant. It shall not be reproduced except in full, without the written approval of Intertek Laboratory. The test result in this report only applies to the tested sample. Jerry Liu Project Engineer Reviewed By Elton Chen FCC ID. : QTRWLC10002 Report No.: EME-031084 Page 2 of 49 Table of Contents Summary of Tests..........................................................................................................3 1. General information..................................................................................................4 1.1 Identification of the EUT....................................................................................4 1.2 Additional information about the EUT................................................................4 1.3 Antenna description............................................................................................5 1.4 Peripherals equipment.........................................................................................5 2. Test specifications.....................................................................................................6 2.1 Test standard.......................................................................................................6 2.2 Operation mode..................................................................................................6 2.3 Test equipment....................................................................................................7 3. Minimum 6dB Bandwidth test...................................................................................8 3.1 Operating environment.......................................................................................8 3.2 Test setup & procedure........................................................................................8 3.3 Measured data of Minimum 6dB Bandwidth test results......................................8 4. Maximum Output Power test...................................................................................12 4.1 Operating environment.....................................................................................12 4.2 Test setup & procedure......................................................................................12 4.3 Measured data of Maximum Output Power test results......................................12 5. Radiated Emission test............................................................................................13 5.1 Operating environment.....................................................................................13 5.2 Test setup & procedure......................................................................................13 5.3 Emission limits.................................................................................................14 5.4 Radiated spurious emission test data.................................................................15 5.4.1 Measurement results: frequencies equal to or less than 1 GHz........................15 5.4.2 Measurement results: frequency above 1GHz.................................................18 6. Power Spectrum Density test...................................................................................26 6.1 Operating environment.....................................................................................26 6.2 Test setup & procedure......................................................................................26 6.3 Measured data of Power Spectrum Density test results......................................26 7. Emission on the band edge §FCC 15.247(C)...........................................................30 7.1 Band-edge (Conducted method)........................................................................31 7.2 Band-edge (Radiated method)...........................................................................33 8. Power Line Conducted Emission test §FCC 15.207.................................................45 8.1 Operating environment.....................................................................................45 8.2 Test setup & procedure......................................................................................45 8.3 Power Line Conducted Emission test data.........................................................47 FCC ID. : QTRWLC10002 Report No.: EME-031084 Page 3 of 49 Summary of Tests Wireless mini ISA module-Model: WLC-101M FCC ID: QTRWLC10002 Test Reference Results Minimum 6dB Bandwidth test 15.247(a)(2) Complies Maximum Output Power test 15.247(b) Complies Radiated Spurious Emission test 15.205, 15.209 Complies Power Spectrum Density test 15.247(d) Complies Power Line Conducted Emission test 15.207 Complies FCC ID. : QTRWLC10002 Report No.: EME-031084 Page 4 of 49 1. General information 1.1 Identification of the EUT Applicant : Cellvision Systems Inc. Product : Wireless mini ISA module Model No. : WLC-101M FCC ID. : QTRWLC10002 Frequency Range : 2412~2462 MHz Channel Number : 11 Channels Frequency of Each Channel : 2412MHz, 2417MHz, 2422MHz, 2427MHz, 2432MHz, 2437MHz, 2442MHz, 2447MHz, 2452MHz, 2457MHz, 2462MHz Type of Modulation : CCK (11Mps, 5.5Mbps), DQPSK (2Mbps), DBPSK (1Mbps) Rated Power : 3.3Vdc Power Cord : N/A Sample Received : Sep. 23, 2003 Test Date(s) : Sep. 23, 2003 ~ Oct. 21, 2003 A FCC DoC report has been generated for the client. 1.2 Additional information about the EUT The WLC-101M Wireless mini ISA module is the perfect solution for your wire…

Text truncated - open the document above for the full version.

Photo 1: Conducted Emission Test Set-up (front) (EUT with antenna 1) Photo 2: Conducted Emission Test Set-up (front) (EUT with antenna 1) WLC-101M Photo 3: Conducted Emission Test Set-up (rear) (EUT with antenna 1)

Photo 1: Radiated Emission Test Set-up (front) (ETU with antenna 1) Photo 2: Radiated Emission Test Set-up (front) (ETU with antenna 2) WLC-101M Photo 3: Radiated Emission Test Set-up (front) (EUT with antenna 3) WLC-101M Photo 4: Radiated Emission Test Set-up (rear)
