QTUCFLE1526ENERGY SAVING LAMP

User Mannual 1. Use only on 120V, 60Hz. 2. Never disassemble or modify---any changes could void the use’s authority to operate this device. 3. Not for use in totally enclosed fixtures. 4. Risk of fire, do not install the lamp as following: a. in luminaries fixtures controlled by a dimmer. b. in emergency exit lamps used DC current. c. in totally enclosed lamps and lanterns. 5. Use in dry condition, risk of electric shock---do not use where directly exposed to water. 6. This product could produce interference when used near a TV, radio, wireless remote control or maritime safety communications equipment or other critical navigation of communication equipment operating between 0.15-30MHz. If interference would occur, move the lamp away from the appliance a distance of three feet or more. Or plug the lamp or the appliance into a different outlet. 7. To prevent burns, do not touch the bulb during operating or immediately after switching off. 8. Not for use with dimmers, electronic timer or photocell devices or occupancy sensor. 9. It doesn't start up when placed below -18. FCC Note: The manufacturer is not responsible for any radio or TV interference caused by unauthorized Modifications to this equipment.Such modification could void the user’s authority to operation the equipment. This product may cause interference to radio equipment and should not be installed near maritime safety communications equipment or other critical navigation or communication equipment operating Between 0.15-30MHz.

Block Diagram Remark: Surging frequency range: 40KHZ~50KHZ 120V 60Hz AC IMPUT COMMUTATE FILTER HIGH FREQUENCY TRANSFER TOUCH OFF LAMP T U BE C H O KE

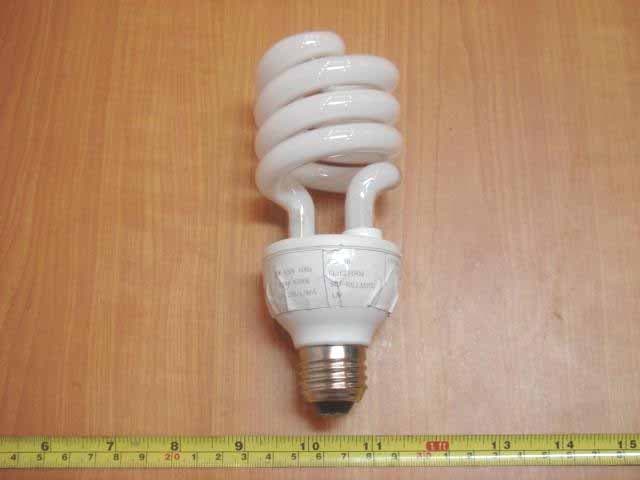

EUT - Front View For CFLE15S/L/827/840/865 EUT - Front View For CFLE18S/L/827/840/865 EUT - Front View For CFLE20S/L/827/840/865 EUT - Front View For CFLE23S/L/827/840/865 EUT - Front View For CFLE26S/L/827/840/865 EUT - Front View For CFLE26SX/L/827/840/865

FCC ID Label Sample for Model CFLE15S/L/827/840/865 CFLE18S/L/827/840/865 CFLE20S/L/827/840/865 CFLE23S/L/827/840/865 CFLE26S/L/827/840/865 CFLE26SX/L/827/840/865 FCC ID: QTUCFLE1526

FCC ID Label/Location Info This device complies with Part 18 of the FCC Rules. Operation is subject to the following two conditions:(1) this device may not cause harmful interference,and (2) this device must accept any interference received, including interference that may cause undesired operation. The Label must not be a stick-on paper. The Label on these products must be permanently affixed to the product and readily visible at the time of purchase and must last the expected lifetime of the equipment not be readily detachable. Proposed Label Location on EUT EUT Top View/ proposed FCC Mark Location This device complies with Part 18 of the FCC Rules. FCC ID: QTUCFLE1526

PCB - Front View For CFLE15S/L/827/840/865 PCB - Back View For CFLE15S/L/827/840/865 PCB - Front View For CFLE18S/L/827/840/865 PCB - Back View For CFLE18S/L/827/840/865 PCB - Front View For CFLE20S/L/827/840/865 PCB - Back View For CFLE20S/L/827/840/865 PCB - Front View For CFLE23S/L/827/840/865 PCB - Back View For CFLE23S/L/827/840/865 PCB - Front View For CFLE26S/L/827/840/865 PCB - Back View For CFLE26S/L/827/840/865 PCB - Front View For CFLE26SX/L/827/840/865 PCB - Back View For CFLE26SX/L/827/840/865

Circuit Description 1 120V 60Hz AC input, commutate by bridge diode and filter by electrolytic capacitor. 2 Touch-off circuit will supply an impulse to high frequency transfer. Two transistors work alternately through impulse transformer, and make LC serial circuit resonance. Ends of lamp tube, 600V~1200V high voltage impulse is formed and lights up lamp tube. 3 Surging frequency range for theory A and B40KHZ~50KHZ

FCC TEST REPORT Page 1 of 32 FCC ID : QTUCFLE1526 Applicant : Everlite Electric Industries Corp. Address : 200.Kuang-Fu Rd.,Section 2 Hsinchu,Taiwan Equipment Under Test (EUT) : Product description : Energy Saving Lamp Model No. : CFLE15S/L/827/840/865 CFLE18S/L/827/840/865 CFLE20S/L/827/840/865 CFLE23S/L/827/840/865 CFLE26S/L/827/840/865 CFLE26SX/L/827/840/865 Standards : FCC Part18 Date of Test : April 29, 2006 Test Engineer : Tiger Su Reviewed By : PERPARED BY: Waltek Services (Shenzhen) Co., Ltd. 8C,West Tower, Aidi Building, No.5003 Binhe Rd, Futian District, Shenzhen518045, Guangdong, China. Tel: 86-755-83551033 Fax: 86-755-83552400 Everlite Electric Industries Corp. FCC ID: QTUCFLE1526 Contents Page 1 COVER PAGE..........................................................................................................................................................1 CONTENTS........................................................................................................................................................................2 2 TEST SUMMARY....................................................................................................................................................4 3 GENERAL INFORMATION..................................................................................................................................5 3.1 CLIENT INFORMATION............................................................................................................................................5 3.2 GENERAL DESCRIPTION OF E.U.T...........................................................................................................................5 3.3 DETAILS OF E.U.T..................................................................................................................................................5 3.4 DESCRIPTION OF SUPPORT UNITS...........................................................................................................................5 3.5 STANDARDS APPLICABLE FOR TESTING..................................................................................................................5 3.6 TEST METHODOLOGY.............................................................................................................................................5 3.7 TEST FACILITY........................................................................................................................................................6 3.8 TEST LOCATION......................................................................................................................................................6 4 EQUIPMENT USED DURING TEST...................................................................................................................7 5 CONDUCTED EMISSION TEST..........................................................................................................................8 5.1 TEST EQUIPMENT....................................................................................................................................................8 5.2 TEST PROCEDURE...................................................................................................................................................8 5.3 CONDUCTED TEST SETUP.......................................................................................................................................9 5.4 EUT OPERATING CONDITION.................................................................................................................................9 5.5 CONDUCTED EMISSION LIMITS.............................................................................................................................10 5.6 SPECTRUM ANALYZER..........................................................................................................................................10 5.7 FREQUENCY RANGE OF MEASUREMENTS.............................................................................................................11 5.8 CONDUCTED EMISSION TEST RESULT...................................................................................................................11 5.8.1 Measurement Data.....................................................................................................................................11 5.8.2 Conducted Emissions Test Data.................................................................................................................18 6 PHOTOGRAPHS OF TESTING..........................................................................................................................20 6.1 CONDUCTED EMISSION TEST VIEW FOR CFLE15S/L/827/840/865......................................................................20 6.2 CONDUCTED EMISSION TEST VIEW FOR CFLE18S/L/827/840/865......................................................................20 6.3 CONDUCTED EMISSION TEST VIEW FOR CFLE20S/L/827/840/865......................................................................21 6.4 CONDUCTED EMISSION TEST VIEW FOR CFLE23S/L/827/840/865......................................................................21 6.5 CONDUCTED EMISSION TEST VIEW FOR CFLE26S/L/827/840/865......................................................................22 6.6 CONDUCTED EMISSION TEST VIEW FOR CFLE26SX/L/827/840/865...................................................................22 7 PHOTOGRAPHS - CONSTRUCTIONAL DETAILS.......................................................................................23 7.1 EUT - FRONT VIEW FOR CFLE15S/L/827/840/865.............................................................................................23 7.2 EUT - FRONT VIEW FOR CFLE18S/L/827/840/865.............................................................................................23 7.3 EUT - FRONT VIEW FOR CFLE20S/L/827/840/865......................................................…
