QTUTL1326Energy Saving Lamp

Users Manual

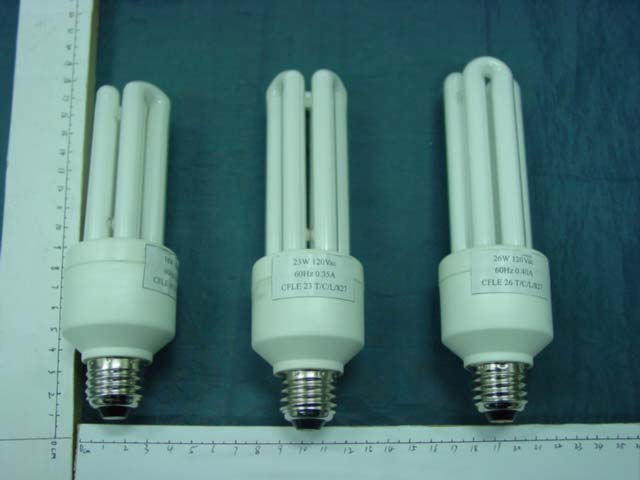

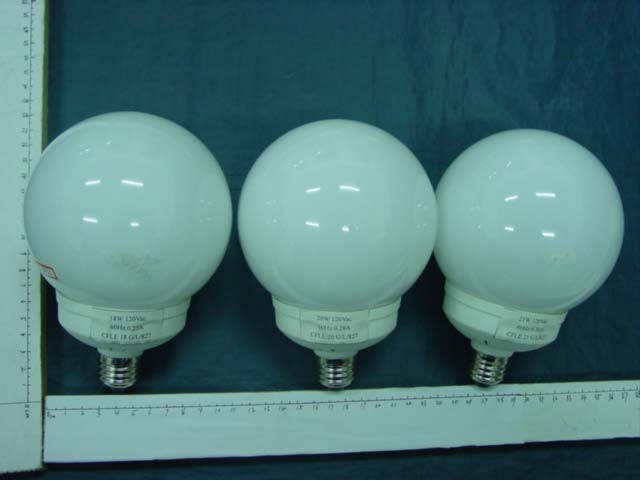

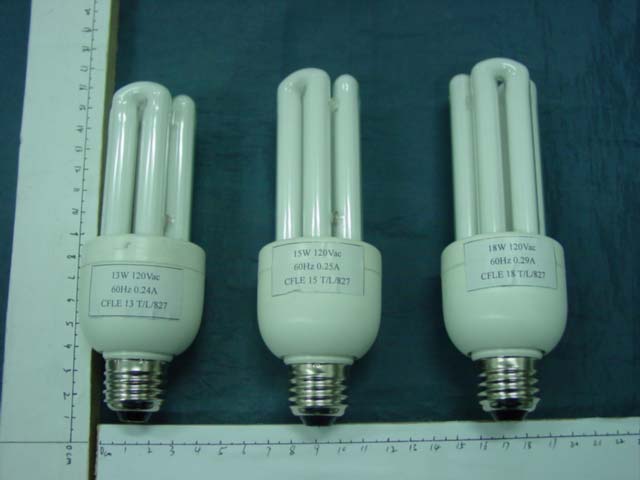

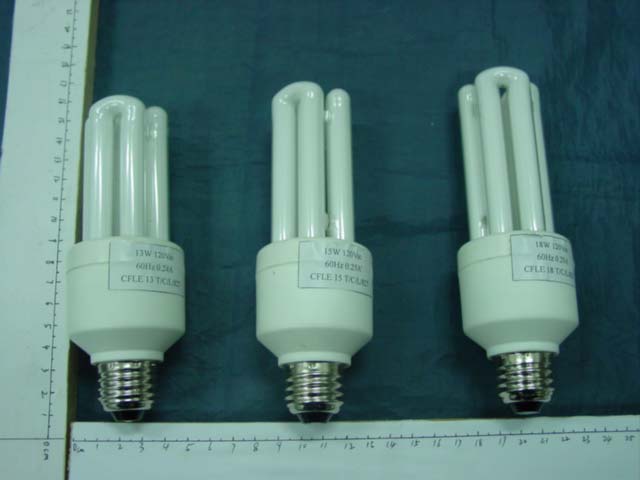

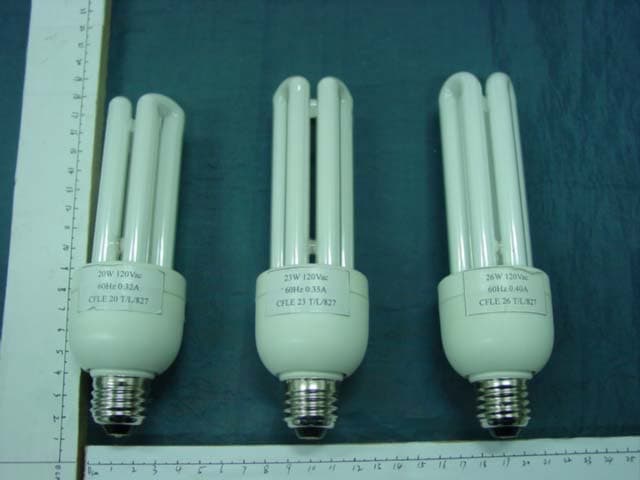

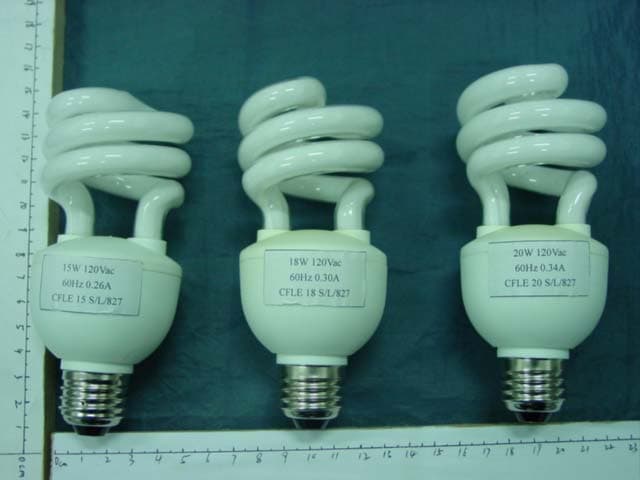

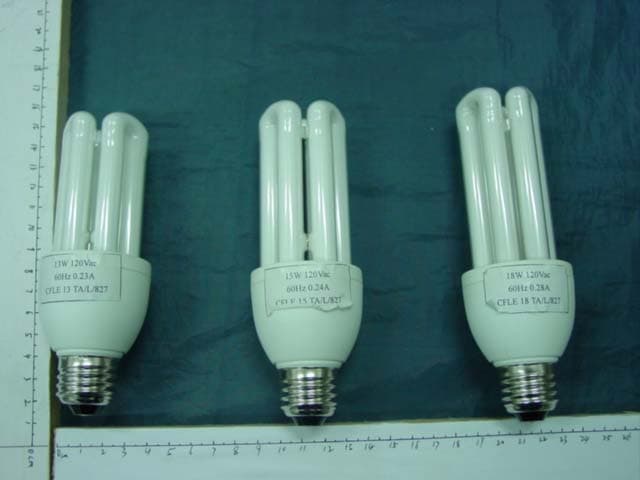

External Photos FIGURE 1 Energy Saving Lamp General Appearance FIGURE 2 Energy Saving Lamp General Appearance CFLE 13 T/L/827/840/865 CFLE 15 T/L/827/840/865 CFLE 18 T/L/827/840/865 CFLE 20 T/L/827/840/865 CFLE 23 T/L/827/840/865 CFLE 26 T/L/827/840/865 FIGURE 3 Energy Saving Lamp General Appearance FIGURE 4 Energy Saving Lamp General Appearance CFLE 13 T/C/L/827/840/865 CFLE 15 T/C/L/827/840/865 CFLE 18 T/C/L/827/840/865 CFLE 20 T/C/L/827/840/865 CFLE 23 T/C/L/827/840/865 CFLE 26 T/C/L/827/840/865 FIGURE 5 Energy Saving Lamp General Appearance CFLE 18 G/L/827/840/865 CFLE 20 G/L/827/840/865 CFLE 23 G/L/827/840/865

ID Label /Location Info label sample LABEL EVERLITE 13W 120V / 60Hz /0.24A CFLE 13 T/L/827/840/865 FCC ID:QTUTL1326 UL:***** EVERLITE 15W 120V / 60Hz /0.25A CFLE 15 T/L/827/840/865 FCC ID:QTUTL1326 UL:***** EVERLITE 18W 120V / 60Hz /0.29A CFLE 18 T/L/827/840/865 FCC ID:QTUTL1326 UL:***** EVERLITE 20W 120V / 60Hz /0.32A CFLE 20 T/L/827/840/865 FCC ID:QTUTL1326 UL:***** EVERLITE 23W 120V / 60Hz /0.35A CFLE 23 T/L/827/840/865 FCC ID:QTUTL1326 UL:***** EVERLITE 26W 120V / 60Hz /0.40A CFLE 26 T/L/827/840/865 FCC ID:QTUTL1326 UL:***** EVERLITE 13W 120V / 60Hz /0.24A CFLE 13 T/C/L/827/840/865 FCC ID:QTUTL1326 UL:***** EVERLITE 15W 120V / 60Hz /0.25A CFLE 15 T/C/L/827/840/865 FCC ID:QTUTL1326 UL:***** EVERLITE 18W 120V / 60Hz /0.29A CFLE 18 T/C/L/827/840/865 FCC ID:QTUTL1326 UL:***** EVERLITE 20W 120V / 60Hz /0.32A CFLE 20 T/C/L/827/840/865 FCC ID:QTUTL1326 UL:***** EVERLITE 23W 120V / 60Hz /0.35A CFLE 23 T/C/L/827/840/865 FCC ID:QTUTL1326 UL:***** EVERLITE 26W 120V / 60Hz /0.40A CFLE 26 T/C/L/827/840/865 FCC ID:QTUTL1326 UL:***** EVERLITE 18W 120V / 60Hz /0.25A CFLE 18 G/L/827/840/865 FCC ID:QTUTL1326 UL:***** EVERLITE 20W 120V / 60Hz /0.28A CFLE 20 G/L/827/840/865 FCC ID:QTUTL1326 UL:***** EVERLITE 23W 120V / 60Hz /0.30A CFLE 23 G/L/827/840/865 FCC ID:QTUTL1326 UL:*****

ID Label/Location Info label location Label Location Information The location of all the labels are on the button enclosures of the products. Refer to the below arrow.

Internal Photos FIGURE 1 Energy Saving Lamp Cover Removed FIGURE 2 Energy Saving Lamp Cover Removed FIGURE 3 Energy Saving Lamp Cover Removed CFLE 13 T/L/827/840/865CFLE 15 T/L/827/840/865CFLE 18 T/L/827/840/865 CFLE 20 T/L/827/840/865CFLE 23 T/L/827/840/865CFLE 26 T/L/827/840/865 FIGURE 4 Energy Saving Lamp Cover Removed FIGURE 5 Energy Saving Lamp Cover Removed CFLE 13 T/C/L/827/840/865CFLE 15 T/C/L/827/840/865 CFLE 18 T/C/L/827/840/865 CFLE 23 T/C/L/827/840/865CFLE 26 T/C/L/827/840/865 FIGURE 6 Energy Saving Lamp Main Board (Component Side) FIGURE 7 Energy Saving Lamp Main Board (Soldered Side) CFLE 18 G/L/827/840/865CFLE 20 G/L/827/840/865CFLE 23 G/L/827/840/865 CFLE 13 T/L/827/840/865 FIGURE 8 Energy Saving Lamp Main Board (Component Side) FIGURE 9 Energy Saving Lamp Main Board (Soldered Side) CFLE 15 T/L/827/840/865 CFLE 13 T/L/827/840/865 FIGURE 10 Energy Saving Lamp Main Board (Component Side) FIGURE 11 Energy Saving Lamp Main Board (Soldered Side) CFLE 15 T/L/827/840/865 CFLE 18 T/L/827/840/865 FIGURE 12 Energy Saving Lamp Main Board (Component Side) FIGURE 13 Energy Saving Lamp Main Board (Soldered Side) CFLE 18 T/L/827/840/865 CFLE 20 T/L/827/840/865 FIGURE 14 Energy Saving Lamp Main Board (Component Side) FIGURE 15 Energy Saving Lamp Main Board (Soldered Side) CFLE 20 T/L/827/840/865 CFLE 23 T/L/827/840/865 FIGURE 16 Energy Saving Lamp Main Board (Component Side) FIGURE 17 Energy Saving Lamp Main Board (Soldered Side) CFLE 23 T/L/827/840/865 CFLE 26 T/L/827/840/865 FIGURE 18 Energy Saving Lamp Main Board (Component Side) FIGURE 19 Energy Saving Lamp Main Board (Soldered Side) CFLE 26 T/L/827/840/865 CFLE 13 T/C/L/827/840/865 FIGURE 20 Energy Saving Lamp Main Board (Component Side) FIGURE 21 Energy Saving Lamp Main Board (Soldered Side) CFLE 13 T/C/L/827/840/865 CFLE 15 T/C/L/827/840/865 FIGURE 22 Energy Saving Lamp Main Board (Component Side) FIGURE 23 Energy Saving Lamp Main Board (Soldered Side) CFLE 15 T/C/L/827/840/865 CFLE 18 T/C/L/827/840/865 FIGURE 24 Energy Saving Lamp Main Board (Component Side) FIGURE 25 Energy Saving Lamp Main Board (Soldered Side) CFLE 18 T/C/L/827/840/865 CFLE 20 T/C/L/827/840/865 FIGURE 26 Energy Saving Lamp Main Board (Component Side) FIGURE 27 Energy Saving Lamp Main Board (Soldered Side) CFLE 20 T/C/L/827/840/865 CFLE 23 T/C/L/827/840/865 FIGURE 28 Energy Saving Lamp Main Board (Component Side) FIGURE 29 Energy Saving Lamp Main Board (Soldered Side) CFLE 23 T/C/L/827/840/865 CFLE 26 T/C/L/827/840/865 FIGURE 30 Energy Saving Lamp Main Board (Component Side) FIGURE 31 Energy Saving Lamp Main Board (Soldered Side) CFLE 26 T/C/L/827/840/865 CFLE 18 G/L/827/840/865 FIGURE 32 Energy Saving Lamp Main Board (Component Side) FIGURE 33 Energy Saving Lamp Main Board (Soldered Side) CFLE 18 G/L/827/840/865 CFLE 20 G/L/827/840/865 FIGURE 34 Energy Saving Lamp Main Board (Component Side) FIGURE 35 Energy Saving Lamp Main Board (Soldered Side) CFLE 20 G/L/827/840/865 CFLE 23 G/L/827/840/865 CFLE 23 G/L/827/840/865

Circuit Diagram

Everlite Electric Industries Corp. FCC ID:QTUTL1326 Page 1 of 1 SHENZHEN EMTEK CO., LTD. Report No. AT03043 Application for FCC Certificate On Behalf of Everlite Electric Industries Corp. Energy Saving Lamp Model No.: CFLE 13 T/L/827/840/865,CFLE 15 T/L/827/840/865 CFLE 18 T/L/827/840/865,CFLE 20 T/L/827/840/865 CFLE 23 T/L/827/840/865,CFLE 26 T/L/827/840/865 CFLE 13 T/C/L/827/840/865,CFLE 15 T/C/L/827/840/865 CFLE 18 T/C/L/827/840/865,CFLE 20 T/C/L/827/840/865 CFLE 23 T/C/L/827/840/865,CFLE 26 T/C/L/827/840/865 CFLE 18 G/L/827/840/865,CFLE 20 G/L/827/840/865 CFLE 23 G/L/827/840/865 FCC ID :QTUTL1326 Prepared for : Everlite Electric Industries Corp. Address : 200. Kuang-Fu Rd., Section 2 Hsinchu, Taiwan Prepared by : SHENZHEN EMTEK CO., LTD. Address : Bldg 69, Majialong, Taipinyang Industry Zone, Nanshan District, Shenzen, Guangdong, China Tel: (0755) 26952508 Fax: (0755) 26954282 Report Number : AT03043 Date of Test : Feb 26~28, 2003 Date of Report : Feb 28, 2003 Everlite Electric Industries Corp. FCC ID:QTUTL1326 Page 2 of 2 SHENZHEN EMTEK CO., LTD. Report No. AT03043 TABLE OF CONTENTS Description Page 1. GENERAL INFORMATION......................................................................................................4 1.1. Description of Device (EUT)...............................................................................................................4 1.2. Test Facility........................................................................................................................................4 1.3. Measurement Uncertainty....................................................................................................................5 2. POWER LINE CONDUCTED MEASUREMENT....................................................................6 2.1. Test Equipment...................................................................................................................................6 2.2. Block Diagram of Test Setup...............................................................................................................6 2.3. Power Line Conducted Emission Measurement Limits..........................................................................6 2.4. Configuration of EUT on Measurement...............................................................................................7 2.5. Operating Condition of EUT................................................................................................................7 2.6. Test Procedure....................................................................................................................................7 2.7. Power Line Conducted Emission Measurement Results........................................................................8 2.8. Plot of Conducted Emissions Test Data.............................................................................................23 3. RADIATED EMISSION MEASUREMENT............................................................................24 3.1. Test Equipment.................................................................................................................................24 3.2. Block Diagram of Test Setup.............................................................................................................25 3.3. Radiated Emission Limit....................................................................................................................25 3.4. EUT Configuration on Measurement.................................................................................................26 3.5. Operating Condition of EUT..............................................................................................................26 3.6. Test Procedure..................................................................................................................................26 3.7. Radiated Emission Noise Measurement Result...................................................................................27 APPENDIX A –PLOT OF CONDUCTED EMISSIONS TEST DATA...........................................42 Everlite Electric Industries Corp. FCC ID:QTUTL1326 Page 3 of 3 SHENZHEN EMTEK CO., LTD. Report No. AT03043 Everlite Electric Industries Corp. FCC ID:QTUTL1326 Page 4 of 4 SHENZHEN EMTEK CO., LTD. Report No. AT03043 1. GENERAL INFORMATION 1.1. Description of Device (EUT) 1.2. Test Facility Site Description EMC Lab. : Accredited by FCC, December 09,2002 The Certificate Registration Number. is 709623. Name of Firm : SHENZHEN EMTEK CO., LTD Site Location : Bldg 69, Majialong, Taipinyang Industry Zone, Nanshan District, Shenzen, Guangdong, China EUT : Energy Saving Lamp Model Number : CFLE 13 T/L/827/840/865,CFLE 15 T/L/827/840/865 CFLE 18 T/L/827/840/865,CFLE 20 T/L/827/840/865 CFLE 23 T/L/827/840/865,CFLE 26 T/L/827/840/865 CFLE 13 T/C/L/827/840/865,CFLE 15 T/C/L/827/840/865 CFLE 18 T/C/L/827/840/865,CFLE 20 T/C/L/827/840/865 CFLE 23 T/C/L/827/840/865,CFLE 26 T/C/L/827/840/865 CFLE 18 G/L/827/840/865,CFLE 20 G/L/827/840/865 CFLE 23 G/L/827/840/865 (Note: All samples have been tested, the test results were reported. ) Applicant : Everlite Electric Industries Corp. Address : 200. Kuang-Fu Rd., Section 2 Hsinchu, Taiwan Manufacturer : Everlite (H.K) CO. Address : Sichun Administrative Dist, Tangxia Town, Dongguan, Guangdong, China. Date of Test : Feb 26,2003 Everlite Electric Industries Corp. FCC ID:QTUTL1326 Page 5 of 5 SHENZHEN EMTEK CO., LTD. Report No. AT03043 1.3. Measurement Uncertainty Radiation Uncertainty : Ur = °” 4.26dB Conduction Uncertainty : Uc = °” 2.66dB Everlite Electric Industries Corp. FCC ID:QTUTL1326 Page 6 of 6 SHENZHEN EMTEK CO., LTD. Report No. AT03043 2. POWER LINE CONDUCTED MEASUREMENT 2.1. Test Equipment The following test equipments are used during the power line conducted measurement: Item Equipment Manufacturer Model No. Serial No. Last Cal. Cal. Interval 1. Test Receiver Rohde & Schwarz ESCS30 828985/0…

Text truncated - open the document above for the full version.

Test Setup Photos Test Setup Photos All series of products are setup in the same. Refer to the following photos for conducted and radiated emission. Conducted Emission Test Front view Side view Radiated Emission Test Horizontal Ve r t i c a l
