QTUSX0513Energy Saving Lamp
Everlite Electric Industries Corp.
Click to zoom
Application Details
- Equipment Class
- 8CC - Part 18 Consumer Device
- Date of Grant
- Apr 09, 2003
- Application Purpose
- Original Equipment
- Date of Application
- Apr 09, 2003
- Equipment Note
- Energy Saving Lamp
- Frequency Range
- 0.04000000 - 0.04500000
- Country
- Taiwan
Documents & Files
Document Text
Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.
Users Manual
Users Manual
External Photos

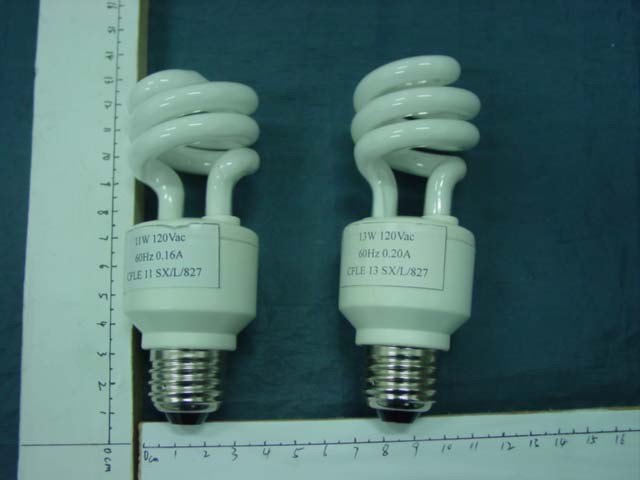

External Photos FIGURE 1 Energy Saving Lamp General Appearance FIGURE 2 Energy Saving Lamp General Appearance CFLE 5 SX/L/827/840/865 CFLE 7 SX/L/827/840/865 CFLE 9 SX/L/827/840/865 CFLE 11 SX/L/827/840/865 CFLE 13 SX/L/827/840/865
ID Label/Location Info
ID Label /Location Info label sample Label EVERLITE 5W 120V / 60Hz /0.10A CFLE 5 SX/L/827/840/865 FCC ID:QTUSX0513 UL:***** EVERLITE 7W 120V / 60Hz /0.12A CFLE 7 SX/L/827/840/865 FCC ID:QTUSX0513 UL:***** EVERLITE 9W 120V / 60Hz /0.13A CFLE 9 SX/L/827/840/865 FCC ID:QTUSX0513 UL:***** EVERLITE 11W 120V / 60Hz /0.16A CFLE 11 SX/L/827/840/865 FCC ID:QTUSX0513 UL:***** EVERLITE 13W 120V / 60Hz /0.20A CFLE 13 SX/L/827/840/865 FCC ID:QTUSX0513 UL:*****
ID Label/Location Info
ID Label/Location Info label location Label Location Information The location of all the labels are on the button enclosures of the products. Refer to the below arrow.
Internal Photos
Internal Photos FIGURE 1 Energy Saving Lamp Cover Removed FIGURE 2 Energy Saving Lamp Cover Removed CFLE 5 SX/L/827/840/865 CFLE 7 SX/L/827/840/865 CFLE 9 SX/L/827/840/865 CFLE 11 SX/L/827/840/865 CFLE 13 SX/L/827/840/865 FIGURE 3 Energy Saving Lamp Main Board (Component Side) FIGURE 4 Energy Saving Lamp Main Board (Soldered Side) CFLE 5 SX/L/827/840/865 CFLE 5 SX/L/827/840/865 FIGURE 5 Energy Saving Lamp Main Board (Component Side) FIGURE 6 Energy Saving Lamp Main Board (Soldered Side) CFLE 7 SX/L/827/840/865 CFLE 7 SX/L/827/840/865 FIGURE 7 Energy Saving Lamp Main Board (Component Side) FIGURE 8 Energy Saving Lamp Main Board (Soldered Side) CFLE 9 SX/L/827/840/865 CFLE 9 SX/L/827/840/865 FIGURE 9 Energy Saving Lamp Main Board (Component Side) FIGURE 10 Energy Saving Lamp Main Board (Soldered Side) CFLE 11 SX/L/827/840/865 CFLE 11 SX/L/827/840/865 FIGURE 11 Energy Saving Lamp Main Board (Component Side) FIGURE 12 Energy Saving Lamp Main Board (Soldered Side) CFLE 13 SX/L/827/840/865 CFLE 13 SX/L/827/840/865
Schematics
Circuit Diagram
Test Setup Photos
Test Setup Photos Test Setup Photos All series of products are setup in the same. Refer to the following photos for conducted and radiated emission. Conducted Emission Test Front view Side view Radiated Emission Test Horizontal Ve r t i c a l
