QURNHL-12GSM 850/1800/1900 Cellular Telephone w/Bluetooth

09 Feb 2004 USER GUIDE Following is a preliminary draft copy of the US English User Guide for FCC ID: QURNHL-12, IC: 661AC-NHL12 Exhibit 08: User Guide FCC ID: QURNHL-12 IC: 661AC-NHL12 Applicant: Nokia Corporation Copyright © 2004 Nokia. All rights reserved. Nokia 6620 User Guide Phone informationNumbersWhere is the number? My number Wireless service provider Voice mail number Wireless service provider Wireless provider’s number Wireless service provider Provider’s customer care Wireless service provider Model number Label on back of phone (under battery). Type number Label on back of phone (under battery). IMEI number Label on back of phone (under battery). iiCopyright © 2004 Nokia Nokia 6620 User GuideLLLCopyright © 2004 Nokia LEGAL INFORMATION PART NO. 9310640, ISSUE NO. 1 Copyright © 2004 Nokia. All rights reserved. Nokia, Nokia 6620, Nokia Connecting People, and the Nokia Original Enhancements logos are trademarks or registered trademarks of Nokia Corporation. Other company and product names mentioned herein may be trademarks or trade names of their respective owners. Nokia tune is a sound mark of Nokia Corporation. This product includes software licensed from Symbian Ltd © 1998-2003 © 1998-2003 Symbian Ltd. All rights reserved. Symbian and Symbian OS are trademarks of Symbian Ltd. All rights reserved. Printed in Canada, February 2004 Includes RSA BSAFE cryptographic or security protocol software from RSA Security. Java is a trademark of Sun Microsystems, Inc. USE OF THIS PRODUCT IN ANY MANNER THAT COMPLIES WITH THE MPEG-4 VISUAL STANDARD IS PROHIBITED, EXCEPT FOR USE DIRECTLY RELATED TO (A) DATA OR INFORMATION (i) GENERATED BY AND OBTAINED WITHOUT CHARGE FROM A CONSUMER NOT THEREBY ENGAGED IN A BUSINESS ENTERPRISE, AND (ii) FOR PERSONAL USE ONLY; AND (B) OTHER USES SPECIFICALLY AND SEPARATELY LICENSED BY MPEG LA, L.L.C. The information contained in this user guide was written for the Nokia 6620 product. Nokia operates a policy of ongoing development. Nokia reserves the right to make changes to any of the products described in this document without prior notice. UNDER NO CIRCUMSTANCES SHALL NOKIA BE RESPONSIBLE FOR ANY LOSS OF DATA OR INCOME OR ANY SPECIAL, INCIDENTAL, AND CONSEQUENTIAL OR INDIRECT DAMAGES HOWSOEVER CAUSED. THE CONTENTS OF THIS DOCUMENT ARE PROVIDED "AS IS." EXCEPT AS REQUIRED BY APPLICABLE LAW, NO WARRANTIES OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE MADE IN RELATION TO THE ACCURACY AND RELIABILITY OR CONTENTS OF THIS DOCUMENT. NOKIA RESERVES THE RIGHT TO REVISE THIS DOCUMENT OR WITHDRAW IT AT ANY TIME WITHOUT PRIOR NOTICE. EXPORT CONTROLS This device contains commodities, technology, or software exported from the United States in accordance with the Export Administration regulations. Diversion contrary to U.S. or Canadian law is prohibited. 168 ivCopyright © 2004 Nokia FCC/INDUSTRY CANADA NOTICE Your device may cause TV or radio interference (for example, when using a telephone in close proximity to receiving equipment). The FCC or Industry Canada can require you to stop using your telephone if such interference cannot be eliminated. If you require assistance, contact your local service facility. This device complies with part 15 of the FCC rules. Operation is subject to the condition that this device does not cause harmful interference. Stac ®, LZS ®, ©1996, Stac, Inc., ©1994-1996 Microsoft Corporation. Includes one or more U.S. Patents: No. 4701745, 5016009, 5126739, 5146221, and 5414425. Other patents pending. Hi/fn ®, LZS ®,©1988-98, Hi/fn. Includes one or more U.S. Patents: No. 4701745, 5016009, 5126739, 5146221, and 5414425. Other patents pending. Part of the software in this product is © Copyright ANT Ltd. 1998. All rights reserved. m-Router Connectivity Components © 2000-2002 Intuwave Limited. All rights reserved. (www.intuwave.com) US Patent No 5818437 and other pending patents. T9 text input software Copyright (C) 1997-2003. Tegic Communications, Inc. All rights reserved. Manufactured or sold under one or more of the following US patents: 48688464945633500137251011755151946517392752128345230091 52415835311151531728353316385335362535332853714815378935 53847825396657540094954164355442521544636454794765526366 55531255557639556582155703695581244560070856252745677620 56920325729541576056857941425802465580941358270825839101 58448845845219587068358841035889770590782359125705914690 59147965917868592082659563325956625595663359663785977887 59871375991857600611460118536014551601457360261616035189 60382386043760604719660497966050415605543960601936069923 60727876081732608492060849626094587609796461057846112099 61156176119180612184661285096138091614096661442436144676 61482096151485615150761636096164547616724861852956188909 62495846259312626633062723616282436629266862952866311054 63141666324389632441263472186363259637036263703896377820 63814686392660640095864531796463278647047064873976522670 61989284969192526678253902235444816548708456403955664053 56994825701392572207457549765805301583588958571515859843 58621785898925593023359466515960354596038959639016005857 60119716031827611877561283226137789616724861700736178535 61953386199035624007662663216285888635675963778036430163 64383706456237RE325805818437595354160115544558302 Nokia 6620 User GuideYCopyright © 2004 Nokia Nokia 6620 phone at a glance Send key End key Power key (on top) Charger connector, Pop-Port connector, and microphone (on bottom) Speaker Five-way joystick Left selection key Menu key Edit key Clear key Right selection key Display Earpiece Camera lens Note: The internet symbol appear on all phones. on the 0 key does not viCopyright © 2004 Nokia Quick guide Make a callEnter a phone number, and press the Send key. Answer a callPress the Send key. Answer call during callSelect Options > Answer call. End a callPress the End key. Decline a callPress the End key. Mute a callSelect Options > Mute durin…

Text truncated - open the document above for the full version.

Nokia 6620 User GuideCopyright © 2004 Nokia Tools Network OPERATOR SELECTION Choose Automatic to set the phone to automatically search for and select one of the cellular networks available in your area. Or, choose Manual if you want to select the desired network manually from a list of networks. If the connection to the manually selected network is lost, the phone will sound an error tone and ask you to select a network again. The selected network must have a roaming agreement with your home network, that is, the operator whose SIM card is in your phone. CELL INFO DISPLAY Select On to set the phone to indicate when it is used in a cellular network based on Micro Cellular Network (MCN) technology and to activate cell info reception. Enhancement Scroll to an enhancement folder and open the settings: •Select Default profile to select the profile you want to be activated each time when you connect a certain enhancement to your phone. See "Change the profile" on page 78. •Select Automatic answer to set the phone to answer an incoming call automatically after five seconds time. If the Incoming call alert is set to Beep once or Silent, automatic answer cannot be used, and you must answer the phone manually. •If you are using an enhancement such as a loopset, headset, or TTY adapter, you must activate it separately by selecting Menu > Tools > Settings > Enhancement > Enhancement in use > Headset, Loopset, or TTY. If you have activated a loopset, the headset will use the same settings as the loopset. See also “Enhancement indicators” on page 15. Security PHONE AND SIM If your phone requests a security code, refer to the following explanations to determine what you should enter: •PIN code (4 to 8 digits)—The PIN (Personal Identification Number) code protects your SIM card against unauthorized use. The PIN code is usually supplied with the SIM card. After three consecutive incorrect PIN code entries, the PIN code is blocked. If the PIN code is blocked, you need to unblock the PIN code before you can use 74Copyright © 2004 Nokia the SIM card again. See also the information below about the PUK code. •PIN2 code (4 to 8 digits)—The PIN2 code is supplied with some SIM cards and is required to access some functions, such as fixed dialing numbers (FDN). •Lock code (5 digits)—The lock code can be used to lock the phone and keypad to avoid unauthorized use. Note: The factory setting for the lock code is 12345. To avoid unauthorized use of your phone, change the lock code. Keep the new code secret and in a safe place separate from your phone. •PUK and PUK2 codes (8 digits)—The PUK (Personal Unblocking Key) code is required to change a blocked PIN code. The PUK2 code is required to change a blocked PIN2 code. If the codes are not supplied with the SIM card, contact the operator whose SIM card is in your phone for the codes. You can change the following codes: lock code, PIN code, and PIN2 code. These codes can only include the numbers from 0 to 9. Note: Avoid using access codes similar to emergency numbers, such as 911, to prevent accidental dialing of the emergency number. PIN code request—When the PIN code request is active, the code is requested each time the phone is switched on. Note that deactivating the PIN code request may not be allowed by some SIM cards. PIN code / PIN2 code / Lock code—Open this setting if you want to change the code. Autolock period—You can set an autolock period, a time-out after which the phone is automatically locked and can be used only if the correct lock code is entered. Key in a number for the time-out in minutes or select None to turn off the autolock period. To unlock the phone, key in the lock code. Note: When the phone is locked, calls may be possible to the emergency number programmed into your phone (e.g. 911 or other official emergency number). Lock if SIM changed—Select Yes if you want the phone to ask for the lock code when an unknown, new SIM card is inserted into your phone. The phone maintains a list of SIM cards that are recognized as the owner’s cards. Fixed dialing—You can restrict your outgoing calls to selected phone numbers, if supported by your SIM card. You need the PIN2 code for this function. When this function is active, you can only call those phone numbers that are included in the fixed dialing list or which begin with the same digit(s) as a phone number on the list. Press the joystick to set Fixed dialing on. Nokia 6620 User GuideCopyright © 2004 Nokia Tools Options in the Fixed dialing view: Open, Call, Activ. fixed dialing/Deact. fixed dialing, New contact, Edit, Delete, Add to Contacts, Add from Contacts, Find, Mark/ Unmark, Help, and Exit. Note: When fixed dialing is activated, calls still may be possible to the official emergency number programmed into your phone. To add new numbers to the Fixed dialing list, select Options > New contact or Add from Contacts. Closed user group (network service)—You can specify a group of people whom you can call and who can call you. For more information, contact your network operator or service provider. Select Default to activate the default group agreed on with the network operator, On if you want to use another group (you need to know the group index number), or Off. Note: When calls are limited to closed user groups, calls still may be possible to the official emergency number programmed into your phone. Confirm SIM services (network service)—Sets the phone to display confirmation messages when you are using a SIM card service. Restore server—To reset your connection settings allowing you to receive new settings from your service provider. CERTIF. (CERTIFICATE) MANAGEMENT Options in the certificate management main view: Certificate details, Delete, Trust settings, Mark/Unmark, Help, and Exit. In the Certif. management main view, you can see a list of authority certificates that have been stored in your phone. Scroll right to see a list of personal certificates, if available. Authority certificates a…

Text truncated - open the document above for the full version.

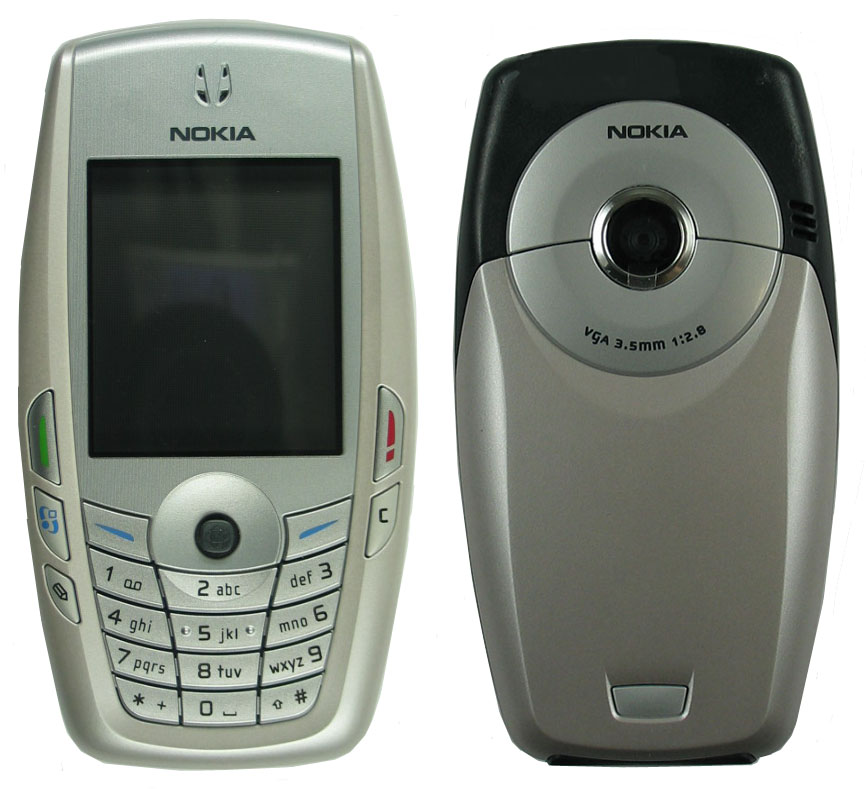

09 Feb 2004 Exhibit 03: External Photographs FCC ID: QURNHL-12 IC: 661AC-NHL12 Applicant: Nokia Corporation Copyright © 2004 Nokia. All rights reserved. 09 Feb 2004 Exhibit 03: External Photographs FCC ID: QURNHL-12 IC: 661AC-NHL12 Applicant: Nokia Corporation Copyright © 2004 Nokia. All rights reserved.

09 Feb 2004 Exhibit 01: Type Label Position FCC ID: QURNHL-12 IC: 661AC-NHL12 Applicant: Nokia Corporation Copyright © 2004 Nokia. All rights reserved. 09 Feb 2004 Exhibit 01: Type Labels FCC ID: QURNHL-12 IC: 661AC-NHL12 Applicant: Nokia Corporation Copyright © 2004 Nokia. All rights reserved.

09 Feb 2004 Exhibit 09: Internal Photographs FCC ID: QURNHL-12 IC: 661AC-NHL12 Applicant: Nokia Corporation Copyright © 2004 Nokia. All rights reserved. 09 Feb 2004 Exhibit 09: Internal Photographs FCC ID: QURNHL-12 IC: 661AC-NHL12 Applicant: Nokia Corporation Copyright © 2004 Nokia. All rights reserved. 09 Feb 2004 Exhibit 09: Internal Photographs FCC ID: QURNHL-12 IC: 661AC-NHL12 Applicant: Nokia Corporation Copyright © 2004 Nokia. All rights reserved. 09 Feb 2004 Exhibit 09: Internal Photographs FCC ID: QURNHL-12 IC: 661AC-NHL12 Applicant: Nokia Corporation Copyright © 2004 Nokia. All rights reserved.

09 Feb 2004 BLUETOOTH Exhibit 09: Internal Photographs, Bluetooth FCC ID: QURNHL-12 IC: 661AC-NHL12 Applicant: Nokia Corporation Copyright © 2004 Nokia. All rights reserved.

Salo SaloSalo Salo ____________________________________________________________________________ SAR Report Salo_SAR0403_01 Applicant: Nokia Corporation Type: NHL-12 Copyright  2004 TCC Salo 2/60 CONTENTS CONTENTSCONTENTS CONTENTS 1. 1.1. 1. SUMMARY OF SAR TEST SUMMARY OF SAR TEST SUMMARY OF SAR TEST SUMMARY OF SAR TEST REPORT REPORTREPORT REPORT................................ ................................................................ ................................................................ ................................................................ ................................................................ ................................................................ ................................................................ ................................................................ ............................................. .......................... ............. 4 44 4 1.1 TEST DETAILS.............................................................................................................................................................................4 1.2 MAXIMUM RESULTS....................................................................................................................................................................4 1.2.1 Head Configuration........................................................................................................................................................ 4 1.2.2 Body Worn Configuration ............................................................................................................................................ 4 1.2.3 Maximum Drift ................................................................................................................................................................ 4 1.2.4 Measurement Uncertainty ........................................................................................................................................... 5 2. 2.2. 2. D DD DESCRIPTION OF THE DE ESCRIPTION OF THE DEESCRIPTION OF THE DE ESCRIPTION OF THE DEVICE UNDER TEST VICE UNDER TESTVICE UNDER TEST VICE UNDER TEST................................ ................................................................ ................................................................ ................................................................ ................................................................ ................................................................ ........................................................... ...................................................... ........................... 5 55 5 2.1 PICTURE OF THE DEVICE..............................................................................................................................................................5 2.2 DESCRIPTION OF THE ANTENNA..................................................................................................................................................6 3. 3.3. 3. TEST CONDITIONS TEST CONDITIONSTEST CONDITIONS TEST CONDITIONS ................................ ................................................................ ................................................................ ................................................................ ................................................................ ................................................................ ................................................................ ................................................................ ................................................................ ................................................................ ..................................... .......... ..... 6 66 6 3.1 TEMPERATURE AND HUMIDITY....................................................................................................................................................6 3.2 TEST SIGNAL, FREQUENCIES, AND OUTPUT POWER....................................................................................................................6 4. 4.4. 4. DESCRIPTION OF THE T DESCRIPTION OF THE TDESCRIPTION OF THE T DESCRIPTION OF THE TEST EQUIPMENT EST EQUIPMENTEST EQUIPMENT EST EQUIPMENT ................................ ................................................................ ................................................................ ................................................................ ................................................................ ................................................................ ............................................................... .............................................................. ............................... 6 66 6 4.1 MEASUREMENT SYSTEM AND COMPONENTS................................................................................................................................6 4.1.1 Isotropic E-field Probe 1395........................................................................................................................................ 7 4.2 PHANTOMS................................................................................................................................................................................8 4.3 SIMULATING LIQUIDS.................................................................................................................................................................8 4.3.1 Liquid Recipes.................................................................................................................................................................. 8 4.3.2 Verification of the System ............................................................................................................................................ 9 4.3.3 Tissue Simulants used in the Measurements ...............................................................…

Text truncated - open the document above for the full version.

Salo SaloSalo Salo ____________________________________________________________________________ Amendment to SAR Report Salo_SAR0403_01_Amendment Applicant: Nokia Corporation Type: NHL-12 Copyright  2004 TCC Salo 2/5 1. SUMMARY OF SAR TEST REPORT In upper table ERP of the DUT in channel 128 (GPRS850) is 30.48 dBm. Correct ERP for channel 128 is 29.78 dBm. In the second table of this page information is corrected. 1.1.1 Body Worn Configuration Mode Ch / f (MHz) ERP / EIRP Separation distance SAR limit (1g avg) Measured SAR value (1g avg) Result GPRS 850 1-slot TX 128 / 824 30.48 dBm 1.5 cm 1.6 W/kg 0.60 W/kg PASSED PASSEDPASSED PASSED GPRS 1900 2-slot TX 512 / 1850 29.09 dBm 1.5 cm 1.6 W/kg 1.22 W/kg PASSED PASSEDPASSED PASSED Corrected Table 1.1.1: Corrected Table 1.1.1:Corrected Table 1.1.1: Corrected Table 1.1.1: Mode Ch / f (MHz) ERP / EIRP Separation distance SAR limit (1g avg) Measured SAR value (1g avg) Result GPRS 850 1-slot TX 128 / 824 29.78 dBm 1.5 cm 1.6 W/kg 0.60 W/kg PASSED PASSEDPASSED PASSED GPRS 1900 2-slot TX 512 / 1850 29.09 dBm 1.5 cm 1.6 W/kg 1.22 W/kg PASSED PASSEDPASSED PASSED Salo SaloSalo Salo ____________________________________________________________________________ Amendment to SAR Report Salo_SAR0403_01_Amendment Applicant: Nokia Corporation Type: NHL-12 Copyright  2004 TCC Salo 3/5 7. Results (Head SAR Results) In upper table ERP of the DUT in channel 128 (GPRS850) is 30.48 dBm and in channel 251 it is 29.63 dBm. Correct ERP results for channels 128 and 251 are 29.78 dBm and 30.33 dBm respectively. In the second table information is corrected. 800MHz Head SAR results 800MHz Head SAR results800MHz Head SAR results 800MHz Head SAR results SAR, averaged over 1g (W/kg) SAR, averaged over 1g (W/kg)SAR, averaged over 1g (W/kg) SAR, averaged over 1g (W/kg) Mode Mode Mode Mode and and and and Band BandBand Band MMC MMCMMC MMC- -- -card card card card option option option option Position PositionPosition Position Ch Ch Ch Ch 128 128128 128 824 824 824 824 MHz MHzMHz MHz Ch Ch Ch Ch 190 190190 190 836 836 836 836 MHz MHzMHz MHz Ch Ch Ch Ch 251 251251 251 84 8484 849 9 9 9 MHz MHzMHz MHz Power level (ERP) Power level (ERP)Power level (ERP) Power level (ERP) 30.48 30.48 30.48 30.48 dBm dBmdBm dBm 30.77 30.77 30.77 30.77 dBm dBmdBm dBm 29.63 29.63 29.63 29.63 dBm dBmdBm dBm Cheek 0.794 1.03 1.031.03 1.03 1.01 Left Tilt - 0.713 - Cheek 0.736 0.992 1.01 Not used Right Tilt - 0.717 - Cheek 0.788 1.05 1.051.05 1.05 1.02 Left Tilt - - - Cheek - 1.01 0.985 With MMC Right Tilt - - - GSM 850 With MMC Left Cheek, BT active - 1.06 1.061.06 1.06 - Salo SaloSalo Salo ____________________________________________________________________________ Amendment to SAR Report Salo_SAR0403_01_Amendment Applicant: Nokia Corporation Type: NHL-12 Copyright  2004 TCC Salo 4/5 Corrected Table: Corrected Table:Corrected Table: Corrected Table: 800MHz Head SAR results 800MHz Head SAR results800MHz Head SAR results 800MHz Head SAR results SAR, averaged over 1g (W/kg) SAR, averaged over 1g (W/kg)SAR, averaged over 1g (W/kg) SAR, averaged over 1g (W/kg) Mode Mode Mode Mode and and and and Band BandBand Band MMC MMCMMC MMC- -- -card card card card option option option option Position PositionPosition Position Ch Ch Ch Ch 128 128128 128 824 824 824 824 MHz MHzMHz MHz Ch Ch Ch Ch 190 190190 190 836 836 836 836 MHz MHzMHz MHz Ch Ch Ch Ch 251 251251 251 849 849 849 849 MHz MHzMHz MHz Power lev Power levPower lev Power level (ERP) el (ERP)el (ERP) el (ERP) 29.78 29.78 29.78 29.78 dBm dBmdBm dBm 30.77 30.77 30.77 30.77 dBm dBmdBm dBm 30.33 30.33 30.33 30.33 dBm dBmdBm dBm Cheek 0.794 1.03 1.031.03 1.03 1.01 Left Tilt - 0.713 - Cheek 0.736 0.992 1.01 Not used Right Tilt - 0.717 - Cheek 0.788 1.05 1.051.05 1.05 1.02 Left Tilt - - - Cheek - 1.01 0.985 With MMC Right Tilt - - - GSM 850 With MMC Left Cheek, BT active - 1.06 1.061.06 1.06 - Salo SaloSalo Salo ____________________________________________________________________________ Amendment to SAR Report Salo_SAR0403_01_Amendment Applicant: Nokia Corporation Type: NHL-12 Copyright  2004 TCC Salo 5/5 7. Results (Body SAR Results) In upper table ERP of the DUT in channel 128 (GPRS850) is 30.48 dBm and in channel 251 it is 29.63 dBm. Correct ERP results for channels 128 and 251 are 29.78 dBm and 30.33 dBm respectively. In the second table information is corrected. 800MHz 800MHz800MHz 800MHz Body SAR results Body SAR resultsBody SAR results Body SAR results SAR, averaged over 1g (W/kg) SAR, averaged over 1g (W/kg)SAR, averaged over 1g (W/kg) SAR, averaged over 1g (W/kg) Mode and Mode and Mode and Mode and Band BandBand Band MMC MMCMMC MMC- -- -card card card card option optionoption option Body BodyBody Body- -- -worn location worn location worn location worn location setup setupsetup setup Ch Ch Ch Ch 128 128128 128 824 824 824 824 MHz MHzMHz MHz Ch Ch Ch Ch 190 190190 190 836 836 836 836 MHz MHzMHz MHz Ch Ch Ch Ch 251 251251 251 849 849 849 849 MHz MHzMHz MHz Power PowerPower Power level (ERP) level (ERP) level (ERP) level (ERP) 30.48 30.48 30.48 30.48 dBm dBmdBm dBm 30.77 30.77 30.77 30.77 dBm dBmdBm dBm 29.63 29.63 29.63 29.63 dBm dBmdBm dBm Headset HS-5 0.580 0.572 0.491 Not used Headset HDS-3 0.570 0.546 0.486 With MMC Headset HS-5 0.604 0.6040.604 0.604 0.573 0.558 GPRS 850 1-slot TX With MMC Headset HS-5 BT active 0.592 - - Corrected Table: Corrected Table:Corrected Table: Corrected Table: 800MHz 800MHz800MHz 800MHz Body SAR results Body SAR resultsBody SAR results Body SAR results SAR, averaged over 1g (W/kg) SAR, averaged over 1g (W/kg)SAR, averaged over 1g (W/kg) SAR, averaged over 1g (W/kg) Mode and Mode and Mode and Mode and Ban BanBan Band dd d MMC MMCMMC MMC- -- -card card card card option optionoption option Body BodyBody Body- -- -worn location worn location worn location worn location setup setupsetup setup Ch Ch Ch Ch 128 128128 128 824 824 824 824 MHz MHzMHz MHz Ch Ch Ch Ch 190 190190 190 836 836 836 836 MHz MHzMHz MHz Ch Ch Ch Ch 251 251251 …

Text truncated - open the document above for the full version.

DOCUMENT NAME: NHL-12_503.DOC 1 (46) TCC Tampere Bluetooth test report for NHL-12 The test results are valid for the tested unit(s) only. This report shall not be reproduced except in full, without the written permission of the testing laboratory. TCC Tampere Box 68 FIN-33721 TAMPERE FINLAND Tel. +358 7180 46800 Fax. +358 7180 46880 DOCUMENT NAME: NHL-12_503.DOC 2 (46) TCC Tampere CONTENTS 1 LABORATORY INFORMATION................................................................................................................4 2 CUSTOMER INFORMATION....................................................................................................................4 3 SUMMARY OF TEST RESULTS...............................................................................................................5 4 EUT INFORMATION..................................................................................................................................6 4.1 EUT description..................................................................................................................................6 5 EUT TEST SETUPS..................................................................................................................................6 5.1 Setup A (conducted measurements)..................................................................................................7 5.2 Setup B (radiated measurements)......................................................................................................7 6 STANDARDS AND MEASUREMENT METHODS....................................................................................8 7 CARRIER FREQUENCY SEPARATION...................................................................................................9 7.1 EUT operation mode...........................................................................................................................9 7.2 Limits and results................................................................................................................................9 7.3 Screen shot.......................................................................................................................................10 8 NUMBER OF HOPPING FREQUENCIES..............................................................................................11 8.1 EUT operation mode.........................................................................................................................11 8.2 Limits and results..............................................................................................................................11 8.3 Screen shot.......................................................................................................................................12 9 TIME OF OCCUPANCY..........................................................................................................................13 9.1 Page mode.......................................................................................................................................13 9.1.1 EUT operation mode.................................................................................................................13 9.2 Limits and results..............................................................................................................................13 9.3 Screen shots.....................................................................................................................................14 9.4 Inquiry mode.....................................................................................................................................17 9.4.1 EUT operation mode.................................................................................................................17 9.5 Limits and results..............................................................................................................................17 9.6 Screen shots.....................................................................................................................................17 9.7 Connection mode..............................................................................................................................20 9.7.1 EUT operation mode.................................................................................................................20 9.7.2 Limits and results......................................................................................................................20 10 20dB BANDWIDTH..................…

Text truncated - open the document above for the full version.
