QURNHL-12XGSM 850/1800/1900 Cellular Telephone w/Bluetooth

09 May 2004 Exhibit 08: User Guide FCC ID: QURNHL-12X IC: 661AC-NHL12 Applicant: Nokia Corporation Copyright © 2004 Nokia. All rights reserved. USER GUIDE Following is a preliminary draft copy of the US English User Guide for FCC ID: QURNHL-12X, IC: 661AC-NHL12 Thank you for purchasing your new Nokiaphone. We’re here for you! www.nokiahowto.comLearn how to use your new Nokia phone. www.nokia.com/usGet answers to your questions.Register your phone’s limited warranty so we can better serve your needs! Nokia Inc.7725 Woodland Center Boulevard, Suite 150, Tampa FL 33614 . Phone: 1.888.NOKIA.2U (1.888.665.4228) Fax: 1.813.249.9619 . Text Telephone/Telecommunication Device for the Deaf (TTY/TDD) Users: 1.800.24.NOKIA (1.800.246.6542) PRINTED IN CANADA User Guide UserGuide_test 1/26/04 1:04 PM Page 1 Nokia 6620 User Guide Phone informationNumbersWhere is the number? My number Wireless service provider Voice mail number Wireless service provider Wireless provider’s number Wireless service provider Provider’s customer care Wireless service provider Model number Label on back of phone (under battery) Type number Label on back of phone (under battery) IMEI number Label on back of phone (under battery) 6620.ENv1_9310640.book Page i Wednesday, May 5, 2004 2:44 PM NOTES 6620.ENv1_9310640.book Page ii Wednesday, May 5, 2004 2:44 PM Nokia 6620 User Guide iiiCopyright © 2004 Nokia LEGAL INFORMATION DECLARATION OF CONFORMITY We, NOKIA CORPORATION declare under our sole responsibility that the product NHL-12 is in conformity with the provisions of the following Council Directive: 1999/5/EC. A copy of the Declaration of Conformity can be found at http://www.nokia.com/phones/declaration_of_conformity PART NO. 9310640, ISSUE NO. 1 Copyright © 2004 Nokia. All rights reserved. Nokia, Nokia 6620, Nokia Connecting People, Pop-Port, and the Nokia Original Enhancements logos are trademarks or registered trademarks of Nokia Corporation. Other company and product names mentioned herein may be trademarks or trade names of their respective owners. Nokia tune is a sound mark of Nokia Corporation. This product includes software licensed from Symbian Ltd © 1998-2004. Symbian and Symbian OS are trademarks of Symbian Ltd. Printed in Canada, May 2004 Includes RSA BSAFE cryptographic or security protocol software from RSA Security. Java is a trademark of Sun Microsystems, Inc. US Patent No 5818437 and other pending patents. T9 text input software Copyright (C) 1997-2003. Tegic Communications, Inc. All rights reserved. Bluetooth is a registered trademark of Bluetooth SIG, Inc. USE OF THIS PRODUCT IN ANY MANNER THAT COMPLIES WITH THE MPEG-4 VISUAL STANDARD IS PROHIBITED, EXCEPT FOR USE DIRECTLY RELATED TO (A) DATA OR INFORMATION (i) GENERATED BY AND OBTAINED WITHOUT CHARGE FROM A CONSUMER NOT THEREBY ENGAGED IN A BUSINESS ENTERPRISE, AND (ii) FOR PERSONAL USE ONLY; AND (B) OTHER USES SPECIFICALLY AND SEPARATELY LICENSED BY MPEG LA, L.L.C. The information contained in this user guide was written for the Nokia 6620 product. Nokia operates a policy of ongoing development. Nokia reserves the right to make changes to any of the products described in this document without prior notice. 168 6620.ENv1_9310640.book Page iii Wednesday, May 5, 2004 2:44 PM ivCopyright © 2004 Nokia UNDER NO CIRCUMSTANCES SHALL NOKIA BE RESPONSIBLE FOR ANY LOSS OF DATA OR INCOME OR ANY SPECIAL, INCIDENTAL, AND CONSEQUENTIAL OR INDIRECT DAMAGES HOWSOEVER CAUSED. THE CONTENTS OF THIS DOCUMENT ARE PROVIDED "AS IS." EXCEPT AS REQUIRED BY APPLICABLE LAW, NO WARRANTIES OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE MADE IN RELATION TO THE ACCURACY AND RELIABILITY OR CONTENTS OF THIS DOCUMENT. NOKIA RESERVES THE RIGHT TO REVISE THIS DOCUMENT OR WITHDRAW IT AT ANY TIME WITHOUT PRIOR NOTICE. EXPORT CONTROLS This device may contain commodities, technology or software subject to export laws and regulations from the US and other countries. Diversion contrary to law is prohibited. FCC/INDUSTRY CANADA NOTICE Your device may cause TV or radio interference (for example, when using a telephone in close proximity to receiving equipment). The FCC or Industry Canada can require you to stop using your telephone if such interference cannot be eliminated. If you require assistance, contact your local service facility. This device complies with part 15 of the FCC rules. Operation is subject to the condition that this device does not cause harmful interference. Manufactured or sold under one or more of the following US patents: 48688464945633500137251011755151946517392752128345230091 52415835311151531728353316385335362535332853714815378935 53847825396657540094954164355442521544636454794765526366 55531255557639556582155703695581244560070856252745677620 56920325729541576056857941425802465580941358270825839101 58448845845219587068358841035889770590782359125705914690 59147965917868592082659563325956625595663359663785977887 59871375991857600611460118536014551601457360261616035189 60382386043760604719660497966050415605543960601936069923 60727876081732608492060849626094587609796461057846112099 61156176119180612184661285096138091614096661442436144676 61482096151485615150761636096164547616724861852956188909 62495846259312626633062723616282436629266862952866311054 63141666324389632441263472186363259637036263703896377820 63814686392660640095864531796463278647047064873976522670 61989284969192526678253902235444816548708456403955664053 56994825701392572207457549765805301583588958571515859843 58621785898925593023359466515960354596038959639016005857 60119716031827611877561283226137789616724861700736178535 61953386199035624007662663216285888635675963778036430163 64383706456237RE325805818437595354160115544558302 6620.ENv1_9310640.book Page iv Wednesday, May 5, 2004 2:44 PM Nokia 6620 User Guide vCopyright © 2004 Nokia Nokia 6620 phone at a glance Send key End key Power key (on top) Charger con…

Text truncated - open the document above for the full version.

72Copyright © 2004 Nokia 9 Tools and applications Select Menu > Tools to access common tools and applications. For instructions on voice mail and 1-touch dialing, see “Call voice mail” on page 20 and “1-touch dialing” on page 21. • APPLICATION MANAGER Select Menu > Tools > Manager. In App. manager you can install new Symbian operating system applications (SIS files) and Java applications (Java MIDlets and MIDlet suites). You can also update and uninstall applications from the phone and monitor the installation history. Applications in App. manager use shared memory. See "Shared memory" on page 3. Options in App. manager are Install, View details, View certificate, Update, Go to web address, Remove, View log, Send log, Settings, App. downloads, Help, and Exit. When you open App. manager, you can see a list of: •Applications saved in App. manager •Partially installed applications (indicated by ) •Fully installed applications that you can remove (indicated by ) Note: You can only use Symbian operating system applications with a .SIS extension. Note: Your phone supports J2ME™Java applications. Do not download PersonalJava™ applications to your phone; they cannot be installed. Install applications You can install applications that are specifically intended for this phone and suitable for the Symbian operating system. If you install an application that is not intended specifically for this phone, it may function and look different from what was originally intended. Applications may be downloaded to your phone during browsing, received as attachments in multimedia messages or e-mails, or received by Bluetooth connection or by infrared from another device, for example a phone or a compatible PC. If you are using PC Suite to transfer the application, place it in the Installed files folder in the file manager. 6620.ENv1_9310640.book Page 72 Wednesday, May 5, 2004 2:44 PM Nokia 6620 User Guide 73Copyright © 2004 Nokia Tools and applications Important: Only install applications from sources that offer adequate protection against viruses and other harmful software. To increase protection, the application installation system uses digital signatures and certificates for applications. Do not install the application if App. manager gives a security warning during installation. Important: If you install an application that contains an update or repair to an existing application, you can only restore the original application if you have the original application or a full backup copy of the removed application. To restore the original application, first remove the updated or repaired application and then install again from the original application or the backup copy. During installation, the phone checks the integrity of the application to be installed. The phone shows information about the checks being carried out, and you are given options on whether to continue or cancel the installation. Once the phone has checked the integrity of the application, it is installed on your phone. INSTALL APPLICATIONS Open App. manager, scroll to the application, and select Options > Install to start the installation. You can also search the phone memory or the memory card, select the application, and press the joystick to start the installation. Some applications may give the option of partial installation, allowing you to select the particular components of an application that you want to install. If you are installing an application without a digital signature or a certificate, the phone warns you of the risks. Continue installation only if you are absolutely sure of the origin and contents of the application. INSTALL JAVA™ APPLICATIONS The .JAR file is required for installation. If it is missing, the phone may ask you to download it. If there is no access point defined for App. manager, you will be asked to select one. When you are downloading the .JAR file, you may need to enter a user name and password to access the server. You obtain these from the supplier or manufacturer of the application. •To start a data connection and to view extra information about the application, scroll to it and select Options > Go to web address. •To start a data connection and check if there is an update available for the application, scroll to it and select Options > Update. 6620.ENv1_9310640.book Page 73 Wednesday, May 5, 2004 2:44 PM 74Copyright © 2004 Nokia JAVA SETTINGS To change the default access point that a Java application uses for downloading extra data, select Options > Settings > Access point. See "Access points" on page 64. To change the security settings that determine the actions that a Java application is permitted to do, select Options > Settings. Not all Java applications permit you to change the security settings. Remove an application 1Scroll to the application and select Options > Remove. 2Press Yes to confirm the removal. Important: If you remove an application, you can only re-install it if you have the original application or a full backup of the removed application. If you remove an application, you may no longer be able to open documents created with that application. If another application depends on the application that you removed, the other application may stop working. Refer to the documentation of the installed application for details. • FILE MANAGER Select Menu > Tools > File mngr. Options in File manager are Open, Send, Delete, Move to folder, Copy to folder, New folder, Mark/ Unmark, Rename, Find, Receive via infrared, View details, Memory details, Help, and Exit. In File manager, you can browse, open, and manage files and folders in the phone memory or on the memory card, if you use one. Open File manager to see a list of the folders in the phone memory. Scroll right to see the folders on the memory card, if you use one. You can browse, open, and create folders, mark, copy and move items to folders. See "Common actions for all applications" on page 17. Note: Not all folders are visible in File manager…

Text truncated - open the document above for the full version.

NOKIA CORPORATION Nokia Multimedia Mattilanniemi 6 FIN-40100 JYVÄSKYLÄ FINLAND Tel. +358 7180 08000 Fax +358 7180 78000 May 17, 2004 Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD. 21046 Attention: Equipment Authorization Branch TEST RESULT VALIDY BETWEEN QURNHL-12 AND QURNHL-12X Radio frequency circuitry and radio frequency circuitry related software have been modified in QURNHL-12X compared to QURNHL-12. Reason for these modifications have been poor radiated power behavior in GSM1900 band. Input level for radio frequency power amplifier has been arisen with two changes. First, values changed in two components C7008 from 2p2 to 1p5 and C7011 from 2p7 to 1p8. Then parameters in terminal software have been changed and temperature compensation for GSM1900 power levels has been added for better temperature behavior. After these changes high power tuning target has been arisen on GSM1900 band with 0.5 dB to 30.0 dBm. This gives 0.5 dB more to radiated power in GSM1900 band. Second modification is matching circuit (L7005 2n2H and C7029 1p0), which has been added to GMS1800/GSM1900 power amplifier output. This gives 0.5 dB more to radiated power in GSM1900 band. Therefore Bluetooth (Bluetooth test report for NHL-12), EMC (EMC test report for NHL-12) and GSM850 (GSM850 test report for NHL-12) test results of QURNHL-12 are valid also for QURNHL-12X. However, radiated RF output power in GSM850 has been measured with the same EUT that SAR is measured. Valid RF power output results for QURNHL-12X are presented in test reports (No. 1032207 and No. 1032208 by Nemko) and in form 731. NOKIA CORPORATION Antti Tenhunen Product Program Manager Nokia Multimedia, Jyväskylä

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 May 24, 2004 RE: FCC ID: QURNHL-12X_ATCB001359 Attention: Esa Hakala I have a few comments on this Application. 1. Please note that part 15 devices require block diagrams in accordance with 2.1033. Please note that the block diagram provided does not list the frequencies of operation. While this is a Bluetooth and this is generally known and while it is clear that the phone provides 12MHz, the requirements still need to be met in reporting the operating frequency at the antenna of the BT. Dennis Ward mailto:[email protected] The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

RESPONSE 1 (1) Nokia Corporation Esa Hakala 05/25/2004 1. Please note that part 15 devices require block diagrams in accordance with 2.1033. Please note that the block diagram provided does not list the frequencies of operation. While this is a Bluetooth and this is generally known and while it is clear that the phone provides 12MHz, the requirements still need to be met in reporting the operating frequency at the antenna of the BT. You are absolutely correct, new exhibit containing frequency information has been uploaded into your server. Sincerely, Esa Hakala

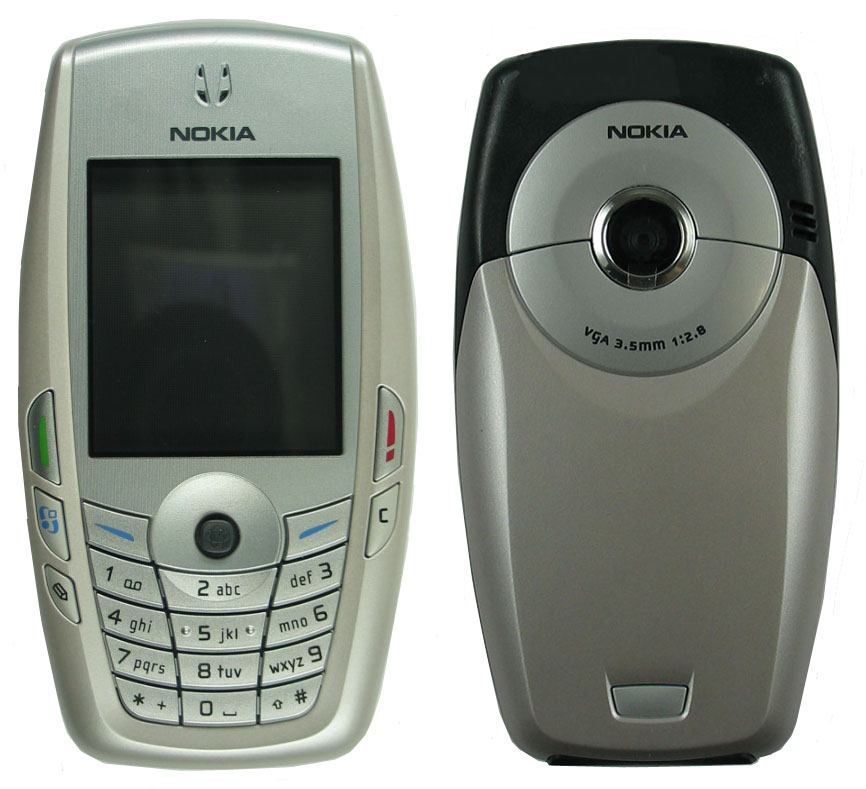

09 May 2004 Exhibit 03: External Photographs FCC ID: QURNHL-12X IC: 661AC-NHL12 Applicant: Nokia Corporation Copyright © 2004 Nokia. All rights reserved. 09 May 2004 Exhibit 03: External Photographs FCC ID: QURNHL-12X IC: 661AC-NHL12 Applicant: Nokia Corporation Copyright © 2004 Nokia. All rights reserved.

09 May 2004 Exhibit 01: Type Label Position FCC ID: QURNHL-12X IC: 661AC-NHL12 Applicant: Nokia Corporation Copyright © 2004 Nokia. All rights reserved. IMEI: XXXXXX/XX/XXXXXX/X Code: XXXXXXXMMYYDDFL NOKIA MADE IN BRAZIL INDÚSTRIA BRASILEIRA 168 09 May 2004 Exhibit 01: Type Labels FCC ID: QURNHL-12X IC: 661AC-NHL12 Applicant: Nokia Corporation Copyright © 2004 Nokia. All rights reserved. NOKIA CORPORATION Nokia Multimedia Mattilanniemi 6 FIN-40100 JYVÄSKYLÄ FINLAND Tel. +358 7180 08000 Fax +358 7180 78000 May 9, 2004 Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD. 21046 Attention: Equipment Authorization Branch COMPLIANCE STATEMENT OF QURNHL-12X The compliance statement can be seen in User Guide of QURNHL-12X because the size of the handportable QURNHL-12X and its identification label are so small that the compliance statement cannot be printed visible enough. NOKIA CORPORATION Antti Tenhunen Product Program Manager Nokia Multimedia, Jyväskylä

09 May 2004 Exhibit 09: Internal Photographs FCC ID: QURNHL-12X IC: 661AC-NHL12 Applicant: Nokia Corporation Copyright © 2004 Nokia. All rights reserved. 09 May 2004 Exhibit 09: Internal Photographs FCC ID: QURNHL-12X IC: 661AC-NHL12 Applicant: Nokia Corporation Copyright © 2004 Nokia. All rights reserved. 09 May 2004 Exhibit 09: Internal Photographs FCC ID: QURNHL-12X IC: 661AC-NHL12 Applicant: Nokia Corporation Copyright © 2004 Nokia. All rights reserved. 09 May 2004 Exhibit 09: Internal Photographs FCC ID: QURNHL-12X IC: 661AC-NHL12 Applicant: Nokia Corporation Copyright © 2004 Nokia. All rights reserved.

09 May 2004 Exhibit 09: Internal Photographs, Bluetooth FCC ID: QURNHL-12X IC: 661AC-NHL12 Applicant: Nokia Corporation Copyright © 2004 Nokia. All rights reserved. BLUETOOTH

Salo SaloSalo Salo {Quality Mark} ____________________________________________________________________________ SAR Report Salo_SAR0418_03 Applicant: Nokia Corporation Type: NHL-12 Copyright  2004 TCC Salo 2/61 CONTENT CONTENTCONTENT CONTENTS SS S 1. 1.1. 1. SUMMARY OF SAR TEST SUMMARY OF SAR TEST SUMMARY OF SAR TEST SUMMARY OF SAR TEST REPORT REPORTREPORT REPORT................................ ................................................................ ................................................................ ................................................................ ................................................................ ................................................................ ................................................................ ................................................................ ............................................. .......................... ............. 3 33 3 1.1 TEST DETAILS.............................................................................................................................................................................3 1.2 MAXIMUM RESULTS....................................................................................................................................................................3 1.2.1 Head Configuration........................................................................................................................................................ 3 1.2.2 Body Worn Configuration ............................................................................................................................................ 3 1.2.3 Maximum Drift ................................................................................................................................................................ 4 1.2.4 Measurement Uncertainty ........................................................................................................................................... 4 2. 2.2. 2. DESCRIPTION OF THE D DESCRIPTION OF THE DDESCRIPTION OF THE D DESCRIPTION OF THE DEVICE UNDER TEST EVICE UNDER TESTEVICE UNDER TEST EVICE UNDER TEST................................ ................................................................ ................................................................ ................................................................ ................................................................ ................................................................ ........................................................... ...................................................... ........................... 4 44 4 2.1 PICTURE OF THE DEVICE..............................................................................................................................................................4 2.2 DESCRIPTION OF THE ANTENNA..................................................................................................................................................4 3. 3.3. 3. TEST CONDITIONS TEST CONDITIONSTEST CONDITIONS TEST CONDITIONS ................................ ................................................................ ................................................................ ................................................................ ................................................................ ................................................................ ................................................................ ................................................................ ................................................................ ................................................................ ..................................... .......... ..... 5 55 5 3.1 TEMPERATURE AND HUMIDITY....................................................................................................................................................5 3.2 TEST SIGNAL, FREQUENCIES, AND OUTPUT POWER....................................................................................................................5 4. 4.4. 4. DESCRIPTION OF THE T DESCRIPTION OF THE TDESCRIPTION OF THE T DESCRIPTION OF THE TEST E EST EEST E EST EQUIPMENT QUIPMENTQUIPMENT QUIPMENT ................................ ................................................................ ................................................................ ................................................................ ................................................................ ................................................................ ............................................................... .............................................................. ............................... 5 55 5 4.1 MEASUREMENT SYSTEM AND COMPONENTS................................................................................................................................5 4.1.1 Isotropic E-field Probe 1396........................................................................................................................................ 6 4.2 PHANTOMS................................................................................................................................................................................7 4.3 SIMULATING LIQUIDS.................................................................................................................................................................7 4.3.1 Liquid Recipes.................................................................................................................................................................. 7 4.3.2 Verification of the System ............................................................................................................................................ 8 4.3.3 Tissue Simulants used in the Measurements ..............................................…

Text truncated - open the document above for the full version.

DOCUMENT NAME: NHL-12_503.DOC 1 (46) TCC Tampere Bluetooth test report for NHL-12 The test results are valid for the tested unit(s) only. This report shall not be reproduced except in full, without the written permission of the testing laboratory. TCC Tampere Box 68 FIN-33721 TAMPERE FINLAND Tel. +358 7180 46800 Fax. +358 7180 46880 DOCUMENT NAME: NHL-12_503.DOC 2 (46) TCC Tampere CONTENTS 1 LABORATORY INFORMATION................................................................................................................4 2 CUSTOMER INFORMATION....................................................................................................................4 3 SUMMARY OF TEST RESULTS...............................................................................................................5 4 EUT INFORMATION..................................................................................................................................6 4.1 EUT description..................................................................................................................................6 5 EUT TEST SETUPS..................................................................................................................................6 5.1 Setup A (conducted measurements)..................................................................................................7 5.2 Setup B (radiated measurements)......................................................................................................7 6 STANDARDS AND MEASUREMENT METHODS....................................................................................8 7 CARRIER FREQUENCY SEPARATION...................................................................................................9 7.1 EUT operation mode...........................................................................................................................9 7.2 Limits and results................................................................................................................................9 7.3 Screen shot.......................................................................................................................................10 8 NUMBER OF HOPPING FREQUENCIES..............................................................................................11 8.1 EUT operation mode.........................................................................................................................11 8.2 Limits and results..............................................................................................................................11 8.3 Screen shot.......................................................................................................................................12 9 TIME OF OCCUPANCY..........................................................................................................................13 9.1 Page mode.......................................................................................................................................13 9.1.1 EUT operation mode.................................................................................................................13 9.2 Limits and results..............................................................................................................................13 9.3 Screen shots.....................................................................................................................................14 9.4 Inquiry mode.....................................................................................................................................17 9.4.1 EUT operation mode.................................................................................................................17 9.5 Limits and results..............................................................................................................................17 9.6 Screen shots.....................................................................................................................................17 9.7 Connection mode..............................................................................................................................20 9.7.1 EUT operation mode.................................................................................................................20 9.7.2 Limits and results......................................................................................................................20 10 20dB BANDWIDTH..................................................................................................................................22 10.1 EUT operation mode.........................................................................................................................22 10.2 Limits and results..............................................................................................................................22 10.3 Screen shots.....................................................................................................................................23 11 PEAK OUTPUT POWER.........................................................................................................................26 11.1 EUT operation mode.........................................................................................................................26 11.2 Limits and results..............................................................................................................................26 11.3 Screen shots.....................................................................................................................................27 12 BAND-EDGE COMPLIANCE OF RF CONDUCTED EMISSIONS.........................................................30 12.1 Hopping enabled............................................................................................…

Text truncated - open the document above for the full version.

NHL-12 Test setup photographs.doc 1 (1) TCC Tampere 1. EUT TEST SETUPS 1.1 RF Output power measurement 1.2 AC powerline emission measurement 1.3 Radiated emission measurement TCC Tampere P.O. Box 68 FIN -33721 Tam…
