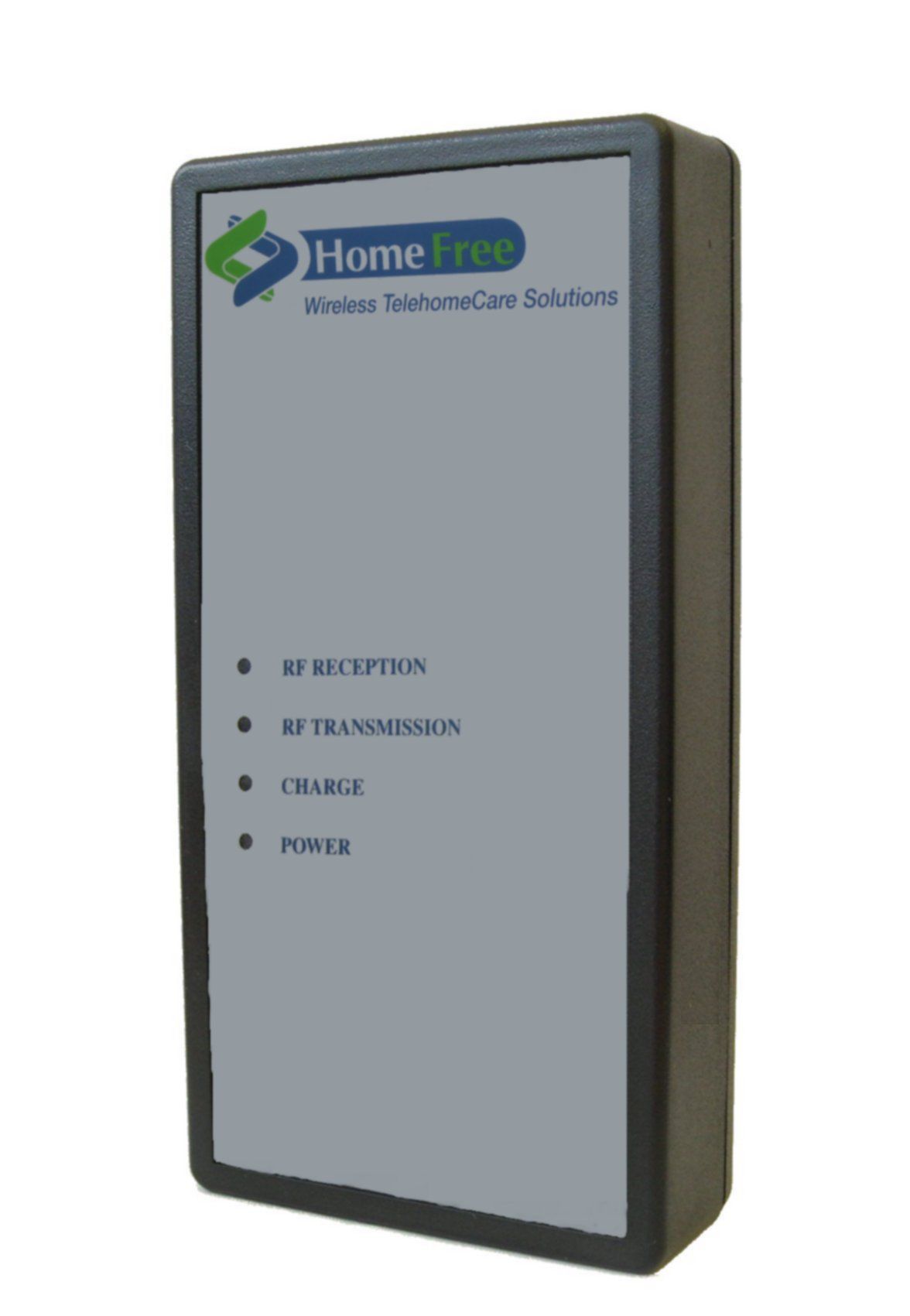

QUX-IDEU-800Wireless Monitoring Unit (iDEU-800)

HOMEFREE AT CARE CENTERS WIRELESS MONITORING UNIT (iDEU 800/iDEU 800-2) OPERATIONAL GUIDE July 2003 iDEU-800/ iDEU-800-2 Operational Guide F-3 Information in this documentation is subject to change without notice and does not represent a commitment on part of HomeFree Systems Ltd. Any unauthorized duplication or use of this documentation, in whole or in part, in print, or in any other storage or retrieval system is prohibited. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form by any means for any purpose other than the purchaser’s personal use without the permission of HomeFree Systems Ltd. © 2002 HomeFree Systems Ltd. All rights reserved. Unless otherwise noted, all names of companies, products, street addresses, and persons contained herein are part of a completely fictitious scenario and are designed solely to document the use of a HomeFree product. HomeFree Systems USA Headquarters: HomeFree Inc. 6629 West Mill Road Milwaukee, WI 53218 Toll Free: 1-800-606-0661 Tel: 414-358-8200 Fax: 414-358-8100 e-mail: [email protected] International Headquarters: HomeFree Systems Ltd. 2 Ha-Barzel St., P.O. Box 13236, 61132 Tel Aviv, Israel Tel: +972-3-767-1900 Fax: +972-3-767-1901 e-mail: [email protected] Visit us at: www.homefreesys.com iDEU-800/ iDEU-800-2 Operational Guide TC-1 TABLE OF CONTENTS Section Page 1 INTRODUCTION..............................................................................................1-1 1.1 PARTS OF THE WIRELESS MONITORING UNIT (IDEU-800).............. 1-2 1.1.1 LED Panel................................................................................. 1-3 2 MOUNTING THE WIRELESS MONITORING UNIT (IDEU-800)............2-4 2.1 PERMANENT ANCHOR/DOWEL WALL FITTING................................ 2-4 2.2 TEMPORARY VELCRO WALL FITTING.............................................. 2-5 3 ACTIVATING THE WIRELESS MONITORING UNIT .............................3-7 4 FCC NOTICES...................................................................................................4-8 iDEU-800/ iDEU-800-2 Operational Guide TF-1 TABLE OF FIGURES Section Page Figure 1-1 Wireless Monitoring Unit (iDEU-800)................................. 1-2 iDEU-800/ iDEU-800-2 Operational Guide 1-1 1 Introduction The new improved Wireless Monitoring Unit (iDEU-800) is a versatile combination of both transmitter and receiver that is designed to extend the transmission/reception range of HomeFree at Care Centers systems. The Wireless Monitoring Unit (iDEU-800) is one of many specifically positioned mini control units that are placed at various locations throughout the facility and are capable of receiving transmission signals from multiple sources and then transferring these signals to the next Wireless Monitoring Unit (iDEU-800) in the network, or directly to the Wireless Monitoring Base Unit. The Wireless Monitoring Unit (iDEU-800) transmits on an American FCC tested and approved frequency; whereas the European version (iDEU-800) transmits on a European tested and approved frequency. From a user interface and functional point of view, the two models are identical; therefore this operational guide serves both versions. 1.1 Parts of the Wireless Monitoring Unit (iDEU-800) Figure 1-1 Wireless Monitoring Unit (iDEU-800) Control Usage and Description LED Panel Used to show transmission and reception indication, backup battery charge status and external power supply status. 7.5 VDC Power Socket Used to connect the Wireless Monitoring Unit to the external power supply LED Panel 7.5 VDC Power Socket iDEU-800/ iDEU-800-2 Operational Guide 1-2 iDEU-800/ iDEU-800-2 Operational Guide 1-3 1.1.1 LED Panel The faceplate of the Wireless Monitoring Unit (iDEU-800) comprises of 4 LEDs (Light emitting diodes). The purpose of each LED is explained in the following table: LED Description and Purpose Reception Blinks when receiving transmission signals Transmission Blinks when transmitting signals Charge Steady light indicates internal battery is fully charged. Charge LED blinks when internal battery is not fully charged Power Steady light indicates external power OK. Power LED blinks when external power is disconnected 2 Mounting the Wireless Monitoring Unit (iDEU-800) For a Wireless Monitoring Unit to receive and transmit signals with maximum efficiency, it should be mounted on a wall or flat surface and positioned upright. The Wireless Monitoring Unit should also be mounted within reach of a power outlet (an electrician my need to install a power outlet near the chosen Wireless Monitoring Unit location). Note that the distance between the wall and the Wireless Monitoring Unit should be at least 10 cm. There are two ways to mount the Wireless Monitoring Unit. The first is to mount the Wireless Monitoring Unit on the wall using the fixed mounting brackets together with the dowel and screw fitting, and the second is to use the fixed mounting brackets and a Velcro fitting. Both of these fitting options are supplied with the Wireless Monitoring Unit. 2.1 Permanent Anchor/Dowel Wall Fitting The anchor/dowel wall fitting is generally used for installing the Wireless Monitoring Unit in a permanent location. In order to mount the Wireless Monitoring Unit using the anchor/dowel wall fittings, perform the following: 1. Place the Wireless Monitoring Unit on its faceplate with the fixed mounting brackets facing upwards. 2. Make a drilling template by tracing around the mounting brackets on the back of the Wireless Monitoring Unit onto a piece of A4 paper, not forgetting to mark the holes for the anchor/dowels. iDEU-800/ iDEU-800-2 Operational Guide 2-4 iDEU-800/ iDEU-800-2 Operational Guide 2-5 3. Using the template, drill two holes in the wall and place the supplied wall anchors/dowels into these holes. 4. Insert the supplied bolts/screws into the wall dowels, ensuring not to tighten the bolts/screws completely. 5. Hold…

Text truncated - open the document above for the full version.

TCB Confidentiality Form 27/07/2003 EMCCert DR. RAŠEK Boelwiese 5 91320 Ebermannstadt Germany Tel.: +49-9194-9331 Fax: +49-9194-7964-84 E-mail: [email protected] URL: http://www.emcc.de Gentlemen: This letter is to comply with Section 0.457(d)(2)(i) pertaining to confidential material. HomeFree would like the following document regarding this submission for FCC ID: QUX-IDEU-800 to be kept confidential. Schematics: 1 Page. The above material contains trade secrets or technical data, which would customarily be guarded from competitors. We do not want this document to be accessible to the general public. Sincerely, Gil Gemer VP R&D

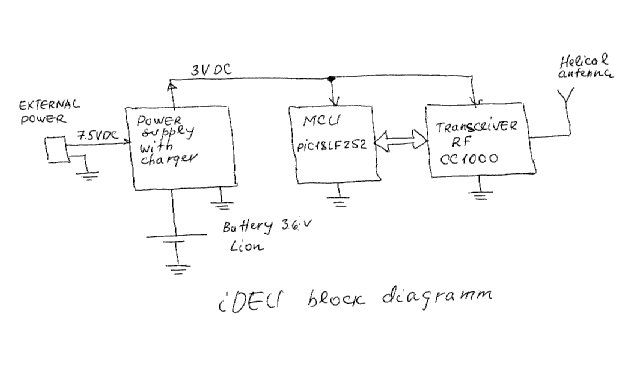

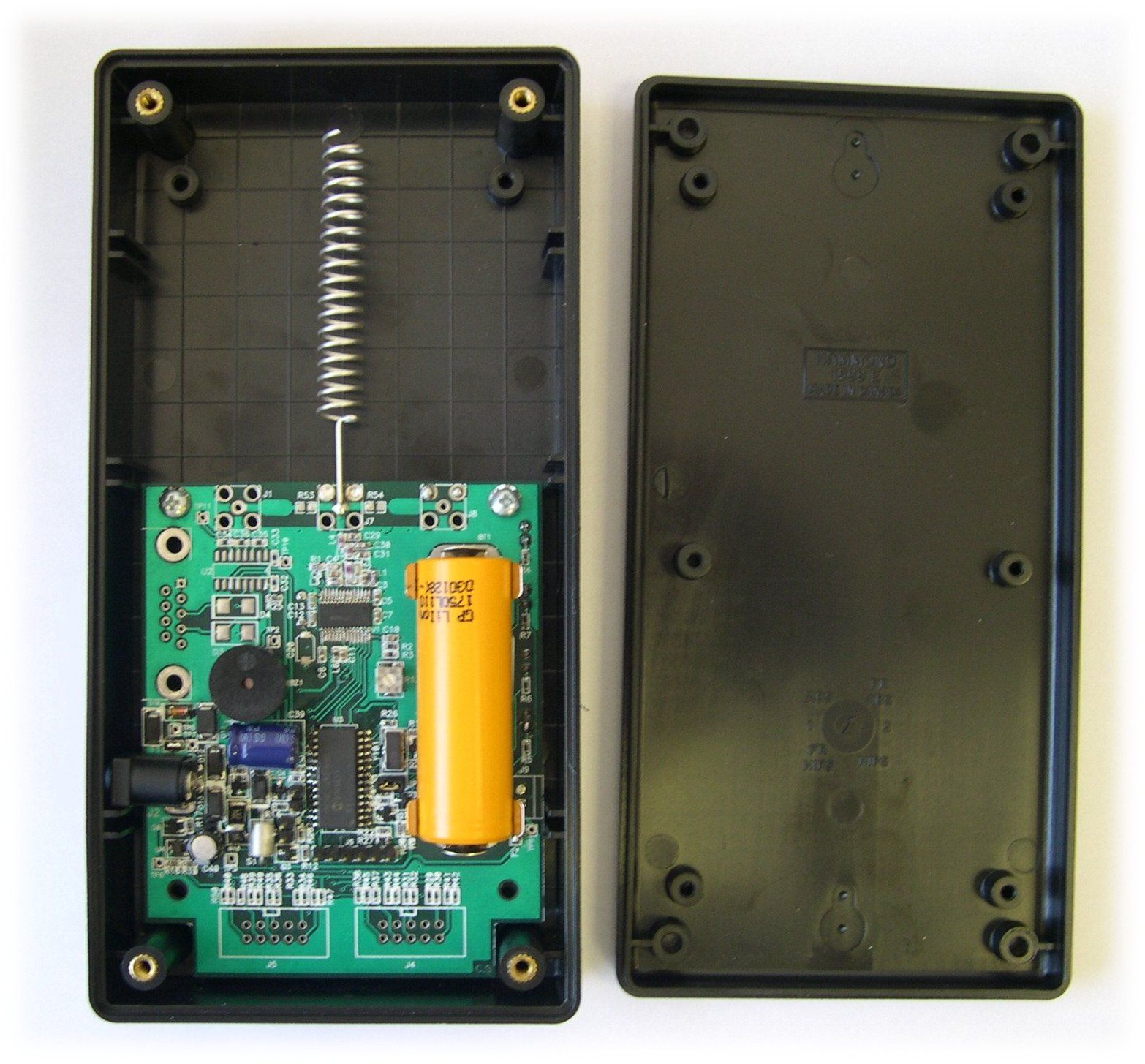

iDEU-800/ iDEU-800-2 Operational Guide 1-1 1 Introduction The new improved Wireless Monitoring Unit (iDEU-800) is a versatile combination of both transmitter and receiver that is designed to extend the transmission/reception range of HomeFree at Care Centers systems. The Wireless Monitoring Unit (iDEU-800) is one of many specifically positioned mini control units that are placed at various locations throughout the facility and are capable of receiving transmission signals from multiple sources and then transferring these signals to the next Wireless Monitoring Unit (iDEU-800) in the network, or directly to the Wireless Monitoring Base Unit. The Wireless Monitoring Unit (iDEU-800) transmits on an American FCC tested and approved frequency; whereas the European version (iDEU-800) transmits on a European tested and approved frequency. From a user interface and functional point of view, the two models are identical; therefore this operational guide serves both versions.

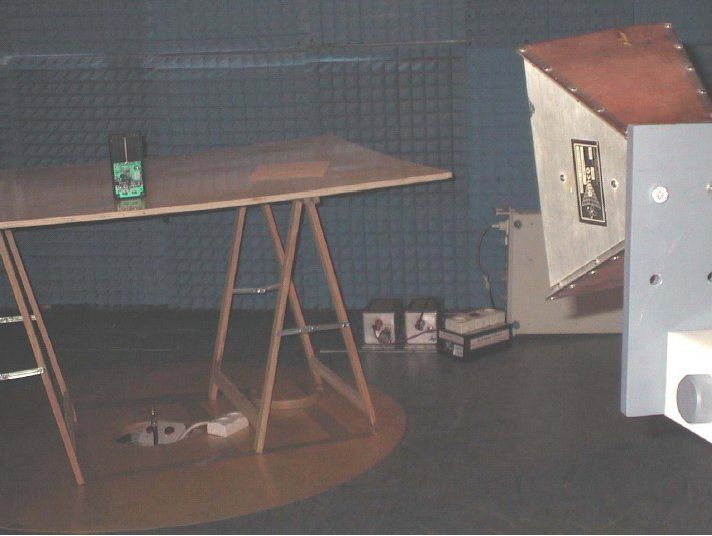

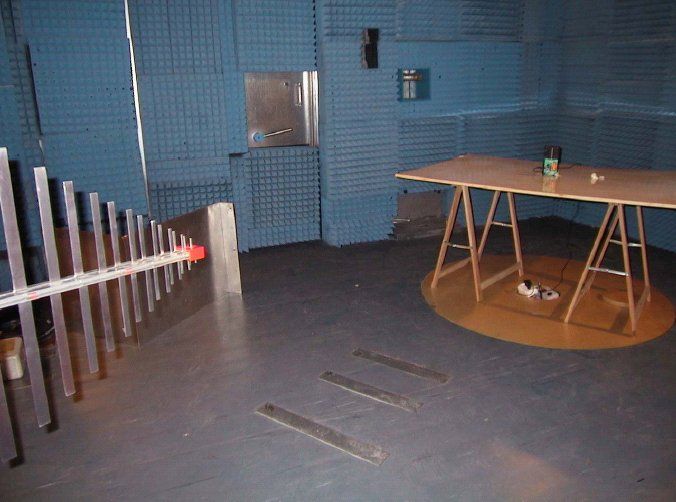

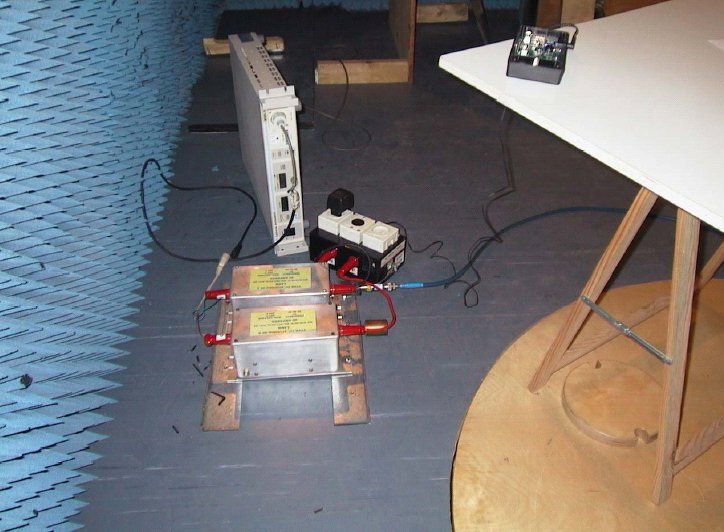

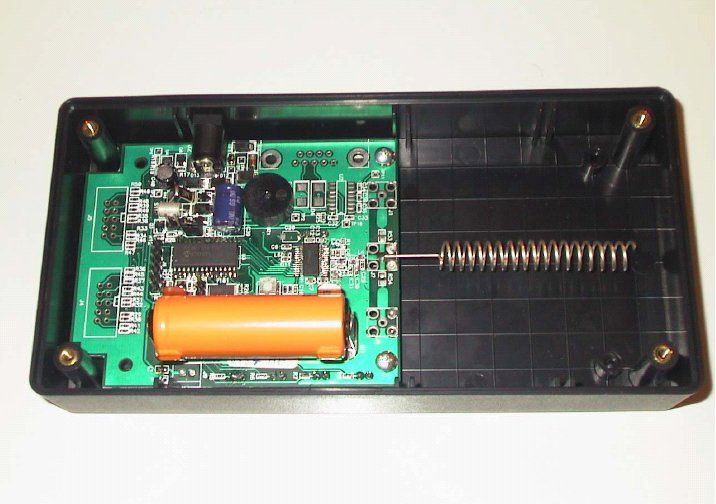

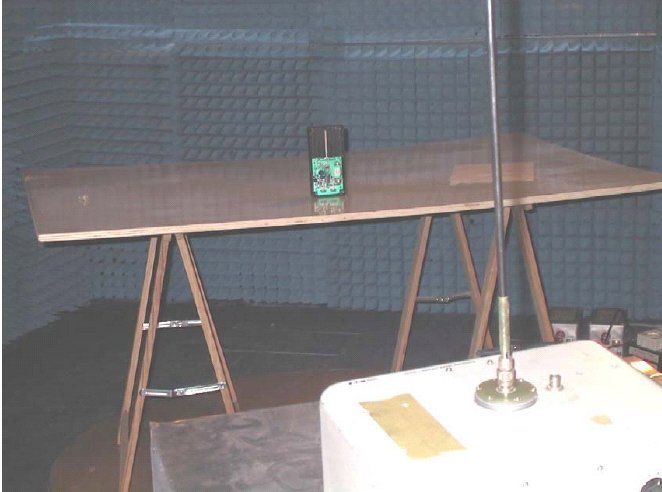

REV ∆ Description Sheet Effected Date Drawn Checked A 27.07.03 D.Lanuel S.Cohen EMC Laboratory FCCID :QUX-IDEU-800 Manufactured by HomeFree System Ltd. EMC Test Report According FCC Part 15 Requirements JUNE 2003 Function/Title Name Signature Date Prepared by Test Engineer D.Lanuel 27.07.03 Approved by EMC Lab. Manager S.Cohen 27.07.03 IDEU Unit EMI Test Report EMC/30020FC03071 2/58 Table of Contents Para Page 1 TEST DATA INFORMATION ...................................................................................................................3 2 TEST SUMMARY AND SIGNATURES. ......................................................................................................4 3 GENERAL INFORMATION ......................................................................................................................5 4 ADMINISTRATIVE DATA .......................................................................................................................6 5 E.U.T INFORMATION............................................................................................................................7 6 RADIATED EMISSION-TEST PROCEDURE ...............................................................................................8 7 CONDUCTED EMISSIONS, AC POWER LEADS - TEST PROCEDURE ......................................................... 12 8 BANDWIDTH OF THE EMISSION PART 15.231—TEST RESULTS ............................................................. 14 9 FIELD STRENGTH OF FUNDAMENTAL PART 15.231-TEST RESULTS ....................................................... 15 10 RADIATED EMISSION PART 15.231 & 15.205-TEST RESULTS ................................................................ 17 11 RADIATED EMISSION PART 15.109-TEST RESULTS.............................................................................. 20 12 CONDUCTED EMISSIONS, AC POWER LEADS ACCORDING TO FCC 15.107 & 15.207............................... 23 13 PLOTS............................................................................................................................................... 25 14 PICTURES ......................................................................................................................................... 56 IDEU Unit EMI Test Report EMC/30020FC03071 3/58 1 TEST DATA INFORMATION a. Description of equipment Under Test. Equipment Under Test: IDEU FCCID QUX-IDEU-800 Manufacturer: HomeFree System Ltd. Serial Numbers: 0001 Mode of Operation: TX & RX MODE operating frequency: 318MHZ Year of Manufacture: 2003 b. Applicant Information: Applicant: HomeFree System Ltd. Applicant Address 2, Habarzel Street Tel-Aviv Telephone: +972-3-6478871 FAX: +972-3-6478872 The testing was observed by LEV ROSMAN following applicant's personnel: c. Test Performance: Date of reception for testing: 22.07.03 Dates of testing 22.07.03 Test Laboratory Location TADIRAN EMC LAB , Hashoftim 26 Holon 58102 ISRAEL Tel: 972-3-5574476 Fax: 972-3-5575320 Applicable EMC Specification: Federal Communication Commission (FCC), Code of Federal Regulations 47, FCC Docket 89-103,Part 15: Radio Frequency Devices, Sections 15.109, 15.209,15.107, 15.207 & 15.231. IDEU Unit EMI Test Report EMC/30020FC03071 4/58 2 TEST SUMMARY AND SIGNATURES. TADIRAN EMC Laboratory has completed testing of E.U.T in accordance with the requirements of the FCC Part 15 Regulations for Class B equipment. The E.U.T was found to comply with the requirements of the FCC Part 15 Regulations given below Test Test Description Section PASS/FAIL 1 Bandwidth of the emission 15.231 PASS 2 Field strength of fundamental 15.231 PASS 3 Radiation emission 15.109 PASS 4 Radiation emission 15.231 & 15.205 PASS 5 Conducted emission 15.107 PASS 5 Conducted emission 15.207 PASS a. Test performed by: Mr. D. Lanuel Test Engineer b. Test Report prepared by: Mr. D. Lanuel Test Engineer c. Test Report Approved by: Mr. Samuel Cohen EMC Lab. Manager IDEU Unit EMI Test Report EMC/30020FC03071 5/58 3 GENERAL INFORMATION a. Specification Reference Section 15.107: Limits of Mains Terminal Interference Voltage (Conducted Emission) in the 0.15MHz to 30MHz frequency range For unintentional Radiators Section 15.207: Limits of Mains Terminal Interference Voltage (Conducted Emission) in the 0.15MHz to 30MHz frequency range For intentional Radiators Section 15.109: Limits of Radiated Interference Field Strength in the 30MHz to 1000MHz frequency range.unintentional radiators Section 15.209: Limits of Radiated Interference Field Strength in the 30MHz to 1000MHz frequency range. intentional radiators Section 15.231 Limits of Radiated Interference Field Strength in the 30MHz to 1000MHz frequency range for intentional radiators operating in frequency rang above 70MHz b. Applicable Documents. 3.1 Federal Communication Commission (FCC), Code of Federal Regulations 47, FCC Docket 89-103, Part 15: Radio Frequency Devices, Sections 15.107 & 15.109. 3.2 FCC/OET, Laboratory Measurement Procedures MP-4, July 1987, "FCC Procedures for Measuring RF Emissions from Computing Devices". 3.3 FCC/Office of Science and Technology OST-55, August 1982, "Characteristics of Open Field Test Sites". 3.4 FCC/OET, "FCC Procedure for Measuring Electromagnetic Emissions from Digital Devices", TP-5, March 1989. 3.5 FCC/OET, "Understanding the FCC Regulations Concerning Computing Devices", OST-62, May 1984 3.6 International Special Committee On Radio Interference (CISPR) Publication 16, First Edition 1977, "CISPR Specification for Radio Interference Measuring Apparatus and Measurement Methods". 3.7 American National Standard, "Specifications for Electromagnetic Noise and Field Strength Instrumentation, 9KHz to 1GHz", ANSI C63.2, 1987. 3.8 American National Standard, "Method of Measurement Electromagnetic Emissions from Low-Voltage Electrical and Electronic Equipment in the range of 9KHz to 40GHz", ANSI C63.4, 1992. IDEU Unit EMI Test Report EMC/30020FC03071 6/58 4 ADMINISTRATIVE DATA a. Scope This document descr…
